Full Port, Reduced Port and V-Port Ball Valves: Which Design Fits Your Flow Control Needs?

The Hidden Design Detail Inside Every Ball Valve

Many buyers choose a ball valve by size, material, pressure rating and connection type. These are important, but they do not fully explain how the valve will behave inside a real pipeline. A DN50 stainless steel ball valve, for example, may look correct on a piping list, but its internal bore design can change flow capacity, pressure loss, control accuracy and long-term operating performance.

This is where the difference between a full port ball valve, reduced port ball valve and V port ball valve becomes important.

From the outside, these valves may appear similar. They may have the same pipe size, the same body material, the same flange standard and even the same actuator interface. But inside the valve, the ball opening is different. A full port design has a bore close to the pipeline’s internal diameter. A reduced port design has a smaller flow opening. A V-port design uses a shaped opening to create a more controlled flow characteristic.

For manual shut-off service, many users may not think deeply about this difference. If the valve opens and closes, the job appears complete. But in automated systems, the internal bore design matters much more. When the ball valve is connected to an electric actuator, pneumatic actuator or modulating actuator, the valve becomes part of the process control strategy. Its flow behavior affects pump load, pressure stability, flow measurement, control accuracy, energy consumption and equipment protection.

A ball valve is not only a shut-off device. In many systems, it is also a flow path decision. Choosing the wrong port design can create unnecessary pressure drop, poor flow regulation, oversized pumps, unstable throttling, noise, cavitation risk or premature seat wear.

The real question is not simply, “Which ball valve fits the pipe?” The better question is, “Which internal ball design fits the flow purpose?”

Why Port Design Matters in Ball Valve Selection

The port is the opening through the ball. When the valve is open, the fluid passes through this opening. The shape and size of the port determine how freely fluid can move through the valve.

In a full port ball valve, the opening through the ball is usually close to the same size as the pipe bore. This allows fluid to pass through with minimal restriction. In many applications, the flow path looks almost like a continuous pipe when the valve is fully open.

In a reduced port ball valve, the bore through the ball is smaller than the pipe size. This creates a narrower passage. The valve can still open and close reliably, but it introduces more restriction to flow.

In a V port ball valve, the opening is not simply round. It is shaped like a V, which allows flow to increase more gradually as the valve rotates. This design is used when a ball valve must perform more controlled flow regulation rather than only on-off isolation.

Port design affects several engineering factors:

Flow capacity determines how much fluid can pass through the valve at a given pressure difference.

Pressure drop determines how much energy is lost as fluid passes through the valve.

Cv value describes the valve’s flow coefficient and helps compare flow capacity between valve designs.

Control behavior determines whether the valve can provide stable flow changes as it opens or closes.

Wear pattern affects how the seats and ball surface respond to high velocity, partial opening and media conditions.

Automation suitability determines whether the valve is best used with simple open-close actuation or with a modulating actuator.

For industrial ball valve selection, ignoring port design can lead to a valve that physically fits but performs poorly.

Full Port Ball Valve: Maximum Flow and Minimal Restriction

A full port ball valve is designed to provide a flow opening that is close to the internal diameter of the pipeline. When fully open, it creates a relatively straight and unrestricted flow path. This makes it a strong choice for applications where pressure loss must be minimized.

The main advantage of a full port ball valve is high flow capacity. Because the bore is large, the valve creates less resistance. This can be important in systems where pumps, compressors or gravity flow must move fluid efficiently. Lower ball valve pressure drop means less energy is wasted across the valve.

Full port designs are commonly used in water distribution, process pipelines, chemical transfer, compressed air systems, fuel lines, filtration systems and industrial utilities. They are also useful when the pipeline may need cleaning, flushing or pigging. In some systems, a smaller bore valve would block cleaning equipment or reduce the effectiveness of flushing flow.

Another benefit is reduced turbulence compared with a smaller-bore valve. A smoother flow path may help reduce noise, pressure disturbance and unnecessary velocity increase. This is especially important when handling fluids that are sensitive to shear, contain suspended solids or require stable downstream conditions.

However, full port valves are usually larger, heavier and more expensive than reduced port valves of the same pipe connection size. The larger ball and body require more material. The torque requirement may also be higher because the sealing contact area can be larger. When the valve is automated, this can affect actuator sizing.

A full port ball valve is not automatically the best choice for every application. It is best when flow capacity, low restriction and pipeline continuity matter more than compact size or cost.

Where Full Port Ball Valves Make the Most Sense

Full port ball valves are especially useful when the system needs to preserve the pipe’s natural flow capacity.

In pump discharge or suction lines, unnecessary restriction can affect pump efficiency and system performance. A full port valve helps reduce energy loss and avoid excessive pressure drop. This can be important in water treatment, cooling water circulation, chemical transfer and utility systems.

In compressed air systems, pressure drop can directly affect energy consumption and equipment performance. A full port ball valve can help maintain air delivery capacity, especially in main distribution lines.

In process transfer lines, full port design can support faster filling, draining and batch transfer. If the system moves large volumes of fluid, a restricted valve may slow the process or require higher pump pressure.

In slurry or dirty fluid service, a full port valve may reduce blockage risk compared with a narrow port. However, the valve material, seat design and media characteristics still need careful evaluation.

In pipelines that require pigging or mechanical cleaning, full port construction may be necessary. A reduced bore valve may prevent pigs or cleaning devices from passing through.

In automated isolation service, a full port valve is often used when the valve must stay open most of the time and should not disturb normal flow. The actuator may only close the valve during shutdown, maintenance or emergency events.

The key idea is simple: when the valve’s job is to disappear from the flow path during normal operation, a full port ball valve is often the right design.

Reduced Port Ball Valve: Compact, Practical and Often Enough

A reduced port ball valve has a smaller bore than the pipe size. When the valve is fully open, the fluid passes through a narrower opening. This creates more restriction than a full port valve, but it also makes the valve more compact and often more economical.

Reduced port valves are widely used because many systems do not actually need maximum flow capacity. In a small utility line, drain line, sampling line, low-flow branch or general shut-off point, the additional pressure drop may be acceptable. If the valve is only used occasionally or if the system has enough pressure margin, a reduced port ball valve can be a practical choice.

The reduced port design can also reduce valve size and weight. A smaller ball may require less torque, which can reduce actuator size in automated applications. For OEM equipment, compact valve size may matter because space is limited inside machines, skids or packaged systems.

Cost is another reason reduced port valves are common. Less material and a smaller internal ball can make the valve more economical. For large projects with many valves, the cost difference between full port and reduced port designs can be significant.

However, reduced port valves should not be selected only because they cost less. The engineer must check whether the smaller bore will create unacceptable pressure drop or velocity increase. If the valve is installed in a line where flow capacity is critical, the reduced opening may become a bottleneck.

A reduced port ball valve works well when the application can tolerate some flow restriction. It becomes a problem when the system requires full flow but the valve quietly reduces capacity.

Where Reduced Port Ball Valves Are Appropriate

Reduced port ball valves are appropriate in many ordinary shut-off applications where the flow demand is moderate and the valve is not the limiting component in the system.

They are common in branch lines, drain points, vent lines, sampling connections, low-flow utility lines and non-critical isolation points. In these locations, the valve’s primary job is to open or close access, not to maximize flow.

In skid-mounted systems, reduced port valves may be used where compact packaging is important. A smaller valve body can simplify layout and reduce weight. This is useful in OEM equipment, small water treatment modules, dosing systems and packaged process units.

In automated low-flow applications, a reduced port valve may also be easier to actuate because the torque requirement can be lower than a comparable full port design. This may allow the use of a smaller electric actuator or pneumatic actuator, provided the valve torque and safety factor are properly checked.

In cost-sensitive installations, reduced port designs may be acceptable if the system calculation confirms that pressure drop remains within limits. This is especially true when the valve is not continuously handling maximum flow.

Reduced port valves should be avoided in applications where full flow is required, where pressure drop is already a problem, where the line must be pigged, or where high velocity through the smaller opening may damage seats or disturb downstream equipment.

The right use of a reduced port ball valve is based on engineering tolerance, not habit.

V-Port Ball Valve: Designed for Better Flow Control

A V port ball valve is different from both full port and reduced port valves. Instead of using a round bore, the ball has a V-shaped notch or opening. As the ball rotates, the V-shaped opening gradually exposes more flow area. This provides better control over how flow increases.

This design is especially useful when a ball valve must do more than simple on-off service. A V port ball valve can function as a flow control ball valve in certain applications. It is often paired with a modulating actuator to adjust valve position based on a control signal.

A standard ball valve with a round port can be difficult to use for precise throttling. Near the early opening range, a small rotation may cause a large change in flow. This can make control unstable. A V-port design helps create a more predictable relationship between valve position and flow.

For this reason, V-port valves are used in applications such as process flow control, chemical dosing, water treatment, temperature control, slurry handling, pulp and paper, and industrial fluid regulation. The V-shaped edge can also provide a shearing action in some media, depending on design.

A V port ball valve is not the same as a globe control valve, and it may not replace every industrial flow control valve. But it can be a strong option where quarter-turn automation, compact design and improved control characteristics are needed.

When the application requires a modulating ball valve rather than a simple shut-off valve, V-port design should be considered.

V-Port Ball Valve and Modulating Control

A modulating ball valve moves to intermediate positions instead of only fully open or fully closed. For example, a control system may command the valve to 20%, 45%, 70% or another position to regulate flow, pressure, temperature or level.

A V port ball valve is much more suitable for this type of service than a standard round-port ball valve. The V-shaped opening allows flow to increase more progressively as the actuator rotates the ball. This gives the control system better authority over the process.

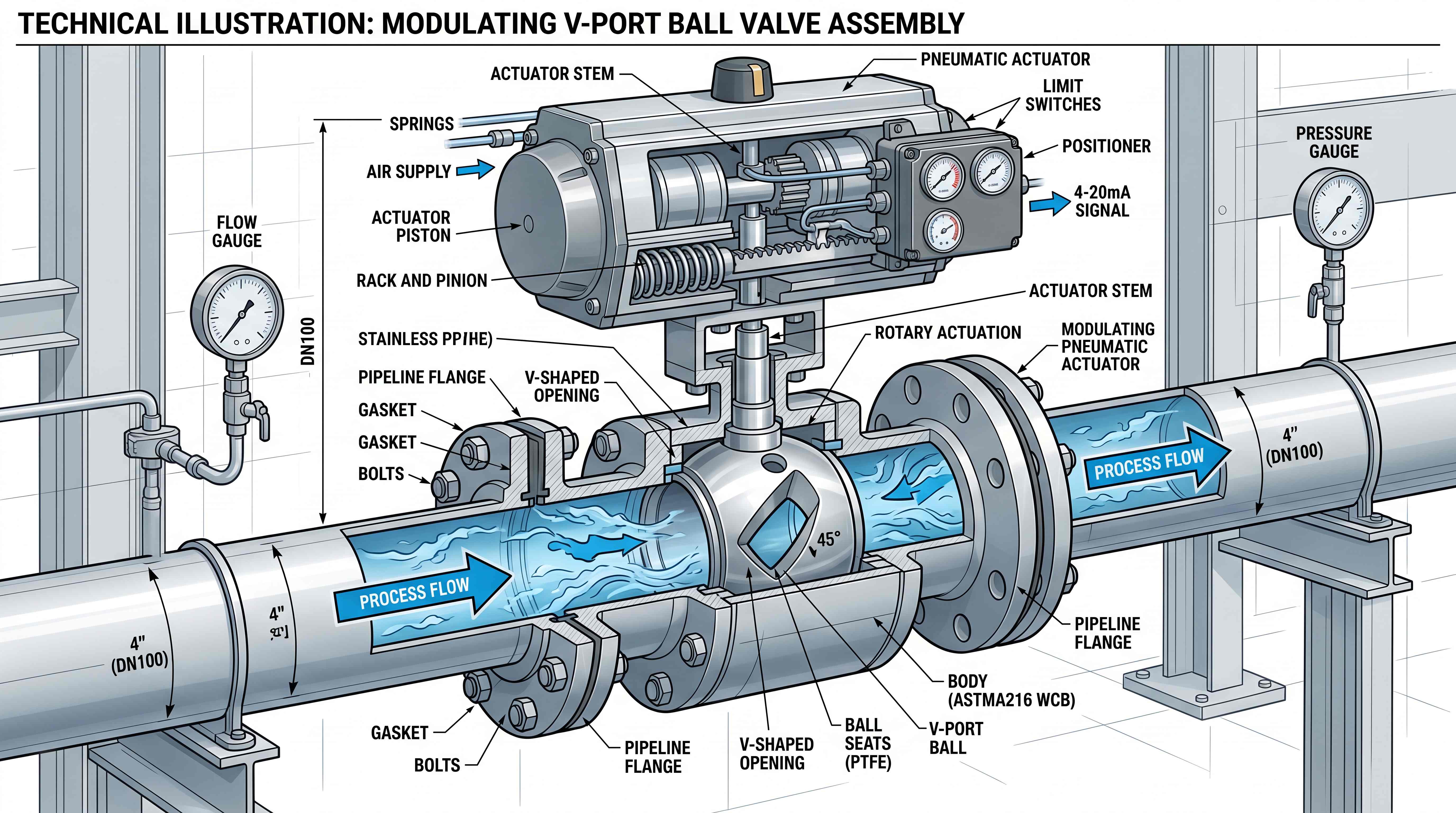

In a typical automated setup, the V-port valve is connected to an electric or pneumatic modulating actuator. The actuator receives a control signal, such as 4-20 mA or 0-10 V, and moves the valve to the corresponding position. Position feedback may be used to confirm the actual valve angle.

The quality of control depends on more than the valve alone. The actuator resolution, control signal, valve sizing, flow coefficient, pressure drop, media behavior and control loop tuning all matter. A V-port valve can improve control behavior, but it must still be selected correctly.

A common mistake is using a standard ball valve as a throttling ball valve and expecting smooth control. The valve may work in a rough sense, but the control curve may be unstable. Seat wear may increase if the valve remains partially open under high velocity. Noise and vibration may also appear in some systems.

A V-port modulating ball valve is designed to reduce these problems, but it is not a universal solution. It should be selected with the same care as any industrial flow control valve.

Full Port vs Reduced Port: The Flow Capacity Question

The most direct comparison between full port and reduced port valves is flow capacity.

A full port valve provides a larger flow passage. This usually means higher Cv value and lower pressure drop. If the pipeline is designed for high flow, a full port valve helps preserve that capacity.

A reduced port valve provides a smaller passage. This usually means lower Cv value and higher pressure drop. In many systems, this is acceptable. But in high-flow or pressure-sensitive systems, it can be a limiting factor.

The difference becomes more important as flow increases. At low flow rates, the pressure drop across a reduced port valve may be small. At higher flow rates, the pressure loss may become much more significant. This can affect pump selection, energy use and process stability.

For example, if a pipeline is designed to move a large volume of water, installing reduced port valves throughout the system may create unexpected resistance. The pump may need to work harder, downstream equipment may receive less flow, and operators may not immediately realize that the valves are part of the problem.

In contrast, if the valve is on a small drain line used only during maintenance, full port capacity may provide little practical benefit.

The decision should be based on flow demand, pressure drop allowance and system purpose.

Understanding Ball Valve Cv Value

The ball valve Cv value is a useful way to compare how much flow a valve can pass. Cv is a flow coefficient. In simple terms, a higher Cv means the valve can pass more flow at a given pressure drop.

Full port valves usually have a higher Cv value than reduced port valves of the same nominal pipe size. V-port valves have Cv values that change with valve position and are selected based on control requirements.

Cv is important because nominal size alone can be misleading. Two valves may both be labeled 2-inch, but one may have a much larger flow capacity than the other. If the engineer only looks at pipe size, the valve may be incorrectly sized for the process.

In automated flow control, Cv becomes even more important. A valve that is too large may operate mostly near the closed position, making control unstable. A valve that is too small may create excessive pressure drop and fail to deliver required flow. A V-port modulating valve should be selected so that its useful control range matches the system demand.

Cv should not be treated as an academic detail. It directly affects pump performance, control accuracy and system energy use.

For serious industrial ball valve selection, the Cv value should be reviewed alongside pressure, temperature, media and actuator torque.

Ball Valve Pressure Drop and System Performance

Ball valve pressure drop is the pressure loss that occurs as fluid passes through the valve. Every valve creates some resistance, but the amount depends on the internal flow path.

A full port ball valve typically has low pressure drop when fully open. The flow path is wide and direct. A reduced port ball valve creates more restriction because the flow area is smaller. A V port ball valve may create controlled restriction depending on position.

Pressure drop matters because it affects the whole system. In a pumped system, more pressure drop means the pump must work harder. This can increase energy consumption. In a gravity-fed system, pressure drop can reduce available flow. In a process line, pressure loss can affect downstream equipment, measurement accuracy or production rate.

Pressure drop also affects velocity. When fluid passes through a smaller opening, velocity increases. Higher velocity can increase noise, erosion, vibration and wear. In some media, it may also increase cavitation or flashing risk if pressure conditions are severe.

In many ordinary applications, pressure drop may not be critical. But in industrial systems with high flow, long pipelines, sensitive equipment or tight energy targets, valve pressure drop should be calculated rather than assumed.

A valve that saves money during purchasing may cost more over time if it creates avoidable pressure loss.

Can a Standard Ball Valve Be Used for Throttling?

A standard ball valve can sometimes be partially opened to reduce flow, but this does not mean it is a good throttling valve.

A basic round-port ball valve is primarily designed for on-off control. When partially open, the flow path may become uneven and turbulent. The relationship between valve position and flow may be highly nonlinear. A small change in angle can produce a large change in flow, especially at certain opening ranges.

This makes stable control difficult. If the valve is automated, the control system may constantly hunt because small actuator movements create large process changes. This is one reason standard ball valves are not usually preferred for precise throttling service.

Seat wear is another concern. When a ball valve remains partially open, high-velocity flow may pass across a limited area of the seat and ball edge. Over time, this can damage sealing surfaces. A valve that was originally tight shut-off may begin to leak.

Noise, vibration and cavitation risk can also increase in some throttling conditions. These problems depend on pressure drop, media, valve size and operating range.

A throttling ball valve should be selected intentionally. If the application only needs rough manual adjustment, a standard valve may be acceptable in some low-risk services. But if the application needs repeated or automated flow regulation, a V port ball valve or another dedicated control valve should be considered.

The question is not whether a ball valve can restrict flow. It can. The question is whether it can do so reliably, predictably and without damaging itself.

V-Port vs Globe Valve for Flow Control

In many industrial systems, globe valves are traditional choices for throttling and flow control. They are designed for linear motion and can offer good control characteristics. So why would someone choose a V port ball valve instead?

A V-port ball valve offers quarter-turn operation, compact design and potentially lower weight compared with some globe valve assemblies. It can be easier to automate with rotary actuators. It can also provide good shut-off performance depending on design.

For certain flow control applications, especially where space is limited or where rotary automation is preferred, a V-port valve can be a practical alternative. It is often used for modulating service where a standard ball valve would not provide enough control stability.

However, a V-port valve is not always better than a globe valve. Globe valves may still be preferred for demanding control accuracy, severe pressure drop, high temperature, steam service or applications requiring special trim designs.

The comparison should be based on the process. If the system needs compact rotary control and moderate pressure drop, a V-port ball valve may be attractive. If the system needs high-precision control under severe conditions, a globe valve or specialized control valve may be more appropriate.

A mature valve selection process does not force one valve type into every application. It matches the valve characteristic to the control problem.

Automation Impact: Why Actuator Selection Changes with Port Design

Port design affects actuator selection because it changes torque, operating purpose and control behavior.

A full port ball valve may require higher torque than a reduced port valve in the same pipe size because the ball and seat contact area may be larger. This can require a larger electric actuator or pneumatic actuator. If the actuator is undersized, the valve may fail to open or close fully.

A reduced port valve may require less torque in many cases, but this should not be assumed without manufacturer data. Pressure, media, seat material and valve construction still matter.

A V port ball valve used for modulating control requires more than enough torque. It also requires accurate positioning. The actuator must move smoothly and hold intermediate positions. It may need position feedback, analog control input and proper control loop integration.

For simple on-off service, the actuator only needs to move between open and closed positions reliably. For ball valve flow control, the actuator becomes part of the control performance. Resolution, response time, hysteresis and feedback accuracy matter.

This is why valve automation selection should not treat the actuator as an accessory. The actuator must match the valve’s mechanical torque and the process control objective.

A full port isolation valve, a reduced port utility valve and a V-port modulating valve may all be ball valves, but they require different automation thinking.

Application Mapping by Port Design

Different port designs fit different application priorities.

A full port ball valve fits applications where high flow, low restriction and pipeline continuity are important. Typical examples include main process lines, pump lines, transfer systems, compressed air mains, water distribution, cleaning lines and piggable pipelines.

A reduced port ball valve fits applications where compact size, lower cost and basic shut-off are more important than maximum flow. Examples include branch lines, drains, vents, utility connections, sampling systems, low-flow equipment lines and general isolation points.

A V port ball valve fits applications where controlled flow change is required. Examples include process dosing, temperature regulation, water treatment control, chemical blending, slurry control, pulp and paper systems, and automated flow adjustment.

This mapping is not absolute. A full port valve can be used in low-flow systems if cost and space allow. A reduced port valve can be used in many industrial systems if pressure drop is acceptable. A V-port valve can provide shut-off and control, but it should be selected carefully based on control requirements.

The key is to avoid choosing based only on habit. Many facilities standardize valve types for convenience, but automated systems often require more precise selection. The internal port geometry should match the function the valve must perform.

Common Mistakes When Choosing Port Design

One mistake is assuming that all ball valves of the same nominal size have the same flow capacity. They do not. A full port and reduced port valve may both connect to the same pipe size but have different internal openings and Cv values.

Another mistake is using reduced port valves in lines where flow capacity is critical. The system may still operate, but pressure drop may be higher than expected.

A third mistake is selecting full port valves everywhere without considering cost, weight and actuator torque. Full port design is valuable, but it may be unnecessary for many low-flow or non-critical lines.

A fourth mistake is using a standard round-port valve for modulating control. This can lead to unstable flow regulation and seat wear.

A fifth mistake is selecting a V-port valve without checking whether the control system can actually use it. A V-port valve needs the right actuator, signal and feedback to perform well in modulating service.

A sixth mistake is ignoring media behavior. Clean water, compressed air, viscous liquid, slurry and chemical fluid behave differently through a valve. Port design, velocity and pressure drop must be considered together.

A seventh mistake is treating ball valve Cv value as optional. In process systems, Cv can be essential to correct sizing.

The safest approach is to define the process function first, then select the port design.

A Practical Selection Method for Engineers and Buyers

Start with the function. Is the valve only used for open-close isolation, or does it need to regulate flow? If it only isolates flow and pressure drop matters, consider full port. If it isolates a low-flow branch, reduced port may be enough. If it regulates flow, consider V-port or another control valve.

Next, define the flow requirement. What is the normal flow rate? What is the maximum flow rate? How much pressure drop is acceptable? These questions help determine whether full port or reduced port is suitable.

Then check Cv value. Do not rely only on pipe size. Compare the valve’s Cv with the system requirement.

After that, evaluate media. Is the fluid clean, dirty, corrosive, viscous, abrasive or temperature-sensitive? Media affects material choice, seat design and allowable velocity.

Then consider automation. If the valve is actuated, check torque and actuator sizing. If the valve is modulating, check control signal, positioning accuracy and feedback.

Next, consider installation constraints. Full port valves may be larger and heavier. Reduced port valves may be more compact. V-port valves may require more careful orientation and control integration.

Finally, review lifecycle cost. The cheapest valve may create pressure loss or control problems. The most expensive valve may be unnecessary. The best valve is the one that supports reliable system performance with reasonable cost and risk.

Final Thoughts

Full port, reduced port and V-port ball valves are not simply three product variations. They represent three different flow design philosophies.

A full port ball valve is designed to preserve flow capacity and minimize restriction. It is the right choice when low pressure drop, high flow and pipeline continuity matter.

A reduced port ball valve is designed for practical shut-off where compact size, cost and general isolation are more important than maximum flow. It is often suitable when the system can tolerate some restriction.

A V port ball valve is designed for better flow control. It is the most relevant option when the valve must work as a modulating ball valve or flow control ball valve rather than a simple isolation valve.

The mistake many buyers make is treating all ball valves as the same once size and material are selected. In reality, the internal port design can affect system performance as much as the actuator or valve body material.

For industrial automation, this distinction becomes even more important. A valve that only opens and closes can be selected with one logic. A valve that controls flow must be selected with a different logic. A valve that protects pump efficiency must be selected differently from a valve that regulates temperature or chemical dosing.

The best engineering decision begins with the flow purpose. Once the required flow behavior is clear, the correct port design becomes easier to choose.

Focused FAQ

What is a full port ball valve?

A full port ball valve has an internal bore close to the pipe’s internal diameter. It allows high flow capacity and low pressure drop when fully open. It is commonly used in main process lines, pump systems, transfer pipelines and applications where flow restriction should be minimized.

What is a reduced port ball valve?

A reduced port ball valve has a smaller internal bore than the pipe size. It creates more flow restriction than a full port valve but is often more compact and economical. It is suitable for many general shut-off, branch line, drain, vent and low-flow applications.

What is a V port ball valve?

A V port ball valve has a V-shaped opening in the ball. This design allows flow to change more gradually as the valve rotates. It is commonly used for modulating control and flow regulation where a standard round-port ball valve is not suitable.

What is the main difference between full port and reduced port ball valves?

The main difference is the size of the flow opening. A full port valve has a larger bore and lower pressure drop. A reduced port valve has a smaller bore and higher restriction but may be smaller, lighter and less expensive.

When should I use a full port ball valve?

Use a full port ball valve when maximum flow, low pressure drop or pipeline continuity is important. It is often used in pump lines, process transfer lines, compressed air mains, cleaning systems and piggable pipelines.

When should I use a reduced port ball valve?

Use a reduced port ball valve when the application only needs general shut-off and can tolerate some pressure drop. It is often suitable for branch lines, drains, vents, sampling points and compact equipment.

Can a ball valve be used for throttling?

A standard ball valve can restrict flow when partially open, but it is usually not ideal for precise throttling. Partial opening can create unstable control, seat wear, noise or high velocity. A V port ball valve is usually better for throttling or modulating service.

What is ball valve Cv value?

Ball valve Cv value is a flow coefficient that indicates how much flow the valve can pass at a given pressure drop. It helps compare flow capacity between full port, reduced port and V-port valve designs.

Does a full port ball valve always have lower pressure drop?

In most fully open conditions, a full port ball valve has lower pressure drop than a reduced port valve of the same nominal pipe size. However, actual pressure drop still depends on flow rate, media, valve design and piping conditions.

Is a V port ball valve an industrial flow control valve?

A V port ball valve can function as an industrial flow control valve in many applications, especially when paired with a modulating actuator and position feedback. However, it should still be sized and selected based on the process control requirement.
