Valve Positioners Explained: How Pneumatic Actuators Achieve Modulating Control

Quick Answer: What Does a Valve Positioner Do?

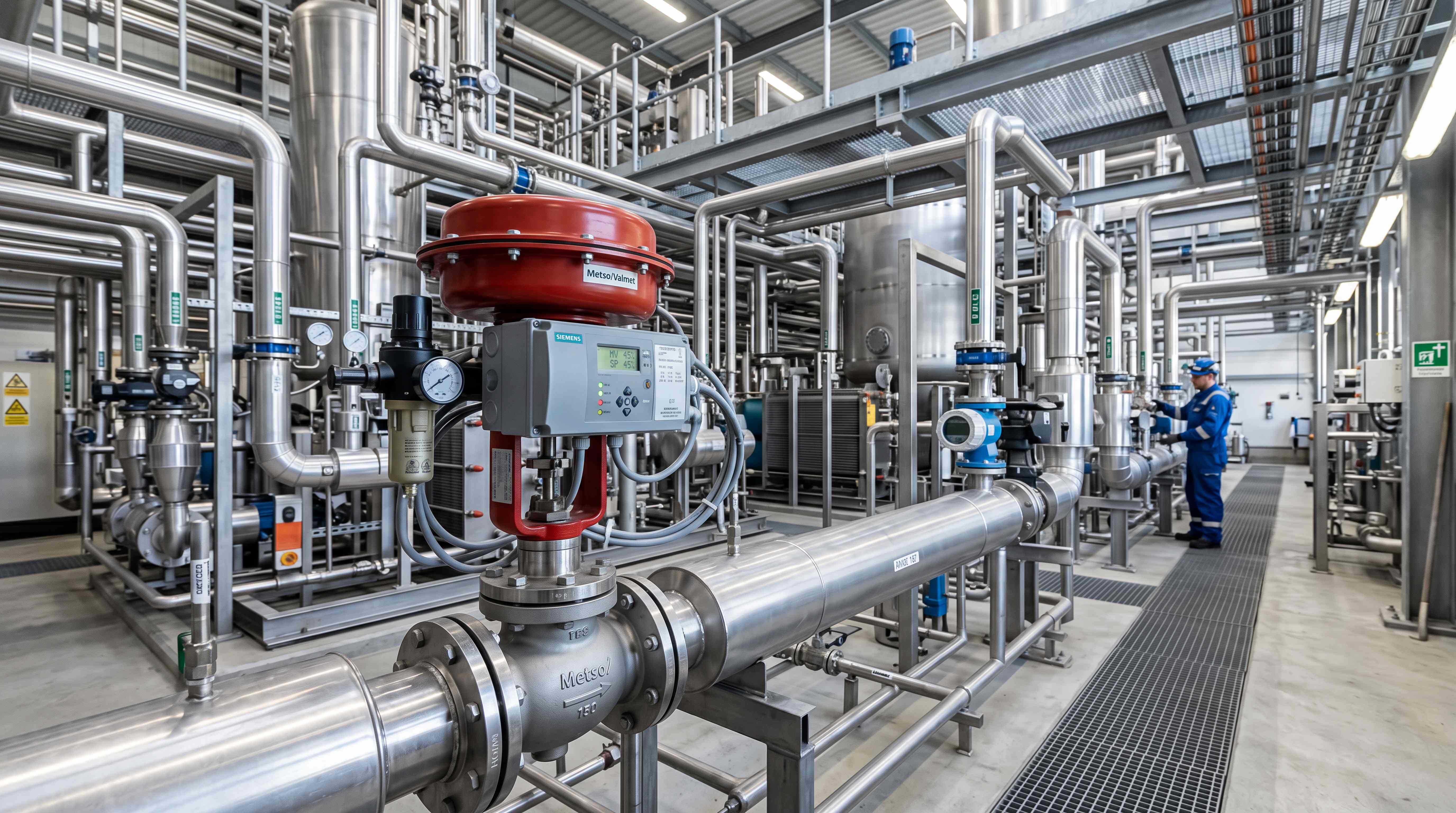

A valve positioner is a control device that helps a pneumatic actuator move a valve to the exact position required by a control signal. In a basic on-off pneumatic valve system, the valve is usually either fully open or fully closed. In a modulating control valve system, the valve may need to stay at 20%, 45%, 70% or any other intermediate position to regulate flow, pressure, temperature or level. That is where a valve positioner becomes important.

A pneumatic valve positioner receives a control signal, often a 4-20mA valve control signal, compares that target signal with the actual valve position, and adjusts the air pressure going to the control valve actuator. If the valve is not in the correct position, the positioner increases, decreases or redirects air until the valve reaches the required travel point.

In simple terms, the pneumatic actuator provides force, the valve body controls the process fluid, and the valve positioner closes the feedback loop between the control signal and the actual valve position. Without a positioner, a pneumatic control valve may be affected by friction, pressure changes, packing resistance, actuator hysteresis or changing process conditions. With the correct electro pneumatic positioner or smart valve controller, the valve can respond more accurately and consistently.

For industrial process automation, the valve positioner is not just an accessory. It is the device that turns pneumatic actuation from simple movement into controlled movement.

Why Modulating Control Is Different From On-Off Valve Automation

To understand why a valve positioner matters, the first step is to separate on-off valve automation from modulating control.

On-off valve automation is simple in concept. A solenoid valve sends compressed air to a pneumatic actuator. The actuator opens or closes a ball valve, butterfly valve or plug valve. A limit switch box may confirm the open or closed position. This type of system is commonly used for isolation, shutoff, filling, draining, bypass and sequence control.

Modulating control is different. A modulating control valve does not simply open or close. It continuously adjusts its opening to control a process variable. For example, a valve may open slightly to maintain pressure, close gradually to control flow, or move repeatedly to keep temperature stable in a heat exchange process.

In this type of service, the control system does not only ask, “Is the valve open?” It asks, “Is the valve at the correct percentage of travel right now?”

A pneumatic actuator alone cannot always answer that question accurately. Air pressure, valve friction, packing load, process pressure and actuator spring force can all affect final valve position. The valve may not move exactly where the control system expects. This can lead to overshoot, slow response, hunting, unstable process control or poor product consistency.

A pneumatic valve positioner solves this by continuously comparing target position and actual position. It adds a feedback loop to the actuator. That feedback loop is what makes accurate pneumatic modulating control possible.

The Basic Control Loop: Signal, Air, Motion and Feedback

A valve positioner works inside a larger control loop. The loop usually starts with a process variable such as flow, pressure, level or temperature. A sensor measures that variable and sends data to a controller. The controller compares the measured value with the setpoint and calculates how much the valve should open.

The controller then sends a signal to the valve positioner. In many industrial systems, this is a 4-20mA signal. A lower current may represent a lower valve opening, and a higher current may represent a higher valve opening, depending on configuration.

The valve positioner receives the signal and checks the actual valve stem or shaft position. If the actual position does not match the target position, the positioner adjusts air output to the actuator. The actuator moves the valve stem. The valve changes flow through the process line. The sensor detects the process change, and the control loop continues.

This loop can be simplified as:

Process controller sends target signal.

Valve positioner reads target position.

Positioner compares target with actual valve position.

Positioner sends air to the pneumatic actuator.

Actuator moves the valve stem or shaft.

Valve changes the process flow.

Feedback confirms the new valve position.

Process measurement updates the controller.

This continuous loop is why a valve positioner is so important for stable process control. It does not simply move the valve once. It keeps correcting the valve position as process conditions change.

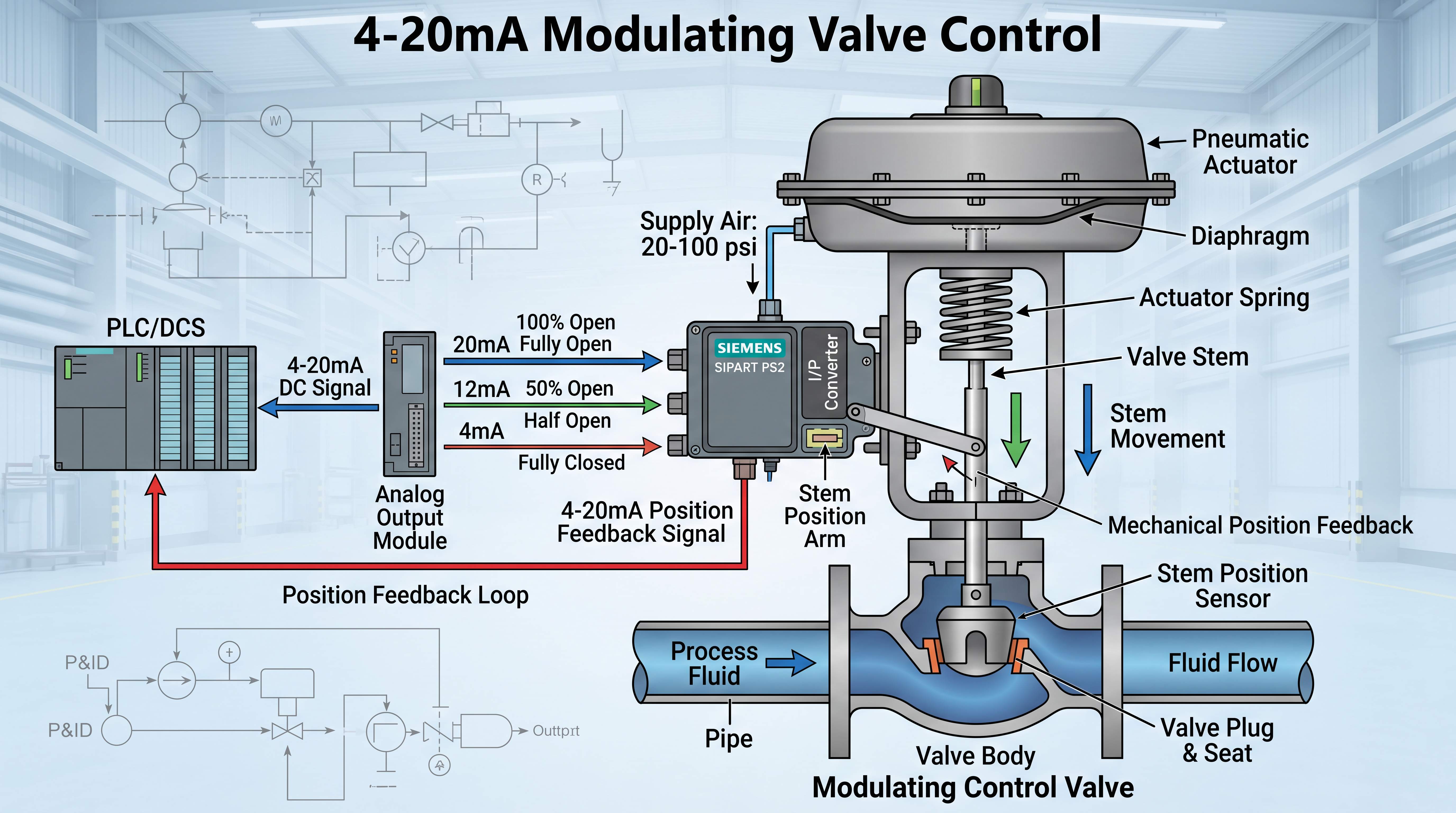

How 4-20mA Valve Control Works

In industrial automation, 4-20mA valve control is widely used because it is stable, simple and suitable for long-distance signal transmission. In a typical modulating valve application, the controller sends a current signal to the valve positioner. The positioner interprets that signal as a target valve position.

For example, a system may be configured so that:

4 mA means 0% open.

12 mA means 50% open.

20 mA means 100% open.

The exact relationship can vary depending on whether the valve is direct acting or reverse acting, and whether the valve should open or close as the signal increases. This is why commissioning and calibration are important.

A pneumatic valve positioner does not simply receive the 4-20mA signal and blindly send air. It must compare the signal with real mechanical position. If the signal calls for 50% open but the valve is actually at 40%, the positioner adjusts air pressure until the valve moves closer to 50%. If the process force pushes the valve away from its target, the positioner corrects it again.

This is the key advantage of position feedback. The positioner does not assume that air pressure equals valve position. It verifies and corrects actual movement.

For industrial users, 4-20mA valve control is not valuable only because it is a standard signal. It is valuable because it allows the control system, valve positioner and actuator to work together in a measurable control loop.

What Is an I/P Converter?

An I/P converter is a device that converts an electrical current signal into a pneumatic pressure signal. The name comes from “current to pressure.” In many pneumatic control systems, the electrical control signal is 4-20mA, while the actuator needs air pressure to move. The I/P converter bridges that difference.

In older pneumatic control systems, an I/P converter may be installed as a separate device. It receives the 4-20mA signal and outputs a proportional air pressure, such as 3-15 psi or another pneumatic signal range. That pneumatic signal can then be used to control a pneumatic positioner or actuator.

In many modern electro pneumatic positioner designs, the I/P converter function is built into the positioner. The positioner receives the electrical signal, converts it internally into pneumatic output control, and uses feedback to adjust valve position.

This is why some people confuse an I/P converter with a valve positioner. They are related, but they are not always the same thing.

An I/P converter changes signal type.

A valve positioner controls valve position using signal and feedback.

A smart valve controller may include I/P conversion, position control, diagnostics, communication and calibration tools.

In modern pneumatic control valve systems, the positioner often performs several of these functions together.

Pneumatic Positioner, Electro Pneumatic Positioner and Smart Valve Controller

Valve positioners can be divided into several broad categories. The exact terminology varies by manufacturer, but the functional difference is important.

A pneumatic positioner usually receives a pneumatic control signal and uses air logic to position the actuator. This type was common in older pneumatic instrument systems.

An electro pneumatic positioner receives an electrical signal, such as 4-20mA, and controls pneumatic output to the actuator. It may include an I/P converter internally. This type is widely used in modern industrial plants where electronic control systems communicate with pneumatic actuators.

A smart valve controller is a more advanced device. It may provide digital communication, auto-calibration, valve diagnostics, travel history, alarm information, partial stroke testing, friction analysis or predictive maintenance data. It still controls the actuator, but it also helps the plant understand valve health.

The selection depends on plant requirements. A simple pneumatic control valve may only need a standard electro pneumatic positioner. A critical process valve may benefit from a smart valve controller with diagnostics. A plant with asset management systems may prefer devices that can communicate more data to maintenance teams.

The most advanced device is not always necessary, but the positioner should match the process importance, control accuracy requirement and maintenance strategy.

Why Pneumatic Control Valves Need Feedback

A pneumatic control valve is affected by many forces. The actuator may receive air pressure, but the final valve position can still be influenced by friction, packing force, fluid pressure, spring force, stem condition and mechanical wear.

Without feedback, the system may assume that a certain air pressure creates a certain valve position. In real operation, this assumption may be wrong.

For example, a valve may require more force to move after months of service because packing friction increases. A valve handling sticky fluid may develop higher resistance. A high pressure drop across the valve may push against the plug or disc. Temperature changes may affect seals or metal expansion. The actuator may have hysteresis, meaning it does not respond exactly the same when moving upward as when moving downward.

A valve positioner checks actual movement. If the valve does not move enough, the positioner increases air output. If the valve overshoots, the positioner corrects. If the valve sticks, the positioner may show abnormal behavior or diagnostic warning depending on device capability.

This is why valve position feedback is central to modulating control. The positioner gives the system a way to correct real-world mechanical behavior.

Control Valve Actuator Types and Positioner Matching

A valve positioner can be used with different actuator types, but the positioner must match the actuator design.

For linear control valves, pneumatic diaphragm actuators and piston actuators are common. The positioner may be mounted on the actuator yoke and connected to the valve stem through a feedback linkage. As the stem moves up and down, the positioner detects the travel.

For rotary control valves, such as segmented ball valves, eccentric plug valves or high-performance butterfly valves, the positioner may be mounted to detect rotary shaft movement. The feedback mechanism must match the rotation range and travel direction.

For spring return actuators, the positioner must work with the actuator spring force. For double acting actuators, the positioner may control air to both actuator chambers. Some positioners are designed for single acting output, while others support double acting output. This must be checked before selection.

The control valve actuator and positioner should be selected as a package. A mismatch can create unstable movement, limited travel, calibration problems or poor control performance.

The question should not be, “Can this positioner fit?” The better question is, “Can this positioner control this actuator accurately through the full travel range under real process conditions?”

What Happens During Calibration?

Calibration is the process of matching the positioner’s signal range to the valve’s actual travel range. Without proper calibration, the control system may request one position while the valve moves to another.

In a typical calibration process, the technician confirms the zero point and span. Zero may represent fully closed, and span may represent fully open, depending on the configuration. The positioner must learn or be adjusted to recognize the valve’s full travel range.

Modern smart valve controllers often include auto-calibration. The device moves the valve through its travel range and learns the open and closed positions. It may also check response behavior, friction, travel limits and actuator movement.

Manual calibration may still be required in some systems. The technician may adjust linkages, cams, feedback arms, zero settings, span settings or software parameters.

Calibration should be performed carefully because a control valve is part of the process loop. If the valve does not travel correctly, process control may become unstable. A valve that appears to be at 50% on the control screen may actually be at a different physical position if calibration is wrong.

Good calibration should confirm:

Correct air supply pressure.

Correct signal input.

Correct fail action.

Correct open and closed travel points.

Correct direction of action.

Smooth movement through the travel range.

Stable response to step changes.

Accurate feedback signal.

For critical valves, calibration records may also be important for maintenance and quality systems.

Direct Acting and Reverse Acting Behavior

Control valves and positioners may be configured as direct acting or reverse acting. This describes how the valve responds to increasing control signal.

In a direct acting arrangement, increasing signal may cause the valve to open. In a reverse acting arrangement, increasing signal may cause the valve to close. The correct action depends on process design, valve type, actuator configuration and safety requirement.

This is not just a software detail. If the action is reversed incorrectly, the control loop may become unstable or unsafe. A controller trying to reduce flow may accidentally increase it. A pressure control loop may hunt or drive the valve in the wrong direction. A temperature control system may respond opposite to the process need.

During commissioning, technicians should verify actual valve movement against signal changes. If the controller output increases from 4 mA to 20 mA, the team should observe whether the valve moves in the intended direction.

The valve positioner, actuator spring action and valve body must all match the control strategy. This is one of the reasons why positioner setup should be handled carefully.

How Valve Positioners Improve Control Stability

A good valve positioner improves control stability by reducing the difference between target valve position and actual valve position. This is especially important when the process is sensitive to small changes in flow.

Without a positioner, a pneumatic actuator may be slow to respond, especially when friction is present. The valve may stick and then suddenly jump. This behavior is often called stick-slip. It can make the process variable oscillate.

With a positioner, the device detects that the valve has not moved enough and increases pneumatic output to overcome friction. Once the valve reaches the target, the positioner stabilizes the air signal. This can improve response and reduce process variability.

However, a poorly tuned or incorrectly installed positioner can create its own problems. If the positioner is too aggressive, the valve may hunt around the target position. If the air supply is unstable, control may become noisy. If the feedback linkage is loose, the positioner may receive inaccurate position information.

This means a valve positioner is a powerful tool, but it must be installed, calibrated and maintained correctly.

Valve Diagnostics and Predictive Maintenance

One reason smart valve controllers have become important is valve diagnostics. Traditional valve maintenance often happens after a problem becomes visible. Smart diagnostics can help detect early warning signs.

Valve diagnostics may help identify:

Increasing valve friction.

Air leakage.

Slow actuator response.

Calibration drift.

Stem sticking.

Travel deviation.

Excessive deadband.

Abnormal response time.

Supply pressure problems.

Mechanical looseness.

Partial stroke test results.

These diagnostic signals can help maintenance teams prioritize service before failure. For critical process valves, this can reduce unplanned downtime and improve safety.

Valve diagnostics do not replace field inspection, but they add valuable data. A technician can compare current valve behavior with previous behavior. If a valve is becoming slower or requires more output pressure to move, it may need maintenance.

In a plant with hundreds of control valves, smart valve controllers can help decide which valves need attention first. This is especially valuable during shutdown planning.

Common Problems With Valve Positioners

A valve positioner can improve control, but several problems can affect performance.

One common problem is unstable air supply. If supply pressure fluctuates or contains moisture and dirt, the positioner may behave erratically. Clean, dry, regulated air is essential.

Another problem is incorrect calibration. If zero and span are wrong, the valve will not match the control signal accurately.

Loose feedback linkage is also common. If the positioner does not accurately sense valve stem movement, it cannot control position correctly.

Incorrect action setting can reverse the valve response. The valve may close when it should open.

Friction or sticking in the valve body can cause poor response. The positioner may try to correct, but if the valve is mechanically damaged or heavily fouled, control quality will still suffer.

Oversized valves are another issue. If the valve is too large for the process, small movements may create large flow changes. Even a good positioner cannot fully solve poor valve sizing.

Positioner hunting can occur when the device continuously overcorrects around the target position. This may be caused by tuning issues, air supply problems, mechanical looseness or poor actuator matching.

A careful troubleshooting process should check the complete loop: signal, air supply, positioner setup, actuator movement, valve friction and process response.

Why Air Supply Quality Still Matters

Even though a valve positioner may be electronic or smart, the final actuation is still pneumatic. This means air supply quality remains critical.

A pneumatic valve positioner needs clean, dry and stable instrument air. Moisture can cause corrosion, freezing or internal contamination. Oil or particles can block small passages. Pressure fluctuations can affect output stability. Insufficient pressure can prevent the actuator from reaching the required position.

Air filter regulators should be selected and maintained properly. Drain bowls should be checked. Filters should be replaced when needed. Supply pressure should be verified during commissioning and maintenance.

Many control valve problems are blamed on the positioner when the real issue is poor air quality. A smart valve controller can only control well if the pneumatic foundation is reliable.

The rule is simple: advanced electronics cannot compensate for bad instrument air forever.

Positioner Installation Best Practices

Correct installation affects positioner performance. The positioner should be mounted securely to the actuator. The feedback linkage should move smoothly without binding. The linkage geometry should match the positioner instructions and actuator stroke. Tubing should be connected correctly. Air supply should be filtered and regulated. Cable entries should be sealed.

For linear valves, the feedback arm must reflect stem travel accurately. For rotary valves, the positioner must detect shaft rotation correctly. Mechanical looseness can create deadband and poor control.

The positioner should be protected from excessive vibration, heat, moisture and mechanical damage. In hazardous areas, approved equipment and wiring methods are required. In outdoor applications, weatherproofing and cable glands matter.

During commissioning, the technician should verify:

Correct mounting.

Correct tubing.

Correct signal wiring.

Correct air pressure.

Correct feedback movement.

Correct action direction.

Correct calibration.

Smooth valve travel.

Stable response.

Correct fail position.

Positioner installation is not just mechanical mounting. It is part of process control performance.

When a Valve Positioner Is Necessary

A valve positioner is usually necessary when the valve must modulate, when accurate position control is required, or when process conditions create forces that make actuator position uncertain.

Typical cases include:

Flow control loops.

Pressure control loops.

Temperature control loops.

Level control loops.

Steam control valves.

Chemical dosing valves.

Large control valves.

Valves with high packing friction.

Valves exposed to changing pressure drop.

Processes requiring stable proportional control.

Valves requiring diagnostic monitoring.

A positioner may not be necessary for simple on-off valves. If the valve only needs to open or close fully, a solenoid valve and limit switch box may be sufficient. However, if the valve needs to stop at intermediate positions, a positioner becomes important.

Buyers should avoid using a positioner as a decorative upgrade. It should be selected when the control requirement justifies it. But when true modulating control is required, skipping the positioner can create serious performance problems.

Positioner vs Limit Switch Box

A limit switch box confirms whether a valve is open or closed. A valve positioner controls the valve position across its travel range. These devices are related to valve feedback, but their functions are different.

A limit switch box is suitable for on-off valve automation. It tells the PLC whether the valve reached the open or closed end position.

A valve positioner is suitable for modulating control valve service. It receives a control signal and adjusts actuator air pressure to reach a target position.

For example, an automated ball valve used for isolation may need a solenoid valve and limit switch box. A pneumatic control valve used for flow regulation needs a valve positioner.

In some cases, a positioner may also provide position feedback to the control system. But that does not mean it replaces every function of a limit switch box in all applications. The correct device depends on whether the valve is used for discrete on-off control or continuous modulation.

Application Examples in Industrial Plants

Valve positioners are common in process industries where stable control matters.

In chemical processing, a pneumatic control valve may regulate reactant feed, solvent flow, steam heating or pressure control. Accurate valve movement helps keep the process within safe and efficient limits.

In power plants, control valves may regulate steam, condensate, cooling water or fuel-related systems. Positioners help maintain stable operation under changing load conditions.

In water treatment, modulating valves may regulate flow, pressure or chemical dosage. A positioner can help the system respond smoothly rather than simply switching between open and closed.

In food and beverage processing, proportional control may be needed for steam, water, cleaning solutions or ingredient flow. Stable valve position helps protect product quality.

In oil and gas facilities, control valves may manage pressure reduction, flow control, separation processes or utility systems. Smart valve controllers can also support diagnostics in critical service.

In pharmaceutical and biotech systems, control accuracy and repeatability are important. Valve positioners help support validated and consistent process behavior.

Across these industries, the positioner is valuable because it links control intent to real valve movement.

Common Mistakes Buyers Should Avoid

One common mistake is treating a valve positioner as optional in a true modulating control application. If the valve must respond accurately to a control signal, the positioner is often essential.

Another mistake is choosing a positioner without confirming actuator type. Single acting and double acting actuators may require different positioner output configurations.

A third mistake is ignoring air quality. Dirty or wet air can damage positioners and create unstable control.

Some buyers also confuse position feedback with process control. A limit switch box can confirm open or closed position, but it cannot replace a positioner for continuous modulation.

Another common mistake is assuming that a smart valve controller can fix a poorly sized valve. If the valve is oversized or the actuator is wrong, the positioner may improve response but cannot fully correct the engineering mismatch.

Poor installation is also common. Loose feedback linkages, incorrect tubing, wrong action direction and bad calibration can all cause performance problems.

Finally, some systems do not use diagnostic data after installing smart devices. Buying a smart positioner without reviewing diagnostics is like installing a sensor and never reading it.

Selection Checklist for Pneumatic Valve Positioners

Before selecting a pneumatic valve positioner, confirm the following:

Is the valve used for on-off or modulating control?

What is the control signal?

Is 4-20mA valve control required?

Is the actuator linear or rotary?

Is the actuator single acting or double acting?

What is the required fail position?

What air supply pressure is available?

Is the air clean, dry and regulated?

Is the valve exposed to vibration, heat, moisture or corrosive atmosphere?

Is hazardous area certification required?

Is smart valve diagnostics needed?

Is digital communication required?

Will the positioner be connected to an asset management system?

Is auto-calibration required?

Does the valve need position feedback to the control system?

Is local display useful for maintenance?

What accuracy and response speed are required?

Who will calibrate and maintain the device?

These questions help ensure that the selected positioner fits the valve, actuator, process and maintenance strategy.

Focused FAQ

What is a valve positioner?

A valve positioner is a device that compares a control signal with actual valve position and adjusts air pressure to a pneumatic actuator so the valve reaches the required position.

What does a pneumatic valve positioner do?

A pneumatic valve positioner controls the air output to a pneumatic actuator based on valve position feedback. It helps a pneumatic control valve move accurately to the target position.

What is a modulating control valve?

A modulating control valve adjusts its opening continuously rather than simply opening or closing. It is used to control flow, pressure, temperature or level in industrial processes.

How does 4-20mA valve control work?

In 4-20mA valve control, the controller sends a current signal to the positioner. The positioner interprets the signal as a target valve position and moves the actuator accordingly.

What is an I/P converter?

An I/P converter changes an electrical current signal into a pneumatic pressure signal. In many modern electro pneumatic positioners, this function is built into the positioner.

What is the difference between a positioner and a limit switch box?

A limit switch box confirms open or closed position for on-off valves. A valve positioner controls continuous valve position for modulating control applications.

When should a control valve use a positioner?

A control valve should use a positioner when accurate modulating control is required, when friction affects movement, when process pressure changes influence valve position, or when diagnostics are needed.

What is a smart valve controller?

A smart valve controller is an advanced positioner that can provide digital communication, auto-calibration, valve diagnostics, alarms and performance data in addition to position control.

Why is my valve positioner hunting?

Positioner hunting may be caused by poor tuning, unstable air supply, loose linkage, excessive friction, incorrect calibration, actuator mismatch or process instability.

Can a valve positioner improve valve diagnostics?

Yes. A smart valve controller can provide valve diagnostics such as travel deviation, friction changes, slow response, air supply issues, calibration drift and possible mechanical problems.

Final Recommendation: Use Positioners Where Control Accuracy Matters

A valve positioner is one of the most important devices in pneumatic modulating control. It turns a pneumatic actuator from a force device into a controlled positioning device. For simple on-off valves, a solenoid valve and limit switch box may be enough. For a modulating control valve, a positioner is often essential.

The value of a pneumatic valve positioner comes from feedback. It does not assume that a control signal or air pressure automatically creates the correct valve position. It measures actual position, compares it with the target, and adjusts air output until the valve reaches the required travel.

This improves control accuracy, response stability and process repeatability. In advanced systems, a smart valve controller can also support valve diagnostics, maintenance planning and asset management.

For industrial buyers, the positioner should be selected as part of the complete control valve package. The valve body, control valve actuator, positioner, air supply, signal wiring, calibration method and process conditions must all match. A strong positioner cannot fully compensate for poor valve sizing, dirty air, wrong actuator selection or bad installation.

The best approach is to define the control requirement first. If the valve only needs to open and close, do not overcomplicate the system. If the valve must regulate flow, pressure, temperature or level, then a properly selected electro pneumatic positioner or smart valve controller can make the difference between unstable movement and reliable process control.

In industrial valve automation, motion is not enough. Controlled motion is the real goal. The valve positioner is the device that makes controlled pneumatic motion possible.

#ValvePositioner
#PneumaticValvePositioner
#ModulatingControlValve
#FourToTwentyMAValveControl
#IPConverter
#SmartValveController
#ControlValveActuator
#PneumaticControlValve
#ValveDiagnostics
#ElectroPneumaticPositioner
#IndustrialValveAutomation
#ProcessControl
#PneumaticValveAutomation
#ControlValve
#ValveFeedback
