Pneumatic Actuator Not Opening? A Practical Troubleshooting Guide

Quick Answer: Why Is a Pneumatic Actuator Not Opening?

A pneumatic actuator may fail to open because compressed air is not reaching the actuator, air pressure is too low, the solenoid pilot valve is not shifting, tubing is connected incorrectly, the actuator has an internal air leak, or the process valve is stuck and requires more torque than the actuator can deliver. In many cases, the actuator itself is not the first component that should be replaced. A complete pneumatic actuator troubleshooting process should check the control signal, air supply, solenoid valve, tubing, exhaust path, actuator seals, valve torque, coupling, limit switch feedback and process conditions.

When a pneumatic actuator is not opening, the first question should be: Is the actuator failing to receive air, failing to convert air into movement, or failing to move the valve because the valve is mechanically stuck? These are three different problems. They can look similar from the control room, but they require different maintenance actions.

A “pneumatic valve problem” is rarely just one component. It may involve electrical control, compressed air quality, pneumatic routing, actuator sizing, valve body condition or feedback signal errors. The best troubleshooting method is not guessing. It is a step-by-step process that separates command failure, air failure, actuator failure and valve failure.

Start With the Symptom, Not the Component

Many maintenance teams lose time because they start troubleshooting from a favorite component. One technician may immediately suspect the solenoid valve. Another may blame low air pressure. Another may assume the actuator is damaged. Another may think the valve is stuck. Any of these may be true, but starting with a guess often leads to unnecessary replacement.

A better approach is to begin with the visible symptom.

Is the pneumatic actuator not opening at all?

Is the actuator moving but not reaching full travel?

Is the valve opening but not closing?

Is the actuator moving slowly?

Is there an actuator air leak?

Is the solenoid valve energized but no movement occurs?

Is the control system showing open feedback even though the valve is not open?

Is the valve position indicator stuck between open and closed?

Is the problem intermittent or constant?

Each symptom points toward a different diagnostic path. For example, a valve that does not move at all may indicate no air supply, failed solenoid shifting, wrong wiring or a stuck valve. A slow pneumatic actuator may indicate restricted tubing, clogged exhaust, low pressure, damaged seals or a valve body that is becoming harder to move. A pneumatic valve not closing may indicate spring failure, solenoid exhaust restriction, wrong fail-safe logic or excessive valve seating torque.

The symptom is the starting point. The component is only identified after testing.

Safety First Before Troubleshooting an Automated Valve

Before touching any pneumatic actuator or automated valve package, the maintenance team should understand the process risk. A valve may control steam, chemicals, compressed air, fuel gas, hot water, wastewater, solvents or other hazardous media. Moving the valve unexpectedly can create pressure release, overflow, contamination, equipment damage or injury.

A safe troubleshooting process should include lockout and tagout when required. The team should know whether the valve is fail open, fail closed or fail in place. They should also confirm whether the actuator is spring return or double acting. A spring return actuator may move suddenly when air is removed. A double acting actuator may move unexpectedly if trapped air is released or if a solenoid valve shifts.

Before disconnecting tubing, check whether air pressure remains in the actuator chamber. Before removing a limit switch box, confirm whether the valve position feedback is used in an interlock. Before manually overriding a solenoid valve, confirm whether the process can tolerate valve movement.

Troubleshooting is not only a technical activity. It is also a safety activity. The best valve actuator repair is the one that fixes the problem without creating a new one.

Build a Simple Diagnostic Map

A pneumatic actuator troubleshooting map can be organized into four layers.

The first layer is the command layer. This includes PLC output, DCS signal, relay, local switch, emergency stop logic, wiring and solenoid coil voltage.

The second layer is the air control layer. This includes plant air supply, air filter regulator, shutoff valve, solenoid pilot valve, valve manifold, tubing, fittings, exhaust ports and silencers.

The third layer is the actuator layer. This includes actuator pistons, seals, springs, rack and pinion or scotch yoke mechanism, travel stops, manual override and mounting connection.

The fourth layer is the process valve layer. This includes valve body, stem, ball, disc, plug, seat, packing, buildup, pressure differential, media condition and breakaway torque.

This map helps prevent confusion. If the solenoid coil is not receiving voltage, the actuator cannot move because there is no command. If the solenoid shifts but no air reaches the actuator, the problem is in the air control layer. If air reaches the actuator but the actuator does not rotate, the actuator or valve may be stuck. If the actuator rotates but the valve does not change process flow, the coupling or valve internals may be damaged.

Good troubleshooting follows the control chain from command to process result.

Symptom 1: Pneumatic Actuator Not Opening at All

A pneumatic actuator not opening is one of the most common field problems. The control system may send an open command, but the valve does not move. The position indicator stays closed. The process flow does not change. The PLC may alarm because open feedback is missing.

Start by checking whether the open command actually reaches the solenoid valve. A control screen may show that a valve was commanded open, but the field device may not receive voltage. Check the PLC output, fuse, relay, terminal block, cable, connector and solenoid coil rating. If the coil is rated for 24V DC but receives the wrong voltage, it may fail to shift.

Next, check plant air pressure. A pressure gauge at the air filter regulator is more useful than an assumption that “plant air is available.” Confirm that the isolation valve is open and that the regulator is set correctly. If the actuator requires 6 bar but only receives 3 bar, it may not generate enough torque to move the valve.

Then check whether the solenoid valve shifts. A coil can be energized without the spool moving. Dirt, corrosion, moisture, internal wear or a weak coil can prevent shifting. If manual override is available and safe to use, it may help determine whether the air circuit works when the solenoid is manually operated.

If the solenoid shifts and air reaches the actuator, check whether the actuator is trying to move. Listen for air flow, watch the position indicator and observe tubing movement. If air is entering but the actuator does not move, the actuator may be internally damaged, or the valve may require more torque than the actuator can deliver.

A stuck valve actuator problem may actually be a stuck process valve problem. Disconnecting the actuator from the valve should only be done under safe conditions, but it can help determine whether the actuator moves freely without valve load.

Symptom 2: Solenoid Valve Energized but No Movement

The problem described as “solenoid valve energized no movement” is very common. It means the electrical side appears active, but the pneumatic actuator does not respond.

Do not assume that energized means functioning. A solenoid coil can receive voltage while the internal valve does not shift. The coil may be burned, weak, wrong voltage, overheated or mechanically disconnected from the valve mechanism. The spool may be jammed by dirt or moisture. The exhaust port may be blocked. The manual override may be in the wrong position.

The first check is voltage at the coil terminals. Confirm the actual voltage with a meter rather than relying only on indicator lights. Indicator lights can show power presence but not prove that voltage is correct under load.

The second check is air supply at the solenoid inlet. If no air reaches the solenoid, the actuator cannot move regardless of coil status.

The third check is outlet pressure from the solenoid valve. When the coil energizes, does air leave the correct port? If not, the solenoid valve may be stuck, miswired, incorrectly specified or internally blocked.

The fourth check is tubing connection. If actuator ports are reversed, the valve may move opposite to expectation. If tubing is kinked, blocked or leaking, the actuator may not receive sufficient pressure.

The fifth check is exhaust. Pneumatic movement requires one side to receive air and another side to vent. A clogged exhaust silencer can stop or slow actuator movement.

Only after these checks should the actuator itself be suspected.

Symptom 3: Pneumatic Valve Not Closing

A pneumatic valve not closing can be more dangerous than a valve not opening, depending on the process. If a chemical feed valve, steam valve, fuel valve or tank filling valve fails to close, the result may be serious.

The troubleshooting path depends on actuator type.

For a spring return actuator, confirm whether the spring is supposed to close the valve. If the actuator is configured as air to open and spring to close, removing air should allow the spring to return the valve. If the valve does not close, possible causes include blocked exhaust, weak or broken springs, internal actuator friction, valve torque too high, wrong mounting orientation or a stuck valve body.

For a double acting actuator, closing requires compressed air to be directed to the closing chamber. Check whether the solenoid pilot valve sends air to the correct actuator port. Check whether the closing tube is connected, pressurized and not leaking. Check whether the exhaust from the opening chamber is clear.

A valve may also fail to close because the process valve seat is obstructed. Debris, scale, product buildup, crystallized media or damaged internal parts can prevent full closure. In this case, the actuator may reach the closed position mechanically, but the valve may still leak internally. That is a different problem from actuator failure.

Limit switch feedback should also be checked. A switch may say “closed” even though the valve is not fully seated if the cam is misadjusted. This creates a false closed signal.

Symptom 4: Actuator Moves Slowly

A slow pneumatic actuator usually indicates restriction, low pressure, leakage, high friction or intentional speed control. The key is to determine whether the movement was always slow or became slow over time.

If the actuator has always moved slowly since installation, the solenoid valve may be undersized, tubing may be too long, fittings may be restrictive, air pressure may be lower than design pressure, or speed control valves may be set too tightly. Large actuators require sufficient air flow. A small solenoid pilot valve may work for a small actuator but be too restrictive for a larger valve package.

If the actuator became slow after operating normally, maintenance issues are more likely. The air filter may be clogged. The regulator may be failing. Tubing may be leaking. Exhaust silencers may be blocked. Actuator seals may be worn. Moisture or dirt may have entered the solenoid valve. The process valve may be developing higher friction due to seat wear, corrosion or buildup.

A slow pneumatic actuator can also be a warning sign before complete failure. If the valve now takes 12 seconds to open when it used to take 4 seconds, the system is telling you something. Good pneumatic valve maintenance should track travel time as a useful health indicator.

However, do not automatically “fix” slow movement by opening speed controls fully. Some valves are intentionally slowed to prevent water hammer, pressure surge or process shock. Always confirm the design intent before changing speed settings.

Symptom 5: Actuator Air Leak

An actuator air leak can occur externally or internally. External leaks are usually easier to find because air can be heard or detected around fittings, tubing, end caps, shaft seals, solenoid connections or air filter regulator components. Internal leakage may be harder to diagnose because air bypasses seals inside the actuator.

External leaks can be caused by loose fittings, cracked tubing, damaged O-rings, worn shaft seals, poor thread sealing or vibration. These leaks reduce available actuator pressure and can increase compressor load. In severe cases, the actuator may fail to complete travel.

Internal leaks may occur when piston seals wear or become damaged. In a double acting actuator, air may leak from one chamber to another. The actuator may still move but with reduced force, slower response or inability to hold position. In a spring return actuator, leakage may reduce the effectiveness of the air-driven stroke.

A leak at the solenoid exhaust may not always mean the solenoid is defective. It may indicate that air is leaking through the actuator and escaping through the exhaust path. This is why isolating components during testing can be useful.

For valve actuator repair, replacing seals may be possible if the actuator is serviceable. In other cases, actuator replacement may be more practical. The decision depends on actuator size, spare parts availability, labor cost, criticality and condition of the actuator body.

Symptom 6: Valve Opens Partially but Does Not Reach Full Travel

If a valve begins to move but stops before full open or full closed position, the problem is often torque-related, pressure-related or mechanically restricted.

First, check air pressure at the actuator during movement. Static pressure on a gauge may look acceptable, but pressure can drop when the actuator starts to move. If tubing is too small or the regulator is undersized, dynamic pressure may fall below the actuator requirement.

Second, check travel stops. Mechanical stops on the actuator may be incorrectly adjusted. If the stop limits rotation too early, the valve may never reach full travel.

Third, check the coupling and mounting bracket. Misalignment between actuator and valve stem can create side load and friction. Loose couplings can cause lost motion. A damaged bracket can prevent proper torque transmission.

Fourth, check valve torque. A valve that has been in service for a long time may require more torque than when new. Buildup, corrosion, seat swelling, thermal expansion or pressure differential can increase required torque.

Fifth, check the feedback device. The valve may be fully open, but the limit switch box may not show open because the cam is misadjusted. Or the opposite may happen: the switch may show open before the valve is truly open.

Partial travel problems require both mechanical and control checks.

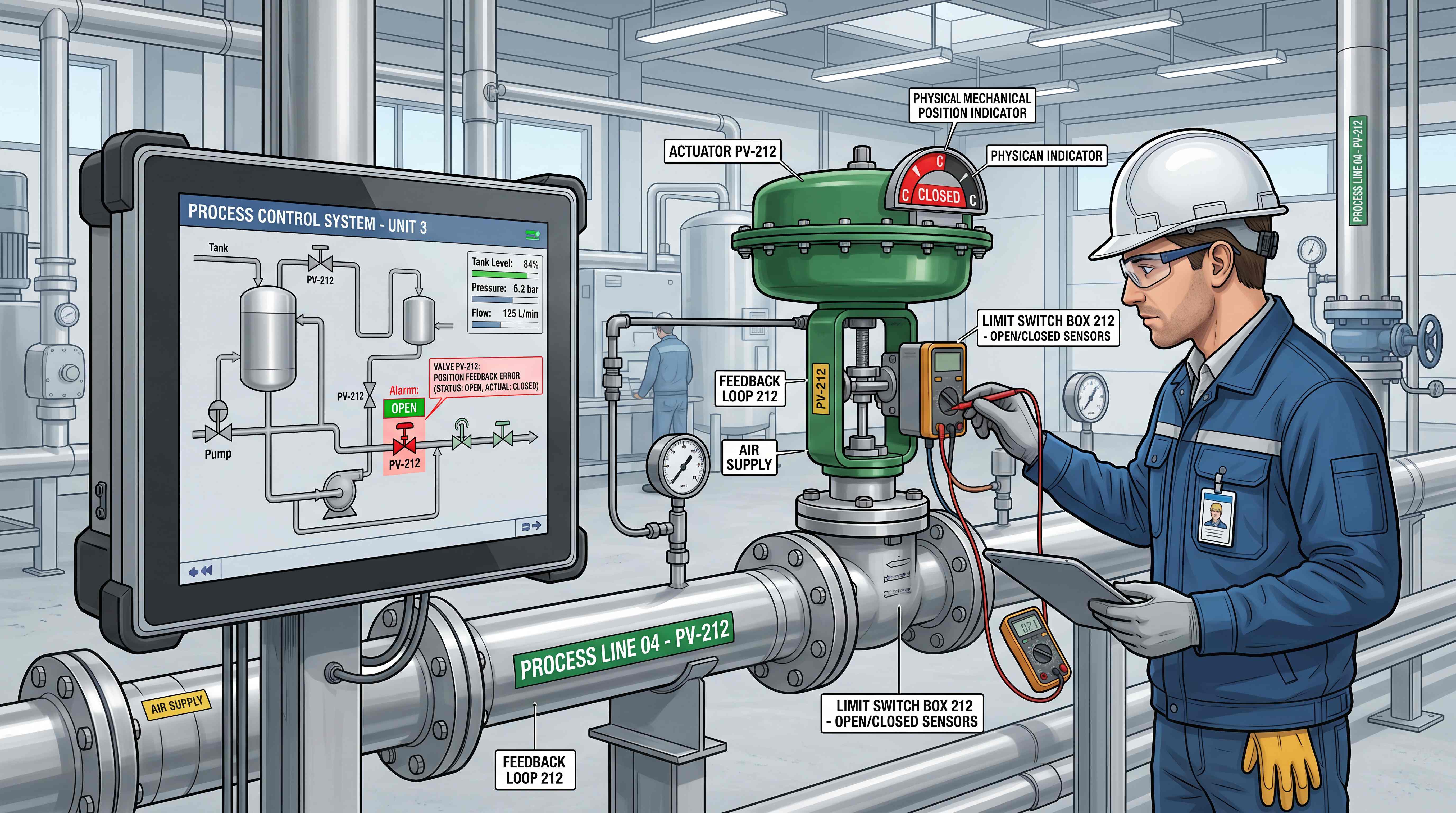

Symptom 7: Valve Position Feedback Does Not Match Actual Position

Sometimes the actuator and valve move correctly, but the control system reports the wrong position. This is a feedback problem, not necessarily an actuator problem.

A limit switch box may be misadjusted. The open or closed cam may activate too early or too late. A proximity sensor may be misaligned. A mechanical switch may be worn. Wiring may be loose. The PLC input may be mapped incorrectly. The visual indicator may not match the valve stem orientation.

This type of problem can be dangerous because it creates false confidence. If the PLC thinks the valve is open when it is not, a pump may start against a closed line. If the PLC thinks the valve is closed when it is not, product may flow into the wrong line.

Troubleshooting should include direct field verification. Look at the valve stem, actuator indicator and process response. Confirm open and closed signals with actual valve position. Test both directions. Confirm that both open and closed feedback are not active at the same time.

Valve position feedback should be treated as part of pneumatic valve maintenance. It is not enough to confirm that the actuator moves. The feedback must also be accurate.

Symptom 8: Intermittent Pneumatic Valve Problems

Intermittent problems are often the hardest to solve. A valve may work during maintenance testing but fail during production. It may fail only when multiple valves move at the same time. It may fail only in cold weather. It may fail after long idle periods.

Intermittent pneumatic valve problems often point to marginal conditions.

Plant air pressure may drop during peak demand. Moisture may freeze in tubing during low temperature operation. A solenoid valve may stick only occasionally. A loose wire may lose contact under vibration. A valve may stick after sitting closed for a long time. A weak actuator may work when pressure is high but fail when pressure drops slightly.

To solve intermittent problems, collect data. Record air pressure during operation, opening time, closing time, command signal, feedback timing, temperature, sequence conditions and whether other pneumatic devices were operating at the same time.

A problem that looks random often has a pattern. The pattern may only appear when the system is observed under real operating conditions.

Troubleshooting Table: Symptom, Likely Causes and Checks

This table is useful for quick diagnosis, but it should not replace safe field testing.

Air Supply Checks: The Most Overlooked Step

Compressed air is the energy source of the pneumatic actuator. If the air supply is poor, the actuator cannot perform reliably.

Start by checking supply pressure at the actuator package, not only at the compressor room. A pressure drop can occur through long piping, undersized tubing, clogged filters, partially closed valves or high demand from other equipment.

Check the air filter regulator. Is the filter bowl full of water? Is the filter element clogged? Is the regulator set correctly? Is the gauge working? Is there oil or dirt in the line? Is the drain functioning?

Check whether air pressure remains stable during actuation. Some problems only appear when the actuator demands flow. A gauge may show acceptable pressure when idle but drop sharply when the valve moves.

Check air quality. Wet air can cause corrosion and freezing. Dirt can damage solenoid valves and actuator seals. Oil contamination can affect seals depending on material compatibility.

Many pneumatic valve problems are actually compressed air problems. Fixing air supply quality may solve multiple actuator issues across the plant.

Solenoid Pilot Valve Checks

The solenoid pilot valve controls air direction. It should be checked before replacing the actuator.

Confirm coil voltage. Confirm the coil is not burned. Confirm the connector is seated. Confirm the manual override position. Confirm the correct solenoid function is installed: 3/2 for many spring return actuators, 5/2 for many double acting actuators.

Check whether air enters the solenoid supply port. Then check whether air leaves the correct outlet port when energized or de-energized. If the solenoid shifts but flow is weak, the internal passage may be restricted or the valve may be undersized.

Check the exhaust ports. A clogged exhaust silencer can make the actuator slow or prevent spring return. In dirty environments, silencers should be inspected regularly.

Check whether the solenoid valve is mounted directly on the actuator or remotely in a panel. Remote mounting with long tubing may slow response or create pressure drop.

The solenoid valve is small, but it often causes large troubleshooting problems.

Tubing, Fittings and Port Connection Checks

Tubing problems are easy to overlook because they seem simple. But incorrect tubing can stop a pneumatic actuator from working.

Check for kinks, crushed tubes, loose push-in fittings, cracked hoses, wrong port connections and excessive tubing length. Verify that actuator ports A and B are connected according to the required open-close logic. For double acting actuators, reversed tubing can reverse movement. For spring return actuators, blocked venting can prevent return.

Check tubing diameter. If the actuator is large, small tubing may restrict flow. If the valve must move quickly, tubing size becomes more important. If the valve must move slowly, speed controls may be installed, but they should be intentionally adjusted.

Check for leaks with approved methods. Listening can help, but small leaks may require leak detection fluid or ultrasonic tools.

Tubing is part of the control system. Treating it as a minor installation detail can lead to unreliable valve automation.

Actuator Mechanical Checks

If air and control signals are correct, the actuator itself must be evaluated.

Check the actuator housing for damage, corrosion or loose end caps. Check shaft movement. Check travel stops. Check whether the position indicator moves smoothly. Check for abnormal noise. Check for air leakage around shaft seals or end caps.

For spring return actuators, spring condition matters. Weak or broken springs can prevent return movement. If the actuator no longer fails closed or fails open as designed, spring failure or internal friction may be involved.

For rack and pinion actuators, internal gear wear or piston seal wear can affect movement. For scotch yoke actuators, linkage or bearing wear may affect torque transmission.

If the actuator can be safely removed from the valve, testing it without valve load may show whether the actuator moves freely. If it moves freely off the valve but fails on the valve, the process valve likely requires more torque or is mechanically stuck.

Actuator replacement should be based on diagnosis, not frustration.

Process Valve Checks: When the Valve Is the Real Problem

A pneumatic actuator may be blamed when the process valve is actually the root cause.

A ball valve may have high seat friction. A butterfly valve may have disc-seat interference. A plug valve may be stuck due to deposits. A valve may be blocked by debris. Packing may be too tight. Corrosion may affect stem movement. The media may crystallize, harden or build up around internal parts.

Pressure differential also matters. A valve that moves easily with no pressure may require much more torque under real process conditions. This is why workshop testing does not always prove field reliability.

If the valve has not operated for a long time, breakaway torque may be high. Periodic exercising may help prevent sticking in some applications.

A stuck valve actuator issue should always include valve body investigation. If the valve torque has increased beyond actuator capacity, replacing the actuator with the same size may not solve the problem.

Preventive Maintenance for Pneumatic Actuated Valves

Good pneumatic valve maintenance reduces emergency troubleshooting.

A maintenance plan should include regular checks of air pressure, filter regulator condition, tubing, fittings, solenoid valve operation, actuator movement, travel time, position feedback, visual indicators, mounting bolts and valve operation.

For important valves, record opening and closing time. A gradual increase in travel time can warn of developing problems. Record air pressure during operation, not only at rest. Inspect exhaust silencers. Test manual override where allowed. Confirm fail-safe action during planned maintenance.

For high-cycle valves, inspect seals and moving parts more often. For valves in dirty, wet or corrosive environments, inspect enclosures, cable glands and tubing condition. For safety-related valves, create a documented test schedule.

Preventive maintenance is less expensive than unplanned downtime. It also helps maintenance teams identify whether failures are caused by air supply, solenoid valves, actuators, feedback devices or process valves.

When to Repair and When to Replace

Valve actuator repair may be practical when the actuator is large, spare parts are available, the body is in good condition and the failure is limited to seals, springs or accessories. Repair may be especially reasonable for expensive actuators on large valves.

Replacement may be better when the actuator is small, heavily corroded, mechanically damaged, obsolete or repeatedly failing. Replacement may also be better if the actuator was incorrectly sized from the beginning.

Before repairing, ask whether the failure was caused by normal wear or by a system problem. If dirty air destroyed actuator seals, new seals may fail again unless air quality improves. If the actuator was undersized, repairing it will not solve the torque issue. If a solenoid valve is undersized, replacing the actuator will not fix slow movement.

The best repair decision addresses the root cause, not only the failed part.

Focused FAQ

Why is my pneumatic actuator not opening?

A pneumatic actuator may not open because there is no control signal, no air supply, low air pressure, a stuck solenoid valve, blocked tubing, actuator seal failure or a stuck process valve requiring too much torque.

What should I check first when a pneumatic valve does not move?

Start with the control signal and air supply. Confirm coil voltage at the solenoid valve, check pressure at the air filter regulator, and verify that air is reaching the actuator.

Why is the solenoid valve energized but no movement happens?

The solenoid coil may receive voltage but fail to shift the valve. Other causes include no air supply, wrong voltage, blocked exhaust, incorrect tubing, a stuck actuator or excessive valve torque.

Why is my pneumatic valve not closing?

A pneumatic valve may not close because closing air is missing, the spring return mechanism is weak, exhaust is blocked, the solenoid valve is stuck, the valve seat is obstructed or the actuator lacks enough torque.

What causes a slow pneumatic actuator?

A slow pneumatic actuator can be caused by low air pressure, clogged filters, undersized solenoid valves, long tubing, blocked exhaust silencers, worn seals, cold temperature or a valve body with high friction.

How do I find an actuator air leak?

Check fittings, tubing, end caps, shaft seals, solenoid connections and exhaust ports. If air leaks continuously through the exhaust, internal actuator seals may be leaking.

Can a stuck valve make the actuator look faulty?

Yes. If the process valve is stuck or requires higher torque than expected, the actuator may fail to move even when air supply and solenoid control are normal.

Why does valve feedback show open when the valve is not open?

The limit switch box may be misadjusted, the cam may activate too early, wiring may be wrong, the coupling may be loose or the PLC input may be mapped incorrectly.

Should I replace the actuator if it does not move?

Not immediately. First check signal, air pressure, solenoid operation, tubing, exhaust, feedback and valve torque. Replacing the actuator without diagnosis may not solve the real problem.

How often should pneumatic valves be maintained?

Maintenance frequency depends on cycle rate, process risk and environment. High-cycle, safety-related, outdoor or corrosive-service valves should be inspected more often than low-cycle utility valves.

Final Recommendation: Troubleshoot the Whole Valve Automation Chain

Pneumatic actuator troubleshooting should never focus on only one part. A pneumatic actuator not opening may be caused by electrical signal failure, compressed air problems, solenoid valve faults, tubing restrictions, actuator seal damage, wrong feedback or a stuck process valve. The symptoms may look similar, but the root causes are different.

The best method is to follow the control chain. Start with the command. Confirm the solenoid coil receives the correct signal. Check the air supply at the valve package. Verify that the solenoid pilot valve shifts and sends air to the correct actuator port. Inspect tubing, fittings and exhaust paths. Observe actuator movement. Confirm valve position feedback. Finally, evaluate whether the process valve itself is stuck or requires more torque than the actuator can provide.

This structured approach saves time and prevents unnecessary replacement. It also improves plant reliability because it identifies system weaknesses, not only failed components.

For industrial valve automation, the actuator is only one part of the package. The complete system includes control signal, air preparation, solenoid valve, tubing, actuator mechanism, valve body and feedback device. Reliable troubleshooting must include all of them.

A good maintenance team does not ask only, “Why did the actuator fail?” It asks, “Where did the command-to-movement chain break?” That question leads to better diagnosis, better repairs and more reliable pneumatic valve automation.
