Instrument Air Quality: The Hidden Factor Behind Pneumatic Valve Reliability

Quick Answer: Why Does Instrument Air Quality Matter for Pneumatic Valves?

Instrument air quality matters because pneumatic valve automation depends on compressed air as its power source. A pneumatic actuator may be correctly sized, the valve body may be suitable for the process, and the solenoid pilot valve may be wired correctly, but the automated valve package can still fail if the pneumatic valve air supply is dirty, wet, unstable or under pressure.

Clean, dry and regulated instrument air helps pneumatic actuators move consistently, helps solenoid valves shift reliably, reduces internal corrosion, protects seals, prevents tubing blockage and improves pneumatic valve reliability. Poor instrument air quality can cause slow actuator movement, incomplete valve travel, actuator air leaks, solenoid sticking, positioner instability, frozen air lines, damaged seals and unexpected downtime.

In many industrial plants, valve failures are blamed on actuators or solenoid valves when the real cause is compressed air moisture, particles, oil contamination, pressure drop or a poorly maintained air filter regulator. This is why air preparation for actuators should be treated as part of valve automation design, not as a small accessory decision.

A strong pneumatic valve system needs three things from its air supply: clean air, dry air and stable pressure. If one of these is missing, the whole control chain becomes less reliable.

The Overlooked Foundation of Pneumatic Valve Automation

When engineers and buyers discuss pneumatic valve automation, they often focus on visible components. They compare ball valves and butterfly valves. They choose spring return or double acting pneumatic actuators. They specify solenoid pilot valves, limit switch boxes, smart positioners and control panels. These are important decisions, but they all depend on something less visible: the quality of the compressed air.

A pneumatic actuator is not an independent power device. It converts compressed air pressure into mechanical motion. A solenoid valve does not create motion by itself. It only directs compressed air. A valve positioner cannot control a valve accurately if the air supply is unstable. A limit switch box can confirm position, but it cannot fix a valve that moves slowly because air pressure is too low.

This means the air system is not outside the valve automation package. It is part of the package.

In a well-designed system, compressed air enters an air filter regulator or FRL unit, pressure is reduced to a suitable level, moisture and particles are removed, and clean regulated air is supplied to the solenoid valve or positioner. From there, air is sent to the pneumatic actuator at the right pressure and flow rate.

In a poorly designed system, plant air may be connected directly to the actuator package without enough filtration, drying or pressure regulation. The system may work during commissioning but become unreliable after months of operation. Dirt accumulates. Water reaches the solenoid valve. Tubing becomes contaminated. Seals wear prematurely. Exhaust silencers clog. The actuator starts to move slowly. Eventually, the valve fails to open or close when needed.

This is why instrument air quality should be considered a reliability topic, not just a utility topic.

What Is Instrument Air?

Instrument air is compressed air used to operate control instruments, pneumatic actuators, valve positioners, solenoid valves and other automation devices. It is different from general plant air in terms of expected cleanliness, dryness and stability.

General plant air may be used for tools, cleaning, utility blowing or general pneumatic equipment. Instrument air usually needs better quality because it flows through smaller passages, precision components and control devices. A valve positioner, I/P converter or solenoid pilot valve may have small internal air passages that can be affected by particles, oil, water or corrosion.

In pneumatic valve automation, instrument air is commonly used for:

Pneumatic actuator air pressure.

Solenoid pilot valve supply.

Electro-pneumatic valve positioners.

I/P converters.

Air filter regulator supply.

Pneumatic control panels.

Valve manifold systems.

Fail-safe actuator systems.

Partial stroke testing equipment.

Because instrument air supports control functions, its failure can affect process operation. If plant air tools lose pressure, a maintenance task may slow down. If instrument air loses pressure, an automated valve may fail to move, a control valve may lose position stability, or a safety-related valve may move to its fail position.

This difference explains why instrument air quality deserves special attention.

The Three Requirements: Clean, Dry and Stable

A reliable pneumatic valve air supply must be clean, dry and stable.

Clean air means the air is free from harmful particles, rust, pipe scale, dust and other solid contamination. Dirty compressed air can damage solenoid valve spools, actuator seals, positioner internals and small orifices. It can also clog filters, silencers and tubing.

Dry air means moisture is controlled. Compressed air moisture can condense inside piping, regulators, solenoid valves and actuators. Water can cause corrosion, sticking, freezing, lubrication washout and unpredictable movement. In cold environments, moisture can freeze and block air passages.

Stable air means pressure remains within the required operating range during real actuator movement. A gauge may show good pressure when the valve is idle, but pressure may drop when the actuator demands air. This dynamic pressure drop can cause slow movement or incomplete travel.

These three requirements work together. Clean but wet air is still a problem. Dry but unstable air is still a problem. Stable but dirty air is still a problem.

Good air preparation for actuators must address all three.

How Dirty Compressed Air Damages Pneumatic Valve Systems

Dirty compressed air is one of the most common causes of long-term pneumatic valve reliability problems. Contamination may come from compressor systems, old piping, rust, scale, poor filtration, installation debris or degraded seals.

When particles enter a solenoid pilot valve, they may cause the internal spool or poppet to stick. The coil may energize correctly, but the valve may not shift fully. This creates the common field symptom: solenoid valve energized but actuator does not move.

Particles can also damage actuator seals. A pneumatic actuator depends on seals to keep pressure in the correct chamber. If abrasive particles scratch internal surfaces or seals, leakage can develop. The actuator may move slowly, lose torque or fail to hold position.

Dirty air can affect valve positioners even more severely. A pneumatic valve positioner needs precise air control. Small passages and nozzles can become blocked. The valve may hunt, respond slowly, overshoot or fail calibration.

Dirt can also clog exhaust silencers. If exhaust air cannot leave the actuator quickly, the actuator may move slowly or fail to return. Maintenance teams may blame the actuator spring or solenoid valve when the real problem is a blocked exhaust path.

This is why an air filter regulator is not just a nice addition. It protects the control chain from contamination.

Why Compressed Air Moisture Creates Hidden Failures

Compressed air moisture is a serious problem because it may not cause immediate failure. A system can operate normally while moisture slowly damages components.

When air is compressed, water vapor can condense as pressure and temperature change. If the air is not dried properly, moisture can travel through the pneumatic valve air supply. It may collect in low points, filter bowls, solenoid valves, tubing and actuator chambers.

Moisture can cause corrosion inside actuator bodies and valve accessories. It can make solenoid valve spools sticky. It can damage coils and electrical connectors if water reaches the wrong area. It can reduce the life of seals and create inconsistent movement.

In cold climates or outdoor installations, compressed air moisture can freeze. A small amount of water in a pilot valve or tubing line can become ice and block the air path. This may cause intermittent failures that appear only during certain weather conditions.

Moisture also creates maintenance confusion. A valve may work during daytime testing but fail at night when temperature drops. A solenoid valve may work after being warmed but fail again later. These intermittent failures are often difficult to diagnose unless air dryness is considered.

For critical pneumatic actuator maintenance, moisture control should be part of the inspection routine.

Air Filter Regulator: Small Device, Big Impact

An air filter regulator is one of the most important components in a pneumatic valve automation package. It usually performs two core functions: filtration and pressure regulation.

The filter removes particles, water droplets and contamination from the compressed air. The regulator reduces and stabilizes air pressure to the level required by the actuator, solenoid valve or positioner.

In many automated valve packages, the air filter regulator is installed close to the actuator. This local installation helps ensure that the air reaching the valve package is clean and at the correct pressure. A pressure gauge on the regulator gives technicians a quick way to check local pneumatic actuator air pressure.

However, the air filter regulator must be selected and maintained correctly. If the filter element is too coarse, fine particles may pass through. If the bowl fills with water, moisture may continue downstream. If the regulator is undersized, pressure may drop during actuator movement. If the gauge fails, technicians may read incorrect pressure.

A common mistake is installing a filter regulator and then forgetting it. The device needs inspection, draining and element replacement. A clogged filter can create pressure drop and make the actuator move slowly. A full water bowl can send moisture downstream.

The air filter regulator is simple, but it directly affects actuator reliability.

FRL Unit: Filter, Regulator and Lubricator

An FRL unit includes a filter, regulator and lubricator. In general pneumatic systems, FRL units are common. For pneumatic valve automation, the use of lubrication must be considered carefully.

The filter removes contaminants. The regulator controls pressure. The lubricator adds oil mist to the air stream for components that need lubrication.

However, not every pneumatic actuator system needs lubricated air. Many modern actuators, solenoid valves and positioners are designed for dry or non-lubricated instrument air. Adding oil can sometimes create problems, especially for positioners, clean process environments or components not designed for oil carryover.

This means buyers should not automatically specify a full FRL unit without checking component requirements. In many valve automation packages, an air filter regulator may be preferred over a filter-regulator-lubricator combination.

If lubrication is required, the oil type and feed rate must be compatible with seals and equipment. Too much oil can contaminate downstream devices. Too little oil may not provide benefit. Mixed lubrication practices across a plant can also create confusion.

The key is to follow the actuator, solenoid valve and positioner manufacturer’s air quality requirements. In industrial valve automation, the safest assumption is not “more lubrication is better.” The safer approach is “use the air preparation method required by the equipment.”

Pressure Stability Is More Important Than Static Gauge Readings

Many technicians check pneumatic actuator air pressure by looking at a gauge while the valve is idle. This is useful, but it does not prove that pressure is stable during movement.

A pneumatic actuator needs flow as well as pressure. When a large actuator begins to move, it may demand a significant volume of air. If the tubing is too small, the regulator is undersized, the air header is overloaded, or the solenoid valve has insufficient flow capacity, pressure may drop during the stroke.

This dynamic pressure drop can cause the valve to move slowly, stop halfway or fail to seat properly. The gauge may return to normal after the actuator stops, making the problem hard to see.

For accurate troubleshooting, pressure should be checked during actuator operation. If possible, observe supply pressure while the valve opens and closes. Compare the pressure during movement with the actuator’s minimum required pressure.

This is especially important for spring return actuators. The air-driven stroke must overcome both valve torque and spring force. If pressure drops during movement, the actuator may not complete the stroke. For double acting actuators, pressure drop can affect both opening and closing.

Pneumatic actuator air pressure should therefore be evaluated under real operating conditions, not only at rest.

Tubing Size, Length and Pressure Drop

Even with good instrument air quality, poor tubing design can reduce pneumatic valve reliability. Air must travel from the supply source to the solenoid valve and actuator. Tubing size, length, bends, fittings and restrictions all affect flow.

Long tubing runs increase air volume and response time. Small tubing can restrict flow. Too many fittings can create pressure drop. Kinked tubing can block air. Poorly installed push-in fittings can leak. Remote-mounted solenoid valves may require longer tubing, which can slow actuator response.

For small actuators, these issues may be minor. For large pneumatic actuators, fast stroking valves or emergency shutdown applications, tubing design becomes critical.

A common field issue occurs when a control panel is installed far from the actuator. The solenoid valves are neatly arranged in the panel, but the tubing run to the actuator is long. The valve may work, but response time becomes slow or inconsistent. If the actuator is safety-related, slow response may not be acceptable.

The tubing system should be treated as part of air preparation for actuators. Clean air at the regulator is not enough if the tubing creates leaks, pressure loss or contamination downstream.

Air Supply for Spring Return vs Double Acting Actuators

Spring return and double acting actuators use compressed air differently.

A spring return pneumatic actuator uses air for one direction and spring force for the return direction. This means air supply must be strong enough to move the actuator against valve torque and internal spring force. If air pressure is too low, the actuator may fail to complete the air-driven stroke. If exhaust is blocked, the spring may fail to return the actuator properly.

A double acting pneumatic actuator uses air for both directions. It needs air to open and air to close. Pressure stability affects both strokes. If air pressure drops, the actuator may fail in either direction depending on load and valve torque.

Air consumption also differs. Double acting actuators generally use air on both strokes, while spring return actuators use air on one stroke. However, spring return actuators may require higher air force on the air stroke because the spring force must also be overcome.

For both actuator types, instrument air quality affects seals, internal surfaces, solenoid valves and response time. The difference is not whether air quality matters. The difference is how air problems appear in the failure mode.

Air Supply for Valve Positioners and Modulating Control

Modulating control valves are especially sensitive to air quality and pressure stability. A valve positioner constantly adjusts pneumatic output to hold the valve at the required position. If air supply pressure fluctuates, contains moisture or has particles, control performance suffers.

A smart valve controller or electro-pneumatic positioner may show unstable output, hunting, slow response or diagnostic alarms when air supply is poor. Operators may blame tuning or control logic, but the root cause may be dirty compressed air or unstable supply pressure.

Positioners often have small internal pneumatic passages. These can be blocked by oil, dirt or water. A filter regulator installed before the positioner is essential. In many cases, instrument air for positioners should be cleaner and drier than general actuator air.

For process control loops, air quality affects product quality and process stability. A sticky control valve may create oscillation in flow, pressure or temperature. This can cause energy waste, batch variation, poor control accuracy or safety concerns.

In modulating applications, air preparation is not only maintenance support. It is part of process performance.

Common Symptoms of Poor Instrument Air Quality

Poor instrument air quality can appear as many different symptoms. Recognizing these patterns helps maintenance teams find root causes faster.

A pneumatic actuator may move slowly because the filter is clogged, tubing is restricted or pressure drops during movement.

A valve may fail intermittently because water or debris sometimes blocks a solenoid valve.

A solenoid valve may energize but not shift because dirt has jammed the spool.

An actuator may leak because contaminated air has damaged piston seals.

A spring return actuator may fail to return because exhaust is blocked by contamination or moisture.

A valve positioner may hunt because air supply pressure is unstable.

A control valve may fail calibration because the positioner receives poor air quality.

A plant may experience multiple valve problems across different lines because the main instrument air system is contaminated.

These symptoms often appear in different parts of the plant, making diagnosis difficult. If several pneumatic valve problems occur at the same time, check the air system before replacing multiple actuators or solenoids.

Designing Air Preparation for a Pneumatic Valve Package

A complete automated valve package should include air preparation decisions during design. The package should not be assembled first and then connected to whatever air supply is available.

Design should consider:

Required actuator torque.

Minimum actuator air pressure.

Normal plant air pressure.

Pressure drop during actuation.

Air cleanliness requirement.

Air dryness requirement.

Filter rating.

Regulator flow capacity.

Need for lubrication or dry air.

Tubing size and length.

Solenoid valve flow capacity.

Positioner air requirement.

Environmental temperature.

Outdoor freeze risk.

Maintenance access.

Drain method.

Local pressure indication.

For critical valves, the design should also consider what happens during air failure. Does the valve fail open, fail closed or fail in place? Is an air reservoir required? Is air supply monitored? Should low air pressure create an alarm?

Air preparation should be part of valve automation engineering, not left to field improvisation.

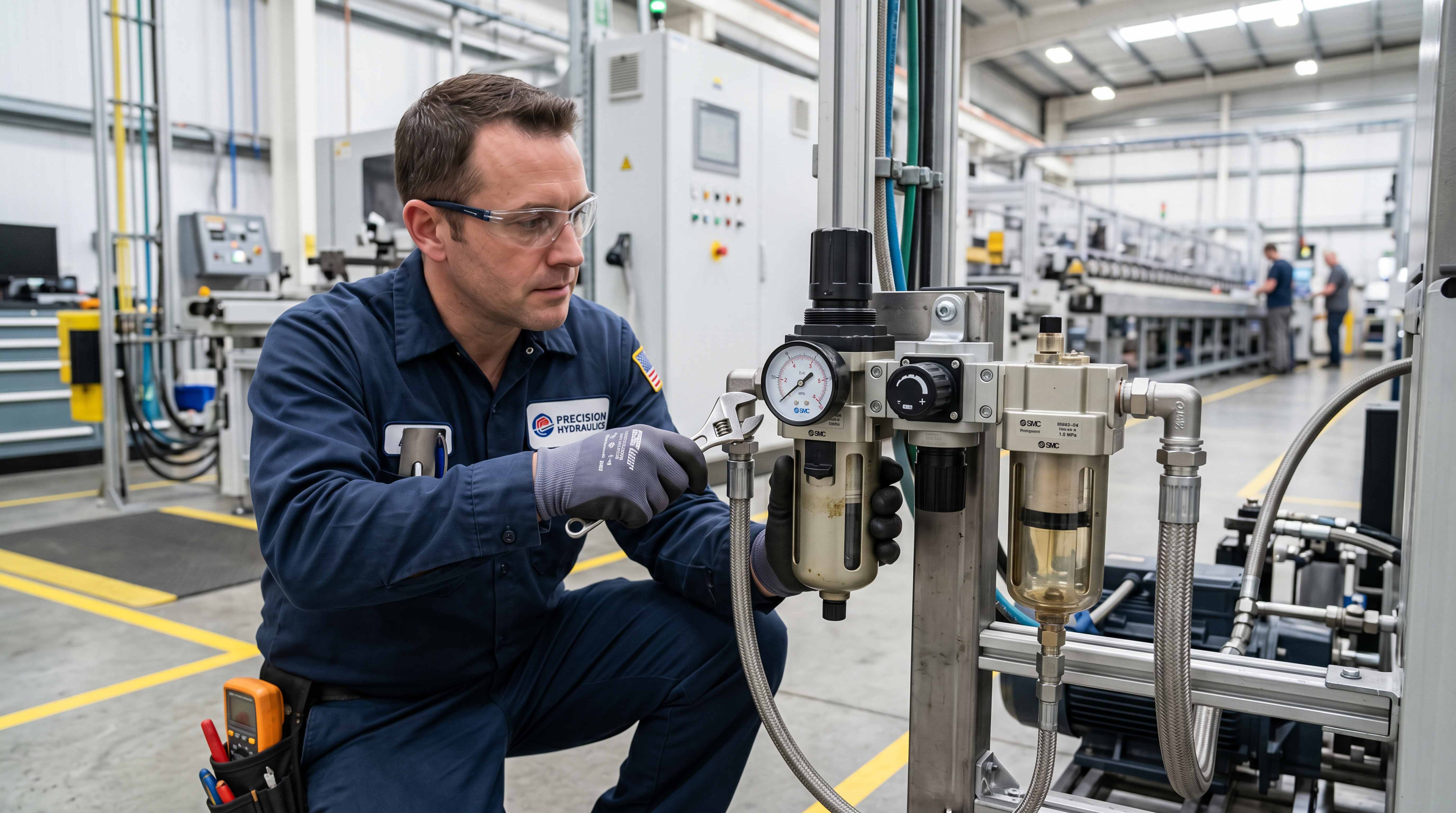

Maintenance Checklist for Air Filter Regulators and FRL Units

Pneumatic actuator maintenance should include regular inspection of air preparation devices.

Check the pressure gauge. Confirm that local pressure matches the actuator requirement.

Check the filter bowl. Drain accumulated water if manual draining is used.

Check the filter element. Replace it if clogged, dirty or past service interval.

Check the regulator setting. Confirm it has not been changed accidentally.

Check for air leaks around fittings and bowl seals.

Check tubing connections downstream of the regulator.

Check whether oil is present where dry air is required.

Check the lubricator setting if lubrication is used.

Check for cracked bowls, damaged guards or loose mounting.

Check whether pressure drops during actuator movement.

Check exhaust silencers for blockage.

Check whether multiple nearby valves show similar symptoms.

This maintenance routine may seem basic, but it prevents many pneumatic valve failures. A well-maintained air filter regulator is cheaper than emergency downtime.

How to Troubleshoot Air Supply Problems

When a pneumatic valve behaves incorrectly, air supply should be checked early.

Start at the local air filter regulator. Confirm inlet pressure, outlet pressure and regulator setting. Check whether the pressure remains stable while the actuator moves.

Inspect the filter bowl. Look for water, oil, dirt or discoloration. A dirty bowl is evidence of upstream air quality problems.

Check downstream tubing. Look for kinks, leaks, loose fittings and contamination.

Check the solenoid valve inlet pressure and outlet pressure. If the solenoid receives good air but outputs weak air, the solenoid may be restricted or damaged.

Check exhaust ports and silencers. If exhaust is blocked, actuator movement may be slow or incomplete.

For intermittent problems, monitor pressure over time. A pressure recorder or temporary gauge may show pressure dips during plant demand peaks.

If several actuators have similar issues, move upstream and inspect the main instrument air header, dryer, compressor system and distribution piping.

Troubleshooting should not stop at the actuator if the evidence points toward air supply.

Application Examples: Where Air Quality Becomes Critical

Air quality is important in all pneumatic valve systems, but some applications are especially sensitive.

In chemical plants, moisture and contamination can create corrosion and poor valve response. Chemical service valves may also be safety-related, making reliable actuation important.

In water treatment, outdoor valve stations may face moisture, dust and temperature changes. Air dryers and filter regulators help reduce freezing and contamination.

In food and beverage plants, clean operation and reliable valve sequencing matter. Oil carryover from lubricators may be undesirable in some areas.

In pharmaceutical systems, control repeatability and documentation are important. Pneumatic actuator maintenance should be planned and recorded.

In power plants, steam, cooling water and fuel-related valves may require reliable fail-safe action. Air pressure monitoring may be important.

In remote pipeline systems, maintenance access may be limited. Good air preparation reduces the need for frequent service visits.

In high-cycle production lines, small air quality problems become repeated wear problems. Filters, regulators, tubing and solenoids must be maintained more frequently.

The more critical the valve, the more important the air supply becomes.

Common Mistakes Buyers and Engineers Should Avoid

One common mistake is assuming that plant air is automatically good enough for instrument air. General compressed air may not meet the needs of pneumatic valve automation.

Another mistake is selecting an actuator based on nominal air pressure rather than minimum guaranteed air pressure. If pressure drops during operation, the actuator may be undersized in real conditions.

A third mistake is installing an air filter regulator but not maintaining it. A clogged filter or water-filled bowl can cause the same problems as having no filter.

Some systems use lubricators without confirming whether downstream devices are compatible with oil. This can create contamination problems.

Another mistake is ignoring tubing length and size. Clean, regulated air can still arrive too slowly if the tubing design is restrictive.

Some plants troubleshoot the same actuator repeatedly while ignoring upstream air quality. If several valves show similar symptoms, the air system should be investigated.

Finally, some buyers treat air preparation as a low-cost accessory rather than a reliability function. This can save money during procurement but create higher maintenance costs later.

Focused FAQ

What is instrument air quality?

Instrument air quality refers to the cleanliness, dryness and pressure stability of compressed air used for pneumatic actuators, solenoid valves, valve positioners and other control devices.

Why does pneumatic valve air supply matter?

Pneumatic valve air supply matters because compressed air provides the energy that moves the actuator. Poor air supply can cause slow movement, incomplete travel, leaks, solenoid sticking and valve failure.

What does an air filter regulator do?

An air filter regulator removes particles and moisture from compressed air while regulating the outlet pressure to the level required by the actuator or control device.

What is an FRL unit?

An FRL unit includes a filter, regulator and lubricator. It filters compressed air, controls pressure and adds lubrication when required. Not all pneumatic valve systems need lubrication.

Can compressed air moisture damage pneumatic actuators?

Yes. Compressed air moisture can cause corrosion, sticking, seal damage, freezing, solenoid valve problems and unreliable actuator movement.

What happens if pneumatic actuator air pressure is too low?

If pneumatic actuator air pressure is too low, the actuator may move slowly, stop halfway, fail to open, fail to close or lack enough torque to operate the process valve.

Is dirty compressed air a common cause of solenoid valve failure?

Yes. Dirty compressed air can jam solenoid valve spools, clog small passages, block exhaust ports and cause intermittent actuator movement problems.

Should every pneumatic actuator have an air filter regulator?

Most industrial pneumatic actuator packages benefit from a local air filter regulator, especially when reliable movement, pressure control and component protection are required.

Does a valve positioner need cleaner air than a basic actuator?

Often yes. Valve positioners and smart valve controllers usually contain smaller internal air passages and require clean, dry, stable instrument air for accurate control.

How often should air preparation devices be maintained?

Maintenance frequency depends on air quality, duty cycle and environment. Filter bowls, regulator settings, pressure gauges, filter elements and drains should be inspected regularly as part of pneumatic actuator maintenance.

Final Recommendation: Fix the Air Before Blaming the Actuator

Instrument air quality is one of the most important but most overlooked factors in pneumatic valve reliability. A pneumatic actuator can only perform as well as the compressed air supplied to it. A solenoid valve can only direct air that is clean enough to pass through it. A valve positioner can only control accurately when its air supply is dry, stable and properly regulated.

Before blaming the actuator, check the air. Before replacing the solenoid valve, check for dirty compressed air. Before retuning a positioner, check supply pressure stability. Before accepting repeated valve failures as normal maintenance, inspect the air filter regulator, tubing, drains, filter elements and main instrument air system.

For buyers, air preparation for actuators should be specified as part of the automated valve package. For engineers, pneumatic actuator air pressure should be checked at minimum and dynamic operating conditions. For maintenance teams, air filter regulators and FRL units should be treated as reliability components, not passive accessories.

Good pneumatic valve automation is not only about choosing the right actuator. It is also about giving that actuator the right air. Clean, dry and stable instrument air helps the entire control chain perform as intended, from PLC command to solenoid switching, actuator movement, valve travel and position feedback.

In industrial valve automation, air quality is not background infrastructure. It is the hidden foundation of reliable pneumatic control.

#InstrumentAirQuality
#PneumaticValveAirSupply
#AirFilterRegulator
#FRLUnit
#CompressedAirMoisture
#PneumaticActuatorAirPressure
#DirtyCompressedAir
#PneumaticValveReliability
#AirPreparationForActuators
#PneumaticActuatorMaintenance
#ValveAutomation
#IndustrialValveAutomation
#PneumaticValveControl
#ProcessMaintenance
#AutomatedValvePackage
