Why Limit Switch Boxes Matter in Pneumatic Valve Automation

Quick Answer: What Does a Limit Switch Box Do?

A limit switch box confirms the real open or closed position of an automated valve. In pneumatic valve automation, the control system may send a command to a solenoid pilot valve, and the pneumatic actuator may begin to move, but the PLC, DCS or operator still needs proof that the valve has actually reached the required position. That proof is provided by valve position feedback.

A typical limit switch box is mounted on top of a pneumatic actuator. It uses internal cams, mechanical switches, proximity sensors or other sensing elements to detect actuator shaft rotation. When the actuator reaches the open or closed position, the limit switch sends a signal back to the control system. This allows the system to know whether the valve is open, closed, partially moved, stuck, misaligned or not responding.

This is why a limit switch box is not just a small pneumatic actuator accessory. It is a feedback device that closes the information loop between valve command and valve reality. Without valve position feedback, a control system may assume that a valve has opened or closed simply because a command was sent. In industrial processes, that assumption can be risky.

For simple local systems, a visual open close indicator may be enough. For automated process lines, batch systems, safety interlocks, remote operation and PLC-controlled valve sequences, a limit switch box becomes a key part of reliable valve monitoring.

Why Valve Position Feedback Is Different From Valve Command

One of the most common misunderstandings in pneumatic valve automation is the idea that sending a command means the valve has moved correctly. This is not true.

A control panel can energize a solenoid pilot valve. The solenoid valve can direct compressed air to the pneumatic actuator. The actuator may begin to rotate. But none of these steps guarantees that the process valve has reached the fully open or fully closed position.

Many problems can happen between command and final position. The air pressure may be too low. The actuator may be undersized. The solenoid valve may be stuck. The tubing may be leaking. The actuator coupling may be loose. The valve stem may be damaged. The valve seat may be blocked by debris. The process pressure may be higher than expected. The valve may be mechanically jammed. The actuator may move partially but not complete the full stroke.

If there is no valve position feedback, the PLC may only know that it sent an output signal. It does not know whether the valve actually moved. This is a major difference between control command and process confirmation.

A limit switch box solves this problem by sending independent open and closed feedback signals. It allows the control system to compare the command with the result. If the system commands the valve to open but does not receive an open feedback signal within the expected time, it can trigger an alarm, stop a sequence, protect equipment or alert maintenance.

This is the basic logic behind automated valve indication: command is intention; feedback is confirmation.

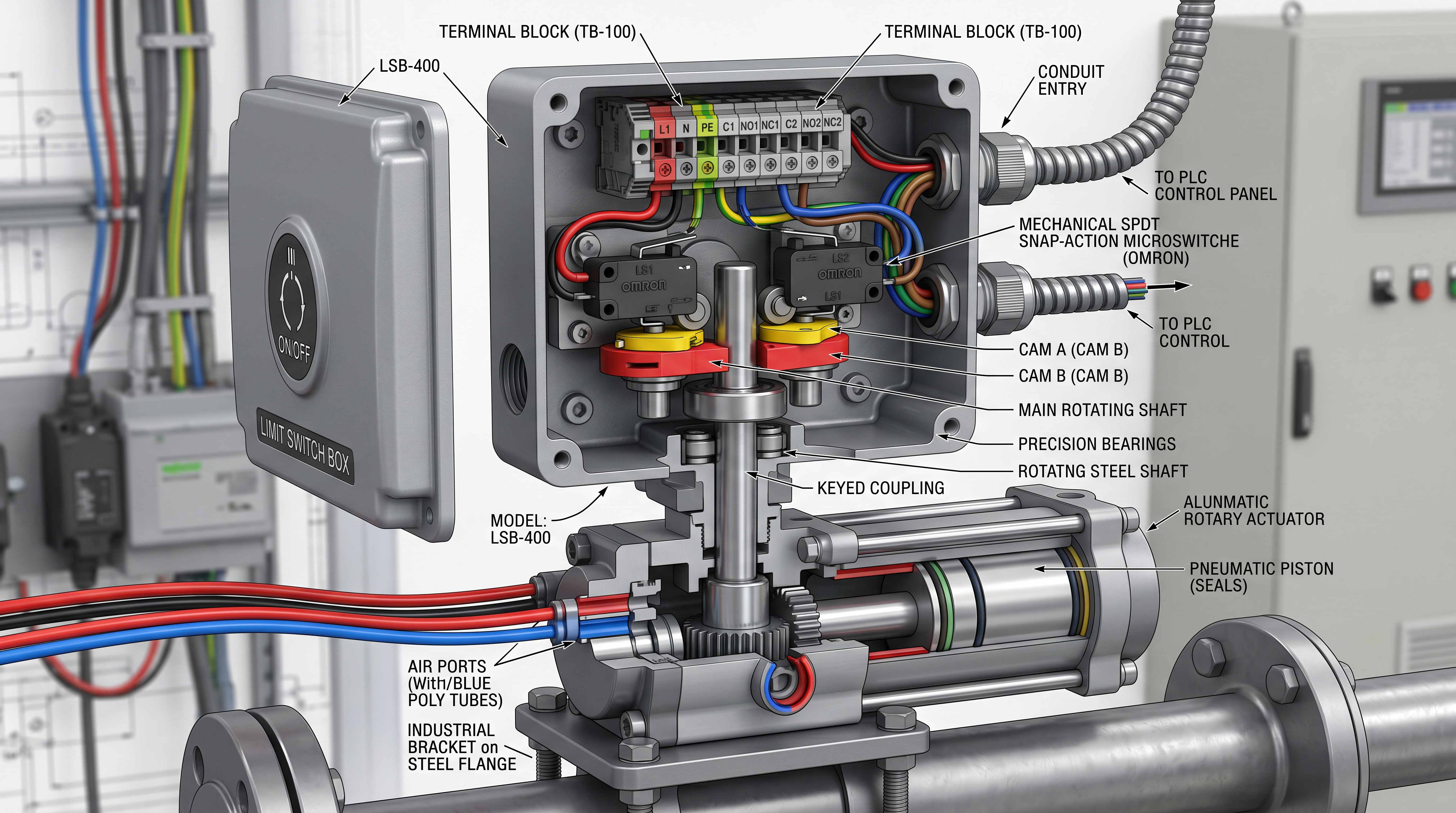

What Is Inside a Limit Switch Box?

A limit switch box may look simple from the outside, but its internal structure is designed to detect actuator position reliably.

Most quarter turn valve switch box designs include several core parts:

A housing or enclosure.

A shaft connected to the actuator output.

A visual position indicator on top.

One or more internal cams.

Mechanical switches or proximity sensors.

A terminal block for wiring.

Cable entries or conduit connections.

Sealing elements to protect against dust, water or corrosion.

The shaft of the limit switch box rotates with the pneumatic actuator. As the shaft turns, the cams inside the box move. When the valve reaches the open or closed position, the cam activates the switch or sensor. The switch then sends a signal to the PLC, DCS, control panel or monitoring system.

The visual indicator on top gives local operators a quick view of valve position. It may show OPEN, CLOSED, red/green color, arrow direction or another plant-standard indication. This is useful during inspection, commissioning and maintenance.

The terminal block allows field wiring to connect the switch signals to the control system. In a properly documented automated valve package, each switch signal should be tagged clearly, such as open feedback, closed feedback, common, normally open or normally closed contact.

A limit switch box is therefore both a mechanical and electrical device. It must be mounted correctly, adjusted correctly and wired correctly.

How a Limit Switch Box Works With a Pneumatic Actuator

In a typical pneumatic valve automation system, a limit switch box is mounted on top of a quarter-turn pneumatic actuator. The actuator may be rack and pinion or scotch yoke. It may be spring return or double acting. The actuator rotates the valve stem, usually through 90 degrees for a ball valve or butterfly valve.

The limit switch box follows that movement.

When the valve is commanded to open, the solenoid pilot valve sends compressed air to the actuator. The actuator shaft rotates. The switch box shaft rotates at the same time. When the actuator reaches the open position, the open cam activates the open switch. The control system receives the open signal.

When the valve is commanded to close, the actuator rotates in the opposite direction. The closed cam activates the closed switch. The control system receives the closed signal.

This creates a simple but powerful feedback loop:

Control system sends command.

Solenoid valve directs air.

Pneumatic actuator moves.

Valve stem rotates.

Limit switch box detects position.

PLC or DCS receives feedback.

Operator or sequence logic confirms status.

This feedback loop is especially important when valves are not visible to operators. In a large plant, many actuated valves may be installed on elevated pipe racks, inside process skids, in hazardous areas, outdoors or in remote utility zones. The control room cannot visually inspect each valve every time it moves. Valve position feedback makes remote confirmation possible.

Why Open and Closed Feedback Both Matter

Some users only want to know whether a valve is open. Others only want to know whether it is closed. In many industrial applications, both open and closed feedback are important.

Open feedback confirms that the valve has reached the open position. This may be necessary before starting a pump, beginning a transfer, allowing flow into a reactor, opening a downstream valve or starting a cleaning cycle.

Closed feedback confirms that the valve has reached the closed position. This may be necessary before isolating equipment, switching batches, preventing cross-contamination, stopping chemical injection, closing a drain or allowing maintenance.

If a valve does not provide either open or closed feedback, the system may treat the valve as “in transit” or “unknown.” This can be useful because it prevents false assumptions. A valve stuck halfway should not be treated as fully open or fully closed.

In batch processes, incorrect valve status can cause wrong material routing. In chemical plants, it can create unsafe mixing. In water treatment, it can affect flow paths. In food and beverage lines, it can cause cleaning or product contamination issues. In utility systems, it can lead to equipment running without proper flow.

That is why valve open close indication is not only a convenience. It is part of process reliability.

Mechanical Switches vs Proximity Sensors

Limit switch boxes may use different sensing technologies. The two most common categories are mechanical switches and proximity sensors.

Mechanical switches are simple contact devices. When a cam presses the switch lever or actuator, the contact changes state. Mechanical switches are widely used because they are easy to understand, cost-effective and compatible with many control systems.

Proximity sensors detect position without direct mechanical contact. They may use inductive sensing, magnetic sensing or other methods depending on design. Proximity sensors are often preferred when high cycle life, non-contact operation or certain environmental conditions are important.

The choice depends on the application.

Mechanical switches may be suitable for standard on-off valve feedback in general industrial service. They are familiar to maintenance teams and easy to test with a multimeter.

Proximity sensors may be preferred for high-cycle applications, wet environments, corrosive areas or systems where mechanical wear should be minimized. They may also be used in hazardous areas with appropriate electrical design.

The important point is that the sensing element should match the environment, control voltage, input type, cycle frequency and reliability requirement. A low-cost mechanical switch may be fine for a non-critical utility valve. A more robust sensor may be necessary for a high-cycle automated valve in a demanding production line.

Wiring Limit Switch Feedback to PLC or DCS

PLC valve feedback depends on correct wiring. A limit switch box may include open and closed contacts, proximity sensor outputs or signal terminals that must be connected to the control system input module.

In simple systems, each valve may provide two digital inputs:

Valve open feedback.

Valve closed feedback.

The PLC logic then compares the feedback with the command. If the valve is commanded open, the open feedback should appear within a defined time. If the valve is commanded closed, the closed feedback should appear within a defined time.

If neither signal appears, the valve may be traveling, stuck, not powered, not supplied with air or not wired correctly. If both open and closed signals appear at the same time, there may be a cam adjustment problem, wiring fault, switch failure or logic issue.

The wiring design should also define whether contacts are normally open or normally closed. For certain safety-related systems, normally closed wiring may be preferred because wire break detection is easier. For standard monitoring, normally open contacts may be common.

Clear wiring diagrams are essential. Each terminal should be identified, and each cable should be labeled. The control system should not rely on guesswork to interpret valve status.

Poor pneumatic valve feedback wiring can create false alarms, false open status, false closed status or hidden failures.

Visual Position Indicator: Local Confirmation Still Matters

Even when PLC feedback is available, the local visual indicator remains valuable.

A visual position indicator allows operators and technicians to confirm valve status at the field location. This is useful during commissioning, manual testing, maintenance, shutdown procedures and emergency checks.

In many plants, the operator may need to walk the line and verify that a valve is open or closed. A clear visual indicator reduces confusion. It is especially helpful when the actuator body hides the actual valve stem position.

For quarter-turn valves, the indicator often shows a 90-degree rotation. It may use color coding, arrows, words or a dome indicator. Some plants use red for closed and green for open. Others use local standards. The key is consistency.

However, a visual indicator is not a replacement for electrical feedback in automated systems. It helps humans see the status locally, but it does not inform the PLC or DCS unless electrical contacts or sensors are also provided.

A good automated valve indication system uses both: local visual confirmation and remote electrical feedback.

Why Limit Switch Boxes Improve Troubleshooting

When a pneumatic valve does not behave correctly, troubleshooting can be difficult without feedback. Maintenance teams may not know whether the problem is in the control signal, solenoid valve, air supply, actuator, coupling, valve body or wiring.

A limit switch box helps narrow the problem.

If the PLC sends an open command and the open feedback appears, the valve likely reached open position. If the open feedback does not appear, the system can check whether the actuator moved. If the actuator moved but feedback did not change, the problem may be in the switch box adjustment, cam setting, wiring or sensor. If the actuator did not move, the problem may be in the solenoid valve, air supply, actuator or valve torque.

If both open and closed feedback are absent, the valve may be between positions or the feedback circuit may be faulty. If both signals are present at the same time, the switch adjustment may be wrong.

This is why actuator limit switch data can reduce troubleshooting time. It gives the control system and technicians more information than a simple command output.

In high-value industrial processes, faster troubleshooting means less downtime. In safety-related processes, better feedback means better decision-making.

Common Problems With Limit Switch Boxes

A limit switch box is reliable when installed and maintained correctly, but several problems can occur.

One common problem is cam misadjustment. If the cams are not set correctly, the open or closed switch may activate too early or too late. The control system may receive a signal even though the valve is not fully open or closed.

Another problem is loose coupling or shaft connection. If the actuator rotates but the switch box shaft does not follow accurately, the feedback signal may be wrong.

Wiring problems are also common. Loose terminals, broken wires, moisture in cable glands or incorrect wiring can cause false signals or no signals.

Water ingress can damage switches, sensors and terminal blocks. This is especially important for outdoor, washdown or corrosive environments.

Mechanical wear may affect switches in high-cycle applications. Sensor failure may occur due to voltage mismatch, electrical noise or environmental damage.

Incorrect enclosure selection can also create problems. A general-purpose enclosure may not be suitable for hazardous areas, outdoor service, chemical exposure or high-pressure washdown.

Many feedback problems are not caused by the valve itself. They are caused by installation details around the limit switch box.

Selection Factors for a Limit Switch Box

A limit switch box should be selected based on the actual valve automation environment, not only on price.

Important selection factors include:

Actuator type and mounting standard.

Quarter-turn or linear valve movement.

Mechanical switch or proximity sensor.

Number of feedback signals required.

Control voltage and input type.

Indoor or outdoor installation.

Waterproof and dustproof protection.

Corrosion resistance.

Hazardous area requirements.

Cable entry type.

Terminal block layout.

Visual indicator style.

Ambient temperature range.

Cycle frequency.

Maintenance access.

Plant standardization.

For a standard indoor pneumatic ball valve actuator, a basic quarter turn valve switch box may be sufficient. For an outdoor chemical plant, a corrosion-resistant enclosure with sealed cable entries may be required. For explosive atmospheres, proper certified components may be necessary.

The switch box should be considered part of the automated valve package. It should match the actuator, valve, control system and process environment.

Weatherproof, Corrosion-Resistant and Explosion-Proof Designs

Industrial valve monitoring often happens in difficult environments. A limit switch box may be exposed to rain, humidity, washdown, dust, chemicals, salt air, vibration or hazardous gases.

For outdoor applications, weatherproof protection is important. The enclosure must prevent water ingress, and cable glands must be installed correctly. Even a high-quality enclosure can fail if the cable entry is poorly sealed.

For corrosive environments, housing material matters. Aluminum, coated aluminum, stainless steel and engineering plastics may be used depending on the application. Chemical compatibility should be checked, especially in plants handling acids, alkalis, solvents or saltwater.

For hazardous areas, explosion-proof or intrinsically safe designs may be required. The correct requirement depends on local standards, zone or division classification, gas group, temperature class and electrical system design. Buyers should not assume that a standard limit switch box is suitable for all industrial areas.

Environmental selection is not about over-specifying. It is about matching the switch box to the real field condition. A low-cost device may become expensive if it fails due to water, corrosion or incorrect certification.

Limit Switch Box vs Valve Positioner

A limit switch box and a valve positioner are often confused, but they serve different purposes.

A limit switch box provides discrete open and closed feedback. It is mainly used for on-off valve automation. It tells the control system whether the valve has reached open or closed position.

A valve positioner controls and measures intermediate valve position. It is mainly used for modulating control valves. It receives a control signal, such as 4-20 mA, and adjusts air pressure to move the valve to a target position.

For example, an automated ball valve used for on-off isolation may need a pneumatic actuator, solenoid pilot valve and limit switch box. A control valve used for flow regulation may need a pneumatic actuator and valve positioner.

Some advanced devices may combine position feedback with diagnostic functions, but the basic difference remains: limit switch boxes confirm end positions; positioners control continuous position.

Choosing the wrong device can create control problems. If the system only needs open and closed confirmation, a limit switch box may be enough. If the valve must modulate to 25%, 50% or 75% open, a positioner is usually required.

Application Scenarios Where Feedback Is Critical

Valve position feedback is especially important in applications where sequence, safety or remote operation matters.

In water treatment, automated valves may control filtration, backwash, chemical dosing and sludge handling. The system must know whether valves are open or closed before starting pumps or switching flow paths.

In chemical processing, wrong valve position can cause unsafe mixing, incorrect transfer or exposure risk. Pneumatic valve feedback supports interlock logic and batch control.

In food and beverage production, valve status can affect cleaning, product routing and contamination control. Open and closed feedback helps confirm that the correct line is active.

In pharmaceutical systems, documentation and repeatability are important. Valve monitoring can support process verification and controlled operation.

In energy and utility systems, valve position may affect cooling, fuel supply, steam distribution, compressed air networks or equipment isolation.

In remote facilities, operators may not be able to visually inspect each valve. Remote automated valve indication becomes essential.

In all these cases, the limit switch box helps turn valve automation from blind command into confirmed control.

How Limit Switch Feedback Supports Interlocks

An interlock is a control rule that prevents an unsafe or incorrect action. Valve position feedback is often used in interlock logic.

For example, a pump may be prevented from starting unless the discharge valve is open. A filling process may be prevented from starting unless the drain valve is closed. A cleaning cycle may not begin unless product valves are closed and cleaning valves are open. A chemical injection valve may be required to close before a downstream valve opens.

Without valve position feedback, the PLC can only assume valve status. With feedback, the PLC can verify it.

This makes limit switch boxes important for process sequencing. They help prevent pumps from deadheading, tanks from being filled incorrectly, chemicals from being routed to the wrong line and equipment from operating without proper flow.

Interlock logic should include reasonable timing. If a valve is commanded open, the system should allow enough time for the actuator to move. If feedback does not arrive within that time, the system can alarm or stop the sequence.

Good interlock design depends on good feedback data.

Installation Best Practices

Correct installation is essential for reliable valve position feedback.

The switch box should be mounted securely on the actuator. The shaft connection should align properly with the actuator output. The cams should be adjusted after the actuator and valve are installed. Open and closed feedback should be tested through actual valve movement, not only by manually turning the switch box shaft.

Cable entries should be sealed correctly. Wiring should be tagged and tightened. The enclosure cover should be closed properly after adjustment. If the switch box is installed outdoors, cable glands should prevent water from entering along the cable.

The visual indicator should match actual valve position. If it shows open while the valve is closed, operators may lose trust in the system.

Commissioning should include several checks:

Command the valve open and verify open feedback.

Command the valve closed and verify closed feedback.

Confirm that both signals are not active at the same time.

Confirm that feedback disappears when the valve is between positions.

Verify local visual indication.

Confirm PLC input mapping.

Test failure behavior if safe.

Record final settings.

These simple steps can prevent many field problems.

Maintenance and Inspection

Limit switch boxes should be included in routine maintenance plans.

Maintenance teams should inspect the enclosure, cable glands, visual indicator, mounting bolts, shaft coupling, terminal block, cams, switches or sensors. They should check for water, corrosion, loose wiring, damaged seals, cracked covers, missing screws or abnormal indicator movement.

The feedback signal should be tested periodically. It is not enough to see that the valve command works. The team should confirm that feedback accurately reflects the real valve position.

For high-cycle valves, switch wear and cam stability should be checked more often. For outdoor valves, water ingress and UV damage may be concerns. For corrosive plants, housing and cable gland condition should be reviewed.

If a valve has not moved for a long time, operators should test both actuator movement and feedback before relying on it for critical service. A switch that worked during commissioning may fail later if moisture, corrosion or wiring damage develops.

Valve monitoring is only useful if the monitoring device itself remains reliable.

Common Mistakes Buyers Should Avoid

One common mistake is ordering a pneumatic actuator without specifying valve position feedback. The package may arrive without a limit switch box, and the site later discovers that PLC confirmation is required.

Another mistake is treating the limit switch box as a generic accessory. Different environments and control systems require different switch types, enclosures and wiring options.

A third mistake is not defining open and closed feedback logic. The PLC programmer may not know whether a signal means valve open, valve closed or switch healthy.

Another common issue is poor cam adjustment. If the switch activates before the valve reaches full travel, the system may receive false confirmation.

Some buyers also forget local visual indication. Even if remote feedback exists, field technicians still need to see valve status quickly.

Another mistake is ignoring cable gland quality. Many switch box failures are caused by water entering through poorly sealed cable entries.

Finally, some systems do not alarm when command and feedback disagree. This reduces the value of feedback. A good control system should detect when a valve does not reach the required position within expected time.

Practical Selection Checklist

Before selecting a limit switch box for pneumatic valve automation, confirm the following:

Is the valve quarter-turn or linear?

Is the actuator pneumatic, electric or hydraulic?

Does the system need open feedback, closed feedback or both?

Will the switch box use mechanical switches or proximity sensors?

What control voltage and input type does the PLC require?

Is the valve installed indoors or outdoors?

Is washdown protection required?

Is the environment corrosive?

Is hazardous area certification required?

What cable entry type is needed?

Is a local visual indicator required?

Does the actuator mounting interface match the switch box?

How many cable cores are required?

Should contacts be normally open or normally closed?

What is the required enclosure protection level?

Will the valve operate frequently?

Is the switch box part of a complete automated valve package?

Answering these questions early prevents costly changes during installation.

Focused FAQ

What is a limit switch box for a pneumatic actuator?

A limit switch box is a feedback device mounted on a pneumatic actuator. It detects whether the actuator and valve have reached the open or closed position and sends that signal to a PLC, DCS or control panel.

Why do pneumatic valves need position feedback?

Pneumatic valves need position feedback because a control command does not prove that the valve actually moved. Valve position feedback confirms whether the valve is open, closed or not in the expected position.

What is valve open close indication?

Valve open close indication is a local or remote signal showing whether an automated valve is open or closed. It may come from a visual indicator, mechanical switch, proximity sensor or limit switch box.

How does a limit switch box work?

A limit switch box uses a shaft connected to the actuator. As the actuator rotates, cams inside the switch box activate switches or sensors at the open and closed positions.

What is PLC valve feedback?

PLC valve feedback is the signal sent from a limit switch box or sensor to a PLC input module. It allows the PLC to confirm actual valve position and compare it with the command.

Can a limit switch box detect intermediate valve position?

A standard limit switch box usually detects only open and closed positions. For continuous intermediate position control, a valve positioner or position transmitter may be required.

What is the difference between a limit switch box and a valve positioner?

A limit switch box confirms open and closed end positions for on-off valves. A valve positioner controls and measures continuous valve position for modulating control.

What causes false valve position feedback?

False feedback can be caused by cam misadjustment, loose coupling, incorrect wiring, damaged switches, water ingress, sensor failure or incorrect PLC input mapping.

Is a limit switch box needed for every pneumatic valve?

Not every pneumatic valve needs one. Simple local valves may not require remote feedback. But automated process valves, PLC-controlled valves, safety interlocks and remote valves usually benefit from a limit switch box.

Where is a limit switch box installed?

A limit switch box is usually mounted on top of a quarter-turn pneumatic actuator. It is connected to the actuator shaft so it can detect the same rotation that moves the valve.

Final Recommendation: Do Not Automate Valves Blindly

Pneumatic valve automation should not be blind. A solenoid valve can send air, and a pneumatic actuator can generate motion, but the control system still needs confirmation that the valve reached the required position. That is the role of the limit switch box.

A reliable automated valve package should not only include the valve body, pneumatic actuator and solenoid pilot valve. It should also consider valve position feedback when the process requires confirmation, sequencing, interlocking or remote monitoring.

A limit switch box helps the PLC, DCS, operator and maintenance team understand what the valve actually did. It reduces the gap between command and reality. It helps detect stuck valves, incomplete travel, wiring faults, cam misalignment and actuator problems. It also supports safer and more reliable process control.

For buyers, the key is to specify feedback requirements early. Do not wait until installation to ask whether the valve needs open or closed confirmation. For engineers, the key is to connect feedback logic to process risk. For maintenance teams, the key is to keep the switch box adjusted, sealed, wired and tested.

In industrial valve automation, a valve is not truly controlled until its position is confirmed. A limit switch box provides that confirmation.

#LimitSwitchBox
#ValvePositionFeedback
#PneumaticValveFeedback
#ValveOpenCloseIndication
#ActuatorLimitSwitch
#ValveMonitoring
#PneumaticActuatorAccessories
#PLCValveFeedback
#AutomatedValveIndication
#QuarterTurnValveSwitchBox
#PneumaticValveAutomation
#IndustrialValveAutomation
#ProcessControl
#ValveAutomationSystem
#IndustrialValves
