How to Specify a Complete Pneumatic Valve Automation Package

Quick Answer: What Should a Complete Pneumatic Valve Automation Package Include?

A complete pneumatic valve automation package should include the process valve, pneumatic actuator, mounting bracket, coupling, solenoid pilot valve, air filter regulator, tubing, fittings, limit switch box or position feedback device, local position indicator, documentation, testing requirements and clearly defined fail-safe logic. For modulating service, the package may also include a valve positioner or smart valve controller.

In practical industrial valve automation, the buyer should not only ask for “a valve with actuator.” That phrase is too simple. A real automated valve package must answer several engineering questions: What process fluid will pass through the valve? Is the valve for isolation or modulation? Should the valve fail open, fail closed or fail in place? What air pressure is available at site? What signal will the PLC or DCS send? Does the control system need open and closed feedback? Is the environment indoor, outdoor, washdown, corrosive or hazardous? Does the project require factory testing before shipment?

A pneumatic valve automation package is reliable only when the valve body, actuator torque, air control components, electrical feedback and site operating conditions are specified as one system. If these items are selected separately without a complete pneumatic valve specification, the package may work during basic testing but fail during real operation.

Why Package Thinking Matters More Than Component Thinking

Many pneumatic valve problems begin before installation. They begin during specification.

A buyer may order a ball valve from one supplier, a pneumatic actuator from another supplier, a solenoid valve from a third supplier and a limit switch box from a local distributor. Each part may be acceptable by itself. The valve may be good. The actuator may be strong. The solenoid may be a recognized model. The feedback box may be reliable. But the assembled system can still fail if the parts are not matched.

This is why an automated valve package should be treated as an integrated system. The actuator must fit the valve torque requirement. The bracket and coupling must transmit torque correctly. The solenoid valve must match the actuator type. The air filter regulator must provide clean and stable pressure. The limit switch box must match the control system input. The wiring and tubing must be documented. The fail-safe action must be tested.

In component thinking, the question is: “Is each part good?”

In package thinking, the question is: “Will this complete valve actuator package perform the required function under real process conditions?”

For industrial projects, the second question is more important. A pneumatic actuator selection based only on nominal torque is not enough. A solenoid valve selected only by port size is not enough. A limit switch box selected only because it fits on top of the actuator is not enough. The entire control chain must be designed to work together.

Start With the Process Function, Not the Actuator Model

The first step in specifying a pneumatic valve automation package is to define the valve’s process function. This sounds obvious, but it is often skipped.

Before discussing actuator brand, solenoid voltage or switch box type, engineers should define what the valve is supposed to do in the process. Is it an isolation valve? Is it a shutdown valve? Is it a drain valve? Is it a bypass valve? Is it a control valve? Is it part of a cleaning sequence, batching process, chemical dosing skid, water treatment line or utility system?

The process function determines many later decisions.

An isolation valve may only need open-close control and feedback. A shutdown valve may require fail-safe action and fast response. A drain valve may need corrosion-resistant materials. A control valve may need a positioner for modulating control. A batch valve may need reliable position feedback to prevent wrong material routing. A valve in a remote area may need strong local indication and robust enclosure protection.

This is why the best pneumatic valve specification starts with process intent. The same actuated ball valve package may be suitable for a utility water line but unsuitable for a critical chemical shutdown function. The same actuated butterfly valve package may be acceptable for general HVAC water control but not for a high-pressure process line with strict fail-close requirements.

A good specification begins with the process, not the catalog.

Define the Valve Body Before Defining the Actuator

The process valve is the mechanical interface with the fluid. The actuator only moves it. If the valve body is wrong, automation will not solve the problem.

Key valve body details include valve type, size, pressure rating, end connection, material, seat material, stem design, temperature range, pressure differential, media compatibility and required shutoff performance. For pneumatic valve automation, valve torque data is especially important.

Common automated valve types include ball valves, butterfly valves and plug valves. An actuated ball valve package is widely used for tight shutoff and on-off service. An actuated butterfly valve package is common for larger pipe sizes, water systems, air systems and many general industrial lines. Plug valves and segmented ball valves may be used in more specialized services.

The actuator must be selected based on the torque required to move the valve. Torque is not constant. Breakaway torque, running torque and seating torque can be different. The highest required torque point should be considered, along with safety factor and real operating conditions.

A valve that operates easily on a workbench may require more torque in service because of pressure differential, temperature, seat friction, corrosion, buildup or long idle periods. If valve torque data is missing or unreliable, pneumatic actuator selection becomes guesswork.

For reliable industrial valve automation, the valve supplier should provide torque information or selection guidance. The actuator supplier should then size the actuator against that data using the available air pressure and required safety factor.

Decide Between Spring Return and Double Acting Actuators

One of the most important decisions in a pneumatic valve automation package is whether to use a spring return actuator or a double acting actuator.

A spring return pneumatic actuator uses compressed air for one direction and internal springs for the return direction. It is often selected when a defined fail position is required. If air or power is lost, the spring moves the valve to its designed safe position. Depending on configuration, the valve may fail closed or fail open.

A double acting pneumatic actuator uses compressed air for both directions. It usually provides compact torque output and can be economical for general open-close service. However, without additional design features, it may not provide a spring-driven fail position during air loss.

The decision should be based on process safety and operating logic.

If the valve must close during power loss or air failure, a spring return fail-close actuator is often used. If the valve must open during failure to relieve pressure or allow emergency flow, a spring return fail-open actuator may be required. If the valve can remain in its last position during failure, a double acting actuator may be acceptable.

This is not only a mechanical decision. It affects solenoid valve selection, tubing, air consumption, emergency shutdown logic, testing procedures and maintenance expectations. A wrong actuator type can make the entire automated valve package unsuitable for the process.

Match the Solenoid Valve to the Actuator and Control Logic

The solenoid pilot valve is the bridge between electrical command and pneumatic movement. It receives a signal from the PLC, DCS, relay or local control station and directs compressed air to the actuator.

For many spring return actuators, a 3/2 solenoid valve is used. It sends air to the actuator in one state and exhausts air in the other state, allowing the spring to return the actuator.

For many double acting actuators, a 5/2 solenoid valve is used. It directs air to one actuator chamber while exhausting the other, then reverses the flow path for the opposite movement.

However, port count alone is not enough. The specification should define coil voltage, electrical connector, manual override, enclosure rating, mounting method, port size, flow capacity, response time, air pressure range and hazardous area requirements.

The solenoid valve should also match the fail-safe logic. If the control system removes power during emergency shutdown, what should the solenoid do? Should it vent the actuator? Should it shift to a default port? Should it hold position? Should it be single solenoid spring return or double solenoid?

These details determine real field behavior. A solenoid valve is not just one of many pneumatic valve accessories. It is the device that decides how command becomes motion.

Specify Valve Position Feedback Early

Valve position feedback is often added late in a project, but it should be specified early. The control system may need to know whether the valve is open, closed, moving, stuck or in alarm.

For on-off valve automation, a limit switch box is commonly used. It provides open and closed feedback signals to the PLC or DCS. It may use mechanical switches, proximity sensors or other sensing elements. A visual indicator on top helps field operators confirm position locally.

A basic pneumatic valve specification should answer these questions:

Does the system need open feedback?

Does the system need closed feedback?

What signal type does the PLC input require?

Are contacts normally open or normally closed?

Is local visual indication required?

Is the environment outdoor, corrosive or washdown?

Is hazardous area certification required?

Should feedback be mechanical switch, inductive sensor or another type?

If feedback is not defined, the control system may only know that it sent a command. It may not know whether the valve actually moved. In many industrial processes, that is not acceptable.

Position feedback is especially important for interlocks, batch control, pump protection, chemical transfer, cleaning sequences and remote operation. A complete automated valve package should not rely on assumptions when confirmation is required.

Use a Positioner Only When the Valve Needs Modulating Control

Not every pneumatic actuator needs a valve positioner. Many valves are simple on-off valves. They only need to open or close fully. For those applications, a solenoid valve and limit switch box may be enough.

A valve positioner is needed when the valve must move to intermediate positions for modulating control. For example, a control valve may need to stay at 35% open to regulate flow, 60% open to control pressure or 18% open to maintain temperature.

In that case, the control system may send a 4-20mA signal to the positioner. The positioner compares the target signal with actual valve position and adjusts air pressure to the actuator. This creates controlled movement rather than simple open-close operation.

If the valve is for modulating control, the specification should define control signal, feedback signal, positioner type, single acting or double acting output, communication protocol, display requirement, diagnostics, air supply quality and calibration method.

A common mistake is using an on-off automated valve where modulating control is required. Another mistake is adding a positioner to a valve that only needs open-close isolation, increasing cost and complexity without real benefit.

The correct approach is simple: use a limit switch box for end-position confirmation; use a valve positioner for continuous position control.

Treat Instrument Air as Part of the Package

Compressed air is the energy source of a pneumatic actuator. Poor instrument air quality can make even a well-selected valve actuator package unreliable.

A complete pneumatic valve automation package should specify the air supply conditions. This includes available air pressure, required actuator pressure, air cleanliness, moisture control, filtration, regulator capacity, tubing size and local pressure indication.

An air filter regulator is commonly installed near the actuator package. It filters particles and moisture while regulating pressure to the level required by the actuator or positioner. In some systems, dryers, additional filtration or pressure monitoring may be required.

Air pressure should be considered under dynamic conditions, not only at rest. A pressure gauge may show adequate pressure when the valve is idle, but pressure may drop during actuator movement if tubing is too small, the regulator is undersized or the main air header is overloaded.

Air quality also affects solenoid valves and positioners. Dirty compressed air can make solenoid spools stick. Moisture can cause corrosion or freezing. Oil contamination may affect devices not designed for lubricated air.

For this reason, air preparation should not be left as a field detail. It should be part of the valve automation checklist.

Consider Mounting, Coupling and Mechanical Alignment

The actuator must be mechanically connected to the valve. This connection is often overlooked, but it is critical.

A pneumatic actuator usually connects to the valve through a mounting bracket and coupling. The bracket supports the actuator above the valve. The coupling transfers torque from the actuator output shaft to the valve stem.

If the bracket is weak, misaligned or poorly fabricated, the actuator may apply side load to the valve stem. This can increase friction, damage packing, create uneven movement or reduce valve life. If the coupling is loose or incorrectly sized, the actuator may rotate while the valve does not fully move. If the stem interface is wrong, torque transmission may be unreliable.

For quarter-turn valve automation, standards such as actuator mounting patterns and valve top works should be considered where applicable. Even when standard dimensions exist, actual fit should still be confirmed.

The package supplier should assemble and test the valve, bracket, coupling and actuator together whenever possible. Field assembly increases the risk of alignment problems unless handled by experienced technicians.

A good automated valve package should look simple from the outside because the mechanical interface has already been engineered correctly.

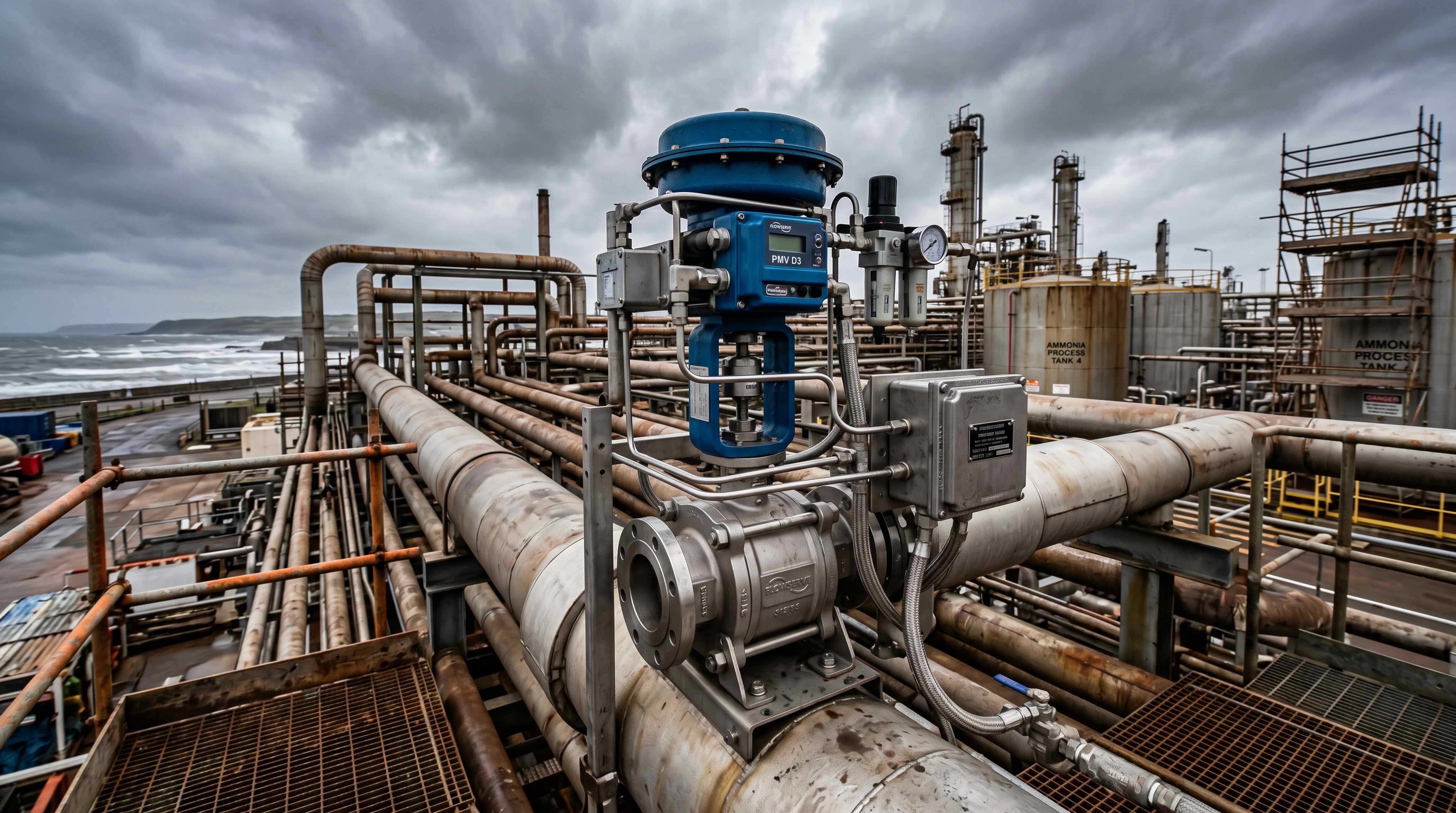

Define Environmental and Site Conditions

The same pneumatic valve package can perform very differently in different environments. A valve installed indoors in a clean utility room has different requirements from a valve installed outdoors near a chemical process, in a washdown area, on a coastal site or inside a hazardous zone.

Environmental conditions affect material selection, enclosure rating, coating, cable glands, tubing, fittings, switch box type, solenoid coil protection and maintenance frequency.

Important site conditions include:

Indoor or outdoor installation.

Ambient temperature range.

Humidity and rain exposure.

Washdown or cleaning chemicals.

Corrosive atmosphere.

Dust or particulate exposure.

Vibration.

Hazardous area classification.

UV exposure.

Salt air or marine environment.

Accessibility for maintenance.

For example, a standard limit switch box may not be suitable for outdoor chemical exposure. A basic solenoid coil may not be suitable for a hazardous area. Plastic tubing may not be acceptable near high heat. A manual override may need protection against accidental operation.

Site conditions should be specified before quotation. Otherwise, the supplier may quote a general industrial package that looks economical but is not suitable for the real installation.

Documentation Requirements Should Be Written Into the Specification

A complete pneumatic valve specification should require documentation. Documentation is not paperwork only for filing. It helps installation, commissioning, operation, troubleshooting and future maintenance.

Useful documentation includes:

Valve datasheet.

Actuator datasheet.

Torque sizing sheet.

Solenoid valve datasheet.

Limit switch box datasheet.

Positioner datasheet if applicable.

Air filter regulator datasheet.

Assembly drawing.

Wiring diagram.

Tubing diagram.

Bill of materials.

Fail-safe description.

Open and close time records.

Pressure test record.

Functional test record.

Calibration report for positioners.

Operation and maintenance manual.

Spare parts recommendation.

Without documentation, maintenance teams may struggle later. They may not know the coil voltage, switch contact type, actuator model, torque basis, tubing logic, fail position or replacement part numbers.

Good documentation turns the automated valve package into a maintainable asset. Poor documentation turns it into a field mystery.

Factory Assembly and Testing Reduce Site Risk

For important projects, factory assembly and testing are valuable. A package that is assembled and tested before shipment has fewer unknowns at site.

Factory testing may include visual inspection, valve pressure testing, actuator mounting check, open-close stroke test, air leak test, solenoid operation test, limit switch feedback test, positioner calibration, fail-safe test and verification of opening and closing times.

For on-off valves, the test should confirm that the valve opens fully, closes fully, feedback signals match actual position, the visual indicator is correct and the solenoid valve behaves according to the control logic.

For spring return actuators, the test should verify fail action when air or signal is removed. For double acting actuators, both directions should be tested. For modulating valves, the positioner should be calibrated and checked at several signal points.

Factory testing does not eliminate the need for site commissioning, but it reduces assembly errors. It also creates a baseline. If the valve package works at the factory but fails at site, the team can compare site air pressure, wiring, tubing, process load and installation conditions.

A well-documented factory test is part of quality control for industrial valve automation.

Practical Valve Automation Checklist for Buyers

The following valve automation checklist can help buyers and engineers define a complete package before purchasing.

This table can be used as a purchasing checklist, engineering review tool or supplier communication template.

Common Procurement Mistakes

One common mistake is asking suppliers only for the cheapest automated valve package. Price matters, but a low-cost package may omit feedback, proper air preparation, documentation or suitable environmental protection.

Another mistake is selecting the actuator based on normal air pressure instead of minimum site air pressure. If the plant normally has 6 bar but may drop to 4.5 bar during peak demand, actuator sizing should consider the lower pressure.

A third mistake is ignoring valve torque data. Without torque data, pneumatic actuator selection becomes uncertain. Oversizing may increase cost and air consumption. Undersizing may cause failure to open or close.

Another mistake is not defining fail position. “Spring return actuator” is not enough. The specification must state whether the valve should fail open or fail closed.

Some buyers also forget position feedback. The valve arrives, but the PLC needs open and closed confirmation. Retrofitting a limit switch box later can delay the project.

Another common mistake is confusing on-off and modulating applications. A simple on-off valve does not need a positioner, but a true control valve usually does.

Finally, many projects do not require factory testing. This can save time during procurement but may create more work during commissioning.

Application Examples

In a water treatment plant, an actuated butterfly valve package may be used to control flow between filtration, backwash and discharge lines. The package may include a double acting pneumatic actuator, 5/2 solenoid valve, limit switch box and air filter regulator. Open and closed feedback can help the PLC confirm sequence steps before pumps start.

In a chemical dosing skid, an actuated ball valve package may require corrosion-resistant materials, spring return fail-close action, a 3/2 solenoid valve, sealed limit switch box and clearly documented tubing. The package may be part of an interlock that prevents chemical flow unless the correct line is open.

In a steam utility system, a pneumatic control valve may use a diaphragm actuator and electro-pneumatic positioner. The focus is not only open-close movement but stable modulating control. Instrument air quality, positioner calibration and valve response are critical.

In a remote pipeline station, a pneumatic valve package may need robust enclosures, local visual indication, low-temperature protection, reliable air supply and clear maintenance documentation. Since access is limited, factory testing and spare parts planning become more important.

In a food and beverage plant, automated valves may be part of cleaning and product routing systems. Feedback accuracy and material compatibility are important. Lubricated air may be undesirable in certain areas, so air preparation must match plant standards.

These examples show why one generic package cannot fit every project. Pneumatic valve automation must be specified around the real application.

How Suppliers Should Respond to a Good Specification

A good supplier should not only quote part numbers. They should confirm the application, review valve torque, size the actuator based on available air pressure, define solenoid function, recommend feedback devices, check environmental requirements and provide documentation.

For a complete automated valve package, the supplier should be able to explain:

Why the actuator size was selected.

What air pressure was used for sizing.

What safety factor was applied.

How the valve will fail during air or power loss.

How the solenoid valve controls the actuator.

What feedback signals are provided.

How the air filter regulator is configured.

What testing will be performed.

What documents will be supplied.

If a supplier cannot answer these questions, the buyer may be receiving a collection of parts rather than an engineered package.

For B2B industrial sourcing, technical communication is part of product quality. A supplier that understands the full package can reduce project risk.

Focused FAQ

What is a pneumatic valve automation package?

A pneumatic valve automation package is an assembled system that usually includes a process valve, pneumatic actuator, mounting bracket, coupling, solenoid valve, air preparation components, position feedback device and documentation for automated valve operation.

What should an automated valve package include?

An automated valve package should include the valve body, actuator, bracket, coupling, solenoid pilot valve, air filter regulator, tubing, fittings, limit switch box or positioner, local indicator, wiring information and test records.

How do I choose a pneumatic actuator?

Pneumatic actuator selection should be based on valve torque, available air pressure, required safety factor, valve type, fail position, operating frequency, environment and whether the actuator should be spring return or double acting.

What is the difference between a spring return and double acting actuator?

A spring return actuator uses air for one direction and springs for the return direction. A double acting actuator uses air for both opening and closing. Spring return actuators are often used when fail-open or fail-close action is required.

Does every pneumatic valve need a solenoid valve?

Most automated on-off pneumatic valves use a solenoid pilot valve to direct compressed air to the actuator. Some modulating control valves use a positioner instead of a simple solenoid arrangement, depending on control requirements.

Does every automated valve need a limit switch box?

Not every valve needs one, but many PLC-controlled or remote automated valves require a limit switch box to confirm open and closed position. It is important for interlocks, sequencing and troubleshooting.

When should a valve positioner be used?

A valve positioner should be used when the valve needs modulating control rather than simple open-close action. It helps the actuator move to intermediate positions based on a control signal such as 4-20mA.

Why is instrument air important for a pneumatic valve package?

Instrument air provides the power for pneumatic movement. Dirty, wet or unstable air can cause slow movement, solenoid sticking, actuator leaks, positioner instability and incomplete valve travel.

What documents should be requested with a valve actuator package?

Buyers should request datasheets, actuator sizing records, assembly drawings, wiring diagrams, tubing diagrams, bill of materials, fail-safe description, operation manuals and factory test records.

What is the most common mistake in pneumatic valve specification?

One common mistake is treating the package as only “valve plus actuator.” A reliable pneumatic valve specification must also define control logic, air supply, feedback, fail position, environment, documentation and testing.

Final Recommendation: Specify the Function, Then Build the Package

A pneumatic valve automation package should not be built by randomly combining a valve, actuator and accessories. It should be specified from the function outward.

Start with the process role. Define what the valve must do, what happens if it fails, what signal controls it, what feedback the system needs and what environment it will operate in. Then select the valve body, actuator, solenoid valve, feedback device, air preparation components and documentation requirements as one complete system.

This approach helps avoid common failures. It prevents undersized actuators, missing feedback, wrong fail-safe action, poor air preparation, incompatible accessories and unclear wiring. It also makes supplier communication more precise. Instead of asking for a basic actuated valve, the buyer can request a complete engineered valve actuator package.

For on-off isolation, the package may be simple: valve, pneumatic actuator, solenoid valve, limit switch box and air filter regulator. For safety-related service, fail position and test requirements become more important. For modulating control, a valve positioner and stable instrument air become central. For harsh environments, enclosure protection and material compatibility must be reviewed.

In industrial valve automation, reliability comes from system matching. The actuator must match the valve. The solenoid must match the actuator. The feedback device must match the control system. The air supply must match the pneumatic demand. The documentation must match maintenance needs.

The best pneumatic valve automation package is not always the most expensive one. It is the one that is correctly specified for the real process, correctly assembled, clearly documented and properly tested before operation.
