Pneumatic Valve Automation Is More Than an Actuator: How the Complete System Works
Quick Answer: What Is Pneumatic Valve Automation?
Pneumatic valve automation is the use of compressed air to open, close, or regulate industrial valves through a connected pneumatic actuator and control accessories. In a complete valve automation system, the actuator is only one part of the package. A practical automated valve package may also include a solenoid pilot valve, limit switch box, valve positioner, air filter regulator, tubing, mounting bracket, coupling, and signal wiring for connection with a PLC, DCS, or SCADA system.
This is why pneumatic valve automation should not be understood as simply “installing an actuator on a valve.” In real industrial plants, the performance of a pneumatic control valve depends on how well the valve body, actuator torque, compressed air quality, control signal, feedback device, and safety logic work together. A reliable system is not built around one component. It is built around the full control chain from command to movement, from movement to feedback, and from feedback to process confirmation.
For engineers, buyers, and maintenance teams, the most important question is not only whether a pneumatic actuator can move the valve. The more important question is whether the entire valve automation system can move the valve correctly, safely, repeatedly, and predictably under actual working conditions.
Why Pneumatic Valve Automation Still Matters in Industrial Plants
In many industries, pneumatic valve automation remains one of the most widely used methods for controlling ball valves, butterfly valves, plug valves, control valves, and other process valves. Even as electric actuators become more visible in some applications, pneumatic actuation continues to be preferred in many plants because it offers fast response, high cycling capability, simple fail-safe design, and strong suitability for harsh industrial environments.
A pneumatic actuator uses compressed air as its power source. This makes it especially practical in factories and process plants where compressed air is already available as a plant utility. For on-off valves, pneumatic actuation can provide quick opening and closing. For modulating service, a pneumatic actuator combined with a valve positioner can support proportional control based on a control signal such as 4-20 mA.
The reason pneumatic valve automation is still important is not only speed. It is also about safety and simplicity. A spring return pneumatic actuator can move the valve to a predefined safe position when air pressure is lost. For example, a valve can be designed to fail closed, fail open, or stay in a specific operating logic depending on the process requirement. In water treatment, chemical processing, food and beverage production, power systems, oil and gas facilities, and utility pipelines, this kind of predictable behavior is often more valuable than adding unnecessary electronic complexity.
However, the advantages of pneumatic valve automation only appear when the system is selected and installed correctly. If the actuator is undersized, the solenoid pilot valve is mismatched, the compressed air is wet or dirty, or the limit switch box gives unreliable feedback, the system may fail even when each individual component looks acceptable on paper. This is where industry knowledge becomes important.
The Biggest Misunderstanding: A Pneumatic Valve Is Not Just a Valve With an Actuator
Many people describe an automated valve as “a valve plus an actuator.” This is not wrong, but it is incomplete. In actual industrial valve automation, a pneumatic actuator is the muscle, but it is not the full control system.
A complete pneumatic valve automation system usually needs to answer several questions:
How does the control system send the command?
How does compressed air enter and leave the actuator?
How does the actuator produce torque or linear force?
How does the valve body respond to that force?
How does the system confirm whether the valve is open or closed?
How does the system behave when air pressure, power, or control signal is lost?
How does the maintenance team know whether the problem is in the valve, actuator, solenoid valve, positioner, tubing, or feedback device?
When a buyer only asks for “a pneumatic valve,” the supplier may provide a basic assembly. But when an engineer asks for an automated valve package, the discussion becomes more complete. It includes valve type, actuator type, torque requirement, air pressure, solenoid valve function, manual override, limit switch feedback, enclosure rating, hazardous area requirements, mounting standard, cycle frequency, media compatibility, and control logic.
That is why this article uses the term automated valve package. It better reflects how industrial valve automation works in real projects.

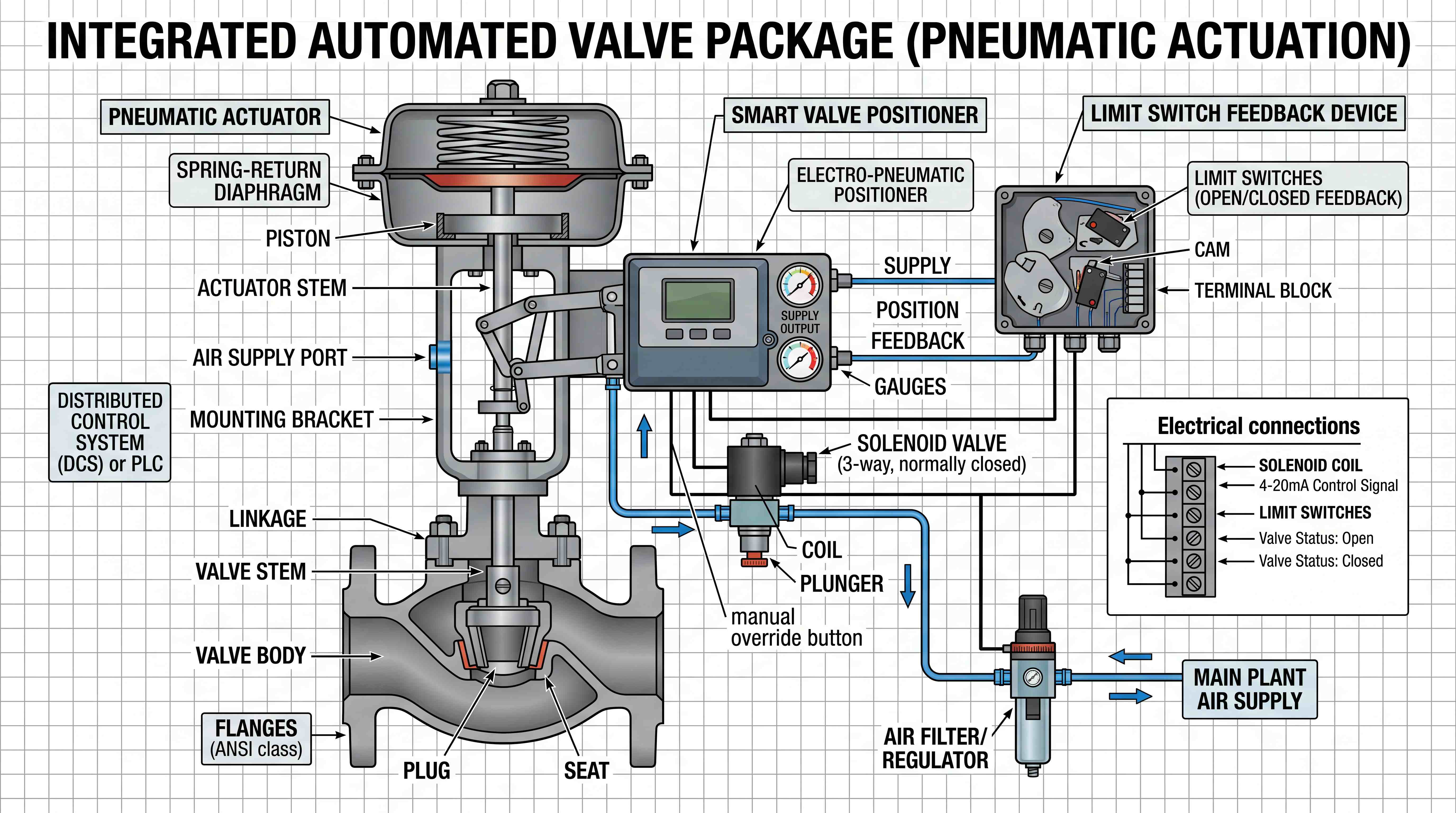

Core Components of a Pneumatic Valve Automation System
A pneumatic valve automation system can be understood as a group of components that convert a control command into valve movement and then return a feedback signal to the control system. The exact configuration depends on the application, but most systems include several core parts.
Pneumatic Actuator: The Power Unit
The pneumatic actuator is the main power device. It converts compressed air into rotary or linear motion.
For quarter-turn valves such as ball valves and butterfly valves, a rotary pneumatic actuator is commonly used. This actuator turns the valve stem by 90 degrees to open or close the valve. Common designs include rack and pinion actuators and scotch yoke actuators.
For linear valves such as globe control valves, diaphragm or piston actuators may be used. These actuators move the valve stem up and down rather than rotating it.
The actuator must be selected according to the torque or thrust required by the valve. This requirement depends on valve size, pressure differential, seal friction, media condition, valve design, and operating frequency. A common mistake is to choose the actuator only by valve size. In reality, two valves with the same size may require different actuator torque if their pressure, seat material, media viscosity, or breakaway torque are different.

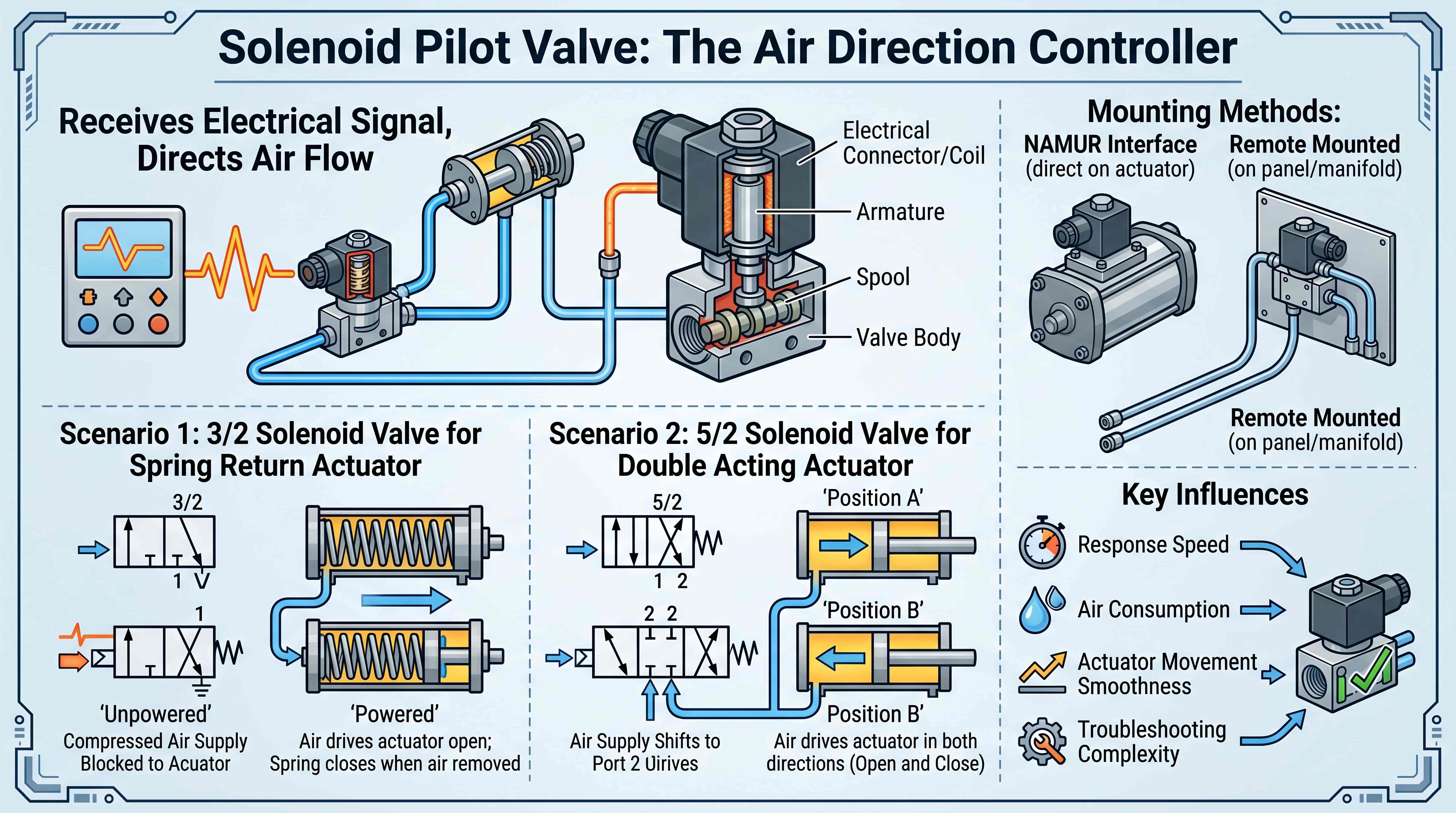

Solenoid Pilot Valve: The Air Direction Controller
The solenoid pilot valve is the component that controls the direction of compressed air. It receives an electrical signal from a control system and directs air into the correct actuator chamber.
For a spring return pneumatic actuator, a 3/2 solenoid valve is often used. Air drives the actuator in one direction, and the spring returns it when air is removed.
For a double acting pneumatic actuator, a 5/2 solenoid valve is commonly used. Air is used to drive the actuator in both directions.
The solenoid pilot valve may be mounted directly on the actuator using a NAMUR interface, or it may be installed separately in a control panel or manifold. The selection depends on installation space, wiring method, maintenance preference, safety requirement, and plant standard.
A solenoid pilot valve may look like a small accessory, but it directly affects response speed, air consumption, actuator movement, and troubleshooting complexity.
Limit Switch Box: The Position Feedback Device
A limit switch box provides open and closed position feedback. It tells the PLC, DCS, or control panel whether the valve has actually reached the required position.
This is important because actuator movement and valve confirmation are not the same thing. A control system may send an open command, and the solenoid valve may energize, but the valve may still fail to open fully because of low air pressure, mechanical obstruction, excessive torque, loose coupling, or internal valve damage.
The limit switch box helps close this information gap. It usually includes switches or sensors, internal cams, terminal blocks, and a visual position indicator. Some designs use mechanical switches, while others use proximity sensors. For outdoor, washdown, corrosive, or hazardous applications, enclosure material and protection level become important.
In industrial valve automation, feedback is not just a convenience. It is a process safety and reliability function.
Valve Positioner: The Modulating Control Brain
A valve positioner is used when the valve needs more than simple open and close control. It allows the actuator to move the valve to intermediate positions according to a control signal.
For example, a process control system may send a 4-20 mA signal that represents a required valve opening. The positioner compares the target signal with the actual valve position and adjusts the air pressure to the actuator until the valve reaches the correct position.
This makes the valve positioner especially important for pneumatic control valve applications where flow, pressure, temperature, or level must be regulated continuously. Without a positioner, the actuator may not achieve accurate modulating control, especially when friction, pressure changes, or process disturbances affect valve movement.
Modern smart positioners may also provide diagnostics, calibration support, travel feedback, and communication functions. For plant maintenance teams, this can help detect valve sticking, air leakage, slow response, or abnormal travel behavior before a failure becomes serious.
Compressed Air Supply: The Hidden Foundation
Compressed air quality is one of the most overlooked factors in pneumatic valve automation. Many actuator problems are not caused by the actuator itself. They are caused by poor air preparation.
Compressed air may contain moisture, oil, dust, rust particles, or pressure fluctuations. If these contaminants enter the solenoid valve, actuator chamber, or positioner, they can cause sticking, slow movement, internal wear, corrosion, or unstable control.
This is why air filter regulators, pressure regulators, lubricators in some cases, dryers, and proper tubing are important. The correct air pressure must also be maintained. If the actuator is sized for a certain pressure but the actual plant air pressure drops during operation, the valve may fail to open or close completely.
A pneumatic actuator is only as reliable as the air supply that drives it.
How the Complete Control Chain Works
A typical on-off pneumatic valve automation system follows a simple but important control chain.
The PLC or control panel sends an electrical signal to the solenoid pilot valve. The solenoid valve shifts position and allows compressed air to enter the actuator. The actuator converts air pressure into mechanical motion. The actuator rotates or pushes the valve stem. The valve opens or closes. The limit switch box detects the final position and sends feedback to the control system.
This sequence may sound simple, but each step can become a failure point.
If the PLC output fails, the solenoid valve may not energize.
If the solenoid valve coil fails, the air path may not change.
If the compressed air pressure is too low, the actuator may not generate enough torque.
If the actuator is undersized, it may move slowly or stop before full travel.
If the valve body is stuck, the actuator may move but the valve may not reach the correct position.
If the limit switch is misadjusted, the control system may receive false feedback.
If the tubing is leaking, response time may become inconsistent.
For this reason, good pneumatic valve automation is not only a product selection task. It is a system engineering task.
On-Off Control and Modulating Control Are Not the Same
One of the most important distinctions in pneumatic valve automation is the difference between on-off control and modulating control.
On-off control means the valve is either open or closed. This is common for isolation, shutoff, filling, draining, bypass, and utility line applications. A pneumatic actuator, solenoid pilot valve, and limit switch box are often enough for this type of system.
Modulating control means the valve must move to different positions between fully open and fully closed. This is common in flow control, pressure control, temperature control, and process regulation. A valve positioner is usually required for this type of service.
The mistake many buyers make is assuming that any pneumatic actuator can automatically provide proportional control. In reality, a standard on-off actuator cannot deliver accurate modulating control by itself. The system needs a positioner, suitable valve body, correct actuator sizing, and proper control signal integration.
The valve body also matters. A ball valve may be excellent for on-off service, but not every ball valve is suitable for precise flow control. A butterfly valve may work for some throttling applications, but control performance depends on disc design, flow characteristic, and process conditions. Globe valves are often used for more precise control applications, but they may have higher cost and different actuator requirements.
This is why pneumatic control valve selection must consider both the actuator and the valve body.
Spring Return and Double Acting Actuators in System Design
Pneumatic actuators are often divided into spring return and double acting types.
A spring return pneumatic actuator uses compressed air to move the actuator in one direction and internal springs to return it in the opposite direction. This design is widely used when the valve must move to a safe position during air loss. Depending on the requirement, the valve can be configured as fail closed or fail open.
A double acting pneumatic actuator uses compressed air to move the actuator in both directions. It usually has no spring return mechanism. This design can be more compact for certain torque ranges and may use air more efficiently in stable systems, but it does not automatically return to a safe position unless additional safety measures are added.
The choice between spring return and double acting should not be based only on price. It should be based on process safety logic.
For example, if a chemical feed valve must close when air is lost, a fail-close spring return actuator may be required. If a cooling water valve must open during failure to protect equipment, a fail-open configuration may be preferred. If the valve operates in a non-critical utility line with stable compressed air, a double acting actuator may be suitable.
The important point is that actuator type is a safety decision, not just a mechanical decision.
Why Mounting Standards and Mechanical Interfaces Matter
Mechanical connection is another important part of an automated valve package. The actuator must be properly mounted to the valve. This usually involves a mounting bracket and a coupling. For many quarter-turn valves, ISO 5211 mounting dimensions are used to simplify actuator installation.
However, even when a valve and actuator both mention ISO 5211, engineers still need to check flange size, bolt pattern, stem size, stem shape, coupling height, rotation direction, and travel stop adjustment. A mismatch can cause poor alignment, excessive side load, incomplete travel, or premature wear.
The actuator should not be forced onto the valve. The connection should allow proper torque transmission without bending the stem or creating mechanical stress. For high-cycle applications, alignment becomes even more important because small mechanical problems can become large reliability issues over time.
In practical procurement, buyers should request dimensional drawings for both the valve and actuator. They should also confirm whether the supplier provides the complete assembled and tested package or only separate components.
A factory-assembled automated valve package can reduce installation risk because the valve, actuator, bracket, coupling, solenoid valve, and switch box can be tested as a complete unit before shipment.
Common Selection Factors for Pneumatic Valve Automation
A serious pneumatic valve automation project should consider more than valve size and pipe connection. The following factors directly affect performance and service life.
Valve Type
Ball valves, butterfly valves, plug valves, and globe valves behave differently. Ball valves and butterfly valves are common in quarter-turn pneumatic automation. Globe valves are common in modulating control applications. The valve type affects actuator motion, torque requirement, control accuracy, and sealing performance.
Valve Size and Pressure
Larger valves usually require more torque, but pressure differential and seat design may be even more important. High pressure can increase breakaway torque. Soft seats, metal seats, slurry service, and sticky media can change the actuator requirement.
Media Condition
Clean water, compressed air, steam, chemicals, oil, gas, powders, and viscous fluids all create different demands. Media compatibility affects valve body material, seal material, actuator protection, and safety design.
Air Pressure
The available plant air pressure must be confirmed. An actuator rated at one air pressure may not provide enough torque if the actual operating pressure is lower. Engineers should also consider pressure drops during peak plant operation.
Cycle Frequency
A valve that operates once per week has a different requirement from a valve that cycles hundreds or thousands of times per day. High-cycle pneumatic valve automation requires stronger attention to actuator durability, solenoid valve life, tubing quality, lubrication policy, and maintenance access.
Environment
Outdoor installation, corrosive atmosphere, washdown areas, low temperature, dust, vibration, and hazardous zones all affect component selection. Enclosure rating, coating, stainless steel accessories, explosion-proof approvals, and seal materials may become important.
Control Requirement
The system may need local control, remote control, PLC output, DCS integration, open-close feedback, modulating control, manual override, emergency shutdown, or safety interlock. These requirements determine whether the package needs only a solenoid valve or also a limit switch box, valve positioner, junction box, or communication device.
A Practical Component Map for Buyers
For simple isolation service, the package may include:
Pneumatic actuator
Ball valve or butterfly valve
Mounting bracket and coupling
Solenoid pilot valve
Limit switch box
Air filter regulator
Manual override if required
For modulating control service, the package may include:
Pneumatic actuator
Control valve body
Valve positioner
Air filter regulator
Position feedback
Signal wiring
Calibration and stroke setting
For safety-related service, the package may include:
Spring return pneumatic actuator
Fail-open or fail-close configuration
Emergency shutdown solenoid valve
Limit switch feedback
Explosion-proof accessories if required
Certified components where necessary
Documented testing before shipment
This component-based thinking helps buyers avoid under-ordering. Many field problems happen because the buyer purchases only the actuator and valve, then later discovers that the site also needs feedback, air preparation, signal conversion, special brackets, or safety-rated accessories.
Why Feedback Is Essential in Modern Industrial Valve Automation
In manual valve operation, a worker can look at the handle and visually confirm the valve position. In remote pneumatic valve automation, the control system cannot assume that a command equals a result.
This is why position feedback is essential.
A PLC may send a command to open the valve, but the plant still needs proof that the valve reached the open position. If the valve does not reach position, the process may continue under a false assumption. In batch production, this can cause wrong material transfer. In water treatment, it can affect flow routing. In chemical systems, it can create safety risk. In energy and utility systems, it can lead to equipment protection problems.
The limit switch box provides basic open and closed confirmation. A valve positioner provides more detailed position control for modulating valves. Smart devices may provide diagnostic information that helps maintenance teams identify abnormal behavior earlier.
This feedback loop is one of the differences between simple automation and reliable automation.
Typical Applications of Pneumatic Valve Automation
Pneumatic valve automation is used across many industrial sectors because many plants already have compressed air systems and need reliable valve movement.
Water and Wastewater Treatment
In water treatment plants, pneumatic automated valves are used for filtration, backwash, chemical dosing, sludge handling, and flow routing. Fast actuation and reliable open-close feedback are important because many valves operate according to process sequences.
Chemical Processing
Chemical plants use pneumatic valve automation for transfer lines, reactors, storage tanks, dosing systems, and safety shutoff. Material compatibility, fail-safe position, corrosion protection, and hazardous area requirements are often important.
Food and Beverage Production
Food and beverage facilities use automated valves for cleaning, filling, mixing, transfer, and utility systems. Washdown environment, hygienic valve design, material selection, and process repeatability matter.
Pharmaceutical and Biotech Systems
In pharmaceutical applications, valve automation may be used in clean utilities, purified water, process transfer, and CIP/SIP systems. Control accuracy, cleanliness, documentation, and validation support may be important.
Energy and Utility Systems
Power plants, boiler systems, cooling water networks, compressed air systems, and fuel handling lines may use pneumatic automated valves for isolation, control, and safety operations.
General Manufacturing
Factories use pneumatic valve automation in cooling circuits, lubrication systems, air lines, water supply, chemical treatment, and production equipment. The ability to integrate with PLC systems makes pneumatic valves practical for many machine and plant automation tasks.

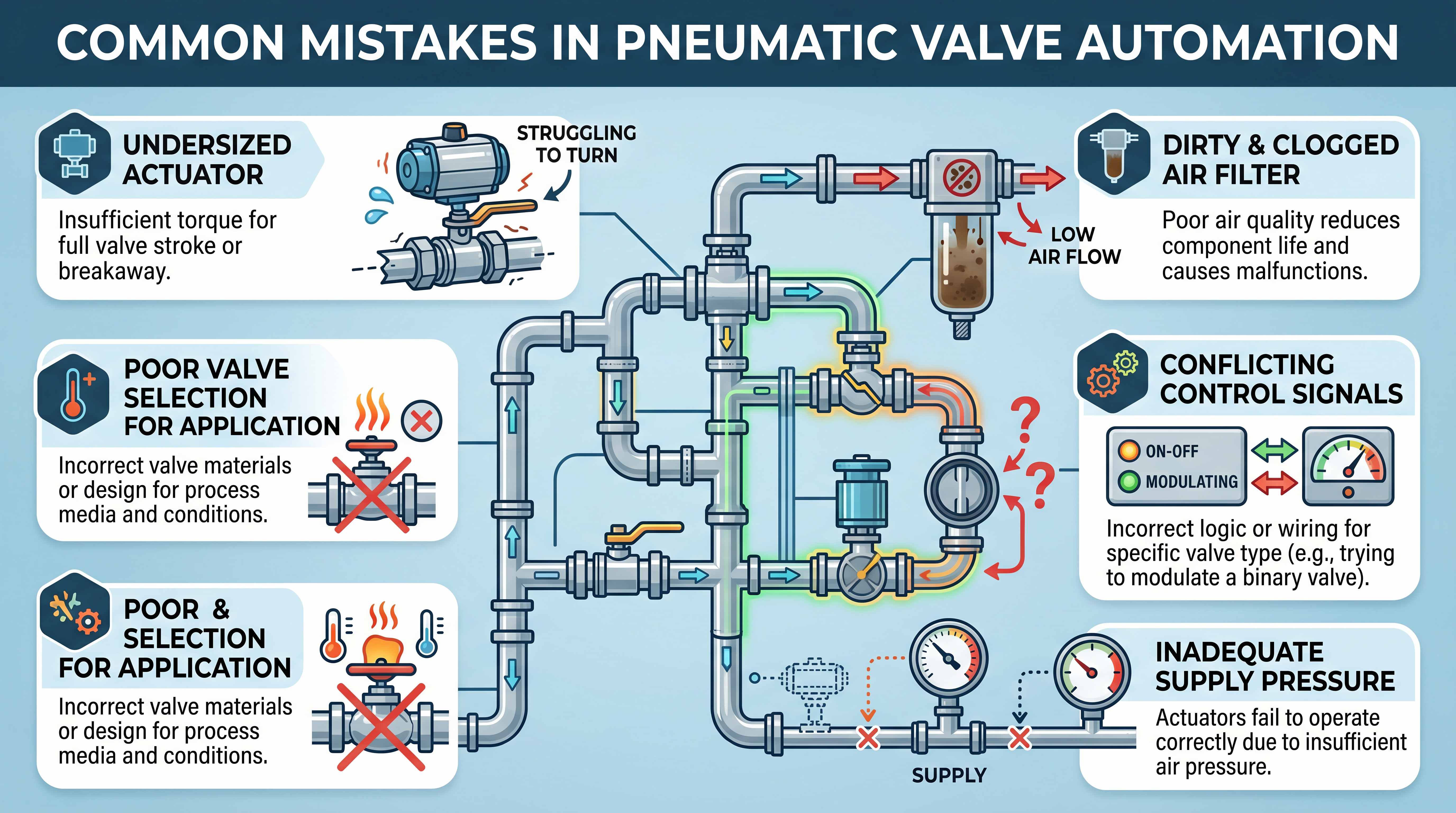

Common Mistakes in Pneumatic Valve Automation Projects
Mistake 1: Selecting the Actuator Only by Valve Size
Valve size alone does not determine torque. Pressure, seat material, media, temperature, valve age, and breakaway torque all matter. Undersized actuators may work during initial testing but fail under real process pressure.
Mistake 2: Ignoring Compressed Air Quality
Dirty or wet air can damage solenoid valves, actuators, and positioners. Air preparation should not be treated as an optional accessory.
Mistake 3: Confusing On-Off Control With Modulating Control
A simple pneumatic actuator can open and close a valve, but it cannot automatically provide accurate proportional control without the correct positioner and valve design.
Mistake 4: Forgetting Position Feedback
Without a limit switch box or position feedback device, the control system may not know whether the valve actually reached its required position.
Mistake 5: Choosing the Wrong Fail-Safe Logic
Fail-open and fail-close are process safety decisions. Choosing the wrong failure position can create serious operational risk.
Mistake 6: Treating the Solenoid Valve as a Minor Detail
The solenoid pilot valve controls the actuator’s air path. Wrong port configuration, voltage, flow capacity, or manual override design can cause field problems.
Mistake 7: Buying Components Instead of a Tested Package
Separate components may look cheaper, but they can create installation, alignment, wiring, and troubleshooting issues. For many industrial users, a pre-assembled and tested automated valve package reduces total project risk.
How to Evaluate a Supplier for Pneumatic Valve Automation
When selecting a supplier, buyers should not only compare product price. They should evaluate whether the supplier understands the complete valve automation system.
A strong supplier should be able to discuss actuator sizing, valve torque, air pressure, solenoid valve selection, limit switch feedback, positioner requirements, mounting dimensions, wiring needs, enclosure protection, media compatibility, and testing procedures.
Useful questions include:
Can you provide actuator sizing based on valve torque and operating pressure?
Is the valve and actuator assembly tested before shipment?
Can you provide a complete automated valve package?
What solenoid valve function is recommended for this actuator?
Do you offer limit switch box or position feedback options?
Can the package be configured for fail-open or fail-close operation?
What air pressure is required for reliable operation?
Can the system connect with PLC, DCS, or SCADA?
What documents are provided with the package?
How should the system be maintained after installation?
These questions help separate simple product sellers from real valve automation solution providers.
Maintenance Thinking: How to Keep Pneumatic Valve Systems Reliable
A pneumatic valve automation system should be maintained as a system, not as separate parts.
Maintenance teams should regularly check air pressure, air filter condition, tubing leakage, actuator movement, solenoid valve operation, limit switch signal, positioner calibration, mounting bolts, coupling condition, and valve travel. For outdoor or corrosive installations, they should also inspect coating, enclosure sealing, cable glands, and water ingress.
A slow actuator is often an early warning sign. It may indicate low air pressure, blocked exhaust, dirty solenoid valve, leaking tubing, worn actuator seal, stuck valve body, or incorrect positioner setting. A valve that works during manual testing but fails under process load may indicate insufficient actuator torque or increased valve resistance.
Preventive maintenance is especially important for high-cycle valves and safety-related valves. In these applications, waiting until failure may be more expensive than scheduled inspection.
Pneumatic Valve Automation and the Future of Smart Plants
The future of pneumatic valve automation is not simply replacing pneumatic systems with electric systems. In many plants, pneumatic actuation will continue to be used because it is fast, practical, and familiar. The real trend is smarter integration.
More systems are combining pneumatic actuators with better feedback devices, smart positioners, diagnostic tools, field communication, and asset management systems. This allows plant teams to understand not only whether a valve is open or closed, but also whether it is moving normally, responding quickly, sealing correctly, or beginning to show signs of wear.
In other words, pneumatic valve automation is moving from simple mechanical movement toward measurable valve performance.
For buyers, this means future-ready valve automation should consider data, diagnostics, and maintainability from the beginning. A low-cost package without feedback may be acceptable for simple non-critical service, but it may not be suitable for process lines where downtime, safety, and product quality are important.
Final Selection Checklist
Before ordering a pneumatic valve automation system, buyers should confirm the following points:
Valve type and valve size
Media type and operating temperature
Pressure rating and pressure differential
Required actuator torque or thrust
Available compressed air pressure
Spring return or double acting actuator
Fail-open or fail-close requirement
Solenoid pilot valve type and voltage
Limit switch box or position feedback requirement
On-off or modulating control
Valve positioner requirement
PLC, DCS, or SCADA integration
Mounting standard and stem connection
Indoor, outdoor, washdown, or hazardous environment
Air preparation components
Manual override requirement
Testing and documentation before shipment
Maintenance access after installation
This checklist helps move the discussion from “buying a pneumatic actuator” to “building a reliable valve automation system.”
Conclusion: The Value Is in the Complete System
Pneumatic valve automation is more than an actuator mounted on a valve. It is a complete control chain that starts with a signal, uses compressed air to generate movement, confirms valve position through feedback, and supports industrial process safety through predictable behavior.
A well-designed pneumatic valve automation system brings together the valve body, pneumatic actuator, solenoid pilot valve, limit switch box, valve positioner, compressed air preparation, mounting hardware, and control logic. When these parts are correctly selected and integrated, the result is fast, reliable, maintainable, and suitable for demanding industrial use.
For industrial buyers, the key is to think in systems. A pneumatic actuator provides motion, but the complete automated valve package provides control. A valve body provides flow shutoff or regulation, but the automation system provides repeatability. A solenoid valve sends air, but feedback confirms the result. A positioner improves control, but only when the valve and actuator are properly matched.
That is why pneumatic valve automation should be evaluated as an engineering solution, not just as a product category. The strongest systems are not always the most complex ones. They are the ones that match the valve, process, control requirement, environment, and maintenance reality of the plant.
#PneumaticValveAutomation
#PneumaticActuator
#ValveAutomationSystem
#AutomatedValvePackage
#SolenoidPilotValve
#LimitSwitchBox
#ValvePositioner
#CompressedAirActuator
#IndustrialValveAutomation
#PneumaticControlValve
#ProcessAutomation
#IndustrialValves
#ValveControlSystem
#FactoryAutomation
#FluidControl
