Plain Bearing Clearance and Shaft Fit: The Details That Decide Service Life

Clearance Is Not Just a Dimension on a Drawing

In plain bearing design, clearance is often treated as a small technical detail. A drawing may show an inner diameter, outer diameter, shaft diameter, housing bore, and tolerance range. A buyer may check whether the bushing size matches the shaft. A maintenance technician may confirm that the part can be pressed into the housing. At first glance, the job seems complete.

But in real machines, plain bearing clearance is not just a number on a drawing. It is a working condition.

The clearance between a shaft and a bushing decides whether the bearing can move freely, form a lubrication film, handle thermal expansion, distribute load, avoid seizure, and wear predictably over time. If the clearance is too small, friction and heat may rise quickly. If the clearance is too large, the shaft may impact the bearing surface, creating noise, vibration, edge wear, and accelerated fatigue.

This is why bushing shaft fit is one of the most important details in plain bearing performance. The bearing may be made from the correct material. The load rating may seem suitable. The shaft diameter may look close enough. But if the actual installed clearance is wrong, the bearing can fail long before its expected service life.

A plain bearing does not fail only because the material is weak. It often fails because the bearing, shaft, housing, press fit, lubrication, temperature, and installation method do not work together as a system.

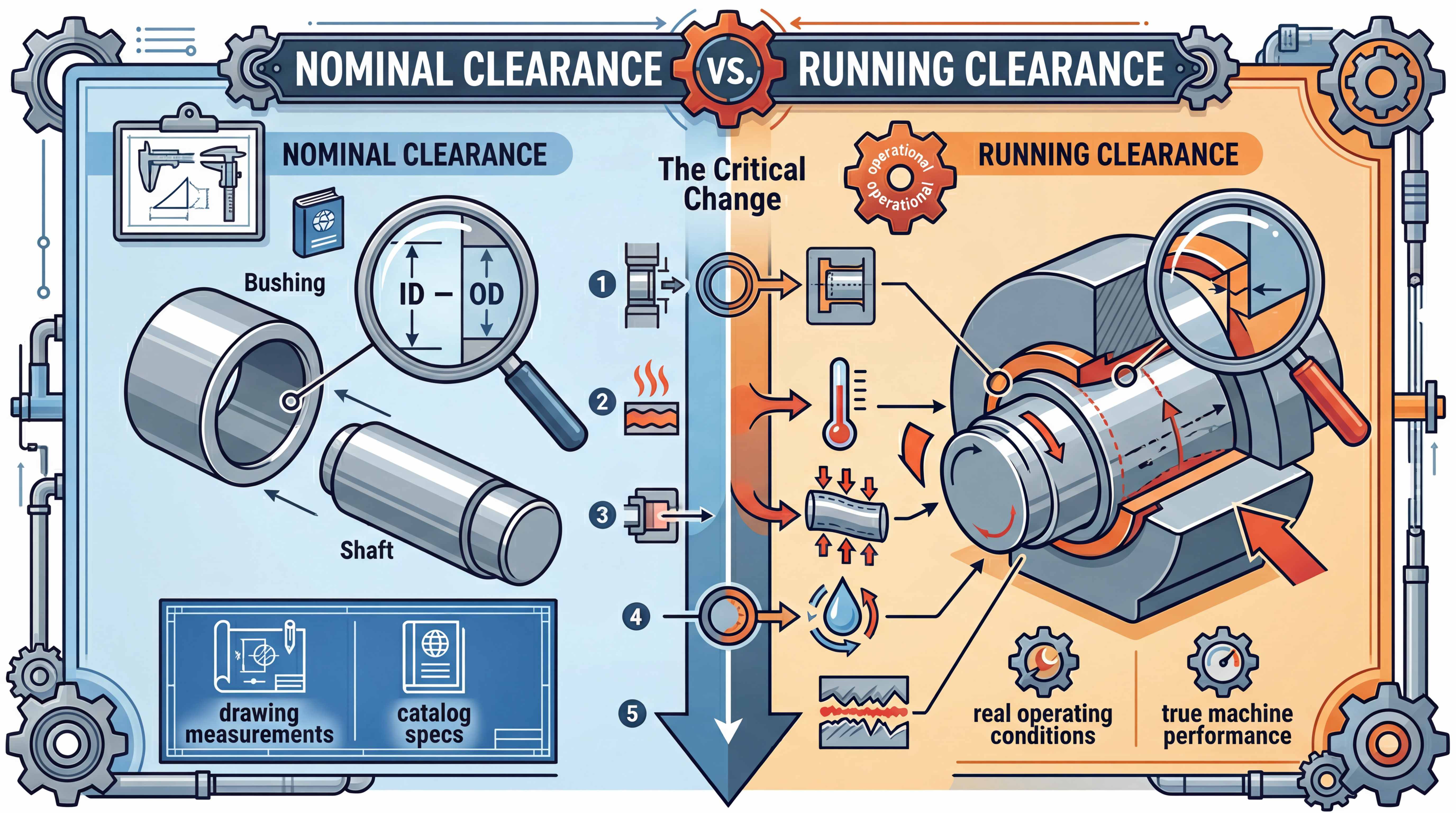

The Difference Between Nominal Clearance and Running Clearance

One of the most common mistakes in plain bearing design is confusing nominal clearance with real running clearance.

Nominal clearance is the theoretical clearance calculated from catalog dimensions or drawing dimensions. For example, a shaft may have a certain nominal diameter, and the bushing inner diameter may be specified slightly larger. On paper, the difference between those two dimensions appears to be the clearance.

Running clearance is different. It is the actual clearance during operation after the bushing has been installed, after the housing fit has changed the bushing geometry, after the shaft is loaded, after the temperature rises, and after the material expands or deforms.

This distinction matters because the bushing does not operate in its free state. A press fit bushing is usually installed into a housing. Pressing the bushing into the housing can reduce the inner diameter. The shaft may not be perfectly round. The housing bore may have its own tolerance. The bearing material may expand differently from the shaft. Lubricant film thickness may vary under load and speed. Wear over time may enlarge the clearance.

The bearing that looked correct before installation may be too tight after installation. The clearance that looked generous at room temperature may become insufficient during operation. A polymer bushing that fits well at assembly may expand more than expected when temperature rises. A bronze bushing that seemed properly fitted may still overheat if the lubricant cannot enter the contact zone.

This is why engineers focus on bearing running clearance, not just catalog size. The machine cares about the clearance during real operation, not the clearance before the bearing is installed.

Why Too Little Clearance Causes Heat and Seizure

A plain bearing needs enough clearance to allow controlled movement between the shaft and the bearing surface. When the clearance is too small, several problems can happen at once.

First, the contact pressure may rise. Instead of allowing a thin lubricant film or low-friction sliding layer to support movement, the shaft may press too tightly against the bearing surface. This increases friction.

Second, lubricant may not enter the working area properly. In many lubricated bronze bushings, oil or grease needs enough space to reach the sliding surface. If the clearance is too tight, lubricant flow becomes restricted. This can lead to lubricant starvation.

Third, friction generates heat. As the bearing heats up, thermal expansion may reduce clearance further. This creates a dangerous cycle: tight clearance creates heat, heat reduces clearance, reduced clearance creates more friction, and the bearing moves closer to seizure.

This is especially important for thermal expansion bearings, including polymer plain bearings and composite bushings. Many polymers expand more than metals when heated. If the design does not allow enough clearance for thermal growth, the bearing can tighten around the shaft during operation. The result may be high friction, deformation, accelerated wear, or complete locking.

In bronze bushings, insufficient clearance can also cause serious problems. If the lubricant film breaks down, direct metal-to-metal contact may occur. This can create scoring, discoloration, material transfer, and seizure marks.

Too little clearance is dangerous because it may not appear immediately during assembly. The shaft may rotate by hand when the machine is cold and unloaded. But once load, speed, and temperature are added, the bearing may fail.

Why Too Much Clearance Creates Impact and Wear

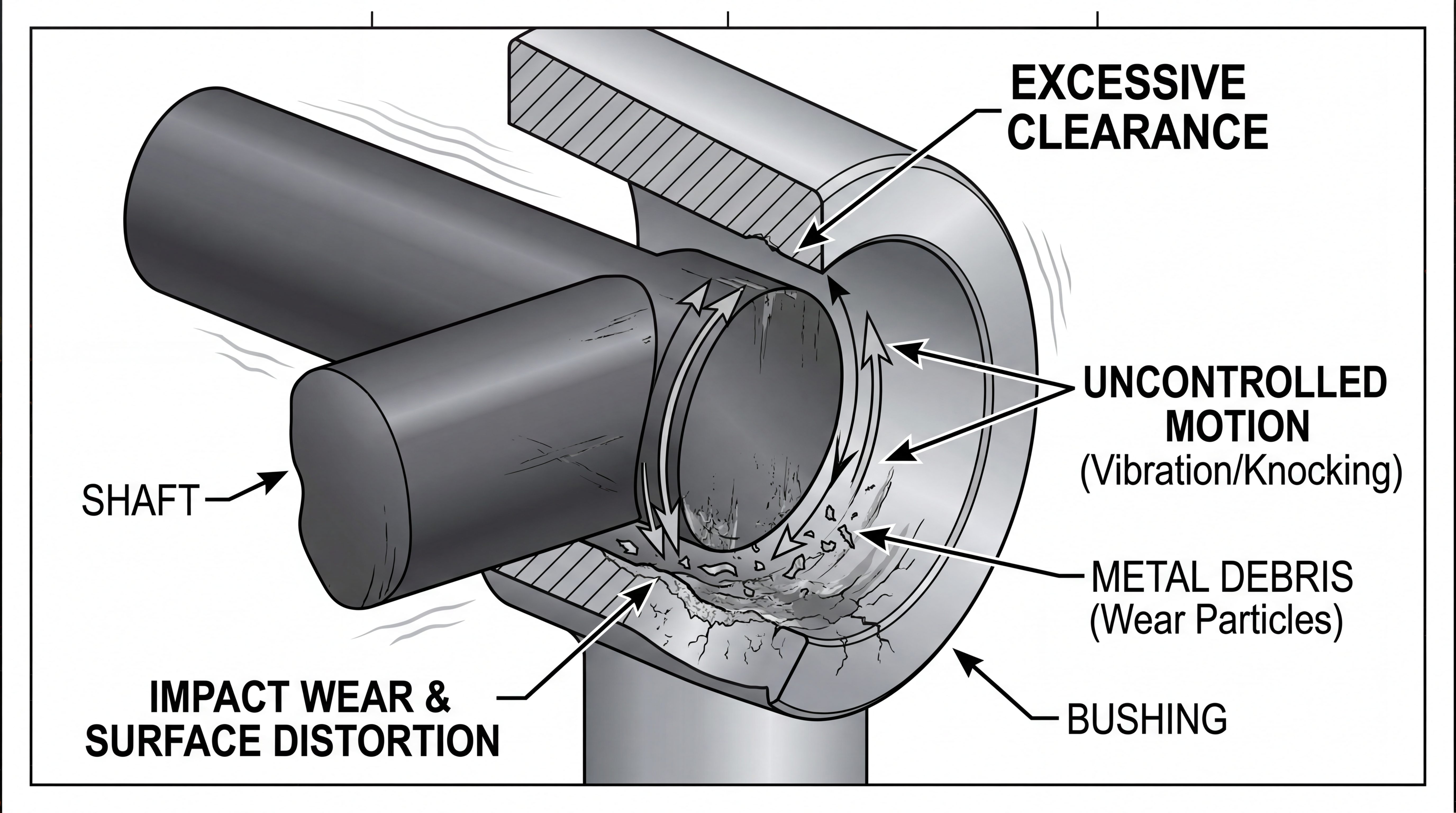

Too much clearance can be just as harmful as too little clearance, but the failure mode is different.

When the clearance is excessive, the shaft is not properly supported. Instead of sliding smoothly along the bearing surface, the shaft may knock, vibrate, or impact the bushing during movement. This is especially common in pivot joints, linkages, hydraulic cylinder eyes, construction machinery, agricultural equipment, and slow oscillating applications.

The result is not smooth wear. It is impact wear.

Excessive clearance can create noise, vibration, uneven loading, edge wear, and rapid enlargement of the bearing bore. The machine may feel loose. The joint may knock during direction changes. The shaft may strike the bearing surface repeatedly under load. Over time, this can damage not only the bushing but also the shaft, housing, bracket, pin, and connected structure.

In oscillating motion, excessive clearance can be especially damaging. A pivot joint may reverse direction repeatedly. Each reversal can cause the shaft to impact the bearing surface. Instead of carrying load across a stable contact area, the bearing experiences repeated shock.

Too much clearance can also reduce lubrication effectiveness. If the shaft is not properly centered, the lubricant film may become unstable. In some conditions, the bearing may wear more on one side, creating a distorted bore and even more clearance.

A loose bushing may keep moving, but that does not mean it is healthy. A plain bearing is supposed to support motion, not allow uncontrolled motion.

Press Fit Changes the Inner Diameter

Many bushings are installed with interference fit into a housing. This means the outer diameter of the bushing is slightly larger than the housing bore, so the bushing is held firmly after installation. This is common and often necessary. But it introduces one of the most important issues in bushing installation: press fit changes the bushing’s internal size.

When a bushing is pressed into a housing, the outer wall is compressed. Depending on the bushing material, wall thickness, housing material, interference amount, and bore geometry, the inner diameter may shrink. This shrinkage can reduce the final running clearance.

If this effect is ignored, the bearing may be too tight after installation even if it looked correct before pressing. This is one of the classic causes of early plain bearing failure.

Thin-walled composite bushings, wrapped bushings, sleeve bushings, and polymer bushings can all be affected by installation forces. A press fit bushing may also become slightly out of round if the housing bore is not round, if the press tool is misaligned, or if the housing is distorted.

For this reason, engineers often calculate or verify installed dimensions rather than relying only on free-state dimensions. In some applications, the bushing may need to be sized, burnished, reamed, or calibrated after installation. In other cases, the housing tolerance must be controlled more tightly to maintain correct installed clearance.

The key lesson is simple: the bearing that enters the housing is not always the same shape as the bearing that operates in the machine.

Housing Bore Accuracy Matters More Than People Think

The housing bore is often overlooked because the bearing itself receives most of the attention. But a bushing depends on the housing for support. If the housing bore is wrong, the bushing may not perform correctly.

A bore that is too small can create excessive press fit, reducing the inner diameter too much. A bore that is too large can fail to hold the bushing securely, allowing movement between the bushing and housing. A bore that is out of round can distort the bushing. A bore with poor surface finish can damage the outside of the bushing during installation. A bore with burrs, dirt, chips, or corrosion can create local high spots.

In split housings or welded structures, distortion is common. A housing may be round before welding but distorted after assembly. Heavy equipment brackets can deform under load. A repaired housing may not be coaxial with the opposite side. These issues affect sleeve bearing tolerance and final shaft alignment.

The bushing is only as accurate as the bore that supports it. A high-quality bushing installed into a poor housing can become a poor bearing system.

This is why professional installation should include housing inspection. The bore should be clean, round, correctly sized, and properly chamfered. If the housing is damaged, simply replacing the bushing may not solve the problem.

Shaft Fit Is Half of the Bearing System

A plain bearing works against a shaft, pin, or journal. The shaft is not just something that passes through the bushing. It is half of the sliding pair.

Correct bushing shaft fit includes diameter, roundness, straightness, hardness, surface finish, corrosion resistance, and alignment. If the shaft is wrong, the bushing cannot compensate indefinitely.

A shaft that is too large reduces clearance. A shaft that is too small increases clearance. A shaft that is out of round creates uneven contact. A shaft that is bent creates edge loading. A shaft that is too soft may wear under load. A shaft that is scratched, rusty, or pitted can damage the bearing surface.

In replacement work, the shaft is often the hidden reason why new bushings fail early. The old bushing is removed, a new bushing is installed, and the same worn shaft is reused. If the shaft has grooves, corrosion, taper, or surface damage, the new bushing immediately starts working against a bad mating surface.

For bronze bushings, shaft hardness and surface finish are important for controlling wear. For polymer plain bearings, the shaft surface may need to fall within a recommended roughness range. For PTFE-lined bearings, the shaft should usually be smooth enough to avoid damaging the lining. For self-lubricating bushings, the shaft surface can affect transfer film formation.

Shaft fit is not only about whether the shaft can enter the bushing. It is about whether the shaft and bushing can form a stable sliding system.

Shaft Surface Finish Affects Friction, Wear, and Lubrication

Shaft surface finish is one of the most important factors in plain bearing life. A shaft that is too rough can act like an abrasive tool. It can scrape away bearing material, destroy lubrication film, damage PTFE or polymer layers, and create wear particles.

However, surface finish is not simply a matter of making the shaft as smooth as possible. Different bearing materials may have different requirements. Some materials need a controlled surface texture to support lubricant retention or transfer film behavior. A mirror-like shaft may not always be ideal for every bearing system. The correct finish depends on the bearing material, lubricant, load, speed, and motion pattern.

For greased bronze bushings, the shaft must be smooth enough to avoid abrasive wear but compatible with lubricant film formation. For polymer bearings, the shaft should avoid sharp machining marks or corrosion pits. For PTFE-lined bearings, a rough shaft can quickly damage the thin sliding layer. For oil-impregnated bushings, shaft condition affects how the oil film behaves during motion.

Surface finish also changes over time. A shaft may become polished, scored, rusted, or contaminated during service. If the shaft wears unevenly, the bearing clearance changes. If the shaft develops grooves, those grooves may trap particles and accelerate wear.

A proper bearing inspection should always include the shaft surface, not just the bushing bore.

Running Clearance Must Support Lubrication Film Formation

In lubricated plain bearings, clearance helps create space for lubricant. The lubricant film separates the shaft from the bearing surface and reduces direct contact. Without suitable clearance, the lubricant may not reach the loaded zone or may not maintain film thickness.

The ideal clearance depends on bearing size, speed, load, lubricant type, operating temperature, shaft finish, and material. Too little clearance restricts lubricant and increases heat. Too much clearance may prevent stable film formation and allow impact. The correct value is application-specific.

In hydrodynamic lubrication, shaft rotation helps pull lubricant into the wedge-shaped gap between shaft and bearing. In boundary lubrication, the film may be very thin, and surface interactions become more important. In oscillating motion, full hydrodynamic film formation may be difficult because the shaft does not rotate continuously. In slow pivot joints, grease or solid lubrication may play a bigger role than oil film dynamics.

This means bearing running clearance should be considered together with motion type. A high-speed rotating journal, a slow oscillating pivot, and a lightly loaded polymer sleeve do not need the same clearance logic.

The purpose of clearance is not just to avoid contact. It is to create the correct contact condition.

Thermal Expansion Changes Clearance During Operation

Temperature changes the size of both the shaft and the bearing. This is why thermal expansion bearings require careful design.

A steel shaft expands when heated. A bronze bushing expands too, but not at exactly the same rate. A polymer bushing may expand much more than a steel shaft or metal housing. A composite bearing may include multiple layers with different expansion behavior. The housing may also expand and change how tightly it holds the bushing.

When temperature rises, the clearance may increase or decrease depending on material combinations and geometry. In many polymer applications, the bearing may expand inward and reduce the shaft clearance. If this is not considered, the bearing can become tight during operation and generate even more heat.

Temperature may come from the environment or from friction. A machine working outdoors may see hot and cold cycles. A bearing may heat during repeated motion. A nearby motor, hydraulic system, oven, or process line may raise the operating temperature. Washing, cooling, or chemical exposure may create sudden temperature changes.

A design that works at room temperature may not work at actual operating temperature. This is why clearance should be checked against the full temperature range, not only assembly conditions.

Material Choice Changes Fit Strategy

Different plain bearing materials require different fitting strategies.

Bronze bushings are strong, machinable, and commonly used in heavy-duty applications. They may be installed with press fit and then machined or reamed to final size if precise clearance is needed. Lubrication grooves, oil holes, and grease channels may also be included.

Sintered bronze bushings require care because their porous structure stores oil. Machining after impregnation may affect surface pores if not handled correctly. They must be selected and installed according to their lubrication mechanism.

Polymer plain bearings may need more clearance allowance because of thermal expansion and moisture absorption. Press fit must be controlled carefully to avoid distortion. The housing and shaft material can strongly affect final performance.

Metal-polymer composite bearings often have thin walls and engineered sliding layers. They may be sensitive to installation damage, housing bore tolerance, and shaft finish. Excessive interference or rough handling can deform the bearing or damage the sliding layer.

PTFE-lined bearings require special care because the low-friction lining is thin. If the shaft is rough, if the bearing is misaligned, or if the press fit damages the lining, early wear can occur.

This is why plain bearing design must be material-specific. A clearance rule that works for one material may be wrong for another.

Misalignment Can Destroy a Correct Clearance

Even if the calculated clearance is correct, misalignment can still cause failure. If the shaft and bearing are not aligned, the actual contact may occur at one edge instead of across the full bearing surface. This creates edge loading.

Edge loading increases local pressure and heat. It can wipe away lubricant, score the shaft, deform the bushing, and create uneven wear. The bearing may appear to have enough clearance, but only part of the surface is carrying the load. In severe cases, one edge of the bearing wears heavily while the opposite side remains relatively untouched.

Misalignment can come from bent shafts, distorted housings, poor machining, welded structures, incorrect assembly, uneven load, or machine frame deflection. In heavy equipment, the structure may align correctly when unloaded but shift under working load.

A longer bushing is not always the solution. If misalignment is present, a longer bearing may increase the risk of edge loading because the shaft has more length over which to bind. In some applications, spherical plain bearings, self-aligning designs, shorter bushings, or structural improvements may be needed.

Clearance and alignment must be evaluated together. Clearance cannot correct a badly aligned system.

Press-Fit Installation Requires the Right Method

Proper bushing installation is essential for maintaining shaft fit and bearing life. Many premature failures begin during installation.

A bushing should be pressed into place using controlled force and proper tooling. The force should be applied evenly. The tool should support the bushing correctly. The housing should be clean and chamfered. The bushing should enter squarely, not at an angle.

Hammering a bushing into place can damage the edge, distort the bore, crack brittle material, or damage the sliding surface. Pressing on the wrong part of a flanged bushing can deform the flange. Installing a thin-walled composite bearing without correct support can collapse or wrinkle it. For split bushings, seam position may matter depending on the load direction and housing design.

Lubrication during installation may or may not be appropriate depending on the design. Some bushings are installed dry to maintain interference. Others may require specific assembly aids. The supplier’s recommendations should be followed.

After installation, the bore should be checked if the application is sensitive. A bushing that was correct before installation may no longer be within tolerance after press fit.

Installation is not a secondary step. It is part of the bearing design.

Replacement Work Requires More Than Measuring the Old Bushing

Maintenance teams often replace bushings by measuring the old part and ordering the same size. This can work in simple cases, but it can also repeat the original problem.

The old bushing may be worn, distorted, or no longer representative of the original size. The shaft may have worn smaller. The housing may have enlarged. The bore may be damaged. The machine may have operated with excessive clearance for a long time, causing bracket wear or shaft bending.

Before selecting a replacement bushing, the shaft should be inspected and measured. The housing bore should be checked. The old wear pattern should be studied. If the old bushing shows uneven wear, scoring, overheating, or edge damage, simply copying its dimensions may not solve the problem.

A new bushing installed into a worn housing may move. A new bushing paired with a damaged shaft may wear quickly. A new bushing with the original clearance may be wrong if the shaft has been replaced with a different material or coating.

Replacement work should restore the bearing system, not only replace the visible worn part.

The Relationship Between Clearance and Service Life

Correct clearance improves bushing service life because it allows the bearing to work as intended. It supports lubrication, controls friction, accommodates thermal expansion, reduces impact, and distributes load properly.

Too tight, and the bearing may overheat or seize. Too loose, and the bearing may knock, vibrate, and wear unevenly. Incorrect shaft finish may accelerate wear even if clearance is right. Poor installation may reduce clearance after press fit. Misalignment may concentrate load despite correct nominal dimensions.

Service life is therefore not determined by bearing material alone. It is determined by the relationship between material, clearance, shaft, housing, load, speed, lubrication, temperature, and installation.

This is why high-quality plain bearings can fail early in poor systems, while ordinary-looking bushings can last a long time in well-designed systems.

A good bearing design is not only a material selection. It is a dimensional strategy.

A Practical Clearance and Shaft Fit Checklist

A practical review should include several questions.

What is the required operating clearance after installation? How much will the press fit reduce the bushing inner diameter? What is the housing bore tolerance? Is the housing round and clean? What is the shaft diameter tolerance? Is the shaft round and straight? What is the shaft hardness? What is the required shaft surface finish? Will the bearing operate at elevated temperature? Will the material expand more than the shaft? Is the motion continuous rotation, oscillation, or intermittent movement? Is the bearing lubricated, self-lubricating, or dry-running? Is there enough clearance for lubricant film formation? Will the joint experience shock load or side load? Is there any risk of misalignment? Will the bushing be inspected after installation?

These questions are not complicated, but they are often skipped. Skipping them can turn a small clearance error into a major failure.

Common Mistakes in Clearance and Shaft Fit

One mistake is measuring the bushing before installation and assuming the same clearance will exist after press fit.

Another mistake is ignoring thermal expansion, especially when using polymer plain bearings or composite materials.

A third mistake is using a damaged shaft with a new bushing. This often leads to repeated failure.

A fourth mistake is assuming all materials need the same clearance. Bronze, polymer, PTFE-lined, and metal-polymer bearings have different requirements.

A fifth mistake is selecting shaft finish without considering the bearing material. Too rough can abrade the bearing. Too smooth may not support certain lubrication or transfer film mechanisms.

A sixth mistake is ignoring housing condition. The best bushing cannot work properly in a distorted or oversized housing.

A seventh mistake is blaming the bearing supplier when the root cause is fit, installation, or shaft damage.

Avoiding these mistakes can improve service life more than changing to a more expensive bearing material.

Final Thoughts: Small Dimensions Decide Big Reliability Outcomes

Plain bearings are often simple in shape, but their performance depends on precise relationships. Clearance, shaft fit, housing bore, press fit, surface finish, thermal expansion, lubrication, and installation accuracy all decide whether the bearing will run smoothly or fail early.

A bushing does not know what the drawing intended. It only knows the actual space between itself and the shaft during operation. If that space is too tight, heat and seizure can occur. If it is too loose, impact and wear can grow quickly. If the shaft is rough, damaged, soft, or misaligned, the bearing will suffer. If press fit is ignored, the installed clearance may be wrong from the beginning.

This is why plain bearing clearance and bushing shaft fit should not be treated as minor details. They are service-life decisions.

The most reliable plain bearing systems are not created by selecting a bushing alone. They are created by matching the bushing, shaft, housing, material, lubricant, temperature, and motion pattern into one working design.

In plain bearings, small dimensions often decide big reliability outcomes.
