Bushings vs Bearings: Why Many Machines Do Not Need a Rolling Bearing at All

A Machine Does Not Need a Rolling Bearing at Every Moving Point

In many mechanical designs, every rotating or moving point is quickly described as a “bearing position.” That is not wrong, but it can easily lead to the wrong assumption: if something moves, it must need a rolling bearing. In real machine design, that assumption creates unnecessary cost, unnecessary complexity, and sometimes even unnecessary failure risk.

Many machines do not need a rolling bearing at all. They need a simple, durable, properly selected bushing.

This is why the topic of bushings vs bearings is more important than it looks. At first glance, it sounds like a basic terminology question. Is a bushing a bearing? Is a bearing different from a bushing? Which one is better? But behind these simple questions is a deeper engineering issue: not every motion point has the same load, speed, precision requirement, environment, or maintenance condition.

A motor shaft that rotates continuously at high speed has a very different requirement from a loader arm pivot that moves slowly under shock load. A conveyor roller does not work like a hinge pin. A fan spindle does not behave like a hydraulic cylinder eye. A precision machine tool spindle and an agricultural linkage should not be designed with the same bearing logic.

In industrial equipment, the better question is not “bearing or bushing?” The better question is: what kind of motion must be supported, and what kind of working reality will the component face?

Once that question is asked clearly, bushings become much more than simple sleeves. They become practical engineering components that can support load, tolerate harsh environments, reduce maintenance, simplify assembly, and control cost.

What Is a Bushing?

Before comparing bushings and bearings, it is useful to answer the common search question: what is a bushing?

A bushing is a cylindrical or shaped bearing component used to support a shaft, pin, rod, or moving member. It usually provides a sliding surface between two parts. Instead of using balls or rollers, a bushing allows one part to slide, rotate, oscillate, or pivot against a bearing surface.

In many cases, a bushing is a type of plain bearing. It belongs to the broader family of sliding bearings, where motion is supported by surface contact rather than rolling elements. The simplest form is a sleeve bushing, which looks like a hollow cylinder installed inside a housing. A shaft or pin passes through the bushing, and the bushing provides support between the moving parts.

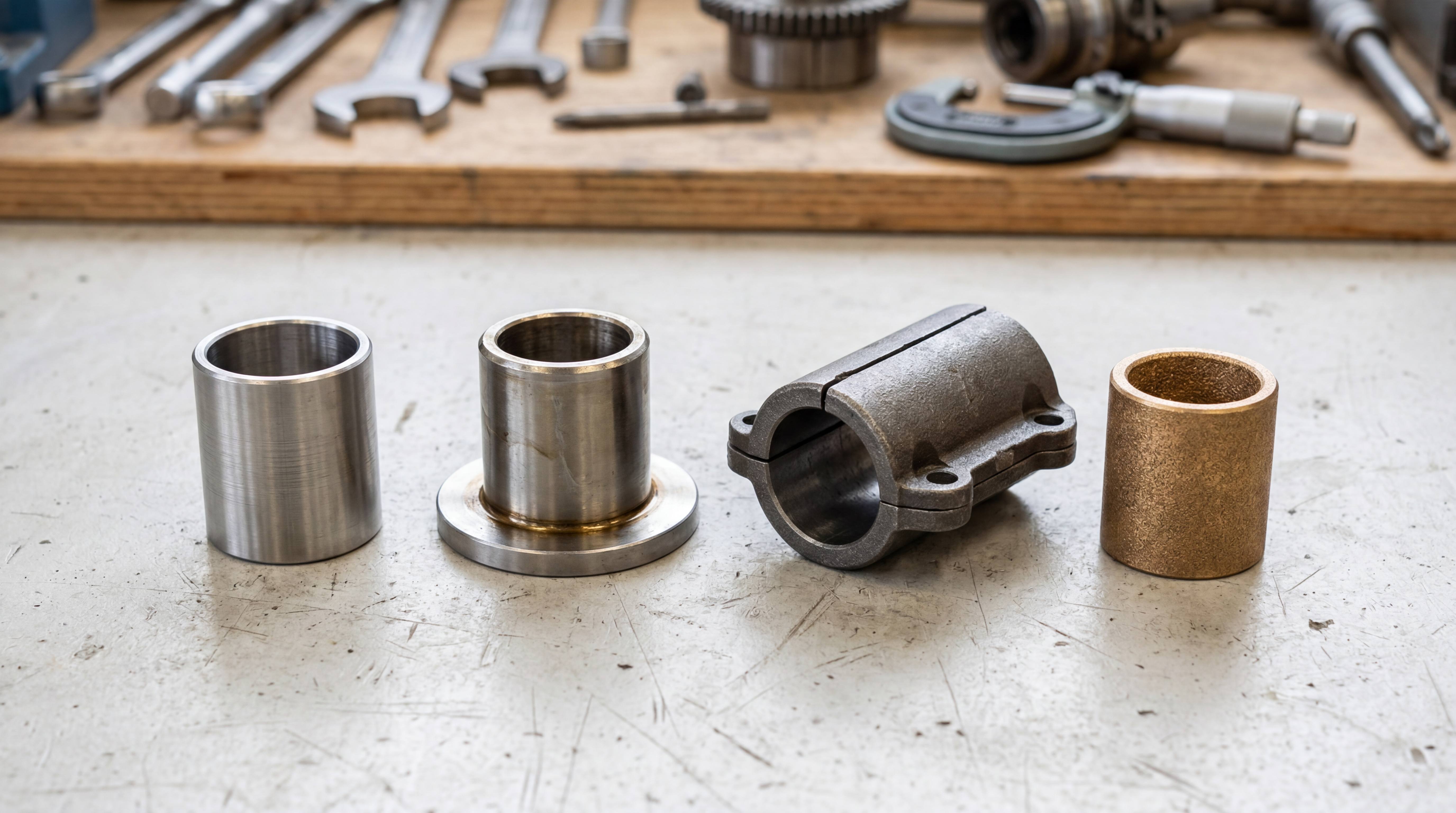

There are also other common forms. A flanged bushing has a flange on one end, helping control axial movement or providing a larger contact face. Thrust washers support axial loads. Split bushings allow easier installation around shafts. Wrapped bushings, sintered bronze bushings, metal-polymer bushings, and engineered polymer bushings all serve different applications.

The word “bushing” is often used in practical machinery language, while “plain bearing” may be used in more technical or catalog language. In many industrial conversations, the terms overlap. A buyer may ask for industrial bushings, a maintenance technician may ask for replacement bushings, and an engineer may specify plain bearings. The component may be serving the same basic purpose: supporting motion through sliding contact.

The key point is simple: a bushing is not just a cheap tube. A properly selected bushing is a load-carrying, friction-managing, wear-controlling component.

Why the Word “Bearing” Creates Confusion

The word “bearing” is broad. It refers to any component that supports load and allows motion between parts. A ball bearing is a bearing. A roller bearing is a bearing. A plain bearing is also a bearing. A bushing can also be a bearing.

The confusion begins because many people use the word “bearing” to mean rolling bearing. In daily purchasing language, when someone says “bearing,” they often imagine a ball bearing with inner ring, outer ring, cage, and rolling elements. When they say “bushing,” they imagine a simpler sleeve or liner. This language habit makes bushings seem less technical, even though they may be exactly what the machine needs.

A rolling bearing supports motion through rolling elements such as balls or rollers. These elements reduce friction and are excellent for many high-speed rotating applications. But a rolling bearing also requires suitable alignment, sealing, lubrication, raceway protection, and proper mounting.

A bushing supports motion through sliding contact. It may have higher friction than a rolling bearing in some conditions, but it can be more compact, more tolerant of shock, more suitable for oscillating movement, and easier to use in dirty or low-speed applications.

So the comparison between bushings and bearings is not really a comparison between “simple” and “advanced.” It is a comparison between different bearing principles.

A rolling bearing is advanced when the application needs rolling contact. A bushing is advanced when the application needs durable sliding support.

When a Bushing Is Enough

A bushing is enough when the movement point does not require the speed, precision, and low rolling friction of a rolling bearing. This happens more often than many people realize.

If the motion is slow, intermittent, or oscillating, a bushing may be the better choice. Many pins and joints in machinery move only through a small angle. They do not rotate thousands of times per minute. They may move a little, stop, carry load, reverse direction, then move again. In such cases, a rolling bearing may not fully use its advantage, while a bushing can support the load with a simple sliding surface.

If the load is high and speed is low, a bushing often makes sense. Large surface contact helps distribute pressure. In a pivot joint, the objective is not to achieve high rotational speed. The objective is to carry load safely, resist wear, and survive real operating conditions.

If the environment is dirty, dusty, wet, or difficult to seal, a bushing may also be more practical. Some bushing materials tolerate contamination better than rolling bearings. Certain self-lubricating or polymer bushings can operate without sticky grease that attracts dust and forms abrasive paste.

If maintenance access is limited, bushings can be attractive. Grease fittings, lubrication schedules, seal inspection, and bearing replacement all create maintenance burden. In some bushing applications, a self-lubricating bushing can reduce maintenance points and help the machine operate more reliably between service intervals.

If the design needs compact structure, a bushing can be easier to package. A sleeve bushing can fit into a simple housing with a pin passing through it. A rolling bearing assembly may require more radial space, more precise seats, seals, retaining features, and careful installation.

In short, a bushing is enough when the machine needs load support and controlled sliding movement more than high-speed precision rotation.

When a Rolling Bearing Is Necessary

A bushing is not always the right choice. Rolling bearings exist for good reasons, and many applications depend on them.

A rolling bearing is usually necessary when the application involves continuous high-speed rotation. Electric motors, fans, pumps, spindles, conveyor rollers, wheels, and many gearbox positions need low friction at speed. In these applications, a bushing may generate too much heat, require too much lubrication, or create unacceptable wear.

A rolling bearing may also be necessary when precise rotational accuracy is required. Some machines need controlled shaft positioning, low runout, and stable rotational movement. Rolling bearings can provide predictable performance when installed correctly.

Rolling bearings also perform well when the environment is clean or properly sealed, lubrication is controlled, and the load-speed conditions match the bearing design. In these situations, rolling bearings can deliver long service life and efficient movement.

The problem is not that rolling bearings are overused everywhere. The problem is that rolling bearings are sometimes selected by habit in positions where their advantages do not matter. For example, a slow-moving linkage may not need high-speed rolling performance. A pivot exposed to mud and shock may not benefit from a precision rolling element assembly. A simple door hinge, support arm, or equipment linkage may need a bushing instead.

Good bearing selection means understanding when rolling contact is actually needed and when sliding contact is more practical.

The Motion Pattern Matters More Than the Name of the Component

One of the most important factors in choosing between a bushing and a rolling bearing is motion pattern.

Continuous rotation is very different from oscillating motion. In continuous rotation, the shaft keeps turning in one direction. This movement allows rolling bearings to distribute contact across rolling elements and raceways. Lubrication can circulate, and the bearing can operate smoothly at speed.

Oscillating motion is different. The shaft or pin moves back and forth through a limited angle. This is common in linkages, hinges, hydraulic cylinder ends, suspension points, and equipment pivots. In this type of motion, a rolling bearing may repeatedly load the same contact area without full rotation. This can lead to localized wear, false brinelling, or lubrication problems.

A bushing, on the other hand, naturally fits many oscillating and pivoting movements. Its sliding surface can support repeated back-and-forth motion, provided the material, clearance, surface finish, and lubrication conditions are suitable.

Intermittent motion also favors bushings in many cases. A machine part may move occasionally rather than continuously. It may remain under static load for long periods, then move briefly. A rolling bearing designed for rotation may not be necessary. A robust bushing may provide simpler and more reliable support.

This is why machine designers must describe movement accurately. “Rotating part” is not enough. Is it rotating continuously? Is it oscillating? Is it sliding? Is it pivoting? Is it moving under load or only during adjustment? The answer changes the correct component.

The Load Direction Changes the Answer

A bushing and a rolling bearing also respond differently to load direction and load behavior.

In many industrial joints, the load is mainly radial. A pin passes through a bushing, and the bushing supports the load around the pin. If the load is heavy but movement is slow, a bushing can be a practical solution because it spreads the load over a bearing surface.

In some designs, axial load also matters. This is where a flanged bushing or thrust washer can help. A flanged bushing can provide radial support through the sleeve portion and help manage axial positioning through the flange face. This does not mean it can replace every thrust bearing, but in many moderate-duty applications it can simplify the design.

Shock load is another major factor. Many machines do not experience smooth laboratory loads. They face impact, vibration, sudden direction changes, and uneven force. Agricultural equipment hits soil resistance. Construction machinery handles rocks, debris, and uneven ground. Material handling equipment sees repeated start-stop cycles. These shock conditions can be difficult for precision rolling elements.

Bushings often perform well in these areas because they have a simpler structure and larger contact surface. A pivot joint bushing in a loader arm, excavator linkage, farm implement, or lifting mechanism is not trying to achieve high-speed rotation. It is trying to survive load, dirt, movement reversal, and impact.

This is why load type should be considered together with speed. A high-speed light-load application and a low-speed high-load application are completely different design problems.

The Environment Often Decides the Practical Winner

In clean indoor applications, both bushings and rolling bearings can work well if properly selected. But in dirty or wet environments, the decision becomes more complex.

Rolling bearings usually rely on seals and lubrication to protect internal rolling elements. When seals remain effective, performance can be excellent. But if dust, sand, mud, water, or fibers enter the bearing, damage can accelerate. Contamination may disturb lubrication, scratch raceways, increase friction, and lead to early failure.

Bushings can be more tolerant in some dirty environments, especially when the material is selected for contamination resistance. A polymer bushing, composite bushing, or self-lubricating bushing may reduce the need for grease. This matters because grease can attract dust and create abrasive paste around a joint.

This does not mean every bushing is suitable for dirt. A poorly selected bushing can wear quickly if abrasive particles enter the contact surface. But in many outdoor and heavy-duty applications, bushings are easier to protect, inspect, and replace. They may also continue functioning despite gradual wear, while a contaminated rolling bearing may deteriorate more rapidly once internal damage begins.

Industrial environments are rarely perfect. Outdoor equipment, farm machines, construction tools, trailers, gates, mining systems, packaging equipment, and process machinery all expose motion components to real-world conditions. The question is not which component performs best in a clean test. The question is which component keeps working when users do not clean, lubricate, align, and protect everything perfectly.

Bushings Can Reduce Design Complexity

A major advantage of bushings is design simplicity. A sleeve bushing installed into a housing can support a shaft or pin with fewer parts than a rolling bearing assembly. This can reduce installation space, simplify machining, and make replacement easier.

In many mechanical systems, a bushing does not require an inner ring, outer ring, rolling elements, cage, and complex sealing structure. The housing can be simpler. The pin can serve as the mating surface. The bearing can be pressed into place. When the bushing wears, it can often be replaced without redesigning the entire system.

This simplicity is valuable in equipment that must be rugged, affordable, and serviceable. Farm machinery, trailers, lifting devices, industrial doors, hydraulic linkages, and construction attachments often use bushings because the structure needs to be strong and repairable rather than delicate.

Design simplicity also matters for manufacturers. Fewer parts can mean fewer assembly steps. Fewer grease fittings can mean less maintenance instruction. Fewer precision interfaces can mean less production sensitivity. In global supply chains, a robust bushing design may also be easier to source and standardize.

However, simple does not mean careless. Bushing design still requires attention to housing tolerance, shaft hardness, surface roughness, lubrication, clearance, material compatibility, and load direction. A bushing may look simple, but its performance depends on correct engineering.

Material Choice Makes Bushings a Flexible Design Tool

One reason bushings are so widely used is material flexibility. Unlike many rolling bearings, which rely on hardened steel raceways and rolling elements, bushings can be made from many different materials depending on the application.

Bronze bushings are common in heavy-duty applications because bronze offers good wear resistance, load capacity, and compatibility with lubricated sliding contact. They are often used in industrial equipment, construction machinery, agricultural machinery, and general mechanical joints.

Sintered bronze bushings contain microscopic pores that can hold oil. These oil-impregnated bushings provide lubrication during operation and are commonly used in moderate-load, moderate-speed applications where simple self-lubrication is useful.

Steel-backed composite bushings may include a backing layer, porous bronze layer, and PTFE or polymer sliding layer. These designs can support compact structures and provide low-friction operation in certain dry or marginally lubricated conditions.

Engineered polymer bushings can offer corrosion resistance, low noise, low weight, and dry-running capability. They are often considered in applications where grease is undesirable, such as food processing, packaging machinery, clean automation, and outdoor equipment exposed to moisture.

A flanged bushing may be made from bronze, metal-polymer composite, or polymer depending on whether the design needs load capacity, low friction, corrosion resistance, or reduced maintenance.

This material range makes industrial bushings highly adaptable. The same basic component type can be engineered for very different operating realities.

Why Many Low-Speed Machines Do Not Need Rolling Bearings

Many low-speed machines use rolling bearings simply because rolling bearings are familiar. But low-speed movement changes the value equation.

At low speed, the friction advantage of rolling elements may be less important than load support, shock resistance, contamination tolerance, and maintenance simplicity. If the machine moves slowly and carries heavy load, a bushing may be more suitable. If the machine pivots only occasionally, the cost and complexity of a rolling bearing may not be justified.

Consider a linkage in agricultural equipment. It may move slowly through a limited angle while exposed to soil, dust, water, and vibration. A rolling bearing would need good sealing and protection. A bushing may be easier to install, easier to grease if needed, and easier to replace after wear.

Consider a hydraulic cylinder eye. The motion is oscillating, the load can be high, and the speed is low. A pivot joint bushing is often more practical than a rolling bearing because the design needs broad support and durability rather than high-speed rotation.

Consider a gate hinge, lifting arm, or equipment bracket. The component may move only during adjustment or operation cycles. A rolling bearing may be unnecessary. A sleeve bushing or flanged bushing can provide enough support while keeping the assembly simple.

The phrase “good enough” should not be misunderstood. In engineering, good enough does not mean low quality. It means the component matches the requirement without unnecessary complexity. A bushing is often not a compromise. It is the correct solution.

The Hidden Cost of Choosing a Rolling Bearing by Default

A rolling bearing may seem like a safe choice because it is standardized and widely available. But choosing one by default can create hidden costs.

First, rolling bearings often require more precise housing and shaft conditions. Poor alignment, improper fit, or incorrect preload can reduce service life. If the surrounding structure is rough or flexible, the bearing may not perform as expected.

Second, rolling bearings may need better sealing. If the application is dirty, the bearing requires protection from contaminants. Seals add cost and may become failure points.

Third, rolling bearings need correct lubrication. Too little lubrication causes wear and heat. Too much lubrication can also create problems. Contaminated grease can shorten service life.

Fourth, rolling bearings may fail in ways that are harder to tolerate. Once internal rolling elements, cages, or raceways are damaged, the bearing can become noisy, hot, or unstable. Replacement may require more disassembly than a simple bushing.

Fifth, rolling bearings may increase the size or complexity of the assembly. A compact bushing may fit where a rolling bearing assembly cannot.

These hidden costs do not mean rolling bearings are bad. They mean the designer should not select them automatically. A bearing decision must include the surrounding system, not only the component price.

The Hidden Cost of Choosing a Bushing Without Engineering

There is also a reverse mistake: choosing a bushing only because it looks cheap.

A bushing can fail quickly if it is not engineered correctly. If the shaft surface is too rough, it may wear the bushing rapidly. If the shaft is too soft, it may become damaged. If the clearance is too tight, heat and seizure can occur. If the clearance is too loose, impact and noise may increase. If the material cannot handle the temperature or chemical exposure, performance will decline.

Lubrication must also be considered. Some bushings require regular grease. Some are self-lubricating. Some can run dry only under specific load and speed conditions. A maintenance-free bushing is not maintenance-free under every condition.

Installation matters too. Pressing a sleeve bushing into a housing can reduce its internal diameter. If this effect is not considered, the running clearance may become too small. A flanged bushing may need proper axial space and support. A split bushing may require attention to seam position and housing support.

So the correct message is not “use bushings because they are cheaper.” The correct message is: use bushings when their motion principle, material, and installation conditions fit the application.

Typical Bushing Applications in Industrial Equipment

Bushings appear in many places where practical support is more important than high-speed rotation.

In construction machinery, bushings are common in boom pivots, bucket linkages, loader arms, stabilizers, and attachment points. These positions face high loads, dirt, impact, and slow oscillating motion.

In agricultural machinery, bushings are used in tillage equipment, seeders, harvesters, folding frames, steering linkages, and hitch points. These machines work in dust, soil, crop residue, water, and fertilizer exposure.

In hydraulic equipment, bushings support cylinder eyes, clevis joints, pins, and pivoting structures. The motion is often oscillating and heavily loaded.

In material handling equipment, bushings can support lift mechanisms, guide arms, pallet handling systems, and hinge points. Some applications require quiet operation and reduced maintenance.

In industrial doors, gates, and access systems, bushings support slow and intermittent motion. A rolling bearing may be unnecessary when a sleeve bushing can provide reliable support.

In automation systems, polymer bushings may support sliding or rotating parts where low noise, light weight, corrosion resistance, and dry operation are desired.

In trailers and towing-related components, bushings may be used in jacks, hinges, couplers, suspension points, and support mechanisms where the movement is intermittent and load conditions can vary.

These examples show that bushing applications are not limited to one industry. They are found wherever motion is slow, load is meaningful, space is limited, maintenance is difficult, or the environment is harsh.

How Buyers Should Think About Bushings

For buyers, bushings can seem easier to purchase than rolling bearings because they are simpler in shape. But buying the wrong bushing can still create problems.

A buyer should not only ask for inner diameter, outer diameter, and length. Those dimensions are necessary, but they are not enough. The material matters. The load matters. The shaft material matters. The lubrication condition matters. The environment matters. The operating temperature matters. The movement pattern matters.

For example, two bushings with the same size may perform very differently if one is bronze and the other is polymer. A bronze bushing may require grease and offer high load capability. A polymer bushing may operate dry and resist corrosion but may have different temperature and load limits. A metal-polymer bushing may provide compact low-friction performance but require a suitable shaft finish.

A buyer should also know whether the bushing is used for rotation, oscillation, sliding, or axial support. If the component is a pivot joint bushing, the supplier may need to understand shock load and contamination exposure. If it is used in clean automation, low noise and dry running may be more important.

The best purchasing process connects product dimensions with application conditions. This helps avoid treating bushings as generic metal tubes.

How Engineers Should Think About Bearing Selection

For engineers, the bushing versus rolling bearing decision should start at the system level.

First, define the motion. Is it continuous rotation, oscillation, pivoting, sliding, or occasional adjustment?

Second, define the load. Is it light, moderate, heavy, shock-loaded, radial, axial, or combined?

Third, define the environment. Is it clean, wet, dusty, muddy, chemically exposed, food-contact, outdoor, or high-temperature?

Fourth, define maintenance reality. Will the user grease the joint regularly? Is the part accessible? Is downtime expensive? Is lubricant contamination unacceptable?

Fifth, define the structure. How much space is available? How precise can the housing be? Is the shaft hardened? What surface finish is possible?

Sixth, define service expectations. Should the part wear gradually and be replaced easily? Or should it provide precision rotation for long periods?

Once these questions are answered, the component category becomes clearer. A rolling bearing may be the best solution. A sleeve bushing may be enough. A flanged bushing may simplify the design. A self-lubricating plain bearing may reduce maintenance. A bronze bushing may provide durable support under load.

Engineering selection is not about choosing the most sophisticated component. It is about choosing the component that makes the machine more reliable in its real working condition.

Common Misunderstandings About Bushings

One misunderstanding is that bushings are always low-end components. This is not true. Many bushings are engineered for demanding industrial environments. High-quality plain bearings can be made from advanced materials and used in heavy machinery, automation systems, hydraulic equipment, and marine applications.

Another misunderstanding is that bushings always create too much friction. Friction depends on material, lubrication, load, speed, shaft finish, and temperature. Some self-lubricating bushings provide low-friction performance in applications where rolling bearings would be too sensitive to contamination or maintenance conditions.

A third misunderstanding is that a bushing can replace any bearing. This is also wrong. High-speed rotating equipment often needs rolling bearings. Precision shafts often need rolling contact. A bushing should not be used where it cannot handle speed, heat, precision, or lubrication requirements.

A fourth misunderstanding is that all bushings are interchangeable. A sleeve bushing, flanged bushing, bronze bushing, polymer bushing, and composite bushing may have completely different performance limits. Replacing one with another without checking the application can cause failure.

A fifth misunderstanding is that bigger is always safer. Oversizing a bushing may not solve problems if the shaft is rough, the clearance is wrong, or the material is unsuitable. Proper design is more important than simply increasing size.

A Practical Decision Rule

A practical rule can help simplify the decision.

Use a rolling bearing when the application requires continuous rotation, higher speed, low friction at RPM, precision movement, and controlled lubrication.

Use a bushing when the application involves slow movement, oscillation, pivoting, heavy load, shock, dirt, compact space, simple structure, or difficult maintenance.

This rule is not absolute, but it is useful. It reminds designers and buyers that the motion point should be understood before the component is selected.

For example, if the machine position rotates at high speed for hours, a rolling bearing is probably necessary. If the position moves a few degrees under heavy load, a bushing may be the smarter choice. If the environment is clean and speed-driven, rolling bearings may perform well. If the environment is dirty and service access is poor, industrial bushings may reduce risk.

The best decision is not based on the name of the part. It is based on how the part will actually work.

Why Bushings Remain Important in Modern Machine Design

As machines become more advanced, some people assume that simple components will become less important. In reality, bushings remain highly relevant because modern machine design is not only about precision. It is also about reliability, maintainability, cost control, sustainability, and real-world durability.

Manufacturers want equipment with fewer service points. Operators want machines that tolerate harsh use. Buyers want components that reduce downtime. Designers want compact structures. Factories want cleaner systems with less grease. Outdoor equipment needs components that survive dust, water, and shock.

These needs all support the continued use of bushings.

Modern bushing technology is also improving. Engineered polymers, metal-polymer composites, self-lubricating layers, improved bronze alloys, and better surface engineering have expanded the range of applications. Bushings are no longer limited to traditional greased bronze sleeves. They can support dry running, low noise, corrosion resistance, weight reduction, and reduced maintenance in carefully selected conditions.

This is why the discussion of bushings vs bearings should not be treated as a beginner topic only. It belongs in serious engineering conversations.

Final Thoughts: A Bushing Is Not a Lesser Bearing

A bushing should not be viewed as a lesser bearing. It should be viewed as a different bearing solution for a different kind of mechanical reality.

Rolling bearings are excellent when the machine needs speed, precision, and efficient continuous rotation. Bushings are excellent when the machine needs simple support, slow movement, load capacity, shock tolerance, compact structure, and realistic maintenance.

Many machines do not need a rolling bearing at every moving point. They need a component that matches the motion, load, environment, and service expectations. In many cases, that component is a sleeve bushing, flanged bushing, pivot joint bushing, or another type of plain bearing.

The engineering value of a bushing is not that it is simple. The value is that its simplicity often fits the application better.

Good bearing selection is not about using the most complex component. It is about using the most appropriate one. For many industrial machines, the right answer is not a rolling bearing at all.

It is a well-selected bushing.
