Plain Bearings in Hydraulic Cylinders and Pivot Joints Why Oscillating Motion Needs a Different Bearing Logic

Hydraulic and Pivot Joints Do Not Behave Like High-Speed Shafts

A hydraulic cylinder joint is not a motor shaft. A loader arm pivot is not a fan spindle. A clevis pin is not a conveyor roller. This difference may sound obvious, but many bearing selection mistakes begin when engineers, buyers, or maintenance teams treat every moving point as if it should follow the same bearing logic.

In hydraulic equipment and pivot structures, the movement is often slow, limited, and heavily loaded. The shaft or pin may not rotate continuously. Instead, it may swing through a small angle, stop under load, reverse direction, then repeat the cycle thousands of times over the life of the machine. The bearing position may be exposed to mud, dust, rain, impact, side load, vibration, or poor lubrication. In this environment, the best bearing is not always the one with the lowest friction at high speed. It is the one that can survive the actual motion pattern.

This is why hydraulic cylinder bushings and pivot bushings remain so important in heavy equipment. They are not simple low-cost substitutes. They are load-supporting components designed for a specific mechanical reality: low-speed movement, high pressure, shock, contamination, and maintenance constraints.

A rolling bearing may perform extremely well in high-speed rotating applications, but many hydraulic and pivot joints do not need high-speed rolling contact. They need stable sliding support. They need a bearing surface that can carry load across a broad area. They need a component that can tolerate oscillating motion and gradual wear. In many cases, that component is a plain bearing or bushing.

Why Hydraulic Cylinders Create Special Bearing Demands

A hydraulic cylinder converts fluid power into mechanical force. That force is often transmitted through pins, clevis mounts, rod ends, trunnions, spherical joints, and cylinder eyes. These points must allow movement while carrying load. They may also need to handle changing load direction as the cylinder extends and retracts.

The bearing position in a hydraulic cylinder is different from a typical rotating shaft. The movement may be small-angle oscillation rather than continuous rotation. The load may be high even when the movement is slow. The joint may experience shock when the equipment hits resistance or when hydraulic force changes suddenly. Side loads may appear when the structure is not perfectly aligned.

This is why a cylinder eye bushing is more than a round sleeve. It must support the pin, control friction, resist wear, and keep the joint stable under real working conditions. If the bushing wears too quickly, clearance increases. If clearance increases, the joint may knock. If the joint knocks, impact load rises. If impact load rises, the pin, housing, cylinder eye, and surrounding structure may all suffer.

A hydraulic cylinder joint is therefore a system. The bushing, pin, cylinder eye, lubrication, load direction, alignment, and operating environment all decide service life. Choosing the wrong bearing material or ignoring shaft fit can turn a small bushing problem into a larger equipment reliability issue.

Pivot Joint Bearings Are Designed Around Load, Not Speed

A pivot joint bearing usually works in a very different way from a high-speed rolling bearing. The goal is not to minimize friction at thousands of revolutions per minute. The goal is to support controlled movement under load.

In a loader arm, excavator linkage, crane support, agricultural implement, dump trailer, hydraulic gate, or lifting mechanism, pivot joints often move slowly. The motion may be repeated, but it is not continuous high-speed rotation. The joint may carry load while moving through a limited angle. It may also hold static load for long periods before moving again.

This motion profile changes the design priorities. Load distribution becomes more important. Shock resistance becomes more important. Clearance control becomes more important. Dirt tolerance becomes more important. Lubrication access becomes more important. The bearing must be chosen for the real mechanical duty, not for a general idea of rotation.

Plain bearings are often suitable because they support load through surface contact. A bushing can distribute force over a larger sliding area. In a properly designed joint, this can reduce localized stress and provide durable support for pins and shafts. The bearing may wear gradually, allowing maintenance teams to plan replacement before serious damage spreads.

This is one reason plain bearings for heavy equipment are widely used in pivot positions. Heavy equipment does not operate in laboratory conditions. It works in soil, dust, vibration, weather, shock, and inconsistent maintenance. A robust bushing can be more practical than a delicate bearing assembly that depends on ideal sealing and continuous clean lubrication.

Oscillating Motion Is a Different Bearing Problem

The phrase oscillating motion bearing is important because oscillation is not the same as rotation. In continuous rotation, a shaft turns repeatedly in one direction. Lubricant can be distributed around the bearing surface. Rolling elements can circulate through their raceways. Heat and contact patterns can stabilize under predictable conditions.

Oscillating motion is different. A pin may move back and forth through a small angle. The same surface zones may carry load again and again. Lubricant may not be distributed evenly. There may be repeated start-stop movement, direction reversal, and boundary lubrication. If the joint is heavily loaded, the bearing surface must survive high pressure without the benefit of continuous full rotation.

This is why rolling bearings are not automatically ideal for oscillating hydraulic joints. In small-angle oscillation, rolling elements may repeatedly contact the same raceway zones. Lubricant distribution may be limited. Localized wear may develop. In contrast, a plain bearing can be designed specifically for sliding or oscillating movement.

A bronze sleeve, composite bushing, PTFE-lined bearing, or self-lubricating bushing may be selected depending on load, speed, lubrication, temperature, and contamination. The purpose is not only to reduce friction. The purpose is to create a controlled sliding interface that can survive the joint’s actual movement pattern.

In practical terms, oscillating motion often rewards simplicity, surface area, material compatibility, and maintenance realism. This is where plain bearings become highly relevant.

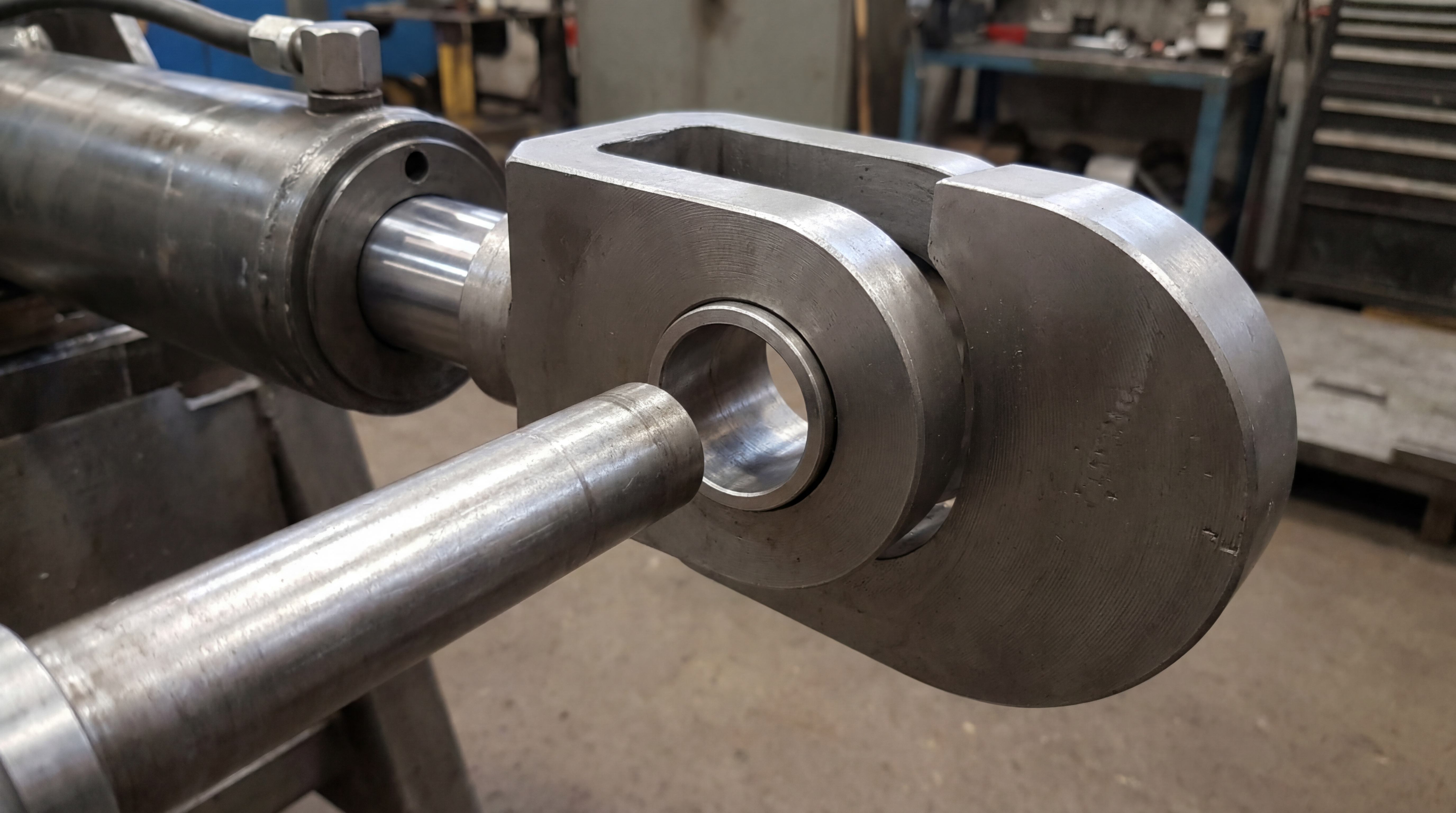

The Role of Clevis Pin Bushings

A clevis pin bushing is commonly used where a clevis joint connects a hydraulic cylinder, linkage, bracket, or mechanical arm. The pin passes through the bushing, and the bushing supports movement between the connected parts.

Clevis joints are common because they are simple, strong, and easy to assemble. But their simplicity can hide demanding working conditions. The pin may carry high radial load. The joint may see side force if alignment is imperfect. The bushing may be exposed to dirt or water. Movement may be small and intermittent. Lubrication may be neglected because the joint is difficult to reach.

If the bushing material is not suitable, wear appears quickly. If the shaft or pin is rough, the bushing surface may score. If clearance is too large, the joint may knock. If clearance is too tight, friction and heat may rise. If the joint is misaligned, edge loading may damage one side of the bushing.

This is why clevis pin bushing selection should not be based only on inner diameter, outer diameter, and length. The engineer or buyer must consider load, movement angle, lubrication method, exposure conditions, and service access.

In some cases, a lubricated bronze sleeve bearing may work well. In other cases, a self-lubricating composite bushing may reduce maintenance risk. For clean equipment, a polymer plain bearing may be suitable. For high-load outdoor equipment, a stronger bronze or metal-polymer solution may be required.

The clevis pin may look like a simple connection point, but it can be one of the most important wear locations in the machine.

Bronze Sleeve Bearings in Heavy-Duty Pivot Applications

A bronze sleeve bearing is one of the most familiar solutions for hydraulic and pivot joints. Bronze has long been used because it offers good load capacity, wear resistance, machinability, and compatibility with greased or oil-lubricated sliding contact.

In construction equipment, lifting systems, agricultural machinery, and hydraulic mechanisms, bronze bushings are often used where the load is high and the movement is slow. Grease grooves or oil holes may be included to distribute lubricant across the sliding surface. In some applications, solid lubricant plugs may be added to help reduce maintenance.

Bronze is valuable because it can provide a durable sliding surface against a steel pin or shaft. It can also be machined to fit specific housings and replacement requirements. When properly lubricated and paired with a suitable shaft finish, bronze can deliver long service life in demanding mechanical joints.

However, bronze is not a guarantee of success. A bronze bushing can still fail if lubrication is poor, if abrasive dirt enters the joint, if the pin is damaged, if clearance is wrong, or if the bearing is overloaded. Grease can also attract dust in outdoor environments, creating abrasive paste if maintenance is not managed correctly.

This is why bronze sleeve bearing performance depends on the whole system. The material may be strong, but it still requires suitable shaft hardness, proper clearance, realistic lubrication, and protection from severe contamination.

Self-Lubricating Bushings and the Maintenance Reality of Field Equipment

In many hydraulic and pivot applications, lubrication is the weakest link. The design may assume regular greasing, but the real machine may work far from a controlled maintenance environment. Operators may miss lubrication intervals. Grease points may be hard to reach. Dirt may enter during service. The wrong grease may be used. In some cases, maintenance is delayed until the joint already has visible play.

This is where self-lubricating bushings can add value. These bearings can reduce dependence on frequent external lubrication. They may use oil-impregnated structures, solid lubricant plugs, PTFE-based sliding layers, or engineered polymer materials. Each mechanism works differently, but the goal is similar: reduce friction and wear without relying entirely on repeated greasing.

For hydraulic equipment, self-lubricating bushings may be useful in hard-to-access joints, outdoor mechanisms, agricultural machinery, construction equipment, and applications where grease contamination is a concern. They can help improve reliability when maintenance conditions are imperfect.

But self-lubricating does not mean universal. A self-lubricating bushing must still match load, speed, temperature, shaft finish, alignment, and contamination level. A bearing designed for light-duty dry-running automation may not be suitable for a heavily loaded excavator pivot. A PTFE-lined bearing may perform well in a compact oscillating joint but may be sensitive to abrasive particles. A graphite-plugged bronze bushing may handle high load but still needs correct contact pressure and movement pattern.

The best self-lubricating solution is not the one with the strongest marketing claim. It is the one whose lubrication mechanism fits the actual machine.

Construction Equipment Bushings Face Shock, Dirt, and Side Load

Construction equipment bushings operate in some of the harshest environments for plain bearings. Excavators, loaders, bulldozers, cranes, backhoes, compactors, and lifting attachments all rely on pivot joints. These joints often face heavy loads, shock, vibration, dirt, mud, water, and repeated direction changes.

A bucket linkage, for example, may carry high force while digging into soil or rock. The joint may move through a limited angle under heavy pressure. Impact can occur when the bucket strikes resistance. Dirt and abrasive particles can reach the joint. Grease may be pushed out, contaminated, or neglected. Under these conditions, bearing selection becomes a durability decision.

A rolling bearing may not always be practical in such a position because the motion is slow, the load is high, and the environment is dirty. A bushing can provide broad surface support and gradual wear behavior. It can also be easier to replace during maintenance.

However, construction equipment bushings must be selected carefully. The pin hardness must be suitable. The bushing material must handle shock load. Clearance must be controlled. Lubrication grooves must be designed properly if grease is used. Seals may be needed to reduce contamination. If the joint is misaligned, even a strong bushing may wear unevenly.

The challenge is not simply choosing a bearing. The challenge is designing a pivot system that can survive real jobsite abuse.

Agricultural Machinery Bushings Must Survive Dirt and Seasonal Use

Agricultural machinery bushings face a different but equally demanding environment. Farm equipment often works in soil, dust, crop residue, water, fertilizer, mud, and outdoor storage conditions. Many machines are used intensively during specific seasons and then stored for long periods. Maintenance may be practical but not always consistent.

Seeders, harvesters, tillage equipment, sprayers, balers, loaders, folding frames, hitch points, and steering linkages all use bushings in various pivot positions. The movement may be slow, intermittent, or oscillating. Loads can be high, especially when equipment hits soil resistance or uneven ground.

Agricultural equipment also creates a unique contamination problem. Grease can attract dust and crop fibers. Fertilizer or chemicals may affect corrosion behavior. Water exposure may create rust on pins or housings. If a machine is stored outdoors, the bushing and shaft may degrade before the next season begins.

This is why bearing material and lubrication strategy matter. Bronze bushings may work well if greased properly. Self-lubricating polymer or composite bushings may reduce maintenance in some locations. Sealed pivot designs may help in others. The right choice depends on load, movement, soil exposure, and expected maintenance behavior.

In agriculture, bearing selection is not only about engineering performance. It is also about how the machine is actually used and maintained by operators during busy working seasons.

Why Load Direction and Alignment Matter in Pivot Joints

A pivot joint may look simple, but load direction can change during operation. A hydraulic cylinder may push or pull through different angles. A linkage may transfer force through a changing geometry. A machine arm may bend slightly under load. A bracket may flex. A pin may experience both radial force and side force.

If the bearing is perfectly aligned and the load is evenly distributed, the bushing can work across a broad contact area. If alignment is poor, the load may concentrate at one edge. This is called edge loading. Edge loading increases local pressure, friction, and wear. It can create one-sided damage, scoring, and shortened service life.

Hydraulic cylinder joints are especially sensitive because the cylinder may not always act along a perfectly aligned axis. Side loading can occur if the equipment structure is worn, bent, misassembled, or operating under uneven conditions. A cylinder eye bushing may show heavy wear on one side if the pin and cylinder are not aligned.

Bearing length also matters. A longer bushing can provide more surface area, but if misalignment is present, a longer bearing may increase edge loading. Sometimes the solution is not simply using a larger bushing. It may require better alignment, stronger brackets, improved pin support, or a bearing design that can tolerate angular movement.

For pivot joint bearings, alignment is not a small assembly detail. It is a service-life factor.

Clearance in Hydraulic and Pivot Bushings

Clearance is especially important in hydraulic and pivot applications because the bearing may carry high load while moving slowly. If clearance is too tight, friction rises. Lubricant may not reach the contact surface. Heat may increase. The joint may become stiff or seize.

If clearance is too loose, the joint may knock. In heavy equipment, knocking is not just a noise issue. It means the pin is impacting the bushing surface. This impact can enlarge the bore, damage the pin, create vibration, and accelerate wear in the surrounding structure. Once a pivot joint becomes loose, the problem may grow quickly.

Clearance also changes during service. As the bushing wears, the joint develops play. If wear is gradual and predictable, maintenance can be scheduled. If wear accelerates due to dirt, misalignment, or poor lubrication, the joint may become unstable much sooner.

In hydraulic cylinder bushings, excessive clearance can also affect machine control. A worn joint may create delayed movement, inaccurate positioning, impact during direction changes, and additional stress on the cylinder or frame.

This is why pivot bushing maintenance should include clearance checks. Replacing the bushing before the pin and housing are damaged is usually much cheaper than repairing the entire joint.

Lubrication Strategy Is a Design Decision

Lubrication in hydraulic and pivot joints should not be treated as an afterthought. It is part of the bearing design.

Greased bronze bushings can perform well when grease reaches the loaded area, when the grease is clean, and when intervals are realistic. Grease grooves and lubrication holes may help distribute lubricant. But grease can also attract dirt, especially in outdoor applications. If the joint is not purged properly, contaminated grease may accelerate wear.

Oil lubrication may be used in some controlled systems, but many heavy equipment pivot joints rely on grease because it stays in place better and provides protection under slow movement.

Self-lubricating bushings may reduce lubrication frequency or eliminate routine greasing in certain applications. However, the material must be chosen carefully. Dry-running polymer bearings may work well in cleaner or moderate-load conditions but may not survive extreme shock. PTFE-lined bearings may provide low friction but need good shaft finish. Graphite-plugged bronze bushings may suit high-load, low-speed joints but still operate within physical limits.

The correct lubrication strategy depends on the environment, user behavior, accessibility, load, speed, and required service interval. A design that depends on daily greasing may fail if the user greases monthly. A maintenance-free design may fail if the load is far beyond the bearing’s capability.

Lubrication strategy must match maintenance reality.

Pin and Shaft Condition Decide Bushing Life

In hydraulic and pivot joints, the pin is as important as the bushing. A new bushing installed on a damaged pin will usually fail early. The pin surface must be hard enough, smooth enough, straight enough, and corrosion-resistant enough for the selected bearing material.

If the pin is rough, it can abrade the bushing. If it is soft, it may wear together with the bushing. If it is corroded, the rust can act like abrasive particles. If it is bent, it creates misalignment. If it has grooves from previous wear, those grooves can trap dirt and damage the new bearing.

This is a common issue in repair work. The worn bushing is replaced, but the old pin is reused because it still appears usable. After a short period, the new bushing wears again. The bearing may be blamed, but the real problem is the mating surface.

For hydraulic cylinder bushings and pivot joints, pin inspection should be standard. The maintenance team should check diameter, roundness, hardness, surface finish, corrosion, scoring, and straightness. If the pin is damaged, replacing only the bushing is incomplete repair.

A plain bearing is never only the bearing. It is the bearing and the surface it works against.

Common Failure Patterns in Hydraulic Pivot Bushings

Hydraulic and pivot bushings often show failure patterns that reveal the underlying problem.

Even wear around the bore may indicate normal service wear. Deep grooves may suggest abrasive contamination or a damaged pin. Heavy wear on one side may point to misalignment or side load. Heat discoloration may indicate lubrication failure or excessive friction. Cracking may suggest shock load, poor material selection, or installation damage. Rapid clearance growth may indicate dirt, overload, or poor lubrication. Deformed polymer bushings may suggest temperature, overload, or insufficient clearance.

A cylinder eye bushing that wears unevenly may tell the maintenance team that the cylinder is side-loaded. A clevis pin bushing with impact marks may indicate excessive clearance or shock. A bronze sleeve bearing with scoring may suggest contaminated grease. A self-lubricating bushing with a damaged lining may suggest shaft roughness or abrasive particles.

Reading these patterns helps prevent repeated failure. If the same bushing is replaced without correcting the cause, the failure will return.

The goal is not only to install a new bearing. The goal is to restore the correct working condition of the joint.

Selecting the Right Plain Bearing for Hydraulic and Pivot Applications

A practical selection process should begin with the joint itself.

First, identify the motion. Is it small-angle oscillation, slow rotation, intermittent movement, or sliding? Hydraulic cylinder and pivot joints usually involve oscillating motion, which requires different bearing logic from high-speed rotation.

Second, define the load. What is the radial load? Is there axial load? Is there shock load? Does the load reverse direction? Is the load constant or highly variable?

Third, understand the environment. Is the joint exposed to dirt, mud, water, chemicals, fertilizer, or outdoor weather? Will grease attract contamination?

Fourth, evaluate maintenance access. Can the joint be lubricated regularly? Is the grease point easy to reach? Will the user realistically maintain it?

Fifth, inspect the mating pin or shaft. What is the hardness, surface finish, coating, corrosion resistance, and wear condition?

Sixth, choose the material. Bronze may be strong for lubricated heavy-duty pivots. Composite bushings may provide compact low-friction performance. Polymer bushings may reduce noise and maintenance in suitable environments. Self-lubricating bushings may reduce service burden in hard-to-maintain joints.

Seventh, confirm clearance and installation. The installed running clearance must match the bearing material, load, speed, temperature, and lubrication method.

Bearing selection is not a catalog shortcut. It is an application diagnosis.

Why Plain Bearings Remain Essential in Heavy Equipment Design

Modern heavy equipment continues to use plain bearings because the operating conditions still favor them. Machines may become smarter, more automated, and more efficient, but the mechanical reality of pivot joints remains demanding. A loader arm still carries shock load. An excavator linkage still works in dirt. A hydraulic cylinder still moves through limited angles. A farm implement still operates in dust and soil. A lifting mechanism still needs strong, serviceable pivot support.

Plain bearings fit this reality because they are robust, compact, adaptable, and serviceable. They can be made from many materials. They can be designed for greased operation, self-lubrication, dry running, or high-load sliding. They can be replaced more easily than complex assemblies in many field conditions. They support movement in places where high-speed rolling contact is not the priority.

The future of plain bearings in hydraulic and pivot joints is not about being the cheapest option. It is about being the most appropriate option. As equipment manufacturers seek lower maintenance, longer service intervals, and better lifecycle performance, bushing design will become even more important.

A small pivot bushing may not look impressive, but it can decide how reliable the machine feels in real work.

Final Thoughts: Oscillating Motion Needs Its Own Bearing Logic

Hydraulic cylinders and pivot joints remind us that not all motion is the same. Some motion is high-speed and continuous. Some motion is slow, powerful, dirty, intermittent, and shock-loaded. These two realities need different bearing logic.

For high-speed rotating shafts, rolling bearings may be the correct choice. For hydraulic cylinder eyes, clevis pins, loader arm pivots, construction equipment joints, and agricultural machinery linkages, plain bearings often provide the more practical solution.

A well-selected bushing supports load, controls friction, tolerates oscillating motion, manages clearance, and fits the maintenance reality of the equipment. A poorly selected bushing, on the other hand, can create noise, play, wear, pin damage, and repeated repair.

The key is to stop asking whether plain bearings or rolling bearings are generally better. In hydraulic and pivot applications, the better question is whether the bearing principle matches the motion, load, environment, and service behavior of the joint.

That is why hydraulic cylinder bushings, pivot joint bearings, bronze sleeve bearings, and self-lubricating bushings remain essential in heavy equipment design. They are not old-fashioned components. They are practical engineering answers to one of the most demanding types of machine movement: low-speed, high-load oscillating motion under real working conditions.
