Why Mechanical Seals Leak: A Practical Guide for Pump Maintenance Teams

A leaking mechanical seal is not the real beginning of the problem

When a pump starts leaking around the shaft area, the mechanical seal is usually the first part to be blamed. In many plants, the reaction is simple: stop the pump, remove the failed seal, install a new one, restart the equipment and hope the problem disappears. Sometimes this works. Very often, it does not.

The reason is straightforward: mechanical seal leakage is usually a symptom, not the root cause.

A mechanical seal is designed to control fluid leakage between the rotating shaft and the stationary pump housing. In a centrifugal pump seal, the sealing interface depends on stable contact between the rotating and stationary seal faces. These faces are separated and lubricated by an extremely thin fluid film. If the film is stable, the seal can run reliably for a long time. If the film is destroyed, contaminated, overheated or disturbed by vibration, the seal can fail quickly.

This is why replacing a leaking mechanical seal without understanding the operating environment often leads to repeat failure. The new seal may be installed correctly, but if the pump is still running dry, vibrating heavily, handling abrasive fluid or operating away from its intended hydraulic condition, the same pump seal leakage will return.

A better way to think about mechanical seal failure is this: the seal tells you what the pump system has been experiencing. A leaking mechanical seal may be pointing to dry running, cavitation, shaft movement, poor installation, wrong seal materials, chemical attack, blocked flush lines, worn bearings or even poor maintenance planning.

For pump maintenance teams, the real question is not only “Why is the seal leaking?” The more useful question is: What changed in the pump system that made the seal unable to maintain a stable sealing condition?

What a mechanical seal actually needs to survive

Before discussing the causes of mechanical seal leakage, it helps to understand what a mechanical seal needs in order to work properly. A seal is not just a static barrier. It is a dynamic component operating under pressure, speed, temperature and chemical exposure.

At minimum, a mechanical seal needs five conditions.

First, it needs proper lubrication between the seal faces. The sealing faces may look like they are fully touching, but in operation they rely on a controlled microscopic fluid film. Without that film, friction rises quickly and heat builds up at the faces.

Second, the seal needs clean enough operating conditions. Not every seal requires perfectly clean fluid, but abrasive particles, crystallized deposits, fibers, sludge or hard contaminants can damage the faces, block the springs, wear the elastomers and create leakage paths.

Third, the seal needs stable shaft movement. Excessive vibration, shaft runout, misalignment, bearing wear or hydraulic instability can prevent the seal faces from staying evenly loaded. Once the faces open and close irregularly, leakage and wear accelerate.

Fourth, the seal needs compatible materials. The seal face combination, elastomers, springs and metal parts must match the fluid, temperature, pressure and cleaning conditions. A seal that works in water may fail quickly in solvents, hot oil, caustic chemicals or abrasive slurry.

Fifth, the seal needs correct installation. Even a good seal can fail early if the faces are touched with dirty hands, the O-rings are twisted, the spring compression is wrong, the gland is tightened unevenly or the pump is started before proper priming.

When one of these conditions is missing, pump seal leakage becomes much more likely. When several are missing at the same time, repeat mechanical seal repair becomes almost unavoidable.

Primary seal leakage vs secondary seal leakage

A useful starting point in mechanical seal troubleshooting is to identify where the leakage is coming from. Not all mechanical seal leakage has the same source.

The primary seal is the sealing interface between the rotating and stationary faces. If the primary seal is leaking, the problem often relates to the face condition, lubrication, heat, pressure distortion, contamination, vibration or incorrect face loading.

The secondary seals are usually O-rings, elastomer boots, wedges, gaskets or other sealing elements that prevent leakage around the seal faces and adjacent components. If a secondary seal is leaking, the issue may involve chemical attack, hardening, swelling, cuts, incorrect material selection, extrusion, improper assembly or corrosion on the shaft sleeve and housing surfaces.

This distinction matters because the solution is different.

If the primary faces show scoring, heat checking, heavy wear or cracking, replacing only the O-ring will not solve the problem. If the elastomer is swollen, brittle or cut, polishing the seal face will not correct the leakage path. If the shaft sleeve is corroded under the secondary seal, a new mechanical seal may leak again because the sealing surface is already damaged.

In a good failure analysis process, the maintenance team should inspect the old seal before throwing it away. The wear pattern, discoloration, deposits, elastomer condition and shaft contact marks are evidence. A failed seal is not just scrap; it is a report card from the pump.

Cause 1: Dry running destroys the fluid film

Dry running is one of the most damaging causes of mechanical seal failure. A mechanical seal can only survive if the faces have adequate lubrication and cooling. When the pump operates without enough liquid at the seal faces, the faces rub under high friction. Heat rises quickly, and the sealing surfaces can become burned, cracked, blistered or severely worn.

Dry running can happen in several ways. The pump may be started before it is properly primed. The suction line may be blocked. The tank level may drop below the safe operating point. Air may enter the pump. A flush line may be closed or plugged. The pump may be operated against poor suction conditions. In some process applications, liquid may vaporize at the seal interface, leaving the faces without a stable film.

A dry running seal failure is often visible after disassembly. The seal faces may appear burned or heat-checked. Elastomers near the faces may become hardened or cracked. Carbon faces may show blistering or uneven damage. In severe cases, the seal can fail shortly after startup.

The important point is that a dry running seal failure is not solved by simply installing the same seal again. The maintenance team must ask why the seal lost lubrication. Was the pump started dry? Was the operator procedure unclear? Was the suction condition unstable? Was the flush line blocked? Was the pump operating too close to vapor pressure? Was there a process upset?

If the answer is not addressed, the next mechanical seal will probably fail in the same way.

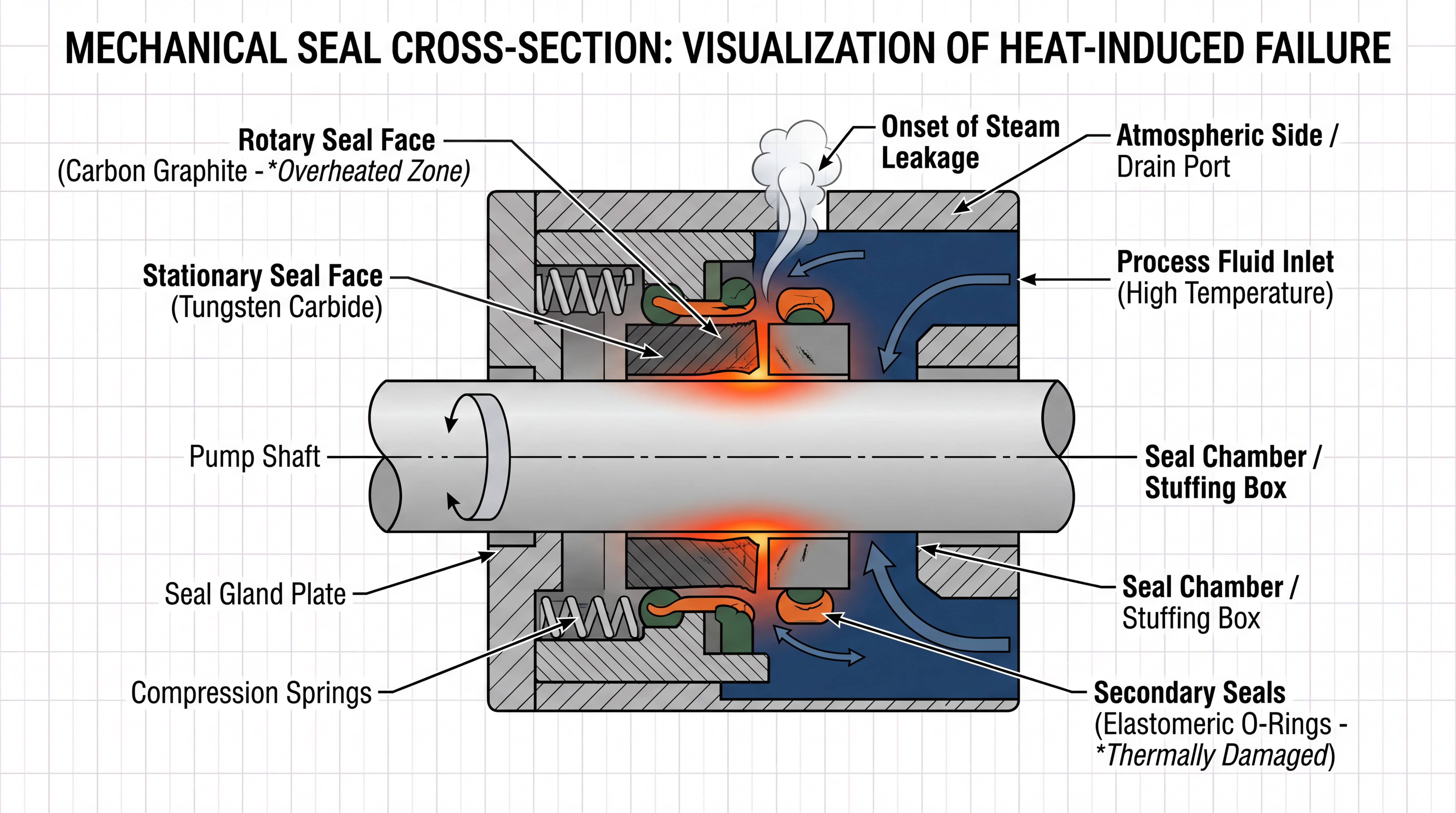

Cause 2: Excessive heat at the seal faces

Heat is another major driver of pump seal leakage. Some heat is normal because mechanical seals operate with sliding contact. However, excessive heat can distort the seal faces, damage elastomers, reduce fluid film stability and accelerate wear.

Heat can come from dry running, poor lubrication, high-speed operation, high fluid temperature, inadequate cooling, improper flush plan, high pressure at the seal chamber or excessive friction from wrong face loading. In some applications, the pumped fluid may also crystallize or leave deposits when temperature rises near the seal.

Excessive heat often creates a chain reaction. The seal faces become hotter. The fluid film becomes unstable. The elastomer loses flexibility. Deposits form around the faces. The spring or dynamic components may stop moving freely. Leakage begins as a small issue and then grows.

A good pump maintenance program should treat heat as a signal. If the seal area is unusually hot, the team should not wait for visible leakage. Temperature increase may indicate poor flush, blocked circulation, vaporization, operation away from the pump’s best efficiency point or excessive friction at the faces.

In this sense, mechanical seal leakage often starts before liquid is seen on the floor. Heat, noise, vibration and process instability are early warnings.

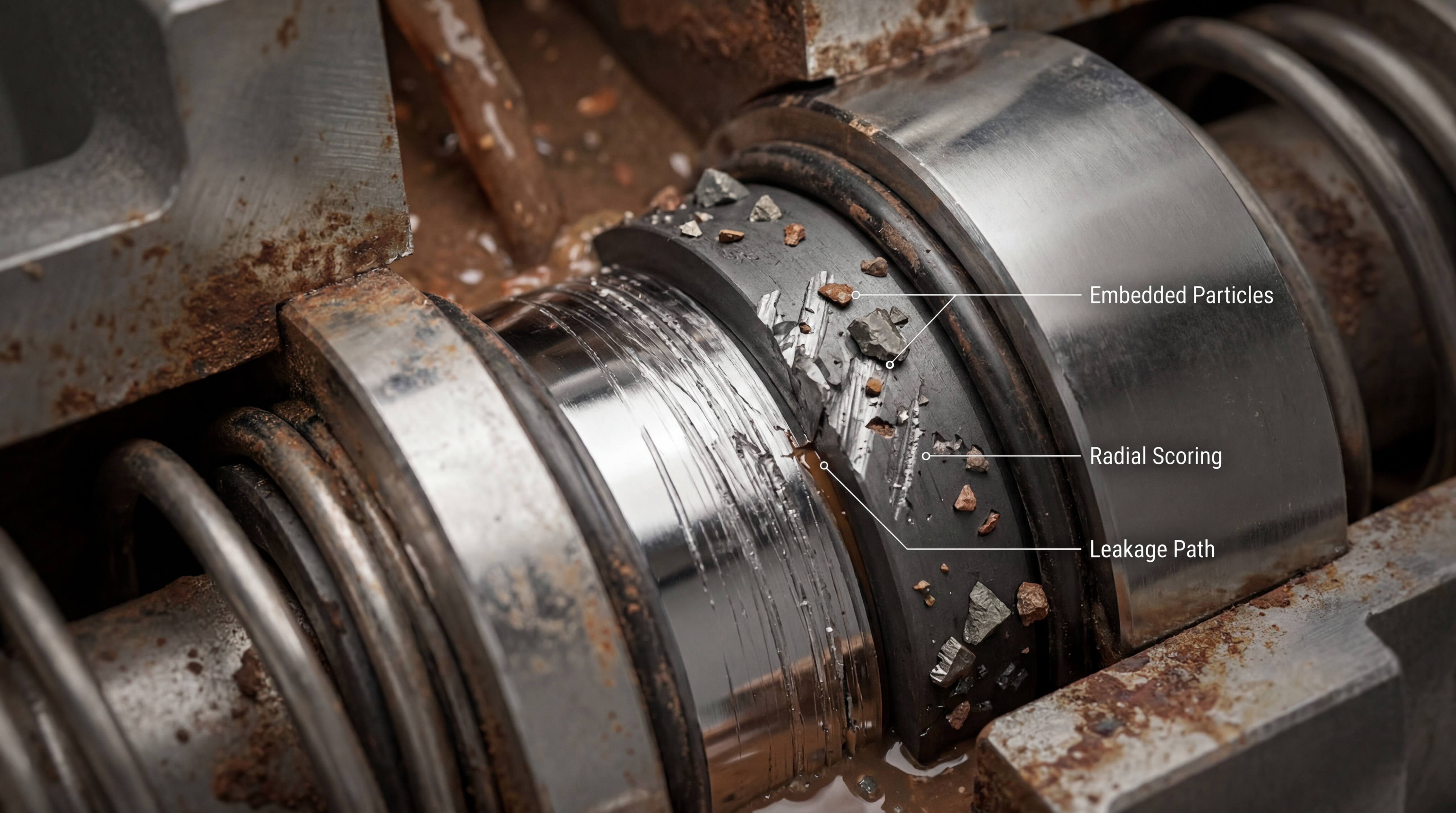

Cause 3: Abrasives and contamination cut the seal faces

Mechanical seals are precision components. The sealing faces are flat, polished and designed to run with a controlled film. When abrasive particles enter the sealing interface, they can scratch the faces and create leakage paths.

Abrasives may come from the process fluid itself, especially in slurry, wastewater, mining, paper, food processing or crystallizing chemical applications. They may also come from poor pipe cleaning, welding debris, rust, scale, sand, hard crystals or contamination introduced during maintenance.

Once particles reach the seal faces, several things can happen. The faces may develop grooves or radial scoring. The carbon face may wear rapidly. Hard particles may become embedded in softer materials. Springs and pins may become clogged. Dynamic O-rings may stop sliding properly. The seal may begin to leak even though the original product selection looked correct on paper.

This is why mechanical seal selection for dirty fluids must consider more than pressure and shaft size. The supplier or engineer needs to understand the solid content, particle hardness, particle size, concentration, settling behavior and whether the fluid can crystallize. A clean water seal cannot always be moved into an abrasive slurry application and expected to survive.

In contaminated services, harder face materials such as silicon carbide or tungsten carbide may be considered, depending on the fluid chemistry and operating conditions. Flush plans, seal chamber design and proper filtration may also be necessary. The best solution is rarely just “use a stronger seal.” The real solution is to keep the sealing interface stable and protected.

Cause 4: Shaft movement and vibration open the seal faces

A mechanical seal depends on consistent face contact. If the shaft moves too much, the seal faces cannot maintain a stable relationship. This leads to leakage, uneven wear and early failure.

Shaft movement can come from many sources. The pump and motor may be misaligned. Bearings may be worn. The shaft may be bent. The impeller may be unbalanced. The pump may be operating far from its best efficiency point. Cavitation may create hydraulic instability. Pipe strain may distort the pump casing. Foundation problems may transmit vibration into the equipment.

From the seal’s point of view, the result is similar: the faces are forced to move in ways they were not designed to handle. They may separate momentarily, allowing leakage. They may contact unevenly, creating localized wear. The elastomers and springs may experience repeated motion that causes fatigue.

This is one of the reasons repeat pump seal leakage is so common. A maintenance team replaces the seal, but the pump continues to vibrate. The new seal is asked to compensate for a mechanical or hydraulic problem that should have been fixed elsewhere.

When diagnosing mechanical seal failure, vibration data is valuable. So are bearing condition, shaft runout checks, alignment records and operating point analysis. If a seal keeps failing on the same pump, the pump should be treated as a system, not just as a holder for a replaceable seal.

Cause 5: Installation errors damage new seals before startup

Some mechanical seals fail because of the process. Others fail because they were damaged before the pump ever started.

Installation errors are common because mechanical seals require careful handling. The seal faces can be scratched or contaminated by fingerprints, dust or tools. O-rings can be cut on shaft keyways or threads. Elastomers can be twisted during assembly. Springs can be installed in the wrong direction. Set screws may be tightened incorrectly. Gland bolts may be tightened unevenly. Cartridge seal setting clips may be removed too early or forgotten after installation.

Even small installation errors can cause large problems. A tiny scratch on the seal face may become a leakage path. A twisted O-ring may leak under pressure. Uneven gland tightening may distort the stationary face. Incorrect compression may overload or underload the faces. Starting the pump without venting air may create dry running at the seal.

This is why good mechanical seal repair is not only about having the right spare part. It is also about having a controlled installation process.

A practical installation checklist should include shaft and sleeve inspection, burr removal, cleaning of the seal chamber, verification of dimensions, lubrication of elastomers with compatible lubricant, careful handling of faces, correct tightening sequence, alignment checks, pump priming and startup observation.

For cartridge mechanical seals, the installation process is usually less error-prone than component seal assembly, but it is not automatic. The pump still needs proper preparation, correct gland positioning, proper shaft locking and startup discipline.

Cause 6: Wrong elastomer selection creates hidden leakage paths

The elastomer is often smaller and less visible than the seal faces, but it plays a critical role in mechanical seal reliability. O-rings and other secondary sealing elements must maintain elasticity and chemical compatibility under actual operating conditions.

When the elastomer material is wrong, several failure modes can occur. It may swell in contact with the fluid. It may harden under heat. It may shrink. It may crack. It may become sticky or lose mechanical strength. It may suffer chemical attack from solvents, acids, caustics, oils or cleaning agents.

A common mistake is to focus on the face materials while ignoring the elastomer. For example, a seal may use a strong silicon carbide face combination, but if the O-ring material is not compatible with the chemical, leakage can still occur. The result may look like a mechanical seal leakage problem, but the real issue is secondary seal incompatibility.

The correct elastomer depends on the fluid, temperature, pressure, cleaning process and possible upset conditions. In food, beverage, chemical and pharmaceutical applications, cleaning chemicals and sterilization cycles may be just as important as the normal process fluid.

When a leaking mechanical seal is removed, the condition of the elastomer should be inspected carefully. A swollen O-ring suggests chemical incompatibility. A brittle O-ring suggests heat or aging. Cuts may suggest poor installation or damaged shaft surfaces. Flattening or extrusion may suggest pressure or gland design issues.

Cause 7: Chemical attack and corrosion weaken the sealing environment

Mechanical seals work inside a chemical environment. The process fluid may attack the seal faces, metal parts, elastomers, springs, drive pins, gland plate or shaft sleeve. Even if leakage begins at the faces, the deeper cause may be corrosion or chemical incompatibility.

Chemical attack can be obvious or subtle. Severe corrosion may be visible on metal components. Pitting may develop on the shaft sleeve or gland. Springs may lose strength. Elastomers may change shape. Seal faces may suffer from chemical wear or deposit formation. In some cases, the pump may handle a fluid that changes concentration, temperature or pH during operation, making the seal environment more aggressive than expected.

Corrosion at secondary sealing surfaces is especially important. If the shaft sleeve or housing surface becomes rough or pitted, the O-ring may no longer seal effectively. Installing a new O-ring on a damaged surface will not restore reliability.

For this reason, mechanical seal troubleshooting should include the surrounding hardware. The seal itself may be only one part of the leakage path. The shaft sleeve, stuffing box, gland surface and process wetted parts must also be examined.

A high-quality mechanical seal selection process should ask about chemical concentration, temperature range, pH, cleaning agents, possible crystallization, solids, vapor pressure and upset conditions. The more aggressive the fluid, the more important material selection becomes.

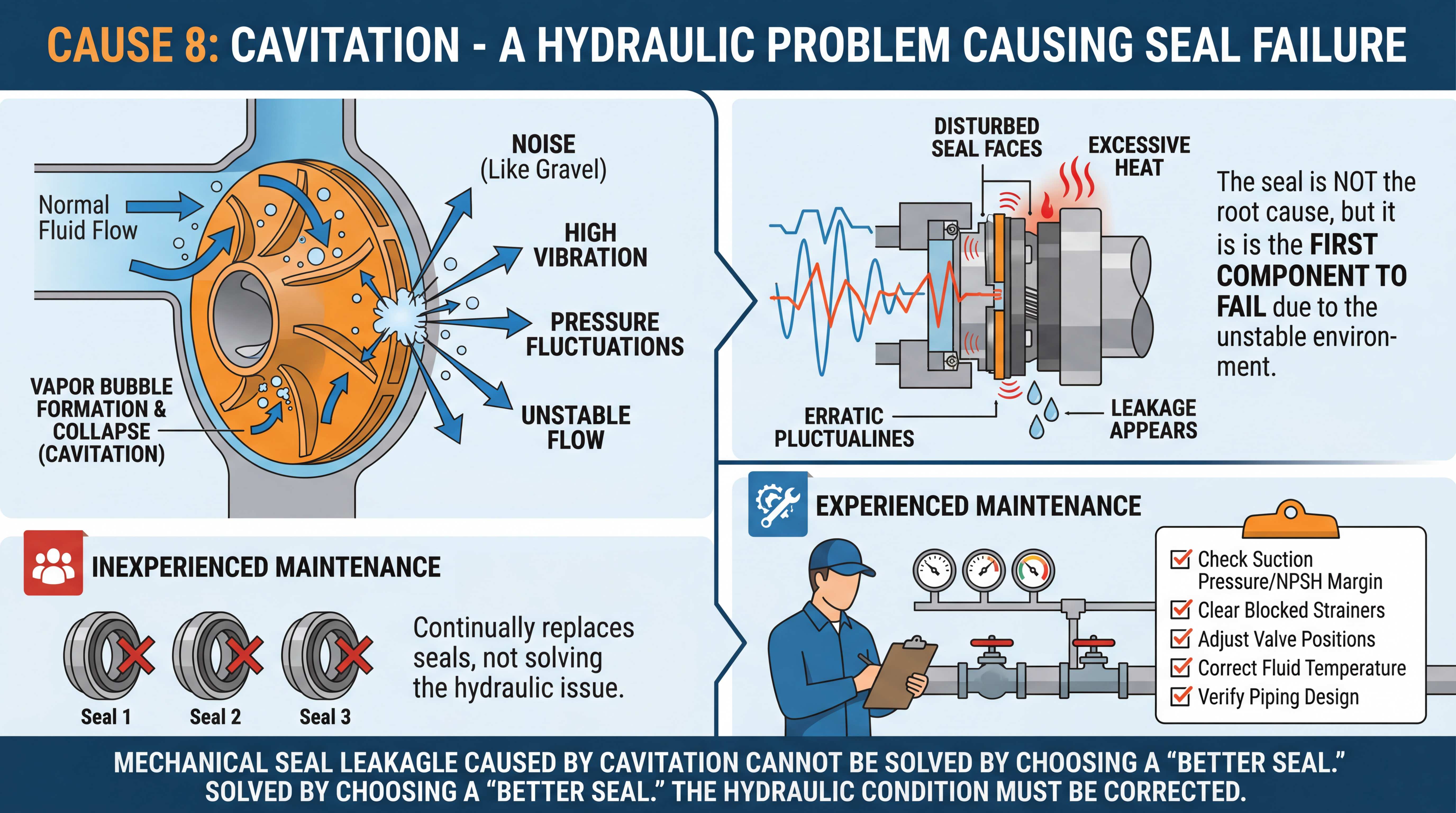

Cause 8: Cavitation makes the seal pay for a hydraulic problem

Cavitation is a pump hydraulic problem, but mechanical seals often suffer the consequences. When vapor bubbles form and collapse inside the pump, they create noise, vibration, pressure fluctuations and unstable flow. These conditions can disturb the seal faces and accelerate mechanical seal failure.

Cavitation may be caused by insufficient suction pressure, excessive suction lift, blocked suction strainers, high fluid temperature, undersized suction piping, poor pump selection or operation away from the intended range. The seal may not be the root cause, but it becomes one of the first components to fail.

A pump experiencing cavitation may sound noisy, like gravel moving through the casing. Vibration may increase. Flow may become unstable. The seal area may heat up. Leakage may appear repeatedly even after seal replacement.

This is where industry experience matters. A less experienced maintenance team may keep replacing seals. A more experienced team will look upstream at suction conditions, NPSH margin, pump operating point, valve positions, piping design and fluid temperature.

Mechanical seal leakage caused by cavitation cannot be solved by choosing a random “better seal.” The hydraulic condition must be corrected. The seal can only perform reliably when the pump provides a stable environment.

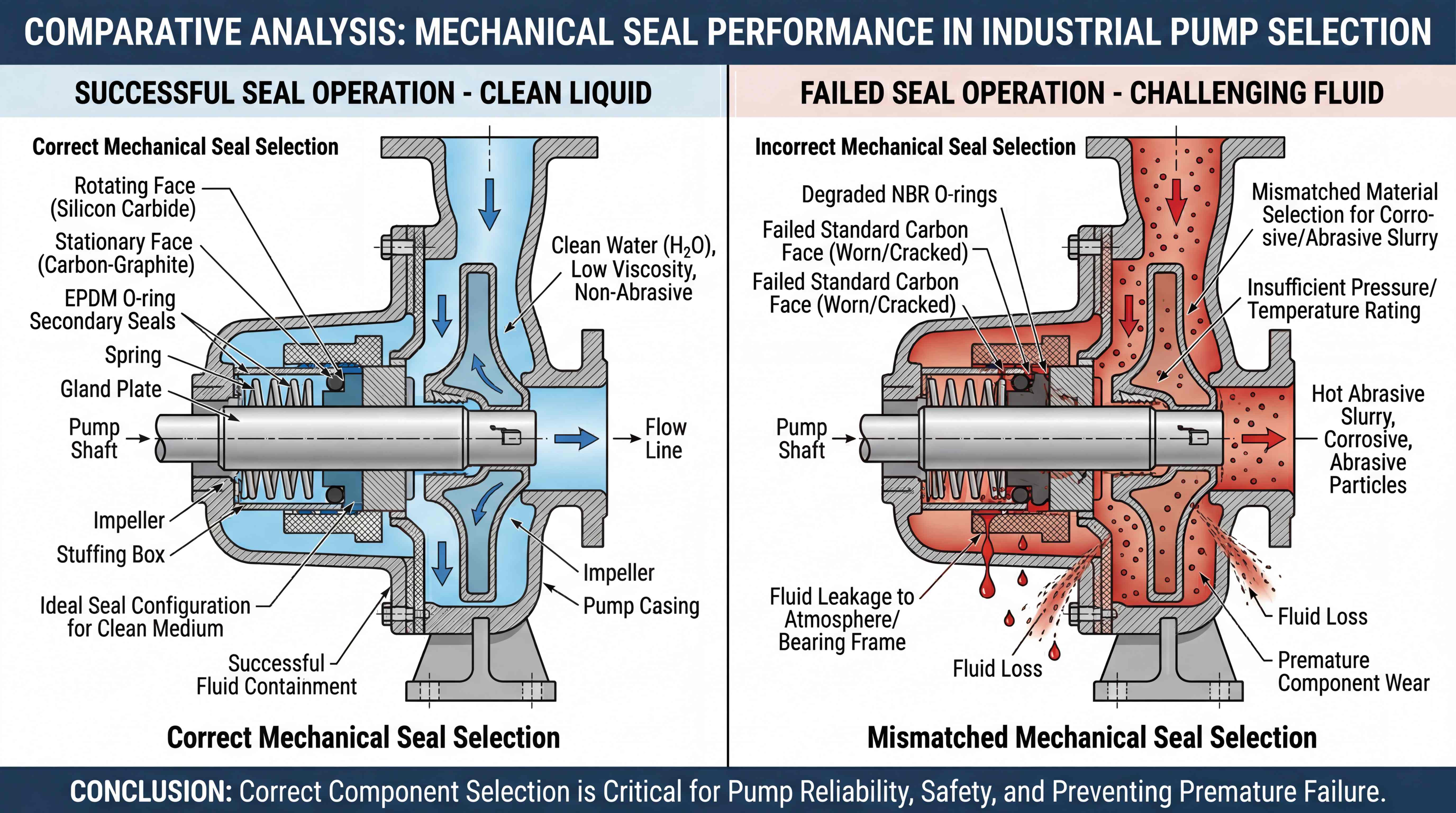

Cause 9: The wrong seal was selected for the duty

Sometimes the seal leaks because it was never suitable for the application. This does not always mean the seal was low quality. It may simply be the wrong design for the duty.

A mechanical seal selected for clean, cool water may not work in hot oil. A standard single seal may be unsafe for toxic or volatile chemicals. A basic component seal may not be ideal where installation skill is inconsistent. A light-duty seal may fail in slurry. A seal with the wrong elastomer may fail in solvent. A seal without a proper flush plan may fail in crystallizing service.

Proper mechanical seal selection should include more than shaft size and pump model. The application data should include fluid name, concentration, temperature, pressure, speed, solids content, viscosity, vapor pressure, corrosiveness, toxicity, crystallization tendency, operating cycle, cleaning process and leakage tolerance.

This is especially important in B2B procurement. If the buyer sends only a photo and shaft diameter, the supplier may provide a physically compatible seal but not a reliable application solution. A seal can fit the pump and still be wrong for the process.

For industrial users, the best approach is to build a seal application data sheet. This reduces guesswork and helps the supplier recommend the correct face materials, elastomers, seal arrangement and support system.

How to read failure marks on a leaking mechanical seal

A failed seal often contains clues. Maintenance teams should train technicians to examine the old seal before discarding it.

Smooth and slightly polished face wear can indicate normal operation. Deep scoring may suggest abrasive particles. Heat checking or radial cracks may suggest overheating or thermal shock. Blistered carbon may point to excessive heat or poor lubrication. Chipped faces may suggest mishandling, vibration or hard contact. Heavy deposits may suggest crystallization, poor flushing or process buildup.

Elastomer condition is also important. Swelling suggests chemical incompatibility. Hardening suggests heat or aging. Cuts suggest installation damage or sharp shaft features. Flattening may indicate compression set. Extrusion may suggest pressure or clearance problems.

Metal parts tell another story. Corrosion near O-ring contact areas may indicate leakage through secondary sealing paths. Worn drive pins or fretting marks may suggest vibration. Damaged springs may suggest corrosion, clogging or fatigue.

A good mechanical seal troubleshooting process turns these observations into a root cause hypothesis. The goal is not to blame the failed part. The goal is to understand what operating condition produced the failure pattern.

Why repeated seal replacement is expensive

Mechanical seal repair cost is not limited to the price of the seal. In many plants, the seal itself may be a small portion of the real cost.

The larger costs include unplanned downtime, lost production, labor hours, emergency maintenance, cleanup, safety risk, product loss, environmental exposure, bearing damage, motor overload and repeated troubleshooting. If the pump handles hazardous, expensive or regulated fluid, leakage can become a serious operational and compliance problem.

Repeated mechanical seal leakage also affects maintenance culture. Teams become reactive. Operators lose confidence in the pump. Spare parts are consumed without understanding why. Procurement may push for cheaper seals because seals are seen as consumables. Engineering may not receive enough failure data to correct the real issue.

This cycle can be broken only when seal failure is treated as a reliability problem, not a routine replacement task.

A useful metric is not simply “How many seals did we buy this year?” A better metric is “Which pumps consume the most seals, and why?” If the same pump has repeated failures, it deserves deeper analysis.

A practical troubleshooting path for pump maintenance teams

When a mechanical seal leaks, a structured troubleshooting path can prevent guesswork.

Start with the operating history. When did the leakage begin? Did it happen immediately after startup, after several hours, after a process change or after maintenance? Sudden leakage after installation may suggest installation error, dry startup or damaged secondary sealing. Leakage after a process change may suggest chemical, temperature or pressure changes.

Next, inspect the external conditions. Is the pump vibrating? Is it noisy? Is the seal area hot? Is the leakage steady, intermittent or increasing? Is the pump operating at the expected flow and pressure? Are suction conditions stable?

Then inspect the seal support conditions. Are flush lines open? Are filters clean? Is cooling water available? Is the barrier or buffer fluid at the correct pressure and level? Are gauges working?

After shutdown and disassembly, inspect the seal components carefully. Look at face wear, elastomer condition, deposits, corrosion, spring movement and shaft sleeve surfaces. Compare the failure marks with the operating history.

Finally, decide whether the correct action is replacement, material change, installation improvement, pump repair, piping correction, operating procedure change or seal support system upgrade.

This process takes more time than simply replacing the seal, but it reduces repeat failure.

Preventing mechanical seal leakage before it starts

The best mechanical seal strategy is prevention. A plant can reduce pump seal leakage by improving several areas.

First, improve application data before purchasing seals. The more accurately the duty is described, the better the seal selection.

Second, standardize installation procedures. Mechanical seals should be installed with clean tools, trained personnel, proper checks and documented startup steps.

Third, monitor pump operating conditions. Vibration, temperature, pressure, flow and suction conditions provide early warning before leakage becomes visible.

Fourth, control dry running risk. Pumps should be properly primed, protected from low liquid levels and operated with clear startup procedures.

Fifth, review repeat failures. Every repeated mechanical seal failure should trigger root cause analysis, not just another purchase order.

Sixth, match seal design to fluid reality. Clean water, hot condensate, abrasive slurry, chemical solvents, food products and wastewater all create different sealing challenges.

Seventh, consider the total system. The pump, piping, bearings, alignment, flush plan, seal chamber and operating procedure all influence seal reliability.

When these practices are followed, mechanical seals stop being treated as disposable weak points. They become part of a broader pump reliability strategy.

The real lesson: fix the condition, not only the component

A leaking mechanical seal is easy to see, but the cause is often hidden. The leak may appear at the shaft, but the real problem may be suction instability, dry running, wrong elastomer selection, poor installation, abrasive contamination, vibration, corrosion or excessive heat.

This is why the most effective pump maintenance teams do not ask only, “Which seal should we install next?” They ask, “What did this seal experience, and how do we prevent the same condition from happening again?”

Mechanical seals are precision components, but they are also storytellers. Their wear marks, deposits, cracks, elastomer changes and leakage paths reveal how the pump has been operating. If those clues are ignored, the same failure repeats. If they are studied, the plant can improve reliability, reduce downtime and make better seal selection decisions.

For industrial pump users, the message is clear: mechanical seal leakage should never be treated as an isolated product failure until the system has been checked. A new seal can stop leakage temporarily, but only a corrected pump condition can stop repeat leakage.

When maintenance teams combine proper mechanical seal selection, clean installation, stable operating conditions and disciplined troubleshooting, the seal becomes much more than a replacement part. It becomes a key indicator of pump health and a critical part of long-term industrial reliability.
