Mechanical Seal Installation Mistakes Why New Seals Fail Too Soon

A new mechanical seal does not guarantee a reliable pump

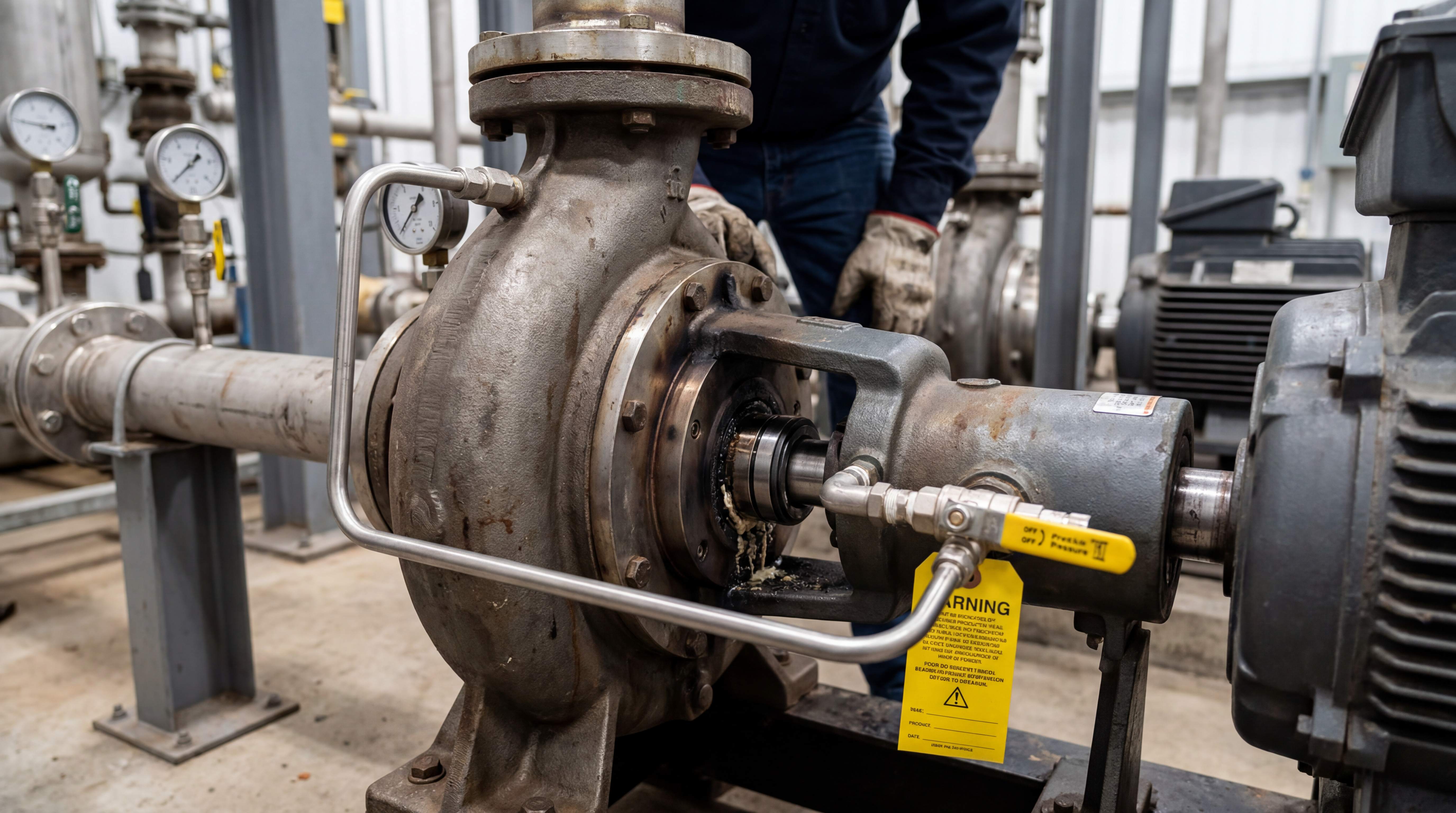

A mechanical seal can be brand new and still fail quickly. This is one of the most frustrating problems in pump maintenance. A plant shuts down a pump, removes the leaking seal, installs a replacement, restarts the equipment, and expects the leakage problem to be solved. Then, within hours, days, or a few weeks, the new seal begins leaking again.

At that moment, people often blame the seal quality. Sometimes the product may be wrong for the application, but in many cases the real issue is not the seal itself. The real issue is the way the seal was installed, the condition of the pump before installation, or the way the pump was started after the repair.

Mechanical seal installation is not a simple “remove and replace” task. It is a controlled process that depends on cleanliness, surface condition, correct dimensions, correct compression, proper handling, careful shaft seal installation, and disciplined startup. If one of these steps is missed, the mechanical seal can be damaged before it ever reaches normal operation.

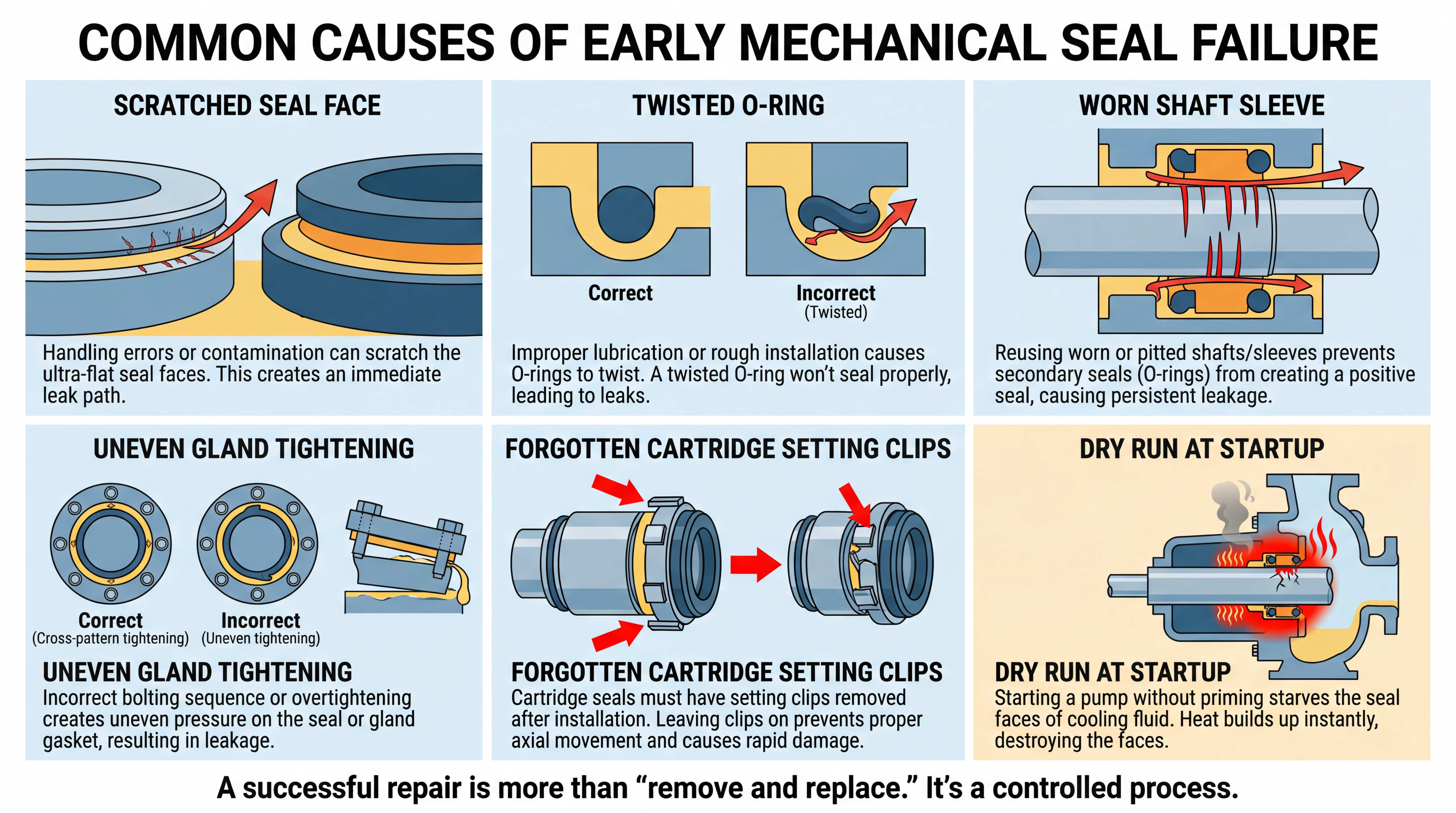

This is why early mechanical seal failure should not be treated as bad luck. A seal that fails soon after installation is often telling the maintenance team that something in the pump seal installation process was not controlled.

The purpose of this article is not only to list seal installation mistakes. It is to show how each mistake creates a specific failure path. A scratched seal face, a twisted O-ring, an uneven gland, a worn shaft sleeve, an unprimed pump, or a forgotten cartridge setting clip can all become the starting point of leakage.

For pump maintenance teams, the key lesson is simple: a mechanical seal replacement is successful only when the seal, the pump, and the startup process are all prepared correctly.

Installation failure often begins before the seal is touched

Many installation problems begin before the new seal is even opened. The maintenance team may focus on the replacement part, but the pump condition is just as important.

If the shaft or shaft sleeve is worn, corroded, grooved, or scratched, the secondary sealing elements may not seal properly. If the stuffing box or seal chamber is dirty, old deposits can contaminate the new seal. If the pump is misaligned, vibrating, or operating far from its intended condition, the new seal will be exposed to the same stress that damaged the old one.

A common mistake in pump repair is removing the old seal and immediately installing a new one without asking why the old seal failed. This turns mechanical seal replacement into a repeated maintenance habit rather than a reliability improvement.

Before installation begins, the maintenance team should inspect the failed seal. The old seal faces may show scoring, heat checking, cracking, heavy wear, or deposits. The elastomers may be swollen, hardened, cut, or flattened. The metal components may show corrosion or fretting marks. These details are not waste material; they are evidence.

If the old seal failed because of abrasive particles, a new seal installed into the same dirty environment may fail again. If the old seal failed from dry running, a new seal will not survive unless the pump priming and startup process are corrected. If the old seal failed from vibration, the new seal will not fix the bearing or alignment problem.

Mechanical seal troubleshooting should begin before mechanical seal installation. Otherwise, the new seal may simply become the next failed part.

Mistake 1: Skipping shaft and sleeve inspection

The pump shaft or shaft sleeve is one of the most important surfaces in seal installation. Many mechanical seals use O-rings or other secondary sealing elements that must seal against the shaft sleeve. If that surface is damaged, the new seal may leak even if all internal seal components are correct.

A worn sleeve can have grooves from previous packing or seal contact. Corrosion can create pits. Burrs can cut O-rings during installation. Deposits can prevent proper seating. Sharp edges at keyways, threads, or shoulders can damage elastomers as the seal is pushed into position.

This is one of the most common shaft seal installation mistakes. The technician may see that the new seal fits the shaft diameter and assume the pump is ready. But a correct diameter does not mean the surface is suitable for sealing.

A small scratch under an O-ring can create a leakage path. A corroded sleeve can prevent the O-ring from maintaining pressure. A burr can cut the elastomer during assembly, causing leakage soon after startup.

Before installing a mechanical seal, the shaft or sleeve should be cleaned and inspected carefully. It should be checked for scoring, corrosion, wear, runout, and roughness. Any sharp edges should be removed. If the sleeve is badly worn or pitted, it should be repaired or replaced.

Installing a new seal on a damaged sleeve is like installing a new tire on a bent wheel. The new component may be good, but the foundation is already wrong.

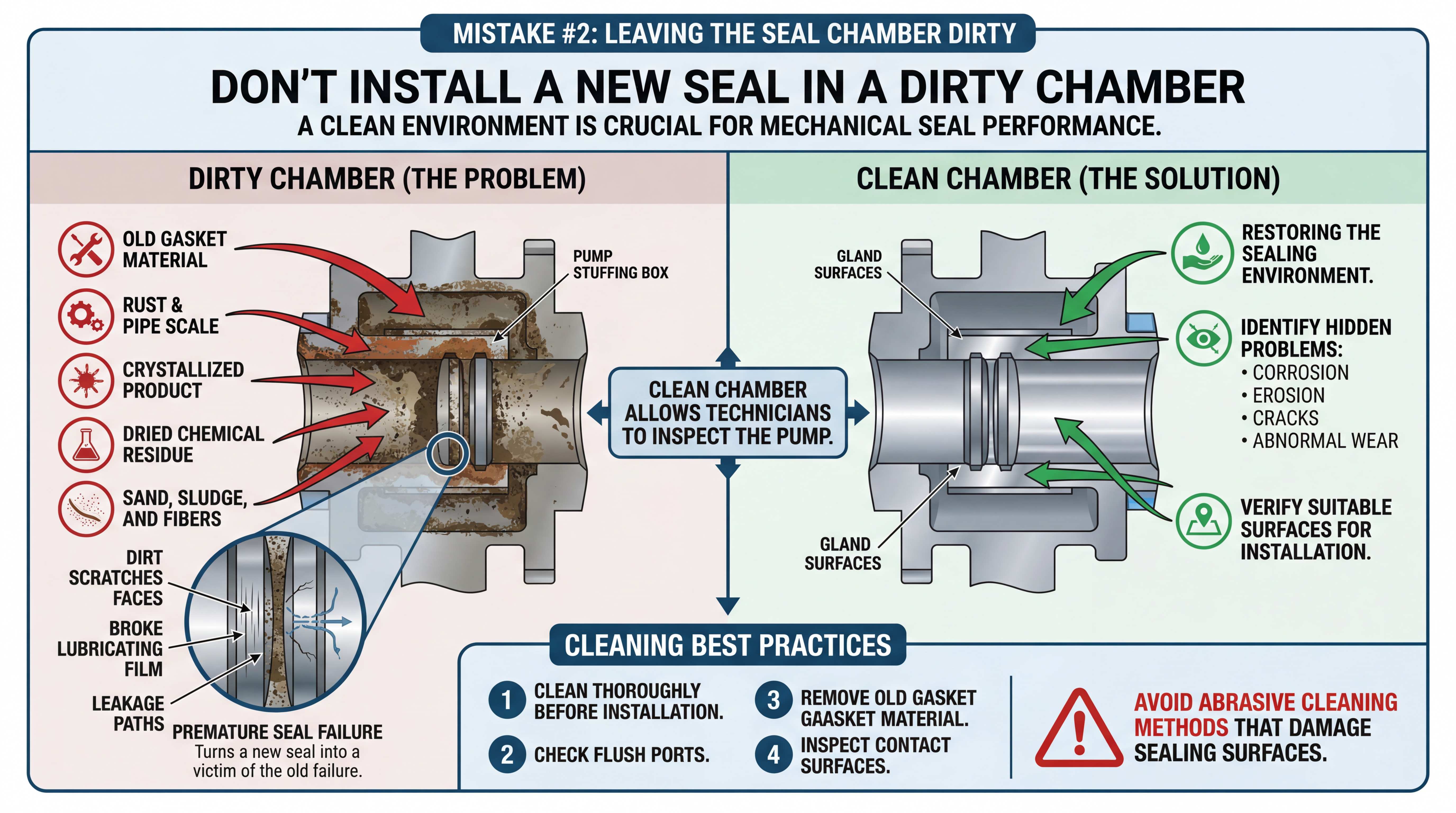

Mistake 2: Leaving the seal chamber dirty

The seal chamber or stuffing box is the environment where the mechanical seal must operate. If this area is dirty, contaminated, corroded, or filled with old deposits, the new seal begins its life in a poor condition.

Old gasket material, rust, pipe scale, crystallized product, dried chemical residue, sand, sludge, or fibers can enter the seal faces or interfere with the movement of seal components. Even small contaminants can damage precision faces. A mechanical seal depends on a thin lubricating film, and particles trapped between the faces can create scratches that become leakage paths.

This is especially important in pumps handling slurry, wastewater, chemicals, food products, or crystallizing fluids. In these services, the seal chamber may contain deposits that are not obvious until the pump is opened. If these deposits are not removed, the new seal may fail quickly even though the seal itself was installed correctly.

A clean seal chamber also helps the technician identify other problems. Corrosion, erosion, cracks, or abnormal wear may be hidden under buildup. Cleaning the chamber allows the team to see whether the pump casing and gland surfaces are suitable for mechanical seal replacement.

Good pump maintenance is not only about replacing parts. It is about restoring the sealing environment.

Before installation, the seal chamber should be cleaned thoroughly. Flush ports should be checked. Old gasket material should be removed. Contact surfaces should be inspected. The technician should avoid using abrasive cleaning methods that damage sealing surfaces.

A dirty seal chamber turns a new mechanical seal into a victim of the old failure.

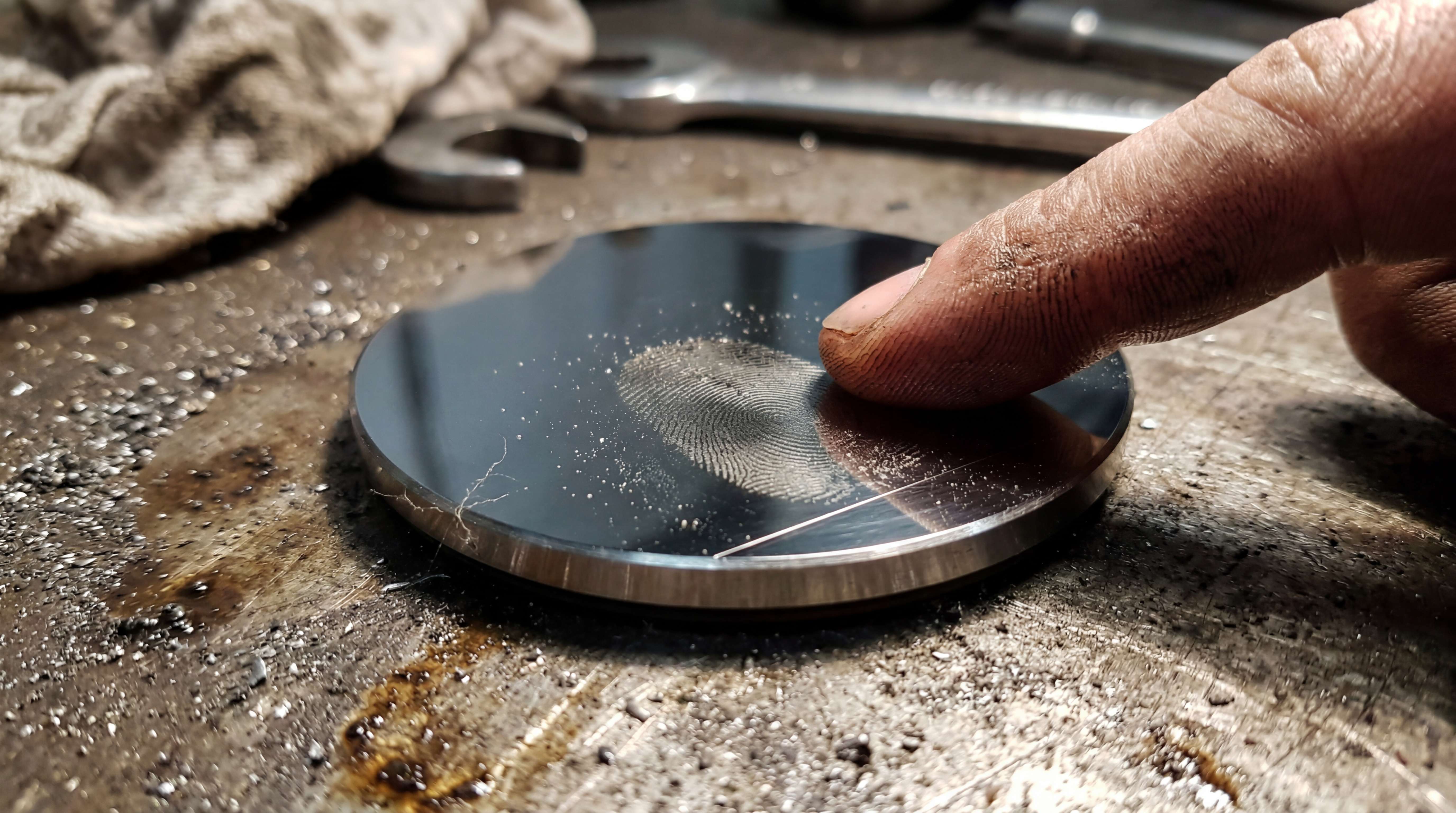

Mistake 3: Touching or contaminating the seal faces

Mechanical seal faces are precision surfaces. They may look simple, but their flatness and surface condition are critical to sealing performance. One of the most damaging seal installation mistakes is touching the faces with dirty hands, wiping them with contaminated cloth, placing them on a dirty workbench, or allowing dust and grit to contact them.

Fingerprints can leave oil. Cloth fibers can remain on the face. Hard particles can scratch the surface. A small chip or scratch may not look serious during installation, but under pressure and rotation it can become a leakage path.

The faces should be handled carefully and kept clean. If cleaning is required, the correct cleaner and lint-free material should be used. The faces should not be placed face-down on rough or dirty surfaces. Tools should never contact the sealing faces.

This mistake is especially common during component seal installation, where individual rotating and stationary faces are handled separately. Cartridge seal installation reduces face handling because the seal faces are enclosed in a pre-assembled unit, but cartridge seals can still be damaged if handled roughly or contaminated before installation.

The practical rule is simple: treat seal faces like optical surfaces, not like ordinary metal parts.

A new mechanical seal can be ruined by contamination before the pump is even started. When early mechanical seal failure occurs shortly after installation, face contamination should always be considered as a possible cause.

Mistake 4: Damaging O-rings during installation

O-rings and elastomer components are small, but they are essential. They create secondary sealing paths around the shaft, sleeve, stationary seat, gland, and other seal components. If they are cut, twisted, pinched, stretched, or chemically incompatible, leakage can appear even when the primary seal faces are undamaged.

O-ring damage often happens during installation. The elastomer may pass over sharp threads, keyways, grooves, burrs, or rough shaft surfaces. It may be forced into position without proper lubrication. It may roll instead of sliding. It may be twisted in its groove. It may be pinched when the gland or seat is installed.

Some O-rings are damaged because the installer uses the wrong lubricant. A lubricant that is not compatible with the elastomer or process fluid can cause swelling, softening, or chemical attack. In sanitary, chemical, or high-purity applications, lubricant selection may also affect product compatibility.

Incorrect O-ring material is another problem. A seal can be installed perfectly and still fail if the elastomer is not compatible with the fluid or temperature. For example, an elastomer that works in water may not work in solvents. One that works at ambient temperature may fail in hot service or cleaning cycles.

During mechanical seal installation, elastomers should be inspected before assembly. They should be free from cuts, cracks, flattening, or deformation. The shaft should be prepared to protect them. Any lubricant should be approved for the elastomer and application.

An O-ring failure may look like a mechanical seal failure, but the real cause may be a hidden secondary leakage path created during installation.

Mistake 5: Getting the working length or compression wrong

A mechanical seal needs the correct face loading. If the spring compression is too high, the faces may run too hot and wear quickly. If the compression is too low, the faces may not seal properly and leakage can occur. This is why working length is a critical part of pump seal installation.

Component mechanical seals are especially sensitive to this issue because the installer often controls the position of the rotating unit, spring compression, and working length during assembly. If the seal is set too far forward or too far back, the spring force will not match the intended design.

Too much compression can cause excessive friction, heat, rapid face wear, and elastomer stress. Too little compression can cause face separation, unstable sealing, and immediate leakage. Incorrect compression can also prevent the seal from responding properly to shaft movement or pressure changes.

This mistake can happen when the technician does not follow the installation drawing, uses incorrect reference dimensions, fails to account for sleeve position, or assumes that the seal should be positioned “about the same” as the old one.

Mechanical seal installation should never rely on guesswork. Dimensions should be measured. The correct working length should be confirmed. If the pump has been modified, repaired, or rebuilt, the installer should not assume that old settings are still correct.

Cartridge mechanical seals are designed to reduce this risk because spring compression is normally factory-set. But cartridge seal installation still requires correct shaft positioning, gland tightening, and proper removal of setting devices. A cartridge design reduces field adjustment, but it does not remove the need for correct procedure.

Mistake 6: Installing the stationary seat incorrectly

The stationary seat must sit squarely and securely. If it is cocked, tilted, chipped, contaminated, or not fully seated, the rotating face will not contact it properly. This can create uneven wear, leakage, heat, vibration, and early seal failure.

Stationary seat installation is one of the most delicate steps in component seal assembly. The seat may be brittle, especially if it is ceramic or another hard material. Pressing it unevenly can chip the edge. Using metal tools directly on the face can cause damage. Installing it into a dirty bore can prevent full seating.

If the stationary seat uses an O-ring or gasket, that secondary seal must also be installed correctly. A twisted O-ring behind the seat can cause misalignment. Debris behind the seat can tilt it. Uneven pressure during installation can distort the seat position.

The stationary face should be installed with clean hands or proper gloves. It should be pressed evenly using an appropriate tool or method. The bore should be clean. The seating surface should be inspected. The sealing face should not be scratched.

A stationary seat that is only slightly tilted can create a large problem once the pump starts rotating. The seal faces may contact on one side more than the other, producing heat and uneven wear. This can lead to leakage soon after startup.

In mechanical seal troubleshooting, uneven face wear often points back to alignment, vibration, or improper seat installation.

Mistake 7: Tightening the gland unevenly

The gland plate secures the stationary side of the seal and helps create the correct sealing environment. If the gland is tightened unevenly, it can distort the stationary face, damage gaskets, misalign the seal, or create leakage paths.

Uneven gland tightening is common during rushed pump repair. One bolt may be fully tightened before the others are seated. The gland may be pulled to one side. The gasket may compress unevenly. The seal face may become distorted.

This problem is more serious than it appears. Mechanical seal faces depend on parallel alignment and uniform loading. A distorted stationary face can cause leakage even when the face materials, O-rings, and spring compression are correct.

The gland bolts should be tightened gradually and evenly, usually in a cross pattern. The technician should confirm that the gland seats squarely against the pump surface. If the gland does not sit evenly, the cause should be found rather than forced into place.

Possible causes include dirt on the mounting surface, wrong gasket thickness, damaged gland, incorrect seal size, misaligned parts, or interference from piping or pump components.

A mechanical seal is a precision assembly. It should not be pulled into alignment by bolt force. If force is needed to make parts fit, something is wrong.

Mistake 8: Forgetting cartridge seal setting clips or removing them too early

Cartridge mechanical seals are designed to simplify installation, but they have their own mistakes. One of the most common cartridge seal installation errors is mishandling the setting clips or setting devices.

These clips hold the seal in the correct position during installation. They maintain the factory-set compression and alignment until the seal is mounted properly. If the clips are removed too early, the seal can shift before it is secured. If the clips are not removed after installation, the seal may not operate correctly.

The correct sequence matters. Typically, the cartridge is positioned on the shaft or sleeve, the gland is tightened, the collar or drive screws are secured, and then the setting clips are removed according to the manufacturer’s instructions. The exact procedure should always follow the specific seal design.

Forgetting this step can cause immediate or early mechanical seal failure. A cartridge seal that remains locked by its setting clips may not accommodate normal operating movement. A cartridge seal that was released before being fixed to the shaft may lose its correct setting.

This mistake is preventable with a checklist. Cartridge seal installation should include a final verification step: clips removed or retained only as specified, set screws secured, gland bolts tightened, flush connections checked, shaft free to rotate, and pump ready for priming.

A cartridge seal is easier to install than many component seals, but it still requires discipline.

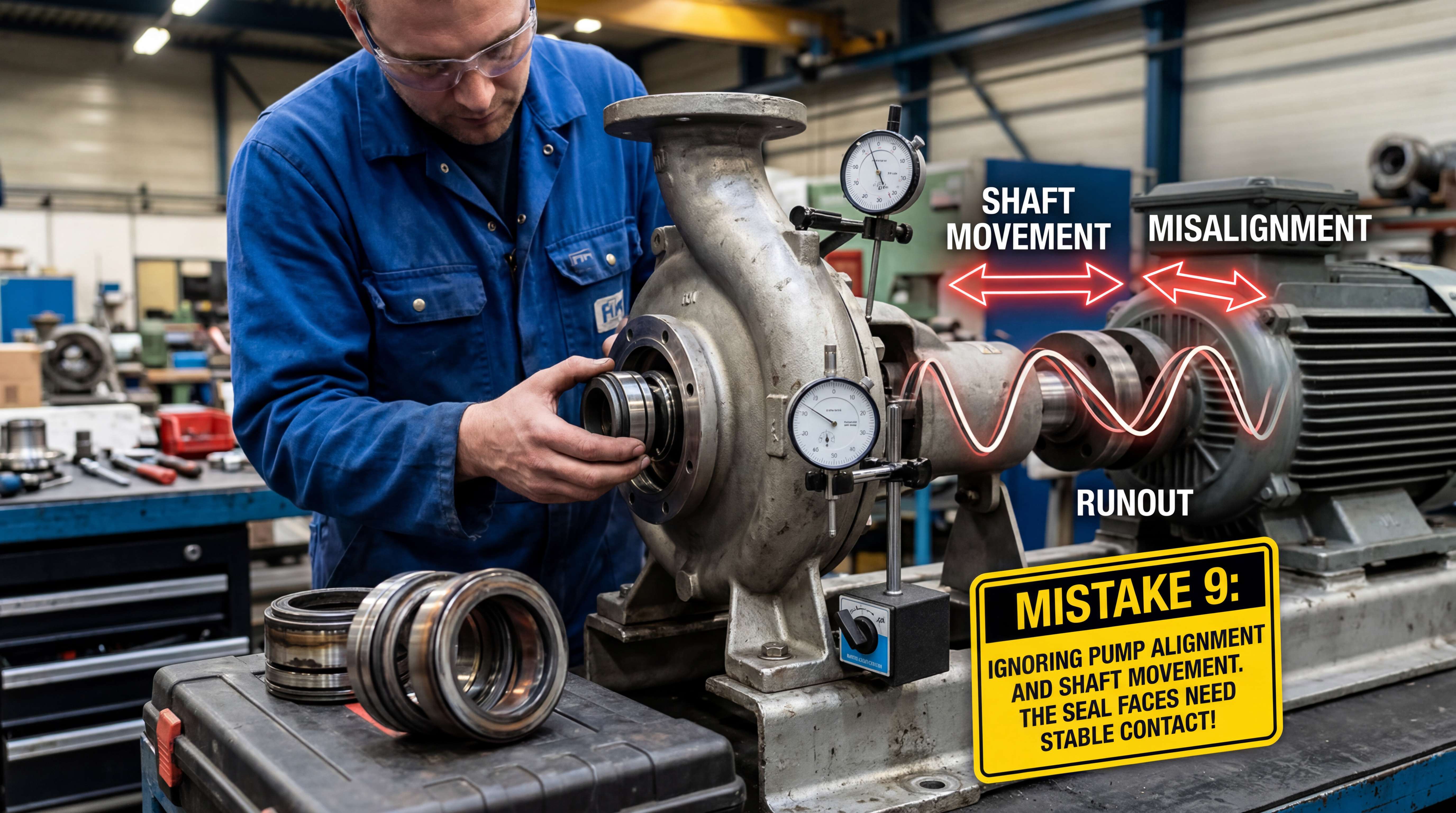

Mistake 9: Ignoring pump alignment and shaft movement

A mechanical seal can be installed perfectly and still fail if the pump shaft does not run properly. Excessive shaft runout, misalignment, bearing wear, soft foot, coupling problems, or pipe strain can all create movement that the seal cannot tolerate.

During operation, the seal faces need stable contact. If the shaft moves too much, the faces may open and close repeatedly. This can create leakage, heat, uneven wear, and vibration-related damage.

Some maintenance teams treat alignment as separate from mechanical seal replacement. They replace the seal and restart the pump without checking whether the rotating equipment is mechanically stable. This is a mistake.

If the old seal failed from vibration or uneven wear, the new seal should not be installed until the pump condition is checked. Bearings should be inspected. Shaft runout should be evaluated if needed. Coupling alignment should be verified. Pipe strain should be considered. The pump should not be forced into position by piping.

Mechanical seal troubleshooting often reveals that the seal is not the first problem. It is the part that exposes a deeper pump problem.

A good pump repair process connects seal installation with rotating equipment health. The seal cannot provide reliability if the shaft is unstable.

Mistake 10: Starting the pump dry

Dry startup is one of the fastest ways to destroy a new mechanical seal. A mechanical seal needs a lubricating film between the faces. If the pump starts without liquid at the seal faces, friction rises quickly and heat builds up. The faces can be damaged in seconds or minutes.

This mistake is especially painful because it can destroy a correctly installed seal. The installation may be clean, the working length correct, the O-rings undamaged, and the gland properly tightened. But if the pump starts dry, the seal may fail almost immediately.

Dry startup can happen when the pump is not primed, when air remains trapped in the casing, when suction valves are closed, when the tank level is too low, or when flush lines are not open. It can also happen after maintenance if operators assume the pump is ready without verifying fluid conditions.

Before startup, the pump should be properly primed and vented. Flush lines should be open and flowing if required. Cooling or support systems should be operating. The shaft should rotate freely by hand where appropriate. The operator should confirm valve positions and suction conditions.

Many early mechanical seal failures are not installation mistakes in the narrow sense. They are startup mistakes. But from a reliability point of view, installation is not complete until the pump has been started correctly.

Mistake 11: Not checking flush and support connections

Some mechanical seals require flush, quench, drain, cooling, or barrier fluid connections. If these connections are blocked, reversed, closed, incorrectly piped, or forgotten, the seal may fail even if the mechanical assembly is correct.

Flush systems can remove heat, keep particles away from the seal faces, prevent crystallization, or maintain a cleaner seal chamber environment. In some applications, a flush is essential for survival. If it is not working, the seal may overheat, clog, or wear rapidly.

During pump seal installation, the technician should not treat piping connections as a minor final step. The support system is part of the seal system.

Common mistakes include leaving a flush valve closed, connecting piping to the wrong port, failing to clean a plugged line, using insufficient flush pressure, ignoring flow direction, or installing the seal without checking whether the support plan matches the process.

In double seals, barrier or buffer fluid systems add another layer of responsibility. Fluid level, pressure, compatibility, and temperature must be checked before startup.

A mechanical seal cannot perform better than the environment created around it. If the support system is neglected, the new seal may fail for reasons that appear to be product-related but are actually system-related.

Mistake 12: Failing to document the installation

Documentation may not sound as important as face handling or shaft inspection, but it is essential for long-term pump maintenance. Without records, repeated mechanical seal failure becomes difficult to solve.

A good installation record should include the seal type, materials, installation date, pump condition, shaft sleeve condition, failure observations from the old seal, measurements taken, flush system status, alignment checks, and startup observations. If the seal fails later, this information helps the team understand what changed.

Without documentation, each failure becomes a fresh mystery. A different technician may install a different seal. Procurement may order based on old habits. Engineering may not see the pattern. The plant may continue replacing seals without identifying the root cause.

Mechanical seal troubleshooting improves when installation data is available. If several seals fail after similar operating hours, the pattern may point to process conditions. If failures happen immediately after maintenance, the issue may be installation or startup. If failures occur only on one pump, the issue may be pump condition.

Documentation transforms pump repair from guesswork into reliability management.

How to build a better mechanical seal installation process

A strong mechanical seal installation process should be organized in stages.

The first stage is failure review. Inspect the old seal before discarding it. Identify face wear, elastomer condition, deposits, corrosion, and possible failure causes.

The second stage is pump preparation. Clean the seal chamber, inspect the shaft or sleeve, remove burrs, check mounting surfaces, and verify that the pump is mechanically suitable for a new seal.

The third stage is seal preparation. Confirm the correct seal type, dimensions, materials, elastomers, and installation instructions. Keep the seal clean. Protect the faces.

The fourth stage is controlled installation. Install components in the correct order. Protect O-rings. Set working length correctly. Tighten the gland evenly. Follow cartridge seal installation procedures exactly.

The fifth stage is system verification. Check flush lines, cooling, barrier fluid, venting, priming, valve positions, and support connections.

The sixth stage is startup observation. Watch for leakage, heat, vibration, unusual noise, or pressure instability. Early observation can prevent small issues from becoming full failures.

This staged process reduces the chance that a new seal will fail from an avoidable mistake.

Conclusion: a seal is only as reliable as the installation behind it

Mechanical seal installation is a precision maintenance task. A new seal can fail early if the shaft is worn, the seal chamber is dirty, the faces are contaminated, O-rings are damaged, compression is wrong, the gland is tightened unevenly, setting clips are mishandled, flush connections are ignored, or the pump is started dry.

This is why early mechanical seal failure should not be dismissed as a random product issue. A new mechanical seal reflects the quality of the entire pump seal installation process.

For maintenance teams, the goal should not be simply to replace a leaking seal. The goal should be to return the pump to a condition where the new seal can survive. That requires inspection, cleanliness, correct assembly, proper startup, and documentation.

A mechanical seal replacement becomes reliable only when the team controls the details that are easy to overlook. The seal faces must stay clean. The elastomers must remain undamaged. The shaft must provide a good sealing surface. The gland must be square. The pump must be primed. The support system must function. The startup must be controlled.

When these details are respected, a mechanical seal becomes more than a spare part. It becomes part of a disciplined pump maintenance strategy. When they are ignored, even the best seal can fail too soon.
