Mechanical Seal Selection Checklist: How Pump Buyers Can Avoid the Wrong Seal Decision

Buying a mechanical seal is easy. Selecting the right one is not.

A mechanical seal can look like a simple replacement part. It has a shaft size, a face combination, an elastomer material, a spring arrangement, a gland style and a general operating range. To a buyer, it may seem reasonable to send a photo of the old seal, provide the pump model, ask for a price, and wait for a quotation.

That approach may work for simple, clean and low-risk pump applications. But in many industrial environments, it is not enough.

A mechanical seal is not selected correctly just because it fits the pump shaft. It is selected correctly when it can survive the fluid, temperature, pressure, speed, solids, chemistry, installation condition, startup procedure, leakage consequence and maintenance capability of the real application.

This is why mechanical seal selection should be treated as an engineering decision, not only a purchasing activity.

Many premature seal failures begin before the seal is even installed. The wrong inquiry information is sent. The wrong assumptions are made. The old failed seal is copied without understanding why it failed. A buyer asks only for the same size. A supplier quotes only the visible replacement. The pump returns to operation, but the deeper cause remains. Then the new seal fails again.

For B2B buyers, maintenance teams and pump users, the goal should not be simply to buy a mechanical seal. The goal should be to define the application clearly enough that the seal decision supports long-term pump seal reliability.

This guide provides a practical pump seal selection checklist for industrial users who want fewer repeated failures, clearer communication with suppliers and better control over the real cost of sealing.

The first mistake: treating mechanical seal replacement as a copy order

Many facilities begin a mechanical seal replacement by copying the old seal. They remove the failed seal, measure the shaft, check the spring type, identify the face materials if possible and order the same or similar product.

This can be risky.

If the old seal failed because it reached the end of normal service life, copying the same design may be reasonable. But if the old seal failed because it was wrong for the application, then copying it simply repeats the same mistake.

A failed seal should not only be treated as a sample. It should also be treated as evidence.

Was the carbon face scored? Were the O-rings swollen? Were the springs corroded? Was the shaft sleeve pitted? Were the faces burned? Was there crystallized product in the seal chamber? Did the seal fail immediately after startup? Did it fail after a process change? Did it fail only on one pump while other pumps ran normally?

These clues help determine whether the problem was selection, installation, operation, fluid behavior or pump condition.

A professional mechanical seal buying guide should always begin with one question:

Are we replacing a seal that completed normal service life, or are we copying a failure?

If the second answer is possible, the replacement should not be ordered blindly.

A better starting point: define what the seal must survive

Before selecting an industrial pump seal, the buyer should define the actual operating environment. This is more useful than simply asking what seal fits.

The seal must survive the pumped fluid. It must survive the pressure and temperature. It must tolerate shaft speed and face loading. It must be compatible with process chemistry. It must handle any solids, slurry, fibers or deposits. It must operate through startup and shutdown. It must fit the maintenance skill level of the plant. It must satisfy leakage expectations and safety requirements.

This changes the selection conversation.

Instead of asking:

“What is the price for this mechanical seal?”

The buyer should ask:

“What seal system can survive this application with acceptable reliability and risk?”

That may still lead to a standard replacement seal. But in more demanding applications, it may lead to different face materials, different elastomers, a cartridge design, a double seal, a flush plan, a barrier fluid system, a cooling arrangement or a better installation procedure.

Good seal selection criteria start with the application, not the catalog.

Checklist item 1: identify the fluid correctly

The most important input in mechanical seal selection is the fluid. A vague fluid description leads to a vague seal recommendation.

Terms like water, chemical, oil, slurry, wastewater, solvent or acid are not specific enough. Each category contains many possible conditions.

For example, “water” may mean clean cold water, hot water, boiler feed water, dirty process water, wastewater, seawater, cooling water or water with chemical additives. Each can require a different seal strategy.

“Chemical” may mean acid, alkali, solvent, oxidizer, cleaning fluid, polymer solution, salt solution or mixed process stream.

“Slurry” may contain soft organic solids, fine particles, sand, mineral grit, metal fines or crystallizing solids.

A good inquiry should provide the fluid name, composition and concentration. If the fluid is a mixture, the main components should be listed. If the process changes during cleaning, flushing or batch operation, those fluids should also be identified.

For chemical services, include concentration and pH. For dirty services, include solids type, concentration and particle behavior. For food or pharmaceutical services, include cleaning chemicals. For hot or volatile services, include vapor pressure concerns if known.

A mechanical seal supplier can only recommend accurately when the fluid is described accurately.

Checklist item 2: define temperature across the full cycle

Temperature affects almost every part of a mechanical seal.

It affects face behavior, elastomer life, vaporization risk, lubrication quality, corrosion rate, deposit formation and thermal distortion. Yet many buyers provide only a normal operating temperature and forget maximum, minimum, cleaning or startup conditions.

A seal may survive normal operation but fail during cleaning. It may work at ambient temperature but fail after the process is heated. It may survive steady operation but suffer during thermal cycling. It may run well when flooded but fail when hot fluid flashes near the seal faces.

For this reason, a proper mechanical seal specification should include normal temperature, maximum temperature, minimum temperature and any cleaning or sterilization temperature.

If the pump sees hot water flushing, steam, caustic cleaning, acid rinse or solvent wash, those conditions must be included. If the pump starts cold and then reaches high temperature, the transition matters. If the pump stops and cools while fluid remains in the seal chamber, crystallization or deposits may occur.

Temperature should be treated as a range and an operating cycle, not a single number.

Checklist item 3: confirm pressure, speed and pump type

Pressure and speed determine seal loading and face performance. The same seal material may behave differently at low speed and high speed, or at low pressure and higher pressure.

The inquiry should include seal chamber pressure if known, suction and discharge pressure, pump speed, shaft diameter and pump type. Centrifugal pumps, positive displacement pumps, mixers, agitators and special equipment may impose different seal requirements.

The buyer should also indicate whether pressure fluctuates. A stable pressure condition is very different from a process with pressure pulses, frequent starts, cavitation or unstable suction.

A pump running near its best efficiency point may provide a more stable environment than a pump operating far from its intended range. If a pump is oversized, throttled, frequently cycled or exposed to variable flow, the mechanical seal may experience more stress.

This is where pump seal reliability connects with broader pump operation. Seal selection is not only a seal decision. It is connected to how the pump is being used.

Checklist item 4: identify solids, abrasives and contamination risk

Solids are one of the most common causes of premature seal failure. Hard particles can score seal faces. Fibers can wrap around springs. Sludge can clog movement. Crystals can create deposits. Sand and grit can destroy a standard face combination quickly.

A buyer requesting an industrial pump seal should describe whether solids are present. Important information includes particle size, hardness, concentration, settling tendency and whether the particles are continuous or occasional.

There is a major difference between slightly dirty water and abrasive slurry. There is also a difference between soft biological solids and hard mineral grit. A standard seal may handle light contamination but fail rapidly in abrasive service.

If solids settle during shutdown, startup may be especially dangerous. A pump may begin operation with concentrated particles around the seal chamber. If the seal is not flushed or designed for that condition, damage can begin immediately.

For dirty or abrasive applications, the pump seal selection checklist should include these questions:

Are particles present?
Are they hard or soft?
Do they settle?
Do they clog?
Do they crystallize?
Can clean flush be used?
Can process dilution be tolerated?
Is the pump continuous or intermittent?

These details often determine whether the seal needs hard faces, protected springs, flushing, a heavy-duty design or a different seal arrangement.

Checklist item 5: check chemical compatibility across the entire seal

Chemical compatibility is not only about the main seal faces. It includes elastomers, springs, gland materials, sleeves, metal parts, flush fluid, barrier fluid and installation lubricants.

A mechanical seal can fail even if the faces are compatible, because the O-rings swell. It can fail because the springs corrode. It can fail because the sleeve pits under the secondary seal. It can fail because a cleaning chemical attacks an elastomer. It can fail because the barrier fluid is not compatible with the process.

A good mechanical seal specification should identify all wetted materials and all fluids that contact the seal.

This includes process fluid, cleaning fluid, flush fluid, quench fluid, barrier fluid and any possible upset condition.

For acids, alkalis, solvents, oxidizers and mixed chemicals, compatibility should be reviewed carefully. Concentration and temperature are critical. A material suitable for a diluted chemical at room temperature may not be suitable at higher concentration or temperature.

The safest principle is simple: a chemical-resistant seal is only as resistant as its weakest exposed material.

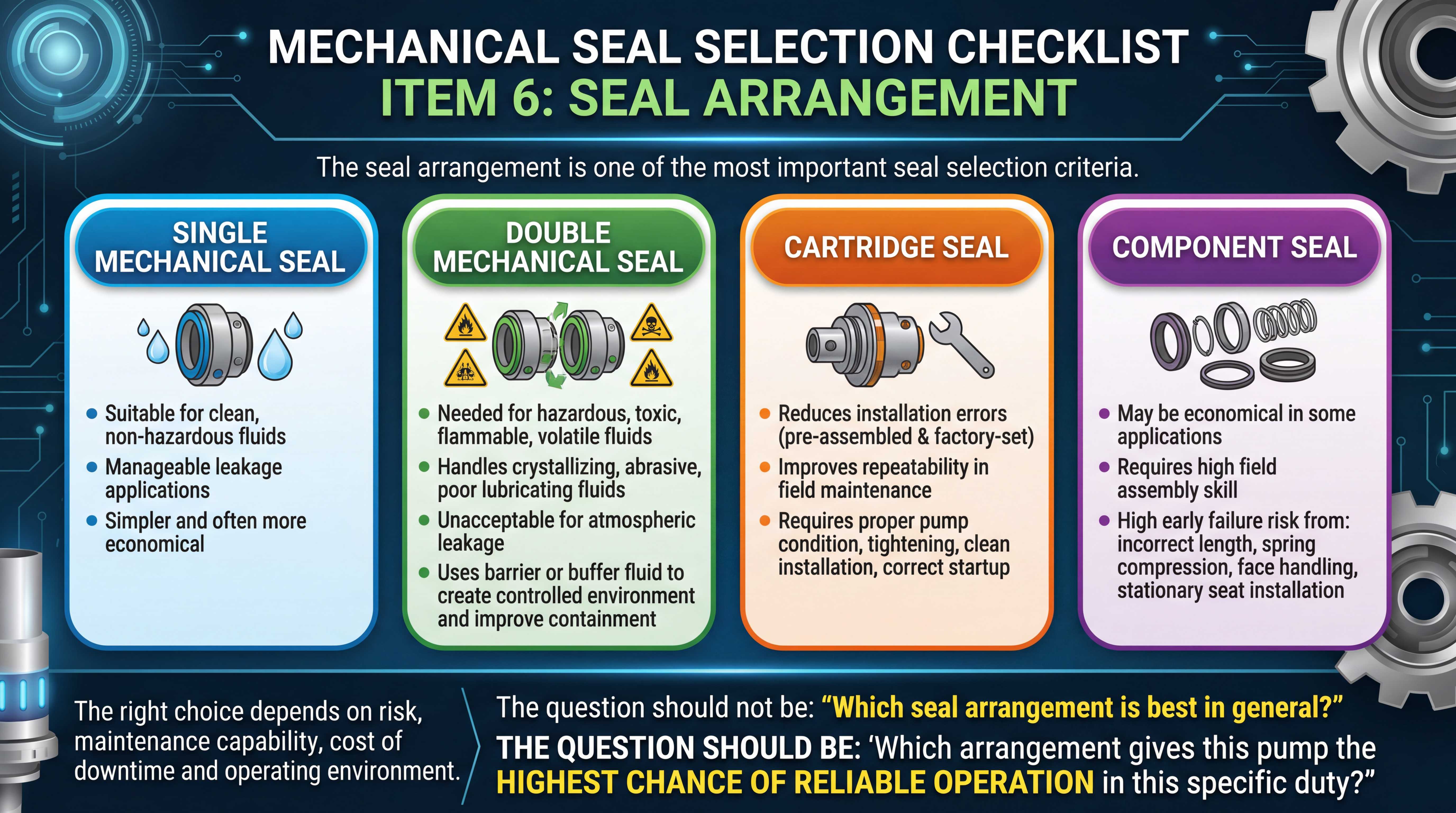

Checklist item 6: decide whether the application needs a single seal, double seal or cartridge seal

The seal arrangement is one of the most important seal selection criteria.

A single mechanical seal may be suitable for clean, non-hazardous and manageable leakage applications. It is simpler and often more economical.

A double mechanical seal may be needed when the fluid is hazardous, toxic, flammable, volatile, crystallizing, abrasive, poor in lubrication or unacceptable to leak into the atmosphere. A barrier or buffer fluid system can create a controlled environment and improve containment.

A cartridge seal can reduce installation errors because it is pre-assembled and often factory-set. It can improve repeatability in field maintenance, especially where installation skill varies. But cartridge seals still require proper pump condition, correct tightening, clean installation and correct startup.

A component seal may be economical and suitable in some applications, but it requires more field assembly skill. Incorrect working length, spring compression, face handling or stationary seat installation can cause early failure.

The right choice depends on risk, maintenance capability, cost of downtime and the operating environment.

The question should not be: “Which seal arrangement is best in general?”

The question should be: “Which arrangement gives this pump the highest chance of reliable operation in this specific duty?”

Checklist item 7: define leakage tolerance and failure consequence

Every mechanical seal decision should consider what happens if the seal leaks.

In some clean water services, minor leakage may be mainly a maintenance issue. In chemical, oil, gas, solvent, food, pharmaceutical or hazardous applications, leakage can create safety, environmental, quality or production problems.

Leakage consequence influences seal arrangement, materials and support system design.

If leakage is acceptable and manageable, a simpler single seal may be reasonable. If leakage is dangerous, expensive, restricted or reputation-sensitive, a more robust sealing system may be required.

For example, a toxic solvent may require a double seal and barrier fluid system. A crystallizing chemical may require quench or flush support. A hot fluid may require cooling. A slurry may require hard faces and flush management. A food application may require cleanability and approved materials.

A mechanical seal quotation should reflect risk, not only dimensions.

A low-cost seal may be acceptable for a low-risk utility pump. The same purchasing logic may be dangerous for a critical process pump.

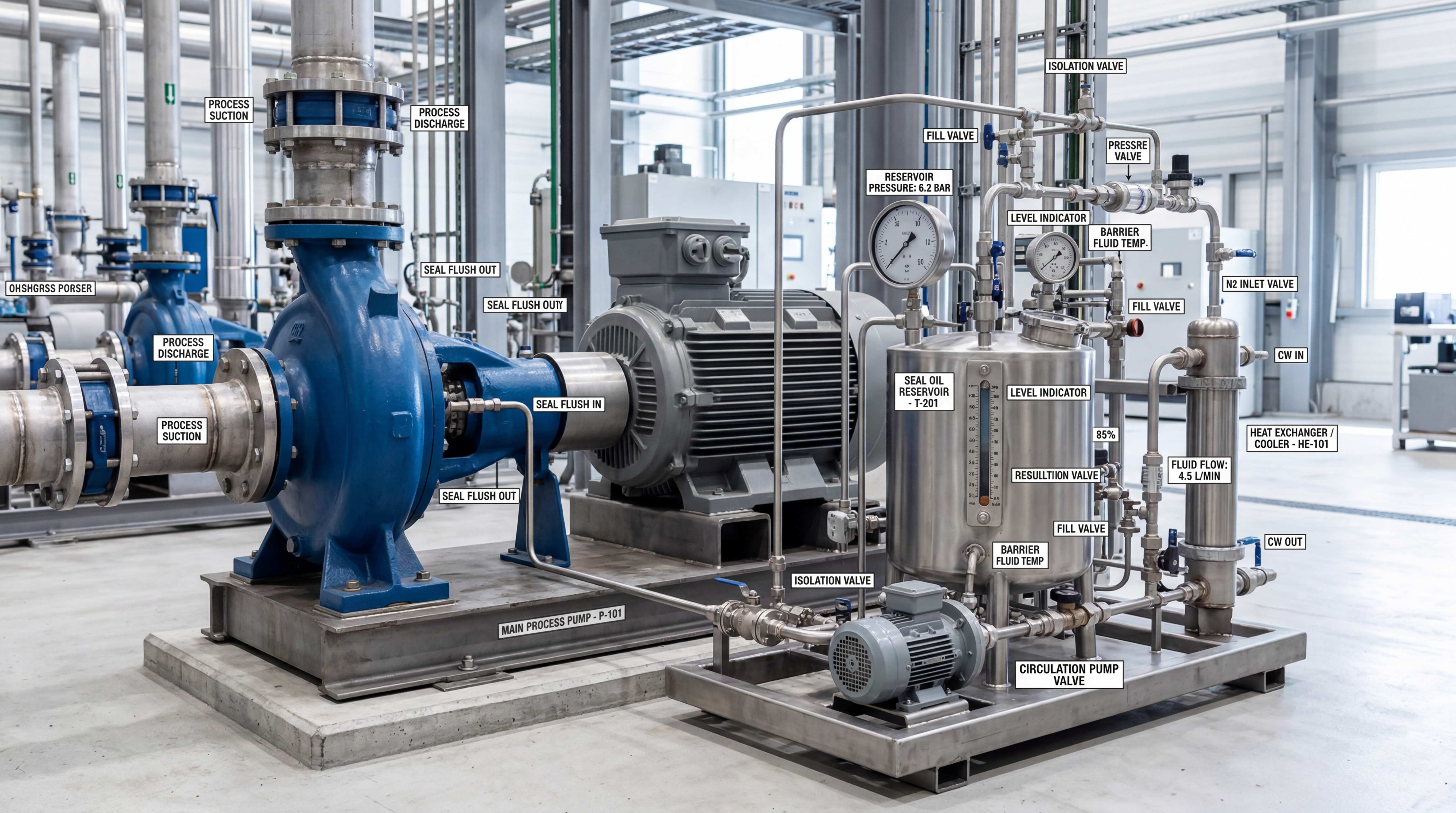

Checklist item 8: evaluate the seal support system

Many mechanical seals fail because the support system is missing, wrong or neglected.

A seal support system may provide flush, cooling, barrier fluid, buffer fluid, quench, drain, venting or leakage monitoring. Its function is to create a stable environment around the seal faces.

Support systems are especially important for hot fluids, dirty fluids, crystallizing chemicals, poor-lubricity fluids, hazardous media and double mechanical seals.

Before ordering a seal, the buyer should ask:

Does this seal need flush?
Can the process fluid be used as flush?
Is external clean flush required?
Is cooling necessary?
Does the seal need a barrier fluid system?
Does the plant have the ability to monitor pressure, temperature and level?
Will the support system be maintained after installation?

A support system should not be added blindly, but it should also not be ignored when the application requires it.

The best mechanical seal supplier will not only ask what seal fits. They will ask what environment the seal needs.

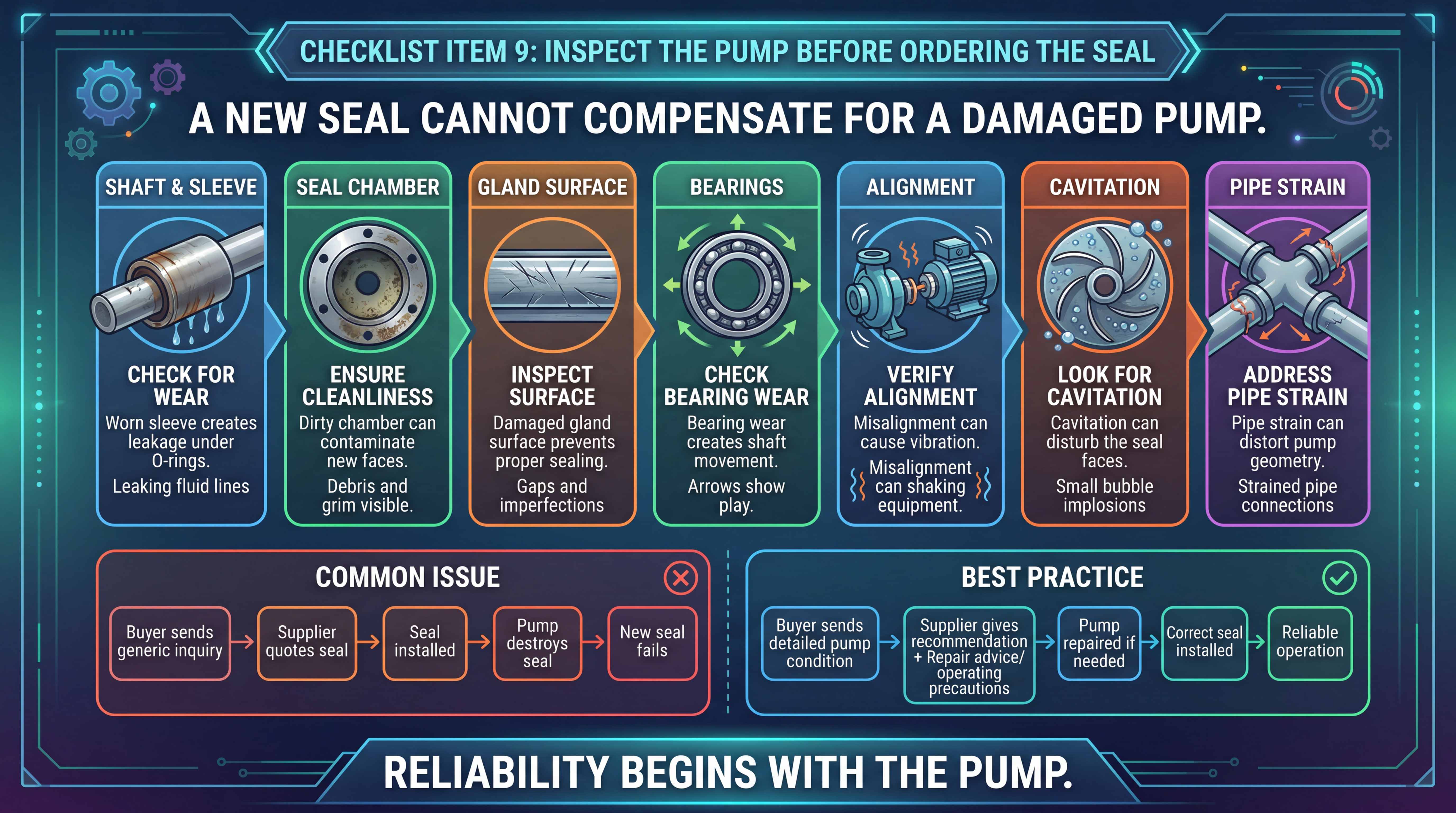

Checklist item 9: inspect the pump before ordering the seal

A new seal cannot compensate for a damaged pump.

Before mechanical seal replacement, inspect the shaft, sleeve, seal chamber, gland surface, bearings, alignment and overall pump condition.

A worn shaft sleeve can create leakage under O-rings. A dirty seal chamber can contaminate new faces. A damaged gland surface can prevent proper sealing. Bearing wear can create shaft movement. Misalignment can cause vibration. Cavitation can disturb the seal faces. Pipe strain can distort pump geometry.

If the same pump repeatedly fails seals, the seal may not be the root cause.

Buyers often send seal inquiries to suppliers without mentioning pump condition. This creates a problem. The supplier may quote the correct replacement seal, but the pump still destroys it.

Good selection should include pump condition. If the pump is old, damaged, vibrating or operating poorly, the seal recommendation may need to include repair advice or operating precautions.

Mechanical seal selection begins with the seal, but reliability begins with the pump.

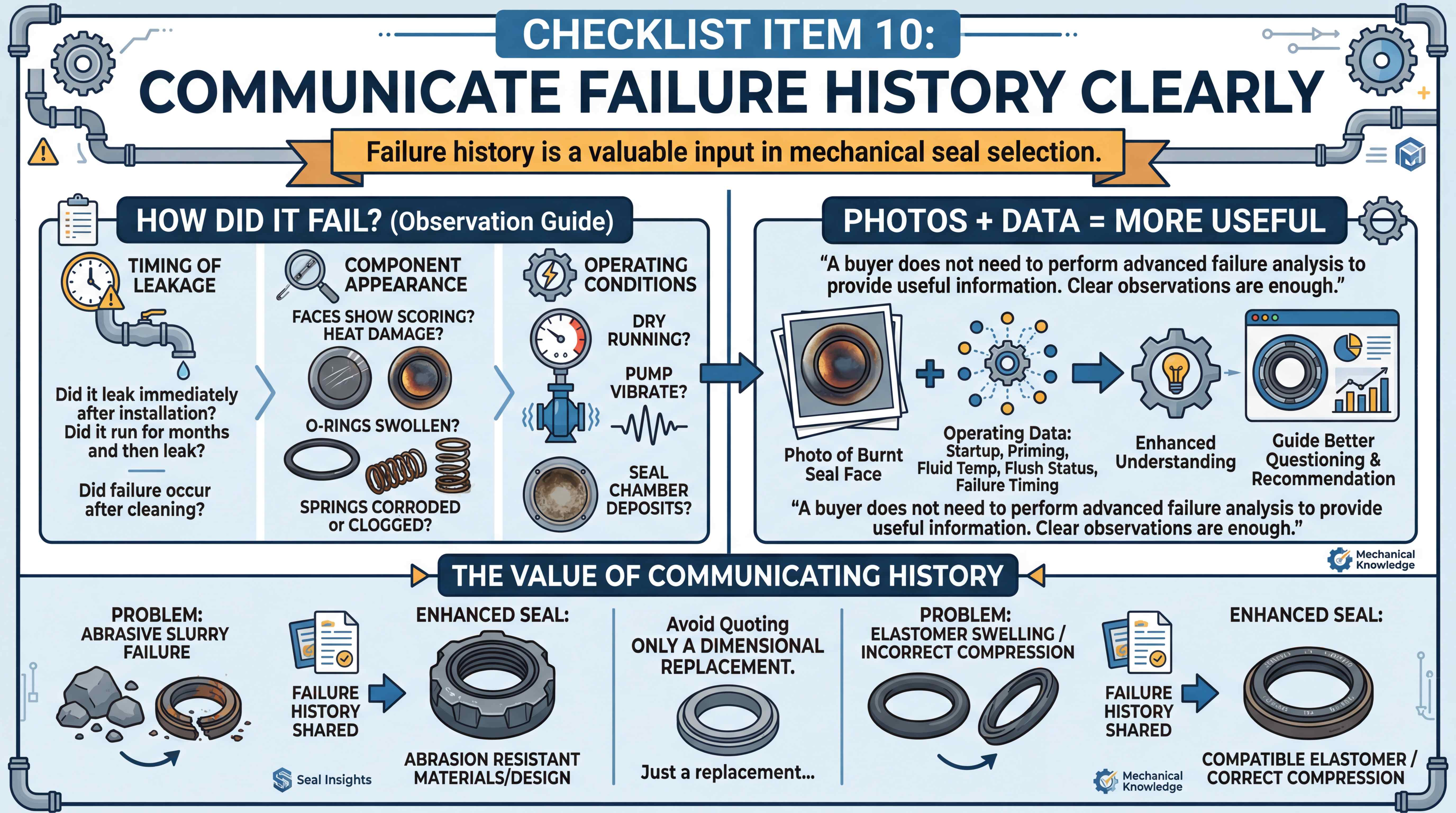

Checklist item 10: communicate failure history clearly

Failure history is one of the most valuable inputs in seal selection.

If a seal has failed before, describe how it failed. Did it leak immediately after installation? Did it run for months and then leak? Did the faces show scoring? Was there heat damage? Were O-rings swollen? Were springs corroded or clogged? Was the seal chamber full of deposits? Was there dry running? Did the pump vibrate? Did the failure occur after cleaning?

A buyer does not need to perform advanced failure analysis to provide useful information. Clear observations are enough to guide better questioning.

Photos of failed components can help, but they should be combined with operating data. A photo of a burned seal face is useful. It becomes more useful when paired with information about startup, priming, fluid temperature, flush status and failure timing.

When requesting a mechanical seal quotation, include failure history when possible. This helps the supplier avoid quoting only a dimensional replacement.

A seal that failed from abrasive slurry should not be treated the same as a seal that failed from elastomer swelling or incorrect compression.

What a good mechanical seal inquiry should include

A strong mechanical seal inquiry should include several groups of information.

First, pump information: pump model, shaft size, pump type, speed, seal chamber dimensions if available and whether the equipment is a pump, mixer or other rotating machine.

Second, fluid information: fluid name, composition, concentration, temperature, viscosity if known, solids content, abrasiveness, corrosiveness, vapor behavior and cleaning fluids.

Third, operating information: pressure, temperature range, speed, continuous or intermittent operation, startup frequency, dry running risk, cavitation risk and vibration condition.

Fourth, seal preference or existing seal information: current seal type, face materials, elastomers, arrangement, cartridge or component style and any support system.

Fifth, failure information: previous service life, failure symptoms, face damage, elastomer condition, deposits, corrosion, leakage location and whether the failure happened after startup, shutdown or cleaning.

Sixth, risk information: leakage tolerance, safety concerns, environmental concerns, product contamination concerns and downtime cost.

This is the difference between asking for a part and asking for a solution.

How to compare mechanical seal quotations

Not every low quotation is a good quotation. Not every expensive quotation is the best solution either.

A proper comparison should look beyond price.

Compare face materials. Are they suitable for the fluid and solids? Compare elastomers. Are they compatible with chemistry and temperature? Compare metal parts. Are they suitable for corrosion risk? Compare seal arrangement. Is it single, double, cartridge or component? Compare support system requirements. Does the quote include the right flush or barrier strategy? Compare documentation. Does the supplier provide drawings, installation instructions and operating limits?

Also compare how the supplier responds to application data.

A supplier who asks detailed questions may be slower at the beginning but more reliable in the long term. A supplier who quotes immediately based only on shaft size may be convenient, but the risk may be higher in demanding service.

A mechanical seal supplier should help clarify uncertainty. They should not simply sell a part when the application requires engineering judgment.

When comparing quotes, the buyer should ask: Which option has the lowest total cost of reliable operation, not simply the lowest purchase price?

The hidden cost of buying the wrong mechanical seal

The price of a mechanical seal is only one part of the real cost.

A wrong seal decision can create downtime, emergency maintenance, labor cost, lost production, environmental cleanup, safety risk, product contamination, bearing damage, shaft sleeve damage and repeated purchasing.

A cheap seal that fails every month may be more expensive than a better seal that runs reliably for a year. A seal that saves purchase cost but requires frequent shutdowns may be a poor business decision. A seal that leaks hazardous fluid may create costs far beyond maintenance.

This is why industrial buyers should connect mechanical seal selection with lifecycle cost.

The right question is not: “How much does this seal cost?”

The better question is: “How much does this sealing decision cost over its service life?”

For critical pumps, the cost of failure usually matters more than the cost of the seal itself.

Why procurement and engineering should work together

Mechanical seals sit at the intersection of procurement, maintenance, engineering and operations.

Procurement controls supplier selection, price and purchasing process. Maintenance sees failure symptoms and installation conditions. Engineering understands system design and operating requirements. Operations controls startup, shutdown and daily running conditions.

If these teams work separately, seal decisions become weaker.

Procurement may buy based on price. Maintenance may replace based on habit. Engineering may not receive failure information. Operations may unknowingly create dry running or unstable conditions. The seal supplier may receive incomplete data.

A better approach is collaborative.

Maintenance documents failures. Operations reports process changes. Engineering reviews the application. Procurement communicates complete requirements. The supplier recommends based on real conditions.

This teamwork is especially important for critical pumps, chemical service, slurry service, hazardous fluids and repeated failures.

A mechanical seal may be a small component, but it reveals how well the organization manages equipment reliability.

Building a standard mechanical seal selection form

For plants with many pumps, a standard selection form can reduce mistakes. The form does not need to be complicated, but it should capture the right information.

Useful fields include:

Pump tag number
Pump model
Shaft size
Seal chamber size
Fluid name
Fluid concentration
Temperature range
Pressure range
Speed
Solids content
Chemical compatibility concerns
Current seal type
Previous failure history
Leakage consequence
Support system
Flush availability
Cleaning fluids
Operating pattern
Supplier recommendation
Final selected materials

This type of form helps prevent repeated guesswork. It also makes future troubleshooting easier.

When a seal fails, the plant can compare original selection data with actual performance. If operating conditions changed, the reason for failure may become clear. If the same application fails repeatedly, the form helps identify patterns.

A selection form turns mechanical seal buying into a repeatable process.

When to involve the mechanical seal supplier early

Some buyers wait until the pump has already failed before contacting a supplier. In urgent situations, this is unavoidable. But for critical applications, involving the supplier earlier can reduce risk.

A supplier can help review whether the seal arrangement matches the fluid. They can suggest better face materials, elastomers or support systems. They can identify whether the old seal was copied incorrectly. They can review whether a cartridge seal may reduce installation risk. They can help determine whether a double seal is needed.

Early supplier involvement is especially useful when the fluid is hazardous, abrasive, corrosive, hot, volatile, crystallizing or expensive. It is also useful when a pump has repeated failures.

However, the quality of supplier advice depends on the quality of information provided. A buyer who says “chemical pump seal needed” may receive a generic answer. A buyer who provides fluid, concentration, temperature, pressure, solids, failure history and leakage tolerance can receive a better recommendation.

Good supplier communication is part of good seal selection.

How to avoid over-specification

While under-specification causes failures, over-specification can also create problems.

Some buyers respond to repeated seal failure by selecting the strongest, hardest or most expensive option available. But a stronger seal is not always the right seal.

A hard face combination may resist abrasion but generate more heat if lubrication is poor. A double seal may improve containment but require a support system the plant cannot maintain. A highly specialized elastomer may improve compatibility but increase cost and lead time. A complex support system may improve reliability only if operators monitor it correctly.

The goal is not maximum specification. The goal is appropriate specification.

A good mechanical seal buying guide should help buyers avoid both extremes: buying too little for the application and buying complexity that does not solve the real problem.

The best selection is balanced. It matches risk, operating conditions, maintenance capability and lifecycle cost.

How to avoid under-specification

Under-specification is more common. It happens when buyers treat the seal as a commodity.

Warning signs include:

Selecting only by shaft size
Ignoring chemical concentration
Ignoring cleaning fluids
Using standard elastomers in aggressive service
Choosing carbon-ceramic faces in abrasive slurry
Using a single seal where leakage is unacceptable
Ignoring flush needs
Reusing worn sleeves
Failing to communicate previous failures
Selecting only by lowest price

Under-specification may appear cheaper at first, but it often creates repeated failure.

For low-risk services, a standard seal may be perfectly acceptable. For demanding services, a standard seal may be a false economy.

The buyer should always ask whether the selected seal matches the severity of the application.

A practical decision logic for buyers

A simple decision logic can improve mechanical seal selection.

If the fluid is clean, non-hazardous, cool and well-lubricating, a standard single mechanical seal may be sufficient.

If the fluid is dirty or abrasive, review hard face materials, seal chamber conditions, spring protection and flushing.

If the fluid is corrosive, review all wetted materials, not only the faces.

If the fluid is hazardous, volatile or flammable, review leakage consequence, containment and double seal options.

If the fluid crystallizes or forms deposits, review flush, quench, heating, cooling and shutdown procedures.

If the pump starts and stops frequently, review dry running risk and startup procedures.

If the pump has repeated failures, review pump condition, vibration, alignment, cavitation and previous seal evidence.

If maintenance skill varies, consider cartridge designs and clearer installation procedures.

This logic does not replace engineering review, but it helps buyers ask better questions before ordering.

Conclusion: the right mechanical seal is selected before it is purchased

Mechanical seal reliability begins before the purchase order is placed.

A successful seal decision depends on fluid data, operating conditions, material compatibility, seal arrangement, support system, pump condition, leakage consequence and supplier communication. Shaft size and pump model matter, but they are not enough.

A proper pump seal selection checklist helps buyers avoid the most common mistakes: copying a failed seal, ignoring fluid behavior, underestimating temperature, overlooking elastomers, selecting only by price, skipping support systems and treating mechanical seal replacement as a simple commodity purchase.

A strong mechanical seal specification should define what the seal must survive. A useful mechanical seal quotation should respond to real operating conditions, not only dimensions. A reliable mechanical seal supplier should help translate application data into a sealing strategy.

The final lesson is simple:

Buying a mechanical seal is easy. Choosing the right seal requires understanding the pump, the fluid, the process and the consequence of failure.

When buyers provide better information, suppliers can recommend better solutions. When maintenance teams document failure history, repeated mistakes become visible. When engineering and procurement work together, seal decisions become more reliable.

The right mechanical seal is not the one that only fits the pump.

It is the one that fits the real application.
