Chemical-Resistant Mechanical Seals: How to Seal Corrosive, Crystallizing and Aggressive Fluids

Chemical sealing is not a normal pump sealing problem

In many pump applications, mechanical seal selection begins with familiar questions: What is the shaft size? What is the pump model? What was the old seal type? What is the operating pressure and temperature? These questions matter, but in chemical services they are only the starting point.

A chemical process pump can create a much more complicated sealing challenge than a clean water pump or a general utility pump. The fluid may be corrosive, volatile, toxic, flammable, crystallizing, sticky, oxidizing, solvent-based, or sensitive to contamination. It may change concentration during operation. It may react with air. It may form deposits when temperature changes. It may attack elastomers even when the seal faces look suitable. It may damage springs, gland plates, sleeves, and metal parts that buyers rarely notice during basic selection.

This is why a chemical resistant mechanical seal is not simply a mechanical seal with a stronger face material. It is a complete compatibility decision.

A seal may fit the pump perfectly and still fail quickly if the process fluid attacks the O-rings. A seal face may be hard enough for wear but chemically unsuitable for the fluid. A metal spring may corrode and lose force. A gland surface may pit. A solvent may swell an elastomer. An acid may attack a binder. An alkali may damage a material that worked well in neutral water. A crystallizing liquid may build deposits around the seal faces and create leakage even when corrosion is not severe.

Chemical sealing therefore requires a different mindset. The question is not only, “Can this seal fit the pump?”

The better question is, “Can every wetted part of this seal survive the real chemistry, temperature, concentration, vapor behavior, cleaning cycle, and failure consequence of this process?”

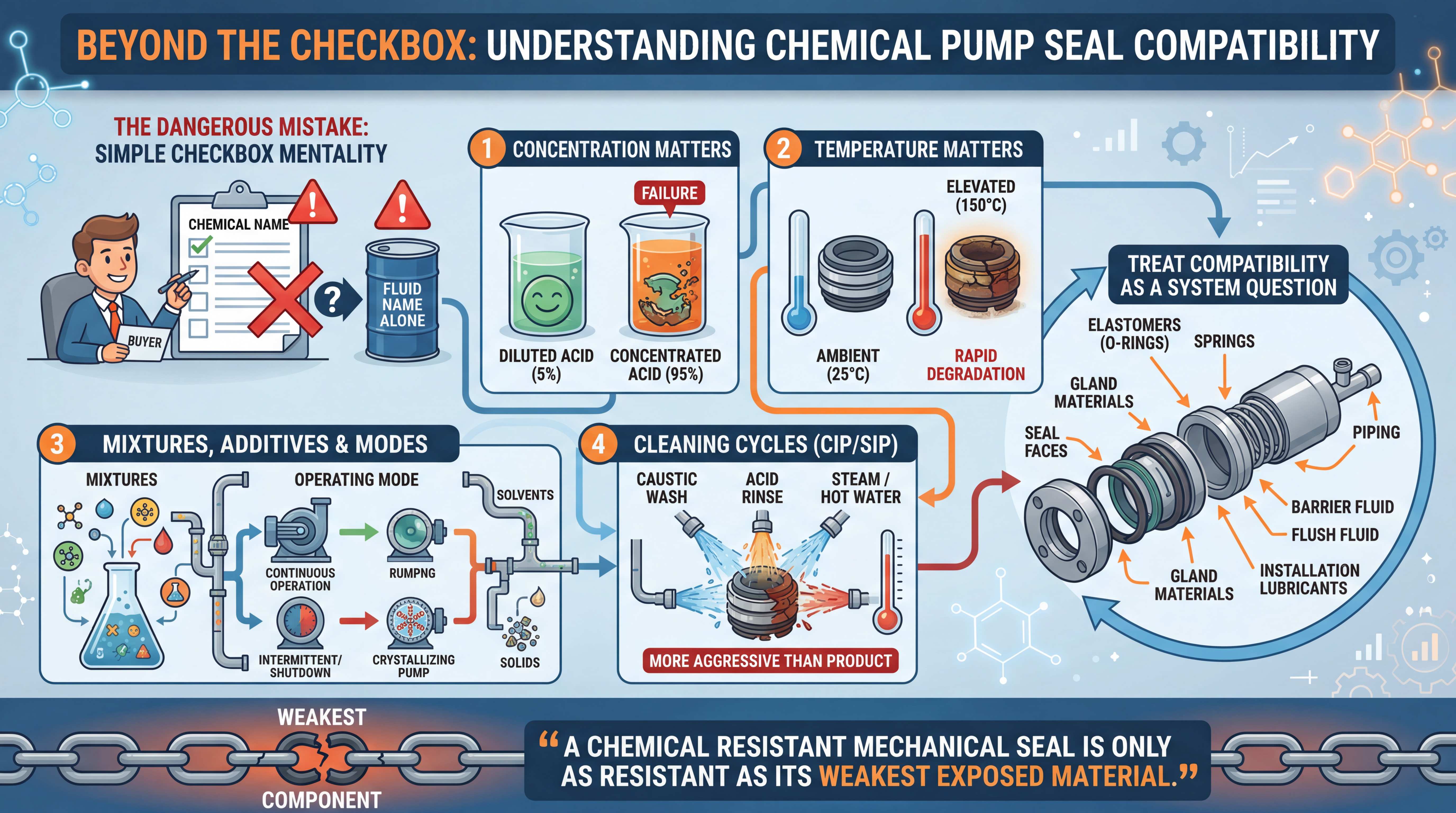

The most dangerous mistake is treating chemical compatibility as a single checkbox

Many buyers think of mechanical seal compatibility as a simple material chart decision. They look up a fluid name, check whether a material is marked compatible, and assume the seal is safe. This approach can be useful as a first filter, but it is not enough for serious chemical pump seal selection.

Chemical compatibility is not controlled by fluid name alone.

Concentration matters. A material that survives diluted acid may not survive concentrated acid. Temperature matters. A seal material that performs at ambient temperature may degrade rapidly at elevated temperature. Mixtures matter. A pump may handle more than one chemical, or the fluid may contain additives, cleaning agents, solvents, impurities, or suspended solids. Operating mode matters. A seal that survives continuous flooded operation may fail during intermittent operation, dry starts, or shutdown periods where crystallization occurs.

Cleaning cycles also matter. In food, pharmaceutical, chemical blending, and process plants, a seal may be exposed not only to the normal product but also to cleaning fluids. Caustic wash, acid rinse, sterilization, hot water, steam, or solvent cleaning may be more aggressive than the process liquid itself. If the seal is selected only for the product and not for the cleaning cycle, failure may appear mysterious.

Chemical compatibility should be treated as a system question. Seal faces, elastomers, springs, gland materials, sleeves, piping, barrier fluid, flush fluid, and even installation lubricants may need to be checked.

A chemical resistant mechanical seal is only as resistant as its weakest exposed material.

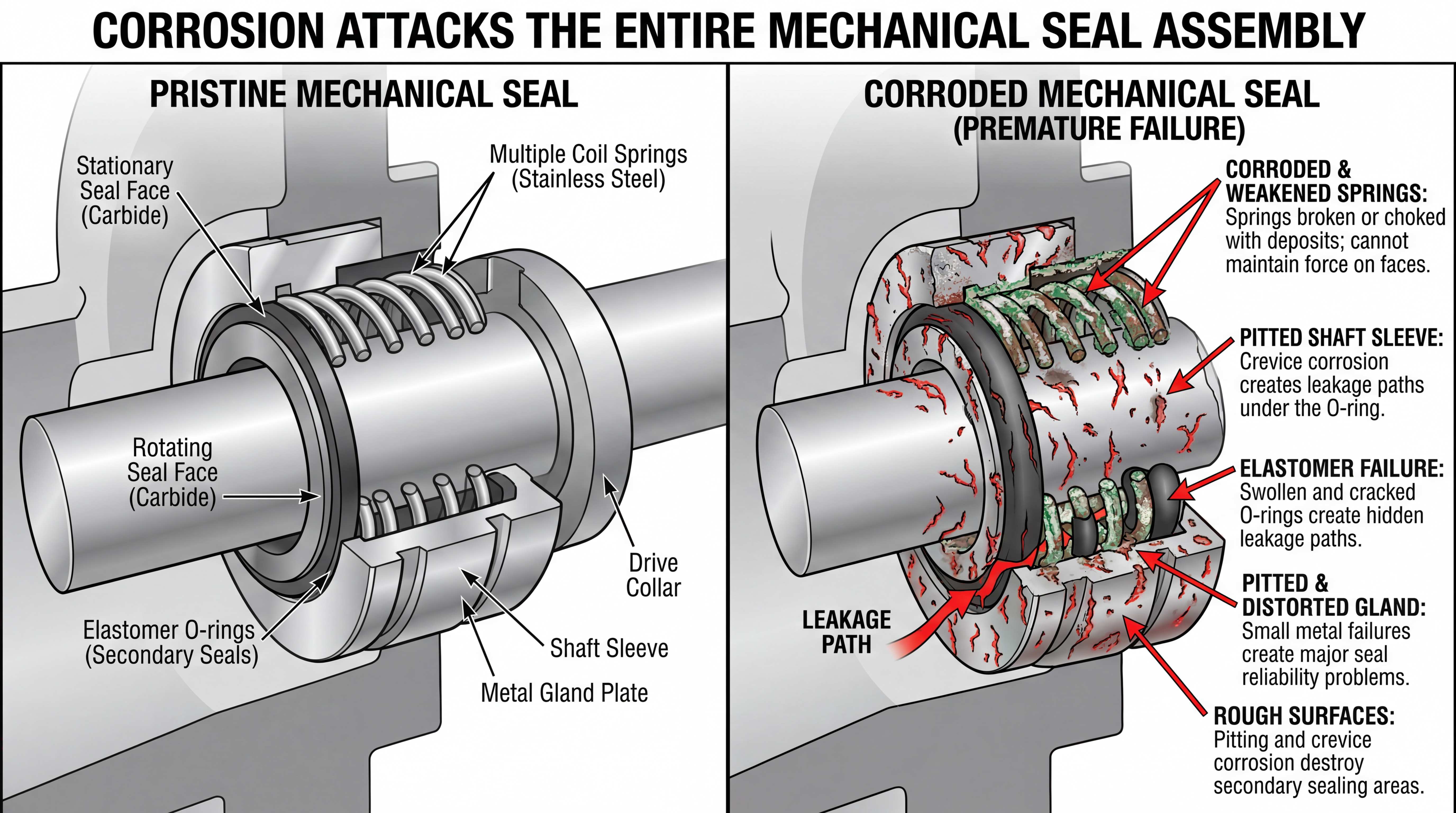

Corrosive fluids attack more than the seal faces

When people imagine a corrosive fluid seal, they often think about the main seal faces. The faces are important, but corrosion can attack many other areas first.

Springs are a common weak point. A spring must maintain force on the seal faces. If the spring corrodes, weakens, breaks, or becomes clogged with deposits, the faces may separate or lose proper loading. The seal may leak even if the faces themselves are not badly worn.

Metal components can also be vulnerable. Gland plates, retainers, drive collars, set screws, sleeves, and other wetted parts may experience pitting, crevice corrosion, or stress corrosion depending on the chemical environment. Once corrosion creates rough surfaces, secondary seals may no longer seal properly. Pitted sleeves can create leakage paths under O-rings. Corroded glands can distort sealing surfaces. Small metal failures can create major seal reliability problems.

Elastomers may fail even faster than metal parts. A mechanical seal elastomer can swell, shrink, harden, soften, crack, or lose elasticity when exposed to incompatible chemicals. This is especially important because elastomer failure often creates hidden leakage paths. The seal faces may look acceptable, but the pump still leaks because the secondary sealing system has failed.

This is why corrosion should not be evaluated only by looking at face materials. A proper chemical pump seal must be evaluated as a complete assembly.

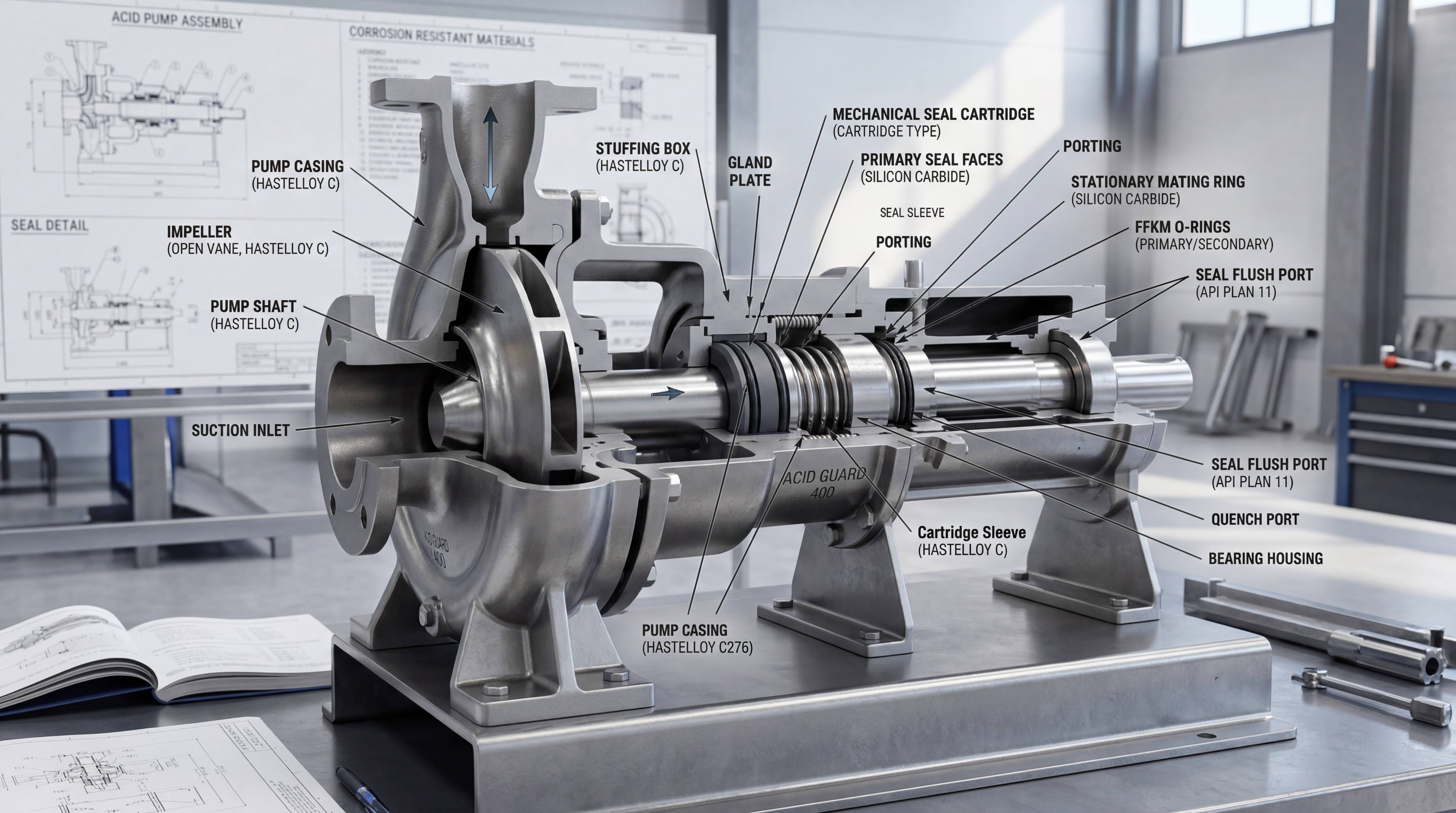

Acid pump seal selection requires more than “chemical resistance”

An acid pump seal must be selected with careful attention to acid type, concentration, temperature, impurities, and operating behavior. Different acids create very different sealing challenges.

Some acids are strongly corrosive to metals. Some are oxidizing. Some are relatively mild at low concentration but aggressive at high concentration. Some become more aggressive with temperature. Some generate fumes or vapor concerns. Some react with certain materials even when general compatibility charts appear favorable.

For acid services, the seal faces, elastomers, and metal parts must all be reviewed. Silicon carbide may be suitable for many chemical duties, but the exact grade and construction still matter. Carbon may work in some acid services but not others. Elastomers must be chosen carefully. FKM, EPDM, PTFE-based materials, FFKM, and other options may be considered depending on the acid and temperature, but no single elastomer is universal.

Metal parts also need attention. Stainless steel may be suitable for some acids and unsuitable for others. Hastelloy or other corrosion-resistant alloys may be necessary in severe services. Springs may need special material selection or protection from direct exposure.

The mistake is assuming that “acid service” is one category. It is not. Hydrochloric acid, sulfuric acid, nitric acid, acetic acid, phosphoric acid, and mixed acid streams can require very different seal strategies.

A professional acid pump seal recommendation must start with the exact chemical conditions.

Alkali pump seal selection has its own risks

An alkali pump seal is not automatically easier than an acid service seal. Caustic solutions, alkaline cleaners, sodium hydroxide, potassium hydroxide, and other high-pH fluids can create serious compatibility challenges.

Some materials that resist acids may not perform well in strong alkalis. Elastomer selection becomes especially important. High-pH fluids can attack or degrade certain rubber compounds. Temperature can accelerate the problem. Cleaning cycles may expose the seal to hot caustic solutions, which can be more aggressive than normal process conditions.

Alkali services can also create crystallization or deposit issues. If the fluid dries near the seal faces or around the atmosphere side of the seal, deposits may form. These deposits can restrict movement, scratch faces, or damage elastomers. If the seal chamber has poor circulation, local concentration changes may occur.

The correct alkali pump seal should consider chemical compatibility, temperature, concentration, cleaning frequency, leakage consequence, and whether the process fluid can crystallize or leave residue.

A plant should not assume that a seal working in neutral water will survive caustic cleaning. It may not. If the pump handles both product and cleaning fluids, the seal must be compatible with both.

Solvent pump seals must consider swelling, vaporization and safety

A solvent pump seal introduces another set of problems. Solvents can attack elastomers, extract plasticizers, cause swelling, create shrinkage, or reduce mechanical strength. Some solvents are also volatile, flammable, toxic, or low in lubricity.

This makes solvent sealing especially sensitive.

The first concern is elastomer compatibility. A solvent may cause an O-ring to swell and lose shape. Another solvent may cause shrinkage or hardening. In either case, the secondary seal may stop working correctly. Leakage may appear even if the face materials are still acceptable.

The second concern is vaporization. Many solvents have relatively high vapor pressure. If the fluid flashes near the seal faces, the lubricating film may become unstable. The mechanical seal may experience heat, dry running-like damage, face wear, or intermittent leakage. In these cases, a simple single seal may not be enough, and a support system, cooling plan, or double seal arrangement may need to be considered.

The third concern is safety. A leaking solvent can create vapor exposure, odor, fire risk, or environmental concerns. The seal decision is therefore not only about service life. It may also involve containment, emissions, worker safety, and plant standards.

A solvent pump seal should be selected with chemistry and risk in mind. It is not enough to ask whether the seal can physically handle the fluid. The plant must ask what happens if the seal leaks, flashes, or loses elastomer integrity.

Crystallizing fluids create mechanical problems from chemical behavior

A crystallizing fluid seal is one of the most challenging types of chemical sealing. In these applications, the fluid may be pumpable and manageable inside the process, but it forms crystals or deposits when exposed to air, pressure drop, temperature change, evaporation, or concentration shift.

This creates a unique problem. The failure may not begin as corrosion or wear. It may begin as buildup.

Crystals can form around the seal faces, springs, gland area, flush ports, atmosphere side, or shaft sleeve. Once deposits accumulate, they can prevent springs from moving, scratch seal faces, block flush flow, tear elastomers, or hold the faces open. The seal may leak because it can no longer move as designed.

Crystallization can be especially troublesome during shutdown. When the pump stops, fluid may remain in the seal chamber. If temperature changes or evaporation occurs, deposits can form. When the pump restarts, the seal may begin operation with crystals already present near the faces. This can cause immediate scoring or leakage.

The correct strategy for crystallizing fluids often includes environmental control. This may involve flushing, quenching, heating, cooling, double seal arrangements, barrier fluid, or procedures that prevent the fluid from drying or concentrating near the seal.

For crystallizing fluids, the seal selection should not focus only on material compatibility. It must also consider what the fluid does when the pump is stopped, vented, heated, cooled, or exposed to air.

Chemical attack can look like ordinary mechanical failure

One reason chemical seal failures are difficult to diagnose is that chemical attack may appear as a mechanical problem.

An elastomer that swells may become pinched, rolled, or extruded. The final symptom may look like installation damage. A corroded spring may lose force, causing face separation. The final symptom may look like poor compression. A pitted sleeve may create leakage under an O-ring. The final symptom may look like a shaft surface problem. A face material attacked by chemistry may develop roughness or cracks that look like wear.

This is why failure analysis should include chemical review.

If a seal fails repeatedly in the same chemical service, the maintenance team should ask whether the failure pattern matches the fluid. Are elastomers swollen, soft, cracked, or hardened? Are metal parts pitted or discolored? Are springs weakened? Are deposits present? Did the failure occur after a cleaning cycle? Did the process concentration change? Did the temperature increase? Was a different supplier’s chemical introduced? Was the pump idle for a long time before restart?

A failed chemical pump seal should be treated as evidence of process interaction, not just evidence of component damage.

The seal is telling a chemical story. The maintenance team has to read it correctly.

Temperature changes can turn a compatible seal into a failing seal

Temperature is one of the most important variables in chemical sealing. A material that is compatible at one temperature may not be reliable at another.

Higher temperature can accelerate chemical attack. It can also reduce elastomer life, increase vapor pressure, encourage flashing, lower fluid viscosity, and increase the risk of dry running at the seal faces. Thermal cycling can also stress seal faces and secondary seals. Repeated heating and cooling may cause expansion differences, face distortion, or elastomer fatigue.

This is especially important in chemical process pumps that operate under batch conditions. The same pump may see cold startup, hot operation, cleaning cycles, and idle cooling. Each stage affects the seal differently.

A seal selected only for normal operating temperature may fail during cleaning or startup. For example, a pump handling a moderate chemical at room temperature may also experience hot caustic cleaning. If the elastomer is not suitable for that cleaning temperature, failure may occur even though normal production conditions seem acceptable.

Temperature must be evaluated across the entire operating cycle, not only steady-state production.

Concentration changes are easy to overlook

Chemical concentration can change during operation, cleaning, evaporation, dilution, batch transitions, or process upset. These changes can strongly affect seal compatibility.

A diluted chemical may be relatively mild, while a concentrated version may be highly aggressive. A fluid may become more concentrated near the seal faces if evaporation occurs. A crystallizing fluid may leave a more aggressive residue after liquid evaporates. Cleaning agents may be used at higher concentration than expected. Operators may adjust chemical strength during production.

If the seal was selected based on a nominal concentration, it may not survive the real range.

This is especially important for acids, alkalis, solvents, and process additives. Buyers should provide not only the chemical name but also concentration range, temperature range, and possible cleaning or upset conditions.

A chemical resistant mechanical seal must be selected for the worst credible operating condition, not only the average condition.

Mechanical seal elastomer selection is often the weakest link

The mechanical seal elastomer is one of the most important and most frequently underestimated parts of a chemical seal. O-rings, gaskets, bellows, and other secondary sealing elements often determine whether a seal can survive chemical exposure.

Elastomer failure can appear in many forms.

Swelling can cause the O-ring to become too large, lose shape, or create excessive friction. Shrinking can reduce sealing force and create leakage paths. Hardening can prevent the elastomer from following surface movement. Softening can cause extrusion or tearing. Cracking can create direct leakage. Chemical absorption can change mechanical behavior. Thermal exposure can accelerate all of these problems.

The difficulty is that elastomer failure may not be visible from outside the pump until leakage occurs. The seal faces may still look acceptable, but the secondary seal has already failed.

Selecting the correct elastomer requires knowledge of chemical composition, temperature, pressure, cleaning agents, and exposure time. It also requires understanding whether the elastomer is dynamic or static in the seal design.

In many chemical pump seal failures, upgrading the face materials does nothing because the real failure point is the elastomer.

Face material selection still matters, but it is not the whole answer

Seal face materials are still important in chemical service. Carbon, silicon carbide, tungsten carbide, ceramic, and other materials each have strengths and limits. Chemical resistance, wear resistance, thermal behavior, and friction characteristics all matter.

Silicon carbide is often used in chemical resistant mechanical seal applications because it offers strong corrosion and wear resistance in many services. Carbon may still be useful in certain face pairings because of its sliding behavior. Tungsten carbide may be considered where abrasion or toughness is important, but binder compatibility must be reviewed. Ceramic may be acceptable in some mild services but may not be suitable for severe chemical or thermal conditions.

However, chemical sealing cannot be solved by face material alone.

A seal with strong silicon carbide faces can fail if the O-rings swell. A hard face pair can fail if the fluid flashes and the seal runs dry. A chemically resistant face can fail if springs corrode. A suitable face pair can fail if crystals build up and hold the faces open.

Face material selection is one part of chemical compatibility. It is not the entire decision.

Single or double mechanical seal for chemical process pumps?

A chemical process pump may use a single seal, double seal, or other sealing arrangement depending on fluid risk and process needs.

A single mechanical seal may be suitable for non-hazardous, non-volatile, compatible chemical fluids where leakage consequence is manageable and the fluid provides acceptable lubrication.

A double mechanical seal may be needed when the fluid is toxic, flammable, volatile, hazardous, environmentally restricted, crystallizing, poor in lubrication, or not allowed to leak. A barrier fluid or buffer fluid system may help create a controlled environment and prevent process fluid from reaching the atmosphere.

However, a double seal is not automatically the best answer. It adds cost, complexity, monitoring requirements, and support system responsibilities. If the plant cannot maintain the barrier or buffer system, reliability may suffer.

The decision should be based on leakage consequence, fluid behavior, safety requirements, maintenance capability, and total cost of failure.

For chemical services, the question is often not “single or double?” but “what containment and environmental control does this fluid require?”

Support systems can be essential in chemical sealing

Chemical mechanical seals often require support systems to control the sealing environment. A flush may prevent crystallization, remove heat, or dilute aggressive material near the seal faces. A quench may prevent deposits on the atmosphere side. A barrier fluid system may protect against hazardous leakage. A buffer fluid system may help collect or control leakage. Cooling may prevent vaporization. Heating may prevent solidification.

The support system must be compatible with the process. A flush fluid that reacts with the product can create problems. A barrier fluid that contaminates the process may be unacceptable. A cooling system that overcools a crystallizing fluid may cause deposits. A heating system that increases vapor pressure may create another problem.

Support systems are powerful, but they must be designed for the fluid.

For crystallizing fluid seal applications, support systems may be more important than face materials. For solvent applications, pressure and temperature control may determine whether the seal faces stay lubricated. For hazardous chemical services, containment may be the primary requirement.

A chemical pump seal should be selected together with the support system, not separately from it.

Startup, shutdown and idle time can decide seal life

Many chemical seal failures occur during transitions rather than stable operation.

During startup, the seal may not yet have stable lubrication. Air may be trapped. Flush systems may not be active. The process fluid may not be at normal temperature or concentration. If the seal chamber is not properly prepared, early damage can occur.

During shutdown, fluid may remain near the seal. If it crystallizes, dries, polymerizes, or reacts with air, the seal may be damaged before the next startup. If cleaning fluids remain in the chamber, elastomers may be exposed longer than expected. If a volatile solvent evaporates, deposits or dry conditions may appear.

Idle time is especially important. A pump that runs continuously may perform well, while the same seal may fail when the pump sits idle for days with chemical residue inside the seal chamber.

Chemical sealing procedures should therefore include shutdown and restart logic. The question is not only how the seal runs, but what happens when the pump is not running.

Cleaning chemicals must be included in seal selection

In many industries, cleaning chemicals are a hidden cause of mechanical seal failure.

Food, beverage, pharmaceutical, personal care, and chemical blending plants often use cleaning-in-place or washdown procedures. These may involve hot water, steam, caustic solution, acid rinse, sanitizers, solvents, or disinfectants. The seal may see these chemicals repeatedly, sometimes at elevated temperature.

If the seal is selected only for the process fluid, the cleaning fluid may damage it.

For example, an elastomer compatible with the product may not tolerate hot caustic. A material suitable for a mild fluid may fail after repeated acid cleaning. A seal face may survive production but suffer thermal shock during cleaning. A lubricant used during installation may not be compatible with cleaning agents.

The correct approach is to list all fluids the seal will contact: process fluid, cleaning fluid, flush fluid, barrier fluid, installation lubricant, and any possible upset fluid.

A chemical resistant mechanical seal must survive the full exposure profile, not only the main product.

Questions buyers should answer before requesting a chemical seal

A buyer requesting a chemical pump seal should provide more than shaft size and pump model. The supplier needs application information to recommend a reliable sealing solution.

The first question is the exact fluid name and composition. If the fluid is a mixture, list the components. If concentration changes, provide the range.

The second question is temperature. Include normal, maximum, minimum, cleaning, and startup temperatures.

The third question is pressure and speed. Seal loading and vaporization risk depend on operating conditions.

The fourth question is chemical behavior. Does the fluid crystallize, polymerize, evaporate, foam, contain solids, or react with air?

The fifth question is hazard level. Is the fluid toxic, flammable, corrosive, odor-sensitive, environmentally restricted, or expensive?

The sixth question is leakage tolerance. Can leakage be accepted, contained, collected, or must it be prevented?

The seventh question is cleaning exposure. What cleaning chemicals are used? At what temperature and concentration?

The eighth question is failure history. What failed before: faces, elastomers, springs, metal parts, or support system?

This information turns a basic inquiry into a real engineering recommendation.

How maintenance teams should inspect chemical seal failures

When a chemical seal fails, the maintenance team should inspect more than the leak location.

Check elastomers first. Are they swollen, brittle, cracked, soft, sticky, flattened, or chemically changed? This can reveal compatibility problems.

Inspect metal parts. Are springs corroded? Is the gland pitted? Are set screws damaged? Is the sleeve rough? Is there evidence of crevice corrosion?

Inspect faces. Are they scored, cracked, blistered, chemically roughened, or covered with deposits? Do they show heat damage? Are there crystals at the edges?

Inspect the seal chamber. Are deposits present? Is there dried product? Is a flush port blocked? Are there signs of vaporization or overheating?

Review process history. Did the fluid change? Was there a cleaning cycle? Did temperature rise? Was the pump idle? Was a new chemical supplier used? Did the pump run dry?

A failed chemical resistant mechanical seal should be analyzed as part of the process, not as an isolated spare part.

A practical selection logic for corrosive and aggressive fluids

A practical selection process begins with identifying the dominant chemical risk.

If the main risk is corrosion, focus on wetted material compatibility across faces, elastomers, springs, and metals.

If the main risk is solvent attack, focus on elastomer swelling, vapor pressure, flammability, and containment.

If the main risk is crystallization, focus on deposits, quench, flush, heating, shutdown procedure, and seal movement.

If the main risk is high temperature, focus on thermal stability, cooling, vaporization, elastomer limits, and face distortion.

If the main risk is hazardous leakage, focus on seal arrangement, double seals, barrier or buffer systems, monitoring, and safety standards.

If the main risk is cleaning chemicals, include the cleaning cycle in material selection.

This logic prevents the common mistake of choosing a seal based on one visible factor. Chemical sealing requires identifying what will actually kill the seal.

Conclusion: chemical sealing is a compatibility strategy

A chemical resistant mechanical seal is not just a stronger seal. It is a compatibility strategy built around the real process fluid.

A corrosive fluid seal must protect every wetted component, not only the seal faces. A chemical pump seal must consider acids, alkalis, solvents, crystallizing fluids, cleaning agents, temperature, concentration, vapor pressure, and leakage consequence. An acid pump seal may require different materials from an alkali pump seal. A solvent pump seal must address elastomer swelling and vapor risk. A crystallizing fluid seal must prevent deposits and movement restriction. A mechanical seal elastomer may become the weakest point if it is not selected correctly.

The central lesson is simple: chemical seal reliability does not come from a part number alone.

It comes from understanding the full chemical environment.

Before choosing a seal, define the fluid, concentration, temperature, cleaning exposure, shutdown behavior, hazard level, support system, and failure history. Then select the face materials, elastomers, metal parts, seal arrangement, and auxiliary system as one complete solution.

In chemical process pumps, the wrong seal may not fail because it is poorly made. It may fail because the application was poorly understood.

For long-term reliability, the best question is not, “Which mechanical seal fits this pump?”

The best question is, “Which sealing system can survive this chemical process from startup to shutdown, from normal operation to cleaning, and from average conditions to the worst credible exposure?”
