Spring Return vs Double Acting Pneumatic Actuators: Choosing the Right Fail-Safe Mode

Quick Answer: What Is the Difference Between Spring Return and Double Acting Pneumatic Actuators?

A spring return pneumatic actuator uses compressed air to move the actuator in one direction and internal springs to return it in the opposite direction when air pressure is removed. This design is also called a single acting actuator. It is commonly used when the valve must move to a defined safe position during air failure, such as fail closed or fail open.

A double acting pneumatic actuator uses compressed air to move the actuator in both directions. One air port drives the actuator to open, and the other air port drives it to close. Because it does not rely on internal springs for return movement, it usually needs air pressure for both strokes. Double acting actuators are often used when stable compressed air is available, when fail-safe return is not required, or when the system has another method to manage failure behavior.

The most important difference is not only mechanical structure. The real difference is failure behavior. A spring return pneumatic actuator is a fail-safe actuator by design when properly configured. A double acting pneumatic actuator is usually more dependent on continuous air supply and control logic. That means the selection should begin with one question: What should the valve do when air pressure is lost?

If the valve must close during failure, choose a fail close actuator configuration. If the valve must open during failure, choose a fail open actuator configuration. If the valve can stay in its last position and the process does not require automatic return, a double acting pneumatic actuator may be suitable.

Why This Topic Matters in Valve Automation

In pneumatic valve automation, many buyers first focus on valve size, actuator torque, or price. These points matter, but they are not the starting point. The first question should be about process safety and valve behavior during failure.

A valve is not only installed to control flow during normal operation. It is also part of the plant’s response to abnormal conditions. When compressed air is lost, when power to the solenoid valve is removed, when an emergency stop is activated, or when the control system fails, the valve may need to move to a safe position.

This is where the difference between a spring return pneumatic actuator and a double acting pneumatic actuator becomes critical.

For example, a chemical feed valve may need to close if air pressure is lost, because uncontrolled chemical flow could create process or safety problems. A cooling water valve may need to open if failure occurs, because equipment must continue receiving cooling flow. A utility isolation valve may be allowed to remain in its last position because the line is not safety-critical.

These are three different process decisions. They may all use pneumatic actuators, but they should not use the same actuator logic.

That is why pneumatic actuator selection should never be treated as a simple product comparison. It is a decision about safety, process continuity, control strategy, and maintenance reality.

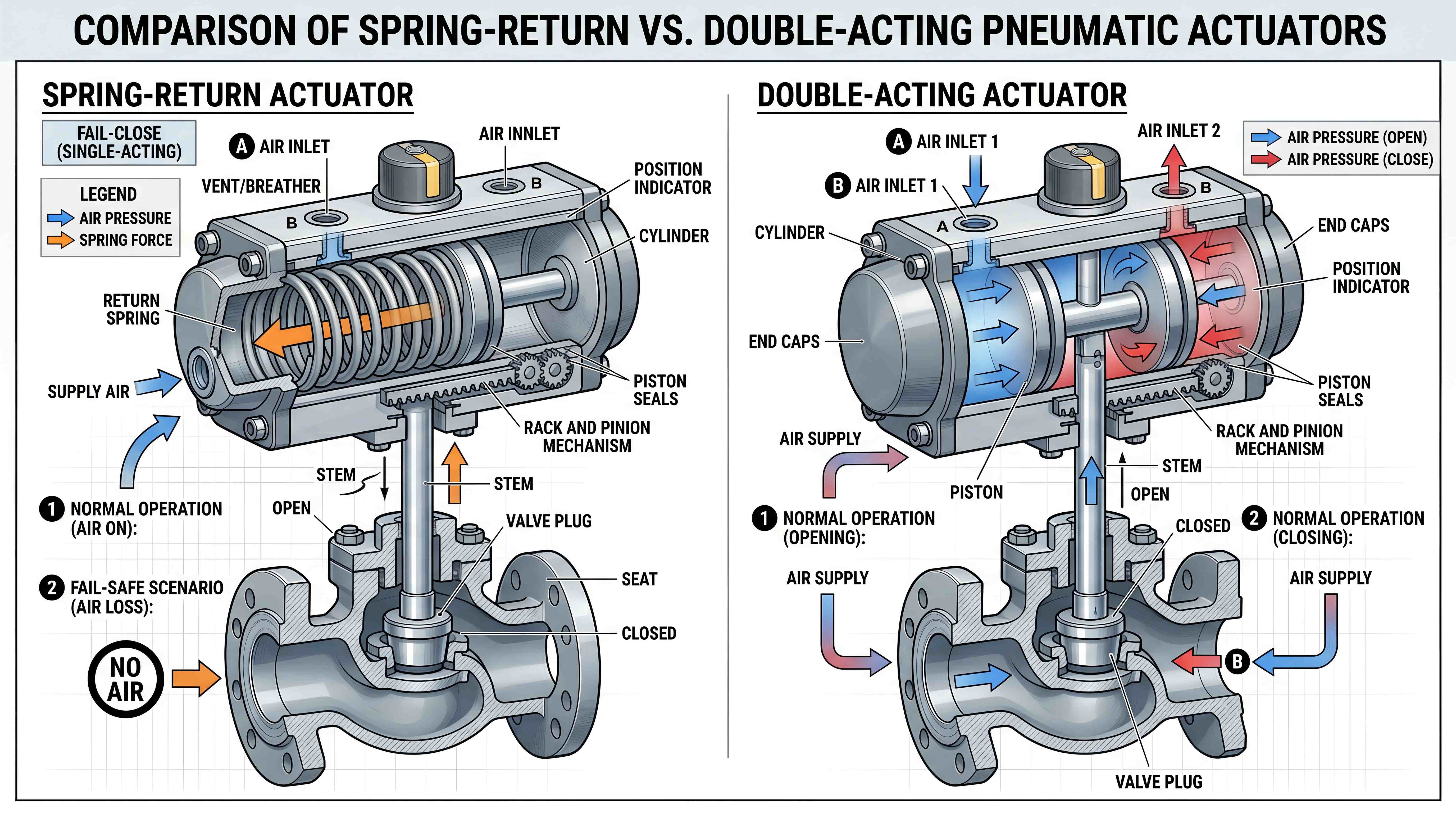

How a Spring Return Pneumatic Actuator Works

A spring return pneumatic actuator uses compressed air and mechanical spring force together. In one direction, compressed air enters the actuator and moves the piston or mechanism. In the other direction, internal springs push the actuator back when air pressure is removed.

For a quarter-turn valve, such as a pneumatic ball valve actuator or pneumatic butterfly valve actuator, this motion usually creates a 90-degree rotation. The actuator turns the valve stem to open or close the valve. When air is removed, the spring forces the actuator back to its default position.

This default position can be configured in different ways. The actuator may be installed so that the valve fails closed. It may also be installed so that the valve fails open. The correct choice depends on the application.

A spring return pneumatic actuator is also commonly called a single acting actuator. The term “single acting” means that compressed air actively drives one stroke, while spring force drives the return stroke.

In a typical air to open actuator configuration, compressed air opens the valve, and spring force closes it when air is removed. This is common for fail close actuator applications. In an air to close configuration, compressed air closes the valve, and spring force opens it when air is removed. This is used when fail open behavior is required.

The design is simple in principle, but the selection must be precise. The spring force must be strong enough to move the valve to its required position under actual process conditions. The actuator must also generate enough torque during the air-driven stroke. If either side is undersized, the valve may fail to open fully, fail to close fully, or move slowly under load.

How a Double Acting Pneumatic Actuator Works

A double acting pneumatic actuator uses compressed air for both directions of travel. Instead of relying on springs to return the actuator, it has two air chambers. Air pressure enters one chamber to move the actuator in one direction, and air enters the opposite chamber to move it back.

For a quarter-turn valve, one air signal opens the valve and another air signal closes it. A 5/2 solenoid valve is often used to direct air to the correct actuator port. In some systems, a 5/3 solenoid valve may be used when a center position or special control logic is required.

The main advantage of a double acting pneumatic actuator is that air pressure drives both strokes. This can be useful when both opening and closing torque are important. It can also be more compact in some torque ranges because there is no internal spring pack occupying space. In certain applications, double acting actuators may also be more cost-effective than spring return actuators.

However, a double acting actuator does not automatically return the valve to a safe position when air is lost. Depending on the solenoid valve, tubing, air leakage, and load condition, the valve may remain in its last position, drift, or fail to move as expected.

This does not mean double acting actuators are unsafe. It means their failure behavior must be managed differently. They may be perfectly suitable for non-critical isolation, utility systems, stable compressed air networks, or applications where fail-in-place is acceptable.

The problem occurs when a double acting actuator is used in a service that actually requires fail close or fail open movement. In that case, the actuator design does not match the process safety requirement.

The Real Selection Question: What Should the Valve Do During Failure?

The best way to choose between spring return and double acting is to start with a failure scenario.

What happens if compressed air pressure is lost?

What happens if the solenoid valve loses power?

What happens if the PLC output is removed?

What happens if an emergency shutdown signal is triggered?

What happens if the actuator tubing leaks?

What happens if the valve is left in its last position?

These questions are more important than the actuator price. They define whether the valve needs a fail-safe actuator.

If the valve must close during failure, a spring return fail close actuator is usually the direct solution. If the valve must open during failure, a spring return fail open actuator may be required. If the valve may remain in its last position without creating danger or process damage, a double acting pneumatic actuator may be acceptable.

In real projects, failure position should be defined by process engineering, not by purchasing convenience. The correct failure mode depends on the media, process risk, equipment protection, environmental safety, and operational philosophy.

For example, a steam valve, chemical dosing valve, fuel gas valve, cooling water valve, and compressed air isolation valve may all require different failure behavior. Choosing the same actuator type for all of them would be poor engineering.

Fail Closed: When the Valve Should Shut During Air Loss

A fail close actuator is used when the valve should close automatically if air pressure or control energy is lost. This is one of the most common reasons to choose a spring return pneumatic actuator.

Fail close behavior is often used when continued flow would create risk. For example, a chemical injection line may need to close to prevent overfeeding. A fuel supply valve may need to close to reduce fire or explosion risk. A process inlet valve may need to close to stop uncontrolled material entry. A tank filling valve may need to close to prevent overflow.

In a typical fail close design, the actuator may be air to open. During normal operation, compressed air opens the valve. If the air is removed, the springs drive the actuator back and close the valve.

This design is simple and understandable. Maintenance teams can usually test it by removing air pressure under controlled conditions and confirming that the valve moves to the closed position.

However, fail close selection still requires careful torque review. The spring return force must be sufficient to close the valve against process pressure, seat friction, media resistance, and any valve aging. If the spring pack is too weak, the valve may not close fully during failure. That can create a dangerous false sense of safety.

For critical services, buyers should request actuator sizing data and confirm that both the air stroke and spring stroke have sufficient torque margin.

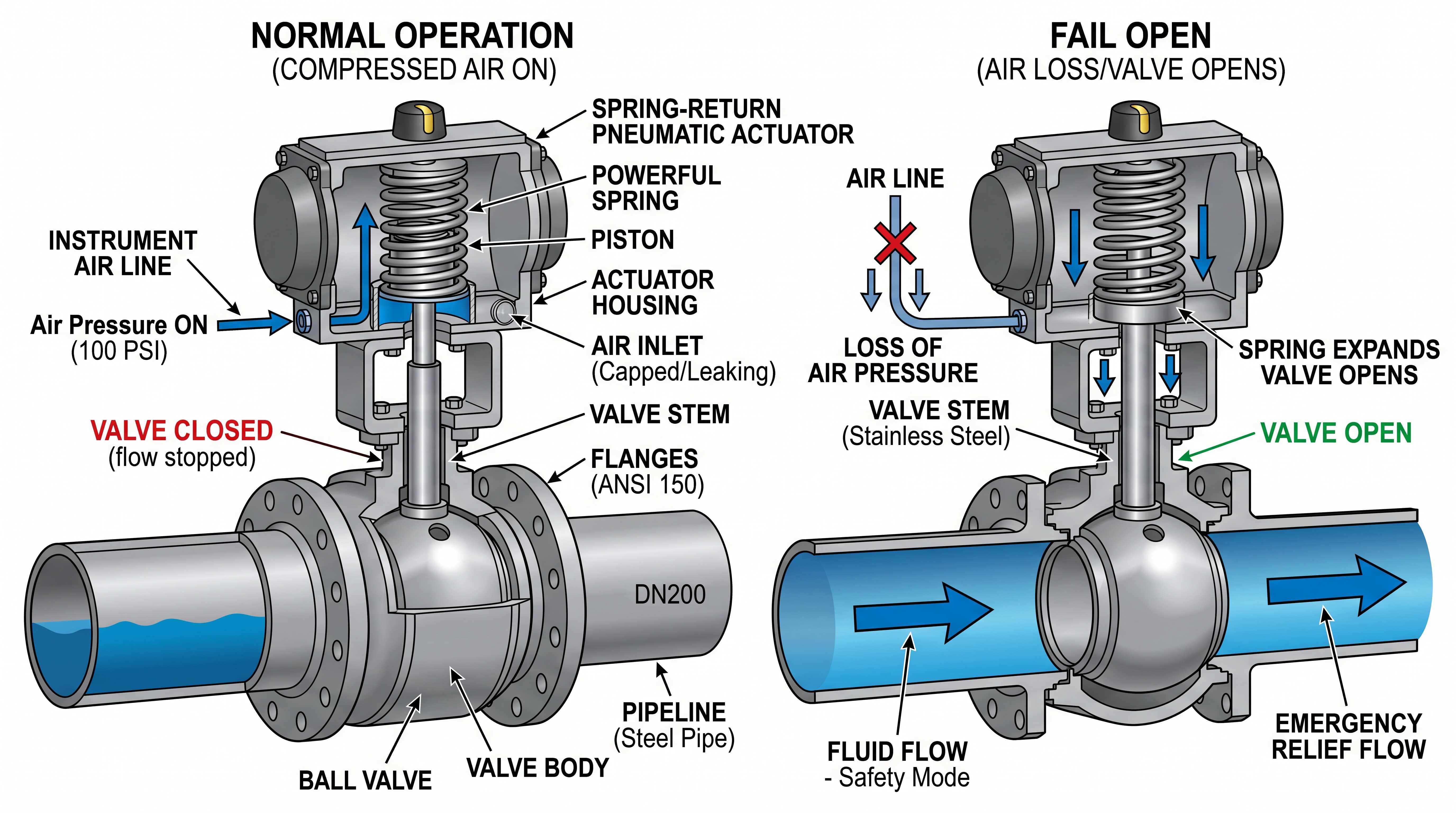

Fail Open: When the Valve Should Open During Air Loss

Fail open behavior is used when flow must continue during failure. This is less common than fail close in some industries, but it is extremely important in certain applications.

For example, a cooling water valve may need to open during failure to protect equipment from overheating. A vent valve may need to open to relieve pressure. A safety-related drain or bypass valve may need to open under emergency conditions. Some process systems may require a valve to open so that pressure, temperature, or fluid level can move toward a safer state.

In this case, a spring return actuator can be configured so that the springs open the valve when air is removed. The actuator may be air to close during normal operation and spring to open during failure.

Fail open design should not be chosen casually. It must be based on a clear process reason. If the wrong valve fails open, the result could be uncontrolled discharge, product loss, contamination, or safety risk.

The selection process should include the same torque review as fail close service. The spring must have enough force to open the valve under actual conditions. If the valve is sticky, the media is viscous, or the pressure differential is high, the actuator must be sized accordingly.

A fail open actuator is not just an actuator option. It is part of the plant’s emergency behavior.

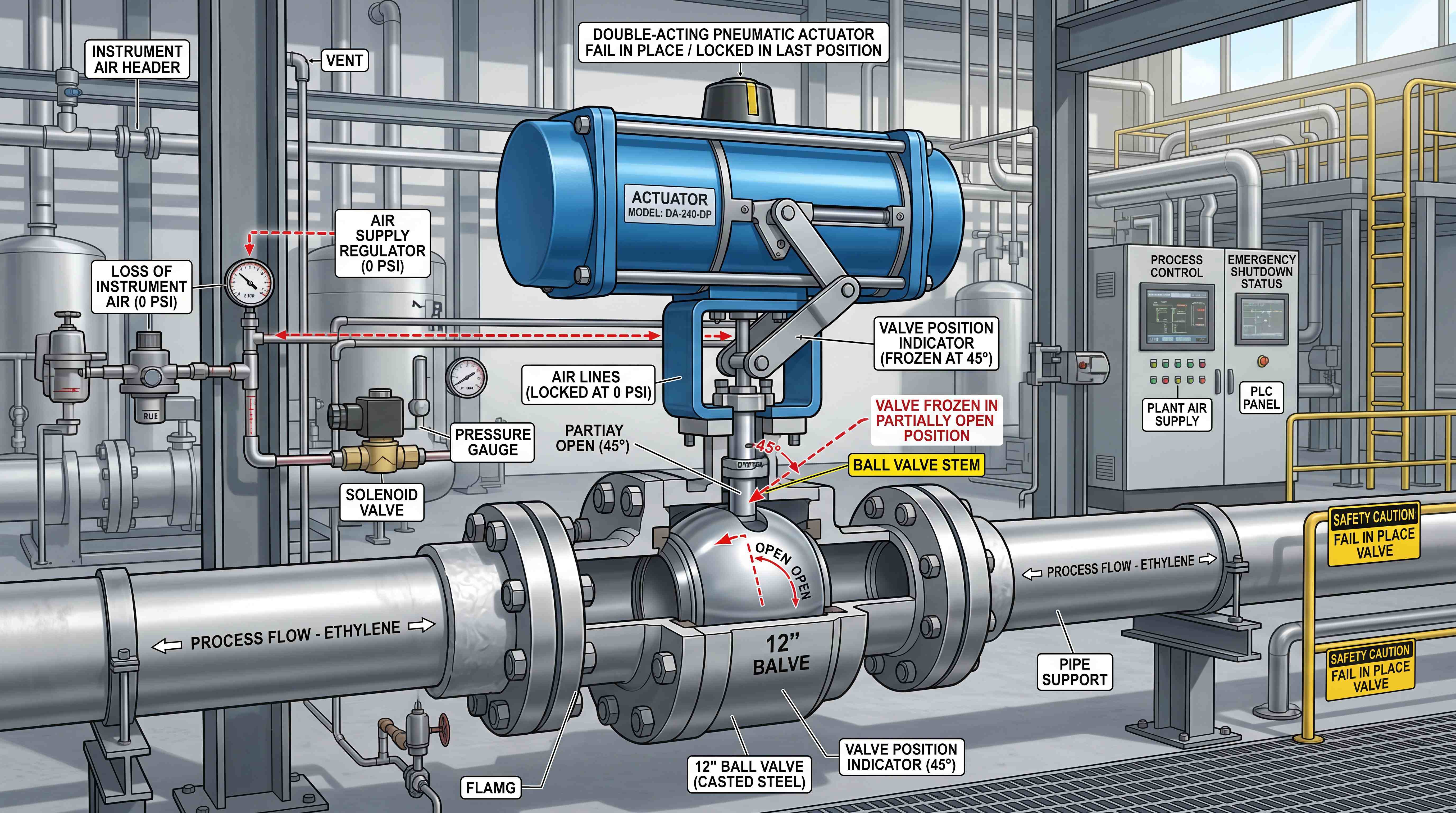

Fail in Place: When Staying Put Is Acceptable

Not every valve needs to move during failure. In some applications, the safest or most practical behavior is to stay in the last position. This is often called fail in place.

A double acting pneumatic actuator may be suitable for this type of service, especially if the process can tolerate the valve remaining where it was when air or power was lost. For example, some utility isolation valves, non-critical transfer lines, flushing systems, or low-risk service valves may not require automatic return.

However, fail in place should be an intentional decision. It should not happen by accident because no one defined the failure mode.

If a valve stays open during failure, what happens? If it stays closed, what happens? If it stops halfway, what happens? These questions must be considered. In some systems, a partially open valve could be more problematic than fully open or fully closed.

Double acting actuators can also be combined with special pneumatic circuits, lock-up devices, accumulators, or safety systems to manage failure behavior. But these configurations should be engineered carefully. They are not the same as the inherent mechanical return of a spring return actuator.

Comparing Spring Return and Double Acting Actuators

This table gives a useful comparison, but it should not replace actual sizing and process review. The final choice must reflect the valve’s duty, not just the actuator’s mechanical design.

Air Consumption and Energy Considerations

Air consumption is another difference between spring return and double acting actuators.

A spring return pneumatic actuator uses compressed air for only one active stroke. The return stroke is powered by springs. In simple terms, it may use air for opening and spring force for closing, or air for closing and spring force for opening.

A double acting pneumatic actuator uses compressed air for both opening and closing. This can mean more air consumption over repeated cycles, especially in high-cycle applications. However, actual air usage depends on actuator size, pressure, cycle frequency, tubing volume, solenoid valve design, and control strategy.

In many plants, air consumption is not just a cost issue. It is also a reliability issue. If too many pneumatic devices operate at the same time, plant air pressure may drop. If the actuator was sized close to the minimum required air pressure, it may fail to operate correctly during pressure dips.

This is especially important for spring return actuators because the air stroke must overcome spring force as well as valve torque. If air pressure is lower than expected, the actuator may not complete the air-driven stroke.

For double acting actuators, low air pressure can affect both opening and closing. The actuator may stall, move slowly, or fail to seat the valve fully.

Therefore, pneumatic actuator selection should always confirm available air pressure, minimum operating pressure, pressure stability, and air preparation quality.

Torque Sizing: The Hidden Reason Many Actuator Choices Fail

Many actuator problems are not caused by choosing spring return or double acting incorrectly. They are caused by incorrect torque sizing.

A valve requires different torque during different parts of its movement. Breakaway torque is the torque needed to start moving the valve from its seated position. Running torque is the torque needed while the valve is moving. Seating torque is the torque needed to fully close or seal the valve.

A pneumatic ball valve actuator may require high breakaway torque because soft seats grip the ball. A pneumatic butterfly valve actuator may need enough torque to overcome disc-seat contact and line pressure. A plug valve or high-performance butterfly valve may have different torque characteristics.

For a spring return pneumatic actuator, both the air stroke and spring stroke must be checked. It is not enough to confirm that air can open the valve. The spring must also close it under real conditions, or the reverse if the actuator is configured fail open.

For a double acting pneumatic actuator, both air-driven directions must be checked. The actuator must open and close reliably at the minimum available air pressure.

A proper safety factor is usually applied because real plant conditions are not as clean as catalog conditions. Media buildup, aging seals, temperature variation, pressure changes, and long periods without operation can all increase required torque.

This is why buyers should not select a pneumatic actuator by valve size alone. Valve size is only one input. Torque data is the real selection basis.

Solenoid Valve Selection for Each Actuator Type

The solenoid valve is a small component, but it has a large effect on actuator performance.

For a spring return actuator, a 3/2 solenoid valve is commonly used. It supplies air to the actuator when energized and vents air when de-energized, allowing the spring to return the actuator.

For a double acting actuator, a 5/2 solenoid valve is commonly used. It directs air to one actuator port while exhausting the other, then reverses the air path for the opposite stroke.

The wrong solenoid valve function can cause incorrect movement, incomplete travel, slow operation, or failure during emergency conditions. Voltage also matters. Solenoid valves may be specified for 24V DC, 110V AC, 220V AC, or other control voltages depending on the plant standard.

Manual override may be useful for commissioning and maintenance. However, in safety-critical service, manual override design should be reviewed carefully to avoid accidental operation.

The solenoid valve should be selected as part of the automated valve package, not as an afterthought. Its port size, flow capacity, response time, mounting style, coil voltage, enclosure protection, and exhaust design all affect the final system.

Control Signal and Feedback Requirements

A spring return or double acting actuator can both be used in automated systems, but the control and feedback arrangement may differ.

For simple on-off control, the system usually sends an open or close command through a solenoid valve. The actuator moves the valve. A limit switch box confirms whether the valve is open or closed.

For a spring return fail close actuator, the control logic may be simple: energize to open, de-energize to close. This can be useful for emergency shutdown design because removing power or air can move the valve to a safe position.

For a double acting actuator, the control logic must actively direct air to open and close. If the solenoid valve loses power, the final valve behavior depends on the solenoid type and pneumatic circuit. This must be clearly understood during design.

Position feedback is important for both actuator types. A valve command is not the same as valve confirmation. The control system should know whether the valve actually reached its target position. Limit switch boxes, proximity sensors, or position transmitters can provide this information.

In modern industrial valve automation, feedback is not optional for important valves. It supports safety, troubleshooting, sequence control, and maintenance planning.

Application Examples for Spring Return Actuators

Spring return pneumatic actuators are often used where the valve must move to a defined position automatically during failure.

A chemical dosing valve may use a fail close actuator so that chemical flow stops if air pressure is lost. This helps prevent over-dosing or unsafe mixing.

A fuel gas shutoff valve may use fail close logic to reduce risk during emergency conditions. In this type of service, failure behavior is part of the safety concept.

A cooling water protection valve may use fail open logic if equipment must continue receiving cooling flow during loss of air or power.

A vent valve may be designed to fail open if pressure relief or safe venting is required.

A tank filling valve may fail closed to prevent overflow.

A drain valve may fail open or fail closed depending on whether the safer condition is to release or contain fluid.

These examples show that spring return actuator selection is process-specific. The actuator is not chosen only for its mechanical design. It is chosen because its default action supports the required safety behavior.

Application Examples for Double Acting Actuators

Double acting pneumatic actuators are often used in applications where air supply is stable and automatic spring return is not required.

A non-critical utility isolation valve may use a double acting actuator because the valve can remain in its last position during failure.

A process transfer valve that operates under normal sequencing but does not require emergency return may use double acting actuation.

A large quarter-turn valve with high torque demand may use a double acting actuator when both opening and closing need strong air-driven force and fail-in-place is acceptable.

A plant with well-maintained compressed air and standard PLC control may use double acting actuators for many automated ball valve and butterfly valve packages.

A double acting actuator may also be selected when cost, size, or torque output makes it more practical than a spring return design for non-safety-critical service.

The key is that double acting selection should be intentional. It is appropriate when the application does not require spring return failure movement or when failure behavior is handled by another engineered system.

Cost Comparison: Purchase Price Is Not the Whole Story

A double acting pneumatic actuator is often less expensive than a spring return actuator of comparable output because it does not contain a spring pack. It may also be smaller in some cases. This makes it attractive for many standard automation projects.

A spring return pneumatic actuator may cost more because it includes internal springs and must be sized for both air and spring strokes. It may also be physically larger for the same valve application.

However, purchase price is not the full cost. If the process requires fail-safe behavior, choosing a cheaper double acting actuator may create hidden costs or safety risks. The plant may later need additional safety valves, air reservoirs, special pneumatic circuits, or control logic to compensate.

On the other hand, using spring return actuators everywhere may add unnecessary cost if many valves do not require fail-safe action. A thoughtful project may use spring return actuators for critical valves and double acting actuators for non-critical valves.

The best cost decision is based on risk classification. Critical valves deserve failure-mode thinking. Non-critical valves can be optimized for cost, size, and standardization.

Common Mistakes When Choosing Spring Return or Double Acting Actuators

One common mistake is assuming that spring return always means fail closed. It does not. Spring return can be configured for fail closed or fail open depending on valve orientation and actuator setup.

Another mistake is assuming that double acting actuators are unsafe. They are not unsafe by themselves. They are unsuitable only when the process requires automatic fail-safe return and no other safety system is provided.

A third mistake is choosing a spring return actuator without checking spring-end torque. The spring must be able to move the valve under actual process conditions.

Another mistake is selecting an actuator based only on normal operating air pressure. The actuator should be checked at the minimum available air pressure, not only ideal pressure.

Some buyers also ignore solenoid valve function. A spring return actuator and double acting actuator usually need different solenoid valve arrangements.

Another frequent issue is forgetting feedback. Whether the actuator is spring return or double acting, the control system should confirm valve position.

Finally, some projects treat actuator selection as a purchasing task instead of an engineering task. This can lead to wrong fail-safe behavior, insufficient torque, and difficult maintenance.

Practical Selection Checklist

Before choosing between a spring return pneumatic actuator and a double acting pneumatic actuator, confirm the following points:

What should the valve do if air pressure is lost?

Should the valve fail open, fail closed, or fail in place?

Is the valve safety-critical or non-critical?

What is the valve breakaway torque?

What is the required torque at minimum air pressure?

Is the actuator used for a ball valve, butterfly valve, plug valve, or another valve type?

How often will the valve cycle?

Is the compressed air clean, dry, and stable?

What solenoid valve function is required?

Does the system need open and closed feedback?

Is manual override required?

What happens if the solenoid valve loses power?

Will the actuator be installed indoors, outdoors, or in a hazardous area?

Is a standard actuator enough, or is a special coating, enclosure, or certification required?

Will the valve be supplied as a complete automated valve package?

These questions help prevent the most common mistakes in pneumatic actuator selection.

Focused FAQ

What is a spring return pneumatic actuator?

A spring return pneumatic actuator uses compressed air to move the actuator in one direction and internal springs to return it in the opposite direction when air is removed. It is also called a single acting actuator.

What is a double acting pneumatic actuator?

A double acting pneumatic actuator uses compressed air to move the actuator in both directions. One air port opens the valve, and another air port closes it.

Is a spring return actuator the same as a single acting actuator?

Yes. In valve automation, a spring return actuator is commonly called a single acting actuator because air drives one stroke and spring force drives the return stroke.

When should I choose a spring return pneumatic actuator?

Choose a spring return pneumatic actuator when the valve must move to a defined safe position during air loss, power loss, or emergency shutdown. It is commonly used for fail close actuator and fail open actuator applications.

When should I choose a double acting pneumatic actuator?

Choose a double acting pneumatic actuator when compressed air is stable, the valve does not need automatic spring return, and fail-in-place behavior is acceptable for the process.

What does fail close actuator mean?

A fail close actuator moves the valve to the closed position when air or control energy is lost. This is often achieved with a spring return pneumatic actuator.

What does fail open actuator mean?

A fail open actuator moves the valve to the open position when air or control energy is lost. This may be used for cooling, venting, or protection applications where flow must continue during failure.

Which actuator is better for a pneumatic ball valve actuator package?

Both can be used. A spring return actuator is better when the ball valve must fail open or fail closed. A double acting actuator may be suitable when the ball valve can remain in its last position during failure.

Which actuator is better for a pneumatic butterfly valve actuator package?

Spring return is preferred for fail-safe butterfly valve service. Double acting is often used for standard on-off butterfly valve automation where fail-in-place behavior is acceptable.

Does a double acting actuator use more air?

A double acting actuator uses compressed air for both opening and closing strokes. A spring return actuator uses air for one stroke and spring force for the return stroke. Actual air consumption depends on actuator size, pressure, cycle frequency, and pneumatic circuit design.

Final Recommendation: Choose the Failure Mode First

The difference between spring return and double acting pneumatic actuators is often explained mechanically, but the real decision is about failure behavior.

A spring return pneumatic actuator is the right choice when the valve must automatically move to a safe position during air loss or emergency conditions. It can be configured as a fail close actuator or fail open actuator, depending on the process requirement. This makes it especially important for chemical feed lines, fuel systems, cooling protection, tank filling, venting, shutdown valves, and other safety-related applications.

A double acting pneumatic actuator is the right choice when the valve needs air-driven movement in both directions and automatic spring return is not required. It can be practical, compact, and cost-effective for many standard automated ball valve and automated butterfly valve applications where fail-in-place behavior is acceptable.

The mistake is not choosing one type over the other. The mistake is choosing without defining the required failure position.

For industrial valve automation, actuator selection should begin with process safety. After that, engineers can evaluate torque, air pressure, cycle frequency, solenoid valve type, feedback requirements, installation environment, and lifecycle cost.

The best actuator is not the one that looks simpler or cheaper. It is the one that moves the valve correctly during normal operation and behaves safely during failure. That is the real purpose of pneumatic actuator selection.
