PU Wall Panel Packaging Validation Drop, Vibration and Compression

A Package Is Validated Only for a Defined Route and Configuration

PU wall panel packaging testing should reproduce the hazards of the distribution route the product will actually travel, not merely complete one convenient laboratory drop. Long, lightweight panels can reach the customer with crushed relief, broken corners, rubbed coating, dents, warped joints, missing accessories, or mixed components even when the outer carton still appears serviceable. A defensible program identifies the exact panel and pack configuration, conditions complete specimens, exposes them to a justified sequence of handling, vibration, compression, and other relevant hazards, and applies separate acceptance criteria to the panel, accessories, labels, and package. The report must state the procedure and edition, test levels, specimen identities, laboratory, deviations, results, and configuration changes that would invalidate the conclusion.

This article is for exporters, importers, packaging engineers, logistics managers, distributors, e-commerce teams, and claims personnel. It does not repeat calculations for carton yield, container cube utilization, or landed cost. Those decisions belong in the existing guide to container loading and landed-cost planning. The narrower question here is whether a specific package can protect a specific panel through a stated distribution cycle.

Validation is therefore a controlled claim with boundaries. It does not mean “shipping-proof,” “damage-proof,” or suitable for every carrier and climate. It means that identified specimens in an identified configuration met pre-approved criteria when tested according to a documented method representing defined hazards. Field performance must then be monitored to test whether that laboratory claim remains credible.

The claim that buyers should demand

A useful supplier statement sounds like this: configuration PKG-04, containing the named panel SKU, quantity, accessories, dividers, corner protection, carton, closure, pallet pattern, and stretch-wrap specification, was tested on a stated date to a named procedure and edition under defined conditions. The samples met the attached product and package acceptance criteria. Any change to the listed configuration or route requires documented engineering review.

“Passed a drop test,” “ISTA packaging,” or “export carton” omits too much information to support procurement, release, or claim decisions.

Reconstruct the Distribution Route Before Choosing a Test

Transport packaging is exposed to a chain of events, not an abstract category called shipping. A factory may move cartons by hand to a pallet, clamp or strap the load, transfer it by forklift, hold it in a humid port warehouse, move it through ocean vibration, unload it at a distribution center, break the pallet, and send individual cartons through parcel hubs. Another buyer may receive the same pallet intact by full truckload. The product is identical, but the damage opportunities are not.

A route profile should begin at final packing and end where the buyer considers delivery complete. Record every transfer of custody, handling method, vehicle mode, storage period, pallet break, carton reorientation, consolidation, re-packing operation, climate exposure, and last-mile step. Unknown steps should be recorded as uncertainty rather than silently treated as benign.

Do not average away the highest-risk branch

If most orders move by pallet but ten percent are broken into individual e-commerce shipments, the parcel branch needs its own validation. A result for a stable unit load cannot automatically support a long individual carton entering conveyors and repeated manual handling. Similarly, an individual parcel result does not establish pallet stability, bottom-carton performance, or stretch-wrap containment.

The supplier-capability questions in the distributor sourcing and packaging review help identify whether the factory can support channel-specific packs. Validation turns that general capability into evidence for the configuration being purchased.

Build a Damage Map from the Panel Outward

Light weight reduces freight and manual-handling burden, but it does not make a package insensitive to local loads. The panel may have low mass while its projecting stone texture, thin edge, interlocking geometry, coating, or long unsupported span remains fragile. The existing explanation of why lightweight PU panels still need damage control provides the product context; packaging engineering must locate how forces reach those vulnerable features.

Create a damage dictionary before testing. Use one name and severity rule for each condition so the factory, laboratory, warehouse, and claims team classify the same observation consistently. PU wall panel shipping damage should not be recorded only as “broken” or “carton damaged.” Record the panel location, carton location, orientation, affected feature, size or extent, visibility, functional consequence, and whether the condition was present before testing.

Separate damage mechanisms that look similar

• Crushed relief: a high point is flattened by local contact or stack pressure. Look for alignment with carton deflection, a separator edge, strap, or panel above.
• Edge or corner fracture: energy enters an insufficiently protected end, or panels move until their edges strike a hard boundary.
• Coating rub: repeated small relative motion abrades face-to-face or face-to-divider contact during vibration.
• Indentation: a concentrated load from accessories, staples, strapping, pallet deck gaps, or neighboring freight marks the surface.
• Warp or set: sustained uneven support, compression, heat, or humidity changes the delivered geometry.
• Joint damage: interlocking or tongue features carry load they were not designed to receive during transport.
• Accessory loss or migration: loose corners, touch-up materials, fasteners, or documents move into the panel stack or leave the package through a closure gap.
• Moisture-related package weakness: board, tape, labels, or paper-based protectors lose strength or adhesion even if the PU substrate does not absorb the same way.

Use a worst-case SKU, not the easiest sample

The most damage-sensitive configuration may be the longest panel, deepest relief, lightest or heaviest carton, weakest joint, darkest high-gloss coating, largest unsupported void, fullest accessory set, or least favorable panel count. “Worst case” must be justified by load path and failure mode. It is not automatically the biggest or most expensive SKU.

The comparison with stone and mineral veneer in the site's material and logistics trade-offs also matters here: packaging concepts cannot be transferred only because products serve the same wall application. Mass, stiffness, surface relief, fracture behavior, abrasion sensitivity, and unit-load response differ.

Freeze the Exact Product and Pack Configuration

A test report applies to what was tested. Before specimens leave the packing line, assign a configuration ID and freeze the complete bill of materials and assembly method. The record should identify the panel SKU and revision, finish, nominal dimensions and mass, quantity per carton, orientation, stacking pattern, face protection, dividers, bags or films, corner and edge protectors, void fill, accessory locations, carton construction, closure, tape, staples, straps, pallet, deck pattern, stretch film, top cap, labels, and handling marks.

Record actual measured specimen values where they affect test selection or interpretation. A generic supplier drawing is insufficient when the tested carton uses a different board source, protector thickness, panel count, or closure pattern.

Create a configuration dossier

The dossier should contain a versioned packaging BOM, assembly work instruction, dimensioned pack-out drawing, photographs of every layer, closed-carton photographs, gross mass, external dimensions, lot identities, pallet pattern, and authorization. Use a photo scale and label each image with the specimen ID. The laboratory should be able to reconstruct what it received without relying on memory.

A supplier may consider a change minor because the carton still has the same printed artwork. Yet a new corrugated supplier, flute combination, score pattern, tape width, protector density, or panel count can change stiffness, closure strength, clearance, and load transfer. Artwork identity is not configuration identity.

Control assembly variation as well as material variation

Even correct materials can be assembled incorrectly. Define protector orientation, divider placement, tape path, strap position, stretch-wrap overlap, pallet overhang limit, and accessory pocket location. Photograph the first approved pack and audit production against it. A laboratory result cannot protect a production line that does not reproduce the tested pack-out.

Condition Specimens for the Weak Environment

Corrugated board, paper protectors, adhesives, tapes, and some cushioning systems change with temperature and relative humidity. Testing only a dry, newly assembled carton in a comfortable laboratory can overstate performance for a route with humid warehousing, hot containers, winter handling, or long dwell times.

ASTM D4332-22 describes standard and special conditioning atmospheres for containers, packages, and components. Its scope recognizes that conditioning can simulate particular field phases but does not necessarily duplicate the entire field environment. That distinction matters: a chosen atmosphere is a controlled input, not proof that every climate has been covered.

Link conditioning to a route hypothesis

Define why the selected condition matters, how long the specimen must remain there under the governing procedure, whether testing occurs in that atmosphere or immediately afterward, and how transfer time is controlled. If the route includes several materially different environments, the packaging engineer should determine whether one conservative condition, multiple conditions, or a tailored sequence is appropriate.

Pre-test records should include specimen mass and dimensions, package moisture-related observations where relevant, conditioning chamber identification, set points, actual recorded conditions, exposure start and end times, interruptions, and time between removal and mechanical testing. Do not claim humid-route performance when those records are absent.

Select the Procedure from the Distribution System

A standard number is not a quality grade. ISTA, ASTM, and ISO documents have different scopes and structures, and their test elements are selected for different distribution assumptions. No procedure is universally the “highest,” “strongest,” or “best.” Selection begins with the route profile, packaged-product mass and geometry, handling method, unitization, known hazards, buyer requirements, and the decision the evidence must support.

Interpret common search terms precisely

People searching for ISTA 3A wall panels often want to know whether a long, flat, or elongated carton shipped individually through a parcel network fits Procedure 3A. ISTA's current procedure description explicitly includes flat and elongated packages within its parcel scope, but the shipper still must confirm packaged-product mass, dimensions, route, procedure edition, and any carrier or retailer requirement. Writing “ISTA certified packaging” without a valid certification context is different from documenting that a specific packaged-product was tested to a named procedure.

ASTM D4169 packaging programs use a distribution-cycle approach and sequential hazard elements. As of the research date, ASTM lists D4169-23e1 as active and states that D7386 should be considered for single-parcel shipments. Therefore, a supplier should not choose D4169 merely because its number is familiar; the report must show why the selected cycle and assurance level represent the purchased route.

ISO 4180:2019 remains current after confirmation in 2025. It establishes general rules for compiling performance test schedules for complete, filled transport packages. It should be cited with the actual schedule, methods, conditions, and acceptance logic used, not as a stand-alone marketing badge.

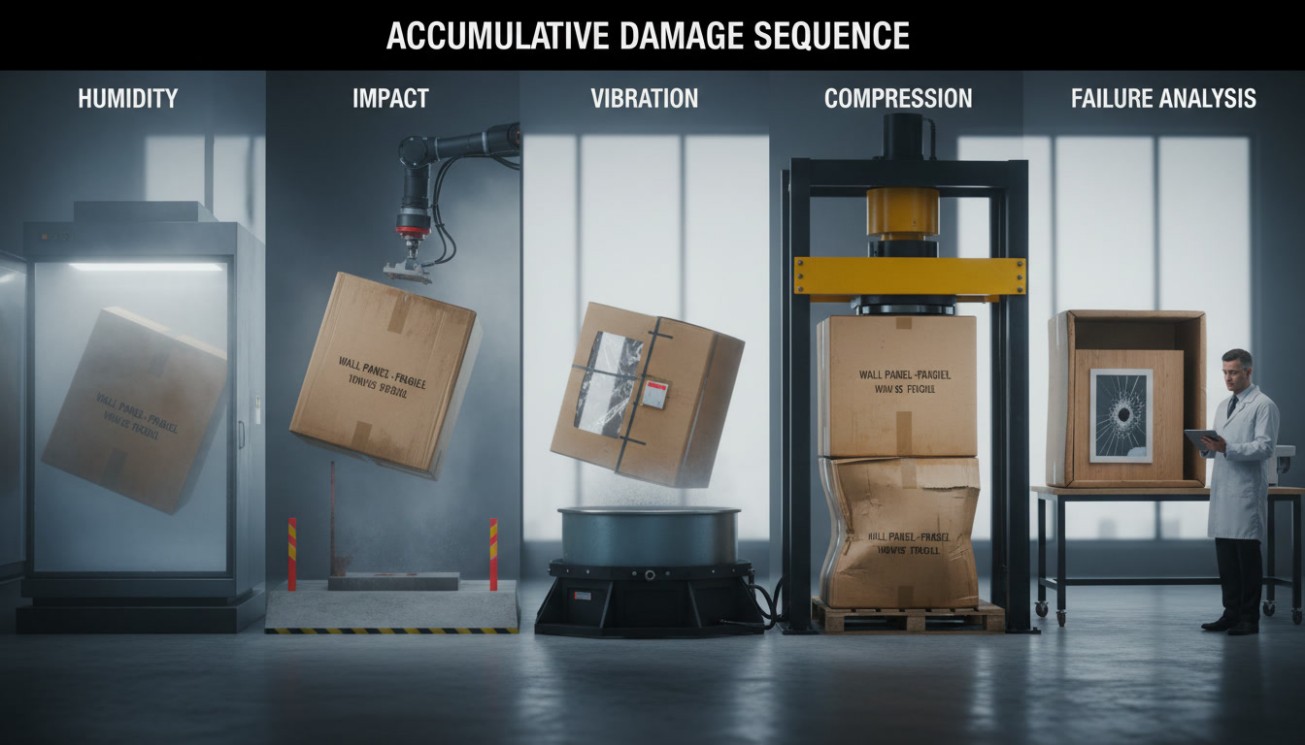

Run a Damage-Accumulating Sequence

A package may survive a fresh-condition drop, a separate vibration exposure, and a separate compression test on three different specimens yet fail when one specimen experiences the hazards in route order. Vibration can loosen dividers and create abrasion; a later impact can then reach an edge. Humidity can reduce carton strength before stacking. Compression can reduce internal clearance before handling. Validation should evaluate cumulative damage where the selected procedure requires a sequence.

Handling and impact

A wall panel drop test should specify the packaged-product, governing method, orientation system, sequence, impact surface, height or energy, specimen condition, and pass criteria. The relevant procedure determines test details; there is no responsible universal drop height for all panel cartons. Long packages also require attention to ends, edges, corners, rotational drops, bridge conditions, or concentrated impacts when the route and method call for them.

ISO 2248:1985, confirmed as current in 2022, addresses vertical impact by free fall with predetermined atmospheric conditions, drop height, and package attitude. It is a test method, not by itself a complete route-validation program.

Vibration

Wall panel vibration testing should investigate interactions among the carton, closures, protectors, panels, and accessories, not merely whether the table ran for a specified duration. Watch for product migration, separator wear, coating rub, fastener or accessory movement, carton fatigue, pallet instability, and resonance-sensitive damage.

ASTM D4728-17(2022) covers random vibration testing of filled shipping units and notes that representative field data should guide the test when possible. It also cautions that random and sinusoidal vibration are not directly equivalent. A report should therefore identify the profile, axis or orientation, duration, input control, interruptions, and rationale rather than saying only “vibration passed.”

Compression and stacking

Carton compression testing can characterize resistance to external compressive loads, but a laboratory peak-strength value is not automatically the same as survival under sustained, humid, misaligned, or dynamically changing distribution loads. For a packaged-product validation, define whether the product shares load, whether the carton is tested alone or filled, the orientation, conditioning, load application, duration where relevant, allowable deformation, and product-clearance requirement.

Bottom cartons on a pallet may experience load concentration from poor column alignment, overhang, deck-board gaps, damaged pallets, edge protectors, or straps. A neat top-to-bottom platen result can miss these route-specific paths unless the program addresses them.

Development inspection and final qualification serve different purposes

During development, engineers may pause between elements to locate when damage begins. For a final performance decision, follow the selected procedure's rules about maintaining the complete specimen and sequence. ISTA's official design-and-testing guidance recommends using new packaged-products for the complete pass/fail test after development issues are corrected, without intermediate inspections that would disturb the final evaluation.

Sign the Pass Criteria Before Testing

“Looks fine” is not an acceptance rule. Define package testing pass criteria before the laboratory receives specimens, and obtain approval from the roles that own product quality, packaging, logistics, sales-channel risk, and claims. The criteria should distinguish damage to the product, accessories, primary protection, outer carton, pallet, closure, markings, and customer presentation.

Product expectations should remain consistent with the site's existing product-quality criteria buyers should define. Packaging validation does not relax color, fit, coating, dimensional, or documentation requirements simply because damage occurred during a laboratory sequence.

Can the carton be damaged while the package still passes?

Sometimes, but only under rules agreed in advance. A transport carton is a protective system, not always a retail display surface. Scuffing or controlled deformation may be acceptable if the product, accessories, closure, containment, label readability, safe handling, downstream stacking, and customer presentation all remain within the defined limits.

The same visible carton damage may be unacceptable when it exposes the panel, permits moisture entry, weakens the next handling step, destroys barcode readability, signals concealed damage to a retail customer, or prevents safe re-shipment. “The panel is fine” is not enough when the carton can no longer perform the remaining distribution functions.

Use Replication to Cover Variation and Worst Cases

One tested carton represents one observation, not every production run, SKU, finish, supplier, packing operator, and route. The governing procedure may set a minimum specimen requirement, but the engineering plan should ask whether that minimum supports the commercial decision. Fragile items, variable handcrafted finishes, multiple carton sources, several lengths, or expensive claims may justify additional specimens.

Build configuration families only where similarity is defensible. A family rationale should compare panel length, width, thickness, mass, relief, coating, joint design, carton clearance, panel count, protectors, carton construction, closures, palletization, and route. Select the configuration most likely to challenge each failure mode; a single “worst case” may not cover every mechanism.

Define failure, correction, and retest rules in advance

When a specimen fails, record the exact failure and preserve evidence before altering the package. Decide whether the failure came from product fragility, packaging design, specimen assembly, conditioning, laboratory execution, or an unplanned deviation. Correct the verified cause and test new specimens through the required sequence. Repeating the same test until one sample passes is not validation.

A control sample or untested reference may help distinguish pre-existing production variation from transport-induced change. For visual finishes, retain signed pre-test photographs and, where practical, an equivalent untested panel from the same production lot.

Challenge the Test Report, Not Just Its Conclusion

A professional report should allow a qualified reader to reconstruct the decision. The words “PASS” and “tested according to ISTA” do not establish what was tested or whether the method matched the route.

Report identity

• laboratory name, location, report number, dates, responsible personnel, and relevant accreditation or competence statement;
• client, manufacturer, product SKU and revision, finish, production lot, and packaged-product configuration ID;
• specimen count, actual mass and dimensions, arrival condition, assembly location, and any substitutions;
• standard or procedure title, exact edition or version, package category, distribution cycle, assurance level, and selected options;
• preconditioning and conditioning set points, actual records, durations, transfers, and deviations;
• complete test sequence, orientations, impact or drop conditions, vibration profile and duration, compression or stacking inputs, equipment identification, and interruptions;
• pre-approved product and package acceptance criteria, individual observations, photographs, measurements, and final disposition;
• departures from the method, engineering justification, limitations, and signatures.

Questions that expose a weak report

Ask whether the pictured pack is the production pack; whether all photographs show specimen IDs; whether the procedure version was current and contractually required; whether the route justified the procedure; whether one specimen was opened mid-sequence; whether damage existed before testing; whether results were reported individually or averaged; and whether the conclusion covers only one configuration or an unsupported product family.

If the report cannot answer those questions, treat it as development information rather than final commercial evidence. A laboratory's reputation cannot repair an undefined specimen or an inappropriate route assumption.

Retest When a Change Alters Load Path or Exposure

Packaging evidence has a configuration boundary. Change review should occur before a new component or route is released, not after arrival claims rise. Relevant triggers include panel dimensions, mass, relief, coating, joint geometry, quantity per carton, orientation, accessory kit, divider, protector, void fill, bag, carton construction, board or component supplier, score pattern, closure, tape, strap, pallet, stretch wrap, assembly site, packing equipment, carrier, unitization, fulfillment channel, or climate profile.

Not every change requires a complete repeat of every element. A packaging engineer should document whether existing evidence remains applicable, whether a focused comparison is sufficient, or whether full revalidation is necessary. The decision should trace the change to affected failure modes and test elements.

A practical change-impact decision

1. Identify the exact change: old and new revision, supplier, dimensions, properties, assembly, location, and effective lot.
2. Map the affected load path: contact area, clearance, stiffness, friction, restraint, moisture sensitivity, closure, and handling.
3. Identify new or increased hazards: drop orientation, abrasion, compression, flexure, puncture, pallet stability, or label failure.
4. Select evidence: document review, component characterization, focused test, partial sequence, complete procedure, or monitored field trial.
5. Approve the scope: authorized packaging and quality roles sign the rationale before implementation.
6. Track the first affected production and shipments: configuration ID and effective lot remain connected to arrival results.

A cheaper corner protector with the same outside dimensions may distribute force differently. One additional panel can remove protective clearance. A new carton supplier can change moisture and compression response. A move from pallet delivery to individual parcel fulfillment changes the route, even when no material changes. These are engineering changes, not purchasing footnotes.

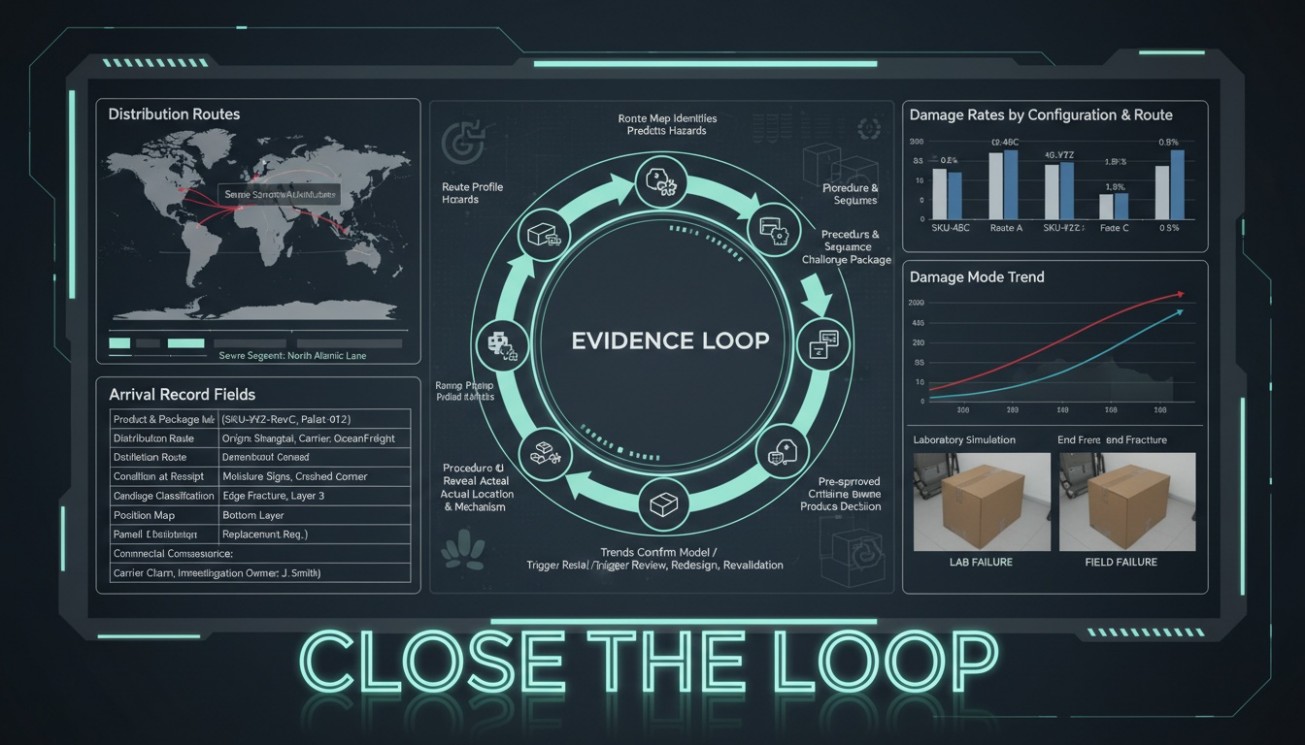

Close the Loop with Arrival and Claim Evidence

Laboratory simulation is a model of distribution. Arrival data tests whether that model is useful. The claims team should not record only a refund amount or upload one customer photograph. Create an arrival-damage record connected to product, pack, route, and location within the carton.

Compare rates by configuration and route, not by total sales

Normalize field data using shipped cartons, panels, square meters, or another defined exposure. Segment it by configuration revision, SKU, carrier, lane, parcel versus pallet, fulfillment center, season, and damage mode. An overall low claim rate can hide one failing length or route; a short-term spike can reflect a carrier event rather than a pack design.

Transport damage prevention improves when laboratory failures and field failures use the same damage dictionary. If customers repeatedly report end fractures in one carton layer but the laboratory program produces only face abrasion, the route profile, specimen configuration, sequence, or acceptance method may need revision.

A Buyer-Ready Transit Test Protocol

A usable packaging validation protocol can be concise, but it must be specific enough to prevent convenient substitutions after testing begins. The buyer should issue or approve the following fields before authorizing a final laboratory run:

1. Objective and decision: product launch, new route, cost reduction, corrective action, supplier change, or periodic review.
2. Route profile: origin, destinations, modes, handoffs, unitization, handling, storage, climate, fulfillment, and last mile.
3. Hazard rationale: handling, impact, vibration, compression, environmental exposure, stability, abrasion, puncture, and other relevant mechanisms.
4. Product configuration: SKU, revision, finish, dimensions, mass, quantity, accessories, fragility map, and worst-case rationale.
5. Packaging configuration: BOM, suppliers, dimensions, drawings, assembly instruction, closures, palletization, labels, photographs, and revision.
6. Procedure selection: standard or procedure, edition, package type, distribution cycle, assurance level, test options, and route-matching rationale.
7. Specimen plan: count, production source, replication, controls, configuration family, pre-test inspection, and retained samples.
8. Sequence and equipment: conditioning, handling, vibration, compression, inspection restrictions, instrumentation, and permitted deviations.
9. Acceptance sheet: separate signed criteria for panels, appearance, geometry, joints, accessories, cartons, closures, pallets, markings, and traceability.
10. Failure and retest rule: containment, root-cause evidence, redesign authorization, new specimens, and retest scope.
11. Report requirements: individual data, full photo index, deviations, signatures, configuration applicability, limitations, and record retention.
12. Change and field monitoring: retest triggers, effective configuration lot, arrival-damage fields, trend review, and escalation responsibility.

The commercial objective is not to create the strongest or most expensive carton in isolation. It is to produce repeatable protection for the real route with a level of evidence proportionate to product risk, claim cost, channel expectations, and the consequences of failure.

Focused FAQ

Is one drop test enough for PU wall panel packaging?

No. A drop may challenge one handling event, but real distribution can combine conditioning, repeated impacts, vibration, compression, pallet handling, abrasion, and storage. A complete decision should follow a route-appropriate procedure and sequence, use representative specimens, and inspect both package and product against criteria defined before testing.

When should a seller use ISTA 3A instead of ASTM D4169?

ISTA 3A is intended for qualifying individual packaged-products within its parcel-delivery scope, including standard, small, flat, and elongated forms. ASTM D4169 uses distribution cycles for shipping units and explicitly directs users to consider ASTM D7386 for single-parcel packages. The seller should choose from the documented route, package type, mass, geometry, buyer or carrier requirements, and the exact evidence needed—not from an assumption that one document is universally stricter.

Can a package pass when the carton is visibly damaged?

It can, if the pre-approved criteria permit that type and extent of carton damage and the panel, accessories, containment, closure, labels, safe handling, remaining distribution function, and customer presentation all remain acceptable. If the damage exposes the product, weakens later handling, removes traceability, or violates the sales-channel requirement, the package should fail.

How many packages should be tested?

There is no universal number for every commercial program. Follow the minimum required by the selected procedure, then consider replication based on product fragility, packaging and assembly variation, number of configurations, claim consequences, and the strength of the decision being made. One carton should not be assumed to represent every SKU or pack revision.

Which packaging changes require retesting?

Changes to panel dimensions, mass, relief, coating, quantity, orientation, accessories, internal protection, carton construction or supplier, closure, pallet, restraints, assembly site, carrier, fulfillment channel, or route require documented impact review. The packaging engineer should decide whether existing evidence remains valid, focused testing is sufficient, or a complete sequence must be repeated.

What is the difference between package development testing and final validation?

Development testing helps engineers find weaknesses and may include intermediate inspections or comparative trials. Final validation uses the approved production-representative configuration, follows the selected procedure and sequence, respects restrictions on opening specimens, and applies signed acceptance criteria to make a documented decision.

Does “ISTA tested” mean the packaging is suitable for every carrier?

No. The statement must identify the ISTA procedure and version, the exact packaged-product configuration, test laboratory, date, result, and limitations. General simulation levels may not represent every carrier, lane, unusual handling condition, climate, retailer program, or regulatory requirement.

Why can a lightweight PU panel still suffer compression damage?

Low product mass reduces total load but does not eliminate local stress. Carton walls can deflect into raised texture, separators can concentrate force, straps can indent edges, pallet gaps can create unsupported spans, and humid board can weaken. Long panels may also bend when support is uneven.

Technical Sources and Use Boundaries

• ISTA — Current Test Procedures and Project Scopes
• ISTA — Getting Started with Package Design and Testing
• ASTM D4169-23e1 — Performance Testing of Shipping Containers and Systems
• ASTM D7386-25 — Packages for Single Parcel Delivery Systems
• ASTM D4728-17(2022) — Random Vibration Testing of Shipping Containers
• ASTM D4332-22 — Conditioning Containers, Packages, or Components for Testing
• ISO 4180:2019 — Rules for Compiling Performance Test Schedules
• ISO 2248:1985 — Vertical Impact Test by Dropping

Research cutoff: September 9, 2026. Confirm the current edition, licensed procedure, buyer specification, carrier or retailer requirement, laboratory competence, and regional rules before testing or publication. This article does not reproduce proprietary test sequences, prescribe universal drop heights, vibration durations, compression loads, specimen counts, or declare any packaging configuration suitable without product- and route-specific evidence.
