Mechanical Seal Support Systems: Why the Seal Needs More Than the Seal Itself

A mechanical seal does not survive by itself

A mechanical seal is often described as a precision component. That description is correct, but incomplete. In many industrial pump applications, the mechanical seal is only one part of a larger sealing environment. The seal faces, elastomers, springs and gland arrangement matter, but they cannot perform reliably if the surrounding system fails to control heat, lubrication, contamination, vapor formation or pressure balance.

This is why a mechanical seal support system is so important.

When a pump handles clean, cool and stable liquid, a simple seal arrangement may be enough. The process fluid itself can lubricate the seal faces, remove moderate heat and maintain a stable film between the rotating and stationary faces. But many industrial pumps do not operate in such ideal conditions. They handle hot fluids, volatile fluids, dirty water, crystallizing chemicals, abrasive slurry, corrosive liquids, hazardous products or high-value process media. In these services, the seal cannot always depend on the process fluid alone.

A mechanical seal may fail not because the seal was poorly made, but because the seal environment was poorly controlled.

A seal support system is designed to create that control. It may flush the seal chamber, cool the seal faces, remove heat, dilute contaminants, prevent crystallization, supply a clean lubricating fluid, pressurize a barrier fluid, manage buffer fluid, or provide leakage containment. In higher-risk industries, especially chemical, oil and gas, refining, power generation and demanding process applications, seal reliability is inseparable from support system design.

This is the key point: a mechanical seal is a component, but sealing reliability is a system result.

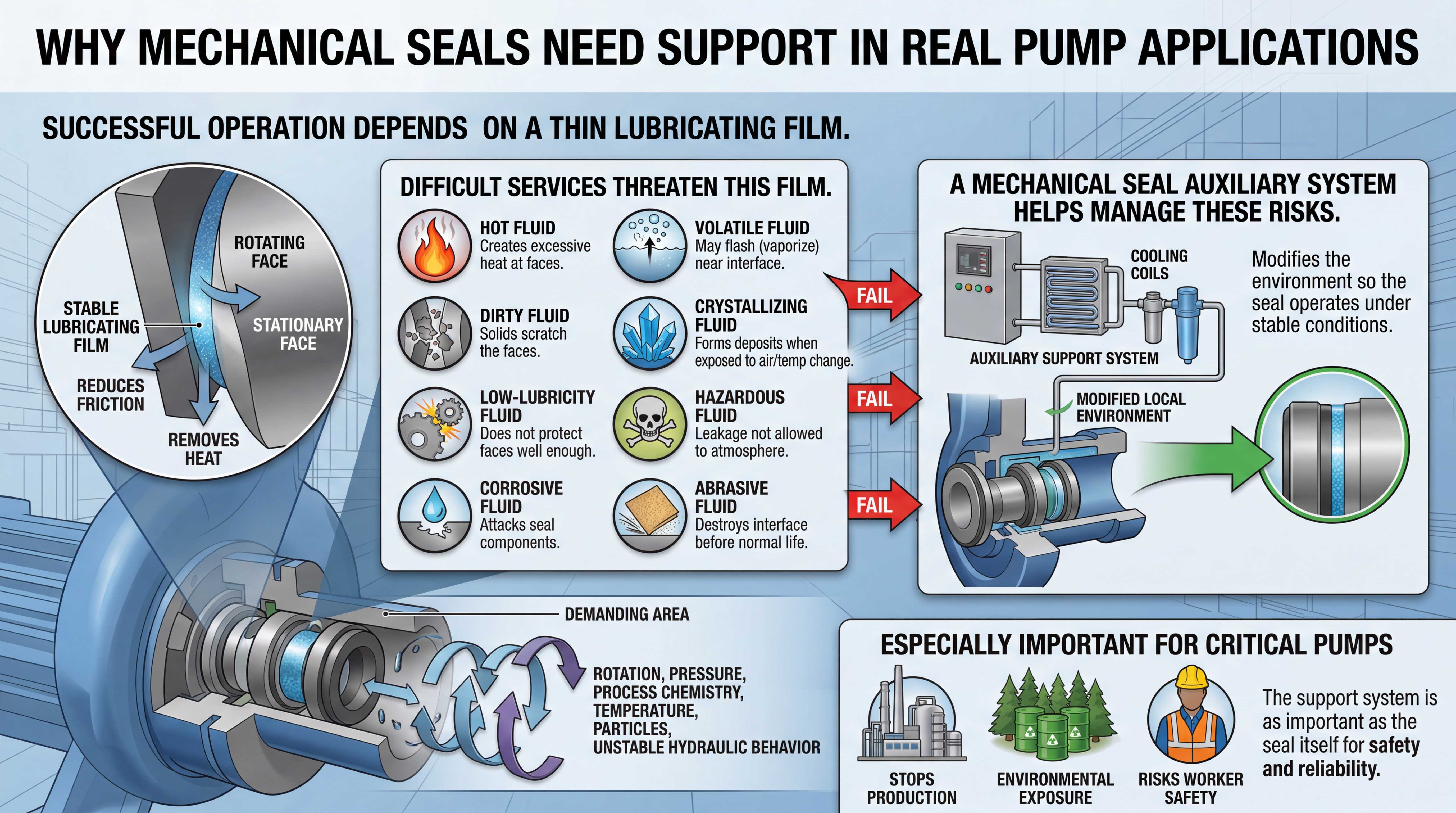

Why mechanical seals need support in real pump applications

At the most basic level, a mechanical seal needs a stable lubricating film between its faces. The seal faces may look like they are in direct contact, but successful operation depends on a very thin film that reduces friction and removes heat. If that film is unstable, contaminated, vaporized or overheated, the seal begins to lose reliability.

In simple services, the pumped fluid can provide this film. In difficult services, the pumped fluid may become the problem.

A hot fluid may create excessive heat at the faces. A volatile fluid may flash near the seal interface. A dirty fluid may carry solids that scratch the faces. A crystallizing fluid may form deposits when exposed to air or temperature change. A low-lubricity fluid may not protect the faces well enough. A hazardous fluid may not be allowed to leak into the atmosphere. A corrosive fluid may attack seal components. An abrasive fluid may destroy the interface before normal seal life is reached.

A mechanical seal auxiliary system helps manage these risks.

Support systems are not decorative accessories. They exist because the seal chamber is often one of the most demanding areas in a pump. It is exposed to rotation, pressure, process chemistry, temperature, particles and sometimes unstable hydraulic behavior. A support system gives engineers a way to modify that local environment so the seal can operate under more stable conditions.

This is especially important for critical pumps. If a pump failure stops production, creates environmental exposure or risks worker safety, the support system may be as important as the seal itself.

The support system changes the question from “What seal fits?” to “What environment does the seal need?”

Many buyers approach mechanical seal selection by asking for a size, model or replacement part. This is understandable, but it is not enough for demanding applications. A seal that physically fits the pump may still fail quickly if the seal chamber environment is wrong.

A better selection process begins with a different question:

What does this seal need in order to survive this application?

That question leads to more practical engineering concerns.

Does the seal need a clean flush? Does it need cooling? Does it need external fluid because the process fluid is dirty or abrasive? Does the fluid crystallize near the seal faces? Does the pump handle hazardous liquid that cannot escape? Does the application require a barrier fluid system or buffer fluid system? Does the seal arrangement need to follow an API 682 piping plan? Does the plant have the ability to monitor pressure, level and temperature?

These questions move the discussion from product replacement to system reliability.

Without this thinking, a plant may repeatedly buy better seals but achieve the same poor results. The seal material may be upgraded. The face pair may become harder. The elastomer may be changed. The seal may even be converted from component to cartridge style. But if the seal chamber remains hot, dirty, dry, vapor-filled or unstable, failure will continue.

The support system is the bridge between seal design and actual pump operation.

What a seal flush plan is really trying to do

A seal flush plan is one of the most common forms of mechanical seal support. Its purpose is to bring fluid to the seal chamber in a controlled way. This fluid may come from the pump itself, from a clean external source or from a dedicated auxiliary system.

The basic purpose of flushing is simple: protect the seal faces.

However, different flush plans protect the seal in different ways. A flush may remove heat, prevent solids from collecting near the faces, keep the seal chamber clean, reduce vapor formation, dilute difficult fluid, prevent crystallization or maintain stable lubrication.

In clean liquid service, a flush may be relatively simple. In dirty, hot or hazardous service, the flush strategy becomes more important. A poor flush plan can waste water, dilute the process, increase operating cost or fail to protect the seal. A well-designed flush plan can extend seal life and reduce repeat leakage.

This is why the phrase “seal flush” should not be treated casually. The correct flush arrangement depends on the process fluid, pump design, seal arrangement, temperature, pressure, solids content and leakage tolerance.

A plant should not ask only whether the seal has a flush connection. It should ask whether the flush is doing the correct job for that application.

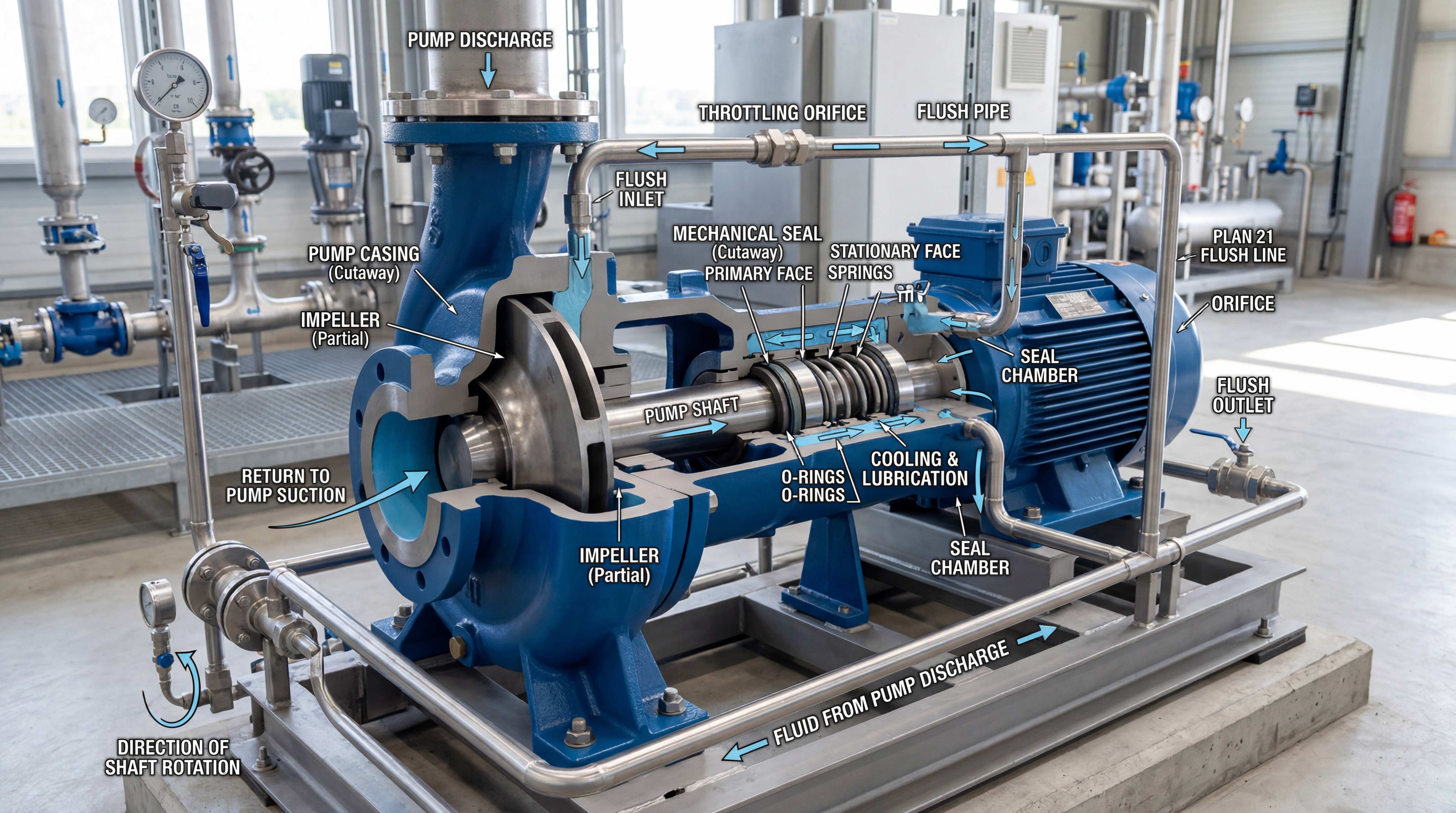

Plan 11 seal: common, practical and often misunderstood

A Plan 11 seal arrangement is one of the most common seal flushing concepts used in industrial pumping. In simplified terms, it recirculates fluid from the pump discharge side through a restriction or orifice back to the seal chamber. The purpose is to provide flow to the seal faces, remove heat and maintain a more stable local environment.

Plan 11 is widely used because it is practical and does not require an external flush source. For many clean or moderately clean fluids, it can be an effective way to support seal operation.

But Plan 11 is not automatically suitable for every service.

If the pumped fluid is dirty, abrasive, crystallizing or too hot, recirculating that same fluid into the seal chamber may not solve the problem. It may bring particles directly to the seal faces. It may increase heat. It may fail to prevent deposits. If the fluid has poor lubricating properties, the seal may still suffer even though flush flow exists.

This is why the name of the plan alone does not guarantee reliability. A Plan 11 seal arrangement must be matched to the actual fluid and operating condition.

For clean services, it may be simple and reliable. For abrasive or severe chemical services, another support strategy may be necessary. The important lesson is that a flush plan is not just piping. It is an engineering decision about what kind of environment the seal faces should experience.

When an external flush becomes necessary

Sometimes the process fluid is not suitable for seal face lubrication or cooling. In those cases, an external flush may be used. Instead of relying on the pumped fluid, the system introduces a cleaner or more suitable fluid from outside the pump.

This can be useful when the process fluid contains abrasive solids, crystallizes easily, polymerizes, runs too hot or cannot provide stable lubrication. A clean external flush can protect the seal faces from particles and deposits. It can also help control temperature and prevent local dry running.

However, external flushing must be handled carefully.

The flush fluid must be compatible with the process. It must not contaminate the product in an unacceptable way. Its pressure must be controlled. Its flow rate must be appropriate. Too little flow may fail to protect the seal. Too much flow may dilute the process, increase treatment costs or create unnecessary water consumption.

For water-intensive plants, external flushing may also become a sustainability and cost issue. A system that protects the seal but wastes large amounts of water may not be ideal. In such cases, a closed-loop support arrangement or a more efficient auxiliary system may be considered.

The decision should balance seal life, product quality, environmental impact and operating cost.

Seal cooling system: controlling heat before it becomes failure

Heat is one of the most common enemies of mechanical seals. Even when lubrication exists, the seal faces generate frictional heat. If the process fluid is already hot, if the seal chamber has poor circulation or if the fluid vaporizes near the faces, heat can quickly become a failure driver.

A seal cooling system helps remove heat from the sealing environment.

Cooling may be provided through flush flow, heat exchangers, cooling jackets, seal pots, circulation loops or specific piping plans. The method depends on the pump service and seal arrangement.

Cooling matters because excessive heat can cause several failure modes. Seal faces may distort or crack. Carbon can blister. Elastomers can harden, lose flexibility or chemically degrade faster. Fluids may vaporize at the seal interface, breaking the lubricating film. Deposits may form when temperature rises.

A cooling system does not simply make the seal area colder. It helps keep the seal operating within a stable thermal range. That stability protects the fluid film and reduces face damage.

For high-temperature fluids, cooling should be considered early in the design process. Waiting until repeated failures occur usually means the plant has already paid for downtime, emergency maintenance and damaged components.

Barrier fluid system: creating a pressurized protective boundary

A barrier fluid system is commonly used with certain double mechanical seal arrangements. Its role is to create a controlled fluid environment between two seals, usually at a pressure higher than the process fluid pressure at the seal chamber.

This pressure difference is important. If the barrier fluid pressure is higher than the process pressure, leakage across the inner seal tends to move from the barrier fluid into the process rather than allowing process fluid to escape outward. This can be valuable when the pumped fluid is hazardous, toxic, volatile, flammable, corrosive or environmentally restricted.

A barrier fluid system can also provide lubrication and cooling for seal faces. In applications where the process fluid is poor for lubrication, the barrier fluid may create a much better operating environment for the seal.

However, a barrier system adds responsibility.

The fluid must be compatible with the process. If barrier fluid enters the process, it should not create quality, safety or reaction problems. The pressure must be monitored. If pressure drops, the protective function may be lost. The level and temperature should be controlled. The fluid should remain clean and suitable for the seal faces.

A barrier fluid system is not a set-and-forget accessory. It is an active part of the pump sealing system.

Plan 53 seal system: why pressure control matters

A Plan 53 seal system is commonly associated with pressurized barrier fluid systems for dual mechanical seals. Different variations exist, but the core idea is that a barrier fluid is maintained under pressure to protect the seal arrangement and prevent process fluid from escaping directly to the atmosphere.

In high-risk services, this kind of support system can be critical. It provides a controlled environment between the inner and outer seals. It can help protect workers, reduce emissions, improve containment and support seal face lubrication.

But the success of a Plan 53 arrangement depends heavily on control and monitoring.

If barrier pressure is too low, the system may lose its containment function. If pressure is too high, it may create unnecessary stress or excessive barrier fluid leakage into the process. If the barrier fluid overheats, degrades or becomes contaminated, seal life may decline. If operators do not understand the meaning of pressure or level changes, early warnings may be missed.

This is why a Plan 53 seal system should be treated as part of the reliability program, not only part of the installation drawing.

Operators should know what normal pressure looks like. Maintenance teams should know how often to inspect the system. Engineers should understand how the system responds during startup, shutdown and process changes.

A pressurized barrier system is powerful, but it must be managed.

Buffer fluid system: containment without the same pressure logic

A buffer fluid system is often used with unpressurized or lower-pressure dual seal arrangements. Unlike a pressurized barrier system, a buffer fluid typically operates at a pressure lower than the process fluid. Its role may include leakage collection, cooling, lubrication, dilution or containment support.

Buffer fluid arrangements can be useful when full pressurized barrier protection is not required, but additional control is still needed beyond a single seal.

For example, a buffer fluid system may help collect leakage from the inner seal before it reaches the atmosphere. It may help cool the outer seal. It may provide a controlled space where leakage can be monitored. It may reduce the environmental impact of minor leakage.

However, because the buffer fluid is not normally pressurized above the process, it does not create the same inward barrier effect as a barrier fluid system. This distinction matters for hazardous services. A buffer system may be suitable for some applications, but it may not be enough where process fluid must be prevented from escaping under all normal conditions.

Choosing between barrier and buffer support should be based on process risk, leakage consequence, seal arrangement and monitoring capability.

A common mistake is using the terms interchangeably. They are not the same. Barrier fluid and buffer fluid have different pressure logic, different risk profiles and different maintenance requirements.

API 682 piping plan: why standards help structure decisions

In demanding industries, an API 682 piping plan provides structured guidance for seal support arrangements. These piping plans help engineers define how mechanical seals are flushed, cooled, pressurized, monitored or supported.

The value of a piping plan is not only that it gives a number to a configuration. Its real value is that it creates a common engineering language. When a buyer, pump manufacturer, seal supplier and plant engineer discuss a seal support system, the plan helps clarify how the system should function.

This is important because vague wording creates risk. Saying “add cooling” or “provide flush” is not specific enough for critical service. The piping plan defines the intent more clearly.

But standards should not replace engineering judgment. A plan number must still be applied correctly to the process. The same piping plan may work well in one application and poorly in another if the process fluid, temperature, solids content or pressure conditions are different.

API-style thinking encourages a systematic approach: identify the risk, select the seal arrangement, define the support method, monitor the right variables and maintain the system over time.

For B2B buyers and maintenance teams, understanding the basic purpose of piping plans can improve communication and reduce selection mistakes.

The hidden cost of a poorly designed support system

A poorly designed support system can create as many problems as it solves.

If flush pressure is too low, contaminants may enter the seal faces. If flush pressure is too high, process dilution or seal instability may occur. If the cooling system is undersized, overheating continues. If the barrier fluid is incompatible, product contamination or chemical reaction may become a concern. If piping is installed incorrectly, flow may not reach the seal as intended. If instruments are missing or ignored, early warnings are lost.

A support system can also fail because of maintenance neglect. Filters may plug. Valves may be left closed. Cooling water may stop. Barrier fluid levels may drop. Pressure gauges may fail. Piping may become blocked with deposits. Operators may not know what readings are normal.

When this happens, the plant may blame the mechanical seal even though the support system allowed the seal environment to deteriorate.

This is why mechanical seal support should be part of routine inspection. The question is not only whether the seal is leaking. The question is whether the conditions protecting the seal remain healthy.

A seal support system must be designed, installed, monitored and maintained as a functional reliability asset.

How support systems improve pump seal reliability

Good pump seal reliability comes from controlling the main failure drivers. A support system can help in several ways.

It can reduce heat by improving circulation or cooling. It can protect seal faces from particles by providing clean fluid. It can prevent deposits by reducing crystallization near the faces. It can improve lubrication where the process fluid is poor. It can create a controlled pressure boundary in hazardous service. It can allow leakage monitoring before a major failure occurs. It can reduce the chance that a minor process upset immediately becomes visible seal failure.

This is why support systems are often justified by lifecycle cost, not just initial cost.

A seal support system may add piping, instruments, reservoirs, heat exchangers or auxiliary hardware. But if it prevents repeated seal replacement, unplanned downtime, product loss, environmental exposure or safety incidents, it can be economically justified.

The most important point is that the support system should solve a real application problem. It should not be added blindly. It should be selected based on failure risk, fluid behavior and operating conditions.

When properly applied, a support system does not complicate the pump unnecessarily. It stabilizes the seal environment and makes reliability more predictable.

What information is needed before selecting a seal support system?

Before choosing a mechanical seal auxiliary system, the plant or buyer should collect application data. Without this information, support system selection becomes guesswork.

The first group of information is fluid data. What is the fluid? Is it clean, dirty, abrasive, corrosive, volatile, toxic, flammable, crystallizing or polymerizing? What is its temperature, viscosity and vapor pressure? Does it contain solids? Does it change during startup, shutdown or cleaning?

The second group is pump data. What type of pump is used? What are the seal chamber conditions? What pressure exists near the seal? What is the shaft speed? Is the pump operated continuously or intermittently? Does it experience frequent starts and stops?

The third group is failure history. Have previous seals failed from heat, scoring, dry running, crystallization, corrosion or leakage at secondary seals? Did failures occur immediately after startup or after longer operation? Is one pump failing more often than others?

The fourth group is risk data. Is leakage hazardous? Is the fluid expensive? Is environmental containment required? Can the process tolerate external flush fluid? Is product purity important?

The fifth group is maintenance capability. Can the plant monitor pressure, level and temperature? Can operators maintain a barrier fluid system? Are technicians trained to inspect support piping and instruments?

A support system should match both the process and the people who will operate it.

Common mistakes when applying seal support systems

One common mistake is assuming that any flush is better than no flush. In reality, the wrong flush can bring dirty, hot or unstable fluid to the seal faces. It may also dilute the process or waste utilities.

Another mistake is installing a support system without clear monitoring. A barrier fluid system without pressure awareness can lose its protective value. A cooling system without temperature checks may not be doing enough. A filter without maintenance can become a restriction.

A third mistake is using the same support plan for different fluids because the pumps look similar. Two pumps may have the same model and shaft size but handle very different liquids. Their support needs may be completely different.

A fourth mistake is ignoring startup and shutdown conditions. A support system that works during normal operation may not protect the seal during transient conditions if procedures are wrong. For example, the barrier system may need to be pressurized before the pump starts. Cooling water may need to flow before hot service begins.

A fifth mistake is treating the seal support system as secondary equipment. If the support system fails, the seal may fail. That makes it part of the critical system.

How to inspect a mechanical seal support system

A practical inspection should begin with visual checks. Are valves in the correct position? Are gauges readable? Are there signs of leakage, corrosion, vibration or blocked lines? Are flush lines hot when they should not be, or cold when flow is expected? Are cooling lines open? Are drain or vent lines clear?

Next, check operating values. Is pressure within the expected range? Is barrier fluid level stable? Is temperature normal? Are there sudden changes that may indicate inner or outer seal leakage? Are filters or strainers clean?

Then review the fluid condition. Barrier or buffer fluid should remain suitable for the system. If it is discolored, contaminated, overheated or losing volume unexpectedly, the system may need attention.

Finally, review records. Has the system required frequent refilling? Have pressure changes been documented? Has the seal failed repeatedly despite the support system? If so, the plan may need redesign or better maintenance.

Inspection should not wait until visible seal leakage occurs. The support system often provides early warning before major failure.

Support systems and sustainability

Mechanical seal support systems also have a sustainability dimension. Some traditional flush systems consume large amounts of clean water. In facilities with many pumps, continuous flush water can become a significant utility cost and environmental concern.

A modern approach to seal support should consider water usage, energy consumption, process dilution and waste treatment. In some cases, closed-loop barrier systems, improved seal chamber design, better materials or optimized piping plans can reduce utility waste while improving reliability.

This is an important point for industrial buyers. Reliability and sustainability are not necessarily opposite goals. A well-designed support system can reduce seal failures, reduce leakage, reduce water usage and lower maintenance waste.

However, sustainability should not mean removing necessary support without understanding the risk. Eliminating flush water from an application that depends on it may shorten seal life and increase total environmental impact through failures and repairs.

The goal is not less support. The goal is smarter support.

Conclusion: the seal is only as strong as the environment around it

A mechanical seal cannot survive on product quality alone. It needs the right operating environment. In clean and stable applications, the process fluid may provide enough lubrication and cooling. In demanding industrial services, the seal often needs help from a support system.

A mechanical seal support system can provide flushing, cooling, lubrication, containment, pressure control and monitoring. A seal flush plan can keep faces clean and cool. A seal cooling system can prevent heat-driven failure. A barrier fluid system can protect hazardous applications. A buffer fluid system can support containment and leakage management. An API 682 piping plan can give engineers a structured way to define these functions. A Plan 11 seal may be useful for common recirculation services, while a Plan 53 seal system can provide pressurized barrier support for more critical dual seal arrangements.

But no support system should be selected by habit. It must match the fluid, temperature, pressure, solids, leakage consequence, maintenance capability and reliability target.

The most important lesson is this: mechanical sealing is not only about the seal. It is about controlling the small environment where the seal faces must operate every second.

When that environment is stable, clean, cool and properly pressurized, the seal has a real chance to deliver long service life. When that environment is hot, dirty, dry, unstable or poorly monitored, even a good seal can fail quickly.

For industrial pump users, improving seal life begins with a better question:

Not simply, “Which mechanical seal should we buy?”

But rather:

“What support does this seal need to survive our real process?”
