Flat Plate Solar Collector Roof Layout Guide: Tilt, Orientation, Mounting and Array Design

Roof Layout Is Where Collector Performance Becomes Project Reality

A flat plate solar collector installation is not only a mechanical task. It is the point where product quality, building conditions, solar access, roof structure, hydraulic design, service planning, and buyer expectations become one project. A collector can have strong absorber performance, low-iron glass, good insulation, and a durable frame, but if it is installed at the wrong angle, placed in shade, mounted poorly, or connected through weak piping, the final system can still disappoint the user.

This is why professional buyers should treat solar thermal roof layout as part of system engineering, not as an afterthought after the purchase order. The roof decides how much sun the collector receives, how much wind it faces, whether snow will stay or slide, whether pipes can be protected, whether installers can work safely, and whether maintenance teams can reach the array years later.

In many B2B projects, the supplier receives an inquiry that only says “need flat plate collectors for hot water.” That is not enough. A useful quotation should be based on roof direction, roof angle, available area, shading condition, building height, wind exposure, snow load, mounting method, pipe route, storage tank location, and service access. Without these details, the supplier may quote a collector model, but not a reliable project.

This guide focuses on roof layout and mounting logic for flat plate collectors. It does not repeat basic product structure or cold-climate freeze protection. For those topics, buyers can review the earlier guides on solar collector quality and flat plate solar collector cold climate design. This article answers a different question: how should the collector be placed, mounted, spaced, connected, and protected on the roof so the system can perform reliably?

Start With the Roof Before Starting With the Collector Count

Many buyers start by asking how many collectors they need. That question matters, but it should not be the first question. Before calculating collector quantity, the project team must understand whether the roof can support the collector field properly.

A strong flat plate collector array design begins with the roof. The roof is not only a flat surface for equipment. It is a solar site. It has direction, slope, shading, structure, waterproofing, access paths, drainage patterns, fire safety rules, and aesthetic limits.

Available Roof Area Is Not the Same as Usable Solar Area

A building may have a large roof, but only part of it may be usable for collectors. Parapets, skylights, chimneys, HVAC units, roof drains, antennas, safety walkways, maintenance zones, and shaded corners may reduce usable space. In commercial projects, mechanical equipment often occupies the best roof zones. In residential projects, roof geometry may divide the surface into small sections.

This is why roof space solar water heating planning should distinguish between total roof area and effective collector area. A layout that looks possible on a simple drawing may become difficult once maintenance access, pipe routes, row spacing, and mounting clearance are included.

Roof Structure Must Support More Than Collector Weight

Flat plate collectors add dead load to the roof, but that is only one part of structural design. Wind load, snow load, uplift force, mounting bracket force, roof penetration points, and installation handling all matter. A collector array may be safe under normal conditions but vulnerable under storms if the mounting method is weak.

Buyers should ask whether the roof is metal, tile, concrete, membrane, pitched, flat, or standing seam. Each roof type changes the solar collector mounting system choice. A mounting solution that works on a concrete roof may not fit a tile roof. A bracket that is suitable for a low building may need redesign for a taller exposed commercial roof.

The Tank Location Affects Roof Layout

Flat plate collectors do not work alone. They connect to a storage tank, heat exchanger, pump station, controller, backup heater, or mechanical room. If the tank is far from the collector field, pipe losses and installation cost increase. If the tank is located below the collectors, some system types become easier. If the system is drainback, slope and reservoir position become critical.

For projects comparing collector loop design, the guide on drainback solar thermal system and glycol system selection explains why piping geometry and mechanical room layout can decide system reliability.

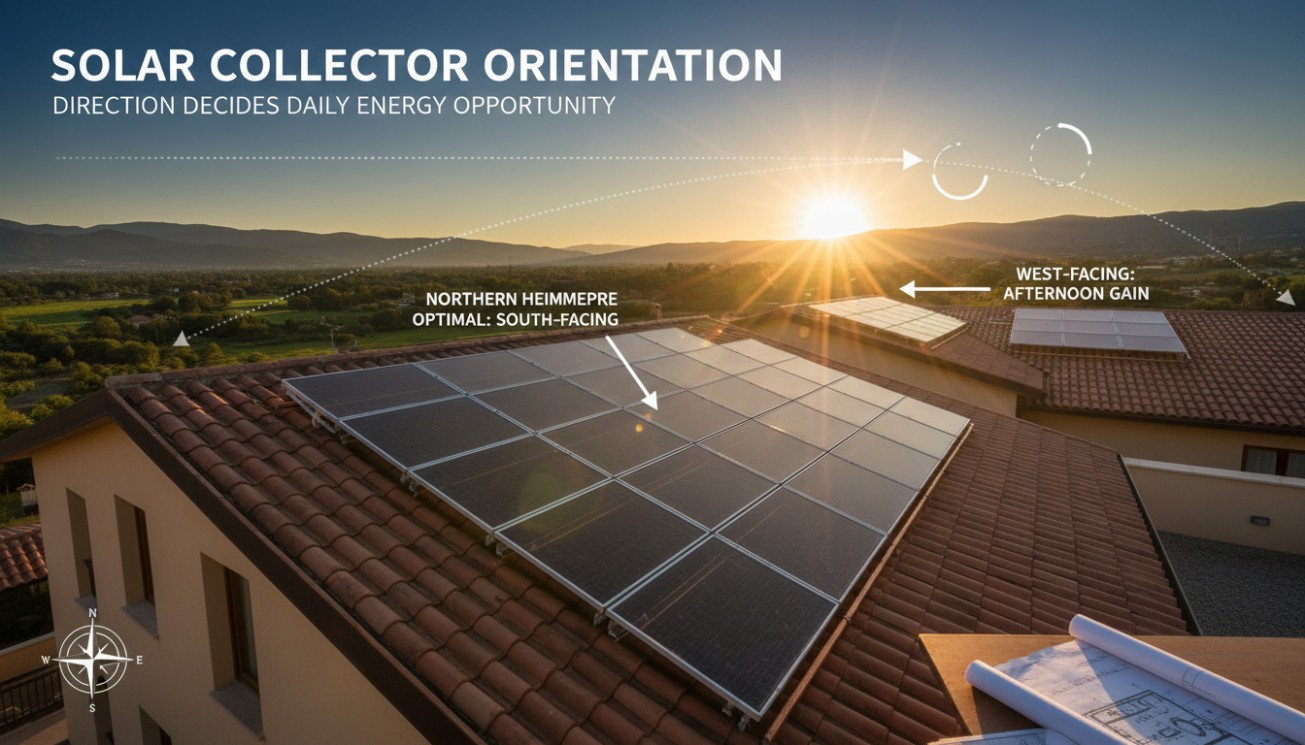

Solar Collector Orientation: Direction Decides Daily Energy Opportunity

Solar collector orientation describes the direction the collector faces. It affects how much solar radiation reaches the absorber throughout the day and across seasons. A collector that faces the wrong direction may still receive sunlight, but it may miss the strongest solar window or fail to match the building’s hot water demand profile.

Orientation Should Match Local Hemisphere and Project Demand

In the northern hemisphere, collectors are often oriented toward the south. In the southern hemisphere, they are often oriented toward the north. However, professional design should not rely only on a general rule. The real decision should consider local solar path, roof direction, shading, hot water usage time, and whether the project values morning or afternoon gain more.

For example, a hotel with strong evening hot water demand may still use a storage tank to carry daytime solar heat into evening use. A facility with daytime process water demand may care more about mid-day solar gain. A residential project may need stable daily contribution rather than peak output at one hour.

East-West Roofs Are Not Automatically Rejected

Some buyers assume that only a perfectly oriented roof can use solar thermal. That is too restrictive. East-facing and west-facing roofs can still be used when expectations are adjusted and collector area, storage, and backup heating are designed accordingly.

The important point is honesty. A less ideal orientation should be reflected in project calculations. It should not be hidden in a generic quotation. When orientation is imperfect, the buyer should ask whether more collector area is needed, whether output will shift toward morning or afternoon, and whether the tank volume still matches the daily load.

Orientation Errors Are Expensive After Installation

Once collectors are mounted, changing direction is difficult. This is why solar thermal roof layout should be checked before brackets are installed. A supplier who only sells panels may ignore this step, but a professional project partner should ask for roof photos, drawings, compass direction, and shading information before recommending a layout.

Solar Collector Tilt Angle: The Balance Between Output, Roof Form and Weather

Solar collector tilt angle affects seasonal performance, snow behavior, wind exposure, roof appearance, and mounting complexity. A collector lying too flat may receive less winter radiation and may hold more dirt or snow. A collector tilted too steeply may increase wind load, change building appearance, and require stronger mounting.

There Is No Universal Best Tilt

Many buyers ask for the “best angle.” The real answer depends on location, seasonality, hot water demand, roof structure, and project goals. A system designed for annual average energy may use a different tilt from a system designed to improve winter contribution. A system on a pitched roof may follow the roof slope for appearance and installation simplicity. A flat roof project may use adjustable frames to optimize angle.

This is why a serious solar thermal installation guide should not give one universal number. It should explain the tradeoff. The best tilt is not just the angle with the highest theoretical radiation. It is the angle that works for the building, climate, wind load, snow behavior, maintenance plan, and customer expectation.

Winter Performance May Need a Steeper Angle

In regions where winter hot water contribution matters, a steeper tilt can sometimes improve winter solar gain because the sun is lower in the sky. It can also help snow slide from the glass surface. However, steeper mounting may increase wind exposure and structural requirements.

For cold regions, tilt should be evaluated together with freeze protection, pipe insulation, and backup heating. A steep collector angle cannot compensate for weak system protection. Buyers should review solar collector freeze protection logic when winter performance is a major requirement.

Roof-Parallel Mounting Can Be the Right Choice

On many pitched roofs, collectors are mounted parallel to the roof surface. This can reduce wind load, improve appearance, simplify brackets, and create a clean architectural result. The performance may not be theoretically perfect, but the project may still be stronger overall because installation is safer and the building appearance is better.

For premium residential or commercial buildings, appearance can affect acceptance. A technically optimized frame that looks awkward may be rejected by the building owner. This is why flat plate collector roof mounting should balance performance with real architectural constraints.

Shading: The Silent Performance Killer

Flat plate collector shading is one of the most common reasons a solar thermal project underperforms. Shading may come from trees, chimneys, parapets, nearby buildings, roof equipment, antennas, snow banks, or even another collector row.

Unlike a product defect, shading is often preventable before installation. But once the collector is installed in a poor location, the problem becomes difficult and costly to solve.

Seasonal Shading Must Be Checked

A roof that looks clear in summer may be shaded in winter because the sun is lower. A tree that does not shade the roof at noon may shade it during morning or afternoon hours. A nearby building may cast long shadows during colder months.

This is why site evaluation should include seasonal sun path, not only a quick roof photo. If winter performance is important, winter shading matters more than summer shading.

Partial Shading Still Matters for Solar Thermal

Solar thermal collectors are different from PV panels, but shading still reduces useful heat gain. If part of the collector is shaded, the absorber receives less energy. If one section of an array is shaded while another is exposed, flow and output may become less balanced depending on hydraulic layout.

For large commercial arrays, shading from parapets or rooftop equipment should be mapped carefully. A small shadow repeated every day can reduce expected performance over the life of the system.

Row-to-Row Shading on Flat Roofs

Flat roof installations often use tilted frames. If rows are too close, one row can shade the row behind it, especially in winter. Increasing row spacing improves solar access but consumes more roof area. This creates a design tradeoff between collector quantity and effective output.

A good flat plate collector array design should not simply maximize the number of panels on the roof. It should maximize useful heat contribution after spacing, shading, access, and hydraulic balance are considered.

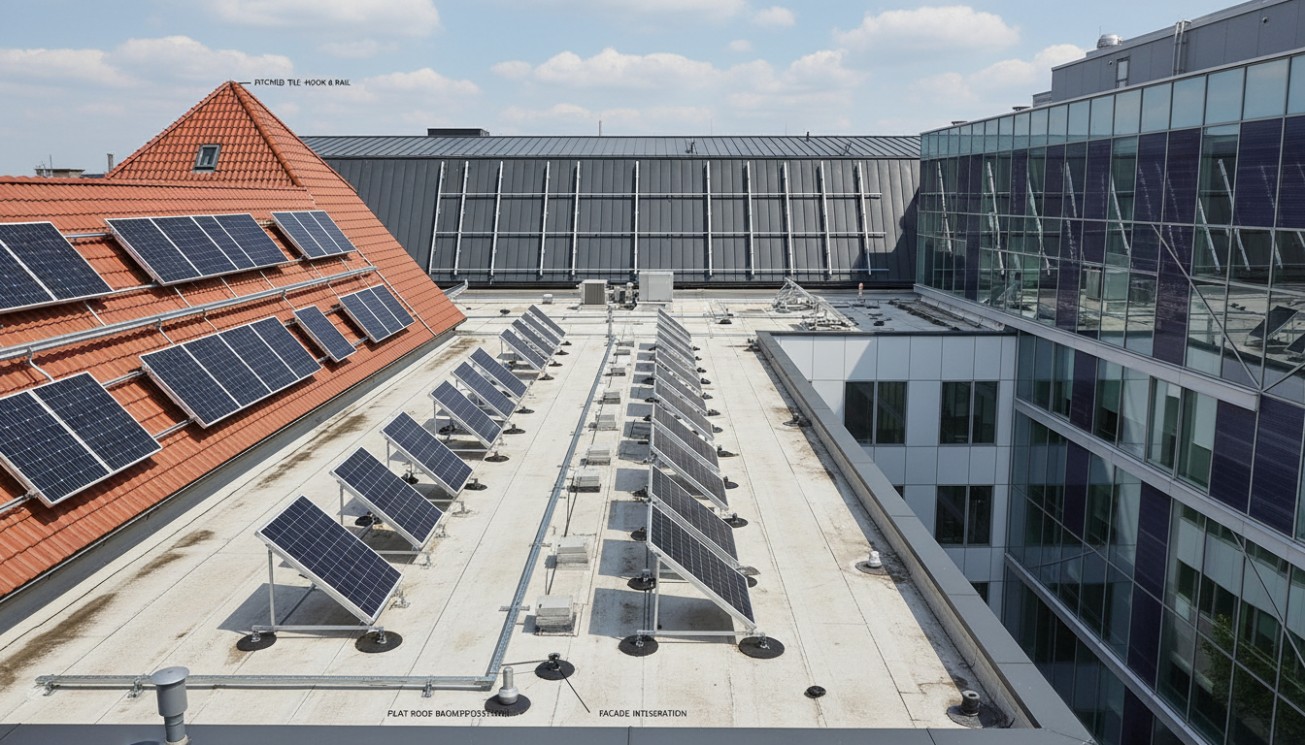

Mounting Systems: The Collector Must Stay Secure for Years

The solar collector mounting system is the physical bridge between the collector and the building. It must hold the collectors safely, maintain correct angle, resist wind uplift, protect roof waterproofing, and allow installation crews to work efficiently.

Pitched Roof Mounting

Pitched roof mounting often requires hooks, rails, brackets, flashing, or roof-specific fixing components. The details depend on whether the roof uses tile, metal sheet, asphalt shingles, standing seam, or another material.

Waterproofing is critical. A solar thermal system should not create roof leaks. Every penetration point must be sealed correctly, and the mounting method should follow local roofing practice. The best collector is not valuable if the installation damages the roof.

Flat Roof Mounting

Flat roof installations usually use support frames or ballast systems. The design must consider wind uplift, roof membrane protection, drainage, row spacing, and maintenance walkways. Ballasted systems may reduce penetrations, but they add weight. Penetrated systems may provide strong fixation, but they require careful waterproofing.

Flat roof projects often look simple in drawings, but real roofs contain drains, equipment, parapets, roof slopes, access routes, and structural limits. These details should be reviewed before finalizing the collector layout.

Facade and Special Mounting

Some projects may consider facade mounting or special architectural integration. Flat plate collectors can sometimes support building-integrated aesthetics better than tube-style collectors, but performance and maintenance must still be considered.

Facade mounting may reduce roof load or fit a building design, but solar access, angle, wind exposure, pipe routing, and service access must be evaluated carefully.

Wind, Snow and Roof Waterproofing: Installation Is Also Risk Management

A flat plate collector is an outdoor product. It faces weather for many years. A reliable flat plate solar collector installation must therefore address environmental risk, not only collector placement.

Wind Load and Uplift

Wind can create uplift forces that try to pull collectors away from the roof. This is especially important on high buildings, coastal areas, open plains, mountain regions, and roof edges. Tilted frames can increase wind exposure if not designed correctly.

Buyers should ask suppliers whether mounting systems are suitable for local wind conditions. In large projects, structural review may be necessary. A low-cost bracket that ignores wind load can create serious safety risk.

Snow Load and Sliding Snow

In snowy regions, collectors and mounts must handle snow load. Snow may accumulate above or around the collector. Sliding snow may hit lower roof elements. Collector tilt and placement should consider both energy performance and roof safety.

Snow behavior also affects output. A collector covered by snow cannot collect much heat. A steeper tilt may help shedding, but the mounting system must support the resulting mechanical conditions.

Roof Waterproofing Must Not Be Sacrificed

Solar thermal installation should not compromise the building envelope. Roof penetrations, pipe entries, bracket fixings, and flashing details must be handled correctly. In many projects, roof leak disputes create more customer dissatisfaction than collector performance issues.

This is why B2B buyers should evaluate not only collector quality but also installation documentation, bracket details, and contractor training. A complete solar thermal installation guide should include roof protection, not just collector connection.

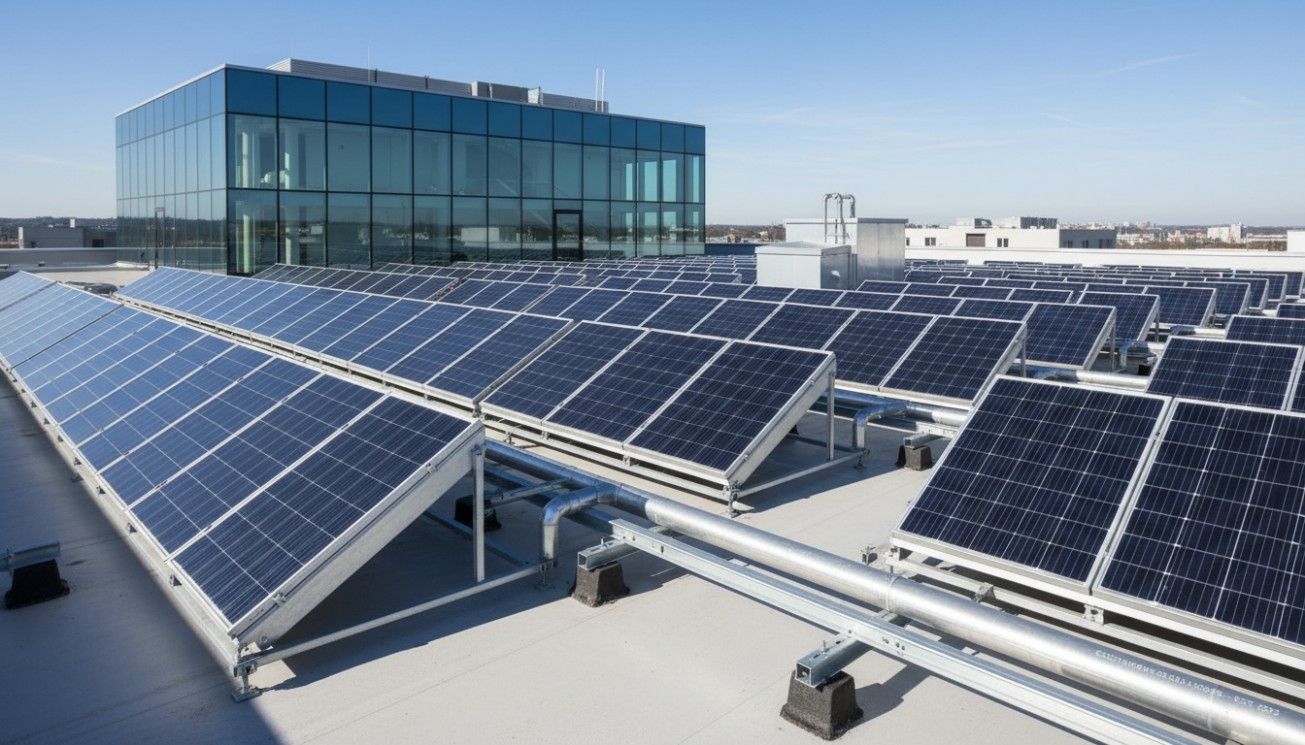

Array Design: More Collectors Do Not Always Mean Better Output

Flat plate collector array design becomes important when a project uses multiple collectors. Homes may use a small array, while hotels, schools, apartments, and factories may use many collectors. As the array grows, spacing, flow balance, piping, row layout, and maintenance access become more important.

Gross Area, Aperture Area and Useful Area

Collectors are often compared by gross area, but useful solar collection depends more on aperture area, absorber area, orientation, tilt, shading, and system losses. A layout with more gross area but poor spacing or shading may produce less useful heat than a smaller but cleaner layout.

Buyers should not evaluate array design by panel count alone. They should ask how much useful collector area is actually exposed to good sun and how the array connects to the storage system.

Series and Parallel Connections

Collector arrays may be connected in series, parallel, or combinations depending on temperature target, flow rate, pressure drop, and project scale. Too many collectors in series may increase outlet temperature but can also increase heat loss and pressure drop. Parallel layouts can support larger arrays but require better balancing.

Hydraulic design should match the application. Domestic hot water, commercial preheating, hotel systems, and industrial process support may need different array logic.

Reverse Return and Flow Balance

In larger arrays, flow balance matters. If one collector bank receives more flow than another, output may become uneven. Some collectors may run hotter, while others contribute less. Proper header sizing, pipe layout, balancing valves, and reverse-return design can improve distribution.

A strong solar thermal roof layout should therefore include piping logic from the beginning, not after collectors are already placed.

Piping Routes: Heat Collected on the Roof Must Reach the Tank

Piping is often visually less important than collectors, but it can strongly affect performance. Heat collected by the array must travel through pipes before it reaches the tank or heat exchanger. Poor pipe routing can waste energy and create maintenance problems.

Keep Pipe Runs Practical

Long pipe runs increase heat loss, material cost, pump requirements, and installation complexity. The best collector location is not always the farthest sunny roof corner if the pipe route becomes too long and exposed.

Project teams should evaluate collector position and tank position together. A slightly less perfect roof area may be better if it allows shorter, better-protected piping.

Insulate Pipes Seriously

Solar thermal piping can lose meaningful heat if insulation is weak, damaged, UV-exposed, or poorly installed. This is especially important for outdoor pipe sections, cold climates, windy roofs, and high-temperature systems.

Pipe insulation should be weather-resistant, temperature-resistant, and protected from physical damage. A good collector field with poor pipe insulation can still underperform.

Pipe Slope Matters for Some Systems

For drainback systems, pipe slope is critical because fluid must return to the reservoir when the pump stops. A single trapped section can create freeze risk. For glycol systems, slope may be less critical, but air removal, venting, and service access remain important.

The system choice should influence the roof layout. The roof layout should not be designed first and then forced into a loop design that does not fit.

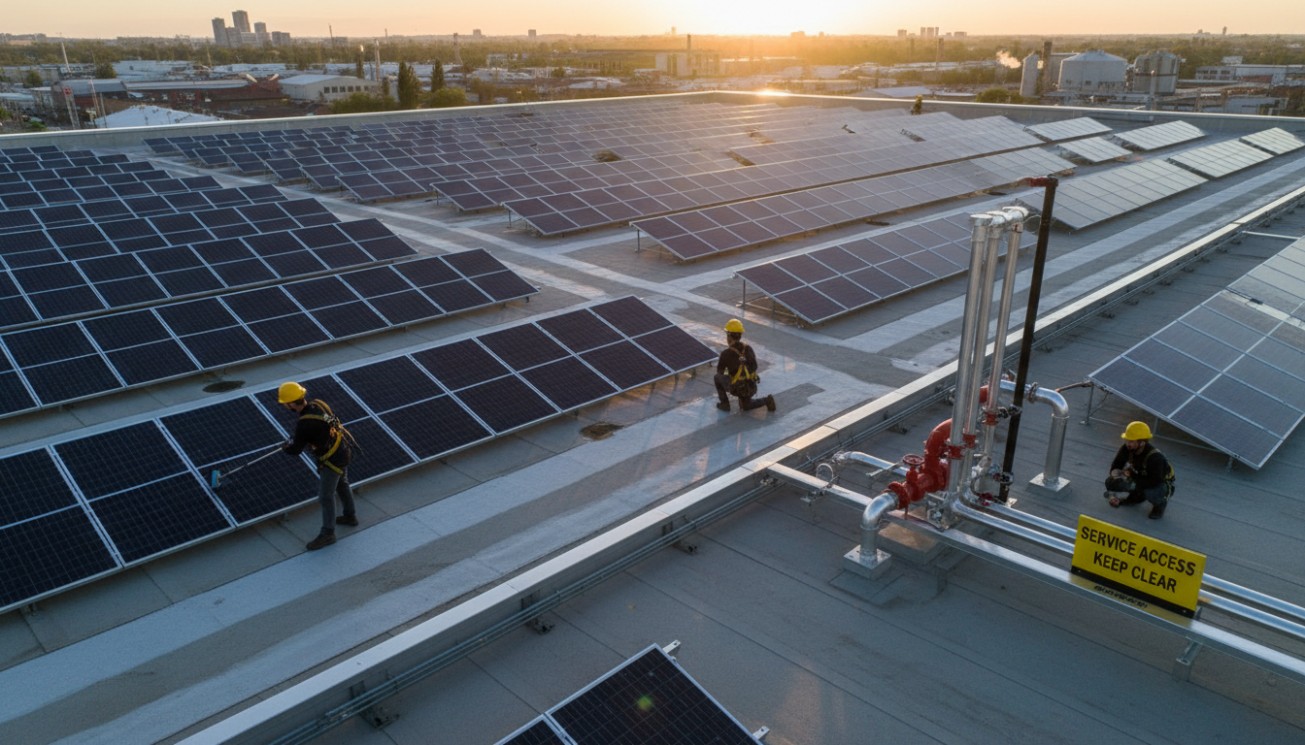

Service Access: A Good Layout Must Be Maintainable

Many solar thermal projects are designed for installation day but not for year five. This is a mistake. Collectors may need cleaning, inspection, sensor replacement, bracket checks, pipe insulation repair, valve service, or leakage investigation. If the array cannot be accessed safely, small problems become expensive.

Leave Walking and Working Space

Collectors should not cover every available roof surface. Installers and maintenance teams need paths to reach the array, inspect pipe connections, clean glass, access sensors, and check mounting hardware. Commercial roofs may also require emergency access routes or code-defined clearances.

A layout that maximizes collector count but blocks access may reduce long-term value. For B2B buyers, maintainability should be part of the quotation review.

Keep Critical Components Reachable

Temperature sensors, air vents, isolation valves, unions, drain points, and pipe connections should be placed where service teams can reach them. If components are hidden under collectors or placed at dangerous roof edges, maintenance becomes difficult.

Cleaning Needs Depend on Local Conditions

Dust, pollen, bird droppings, industrial pollution, salt spray, and snow can reduce collector surface performance. Some regions may need more frequent cleaning than others. A good flat plate collector roof mounting plan should consider whether cleaning is realistic and safe.

Building Appearance and Market Acceptance

Flat plate collectors often have an advantage in building appearance because they create a clean panel surface. This can support modern residential buildings, villas, hotels, apartments, schools, and public buildings where roof aesthetics matter.

However, appearance depends on layout discipline. Random collector placement, exposed messy piping, mismatched brackets, and poor cable routing can make even premium collectors look cheap. For distributors and project developers, roof appearance is part of brand value.

Align Collectors With Roof Geometry

Collectors should be aligned with roof lines where possible. Symmetrical layouts, consistent spacing, and neat pipe routing create a more professional result. This matters especially in premium residential and commercial projects.

Hide or Organize Piping

Solar thermal systems require pipes, but exposed pipes should be organized. Poor pipe routing can damage building appearance and increase heat loss. A clean pipe route also makes maintenance easier.

Do Not Sacrifice Service for Appearance

Good design balances appearance and access. A collector field may look cleaner when pushed tightly together, but service teams still need working space. A professional layout should look organized and remain maintainable.

B2B Buyer Checklist for Roof Layout and Installation Planning

Before confirming a flat plate solar collector installation, B2B buyers should prepare roof and project information that allows the supplier to give a useful recommendation.

Roof Information

Prepare roof type, roof material, roof slope, available area, direction, height, structural limits, waterproofing condition, and access route.

Solar Access Information

Prepare shading photos, sun path concerns, nearby buildings, trees, chimneys, parapets, HVAC units, and seasonal shading risks.

Weather Information

Prepare wind exposure, snow load, coastal corrosion risk, dust level, pollution level, and local temperature range.

System Information

Prepare storage tank location, pipe route, system type, glycol or drainback decision, pump station location, backup heating method, and maintenance responsibility.

Commercial Information

Prepare hot water demand, project type, user schedule, building owner requirements, aesthetic expectations, warranty requirements, and local installer skill level.

With this information, the supplier can support real flat plate collector array design, not just sell collector panels.

Common Roof Layout Mistakes Buyers Should Avoid

Mistake 1: Maximizing Panel Count Instead of Useful Output

More panels do not always create better performance if spacing, shading, access, and hydraulic balance are poor. Useful output matters more than panel count.

Mistake 2: Ignoring Seasonal Shading

Summer roof photos may hide winter shading problems. Low winter sun can create long shadows that reduce collector output when hot water demand may be higher.

Mistake 3: Treating Mounting Hardware as a Low-Cost Accessory

The mounting system protects the roof, the collector, and the building. Weak brackets or poor waterproofing can create safety and warranty problems.

Mistake 4: Designing the Roof Layout Before the Pipe Route

Collectors should be placed with piping in mind. Long, exposed, or poorly insulated pipe routes can waste heat and increase installation complexity.

Mistake 5: Forgetting Maintenance Access

A system that cannot be reached safely will be harder to maintain. Service access should be designed before installation, not after the first problem appears.

Focused FAQ

What is the most important factor in flat plate solar collector installation?

The most important factor in flat plate solar collector installation is matching the collector layout to roof direction, tilt, shading, structure, mounting method, piping route, and service access. Product quality matters, but installation determines how that quality performs in the real building.

What is the best solar collector tilt angle?

There is no universal best solar collector tilt angle. The right angle depends on location, roof type, seasonal demand, wind load, snow behavior, and project goals. Winter-focused systems may use a different tilt from annual-average systems.

Which direction should flat plate collectors face?

Solar collector orientation should follow local solar path and project demand. In many northern hemisphere projects, south-facing orientation is preferred. In the southern hemisphere, north-facing orientation is often preferred. Actual roof conditions should always be checked.

How much roof space is needed for solar water heating?

Roof space solar water heating requirements depend on hot water demand, collector size, usable sun area, row spacing, shading, tilt, tank size, and system losses. Total roof area is not the same as usable solar area.

Can flat plate collectors be installed on a flat roof?

Yes. Flat roofs often use support frames or ballast systems. The design should consider wind uplift, row spacing, roof membrane protection, drainage, access paths, and structural load.

Can flat plate collectors be installed on pitched roofs?

Yes. Flat plate collector roof mounting on pitched roofs often uses roof hooks, rails, brackets, flashing, or roof-specific fixing systems. Waterproofing and roof compatibility are critical.

How does shading affect flat plate collectors?

Flat plate collector shading reduces useful solar gain. Shading from trees, buildings, roof equipment, parapets, chimneys, and other collector rows should be checked before installation, especially during winter sun conditions.

What makes a good solar collector mounting system?

A good solar collector mounting system supports the collector securely, resists wind and snow loads, protects roof waterproofing, matches roof material, allows correct tilt, and provides safe installation and maintenance access.

Why does array design matter for larger projects?

Flat plate collector array design affects flow balance, row spacing, pipe routing, shading, maintenance access, and useful heat output. In commercial projects, poor array design can reduce performance even when the collectors themselves are good.

What should a solar thermal installation guide include?

A professional solar thermal installation guide should include roof assessment, orientation, tilt, mounting method, waterproofing, wind and snow load, pipe routing, insulation, hydraulic layout, safety access, commissioning, and maintenance planning.

Final Thought: A Collector Is Only as Good as Its Position on the Roof

A flat plate collector is a heat collection device, but the roof decides how effectively it can do its job. The right roof layout can improve solar access, reduce shading, simplify piping, protect waterproofing, support maintenance, and create a cleaner building appearance. The wrong layout can turn a good collector into a disappointing system.

For B2B buyers, solar thermal roof layout should be discussed before the final quotation, not after the products arrive. Roof direction, tilt, usable area, shading, wind exposure, snow load, structural support, pipe route, and service access all affect the final project value.

A strong flat plate solar collector installation is not created by one decision. It is created by many connected decisions: where the collector faces, how it is tilted, how it is mounted, how rows are spaced, how pipes are routed, how roof waterproofing is protected, and how maintenance teams will reach the system later.

This is why serious buyers should not treat collectors as isolated panels. They should treat them as part of a roof-based thermal system. When the roof layout is planned carefully, flat plate collectors can deliver clean appearance, stable performance, and long-term project value. When layout is ignored, even a high-quality collector can lose performance before the system ever reaches the storage tank.
