Flat Plate Solar Collectors in Cold Climates: Performance, Freeze Protection and Winter System Design

Cold Climate Does Not Reject Flat Plate Collectors, But It Punishes Weak Design

A flat plate solar collector cold climate project should never be judged by summer performance alone. In warm months, almost any solar thermal collector can look impressive. The sun is strong, ambient air temperature is favorable, roof surfaces are dry, and hot water demand may be easier to support. Winter is different. Winter exposes every weakness in collector insulation, glass transmission, pipe protection, fluid selection, pump control, storage strategy, and backup heating logic.

This is why professional buyers should avoid two extreme opinions. The first opinion says flat plate collectors cannot work in cold regions. That is too simple. The second opinion says a flat plate collector works the same everywhere as long as the product is “high efficiency.” That is also wrong. The truth is more technical: a flat plate collector can be used in cold climates when the collector quality, system design, freeze protection method, installation angle, storage volume, and maintenance plan are aligned.

A cold region does not only mean low temperature. It may also mean strong wind, snow accumulation, shorter winter days, lower solar altitude, frequent freeze-thaw cycles, icy roof conditions, and higher hot water demand. These factors change how a solar thermal system behaves. The collector is still important, but it is no longer the only important decision.

For buyers who are still building basic product understanding, the foundation article on flat plate solar collector working principles can be used as the starting point. This article goes further into the winter question: how should buyers evaluate flat plate collector winter performance, prevent freezing, control heat loss, and decide whether flat plate is the right choice for a cold-climate solar hot water project?

Why Winter Changes the Behavior of a Flat Plate Collector

A flat plate collector works by allowing sunlight to pass through a transparent cover, reach the absorber plate, and transfer heat into water or heat transfer fluid. In mild weather, this process can be efficient and predictable. In winter, the same process faces more resistance.

The key issue is temperature difference. When the absorber plate becomes warm but the outside air is very cold, the collector loses heat more aggressively through the glass, frame, back insulation, and edges. This is the basic logic behind solar collector heat loss. The more the collector tries to operate above ambient temperature, the more important insulation, coating, glazing, sealing, and system control become.

Cold climate performance is therefore not only about how much sunlight reaches the roof. It is also about how much of that collected heat can be retained and transferred before it escapes into the surrounding air.

Sunlight Is Lower and the Day Is Shorter

In many cold regions, winter days are shorter and the sun is lower in the sky. A roof that performs well in summer may receive weaker winter radiation. Shading from nearby buildings, chimneys, trees, snow banks, or roof structures may become more serious when the sun angle is low.

This affects solar hot water cold climate projects because the system has fewer effective solar hours to collect useful heat. A collector may still work, but the design should not assume summer-style output. Winter sizing must be more conservative and more connected to real local solar radiation.

Cold Air Increases Heat Loss

Cold air increases the temperature difference between the absorber and the environment. If the collector insulation is weak, if the frame conducts too much heat, or if the glass and sealing design are poor, useful energy can be lost quickly.

This is where collector quality matters. A well-built flat plate collector with good absorber coating, quality glass, strong insulation, tight sealing, and a stable frame may perform much better than a low-grade collector in winter. Buyers can review the related quality article on solar collector quality to understand why material decisions become more important in demanding climates.

Wind Can Be as Important as Temperature

Many cold-climate buyers focus only on air temperature, but wind can be equally damaging. Wind increases convective losses around the collector and can cool the glass surface, frame, and exposed piping. A sunny but windy winter day may deliver less useful heat than expected if the system is poorly protected.

For this reason, solar thermal cold weather design should include roof exposure, wind direction, pipe insulation, mounting height, and collector placement. A collector installed on an exposed roof edge may experience more heat loss than one installed in a more protected but still unshaded area.

Freeze Risk Is the Real Design Boundary

Low winter output is a performance issue. Freezing is a survival issue. If water freezes inside a collector, pipe, valve, or heat exchanger, expansion can cause cracks, leaks, and system failure. This is why solar collector freeze protection is one of the most important topics in cold-climate solar thermal design.

A buyer should not ask only whether the collector can “work in winter.” The more serious question is whether the fluid circuit can survive freezing conditions when the pump is off, during power failure, during long cloudy periods, or when the system is not used for several days.

The collector itself may be strong, but if the fluid circuit is wrong, the system can fail. This is why cold-climate projects should be designed as complete systems rather than product-only purchases.

Direct Water Systems Are Risky in Freezing Regions

In a direct system, potable water may circulate through the collector. This can be simple in warm regions, but it becomes risky where freezing is possible. If water remains in the collector or roof piping during freezing conditions, the system may be damaged.

Direct systems can make sense in suitable climates, but cold regions usually require more protection. Buyers comparing system layouts can review direct vs indirect split solar water heating systems to understand how water quality, freezing risk, and heat exchange influence system choice.

Indirect Systems Create More Control Options

In an indirect system, a heat transfer fluid circulates through the collector loop and transfers heat to domestic water through a heat exchanger. This structure allows the collector loop to use antifreeze fluid or drainback design instead of leaving ordinary water exposed to freezing risk.

For cold climates, indirect systems usually provide more design flexibility. They can separate the collector loop from potable water, reduce freezing risk, and allow the system designer to choose a protection method that matches the market.

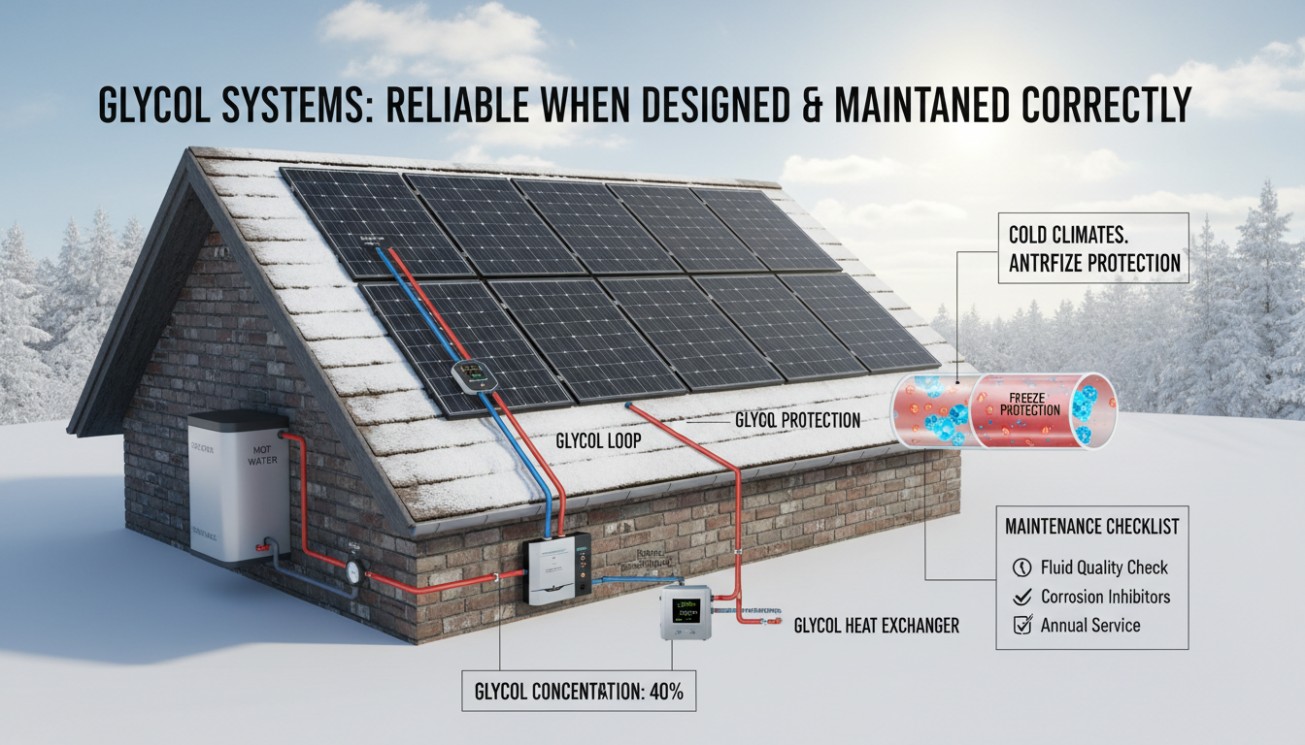

Glycol Systems: Reliable When Designed and Maintained Correctly

A glycol solar thermal system is one of the most common approaches for cold regions. Instead of circulating ordinary water through the collector loop, the system uses a water-glycol mixture that can resist freezing down to a specified temperature range.

This makes glycol systems attractive for antifreeze solar water heater applications. However, glycol is not a magic solution. It must be selected, mixed, installed, monitored, and maintained correctly. If the system overheats frequently, if fluid quality declines, or if maintenance is ignored, glycol can degrade and create new problems.

What Glycol Solves

Glycol helps protect the collector loop from freezing. This is especially useful in closed-loop systems where fluid remains in the collector and roof piping even when the system is not actively collecting heat. With correct concentration and system design, glycol can reduce the risk of freeze damage.

For many distributors and installers, glycol systems are easier to explain than drainback systems because the loop remains filled and the freeze protection is based on fluid chemistry. This can be useful in markets where installation teams already understand closed-loop heating or HVAC systems.

What Glycol Does Not Solve

Glycol does not solve poor system design. It does not fix undersized expansion vessels, weak air elimination, poor pump selection, bad heat exchanger matching, or weak pipe insulation. It also does not remove the need for maintenance.

If glycol overheats repeatedly during stagnation, it can degrade. Degraded glycol may become acidic, lose protection ability, create deposits, or damage system components. A glycol solar thermal system therefore requires maintenance planning. Buyers should ask suppliers about recommended fluid type, concentration, replacement interval, maximum operating temperature, stagnation behavior, and service procedures.

When Glycol Fits Best

Glycol systems can fit residential, commercial, and institutional solar hot water projects in cold climates when the local market has trained installers and maintenance support. They are especially useful when the collector loop must remain filled and when the project requires reliable freeze protection without draining the collector each night or during cold events.

However, the buyer should include maintenance in the lifecycle cost. A low-cost system that ignores glycol service may become expensive later.

Drainback Systems: Freeze Protection Through Empty Collectors

Drainback solar water heating uses a different protection logic. Instead of relying on antifreeze fluid, the collector loop is designed so that fluid drains back into a protected reservoir when the pump stops. When the collector and exposed piping are empty, there is little or no fluid left on the roof to freeze.

This approach can be highly attractive because it reduces dependence on glycol chemistry. But it also requires precise installation. Pipe slopes, pump sizing, reservoir placement, air management, and controller logic must be correct. A drainback system that is installed poorly may fail to drain completely, which creates freezing risk.

What Drainback Solves

Drainback design can reduce freezing risk by removing fluid from exposed collector piping when the system is inactive. It can also help manage overheating because the collector loop can stop circulating when storage is satisfied, leaving the collector dry or separated from the main fluid volume depending on the design.

For some cold-climate buyers, this is attractive because it avoids long-term glycol degradation and fluid replacement concerns.

What Drainback Requires

Drainback systems require careful hydraulic design. The collector array and piping must allow complete drainage. Horizontal pipe sections, wrong slopes, trapped fluid pockets, and poor installation can damage the concept. Pump sizing must also overcome static lift when starting circulation.

Because of these requirements, drainback solar water heating may not be ideal for every installer network. It can perform well when designed by experienced teams, but it can create problems when treated as a generic system kit.

When Drainback Fits Best

Drainback can fit projects where the installer has strong system knowledge and where the building layout allows proper pipe slope and reservoir placement. It can also fit buyers who want freeze protection without routine glycol management.

For B2B distributors, the decision should include installer training. If local installers do not understand drainback geometry, a theoretically strong system can become a field failure.

Flat Plate vs Heat Pipe in Cold Climates: The Practical Question

Cold climates often lead buyers to compare flat plate and heat pipe collectors. Heat pipe and evacuated tube collectors are commonly associated with stronger cold-weather heat retention because evacuated tubes can reduce heat loss. This can be a valid advantage in certain conditions.

However, the comparison should not be reduced to “heat pipe is always better in cold climates.” A flat plate solar collector cold climate project can still be suitable when the application, budget, roof design, storage strategy, freeze protection method, and maintenance plan support it.

For a more general technology comparison, buyers can review flat plate vs heat pipe solar collector selection logic. In this article, the focus is narrower: what happens when cold weather becomes the main design pressure?

When Heat Pipe May Have an Advantage

Heat pipe collectors may have an advantage when the project requires stronger heat retention under low ambient temperature, when winter output is a major selling point, or when tube replacement flexibility is valuable. In markets where customers already recognize evacuated tube systems, the technology may also be easier to sell.

However, heat pipe systems still require good design. Manifold insulation, tube quality, freeze protection for piping, mounting strength, snow behavior, and spare part availability all matter. A heat pipe collector does not remove the need for system design.

When Flat Plate Still Makes Sense

A flat plate collector can still make sense in cold climates when the project needs a durable panel structure, clean roof appearance, stable moderate-temperature hot water contribution, and a system design that prevents freezing. It can also fit projects where roof aesthetics and organized collector arrays matter.

The buyer should not ask whether flat plate is theoretically superior in winter. The better question is whether the expected winter contribution, installed cost, maintenance plan, and building requirements make flat plate a rational choice.

Snow: Performance Barrier, Structural Load and Cleaning Question

Flat plate solar panel snow behavior matters in cold regions. Snow can reduce solar transmission, cover the glass, block heat collection, increase roof load, and create maintenance questions. A collector that is technically strong may still produce little heat while covered by snow.

Snow is not only a collector issue. It is a roof, angle, access, climate, and safety issue. Buyers should consider local snowfall patterns, roof slope, installation angle, wind exposure, and whether maintenance staff can safely clear snow when needed.

Collector Tilt Affects Snow Shedding

A steeper collector angle can help snow slide off more easily, but the best tilt also depends on winter solar gain, roof structure, wind load, and aesthetics. In some projects, the collector tilt may be adjusted to favor winter performance, especially when winter hot water contribution is important.

However, increasing tilt can also change wind exposure and mounting requirements. The support structure must handle local wind and snow loads. A collector array should not be adjusted only for energy gain without considering mechanical safety.

Snow Cover Can Hide Output Problems

During snow-covered days, reduced output may be normal. The buyer should not confuse snow blockage with collector failure. But if the collector remains covered long after surrounding surfaces clear, the installation angle, location, shading, or snow management plan may need review.

Maintenance Access Should Be Planned Before Installation

In cold regions, safe access matters. If collectors are installed where snow cannot be cleared safely, winter performance may depend entirely on natural shedding. For commercial buildings, facility teams should understand whether snow cleaning is expected, optional, or unsafe.

Collector Heat Loss: The Hidden Winter Cost

Solar collector heat loss is the main technical reason winter performance differs from summer performance. In a flat plate collector, heat can be lost through the glass cover, frame, back insulation, edges, and pipe connections. Cold wind can increase losses further.

Buyers should evaluate heat loss at both product and system level. A collector with weak insulation may lose heat. A system with long uninsulated pipe runs may lose heat even if the collector is good. A poor storage tank can lose heat after collection. A badly controlled pump can circulate at the wrong time and remove heat from the tank instead of adding it.

Glass and Coating Affect Useful Gain

Good glass transmission allows more solar energy to reach the absorber. Good selective coating helps the absorber retain useful heat. In cold climates, coating and glass quality become more important because the collector must fight higher heat loss conditions.

Back and Side Insulation Matter More in Winter

Back and side insulation reduce losses from the collector body. In warm climates, weak insulation may be less obvious. In winter, the penalty is clearer. A well-insulated collector can retain more useful heat, especially when the absorber temperature is significantly higher than ambient air.

Pipe Insulation Can Decide System Output

Roof piping, external pipe runs, and mechanical room connections must be insulated properly. Heat collected on the roof should not be lost before it reaches the tank or heat exchanger. In cold and windy regions, pipe insulation quality can be as important as collector quality.

Storage and Backup Heating: Winter Performance Is a System Result

A flat plate collector does not deliver comfort alone. The user experiences hot water through storage and backup heating. In cold regions, storage and backup design become especially important because solar input is less predictable.

A well-designed system should treat solar thermal as the primary heat contribution when available and backup heating as the reliability layer. The goal is not to promise 100% solar supply every winter day. The goal is to reduce energy consumption while maintaining hot water comfort.

Storage Volume Must Match Solar Input and Demand

If the tank is too small, useful solar energy may be wasted during sunny periods. If the tank is too large, water temperature may remain too low. Correct storage sizing depends on daily demand, collector area, climate, backup method, and control strategy.

For broader sizing logic, buyers can review solar water heater sizing guidance, then adapt the thinking to cold-climate flat plate collector projects.

Backup Heating Should Be Integrated, Not Added Randomly

Backup heating may be electric, gas, boiler-based, heat-pump-based, or connected to another building heating system. The backup should not fight the solar system. Poor control may heat the tank too early, leaving little room for solar contribution later in the day.

Good control logic allows solar energy to contribute when available while backup heating protects comfort and hygiene requirements.

Commercial Projects Need Load Profile Analysis

Hotels, apartments, dormitories, schools, and factories have different hot water patterns. A school may have concentrated shower periods. A hotel may have morning and evening peaks. A factory may need process water during working hours. Winter design should match these patterns.

A solar hot water cold climate project is strongest when the solar collection period and demand profile support each other.

Installation Angle, Orientation and Roof Exposure

Cold-climate flat plate projects need careful roof planning. The collector should receive winter sun, avoid unnecessary shading, shed snow when possible, and remain accessible for maintenance.

Winter Orientation Should Be Checked, Not Assumed

In many regions, south-facing orientation in the northern hemisphere is preferred for solar collection, but actual project design depends on local geography and roof layout. Buyers should evaluate winter sun path rather than relying only on general rules.

Shading Becomes More Serious in Winter

Low winter sun can create longer shadows. A chimney, parapet, tree, nearby building, or roof equipment may shade the collector during critical solar hours. A site that looks acceptable in summer may perform poorly in winter.

Mounting Must Handle Snow and Wind Loads

Cold regions can combine snow load and wind load. Mounting systems should be designed for local conditions. The collector frame, bracket, roof connection, and fasteners must be considered together.

For B2B buyers, mounting quality should be included in supplier evaluation. A strong collector with weak mounting hardware can still create project risk.

B2B Buyer Checklist for Cold-Climate Flat Plate Projects

Before purchasing collectors for a cold-climate project, buyers should prepare a more detailed inquiry than they would for a warm-climate system.

Climate and Site Data

Buyers should prepare minimum winter temperature, average winter solar radiation, snowfall pattern, wind exposure, roof direction, roof angle, shading condition, and installation height.

Hot Water Demand

Buyers should clarify daily hot water volume, peak usage time, target water temperature, user type, and whether demand is residential, commercial, public, or industrial.

Freeze Protection Method

The buyer should decide whether the project will use a glycol solar thermal system, drainback solar water heating, or another protected indirect design. This decision should be made before final collector selection.

Collector and System Compatibility

Buyers should check working pressure, fluid compatibility, heat exchanger design, pump station, expansion vessel, air venting, pipe insulation, controller logic, and backup heating integration.

Maintenance Capacity

The project should define who will maintain the system, how often the fluid will be checked, whether snow clearing is expected, and whether spare parts are available locally.

Common Mistakes in Cold-Climate Flat Plate Collector Projects

Mistake 1: Judging by Summer Output

A collector that performs well in summer may not meet winter expectations. Winter design should be based on cold-season radiation, temperature, wind, snow, and demand.

Mistake 2: Ignoring Freeze Protection Details

Simply saying the system has antifreeze is not enough. The buyer must know fluid concentration, minimum protection temperature, maintenance interval, and system compatibility.

Mistake 3: Undersizing Pipe Insulation

Poor pipe insulation can waste collected heat before it reaches the storage tank. In cold climates, pipe insulation should be treated as part of system performance.

Mistake 4: Treating Drainback as a Generic Kit

Drainback requires correct slope, pump sizing, and reservoir placement. Poor installation can leave fluid trapped in exposed piping, creating freeze risk.

Mistake 5: Overselling Winter Solar Fraction

Cold-climate projects should be honest about solar contribution. A well-designed system can reduce energy use, but backup heating is still needed for reliability.

Focused FAQ

Can a flat plate solar collector work in cold climates?

Yes, a flat plate solar collector cold climate project can work when the collector quality, freeze protection method, pipe insulation, storage tank, backup heating, and installation design are matched to winter conditions. It should not be evaluated by summer output alone.

What is the biggest risk for flat plate collectors in freezing regions?

The biggest risk is freezing water or fluid in the collector loop, roof piping, valves, or heat exchanger. This is why solar collector freeze protection is a core design requirement in cold regions.

Is glycol necessary for cold-climate solar thermal systems?

Not always, but a glycol solar thermal system is one common solution. It uses antifreeze fluid in the collector loop to reduce freezing risk. Another option is drainback solar water heating, where fluid drains away from exposed piping when the pump stops.

What is the difference between glycol and drainback systems?

A glycol system keeps antifreeze fluid in the collector loop. A drainback system drains fluid into a protected reservoir when circulation stops. Glycol depends on fluid chemistry and maintenance, while drainback depends on correct hydraulic design and installation slope.

Does snow stop flat plate solar collectors from working?

Flat plate solar panel snow coverage can reduce or stop heat collection while the glass is covered. Collector tilt, roof design, wind, sun exposure, and safe cleaning access all influence snow behavior.

Are heat pipe collectors always better than flat plate collectors in winter?

No. Heat pipe collectors may have advantages in some cold-weather conditions, but flat plate collectors can still fit projects where roof appearance, stable moderate-temperature contribution, system design, and lifecycle cost support the choice.

Why does heat loss matter more in winter?

Solar collector heat loss increases when the absorber is much warmer than the surrounding air. In winter, cold air and wind make insulation, glass, coating, frame design, and pipe insulation more important.

What backup heating is needed in cold climates?

Most cold-climate solar hot water systems need backup heating to maintain comfort during cloudy days, snow cover, high demand, or low solar radiation. Backup heating should be integrated with solar control logic, not added randomly.

What should B2B buyers ask suppliers before ordering?

Buyers should ask about minimum operating temperature, freeze protection method, glycol compatibility, drainback suitability, working pressure, insulation design, recommended pipe insulation, mounting for snow and wind load, and maintenance requirements.

How should buyers judge flat plate collector winter performance?

Buyers should evaluate flat plate collector winter performance by climate data, roof exposure, collector heat loss, storage sizing, freeze protection, backup heating, and real hot water demand. The collector should be judged as part of a complete system.

Final Thought: Cold Climate Success Depends on System Discipline, Not Collector Claims

A flat plate collector can be a practical part of a cold-climate solar hot water project, but only when buyers respect winter reality. Cold weather reduces available energy, increases heat loss, creates freezing risk, adds snow considerations, and raises the importance of backup heating. These conditions do not make flat plate collectors impossible. They make weak design unacceptable.

The strongest flat plate solar collector cold climate projects are not built on optimistic product claims. They are built on correct collector quality, honest winter performance expectations, protected fluid loops, proper pipe insulation, suitable mounting, reliable storage, and well-integrated backup heating.

For B2B buyers, the decision should not be “Can flat plate work in winter?” The better question is: “What design conditions must be met for flat plate to work reliably in this winter market?”

If the project has moderate hot water targets, good roof exposure, suitable freeze protection, trained installers, and realistic solar contribution expectations, a flat plate collector can still deliver useful value. If the project ignores freezing risk, pipe losses, snow, glycol maintenance, drainback geometry, or backup integration, even a good collector may disappoint the user.

Cold climates do not forgive shortcuts. But with disciplined design, clear supplier communication, and proper installation, solar hot water cold climate projects can use flat plate collectors as part of a reliable renewable heating strategy.
