Drainback or Glycol? How to Design a Flat Plate Solar Collector System for Long-Term Reliability

Drainback and Glycol Are Not Small System Details

When buyers evaluate a flat plate solar collector system, they often focus on the visible collector first. They compare absorber size, glass quality, frame material, coating, roof layout, and price. These details matter, but they do not decide the whole project by themselves. In many real solar hot water projects, long-term reliability is decided by something less visible: the loop design behind the collector.

This is where the choice between a drainback solar thermal system and a glycol solar water heating system becomes important. Both designs can protect flat plate collectors in demanding climates. Both can support residential, commercial, and project-based solar water heating. Both can fail if they are selected for the wrong building or installed by a team that does not understand the design logic.

The mistake is treating drainback and glycol as simple accessories. They are not. They define how the collector loop survives freezing, how it handles stagnation, how the pump starts and stops, how maintenance is planned, and how the system behaves when the storage tank is already hot. For B2B buyers, distributors, and installers, this decision directly affects solar hot water reliability, warranty pressure, service workload, and customer satisfaction.

This article does not ask which system is universally better. That question is too shallow. A better question is: which design creates a more reliable match for this climate, building, installer network, maintenance model, and hot water demand?

The Core Difference: Freeze Protection by Fluid Chemistry or by Draining

The simplest way to understand the choice is this: a glycol system protects the collector loop by changing the fluid, while a drainback system protects the collector loop by removing the fluid from exposed sections when circulation stops.

A glycol solar water heating system usually uses a water-glycol heat transfer fluid in a closed loop. This fluid circulates through the flat plate collectors and transfers heat to domestic water through a heat exchanger. Because glycol has antifreeze properties when mixed correctly, the loop can remain filled during cold weather.

A drainback solar thermal system uses a different protection strategy. When the pump stops, the fluid drains back into a protected reservoir or drainback tank. The collectors and exposed roof piping are left empty or largely empty. If there is no fluid left in the exposed collector loop, there is little fluid available to freeze.

Both approaches are used in solar thermal engineering. The right choice depends on climate, roof geometry, piping slope, pump selection, user expectations, and maintenance capability. Buyers comparing system types should also understand the broader difference between direct and indirect hot water loops. The article on direct vs indirect split solar water heating systems gives useful background for understanding why collector-loop design matters.

Why Flat Plate Collectors Need System-Level Protection

A flat plate collector can be a durable and practical thermal device, but it is still part of a fluid system. It is exposed to sun, wind, rain, freezing temperature, stagnation temperature, pressure variation, and installation stress. Even a well-made collector can create problems if the loop design is wrong.

This is especially important because flat plate collectors are often installed as fixed roof arrays. Once installed, access may be difficult. A small design mistake can become expensive because service teams may need to work on the roof, drain the system, replace fluid, repair insulation, or troubleshoot controller logic.

Freezing Is a Failure Risk, Not Just a Performance Issue

Cold weather can reduce solar output, but freezing can damage the system physically. If water or poorly protected fluid freezes inside the collector, pipe, valve, pump, or heat exchanger, expansion can create cracks, leaks, and pressure failures. This is why solar collector freeze protection is not optional in climates where freezing is possible.

The previous guide on flat plate solar collector cold climate performance explains how winter affects heat loss, snow behavior, freeze risk, and backup heating. This article focuses on the next layer: which collector-loop design should be used to protect the system and keep it reliable over time?

Overheating Can Be as Important as Freezing

Many buyers think only cold regions need careful loop design. That is not true. In hot climates, buildings with seasonal demand, or projects where hot water use is irregular, solar collector overheating can become a major issue. If the tank is already hot but the collectors continue receiving strong sunlight, the system may enter stagnation conditions.

Stagnation can stress fluid, seals, insulation, valves, expansion vessels, and pump stations. A design that solves freezing but ignores overheating is incomplete. This is why drainback and glycol should be compared not only by freeze protection, but also by overheating behavior and maintenance responsibility.

How a Glycol Solar Water Heating System Works

A glycol solar water heating system usually uses a closed collector loop. The loop contains water mixed with propylene glycol or another suitable heat transfer fluid. The pump circulates this fluid through the flat plate collectors. The heated fluid then passes through a heat exchanger, usually in or near the storage tank, transferring heat to domestic water without mixing with it.

This structure is common in cold-weather solar thermal because the collector loop can remain filled while still being protected against freezing. It also separates the collector fluid from potable water, which can be useful when water quality, scaling, pressure, or freeze protection is a concern.

Where Glycol Systems Fit Well

Glycol systems can fit residential homes, villas, apartments, schools, hotels, and small commercial projects when the market has installers who understand closed-loop solar thermal design. They are especially suitable where roof piping cannot drain naturally, where pipe routing is complex, or where the building layout does not allow a reliable drainback path.

A glycol loop can also fit projects where the installer wants a familiar pressurized closed-loop architecture. For buyers already familiar with hydronic heating, boilers, or indirect water heating systems, the logic of a closed loop solar water heater may be easier to understand and service.

What Glycol Systems Require

Glycol must be treated as a technical fluid, not as a permanent magic liquid. Its freeze protection level depends on concentration. Its service life depends on temperature exposure, inhibitor package, system cleanliness, oxygen control, and stagnation frequency.

If a system overheats repeatedly, glycol can degrade. Degraded glycol may become acidic, dark, sticky, or less effective. It can create deposits, reduce heat transfer, damage seals, and increase pump or valve problems. This is why solar thermal maintenance is essential for glycol systems.

Professional buyers should ask the supplier what type of glycol is recommended, what concentration is required for the local minimum temperature, what testing method is used, how often fluid should be checked, and what signs indicate replacement is needed.

What Glycol Systems Do Not Solve

A glycol loop does not fix poor system engineering. It does not compensate for undersized expansion vessels, weak air elimination, bad pump selection, poor heat exchanger sizing, wrong controller settings, or weak pipe insulation.

For example, if the expansion vessel is too small, pressure may rise during high-temperature operation. If air is trapped in the collector loop, flow can become unstable. If the pump is undersized, fluid may not move properly through the collector array. If pipe insulation is weak, useful heat may be lost before it reaches the tank.

This means a glycol solar water heating system is reliable only when the whole loop is designed correctly.

How a Drainback Solar Thermal System Works

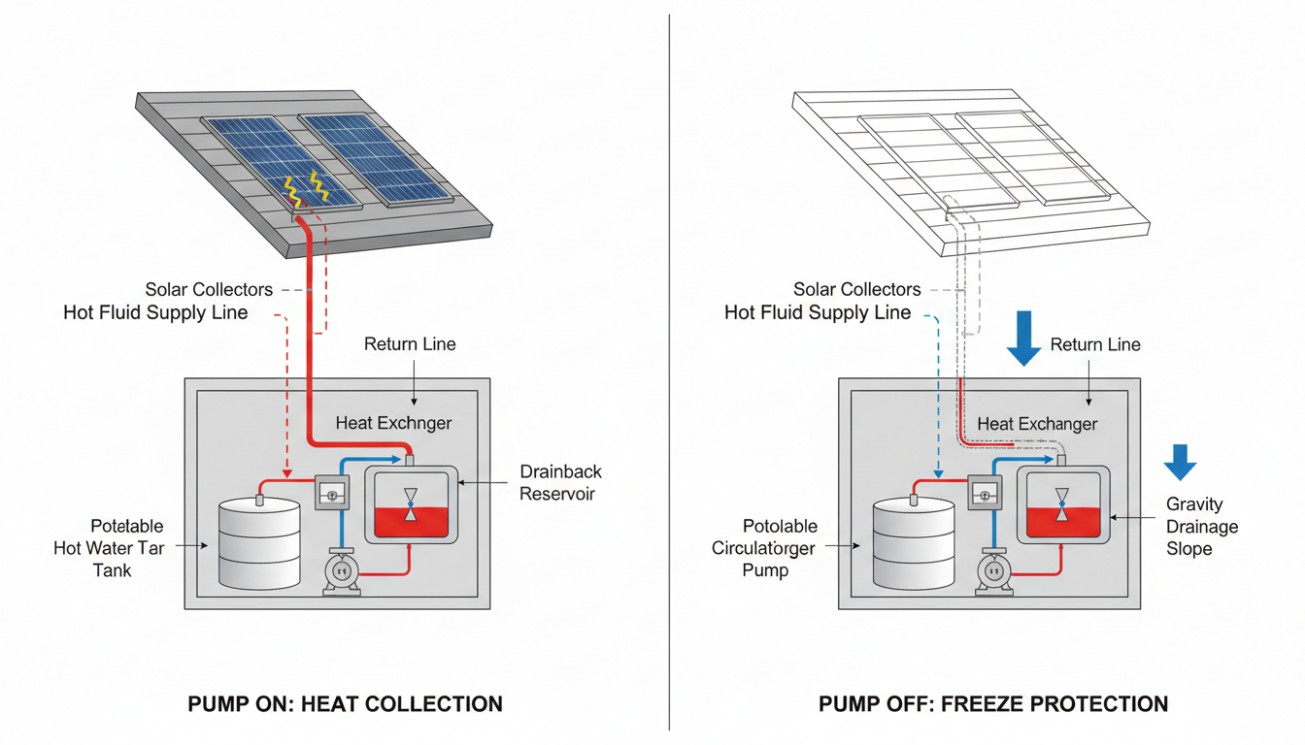

A drainback solar thermal system is based on a physical protection principle. When the pump is running, fluid is pushed through the collector loop and heat is collected. When the pump stops, gravity returns the fluid to a protected drainback reservoir. The collectors and exposed roof piping should drain empty.

This design can be elegant because it reduces reliance on antifreeze chemistry. If the collectors and roof piping are empty during freezing conditions, the risk of fluid freezing in exposed components is greatly reduced.

Where Drainback Systems Fit Well

Drainback systems can fit buildings where the collector array and piping can be installed with proper slope back to the reservoir. They can be attractive in markets where buyers want to reduce glycol maintenance, avoid glycol degradation, or simplify long-term fluid management.

They can also be useful for projects where overheating risk is a concern. When the storage tank is satisfied and the pump stops, the collectors can drain. This can reduce stress on the working fluid compared with a constantly filled loop under stagnation conditions.

What Drainback Systems Require

Drainback requires disciplined installation. The piping must slope correctly. Fluid must not be trapped in low points. The reservoir must be placed properly. The pump must be able to lift fluid up to the collectors at startup. The controller must operate correctly. The installer must understand that small geometry mistakes can defeat the whole concept.

This makes flat plate collector installation especially important in drainback projects. A drainback design cannot be treated as a simple product kit. It is a hydraulic design. If the installer creates a horizontal pipe section or a reverse slope, fluid may remain trapped in the roof loop. In freezing weather, that trapped fluid can become a failure point.

What Drainback Systems Do Not Solve

Drainback does not eliminate all maintenance. Pumps, sensors, valves, reservoirs, insulation, and controllers still require inspection. It also does not solve poor roof access, bad mounting, weak storage design, or incorrect backup heating logic.

A drainback solar thermal system also depends on building geometry more than a glycol system. If the building does not allow proper drainage, forcing a drainback design may create more risk than benefit.

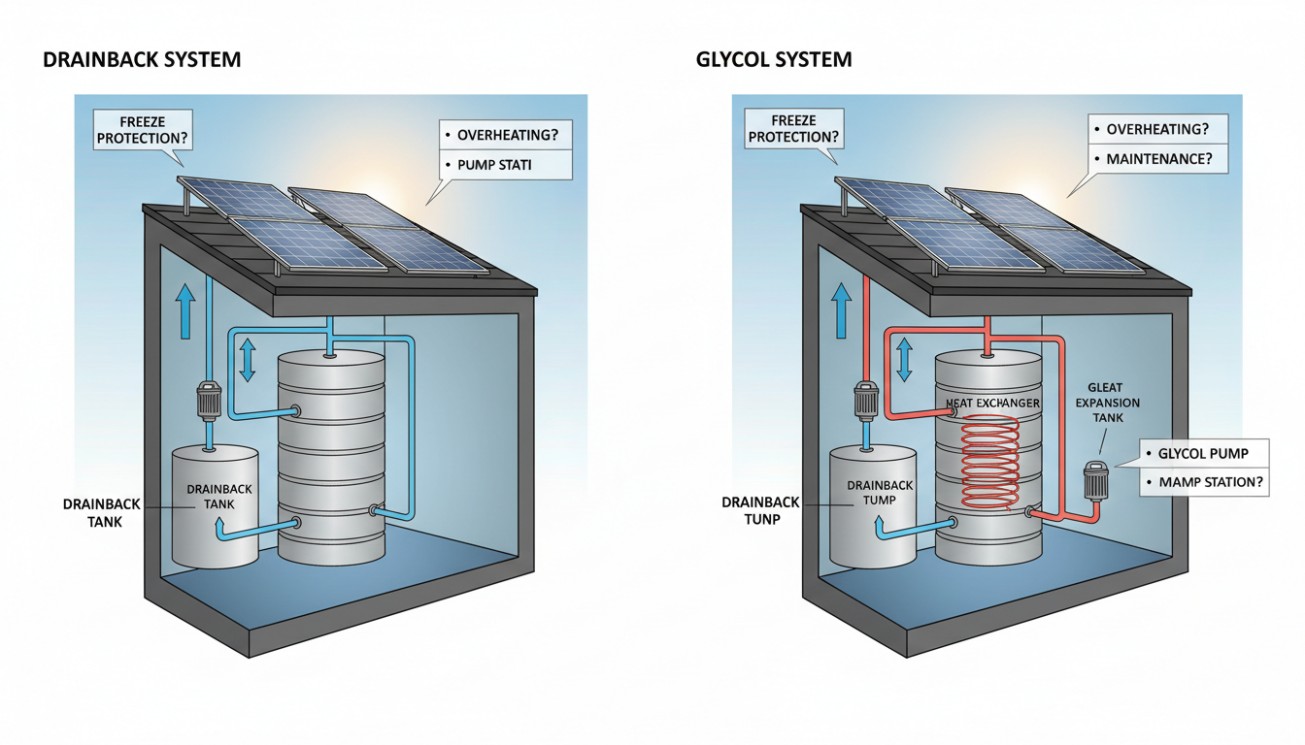

Freeze Protection: The Main Reason Buyers Compare These Designs

Solar collector freeze protection is usually the first reason buyers compare glycol and drainback. Both can protect the system, but they protect it in different ways and create different responsibilities.

Design	Freeze Protection Logic	Main Risk	Best-Fit Condition
Glycol solar water heating system	Uses antifreeze heat transfer fluid in a closed collector loop	Fluid degradation, wrong concentration, overheating, poor maintenance	Complex piping, no reliable drainage path, markets with closed-loop service skills
Drainback solar thermal system	Drains fluid back to protected reservoir when pump stops	Poor slope, trapped fluid, wrong pump sizing, installation errors	Buildings that allow proper drainage and trained installers

The practical choice depends on which risk the project is better prepared to manage. Some markets have strong maintenance service and can manage glycol well. Some buildings have simple pipe routing and trained installers, making drainback attractive. Some projects should not use drainback because the roof and mechanical room layout make complete drainage difficult.

Overheating and Stagnation: The Problem Many Buyers Discuss Too Late

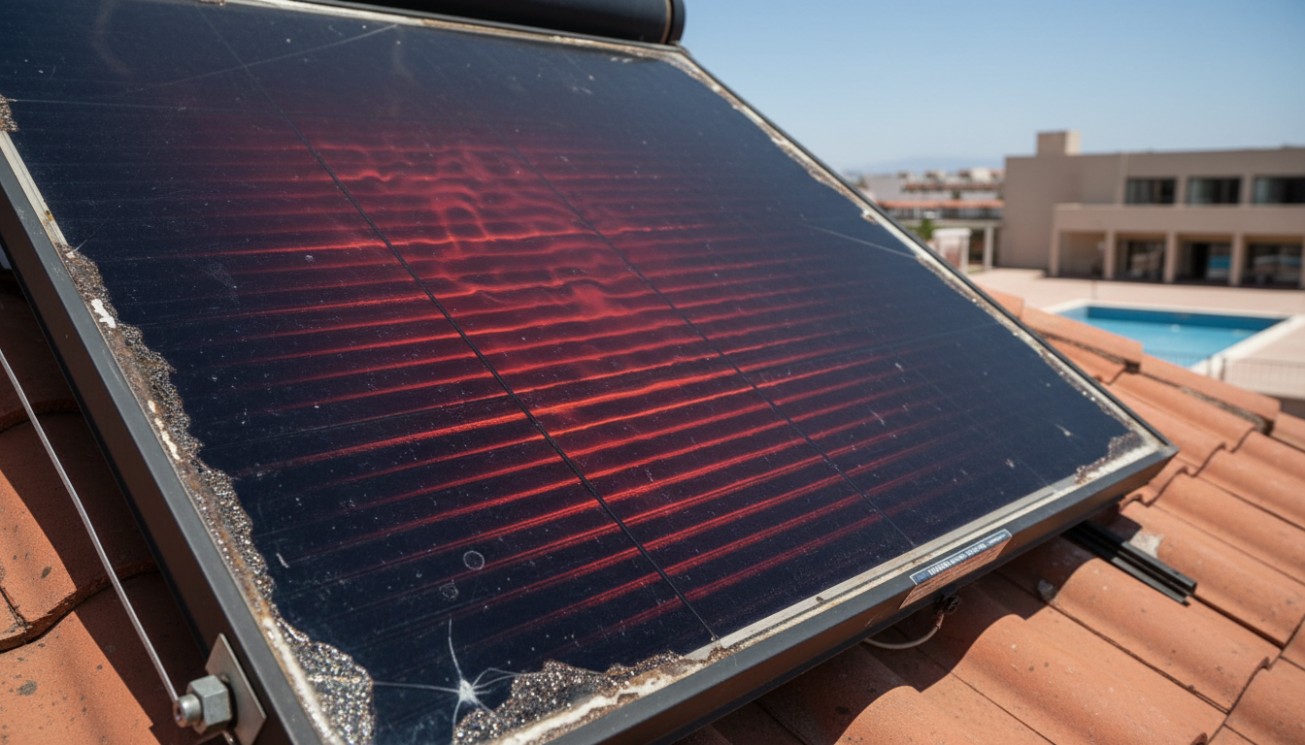

Freeze protection is important, but solar collector overheating often determines long-term service experience. A flat plate collector may sit under strong sunlight when the storage tank is already hot or when hot water demand is low. If heat has nowhere to go, the collector temperature can rise significantly.

How Glycol Handles Overheating

In a glycol system, the loop remains filled. If circulation stops and the collectors stagnate, the glycol can be exposed to high temperatures. Repeated stagnation can shorten glycol life and increase maintenance demand.

This does not mean glycol systems are poor. It means they require proper expansion design, temperature control, heat dumping strategy when needed, and maintenance planning. A well-designed glycol solar water heating system can be reliable, but the buyer should not ignore stagnation behavior.

How Drainback Handles Overheating

In a drainback system, the collectors can drain when the pump stops. This may reduce fluid exposure to extreme collector temperatures. For projects with seasonal demand or irregular hot water use, this can be an advantage.

However, drainback does not make overheating irrelevant. The collector itself can still become hot. Materials, seals, sensors, and roof components still need to tolerate stagnation conditions. The design reduces fluid stress, but the collector must still be built for outdoor thermal reality.

Designing for Low Demand Periods

Hotels may have seasonal occupancy. Schools may close during holidays. Residential users may travel. Factories may shut down over weekends. These low-demand periods can create overheating risk if the collector field is large and storage is already hot.

Professional solar thermal design should ask what happens when demand is low, not only what happens when demand is high.

Pump Station Design: The Mechanical Center of Reliability

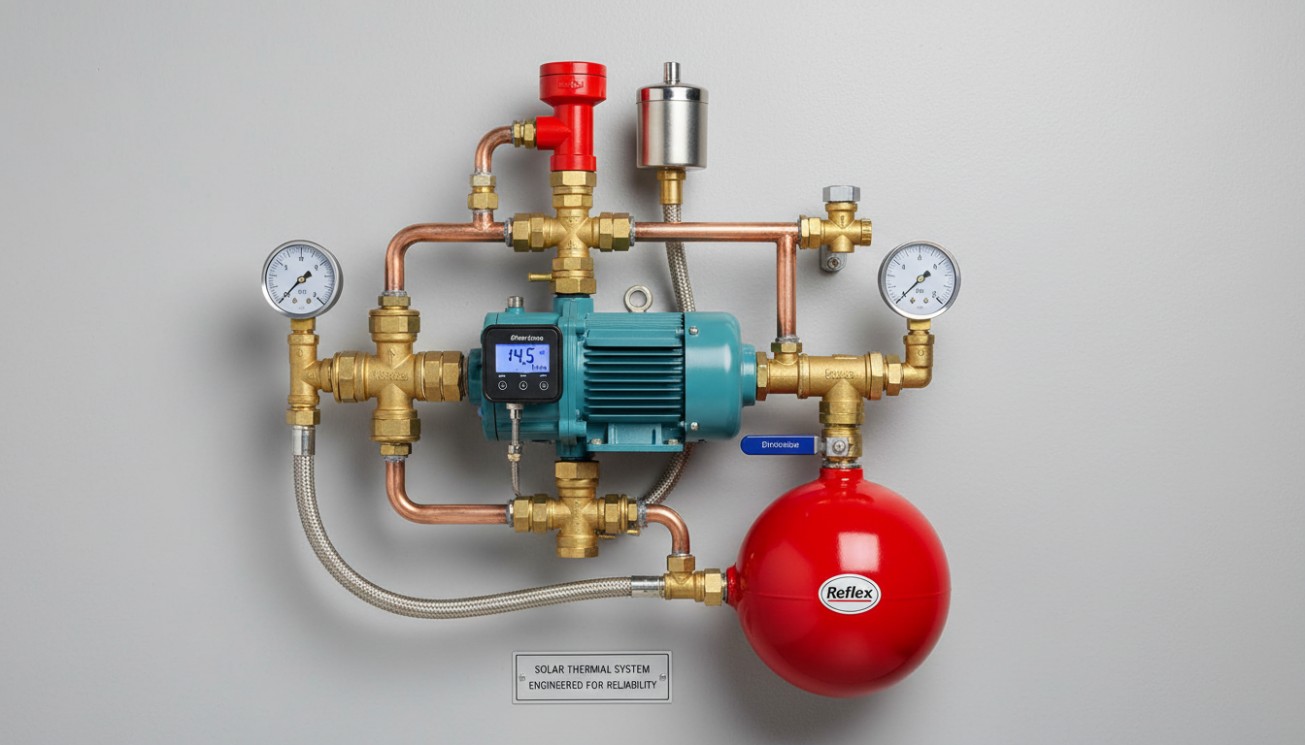

The solar thermal pump station is where many theoretical designs become real or fail. It may include the pump, flow meter, check valve, safety valve, air separator, pressure gauge, expansion vessel connection, controller sensors, fill ports, and service valves depending on system type.

A weak pump station can damage the reliability of an otherwise good collector system. A strong collector array with poor circulation control may still underperform.

Glycol Pump Station Considerations

For glycol systems, the pump station must support a closed loop. It must handle fluid viscosity, pressure variation, air removal, expansion, filling, flushing, and service access. The pump must move the glycol mixture at the correct flow rate through the collector array and heat exchanger.

Because glycol can be more viscous than water, pump selection should consider fluid concentration and temperature. The expansion vessel must be sized for the operating volume and temperature range. Air elimination is also important because trapped air can reduce flow and create noise or overheating.

Drainback Pump Station Considerations

For drainback systems, the pump must lift fluid from the reservoir to the collectors at startup. This startup requirement can be more demanding than steady circulation. The system must also allow fluid to return smoothly when the pump stops.

A drainback pump station must therefore be designed with static lift, flow rate, pipe diameter, reservoir height, and controller timing in mind. If the pump cannot prime the system reliably, the collector loop may not operate correctly.

Why Pump Stations Should Not Be Treated as Accessories

Some buyers compare collector prices but ignore pump station quality. This is a mistake. The solar thermal pump station is part of the system’s reliability architecture. A cheap or mismatched pump station can increase installation time, service calls, noise, air problems, and poor heat transfer.

Maintenance: Which System Creates the Right Service Model?

Solar thermal maintenance is not only a technical issue. It is a business model issue. A system that needs regular fluid testing may be acceptable in markets with trained service teams. A system that depends on precise installation may be acceptable where contractors are experienced. The problem begins when the system’s service needs do not match the local market.

Maintenance Profile of Glycol Systems

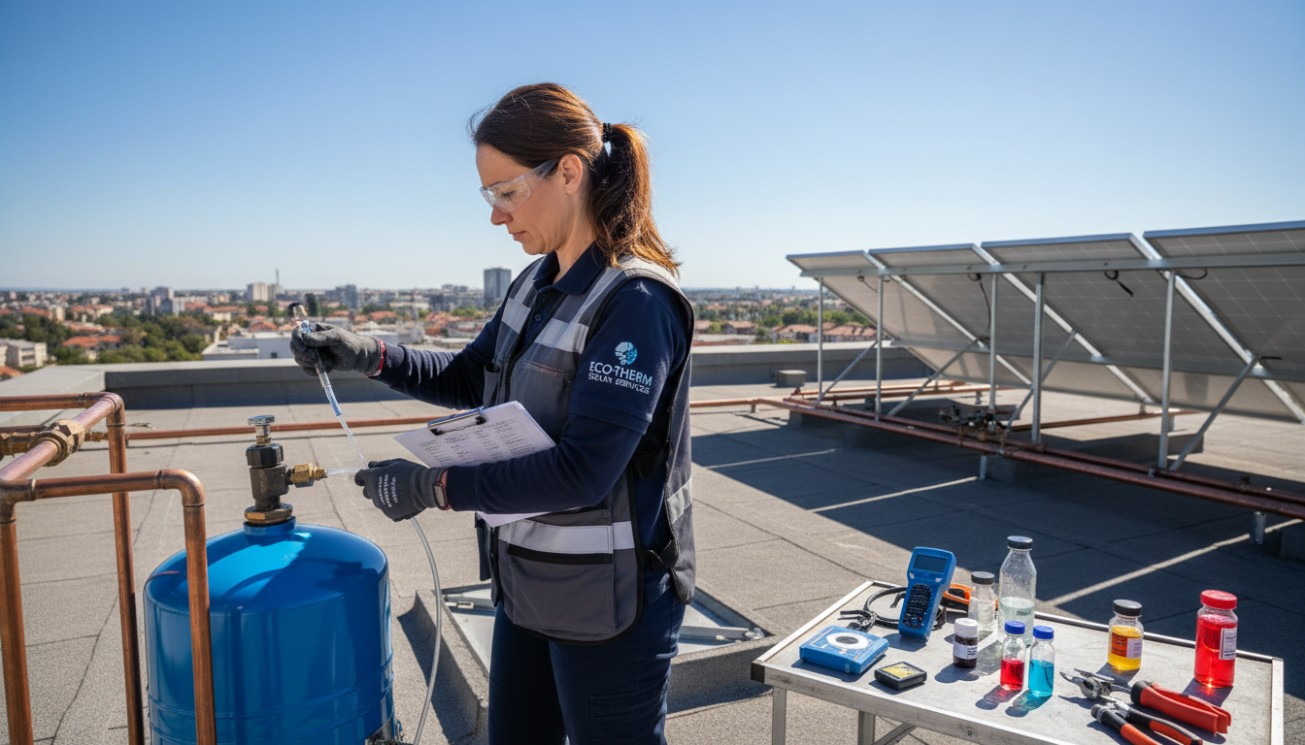

A glycol system requires periodic fluid checking. Service teams may need to check freeze protection level, pH, inhibitor condition, appearance, pressure, flow, and signs of degradation. The interval depends on climate, stagnation frequency, system design, and fluid quality.

This maintenance can be manageable when planned properly. It can also become a problem when users assume the system is maintenance-free. For distributors, this means sales materials should explain service needs clearly.

Maintenance Profile of Drainback Systems

A drainback system reduces glycol fluid maintenance, but it requires confidence that the system continues to drain correctly. Service teams may need to inspect pump operation, reservoir level, pipe slope integrity, sensor behavior, and noise during startup and shutdown.

If building movement, pipe changes, or installer modifications affect drainage, the system may become vulnerable. Maintenance is different, not absent.

Which Maintenance Model Is Easier?

The easier model depends on the local market. If the market has strong hydronic service experience, glycol may be easier. If installers are highly trained and building layouts are suitable, drainback may reduce long-term fluid concerns. If neither service model is supported, the project may struggle regardless of collector quality.

Residential Projects: Comfort and Service Simplicity Matter

In residential solar hot water projects, the user usually wants comfort, low noise, stable operation, and minimal service surprises. The system should work quietly in the background.

A glycol solar water heating system may fit homes in cold climates where a closed loop is easier to install than a drainback layout. It can support reliable freeze protection when fluid is maintained properly.

A drainback solar thermal system may fit homes where the roof and mechanical room layout allow clean drainage. It can reduce concerns about glycol degradation, but the installer must be confident in slope and pump design.

For residential users, sales language should avoid overpromising. A system may reduce energy consumption and improve renewable hot water contribution, but backup heating is still needed for comfort and reliability.

Commercial Projects: Reliability Is More Important Than the Simplest Product Story

Hotels, apartments, dormitories, schools, hospitals, gyms, and public facilities use more hot water than ordinary homes. In these projects, system downtime creates more serious complaints. A failure may affect many users at once.

For commercial buildings, the question is not only which design is technically elegant. The question is which design the facility team can operate and maintain over time.

When Glycol May Fit Commercial Projects

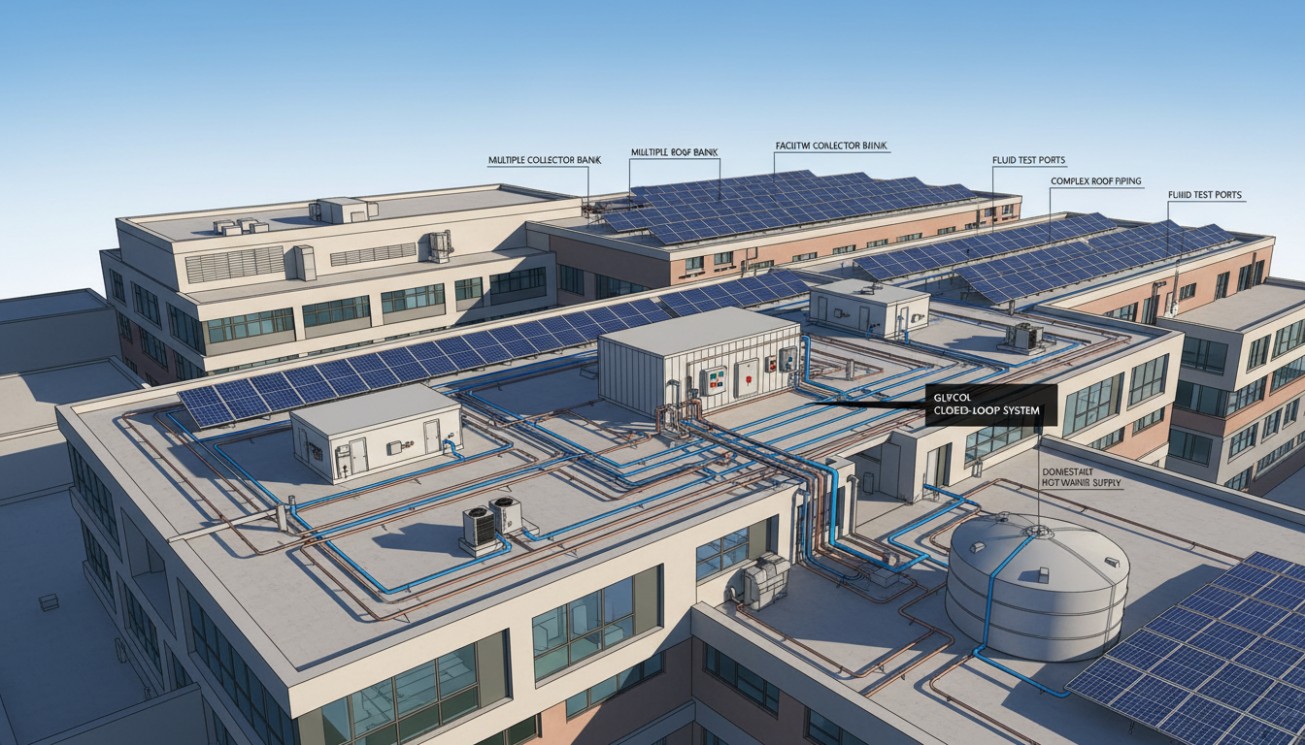

Glycol may fit commercial projects with complex roof piping, multiple collector banks, or layouts where drainback is difficult. It can also fit projects where facility teams are familiar with closed-loop heating systems and can manage fluid testing.

When Drainback May Fit Commercial Projects

Drainback may fit commercial projects where collector arrays can be designed with clear drainage paths and where installers have experience with larger drainback systems. It can be especially attractive when the building has seasonal demand and overheating management is important.

Commercial Buyers Should Ask About Failure Modes

A professional commercial buyer should ask suppliers what usually fails first, how the system is serviced, what spare parts are required, how overheating is managed, and what maintenance schedule is realistic.

How Water Quality and Heat Exchanger Design Affect the Decision

Water quality can influence system design. Hard water, scaling risk, corrosion potential, and local plumbing practice can all affect how heat is transferred and how the collector loop is protected.

In many cold-climate systems, the collector loop is separated from domestic water through a heat exchanger. This makes it easier to protect the collector loop while still delivering potable hot water. However, heat exchanger sizing matters. A poorly sized heat exchanger can limit heat transfer and reduce useful system output.

For buyers evaluating pressurized applications, the guide on pressurized solar water heater applications can help explain why pressure and plumbing compatibility should be considered together with solar thermal design.

Supplier Questions Buyers Should Ask Before Choosing Drainback or Glycol

Before choosing a drainback solar thermal system or glycol solar water heating system, B2B buyers should ask suppliers questions that reveal practical engineering ability.

Questions About Freeze Protection

What is the minimum local temperature the system should survive? What freeze protection method is recommended? If glycol is used, what concentration is needed? If drainback is used, how is complete drainage verified? What happens during power failure?

Questions About Overheating

How does the system handle low hot water demand? What happens when the tank is fully heated? What stagnation temperature can the collector tolerate? How is solar collector overheating controlled or reduced?

Questions About Pump Station Design

What pump is used? How is flow rate determined? Is the solar thermal pump station matched to glycol viscosity or drainback lift height? How are air, pressure, and expansion controlled?

Questions About Maintenance

What maintenance schedule is required? What should be inspected annually? How often should glycol be tested? What parts should distributors keep in stock? What training is needed for installers?

A Practical Decision Table for B2B Buyers

Project Condition	Glycol May Be Better When	Drainback May Be Better When
Roof piping	Piping route is complex or cannot slope continuously	Piping can slope clearly back to the reservoir
Installer skill	Installers understand closed-loop hydronic systems	Installers understand drainback geometry and startup lift
Maintenance model	Fluid testing and replacement can be managed	Buyer wants to reduce glycol fluid management
Overheating risk	System has good expansion and temperature control	Demand is seasonal or tank may often be satisfied
Commercial complexity	Large closed loops can be designed and serviced professionally	Collector fields and roof layout allow reliable drainage

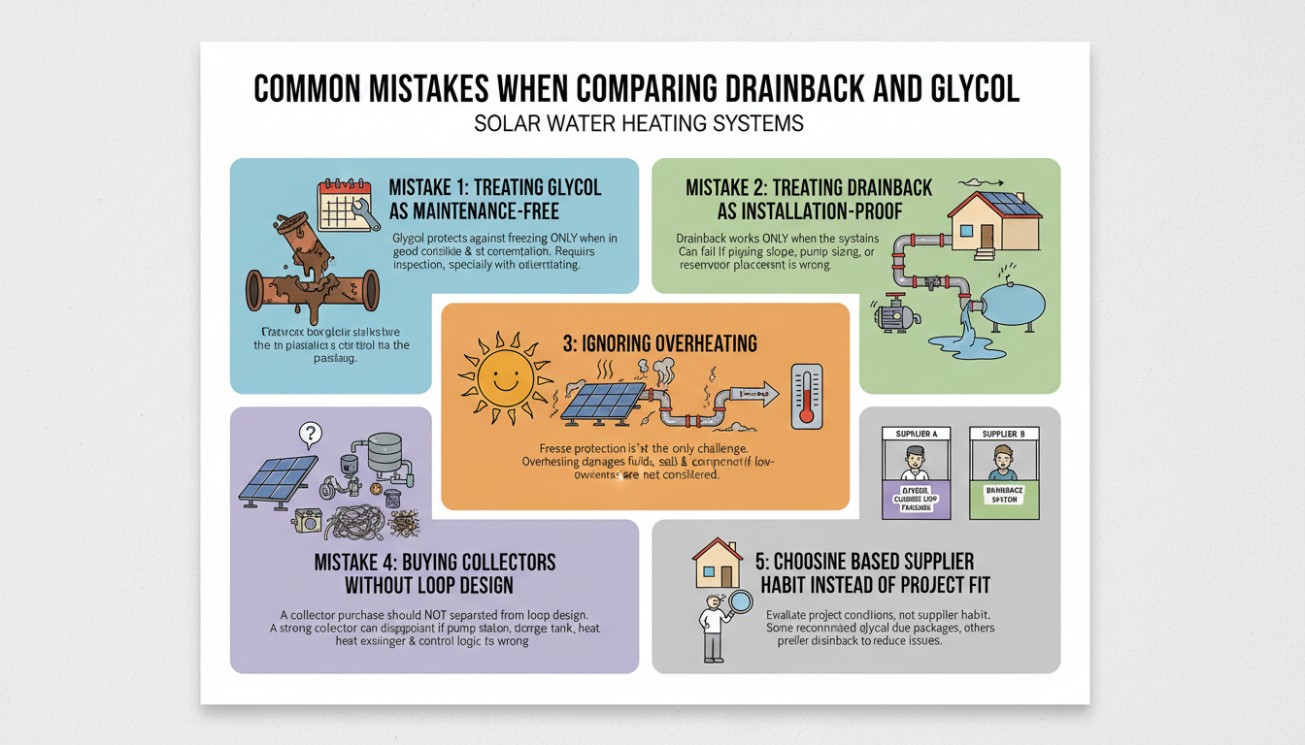

Common Mistakes When Comparing Drainback and Glycol

Mistake 1: Treating Glycol as Maintenance-Free

Glycol protects against freezing only when it remains in good condition and at the correct concentration. A glycol solar water heating system still requires inspection, especially in systems exposed to overheating.

Mistake 2: Treating Drainback as Installation-Proof

Drainback works only when the system drains correctly. A drainback solar thermal system can fail if piping slope, pump sizing, or reservoir placement is wrong.

Mistake 3: Ignoring Overheating

Freeze protection is not the only challenge. Solar collector overheating can damage fluids, seals, and system components if low-demand periods are not considered.

Mistake 4: Buying Collectors Without Loop Design

A collector purchase should not be separated from loop design. A strong flat plate collector can still disappoint users if the pump station, storage tank, heat exchanger, and control logic are wrong.

Mistake 5: Choosing Based on Supplier Habit Instead of Project Fit

Some suppliers always recommend glycol because they sell closed-loop packages. Others prefer drainback because they want to reduce glycol issues. Buyers should evaluate project conditions, not supplier habit.

Focused FAQ

What is a drainback solar thermal system?

A drainback solar thermal system is a solar hot water loop design where the collector fluid drains back into a protected reservoir when the pump stops. This leaves the collectors and exposed piping empty or mostly empty, reducing freeze risk.

What is a glycol solar water heating system?

A glycol solar water heating system uses an antifreeze heat transfer fluid in a closed collector loop. The glycol mixture circulates through the collectors and transfers heat to domestic water through a heat exchanger.

Which is better for solar collector freeze protection?

Both can provide solar collector freeze protection. Glycol protects by fluid chemistry. Drainback protects by removing fluid from exposed roof sections. The better option depends on climate, piping layout, installer skill, and maintenance capability.

Does a glycol system need maintenance?

Yes. Solar thermal maintenance for glycol systems should include fluid condition, freeze protection level, pH, pressure, flow, expansion vessel condition, and signs of overheating or degradation.

Does a drainback system use glycol?

Many drainback systems are designed to reduce or avoid glycol use, but system design varies. The main principle is that fluid drains back to a protected reservoir when the pump stops. The exact fluid choice should follow supplier and climate requirements.

Which system handles overheating better?

A drainback system may reduce fluid exposure during stagnation because the collectors can drain when circulation stops. A glycol system can also handle overheating if expansion, controls, storage, and maintenance are designed correctly.

Is drainback always better than glycol?

No. Drainback depends heavily on correct pipe slope, pump lift, and installation geometry. If the building layout does not allow reliable drainage, a glycol solar water heating system may be more practical.

Is glycol always better than drainback?

No. Glycol systems require fluid maintenance and can suffer from degradation under repeated overheating. A drainback solar thermal system may be attractive where drainage geometry and installer skill are strong.

What role does the solar thermal pump station play?

The solar thermal pump station controls circulation, flow, pressure, air removal, safety, and service access. It must be matched to either glycol loop requirements or drainback startup lift and drainage behavior.

How should B2B buyers choose between drainback and glycol?

B2B buyers should compare climate, roof piping, installer skill, maintenance model, overheating risk, storage design, pump station requirements, and long-term service responsibility. The right design is the one that protects solar hot water reliability in the specific project.

Final Thought: Reliability Comes From Matching the System to the Reality

A flat plate solar collector system should not be judged only by the collector panel. The collector is the heat entry point, but the loop design decides whether that heat is captured safely, transferred efficiently, protected in winter, controlled in summer, and maintained over years of operation.

A glycol solar water heating system can be reliable when fluid quality, concentration, expansion, pump station design, and maintenance are controlled. A drainback solar thermal system can be reliable when drainage geometry, pump lift, reservoir placement, and installer skill are correct.

Neither design is automatically superior. Glycol fails when maintenance is ignored. Drainback fails when installation geometry is wrong. Both fail when buyers purchase components without understanding the full system.

For professional B2B buyers, the goal should not be to find the simplest sales story. The goal should be to reduce project risk. That means choosing a design that matches the building, climate, installer network, maintenance model, and user demand.

When drainback or glycol is selected with this discipline, flat plate collectors can become part of a reliable solar hot water strategy. When the choice is made casually, the system may still work in good weather, but it will reveal its weakness during freezing, stagnation, low demand, or poor service conditions.

Long-term solar hot water reliability is not created by one component. It is created by the relationship between collector quality, loop design, pump station control, storage strategy, maintenance planning, and honest project evaluation.
