Shipping UV Marble Sheets: Export Packaging, Loading Plans, and Damage Claims

Shipping Damage Starts with a Packaging Decision Made Before the Container Arrives

A UV marble sheet can pass dimensional inspection, surface inspection, and batch verification at the factory and still reach the buyer with crushed corners, rubbed gloss, bowed panels, wet packaging, mixed labels, or a claim file too weak to establish what happened. That is why UV marble sheet shipping should be managed as part of product quality rather than treated as a freight-booking task after production is complete.

Large decorative sheets create a particular logistics problem. They are thin relative to their length and width, visually sensitive on the exposed face, vulnerable at edges and corners, and often shipped in stacks that behave very differently from individual panels. The package must protect the product during forklift handling, warehouse transfers, truck movement, terminal operations, sea transport, unloading, and destination storage. The container plan must also prevent the stack from becoming the source of damage to itself.

The site's existing UV marble sheet supplier guide already explains why packaging, batch control, and loading records belong in supplier qualification. This article goes further. It converts those expectations into a logistics workflow that begins with a defined pack and ends with a defensible receiving and claim record.

Define the Shipping Unit Before You Ask How Many Sheets Fit in a Container

Many quotations jump directly from sheet price to a statement such as “1,500 sheets per 20GP.” That number is not meaningful unless the buyer knows the actual sheet dimensions, sheet mass, sheets per pack, pack construction, external pack dimensions, gross pack mass, handling orientation, and how the packs will be arranged.

A serious UV panel bulk shipping plan therefore starts with the smallest commercial handling unit that will actually move through the supply chain. For one importer, that may be a twenty-sheet rigid crate. For another, it may be a one-hundred-sheet pallet designed for forklift handling. An e-commerce distributor may need much smaller secondary cartons even when the ocean shipment uses pallets.

Do not optimize container quantity before the packaging unit is stable. Reducing the height of edge blocks or removing internal separators to gain a few more sheets can change the damage mechanism. A lower freight cost per sheet is not a saving if the revised pack increases unusable panels, receiving labor, or emergency replacement freight.

Build UV Marble Sheet Packaging Around the Product's Failure Modes

Packaging should not begin with a catalog phrase such as “standard export pallet.” It should begin with a list of what can go wrong to the actual panel during transport. For glossy UV-coated sheets, typical risks include face abrasion, protective-film transfer, corner impact, edge crush, concentrated strap pressure, bending, contamination, water exposure, and mixed-batch handling.

The site's UV wall panel structure guide explains why surface coating, decorative layer, core, backing, and edges should be treated as different parts of the product. Export packaging must protect all of them, not only stop the stack from falling over.

Protect the face without creating a new surface defect

The exposed glossy face may use removable protective film, clean interleaving, or another specified separation system. The buyer should verify that the protective material does not transfer adhesive, emboss texture, trap abrasive contamination, or become difficult to remove after long storage and temperature cycling.

Do not assume that thicker protective film is automatically better. The relevant questions are compatibility, adhesion level, cleanliness, exposure time, temperature range, removal behavior, and whether the film protects the finish during the actual handling sequence.

Separate sheets when face-to-face movement can occur

If stacked panels can slide microscopically during truck or vessel motion, clean interleaving may reduce rubbing between decorative faces. The material must remain clean and stable; dirty paper or recycled separators containing hard particles can become an abrasive layer.

Where the product is packed decorative-face to back-face, the buyer should still evaluate whether the back surface can mark the coating under pressure. The chosen stack orientation should be part of the approved pack drawing rather than left to the packing crew.

Design edge and corner protection for real handling

Large rectangular sheets often receive impact at corners during forklift movement and manual repositioning. Edge boards, corner blocks, foam, honeycomb structures, rigid protectors, or timber framing can spread loads away from a small vulnerable area. The design should keep straps from bearing directly on a finished edge unless the panel system has been validated for that condition.

A corner protector that works for an individual carton may not be strong enough under a high stacked load. Conversely, a very rigid protector can create a concentrated pressure point if it sits on only part of the sheet. Evaluate the entire pack under its actual compression and lifting conditions.

Keep the panel stack supported in the approved plane

Flat large-format sheets can deform when supported only at a few points or when one end of the pack overhangs a pallet. The base should support the panel stack according to the pack design. If the pack uses runners, cross-members, or an OSB deck, their spacing should be defined. A factory should not replace a full deck with three narrow battens because both arrangements are casually described as “wood pallet.”

When the approved transport orientation is vertical or inclined, use a structure designed for that orientation and document how the load is restrained. Do not turn a flat-pack design upright simply because vertical loading improves container utilization.

Control strap loads and contact points

Straps stabilize the package, but over-tightening can crush edges, bow panels, or imprint protective components. Define strap material, location, number, edge protection, and a practical installation method. Where tension is critical, the buyer can require a controlled process rather than relying on “tight enough.”

Inspect the package after strapping and again after an agreed dwell period. Some materials settle, causing straps to loosen; others creep under concentrated pressure. Packaging approval should consider both conditions.

Distinguish Wall Panel Export Packaging from Retail or Parcel Packaging

A full-container shipment and a last-mile parcel shipment experience different handling. A rigid ocean crate may perform well when moved by forklift from factory to warehouse yet be unsuitable for distributing single sheets to contractors. Conversely, a retail carton may protect one panel from normal warehouse handling but waste too much container volume for bulk imports.

Importers should define at least two packaging levels when their business model requires them:

The supplier guide on this site already notes that online sellers should not approve packaging only by container performance. That principle becomes operational here: the packaging specification must name the distribution channel it was designed to survive.

Use Wood Packaging Correctly and Check ISPM 15 Scope

Many UV-panel exporters use timber pallets, crates, frames, and dunnage because wood is easy to fabricate around large sheet dimensions. International shipments using raw wood packaging can trigger phytosanitary requirements under ISPM 15.

The International Plant Protection Convention states that ISPM 15 covers wood packaging material made from raw wood, including dunnage, and excludes wood packaging made from processed wood in a way that removes pest risk, such as plywood. The exact destination implementation and local import requirements still need to be checked before shipment.

For wooden crate ISPM 15 planning, do not assume that a crate containing some plywood is automatically exempt if its runners, frame, or dunnage use raw solid wood. Record which components are solid wood, which are processed wood, and where required treatment and marks appear.

Photograph relevant markings before loading and retain them with the packing record. If a damaged crate is replaced before export, verify that the replacement wood packaging remains compliant with the destination requirements.

Treat the Container as a Transport Environment, Not an Empty Box

The IMO/ILO/UNECE CTU Code provides a global code of practice for packing cargo transport units used across sea and land transport. The IMO identifies poor packing, inadequate securing, overloading, and incorrect declaration as recurring transport concerns. Its guidance makes a central point that is directly relevant to UV panels: cargo must be packed and secured for the forces it will experience throughout the intermodal journey, not merely arranged so that it fits through the doors.

As of September 2026, the IMO and UNECE public pages continue to present the 2014 CTU Code as the endorsed code. UNECE also publishes a 2025 revision as a 2026 working document. For a contractual shipping plan, buyers should distinguish the published code from revision work and verify the status of any newer text before treating it as controlling guidance.

Inspect the container before packing

A container-loading record should begin before the first crate enters. Check the unit identification and visible condition. The interior should be appropriate for the cargo, with no obvious damage, protrusions, standing water, residue, severe contamination, or other condition likely to harm the panels or packaging.

Record photographs of the empty unit, floor, walls, roof, doors, and container number. This is not cosmetic paperwork. If water staining or impact damage appears at destination, the origin condition becomes part of the evidence chain.

Plan the stow before the forklift starts

A container loading plan should show pack IDs, dimensions, gross masses, orientation, sequence, blocking, dunnage, restraint, access, and final door-area arrangement. It should also consider how the receiver will remove the first pack safely.

The CTU Code distinguishes between tight stow, where cargo substantially fills the available boundaries, and secured stow, where remaining spaces require blocking and/or lashing. Do not assume that a nearly full container automatically means cargo cannot move. Gaps, uneven pack heights, slippery contact surfaces, weak dunnage, and stack deformation can create movement even when the unit looks visually full.

Distribute load using actual pack masses

Do not plan by sheet count alone. Two identical-looking packs can differ in mass if they contain different thicknesses or quantities. Create a load sheet showing each handling unit's gross mass and position. Keep the heavy units and restraint system within the limits of the specific container, equipment, and carrier requirements.

A loading plan should not publish a universal “maximum number of UV sheets per 20GP.” Supplier listings show widely varying quantities because thickness, pack style, pack height, and product mass differ. The correct quantity is the result of the approved shipping unit and the actual transport equipment, not a category-wide number.

Secure against movement during the entire route

IMO guidance emphasizes that cargo securing must account for forces created by vessel movement, including transverse, longitudinal, and vertical accelerations. For UV sheets, those forces can cause stack shift, pack-to-pack rubbing, broken blocking, strap movement, or impact at container boundaries if the cargo is inadequately secured.

Blocking, bracing, lashing, friction materials, void fillers, or engineered restraint may be used according to the load and route. Their design should not place point loads on the decorative panels. The pack itself and the securing system must work together.

Control Moisture Instead of Treating Desiccant as a Universal Fix

Container condensation is a transport-system problem, not simply an instruction to “add more desiccant.” The CTU Code's informative material explains that condensation damage in closed cargo transport units can arise from humidity in cargo, timber bracing, pallets, porous packaging, rain or snow introduced during packing, and high-humidity atmospheric conditions.

For UV marble sheet shipping damage, moisture may not always attack the PVC-based sheet itself first. It may soften cartons, stain separators, promote mold on paper or timber components, weaken labels, corrode metal straps, contaminate surfaces, or affect other materials packed with the panels.

Keep cargo and dunnage dry before sealing the unit

Do not pack wet timber, rain-wet cartons, or visibly damp dunnage into a closed container and then expect desiccant to compensate for the introduced water. Protect packing operations from rain and record abnormal weather conditions where relevant.

If the packaging specification includes moisture-sensitive materials, define their storage and acceptance conditions. Where moisture measurement is necessary, select a method suited to the actual material rather than inventing a universal percentage.

Use desiccant based on a route and packaging analysis

Desiccant can be one part of the control plan, but dosage depends on container size, route duration, climatic changes, moisture entering with cargo and packaging, permeability, and the desiccant system itself. Use supplier calculations or competent logistics guidance rather than a copied number of bags per container.

Secure desiccant so it cannot fall onto or leak onto the product. Record type, quantity, location, and condition. A photograph of hanging bags is useful evidence only when the rest of the moisture-control plan is understood.

Do not seal moisture inside the individual panel package

Plastic wrapping can protect against splash or dirt, but if moisture is already inside the pack it can create its own enclosed environment. Define whether the pack is intended to be vapor-tight, ventilated, or simply covered. Avoid conflicting layers added by different teams without a design basis.

Connect the Loading Record to SOLAS Verified Gross Mass

For sea containers subject to SOLAS VGM requirements, the shipper is responsible for providing the verified gross mass in time for vessel stowage planning. IMO identifies two permitted approaches: weigh the packed container, or weigh all packages and cargo items—including pallets, dunnage, and securing material—and add the container tare using an approved certified method.

This matters because a UV wall panel container loading worksheet should not stop at net product weight. The crate, pallet, interleaves, blocking, lashing, desiccant holders, and other packing or securing materials contribute to the packed-container gross mass.

Keep the commercial packing list, loading plan, pack masses, container tare, and VGM record consistent. A spreadsheet that calculates 18,200 kg while the submitted VGM is 21,400 kg should trigger reconciliation before departure, not explanation after an incident.

A Practical Loading Record Should Be Reconstructable from Photographs

A good loading file enables a buyer or surveyor to reconstruct what was placed in the container and how it was restrained. Photographing only the closed doors loses most of that information.

Time-stamped photographs, pack IDs, and loading sheets are stronger when they agree with each other. If photographs show ten crates but the packing list shows twelve, resolve the discrepancy before shipment. Evidence quality is created at origin, not reconstructed after a claim.

Use a Worked Shipping Plan Without Pretending It Is a Universal Container Formula

Assume a buyer orders 600 sheets measuring 1,220 × 2,440 mm. The controlled net mass is 18 kg per sheet. The approved export pack contains 20 sheets, so the order uses 30 handling units. Each pack therefore contains 360 kg of panel product. Assume the approved crate, protective materials, and labels add 90 kg, giving an illustrative gross pack mass of 450 kg.

The buyer should not multiply the product dimensions by 600 and call that a loading plan. The team now needs the external crate dimensions, forklift geometry, container model, container door opening, floor and payload limits, stow orientation, blocking dimensions, and the destination unloading method.

The next step is to place the 30 actual crates into the selected equipment model, not to assume they fit. If the approved pack geometry allows only 24 units in one container, the buyer must decide whether to use another container, redesign the pack, change the handling unit, or change the order split. The decision should consider damage risk and destination unloading, not freight cost alone.

If a revised pack increases sheets per crate from 20 to 25, the crate gross mass and compression conditions change. That is a packaging change requiring review, not a simple arithmetic improvement.

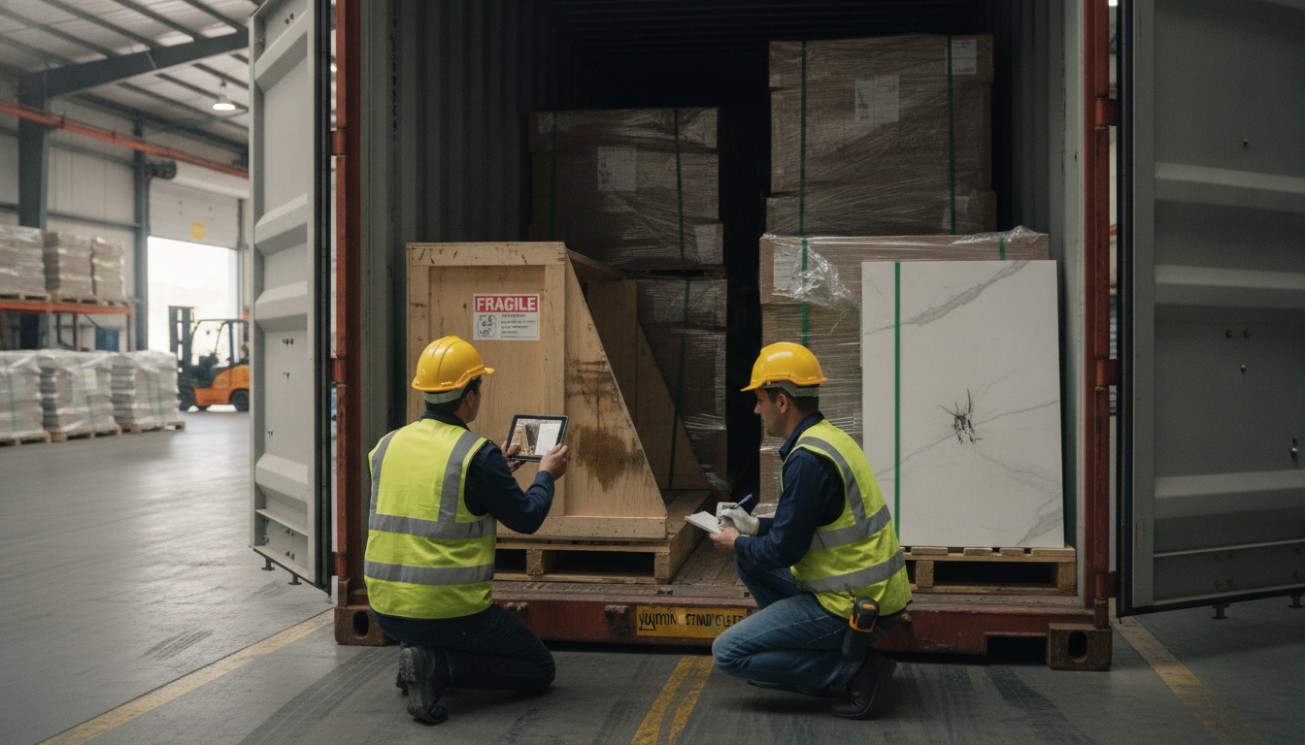

Receiving Inspection Begins Before the Container Doors Are Fully Open

A buyer can lose valuable claim evidence in the first fifteen minutes of receiving. Warehouse teams often unload quickly, discard wrapping, separate damaged sheets, and only later inform purchasing. By then, the relationship between product damage, pack condition, and container location may be lost.

Before unloading, record the container number, seal condition, external damage, door condition, and any visible wetness or odor that appears abnormal. Open the doors safely because shifted cargo can create a hazard. Do not stand in the potential fall path of unstable packs.

Photograph the stow before moving the first pack

Take wide photographs showing the door-end condition and the relationship between packs. Then photograph visible restraint, collapsed packaging, moisture staining, shifted cargo, broken straps, or impact marks before disturbing them.

If significant movement or damage is visible, stop normal unloading long enough to escalate internally and determine whether the carrier, insurer, surveyor, or other party needs to be notified before the evidence is changed.

Keep pack IDs attached to damage findings

When damaged panels are removed from a crate, record the pack ID and sheet quantity. A claim statement such as “47 sheets damaged” is much stronger when it can show which packs contained them and where those packs were located in the container.

Use the site's UV marble panel maintenance and replacement guide to separate cosmetic marks from damage that affects the decorative layer, edge, core, or future usability. At receiving, however, do not attempt irreversible polishing or repair before the condition is documented.

Record sound cargo as well as damaged cargo

Photographs of undamaged panels can help establish the difference between acceptable product and claimed damage. Maersk's published claims guidance specifically recommends photographs of both sound and damaged cargo as well as the container where relevant. This is a useful evidence principle even when another carrier or insurer handles the shipment.

Build the Cargo Damage Claims File Before Disposing of Anything

A cargo claim is not simply an email stating that the goods arrived damaged. Carriers and insurers commonly request shipment identity, commercial value, packing information, photographs, delivery records, and survey evidence. The required package varies by contract, carrier, insurance terms, jurisdiction, and loss circumstances.

Hapag-Lloyd advises customers who discover cargo damage to take photographs of the cargo and container, notify the carrier, consider a joint survey for significant damage, notify the cargo insurer where insurance was purchased, and consider salvage before disposal. Its digital claim process requests shipment identifiers and supporting documentation such as commercial invoices and photos.

Maersk's cargo-claim guidance similarly identifies transport documents, commercial invoice, packing list, survey report with photographs, and an itemized claim calculation among the core supporting records for a quantified claim. These examples show why a receiving team should preserve evidence even before legal responsibility is clear.

Do not throw away packaging that may explain the damage

Broken edge protectors, collapsed crate members, punctured wrapping, wet separators, damaged straps, and crushed pallet components may help establish how damage occurred. Keep representative packaging until the relevant claim parties confirm it can be disposed of, especially when a survey is likely.

MSC's published cargo-protection guidance likewise tells claimants not to discard damaged goods or packing before the claim is assessed. The exact requirement and deadline depend on the applicable contract, so buyers should follow the procedure named in their bill of lading and insurance documents.

Notify promptly, but do not invent causation

An initial notice should describe what was observed: for example, “crate P014 had a crushed lower-left frame; eight sheets inside show corner fractures.” Do not write “carrier forklift damage” unless there is evidence establishing that cause.

The survey and claim process may later distinguish packaging deficiency, loading error, cargo shift, water ingress, terminal handling, inland transport, or another cause. Early records should preserve facts rather than commit the buyer to a theory.

Quantify the loss at sheet level

A professional claim separates total loss, repairable damage, downgraded material, salvageable material, and additional handling. Link each category to quantity, unit value, photographs, and pack ID. If freight, inspection, disposal, repair, or emergency replacement costs are claimed, identify the contractual and documentary basis for including them.

Do not automatically claim the retail selling price of every affected sheet when the actual recoverable amount is governed by another value basis. Claim valuation is a contractual and legal question; the logistics record should provide accurate quantities and supporting evidence.

Separate Carrier Liability, Cargo Insurance, and Commercial Resolution

When goods arrive damaged, buyers often treat “the shipping company will pay” and “we have cargo insurance” as interchangeable statements. They are not. A carrier's liability can be limited or excluded under the contract of carriage and applicable law. Cargo insurance may respond under different terms, deductibles, exclusions, and proof requirements. The supplier may also have contractual obligations if packing or loading did not match the purchase agreement.

MSC's cargo-insurance information explicitly notes that standard bill-of-lading clauses can exclude or limit carrier liability and describes insurance as separate protection. Buyers should therefore map three questions independently:

A buyer may need to preserve rights under more than one pathway while the cause is investigated. Do not delay required notices because the purchasing team assumes another party will handle the claim.

Use a Damage-Cause Matrix Instead of Blaming the Last Handler

The visible location of damage does not always identify when it occurred. Corner fractures at destination can result from a forklift impact at the warehouse, cargo shift at sea, a weak crate that collapsed under normal handling, or damage already present before loading.

This matrix prevents a common claim mistake: treating every post-delivery defect as transportation damage. If the protective package is intact but one production batch shows internal layer failure, the investigation should return to product evidence as well.

Design Replacement Stock into the Logistics Plan

A project shipment that arrives 99% usable can still delay installation if the damaged 1% includes a specific matched panel sequence or pattern. Spare stock should therefore be planned by use, not only as a generic percentage.

Reserve panels should be linked to the same model, pattern revision, finish, and production batch where practical. Decide whether spares travel inside the main packs, in a dedicated identified pack, or in a separate shipment. Protect them from being consumed casually during installation.

For matched-wall projects, the replacement strategy should identify which sequence or room each spare can serve. This connects logistics to the lifecycle controls discussed in the site's maintenance and replacement guide.

A B2B Shipping Release Checklist

The following checklist converts the article into a repeatable release process. It is an editorial tool, not a substitute for carrier rules, dangerous-goods requirements, insurance conditions, or destination regulations.

Focused FAQ

What is the best way to package UV marble sheets for export?

There is no universal pack. Good UV marble sheet packaging protects the decorative face, edges, corners, stack flatness, labels, and handling points for the actual transport channel. The pack should be validated with the real panel dimensions, sheets per pack, gross mass, forklift method, container loading plan, and destination unloading process.

Should UV marble sheets be shipped on pallets or in wooden crates?

Either can work when engineered for the shipment. Pallets can improve forklift access and loading efficiency; crates can provide stronger perimeter protection. The decision should consider sheet size, stack mass, handling frequency, LCL versus FCL movement, destination unloading, and damage history. Do not choose a crate only because it looks more protective.

How many UV marble sheets fit in a 20-foot container?

There is no reliable category-wide number. Quantity depends on sheet dimensions, thickness, weight, pack size, crate dimensions, orientation, container model, securing space, and payload limits. Supplier listings show widely different quantities for this reason. Calculate from the approved handling unit and actual equipment rather than using a marketing estimate.

How should a UV wall panel container loading plan be documented?

Record each pack ID, external dimensions, gross mass, position, orientation, blocking, lashing or other restraint, moisture-control measures, loading sequence, and final door-end arrangement. Photograph the empty container, representative packs, loading stages, final stow, container number, and seal.

Does VGM include pallets and securing materials?

Under the IMO Method 2 framework, the calculation includes packages and cargo items plus pallets, dunnage, and other packing and securing material, then adds the container tare using the certified method approved by the competent authority where packing was completed. The other permitted method is to weigh the packed container.

Do wooden pallets and crates need ISPM 15 treatment?

Raw wood packaging used in international trade can fall under ISPM 15. The IPPC standard covers items such as raw-wood dunnage and excludes processed wood such as plywood when it is manufactured in a way that removes pest risk. Because a crate can combine plywood with solid-wood runners or framing, buyers should review the actual components and destination implementation.

How can buyers reduce container condensation damage?

Begin by keeping cargo, timber, cartons, and dunnage dry before sealing. Assess route climate and packaging moisture sources, then use liners, ventilation strategies, or desiccants where appropriate. Desiccant should not be treated as a universal substitute for dry packing.

What should I do first if UV marble sheets arrive damaged?

Preserve safety first, then document the container and stow before moving cargo when possible. Photograph damaged and sound goods, retain pack IDs, record delivery exceptions, notify the relevant carrier and insurer promptly, and preserve damaged packaging and goods if a survey may be needed. Follow the specific deadlines and procedures in the transport and insurance documents.

What documents are normally useful for a cargo damage claims file?

Common supporting records include the transport document, commercial invoice, packing list, delivery record with exceptions, photographs, survey report where applicable, origin packing/loading evidence, and an itemized loss calculation. Carrier and insurer requirements vary, so the applicable claim procedure must be checked.

Should damaged sheets be discarded after photographing them?

Not immediately. Carriers and insurers may need to inspect the goods or packaging, and salvage value may affect the claim. Hapag-Lloyd and MSC both advise preserving damaged cargo/packing long enough for the claim process where relevant. Obtain instructions before disposal.

How should importers compare marble sheet export packaging quotations?

Compare the defined handling unit rather than the phrase “export packing.” Ask for materials, frame or pallet design, external dimensions, tare mass, sheets per pack, edge and face protection, straps, ISPM 15 status where applicable, labels, loading quantity, and destination unloading assumptions. Then evaluate freight efficiency together with damage risk.
