How to Size and Position a Shower Niche: A Practical Planning Guide for Real Bathrooms

A shower niche is often drawn as a rectangle on an elevation, given a width and height, and treated as a finished decision. In real bathrooms, that is usually too early. The visible opening is only the final expression of several overlapping requirements: what must be stored, who must reach it, how the wall is built, where plumbing runs, how tile or panels are laid out, how much internal depth remains after finishes, and how water moves through the shower.

That is why questions about shower niche size and shower niche height should not be answered with one universal number. A niche for one person using three compact bottles is not the same storage problem as a family shower filled with pump bottles, children’s products, razors, soaps and refill containers. A niche centered perfectly in a drawing may be uncomfortable to reach from the actual standing position. A wide recess may look ideal until the wall framing, plumbing, or tile module makes it awkward to build.

The better way to plan a niche is to work from the inside out. Start with the objects and people. Then test the wall. Then coordinate the surface finish. Only after those layers agree should the final shower niche dimensions be locked.

This guide develops that method step by step. It is not a chart of “standard sizes.” It is a planning framework for homeowners, designers, installers, contractors and professional buyers who need the niche to work as a real part of the bathroom rather than as a decorative box added at the end.

The Niche Should Be Sized From the Inside Out, Not From the Catalog In

Many niche decisions begin with a product page. A buyer sees a common module, checks whether it fits between framing, and assumes the job is done. That can work, especially when the project benefits from standardization, but it reverses the most useful planning sequence.

The first question should not be “Which niche can I buy?” It should be “What must this niche do?”

Only after the storage task is understood should a product or custom construction method be selected. This is the same principle discussed in our overview of built-in shower storage: the niche becomes more successful when it is treated as part of the wall and the way the bathroom is used, not as an accessory placed after the architecture is finished.

The difference between nominal and usable space is important here. A catalog may show the overall width and height of a niche body, while the user experiences only the clear internal opening. Tile build-up, trim profiles, shelves, flanges, wall boards and finish thickness can all change the usable volume. Therefore, a practical shower niche size decision should distinguish at least four dimensions:

• the overall product or framed size;
• the rough opening or installation size;
• the finished visible opening;
• the internal usable storage space.

These numbers may be similar, but they are not automatically identical. For professional specifications, mixing them together creates avoidable risk. For homeowners, it can result in a niche that looks large on paper but feels surprisingly small after installation.

Begin With a Storage Inventory, Not a Tape Measure

The fastest way to improve niche planning is to stop imagining an empty recess.

Real bathrooms are occupied by products. The first design exercise should therefore be an inventory of what will actually live in the shower.

Count the Product Families

Do not count only bottles. Count categories.

A typical shower may include shampoo, conditioner, body wash, face cleanser, soap, razors, hair treatments, children’s products, medicated products, sponges, brushes and occasional containers that appear only during part of the week. Some households share products; others do not. Some users prefer refill bottles. Others buy tall pump containers or wide jars.

The storage requirement is therefore better understood as a collection of product families than as a fixed bottle count.

Measure the Tallest, Widest and Most Frequently Used Items

Three different objects often control three different aspects of the niche.

The tallest bottle influences clear vertical space. The widest group of products influences shelf length. The most frequently used item influences the most comfortable reach zone.

This is why selecting shower niche dimensions by copying an inspiration image can fail. The image may show elegant hotel-style bottles that are much smaller, fewer, or more coordinated than the products used in a real household.

Design for Change, but Do Not Design for Infinite Capacity

A niche should tolerate reasonable changes in packaging. It should not be sized around one exact shampoo bottle forever. At the same time, making the recess dramatically larger “just in case” can create unnecessary construction complexity and visual weight.

A useful rule is to provide a modest buffer around current needs while keeping the storage strategy disciplined. If a household genuinely needs high capacity, a single niche may not be the best answer. A longer ledge, multiple compartments, a bench, or another secondary storage element may work better.

The goal is not maximum volume. It is organized volume.

Next, Build a Human Reach Envelope

Once the storage load is understood, the next question is where the human body can comfortably interact with it.

This is where many discussions of shower niche height become too simplistic. A single installation height cannot serve every person, shower layout and use case equally well.

Instead of searching for one “correct” number, think in terms of a reach envelope: the zone that can be accessed comfortably from the normal standing or seated position without excessive bending, twisting, stretching or stepping into the spray unnecessarily.

The User’s Body Is Only Part of the Equation

A tall adult, a shorter adult, a child and a seated user do not share the same comfortable reach zone. But the shower layout also changes reach.

Ask:

• Where does the user normally stand?
• Which direction does the user face?
• Is the niche beside, behind or opposite the shower controls?
• Does a fixed glass panel limit access?
• Is there a bench?
• Will children use the same storage?
• Will the user have to reach through the main water stream?

These questions often matter more than the absolute distance from the floor.

Use the Most Frequent Items to Set the Most Comfortable Zone

Products used every day should occupy the easiest reach position. Less frequent items can sit higher or lower. In a multi-level niche, this creates a hierarchy.

The most practical shower niche shelf height is therefore not just a visual spacing decision. It is a behavioral one. A shelf placed only to create perfect symmetry may divide the opening in a way that does not fit the actual products.

For households with very different user heights, separate zones can be more useful than forcing every product into one shared level. A double niche, a tall niche with adjustable or fixed shelves, or two smaller recesses may provide a better solution than one beautifully centered box.

Position Is a Three-Axis Problem: Width, Height and Depth

When people ask where to place a shower niche, they often think only about height. In practice, placement happens in three dimensions.

Vertical Position: Can the User Reach It Naturally?

The vertical location should respond to the user and the product hierarchy. The key test is not whether the niche aligns with a generic rule, but whether frequent items can be reached with a relaxed movement from the normal shower position.

A niche placed too low can require repeated bending. A niche placed too high may be difficult for shorter users and can make upper shelves function more like display space than storage.

The correct shower niche height is therefore a range created by the users, not a universal datum line.

Horizontal Position: Can the User Reach It Without Fighting the Shower?

The wall may offer several possible locations, but they do not all perform the same way.

A niche on the wall directly facing the user can be easy to see but may sit in a high-spray area. A side-wall niche may be easier to access with one hand but can be hidden behind an open door or fixed glass line. A niche near the controls may be convenient, but plumbing inside that wall can make construction more difficult.

The best shower niche location is usually the point where reach, visibility, wall feasibility and water exposure reach the best compromise.

Depth: Usable Storage Must Survive the Wall Build-Up

Shower niche depth is often treated as whatever the wall cavity allows. That is only the starting point.

The usable depth is affected by the wall structure and by the finish layers added inside the recess. A site-built niche may lose internal space to substrate and tile. A prefabricated system has its own internal geometry. A finished metal niche may use wall depth differently.

This is one reason the choice between standard and custom construction should be made together with dimensional planning. Our comparison of prefabricated and custom shower niches explains how different systems move dimensional control and installation work between the factory and the jobsite.

A deep niche can hold larger products, but deeper is not automatically better. Excessive depth may create a dark recess, make cleaning more awkward, or encourage products to collect in multiple rows where the rear items are forgotten. The most useful depth is the one that supports stable, visible storage.

The Wall Has Veto Power

After the user and storage needs are understood, the wall gets to vote.

This is the point where an ideal sketch can become an impractical construction detail.

Do Not Assume the Preferred Wall Is Empty

The wall beside the shower controls often feels like the most convenient shower niche placement, yet it may also contain supply lines, valves, body-spray piping, electrical routes, venting or other services.

In renovation, these conditions may not be fully visible until demolition. In new construction, they can often be coordinated earlier, but only if the niche is part of the planning conversation before rough-in work is complete.

Wall Type Changes the Available Strategy

Light framed partitions, masonry walls, service walls and exterior walls do not offer the same construction freedom. A narrow stud bay may naturally support a vertical format. A wider custom recess may require additional framing coordination. A wall with thermal or structural responsibilities may impose limitations that have nothing to do with storage.

This is why the best shower niche location on the elevation drawing may not be the best location in the building.

Move the Niche Before You Compromise the Wall

One of the most useful professional habits is knowing when to relocate a feature instead of forcing it into a difficult position.

If a preferred location conflicts with major services, requires unnecessary structural intervention, or creates a poor waterproofing interface, moving the niche to another wall can be a better design decision than preserving a perfect visual centerline.

Architecture is coordination. The best-looking position that creates a weak wall detail is not actually the best-looking solution once the project is built and maintained.

Use the Tile Grid as a Coordinate System

After the wall location is technically feasible, the surface finish begins to shape the final opening.

This is where shower niche size becomes a visual planning problem as well as a storage problem.

Tile creates a grid. Large-format panels create joints. Stone slabs create veining and seam logic. A niche cuts into that surface system, so its position should be coordinated with the surrounding pattern rather than imposed on it randomly.

Start With the Finished Wall, Then Test the Niche

A useful planning sequence is:

1. establish the wall dimensions;
2. map the major tile, panel or slab joints;
3. locate fixtures and architectural reference lines;
4. place the niche within that composition;
5. adjust the final opening to reduce awkward cuts and improve alignment.

This does not mean every niche must match one tile exactly. It means the relationship should be intentional.

Nominal Niche Dimensions Can Clash With Finish Modules

A standard product may fit the framing perfectly and still create an awkward tile condition. Conversely, a custom opening designed only around tile may become inefficient to frame or waterproof.

The planning task is to find the point where product geometry, wall construction and finish layout can coexist.

For bathrooms using panel-based wet-area surfaces rather than conventional tile, the same principle applies. Our guide to shower wall panels in wet rooms and bathrooms explains why the wall should be treated as a complete system. Projects still deciding between wall panels and tile can also review the comparison of SPC wall panels and tiles for bathroom renovation.

Do Not Let Symmetry Create Bad Storage

Visual alignment matters, but it should not destroy usability.

A niche may align beautifully with a tile joint and still be too short for common bottles. A shelf may divide the opening into two equal rectangles but leave neither level tall enough for the intended products.

Good planning uses finish alignment as a constraint, not as the only objective.

Horizontal and Vertical Niches Solve Different Space Problems

The choice between a horizontal shower niche and a vertical shower niche is not merely stylistic. Each format organizes storage differently and interacts with the wall in a different way.

A Horizontal Niche Prioritizes Side-by-Side Access

A horizontal shower niche works well when the goal is to spread products across one long visual line. It can create generous visible storage, reduce stacking, and support a more architectural wall composition.

Its challenge is width. Extending across multiple framing bays or a large portion of the wall can require more structural coordination than a narrow recess. Long openings also make alignment with tile, slabs or panel joints more prominent.

A horizontal format is most successful when the wall can support the span and when the storage requirement genuinely benefits from width.

A Vertical Niche Prioritizes Stacking and Narrow Wall Use

A vertical shower niche can fit naturally within a narrower wall zone and use shelves to create multiple storage levels.

Its challenge is internal division. Shelf positions become critical because they determine which bottles fit where. A tall opening with poorly planned shelves can look flexible while functioning badly.

Vertical formats can work particularly well when different users or product categories need separate levels.

Orientation Should Follow the Wall and the Storage Pattern

Do not choose horizontal because it looks more contemporary or vertical because it fits between studs. Those are valid considerations, but neither should act alone.

The orientation should result from four questions:

• Do the products need width or stacked levels?
• What geometry does the wall support efficiently?
• How does the opening relate to the finish layout?
• How will the user reach the full storage area?

The best orientation is the one that answers all four with the fewest compromises.

Shelf Planning Is Where Many Good Niches Become Bad Storage

Adding shelves seems like an easy way to increase capacity. In practice, a shelf can improve or damage the usefulness of the niche depending on where it is placed.

Equal Compartments Are Visually Simple but Often Functionally Arbitrary

Two identical openings may look orderly, but bathroom products are rarely identical in height.

A better shower niche shelf height strategy begins by grouping products into tall, medium and low categories. The shelf positions can then respond to real storage needs.

This may create unequal compartments. That is not a design failure. If the proportions are deliberate, unequal zones can feel more purposeful because they reflect the objects they are designed to hold.

Fixed Shelves Need More Foresight Than Open Niches

An open niche can adapt to changing products. Once a fixed shelf is installed, the clear height of each compartment becomes part of the architecture.

For this reason, shelf planning should consider:

• the tallest likely bottle;
• pump clearance above containers;
• hand access when removing products;
• the thickness of the shelf itself;
• how water and residue will be cleaned around the shelf edges.

A visually thin shelf may still reduce clear space. A thick stone or tiled shelf may become a strong design element but consume more volume.

Do Not Turn Every Inch Into Storage

Leaving some visual breathing room can make the niche easier to use and easier to clean. Overfilling a recess with shelves can create many small compartments that are technically storage but practically restrictive.

Capacity should be judged by useful access, not by the number of divisions.

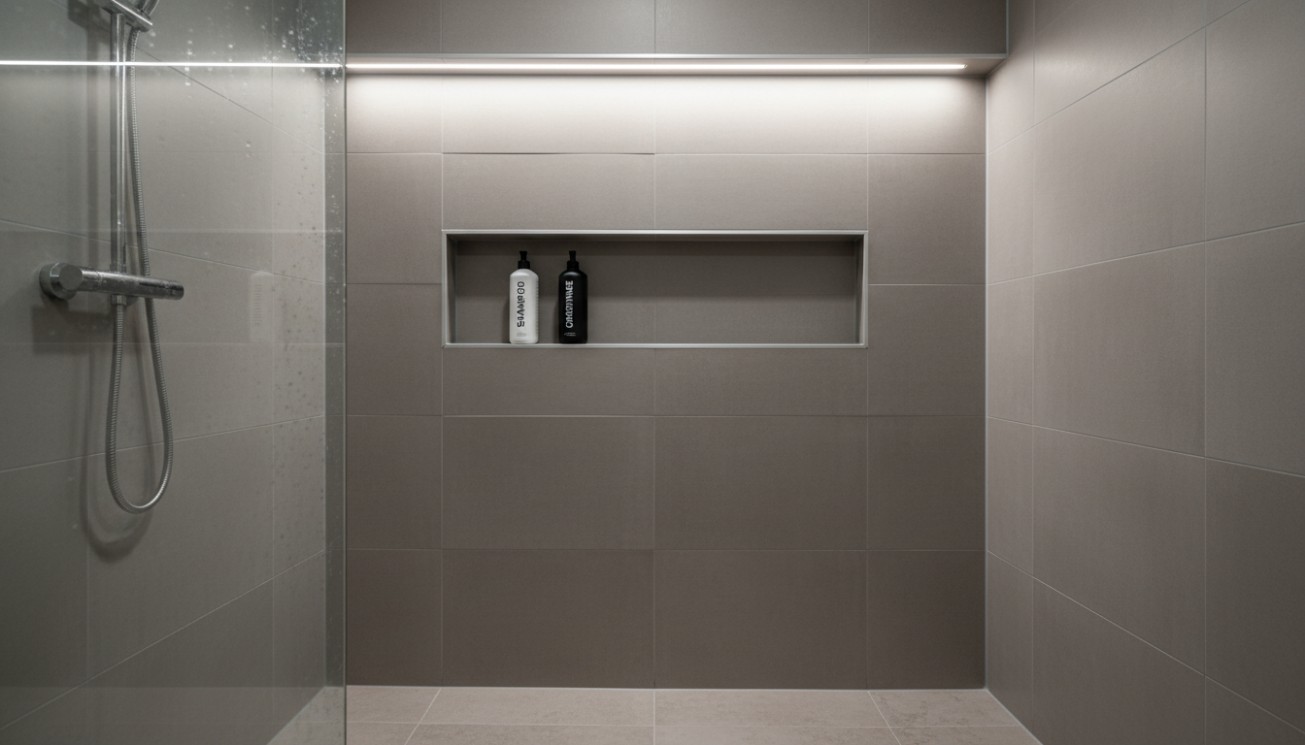

Water Exposure Changes the Best Location

A shower niche lives in a wet environment, but not every wall surface receives water in the same way.

Direct spray, splash, runoff, steam and cleaning all affect the recess. The location should therefore balance convenience with water exposure.

Direct Spray Is Not Always the Most Convenient Zone

A niche positioned directly under or opposite a strong spray may be easy to see but constantly wet. Bottles, soap dishes and shelf surfaces may receive more water than necessary.

Moving the recess to a side wall can reduce direct exposure, but only if reach remains comfortable.

This is another reason the question where to place a shower niche cannot be answered from an elevation alone. The direction of water and the position of the user matter.

Visibility and Drying Behavior Matter Too

A hidden niche can create a calm visual wall, but if it is difficult to see, users may leave products untouched at the back. A highly visible niche encourages organization but exposes the product collection as part of the bathroom design.

Neither approach is universally better.

The ideal shower niche placement should consider the practical life of the recess after the design photograph is taken.

Five Bathroom Types, Five Different Planning Priorities

A useful way to understand niche planning is to compare applications rather than search for one standard solution.

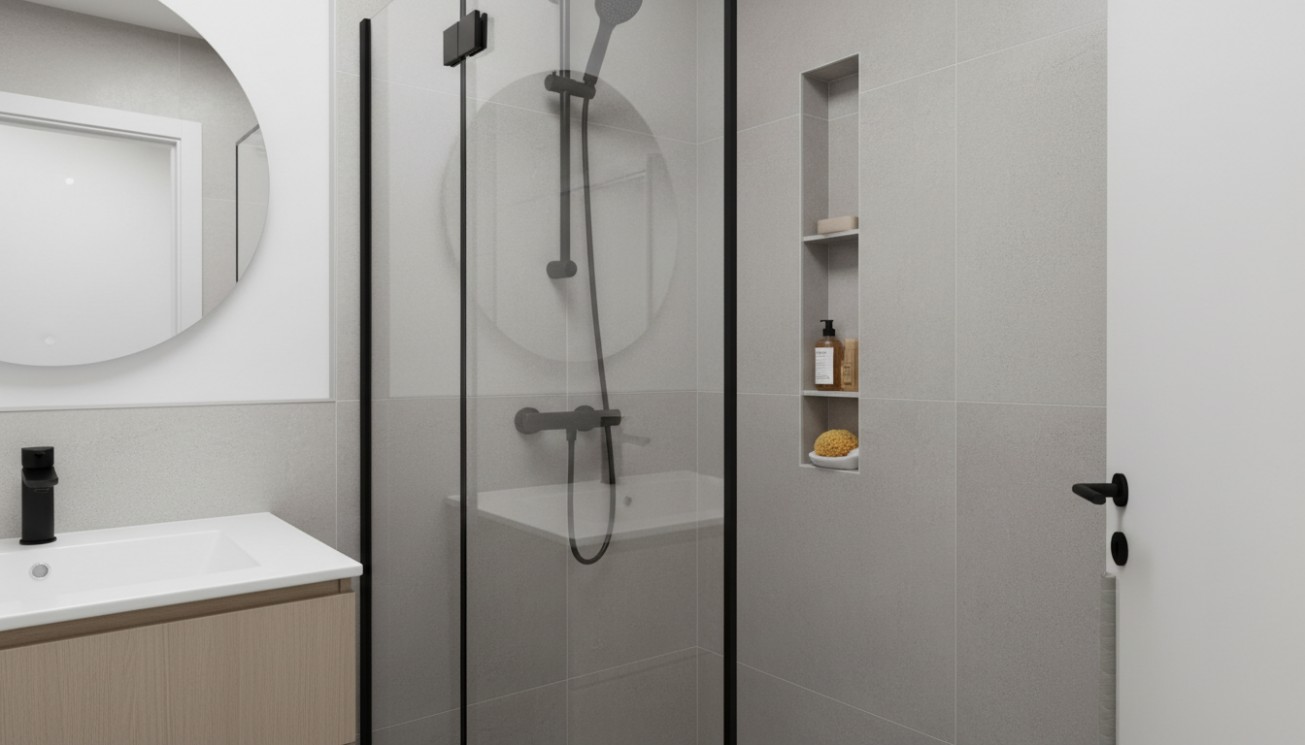

Compact Apartment Bathroom

In a compact shower, the niche often has to deliver meaningful storage without projecting into limited space.

Priorities usually include:

• efficient use of wall depth;
• easy reach from a small standing zone;
• minimal conflict with glass and controls;
• dimensions that do not create excessive visual fragmentation.

A narrow vertical or carefully positioned compact niche may outperform a large feature recess if the wall area is limited.

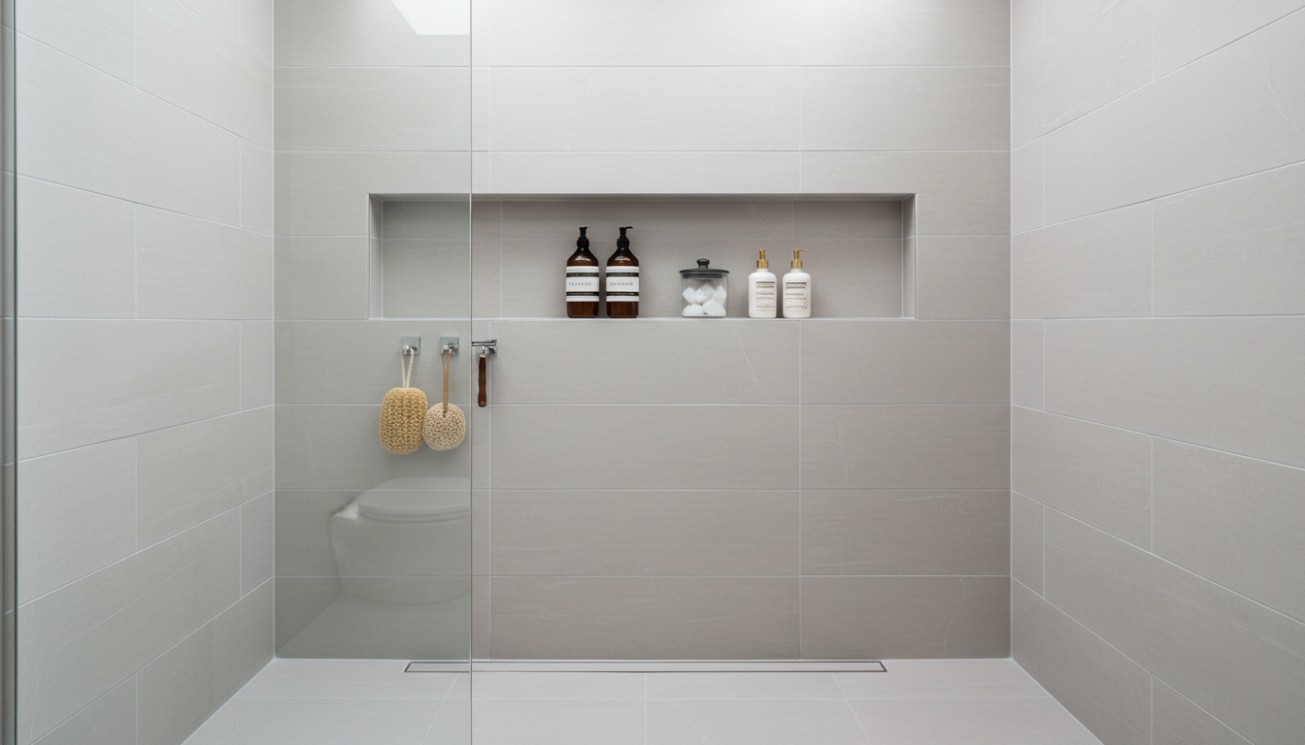

Family Bathroom

A family bathroom usually has a higher storage load and more variation in user height.

Priorities include:

• capacity for multiple product categories;
• separate levels or zones;
• comfortable access for different users;
• enough flexibility for products to change over time.

Here, a single small niche selected for visual symmetry can quickly become overcrowded.

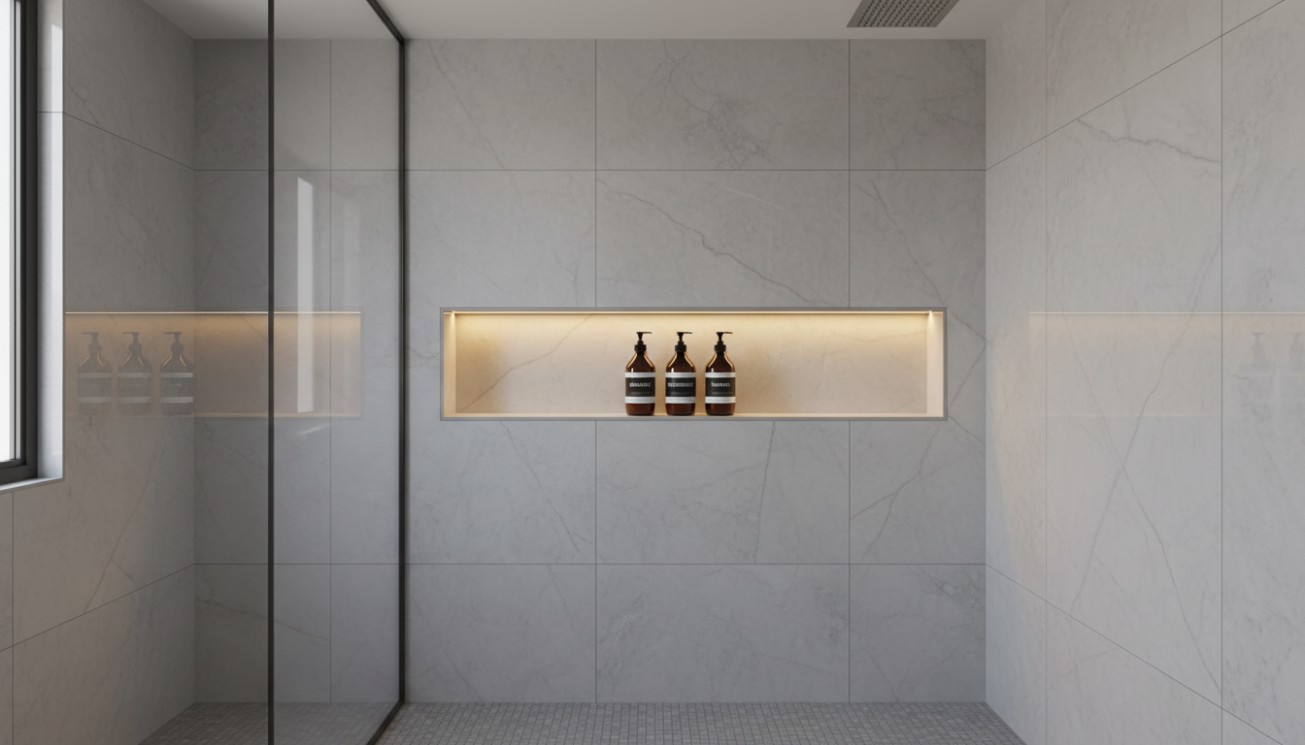

Luxury Walk-In Shower

A large walk-in shower offers more wall area but also raises expectations for architectural integration.

Priorities may include:

• alignment with large-format tile or stone;
• long horizontal composition;
• integrated lighting;
• relationship to benches, controls and glazing;
• careful control of visual clutter.

The niche can become an architectural feature, but its size should still be justified by real storage behavior.

Hotel Bathroom

Hotel niches often serve a narrower and more standardized product set, but consistency, cleaning and repeatability become more important.

Priorities include:

• repeatable shower niche dimensions across rooms;
• simple cleaning access;
• clear relationship to standardized wall finishes;
• reliable installation documentation;
• enough capacity without encouraging excessive clutter.

In this context, a highly customized niche in every room may provide little additional value compared with a controlled system.

Accessible or Multi-Generational Bathroom

These bathrooms require especially careful user-specific planning.

The shower niche height, reach direction and location should be coordinated with the intended user position, seating, grab-bar layout and applicable project requirements. Generic placement assumptions are especially risky here.

The broader lesson is that application type should shape the niche before style does.

Mock Up the Niche Before the Wall Makes the Decision Permanent

One of the cheapest tools in niche planning is a temporary mock-up.

Before framing, waterproofing or tiling makes the decision expensive to change, mark the proposed opening on the wall.

Use tape, cardboard or a simple drawn rectangle. Then stand in the shower area and test it.

Test Reach With the Body, Not Only With the Drawing

Simulate the actual shower position. Reach for the top, bottom and far edge of the proposed niche. Check whether a fixed glass panel, door, bench or control location changes the movement.

If more than one person uses the bathroom, test more than one person.

Test With Real Bottles

Place actual containers inside a temporary box or against a marked wall area. This quickly reveals whether the proposed shower niche size is based on real objects or on an abstract rectangle.

Test the Visual Relationship From Outside the Shower

The user sees the niche from two positions: while showering and while entering the bathroom.

A niche that feels perfectly placed for use may look visually off-center from the room entrance. A feature niche that aligns beautifully from outside may be uncomfortable to reach.

The final decision should acknowledge both views.

A Professional Specification Should Separate Design Intent From Construction Information

For contractors, developers, designers and B2B buyers, the final niche specification should be more precise than “600 mm niche centered on wall” or its equivalent.

A strong specification separates what the niche must achieve from how it will be built.

Design Intent Information

• intended storage capacity;
• orientation;
• visual alignment;
• relationship to fixtures;
• finished opening proportions;
• shelf arrangement;
• finish strategy.

Construction Information

• wall type;
• rough opening;
• required depth;
• product or framing system;
• waterproofing integration;
• finish build-up;
• edge or trim detail;
• tolerance and inspection requirements.

This separation helps prevent a common problem: a design drawing communicates the desired appearance, while the installer has to guess how the dimensions translate into the actual wall assembly.

For prefabricated products, manufacturers should make overall dimensions, cut-out dimensions, internal usable dimensions and depth requirements easy to distinguish. For custom work, drawings should identify which dimensions are rough and which are finished.

Clear dimensional language is part of product quality.

A Better Sequence for Finalizing Shower Niche Size and Placement

The entire process can be reduced to a practical sequence.

Step 1: Define the User

Who will use the shower? One adult, a couple, children, guests, hotel occupants, or users with specific reach needs?

Step 2: Define the Storage Load

What must fit? Which products are tall, wide, frequently used or likely to change?

Step 3: Establish the Reach Envelope

From the real standing or seated position, where can the user reach comfortably?

Step 4: Inspect the Wall

What framing, services, structure, insulation or depth limitations exist?

Step 5: Select the Construction Logic

Will the project use a prefabricated, tile-ready, finished metal or custom-built system?

Step 6: Coordinate the Surface Grid

How does the opening relate to tile, stone, panel joints, fixtures and architectural lines?

Step 7: Validate Finished Dimensions

After all finish layers and shelves are included, is the remaining usable space still enough?

Step 8: Mock It Up

Test the proposed niche physically before the wall assembly makes changes expensive.

This sequence is intentionally different from choosing a catalog size first. It starts with use and ends with product confirmation.

The Best Shower Niche Is the One That Resolves Competing Constraints

There is no universal best shower niche location because every bathroom combines different users, walls, fixtures, materials and construction methods.

There is also no single ideal shower niche size, because storage demand varies and usable dimensions are shaped by the wall assembly.

And there is no universal shower niche height, because comfortable reach depends on the person and the way the shower is used.

This does not mean niche planning is subjective or arbitrary. It means the decision should be made through a hierarchy of constraints.

First, the niche must serve the user.

Second, it must fit the wall.

Third, it must integrate with the wet-area system.

Fourth, it should coordinate with the finish and architecture.

Fifth, it should be documented clearly enough that the intended result can actually be built.

When those conditions are resolved in that order, the niche stops being a decorative rectangle and becomes a functional part of the bathroom.

That is the real purpose of sizing and placement: not to discover a universal number, but to turn storage, human reach, wall construction and visual design into one coherent decision.

Focused FAQ

What Is the Best Shower Niche Size?

The best shower niche size depends on the number and type of products that must be stored, the available wall cavity, the surrounding finish system and the intended visual proportion. The useful dimension is the finished internal storage space, not only the nominal product size.

What Is the Ideal Shower Niche Height?

There is no universal shower niche height that works for every bathroom. The niche should sit within a comfortable reach zone for the intended users while also coordinating with fixtures, wall construction and the surface layout.

Where Should a Shower Niche Be Placed?

When deciding where to place a shower niche, consider reach, direct spray, visibility, plumbing, framing, glass panels, doors and the direction the user faces. The visually centered wall is not always the most practical wall.

What Is the Best Shower Niche Location in a Walk-In Shower?

The best shower niche location in a walk-in shower is usually a wall that is comfortable to reach, technically feasible to recess, compatible with the waterproofing and finish system, and not unnecessarily exposed to direct spray. The answer depends on the individual shower layout.

How Deep Should a Shower Niche Be?

Shower niche depth should provide stable, visible storage after all wall and finish layers are included. Greater depth is not always better because very deep recesses can be harder to clean and may encourage products to be stored in multiple rows.

How Do I Choose Shower Niche Dimensions?

Choose shower niche dimensions by measuring the real storage requirement first, then checking user reach, wall conditions, construction method and finished surface layout. Separate overall, rough-opening, finished-opening and internal usable dimensions.

Is a Horizontal or Vertical Shower Niche Better?

A horizontal shower niche is useful for side-by-side storage and long architectural compositions. A vertical shower niche is useful when the wall is narrow or when several stacked storage levels are needed. The better orientation depends on the storage pattern and wall geometry.

How Should Shower Niche Shelf Height Be Planned?

Shower niche shelf height should be based on the products that will occupy each compartment. Measure tall bottles, allow room for pumps and hand access, and avoid dividing the niche into equal sections unless those sections actually fit the intended products.

Should a Shower Niche Align With Tile Grout Lines?

Alignment can create a cleaner visual result, but usability should not be sacrificed simply to match grout lines. The niche should be coordinated with the tile or panel grid while preserving enough finished space for the intended storage.

Should Shower Niche Placement Be Decided Before Plumbing Rough-In?

Whenever possible, yes. Early shower niche placement allows the project team to coordinate the recess with pipes, valves, framing, waterproofing and wall finishes before those systems compete for the same space.

#ShowerNicheSize #ShowerNicheHeight #ShowerNicheDimensions #ShowerNichePlacement #BathroomPlanning #BuiltInShowerStorage #ShowerDesign #BathroomRenovation #WetRoomDesign #BathroomArchitecture
