Why Shower Drains Fail The Critical Waterproofing Connection Hidden Beneath the Finished Floor

The Leak Rarely Starts at the Decorative Grate

When a finished shower begins leaking, the visible drain is often blamed first. The grate is removed, the outlet is cleaned, sealant is added around the tile edge, and the surface is inspected for cracks. These actions may address maintenance problems, but they frequently miss the most important part of the assembly: the hidden connection between the drain body and the waterproofing layer.

A shower drain is not simply a hole through the floor. It is a controlled termination point for the waterproofed receptor. Water must be guided from the finished surface into the waste system without bypassing the membrane, entering the mortar bed in an uncontrolled way, reaching the subfloor, or moving into adjacent wall and floor assemblies.

This makes shower drain waterproofing an interface problem rather than a product-only problem. The drain body, flange, clamp, membrane, mortar, adhesive, tile, sealant and waste connection must form a compatible sequence. If one component belongs to a different installation logic, the shower can look complete while the protective system underneath remains discontinuous.

A shower drain leak may therefore appear several feet away from the drain, below the bathroom ceiling, beside a wall, under a threshold or inside an adjacent room. Water follows gravity, capillary paths, gaps and material transitions. The location of visible damage does not always reveal the location where water first entered the assembly.

Readers who need a broader introduction to product formats can first review our guide to shower drain types. The present article focuses on what happens below those visible products and why a correct-looking grate can still sit above an unreliable waterproofing connection.

Follow the Waterproofing Plane, Not the Tile Surface

The first step in understanding shower leaks is to identify the actual waterproofing plane. Tile, grout, stone, decorative wall panels and sealant form the visible wear surface, but they should not be assumed to be the only barrier protecting the building.

Water can pass through grout joints, tiny cracks, porous materials, movement joints and imperfect surface seals. A properly designed shower anticipates that possibility and provides a continuous protected layer below or directly behind the finish.

The Waterproofing Plane Must Reach the Drain

The protected layer cannot simply stop near the outlet. It must connect to a drain component designed to receive it. Depending on the system, that connection may be created by mechanical clamping, direct bonding to a flange, factory-attached fabric, a proprietary collar or a combination of methods.

The critical question is not whether waterproofing exists somewhere below the tile. The question is whether the drain waterproofing membrane has a defined, continuous and inspectable connection to the drain body.

The Drain Has Two Different Jobs

The visible portion collects surface water. The waterproofing interface manages water that reaches the protected layer. In some traditional assemblies, moisture within the mortar bed is expected to move toward the drain through designated drainage paths. In bonded systems, the waterproofing sits immediately beneath the tile and directs water directly to the flange.

Combining details from these two approaches without understanding their water-management logic can trap moisture, block drainage paths or create an unsealed transition.

Sealant Is Not a Substitute for the Interface

Applying silicone around a grate may improve appearance or reduce debris entry, but it does not recreate a failed connection below the finished surface. Surface sealant is exposed to cleaning chemicals, movement, impact and aging. It should perform the detail assigned to it, not compensate for an absent flange connection.

Four Waterproofing Architectures That Should Not Be Confused

Most shower systems can be understood through four broad waterproofing architectures. The terminology varies between markets and manufacturers, but the separation is useful because each architecture moves water differently and requires a different drain interface.

Architecture 1: Traditional Liner with a Clamping Drain

A traditional receptor commonly uses a flexible shower pan liner positioned between mortar layers. The lower mortar bed establishes a fall toward the drain. The liner is then connected mechanically to a drain body, followed by the upper mortar bed and finished tile.

A clamping ring drain normally includes a lower body, a flange area, a clamping component and an adjustable upper section. The liner is placed between designated parts of the assembly and mechanically secured. Openings or drainage paths within the body allow moisture reaching the liner level to move into the waste system.

This approach depends on several details working together:

• The substrate below the liner must already direct water toward the drain.
• The liner must not be punctured in vulnerable horizontal areas.
• Corners and transitions must be formed without uncontrolled cuts.
• The clamping surfaces must be clean, aligned and securely assembled.
• Drainage paths around the body must remain open.
• The upper mortar bed must not be treated as the primary waterproof layer.

A common misunderstanding is that the liner can lie flat on a level subfloor because the tile surface above will be sloped. If moisture reaches a flat liner, it can remain within the lower assembly instead of moving toward the drain. The finished tile may appear properly pitched while the concealed water-management plane is not.

Architecture 2: Bonded Sheet Membrane

A sheet membrane shower system places the waterproofing immediately beneath the tile or finished surface. The membrane is joined to a compatible flange using the system’s approved bonding method. Tile adhesive and tile are then installed above the protected plane.

The drain used in this architecture is commonly a bonded flange drain. Rather than capturing a liner between mechanical clamping parts below a thick upper mortar bed, the flange provides a broad surface to which the waterproofing membrane can connect directly.

The main advantages of this approach include a waterproofing plane close to the finish, clearer integration across larger wet-room areas and the ability to connect floors, walls, benches and niches within one continuous membrane family.

The main risks are different from those of a traditional liner:

• Insufficient membrane overlap at seams
• Contamination on the flange before bonding
• Incomplete adhesive coverage
• Wrinkles or voids near the drain
• Incompatible adhesives or sealants
• Incorrect treatment of corners and penetrations
• Damage to the membrane after installation

The system is only as reliable as the continuity of its seams and transitions. A perfectly installed drain flange cannot protect a cut membrane beside a glass fixing, bench corner or pipe penetration.

Architecture 3: Liquid-Applied Waterproofing

A liquid waterproofing membrane is rolled, brushed, sprayed or otherwise applied to an approved substrate, forming a continuous film after curing. It can be useful around irregular geometry, long linear drains, benches, niches and complex corners because it conforms to the shape of the surface.

Liquid application can look deceptively simple. The installer paints the floor and walls, and the area changes color. However, visual coverage does not automatically prove correct dry-film thickness, complete curing, reinforcement at transitions or proper bonding to the drain flange.

Important controls include:

• Substrate moisture and preparation
• Required primer, where applicable
• Wet-film or dry-film thickness
• Number and direction of coats
• Reinforcement at corners and changes of plane
• Curing time between coats
• Compatibility with the drain flange material
• Protection from damage before tiling

Too little material can leave pinholes or weak areas. Excessive localized thickness can delay curing or create instability. A liquid membrane should be installed as a measured system, not judged only by whether the surface appears fully colored.

Architecture 4: Double or Hybrid Waterproofing

Some projects intentionally include more than one protected layer. A traditional liner may form the primary receptor while a bonded membrane is added above the mortar bed and connected to a compatible drain flange.

This can provide redundancy when it is an engineered and approved assembly. It can also create problems if two waterproof layers are added without a clear drainage strategy. Moisture may become trapped between impermeable layers, drainage paths may be blocked, or different trades may assume that the other layer will compensate for incomplete work.

The phrase “double waterproofing” should therefore trigger more documentation, not less. The project should define:

• Which layer is primary
• Where each layer terminates
• How each layer connects to the drain
• How moisture between layers can escape
• Which manufacturer accepts the combined assembly
• Which trade is responsible for each interface

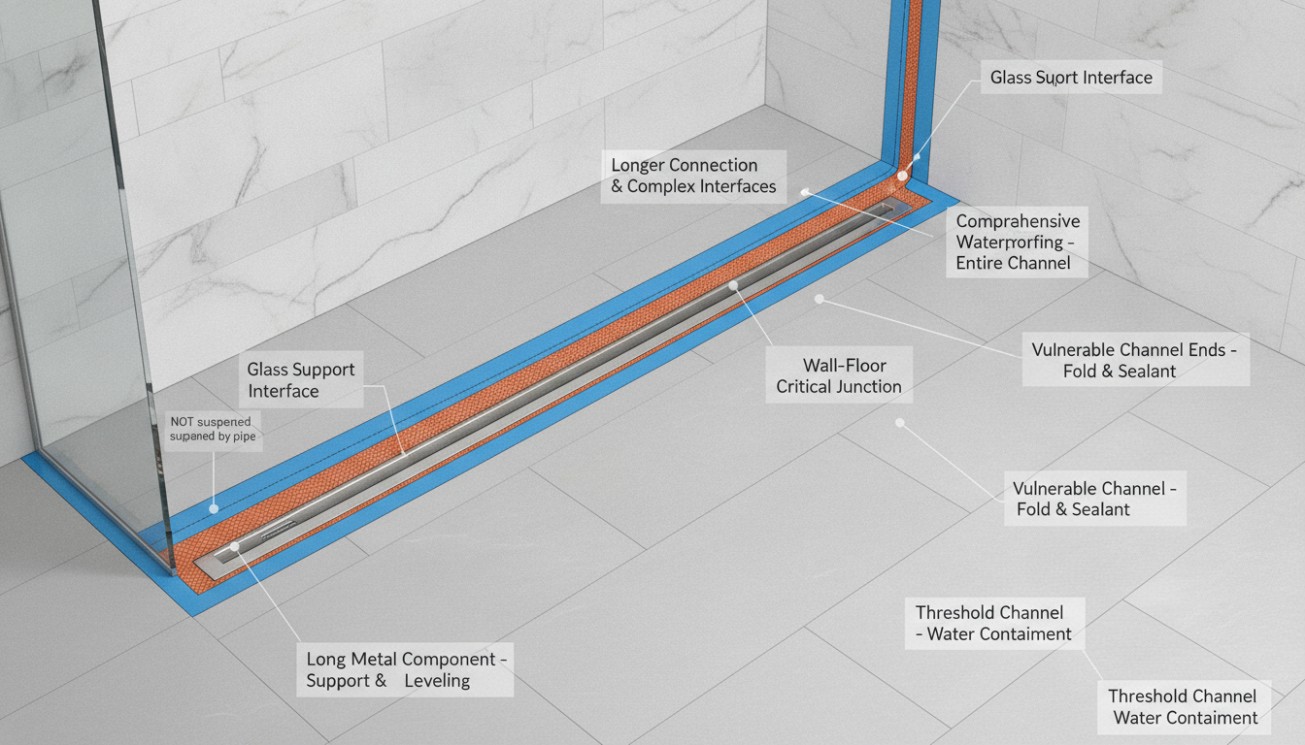

Why Linear Drains Increase Interface Responsibility

A linear drain is not inherently more likely to leak than a point drain. It does, however, create a longer connection and may introduce more ends, corners, wall transitions and alignment requirements.

Professional linear drain waterproofing must address the entire channel, not only the outlet pipe. When the drain sits against a wall, the detail may combine the floor membrane, wall membrane, drain flange, tile edge and sometimes glass support within a narrow zone.

Wall-Side Channels

A wall-side drain can support a clean one-direction floor plane, but the wall-floor junction becomes critical. The waterproofing needs to remain continuous behind or around the channel according to the drain system. The channel should not create an inaccessible gap between the waterproofed wall and floor.

Threshold Channels

A threshold drain sits close to the boundary between wet and dry areas. Failure at this interface can direct water toward the bathroom floor rather than deeper into the shower. Projects using an open or level-entry arrangement should also review our guide to curbless shower drainage, because waterproofing extent and water containment must be solved together.

Channel Ends

The ends of a linear drain are common places for complicated cuts, membrane folds, sealant transitions and tile returns. A wall-to-wall channel eliminates some finish strips but demands highly accurate dimensions. A shorter channel creates end returns that must be detailed intentionally.

Long Metal Components

Long channels must be supported, leveled and protected from distortion. Movement or deflection can stress adjacent tile and waterproofing. The drain should be fixed according to its installation system rather than suspended by the waste pipe or held in place by temporary packing.

Readers comparing the construction implications of compact and elongated drains can see the related analysis in our linear shower drain versus center drain guide.

Ten Failure Mechanisms Hidden Beneath Finished Tile

1. The Drain Was Selected Before the Waterproofing Method

The project buys an attractive channel, then discovers that its drain body is intended for a different membrane architecture. Installers attempt to adapt the connection using sealant, fabricated collars or unapproved transitions. The shower begins with a compatibility problem before installation starts.

2. The Waterproofing Stops Beside the Drain

The membrane approaches the body but does not connect continuously to a designed flange or clamp. Tile and sealant temporarily cover the gap, creating the appearance of completion. Water reaching the protected layer can then move below or around the drain.

3. The Clamping Connection Is Contaminated or Uneven

Mortar, adhesive, wrinkles, debris or poor alignment prevents uniform mechanical compression. Tightening the visible bolts does not guarantee that the liner is captured evenly across the complete flange.

4. Drainage Paths Are Blocked

In systems that depend on moisture moving through designated paths near the drain body, mortar or sealant can block those openings. Water then remains in the assembly, contributing to persistent saturation, odor, discoloration or slow drying.

5. The Bonded Flange Has Incomplete Coverage

A sheet or liquid membrane may appear attached while containing voids near the flange edge. Repeated wetting, movement and cleaning temperature changes can expose that weakness over time.

6. Liquid Membrane Thickness Is Not Controlled

The installer applies one light decorative-looking coat or creates uneven coverage around the drain. Thin areas, pinholes and exposed substrate become possible entry points. The absence of a thickness record makes later verification difficult.

7. The Drain Moves After Waterproofing

A poorly supported body can rotate, settle or flex when the waste connection is adjusted, the floor is loaded or the grate is installed. That movement may crack the membrane connection even though the drain looked correct during the earlier inspection.

8. A Later Trade Penetrates the Protected Zone

Glass installers, cabinet installers, door contractors or accessory installers may drill through the waterproofed floor or wall base. The original drain connection can be perfect while a later penetration creates the final leak path.

9. Floor and Wall Systems Are Treated Separately

The floor installer waterproofs to one line, while the wall-panel or tile installer begins from another. A gap remains at the change of plane. The problem is particularly serious near wall-side linear drains, benches and niches.

Readers using panel-based bathroom finishes should refer to our articles on SPC shower wall panels in wet rooms and wall-panel trims, adhesives and sealing details. A water-resistant wall surface still needs a controlled transition into the floor and drain assembly.

10. The Shower Is Covered Before Testing

Tile, stone or panels are installed before the waterproofing and drain interface have been inspected. Once the finish is complete, the most important evidence is hidden. A later leak requires destructive investigation instead of a simple pre-finish correction.

Read the Failure Pattern Before Beginning Demolition

Different symptoms can point toward different parts of the assembly. They do not provide a final diagnosis by themselves, but they can help structure an investigation.

The investigation should separate three possibilities: water escaping from supply plumbing, water escaping from the waste connection, and water passing through the waterproofed receptor. Testing all three at once makes the diagnosis less reliable.

Use Construction Hold Points Before the Evidence Disappears

A hold point is a stage at which work pauses until a specific condition is verified. This is more effective than relying on a final visual inspection after the shower is complete.

Hold Point 1: System Compatibility

Before the drain is purchased, confirm the drain model, waterproofing architecture, outlet direction, substrate, floor build-up and installer responsibility. The submittal should identify whether the system is mechanically clamped, directly bonded or intentionally hybrid.

Hold Point 2: Drain Support and Elevation

Before waterproofing, confirm that the drain is fixed, level where required, aligned with the floor geometry and supported independently of temporary pipework. Verify that the final grate adjustment can accommodate the planned tile and adhesive thickness.

Hold Point 3: Waterproofing Interface

Inspect the membrane connection before it is covered. Check clamp alignment, flange cleanliness, bonding coverage, membrane overlap, corner treatment and reinforcement. Photograph the complete drain perimeter, not only the center outlet.

Hold Point 4: Receptor Test

Complete the project’s required water-retention or waterproofing test before tile or wall panels hide the assembly. Confirm that the test isolates the waterproofing and drain connection rather than unintentionally testing unrelated pipe joints.

Hold Point 5: Protection During Finishing

After testing, protect the drain, membrane and recorded penetration-free zones. Tile cutting, dropped tools, glass drilling and heavy traffic can damage a previously approved system.

Hold Point 6: Final Operational Test

After the finish is complete, test the installed shower with the intended fixtures. Waterproofing integrity and hydraulic capacity are related but different questions. Our separate shower drain capacity guide explains why the full waste path should be checked rather than judging performance from grate size alone.

Flood Testing Must Match the Assembly Being Tested

A water test is valuable only when the test boundary is understood. The plug location, water level, duration, visible reference marks and inspection access should be documented.

Test the Waterproofing, Not an Unrelated Joint

If the test plug sits above a vulnerable drain connection, the test may fail to challenge that connection. If it sits too far downstream, the test may include pipe joints that belong to a separate plumbing test. The team should know exactly which components are under water and pressure.

Record the Starting Condition

Mark or measure the water level and record the time. Account for conditions that may affect observation, including temperature, evaporation and absorption by unprotected test materials. The purpose is to create evidence, not simply to leave water in the shower overnight.

Inspect Adjacent Areas

Check the ceiling below, wall bases, neighboring rooms, penetrations and service spaces. A successful-looking water level does not replace inspection where leakage could migrate into concealed areas.

Do Not Ignore a Small Loss

A slow leak discovered before tiling is an inexpensive warning compared with the same leak discovered after cabinetry, ceilings, glass and finish materials are installed. The correct response is diagnosis and repair, not reducing the test duration until the result appears acceptable.

Repair Decisions Should Be Based on Layer Access

A failed surface joint may sometimes be repaired locally. A failed drain-to-membrane interface usually requires access to the layer where continuity was lost.

When a Surface Repair May Be Reasonable

• The waterproofing has already passed a valid independent test.
• The problem is limited to a replaceable movement joint or decorative seal.
• No moisture damage exists below or beside the receptor.
• The repair material is compatible with the finish and service conditions.

When Local Tile Removal May Be Necessary

• The drain flange cannot be inspected from above.
• The membrane connection is suspected but remains hidden.
• The drain body moves relative to the floor.
• Water appears below the receptor during a controlled test.
• Channel ends or wall transitions are suspected.

When Full Receptor Reconstruction May Be Safer

• The waterproofing architecture cannot be identified.
• Several incompatible materials have been combined.
• The liner has no preslope or contains widespread damage.
• Multiple penetrations exist in the protected floor.
• Moisture damage extends into the structure or adjacent assemblies.
• A partial repair cannot be connected reliably to the remaining membrane.

Repair scope should not be minimized simply to preserve expensive tile. A small opening that cannot restore a continuous waterproofing connection may delay the failure rather than solve it.

What Project Buyers Should Require Before Approval

Drain quotations often emphasize stainless-steel grade, length, finish and grate design. Those details matter, but they do not establish waterproofing compatibility.

Drain Documentation

• Exact drain body and grate model
• Flange or clamping configuration
• Outlet size, direction and position
• Installation section drawings
• Compatible waterproofing categories
• Required accessories and collars
• Adjustment range for finished surfaces
• Cleaning and replacement access

Waterproofing Documentation

• Membrane product and system family
• Approved substrate
• Drain-flange preparation method
• Adhesive, sealant or reinforcement requirements
• Overlap or film-thickness requirements
• Curing time before testing
• Repair procedures for accidental damage
• Test and inspection requirements

Responsibility Documentation

• Who supplies the drain body?
• Who connects the waste pipe?
• Who supports and levels the drain?
• Who installs the membrane connection?
• Who performs the test?
• Who approves the result?
• Who protects the assembly afterward?
• Who records later penetrations?

This information is particularly important for importers, distributors and private-label buyers. A drain manufacturer may produce an attractive stainless-steel channel while leaving the waterproofing interface to locally sourced components. The buyer must understand whether the product is a decorative channel, a complete drain body or part of a tested installation system.

A Responsibility Matrix Prevents the Interface from Becoming Nobody’s Work

Focused FAQ

What is the most common cause of a shower drain leak?

There is no single universal cause, but frequent problems include an incompatible drain and membrane, incomplete flange bonding, poor clamping, movement of the drain body, blocked drainage paths and later penetrations through the protected assembly.

Does grout make a shower floor waterproof?

Grout is part of the finished surface but should not be treated as the only waterproof barrier. The shower requires a continuous protected layer connected to the drain beneath or directly behind the finish.

What is the difference between a clamping ring drain and a bonded flange drain?

A clamping drain mechanically captures a liner within the drain assembly and is commonly associated with traditional shower-pan construction. A bonded flange provides a surface to which a sheet or liquid membrane connects directly near the finished surface.

Can a sheet membrane connect to any drain?

No. The drain needs a compatible flange, collar or approved transition. A membrane should not simply be cut around an unrelated drain body and sealed with a generic adhesive.

Can a liquid waterproofing membrane be applied over a traditional liner?

Some engineered hybrid systems use more than one layer, but the combination must define drainage, compatibility and responsibility. Adding an impermeable upper layer without a system plan can trap moisture between layers.

Why does grout stay dark around the drain?

Possible causes include standing surface water, saturated mortar, blocked drainage paths, poor slope, contamination or slow drying. Dark grout alone does not prove a membrane leak, but it justifies further inspection.

Can silicone around the drain stop a waterproofing leak?

Silicone may repair a designated surface joint, but it cannot reliably restore a failed hidden flange or liner connection. The failed layer normally needs to be accessed and repaired using a compatible method.

Should the shower be flood-tested before tiling?

The waterproofed receptor should be tested according to the selected system, project requirements and applicable local procedures before the assembly is concealed. The test boundary and plug position must be understood so the correct components are evaluated.

Is linear drain waterproofing more difficult than waterproofing a center drain?

It involves a longer interface and can introduce channel ends, wall transitions and alignment requirements. It is not inherently unreliable, but it requires detailed coordination across the complete channel rather than only around a compact outlet.

Can a leaking drain be repaired without removing tile?

A waste-pipe joint accessible from below may sometimes be repaired without disturbing the floor. A failed membrane-to-drain connection usually requires access to the waterproofing layer, which commonly means removing some or all of the surrounding finish.

Who should install the drain waterproofing connection?

The responsible trade should be explicitly identified by the project and should understand both the drain product and waterproofing system. The task should not be left between the plumber and tile installer without a defined handover.

What information should a drain supplier provide?

The supplier should provide the exact installation architecture, compatible waterproofing methods, flange or clamp details, outlet configuration, section drawings, required accessories, support method and relevant testing or approval documentation.

The Drain Is Where Product Selection Becomes System Performance

The decorative grate is one of the most visible objects in a shower, but the connection beneath it determines whether water remains inside the intended system. A well-finished channel cannot compensate for an incompatible membrane. Premium tile cannot correct an incomplete clamp. Additional sealant cannot reproduce a missing bonded flange.

The reliable sequence is straightforward: define the waterproofing architecture, select a compatible drain body, coordinate the floor and wall transitions, support the drain, complete the membrane connection, inspect it before covering, test the receptor, protect the approved work and record every later penetration.

This approach also changes procurement. The drain is no longer purchased as a stainless-steel accessory alone. It is evaluated as the termination point of the complete wet-area envelope.

When a shower performs well, the waterproofing connection remains unseen for its entire service life. That invisibility is not evidence that the detail was unimportant. It is evidence that the right products, trades and inspection steps were coordinated before the finished floor concealed the most critical connection in the room.
