How to Wire an Electric Actuator for Ball Valves and Butterfly Valves

Electric Actuator Wiring Is Not Just Connecting Power

Electric actuator wiring is one of the most common topics in valve automation because it sits at the point where mechanical valve movement meets electrical control. A valve may be correctly selected. The actuator may have enough torque. The control system may be well designed. But if the wiring logic is wrong, the automated valve system will not operate correctly.

In many field projects, problems appear during commissioning rather than during design. The actuator is mounted on a ball valve or butterfly valve, the cable is pulled to the control panel, the power is switched on, and then the actuator does not move. Or it moves in the wrong direction. Or it opens but does not close. Or it closes but the PLC does not receive the feedback signal. Or the local switch works, but remote control fails. These are not always product failures. Very often, they are electric actuator wiring issues.

A modern electric valve actuator may include power terminals, control terminals, auxiliary switches, limit switch outputs, torque switch outputs, analog position feedback, heater terminals, ground terminals, communication terminals and local control interfaces. A small motorized ball valve may have only two or three wires. A larger industrial actuator may have a full terminal block with separate circuits for power, command, feedback and alarms.

That is why wiring should never be treated as a simple color-matching task. The installer must understand what each wire or terminal does. The wiring diagram supplied by the actuator manufacturer should always be treated as the primary reference. This article is a practical explanation of wiring logic, not a replacement for the manufacturer’s wiring diagram or local electrical standards.

The goal is to help engineers, buyers, technicians and content readers understand the major wiring patterns used in electric actuator systems for ball valves, butterfly valves and industrial valve automation.

Start With the Actuator Type and Control Purpose

Before discussing individual wires, the first question is: what type of actuator control is required?

An on/off actuator usually needs only open and close control. A 2 wire electric actuator may operate by applying or removing power, or by reversing polarity in some DC designs. A 3 wire electric actuator may use one common wire and separate open and close control wires. A modulating actuator may require a continuous power supply plus an analog input signal such as 4-20mA or 0-10V. A smart actuator may require digital communication wiring in addition to power and feedback.

The valve type also matters. Electric ball valve wiring is often associated with compact quarter-turn actuators. These are common in water systems, irrigation, HVAC, small industrial skids and fluid handling equipment. Butterfly valve actuator wiring may involve larger actuators, higher torque, more formal control panel integration and more feedback requirements, especially in water treatment, cooling water systems and process plants.

The control purpose also changes the wiring design. If the valve only needs to open and close, the wiring may be simple. If the valve is part of a PLC-controlled sequence, the wiring must support commands and status feedback. If the valve regulates flow, the wiring must support a modulating command and an actuator feedback signal. If the valve is safety-related, the wiring may need fault alarms, interlocks and defined fail-safe behavior.

A good wiring plan starts with the application, not the cable. The team should define the actuator control mode, power supply, signal type, feedback requirement and control panel design before field wiring begins.

Understand Power Supply Before Control Wiring

Every electric actuator needs power, but not all actuators use the same power supply. This is one of the first things to confirm before wiring.

Small motorized ball valves may use 12V DC or 24V DC. HVAC actuators often use 24V AC or 24V DC. Industrial electric actuators may use 110V AC, 120V AC, 220V AC, 230V AC or three-phase power for larger models. Some actuators require a permanent power supply for internal electronics, while others receive power only during movement.

The power supply must match the actuator nameplate and wiring diagram. Incorrect voltage can damage the motor or control board. Low voltage can cause weak torque, slow movement or failure to reach end position. Voltage drop can be a problem when cables are long or undersized.

Power wiring and control wiring should be considered separately. In many industrial actuators, the motor power circuit is different from the control signal circuit. A PLC output may not directly power the actuator motor. Instead, the PLC may control a relay, contactor or actuator input circuit. This is especially important when the actuator voltage is different from the PLC output voltage.

Grounding is also important. Proper protective earth connection helps reduce electrical risk and supports stable operation. For analog signals and communication wiring, grounding and shielding practices can affect signal reliability.

Before any electric valve actuator wiring is finalized, confirm four things: actuator voltage, control voltage, current requirement and cable distance. These details determine cable size, protection devices, control relay design and signal stability.

2 Wire Electric Actuator Wiring Logic

A 2 wire electric actuator is often used in compact motorized ball valve systems. The phrase “2-wire” sounds simple, but it can mean different things depending on actuator design.

In some 2-wire designs, applying power drives the actuator open, and removing power allows the actuator to close by spring return or internal return mechanism. In other designs, applying power drives the valve from one position to the other, and the actuator stops automatically at the end of travel. Some DC actuators may use polarity reversal, where reversing the positive and negative wires changes the direction of rotation.

Because 2-wire logic can vary, installers should never assume the operation just because the actuator has two wires. The wiring diagram must be checked.

A common use case for 2 wire electric actuator systems is a simple electric ball valve that opens when powered and closes when power is removed. This can be useful for water shutoff, irrigation, drainage, tank filling or simple automation tasks. The control device may be a switch, relay, thermostat, float switch or timer.

The advantage of a 2-wire actuator is simplicity. Fewer wires mean easier installation and lower wiring cost. However, the limitation is reduced control flexibility. Some 2-wire actuators may not provide separate open and close commands. They may not provide feedback. They may not be suitable for PLC systems that require precise status confirmation.

For small non-critical systems, this may be acceptable. For industrial valve automation, it is often better to use an actuator with separate command and feedback terminals so the control system can verify valve operation.

3 Wire Electric Actuator Wiring Logic

A 3 wire electric actuator is commonly used when the actuator needs separate open and close control. In many designs, one wire is common, one wire commands open, and one wire commands close. When the open wire is energized, the actuator moves toward open. When the close wire is energized, it moves toward closed. Internal limit switches stop the motor when the end position is reached.

This wiring pattern is common in motorized ball valve wiring, electric ball valve wiring and small quarter-turn actuator systems. It is also found in some HVAC and light industrial applications.

The advantage of 3-wire control is that the controller can command the actuator in either direction. It is more flexible than a simple 2-wire arrangement. It also fits well with relay control and basic PLC output logic.

However, 3-wire wiring requires careful control logic. The open and close commands should not be energized at the same time unless the actuator is specifically designed to handle that condition. In a PLC valve actuator wiring system, the PLC program should include interlock logic to prevent simultaneous open and close outputs.

Some 3-wire actuators are powered only when moving. Others may have additional wires for feedback or power supply. Some are sometimes described as 3-wire control but actually require more conductors when feedback is included.

A 3-wire actuator is suitable when the application needs reliable open and close control but does not require proportional modulation. It is often used for automated isolation valves in water lines, utility pipelines, equipment skids and simple process systems.

4 Wire, 5 Wire and Multi-Wire Actuator Designs

Many industrial electric actuators use more than two or three wires because they provide more functions.

A 4-wire or 5-wire motorized valve actuator may include open command, close command, common wire, open feedback and closed feedback. Some designs include separate power and signal wires. Others include auxiliary switch contacts that are electrically isolated from the motor circuit.

In industrial valve automation, additional wiring is often necessary because the control system needs to know what the valve did after receiving a command. A PLC may send an open command and then wait for the open limit switch feedback. If feedback does not arrive within a defined time, the PLC may generate an alarm.

This is why actuator feedback signal wiring is important. A motorized valve without feedback may be acceptable for a simple non-critical system, but a plant control system usually needs confirmation.

Multi-wire actuator designs may also include heater wiring, torque switch alarm wiring, remote/local status, fault output, analog position output and communication terminals. Larger actuators may have a terminal compartment where field wiring is connected to labeled terminals rather than loose colored wires.

When dealing with multi-wire electric valve actuator wiring, the key is to separate functions:

Power supply
Open command
Close command
Limit switch feedback
Fault or torque switch feedback
Analog command
Analog feedback
Communication
Protective earth

Each function should be understood before wiring. Mixing power terminals with signal terminals can damage the actuator or control system.

Actuator Limit Switch Wiring

Actuator limit switch wiring is one of the most important parts of an automated valve system. Limit switches indicate when the actuator has reached the open or closed position. They may also stop the actuator motor internally.

There are two common ways limit switches are used. First, internal limit switches may control the motor and stop movement at end positions. Second, auxiliary limit switches may provide dry contact feedback to a PLC or control panel.

The internal limit switch is part of actuator operation. It prevents the motor from continuing after the valve reaches the end of travel. If it is not adjusted correctly, the valve may stop too early or over-travel.

The auxiliary limit switch is part of control system feedback. It tells the controller that the valve is open or closed. This is often wired to PLC digital inputs.

For example, in a PLC valve actuator wiring system, the PLC may send a close command. The actuator moves toward closed. When the closed limit switch is activated, a signal returns to the PLC. The PLC then confirms that the valve is closed and allows the next process step.

Limit switch wiring should use the correct contact type. Some switches provide normally open contacts. Some provide normally closed contacts. Some offer both. The PLC input logic must match the contact configuration. If the logic is reversed, the system may think the valve is open when it is closed.

Limit switch adjustment should also be verified during commissioning. The switch should represent true valve position, not only actuator output shaft position. If the coupling slips or the valve stem is misaligned, the actuator may show an end position while the valve is not fully seated.

Torque Switch and Fault Signal Wiring

Larger industrial electric actuators may include torque switches or electronic torque protection. These features protect the valve and actuator from overload.

A torque switch may trip if the valve is jammed, blocked or requires more force than expected. This can prevent the actuator from continuing to drive into a mechanical obstruction. In some systems, torque switch status can be wired back to the control panel as an alarm.

Fault signal wiring may include torque trip, motor overload, thermal protection, phase failure, local mode, communication failure or other diagnostic outputs depending on actuator design.

These signals are valuable because they help maintenance teams understand why a valve did not move. Without fault feedback, a PLC may only know that the valve failed to reach position. With fault feedback, it can distinguish between no power, torque overload, limit failure or control mode issue.

For critical valves, fault signal wiring should be part of the design. It improves troubleshooting and reduces downtime.

However, the control system must be programmed to use the signals correctly. A torque trip should not be ignored. A failure-to-open alarm should trigger investigation. A local mode status may explain why remote commands are not working.

Good valve automation is not only about movement. It is also about meaningful information.

Wiring an Electric Ball Valve

Electric ball valve wiring is common in many industries because ball valves are widely used for on/off flow control. A ball valve usually requires a 90-degree movement, so it is commonly paired with a quarter-turn electric actuator.

For a simple electric ball valve, wiring may be very basic. A small 2 wire electric actuator may open when powered and close when power is removed. A 3 wire electric actuator may use separate open and close commands. A more advanced unit may include open/closed feedback contacts.

When wiring an electric ball valve, the installer should confirm the following points:

Power supply voltage
Control method
Opening direction
Closing direction
End position stop logic
Feedback contacts
Manual override position
Cable gland sealing
Ground connection

The valve should be tested after wiring. During testing, confirm that the actuator open command actually opens the valve. Confirm that the close command closes it. Confirm that the position indicator matches real valve position. Confirm that the control system receives correct feedback.

For ball valves, it is also important to verify that the actuator stops at the correct 90-degree positions. If the actuator over-rotates or under-rotates, the valve may not seal properly or may not fully open. Mechanical stops, limit switches and coupling alignment should be checked together.

In applications with liquids, especially water systems, closing speed should be considered. A fast-closing electric ball valve can cause water hammer in some pipelines. The wiring may be correct, but the application may still need a slower actuator or control strategy.

Wiring a Butterfly Valve Actuator

Butterfly valve actuator wiring is common in larger pipelines, HVAC systems, water treatment systems and process plants. A butterfly valve also uses quarter-turn movement, but the actuator may be larger and the system requirements may be more complex.

A butterfly valve actuator may be wired for on/off operation, 3-point control or modulating control. In a water treatment plant, it may connect to a PLC cabinet and provide open/closed feedback. In an HVAC system, it may connect to a building automation controller. In a process plant, it may use analog command and feedback signals.

The wiring principles are similar to ball valve systems, but the scale and consequences can be different. Large butterfly valves may affect major flow lines. Incorrect wiring can create process disturbances, pump problems or flow interruptions.

For butterfly valve actuator wiring, confirm whether the valve is used for isolation or modulation. If it is an isolation valve, open/close commands and end-position feedback may be enough. If it is used for flow control, a modulating actuator with position feedback may be required.

Mounting and position indication also matter. The actuator may show open or closed, but the disc position should be verified during commissioning. A butterfly valve disc can affect flow significantly even at intermediate positions, so accurate position feedback is important in modulating applications.

For larger actuators, wiring should also consider motor current, overload protection, cable size and local disconnect requirements according to site standards.

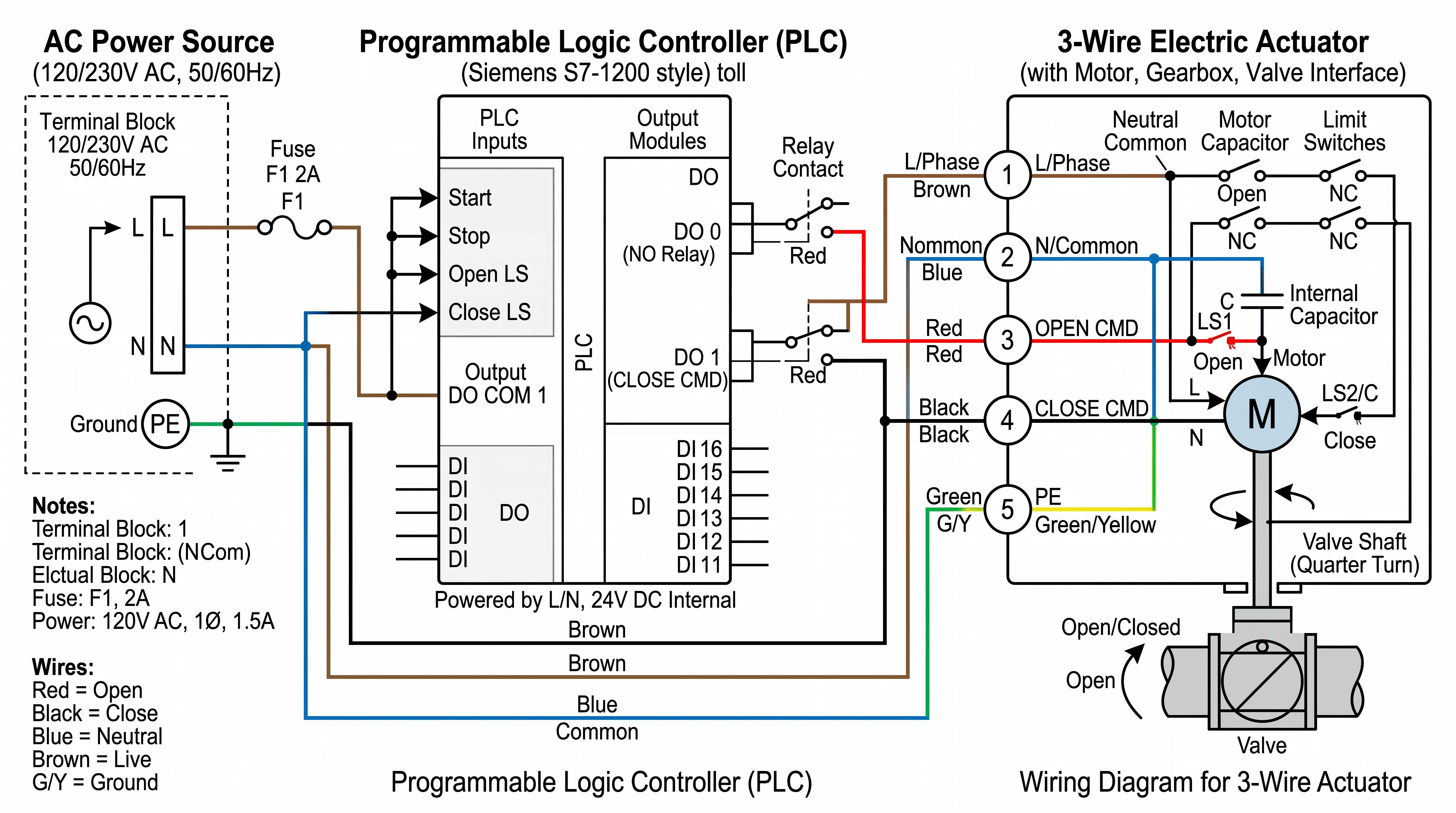

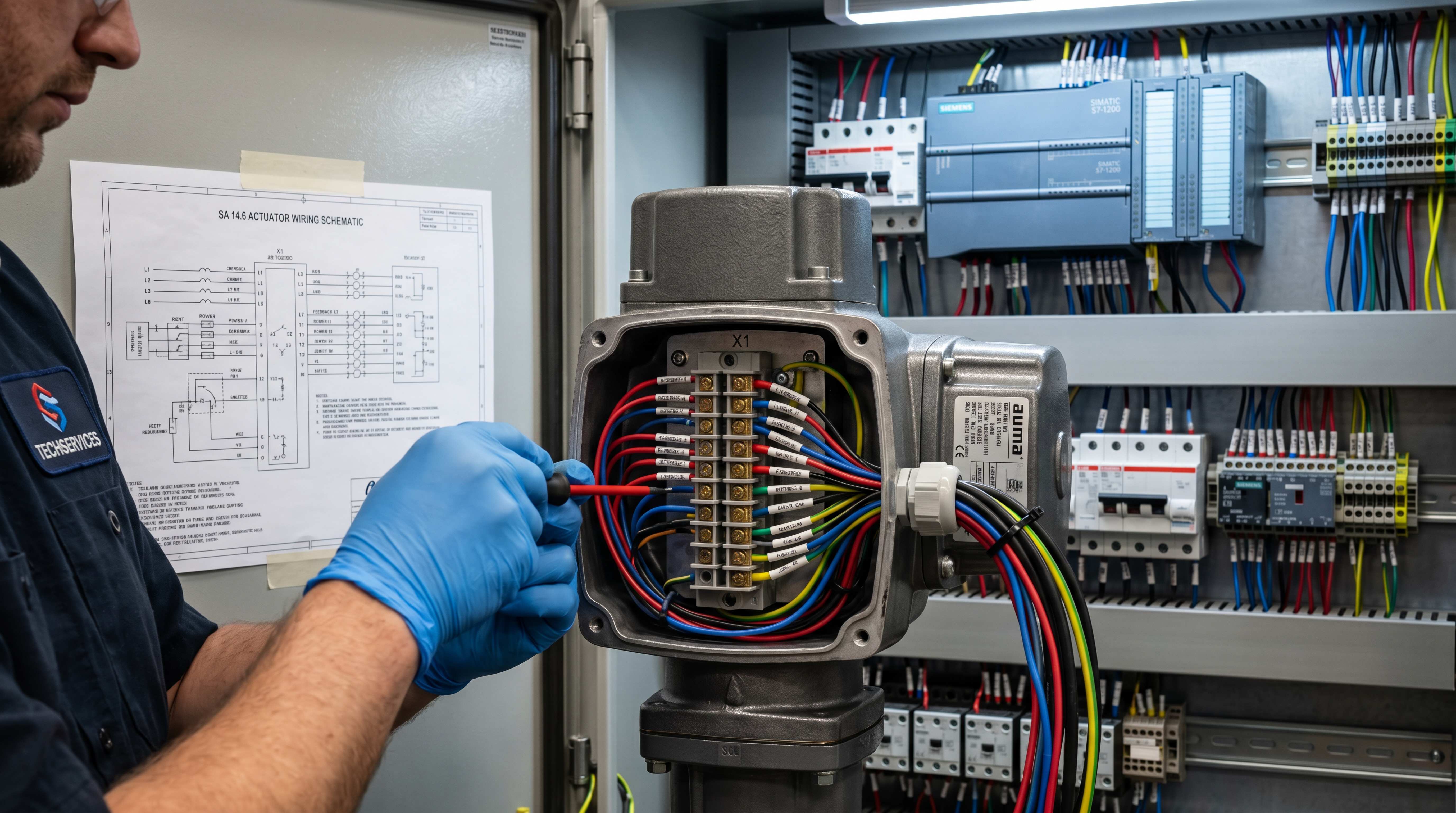

PLC Valve Actuator Wiring

PLC valve actuator wiring requires a clear relationship between PLC outputs, actuator inputs and feedback signals.

For an on/off actuator, the PLC may use two digital outputs: one for open command and one for close command. The actuator may return two digital inputs: open limit feedback and closed limit feedback. The PLC program can then control sequences and monitor valve status.

For a 3-wire actuator, the PLC output logic should prevent open and close commands from being active at the same time. This is usually handled by interlocks in the PLC program.

For a modulating actuator, the PLC may send an analog output such as 4-20mA or 0-10V. The actuator moves to the position represented by that signal. The actuator may return an analog actuator feedback signal to the PLC so the system can compare command and actual position.

For smart actuators, the PLC may communicate through a digital protocol. In that case, wiring may include communication cable, shielding, termination and addressing. The electrical wiring must match the network requirements.

PLC wiring should be designed with alarms. For example, if the PLC sends an open command but does not receive open feedback within the expected travel time, it should generate a fault. If the actuator feedback signal does not match the command within tolerance, the PLC may alarm. If local mode is active, remote commands may be blocked.

The best PLC valve actuator wiring design is not just about connecting terminals. It is about defining a control philosophy: command, movement, confirmation, fault response and operator visibility.

Wiring for Modulating Electric Actuators

A modulating electric actuator is wired differently from a simple on/off actuator because it needs a proportional command signal.

A typical modulating actuator may require:

Power supply
Analog input command
Analog position feedback
Open/closed auxiliary contacts
Fault output
Ground or signal common
Optional communication wiring

The analog command may be 4-20mA or 0-10V. The actuator interprets the signal as target valve position. For example, 4mA may mean closed and 20mA may mean open. In a 0-10V system, 0V may mean closed and 10V may mean open. The exact scaling depends on configuration.

Analog wiring should be handled carefully. Signal polarity must be correct. Shielding may be required. Cable runs should avoid strong electrical noise where possible. The PLC analog output must match the actuator input type. The actuator feedback signal must match the PLC analog input.

If the actuator moves opposite to the intended direction, the solution may not be to swap wires randomly. The action direction may need to be configured in the actuator or controller. Reversing command scaling without understanding the system can create unsafe operation.

Modulating actuators also need calibration. The command signal, actual valve position and feedback signal should be verified at several points: closed, 25%, 50%, 75% and open. This confirms that the actuator responds correctly and that the PLC sees the correct feedback.

In process control, wiring accuracy affects control quality. A noisy signal can cause actuator hunting. Incorrect scaling can cause wrong valve position. Poor feedback can make the control loop unstable.

Feedback Signal Wiring and System Trust

An actuator feedback signal is what allows the control system to trust the valve status. Without feedback, the system sends a command and hopes the valve moved. With feedback, the system can confirm movement.

There are three common feedback levels.

The first level is open/closed feedback. This is usually provided by auxiliary limit switches. It is common in on/off electric actuator systems.

The second level is analog position feedback. This may be 4-20mA or 0-10V output from the actuator. It is common in modulating systems.

The third level is digital feedback. Smart actuators may provide position, torque, alarms, operating mode and diagnostics through fieldbus communication.

Feedback wiring should be designed according to risk. A non-critical drain valve may only need simple feedback. A process control valve may need continuous position feedback. A safety-related valve may need multiple status and fault signals.

The feedback signal should also be tested under real operation. It is not enough to check continuity at the terminal block. The system should command the actuator and verify that the feedback changes correctly.

If feedback is wrong, the operator interface may display misleading information. In valve automation, wrong status can be worse than no status because it gives operators false confidence.

Local Control, Remote Control and Manual Override

Many industrial actuators include local control and manual override features. These features affect wiring and commissioning.

Local control allows an operator to open or close the actuator at the field device. Remote control allows the PLC or control room to operate the actuator. Some actuators have a selector switch for local, off and remote modes.

If the actuator is in local mode, remote commands may not work. This is a common commissioning issue. The wiring may be correct, but the actuator is not accepting remote commands because the mode selector is not in remote.

Some actuators provide a local/remote status signal. Wiring this signal to the PLC can help operators understand why a valve is not responding remotely.

Manual override allows the valve to be moved by handwheel or lever. Some actuators require the manual override to be disengaged before electric operation resumes. If the override is not correctly reset, the actuator may not operate as expected.

During commissioning, local control, remote control and manual override should all be tested. The control system should also define what happens if someone operates the valve locally while the PLC expects remote control.

This is part of building a safe and predictable automated valve system.

Common Wiring Problems and Their Causes

Many electric actuator wiring problems follow recognizable patterns.

If the actuator does not move at all, possible causes include wrong voltage, no power, blown fuse, loose terminal, incorrect common connection, control signal missing, local mode selected or internal fault.

If the actuator moves in the wrong direction, possible causes include reversed open and close commands, wrong polarity, incorrect configuration or actuator mounted in the wrong orientation.

If the actuator opens but does not close, the close command circuit may be missing, the close limit switch may be misadjusted, the PLC output may be faulty or the actuator may have an internal issue.

If the actuator runs but the valve does not move, the coupling may be loose, the valve stem may be broken, the manual override may be engaged or the actuator may not be mechanically connected.

If the PLC does not receive feedback, the auxiliary switch wiring may be wrong, the input common may be missing, the contact type may be misunderstood or the limit switch may not be activated.

If a modulating actuator does not follow the command signal, possible causes include wrong signal type, incorrect scaling, reversed polarity, missing signal common, poor shielding, configuration error or analog output failure.

If the actuator hunts or keeps making small movements, the control loop may be unstable, the deadband may be too narrow, feedback may be noisy or the valve may not be suitable for fine modulation.

A structured troubleshooting process should check power, control signal, actuator mode, wiring terminals, feedback, mechanical coupling and valve movement in order.

Commissioning Checks After Wiring

After electric valve actuator wiring is completed, commissioning is essential. A valve actuator should not be assumed to work correctly just because the terminals are connected.

First, verify the power supply. Confirm voltage at the actuator terminals under load, not only at the panel.

Second, confirm protective earth and cable gland sealing. Moisture ingress through poor cable entry can damage the actuator later.

Third, test local operation if available. Open and close the actuator locally to confirm mechanical movement.

Fourth, test remote commands. Confirm that the PLC, control panel or switch sends the correct open and close signals.

Fifth, verify direction. The open command must open the valve. The close command must close it.

Sixth, check limit switch operation. Confirm that the actuator stops correctly at both end positions.

Seventh, check feedback. Confirm that open feedback, closed feedback or analog position feedback matches real valve position.

Eighth, test fault response. If possible, confirm how the system handles loss of feedback, local mode or actuator fault.

Ninth, test manual override. Confirm that operators can use it safely and return the actuator to electric operation afterward.

Tenth, document the wiring and settings. Record terminal connections, signal type, actuator settings, feedback scaling and commissioning results.

Good commissioning prevents many future maintenance problems.

Documentation Is Part of Wiring Quality

In industrial valve automation, wiring quality is not only physical. Documentation is also part of quality.

Every actuator should have a clear wiring diagram, terminal schedule, cable number, signal description and feedback logic. The control panel drawing should match the field wiring. The PLC input and output list should match the actuator terminal connections.

If documentation is poor, future troubleshooting becomes slow and risky. A technician may not know which wire is the open command, which wire is the close feedback, or whether the signal is 4-20mA or 0-10V. This creates downtime and increases the chance of mistakes.

Good documentation should identify actuator tag number, valve tag number, power supply, control signal, feedback signals, terminal numbers, cable cores, shield grounding and fail-safe logic.

For projects with many actuated valves, consistent documentation is especially important. It helps operators, maintenance teams and engineers manage the entire automated valve system.

Safety and Professional Installation

Electric actuator wiring involves electrical power, moving mechanical equipment and process valves. Incorrect wiring can damage equipment or create unsafe operation. Actual installation should be performed by qualified personnel according to local codes, site standards and manufacturer instructions.

Before working on wiring, power should be isolated according to proper lockout procedures. The process condition should also be considered. A valve may control pressure, hot fluid, chemicals or critical flow. Unexpected valve movement can create hazards.

For hazardous areas, only properly certified equipment and installation methods should be used. Cable glands, conduit, grounding and enclosure integrity are not minor details in these environments.

The safest wiring design is one that is clear, documented, tested and suitable for the process. In industrial automation, electrical correctness and process safety must be considered together.

The Best Wiring Design Makes Valve Operation Visible

A well-wired electric actuator does more than move a valve. It makes valve operation visible and controllable.

The control system should know when a command is sent. It should know whether the actuator moved. It should know whether the valve reached position. It should know whether a fault occurred. It should know whether the actuator is in local or remote mode. For modulating systems, it should know the actual valve position.

This visibility is what separates a basic motorized valve from a reliable valve automation system.

For simple applications, a 2 wire electric actuator may be enough. For standard open/close control, a 3 wire electric actuator with limit feedback may be better. For PLC-controlled industrial systems, dedicated command and feedback wiring is often necessary. For process control, analog signals and actuator feedback must be designed carefully.

Electric actuator wiring should therefore be understood as part of system design, not merely installation labor. When power, command, feedback and fault signals are properly connected, the valve becomes a trustworthy part of the automation architecture.

Focused FAQ

What is electric actuator wiring?

Electric actuator wiring is the electrical connection between an actuator, power supply, control device and feedback system. It may include power wires, open and close command wires, limit switch feedback, analog signals, fault outputs and communication wiring.

What is electric valve actuator wiring used for?

Electric valve actuator wiring is used to control automated valves such as ball valves and butterfly valves. It allows a switch, relay, PLC, control panel or building automation system to open, close or position the valve.

What is a 2 wire electric actuator?

A 2 wire electric actuator usually has two conductors for a simple control function. Depending on the design, it may open when powered and close when power is removed, or it may use DC polarity reversal. The wiring diagram must always be checked because 2-wire logic is not the same for every actuator.

What is a 3 wire electric actuator?

A 3 wire electric actuator commonly uses one common wire, one open command wire and one close command wire. When the open command is energized, the actuator opens. When the close command is energized, the actuator closes.

How is motorized ball valve wiring different from butterfly valve actuator wiring?

Motorized ball valve wiring is often used with compact quarter-turn actuators and may be simple. Butterfly valve actuator wiring may involve larger actuators, PLC cabinets, feedback signals and more detailed control requirements, especially in water treatment or industrial process systems.

What is actuator limit switch wiring?

Actuator limit switch wiring connects the open and closed position switches to the control system. These switches can stop actuator movement internally and provide feedback to a PLC or control panel.

Why does a PLC need actuator feedback signal wiring?

A PLC needs actuator feedback signal wiring to confirm whether the valve actually reached the commanded position. Without feedback, the PLC only knows that it sent a command, not whether the valve moved successfully.

Can a PLC directly control an electric actuator?

A PLC can control an electric actuator if the output type, voltage and wiring logic match the actuator input. In many industrial systems, relays, interposing modules or analog outputs are used between the PLC and actuator.

Why does my electric actuator move in the wrong direction?

An actuator may move in the wrong direction because open and close command wires are reversed, DC polarity is reversed, actuator configuration is incorrect, or the actuator is mounted incorrectly. The wiring diagram and actuator settings should be checked.

What should be tested after electric actuator wiring is completed?

After wiring, test power supply, open command, close command, direction of movement, limit switch operation, feedback signals, local/remote mode, manual override and fault response. Testing should confirm real valve position, not only actuator movement.

#ElectricActuatorWiring
#ElectricValveActuatorWiring
#MotorizedBallValveWiring
#ElectricBallValveWiring
#ButterflyValveActuatorWiring
#2WireElectricActuator
#3WireElectricActuator
#ActuatorLimitSwitchWiring
#PLCValveActuatorWiring
#ActuatorFeedbackSignal
#ValveAutomation
#IndustrialValveControl
#ProcessAutomation
#ControlPanelWiring
#IndustrialAutomation
