Mandrel Bend vs Crush Bend: Why Exhaust Pipe Bending Quality Changes Flow, Fitment and Durability

Exhaust Bending Is Where Product Shape Becomes Product Performance

In the exhaust industry, bending looks simple from the outside. A straight tube becomes a curved tube, and that curved tube is then fitted under a vehicle, connected to a muffler, welded to a flange, or used as part of a custom exhaust system. For many low-cost buyers, the first concern is whether the pipe has the right outside diameter and whether the bend angle looks close enough. But in real exhaust pipe manufacturing, the bending process is one of the most important factors that separates a reliable exhaust component from a part that creates fitment problems, flow loss or premature failure.

A bend is not just a geometric feature. It changes how gas moves through the pipe. It affects the internal cross-section, wall thinning, stress distribution, clearance around the chassis, welding alignment and installation repeatability. This is why the difference between mandrel bend exhaust and crush bend exhaust is not a minor technical detail. It is a practical manufacturing decision that can influence the entire value of the exhaust product.

A mandrel bent exhaust pipe is usually associated with smoother internal geometry and better flow consistency. During mandrel bending, internal support is used to help the tube keep its shape while being bent. A crush bend, sometimes called a compression bend in many workshop conversations, is usually simpler and cheaper, but the tube may flatten or narrow at the bend. That narrowing can reduce internal flow area and create a less consistent path for exhaust gas.

For a DIY repair job, a crush bend may sometimes be acceptable. For a high-performance system, a precision replacement part, an OEM-style assembly, or a B2B product line where repeatability matters, bending quality becomes much more important. A buyer who only compares material and price may miss the real problem: the pipe may be made from good stainless steel, but if the bend is deformed, inconsistent or poorly controlled, the final part may still disappoint the customer.

What Happens to a Tube When It Is Bent

To understand why exhaust pipe bending matters, it helps to think about what happens to the metal during bending. A straight tube has a circular cross-section. When it is bent, the outside wall of the bend stretches, the inside wall compresses, and the tube tries to deform. Without proper support, the bend area may become oval, flattened, wrinkled or restricted.

This is not only an appearance issue. The internal passage of an exhaust pipe is part of the flow path. If the bend becomes smaller or distorted, the gas does not move through the pipe as smoothly. The sharper the bend, the more important the bending process becomes. A slight shape change may not matter much in a low-demand application, but in a system with multiple bends, limited space or performance requirements, these small restrictions can add up.

Wall thinning is another issue. When the outside of the bend stretches, the wall may become thinner. If the pipe is already made from thin material, or if the bend radius is tight, the outside wall can become a weaker point. The inside of the bend may wrinkle if the material is compressed without proper control. Wrinkles can create turbulence, collect deposits, affect sound and become stress concentration points.

This is why a good exhaust tubing bends supplier does not only quote tube diameter and bend angle. They should understand bend radius, wall thickness, material behavior, ovality control, tooling, fixture setup and inspection requirements. In industrial sourcing, the shape of the bend is not only about whether it fits the drawing. It is about whether the internal and structural quality of the pipe remains stable after forming.

What Is a Mandrel Bend Exhaust Pipe?

A mandrel bend exhaust pipe is produced with internal support during bending. The mandrel is placed inside the tube to support the pipe wall as the tube is formed around the bend die. This internal support helps the tube keep a more consistent cross-section through the bend. The goal is to reduce flattening, wrinkling and internal restriction.

In a quality mandrel bent exhaust pipe, the bend should look smooth from the outside and remain relatively consistent on the inside. The tube should not collapse at the bend. The internal diameter should be better preserved compared with a basic crush bend. For exhaust systems, this is valuable because it supports smoother exhaust flow, especially in performance applications or systems where multiple bends are required.

Mandrel bending is commonly associated with performance exhaust, stainless steel systems, custom fabrication, racing applications, turbo exhaust routing and higher-quality aftermarket parts. But it is not only for racing. It also matters in B2B manufacturing when the buyer needs consistent geometry across batches. If a pipe must fit a specific chassis route, connect to a muffler and align with a flange without field adjustment, controlled bending is important.

Mandrel bending is usually more expensive than crush bending because it requires better equipment, tooling, setup time and process control. However, the added cost may reduce downstream problems. A better bend can improve flow, reduce fitment complaints, support premium branding and make the product easier to sell in markets where buyers understand quality differences.

For professional sourcing, the question is not simply whether a supplier claims “mandrel bend.” The buyer should also ask about bend radius, ovality tolerance, wall thinning control, material compatibility, tooling condition and sample consistency. A poorly controlled mandrel bend is still not a high-quality product. The value comes from the full bending process, not from the term alone.

What Is a Crush Bend Exhaust Pipe?

A crush bend exhaust pipe is made through a simpler bending process where the tube is bent without the same level of internal support used in mandrel bending. As the tube bends, the inner area may compress and the outer wall may stretch. The bend can flatten, and the internal diameter may become smaller at the curved section.

Crush bending is often used because it is faster, cheaper and easier for many repair shops or basic fabrication environments. For standard replacement work where cost is more important than maximum flow, it can still be useful. A local muffler shop may use crush bending to create a pipe that fits a vehicle quickly. For some low-performance applications, the flow restriction may not be a major concern.

However, crush bending has limitations. The most obvious limitation is cross-section reduction. If a pipe is designed as a 2.5-inch tube but the bend area is significantly flattened, the effective flow area becomes smaller. This can affect exhaust flow, especially in systems where gas volume is high or where several bends are used. The deformation may also look less professional, which matters for visible parts or premium product lines.

Crush bends may also create greater variation from piece to piece. If the process is not well controlled, the bend angle, flattening level and final length may vary. In a one-off repair, the installer can adjust the pipe. In mass production or export orders, variation creates problems. A distributor cannot ask every end user to modify the pipe during installation. A B2B buyer needs repeatability.

This does not mean crush bending is always wrong. It means it should be used in the right context. For budget repair, temporary replacement or applications with low flow sensitivity, it may be acceptable. For performance exhaust, premium stainless products, tight chassis routing or OEM-style repeatability, mandrel bending is usually the stronger choice.

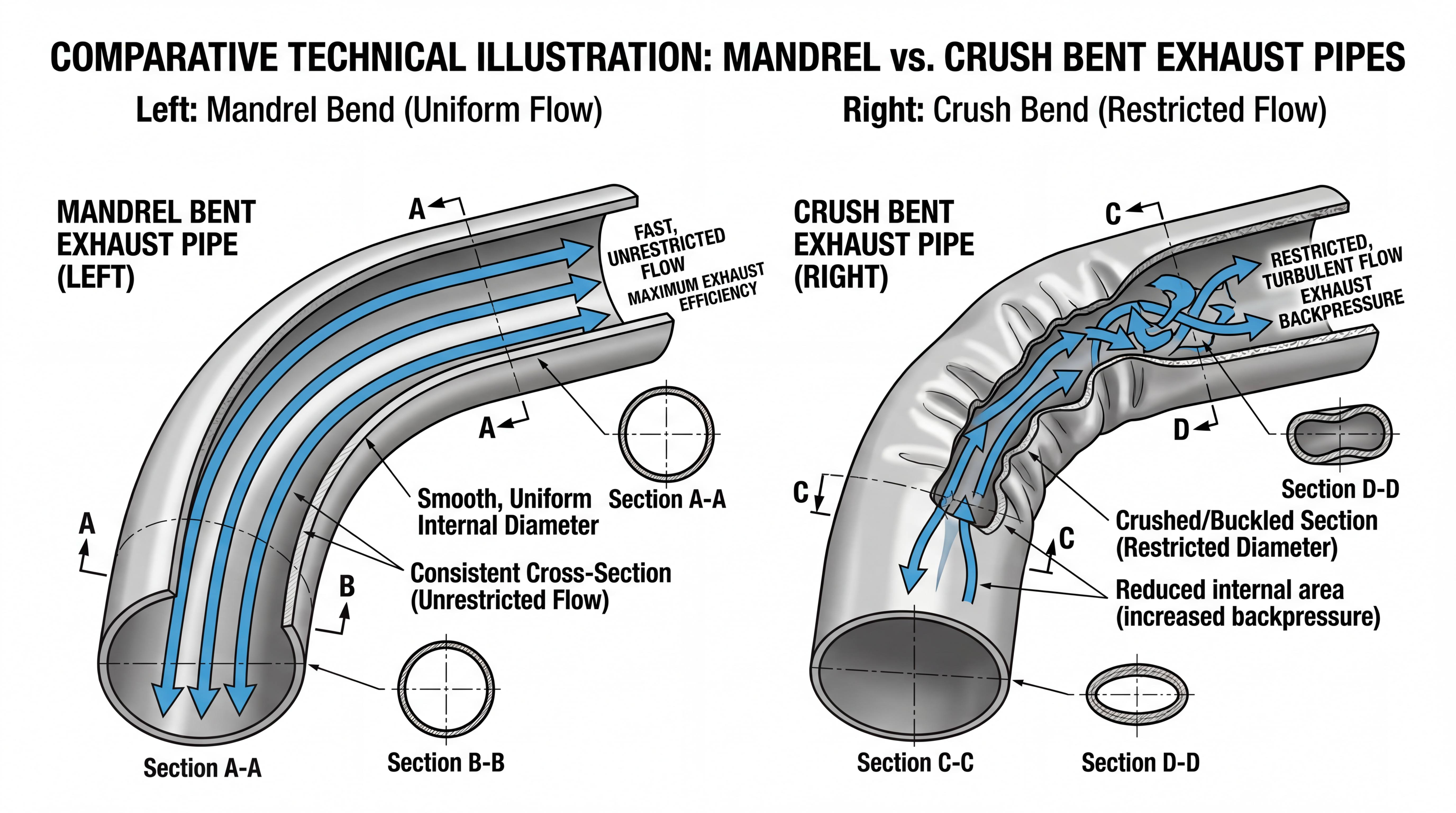

Flow Is Not Only About Diameter

Many buyers think exhaust flow is mostly about pipe diameter. They compare 2.25-inch, 2.5-inch, 3-inch or 4-inch pipe sizes and assume a larger pipe always means better flow. In reality, exhaust flow is affected by the entire path: diameter, bends, transitions, welds, muffler structure, catalytic converter, resonator, tailpipe layout and surface disruption.

A crushed bend can reduce the internal area at the exact point where flow direction is already changing. That combination can increase turbulence and restriction. The gas is not only moving forward; it is turning. If the inside of the bend is narrowed or wrinkled, the flow path becomes less efficient.

A mandrel bent exhaust pipe helps maintain a more stable internal passage through the curve. This is especially important when the exhaust system has multiple bends, such as routing around suspension arms, differential housings, fuel tanks, crossmembers or underbody packaging constraints. One imperfect bend may not be dramatic, but several deformed bends can reduce the system’s overall flow quality.

However, it is also important not to exaggerate. In some everyday vehicles, the difference between mandrel and crush bends may not be felt by the driver. The value depends on engine output, pipe size, bend severity, number of bends and system goals. A professional article should avoid saying mandrel bends always create huge power gains. A better explanation is that mandrel bending helps protect the designed internal area and reduces unnecessary restriction.

This is the kind of industry-level understanding buyers need. The goal is not to use a premium process for every product blindly. The goal is to match bending quality with application requirements and market expectations.

Fitment Quality: The Hidden Value of Controlled Bending

For B2B buyers, fitment may be even more important than flow. A pipe with poor fitment creates immediate customer complaints. It may hit the chassis, sit too close to the bumper, misalign with the muffler, stress the flange, or require cutting and rewelding during installation. Even if the material is good and the surface finish is acceptable, poor fitment can make the product commercially unsuccessful.

Controlled CNC tube bending helps improve repeatability. When the bend angle, rotation, length between bends and bend radius are controlled, the finished pipe is more likely to match the approved sample. This matters for aftermarket exhaust assemblies, OEM replacement pipes, commercial vehicle exhaust parts and export product lines.

Fitment is not only about one bend. Many exhaust pipes include several bends in different directions. A small error in the first bend may create a large position error at the tailpipe. This is especially true for long pipes. If the final exit location is wrong, the part may look incorrect even if the rest of the pipe is close.

This is why serious exhaust fabrication requires jigs, fixtures and measurement control. A supplier should not rely only on visual judgment. For batch production, they need a repeatable method to confirm geometry. This may include checking fixtures, coordinate measurement, sample comparison, vehicle trial fitting or dedicated inspection gauges.

A buyer should also understand that material springback affects bending. Different materials behave differently after forming. 304 stainless steel, 409 stainless steel, aluminized steel and mild steel may require different bending parameters. If a supplier changes material without adjusting the process, the final shape may shift. This is one reason why sourcing should not be based only on drawings and price. Supplier process knowledge matters.

Durability Around the Bend Area

The bend area of an exhaust pipe can become a durability risk if the forming process is poor. During bending, metal stress is introduced. If the wall becomes too thin on the outside radius, if the inside radius wrinkles, or if the pipe is forced into position during installation, the bend may experience fatigue over time.

Exhaust systems operate under heat, vibration and movement. The engine moves. The chassis flexes. The pipe expands when hot and contracts when cold. Hangers and flex sections absorb some of this movement, but not all of it. If a bend is already weakened or stressed, long-term use may create cracks.

This is especially important for commercial vehicles, off-road vehicles, agricultural equipment and industrial machinery. These applications often face vibration, mud, impact and long operating hours. A low-cost bend may look acceptable at shipment, but the field environment can reveal weaknesses quickly.

A quality custom exhaust bending process should consider the relationship between bend radius, wall thickness and application. A tight bend may be necessary because of limited space, but tighter bends are more difficult to control. If the design requires a tight bend, mandrel support may become more important. If the pipe is thick and the bend radius is generous, the process may be easier.

For buyers, durability should be evaluated through both design and production. It is not enough to ask whether the pipe is stainless steel. The buyer should look at whether the bend area is smooth, whether the wall appears excessively flattened, whether welds are placed near high-stress regions, whether hangers support the pipe correctly, and whether the final installation avoids forced alignment.

Mandrel Bend vs Crush Bend in Different Markets

The right bending method depends on the market. Not every product needs mandrel bending, but not every product can accept crush bending. The decision should be based on application, price level, customer expectation and risk tolerance.

In the performance exhaust market, mandrel bend exhaust is often expected. Buyers are more aware of flow quality, appearance and premium construction. They may compare product photos carefully and look for smooth bends, polished stainless steel, TIG welds and well-designed routing. In this market, crush bends may make a product look cheaper and less professional.

In the basic repair market, crush bend exhaust may still be acceptable when the goal is affordable replacement. A customer with an older daily vehicle may prioritize cost and availability over maximum flow. A local repair shop may use crush bending to produce a functional pipe quickly. Here, the key is honest positioning. The product should not be marketed like a premium mandrel bent system if the process does not support that claim.

In OEM replacement and B2B export markets, repeatability often matters more than performance marketing language. The buyer needs parts that fit consistently. If the vehicle application has tight routing, multiple bends or sensitive flange alignment, controlled bending becomes important. Whether the supplier uses mandrel bending or another controlled process, the final geometry must be stable.

In industrial equipment, the decision may depend on durability and service conditions. A pipe used on construction equipment may not need a polished appearance, but it may need strong geometry, reliable wall thickness and resistance to vibration. A mandrel bend may be justified if the pipe has tight turns, high heat or flow requirements. A simpler bend may be acceptable if the layout is large and forgiving.

The best sourcing decision is not based on a universal rule. It is based on matching bending process to product purpose.

How Buyers Can Inspect Exhaust Tubing Bends

A buyer does not need to be a tube bending engineer to identify many quality issues. Several practical inspection points can help evaluate exhaust tubing bends before placing a larger order.

First, look at the bend shape. A quality bend should be smooth and consistent. If the bend area is visibly flattened, pinched or wrinkled, the internal flow path is likely affected. Some deformation may be acceptable depending on the application, but severe restriction is a warning sign.

Second, check the bend symmetry and roundness. The pipe should not become excessively oval. Ovality can affect flow, appearance and connection fit. For parts that connect to clamps, sleeves, flanges or mufflers, roundness is important.

Third, check the bend angle and final position. A pipe may have a smooth bend but still be dimensionally wrong. The final outlet location, flange orientation and hanger position must match the intended installation. For complex pipes, visual inspection alone is not enough. A checking fixture or trial fit may be necessary.

Fourth, inspect wall thinning and surface marks. Deep tooling marks, cracks, scratches or excessive stretching can reduce product quality. Stainless pipes used in premium markets should also maintain acceptable surface appearance.

Fifth, evaluate weld placement near bends. If a weld is too close to a high-stress bend area, it may become a failure point. In some designs this is unavoidable, but it should be considered carefully.

Sixth, compare multiple samples. One good sample does not prove batch capability. Ask for several pieces and compare them. If each pipe looks different, the supplier may not have strong process control.

These inspection steps are especially useful when evaluating a new exhaust pipe supplier. A supplier that can explain bend quality, tolerances and inspection methods is usually more reliable than one that only provides a low price.

CNC Tube Bending and Batch Consistency

In modern exhaust production, CNC tube bending plays an important role in improving consistency. CNC bending machines can control bend angle, rotation and feed length more accurately than manual processes. This is especially useful for complex exhaust pipes with multiple bends.

However, CNC equipment alone does not guarantee quality. Tooling selection, setup skill, material consistency, mandrel condition, lubrication, bend radius and inspection standards all matter. A factory can own a CNC tube bender and still produce poor parts if the process is not controlled properly.

For B2B sourcing, the buyer should understand the difference between machine ownership and manufacturing capability. A supplier may advertise CNC bending, but the buyer should ask what tolerance they can hold, how they check finished parts, whether they use fixtures, how they handle springback and whether they can support repeat orders.

Batch consistency is critical because exhaust pipes often have long supply chains. A part may be produced in one country, shipped overseas, stored in a warehouse, sold through a distributor and installed by a repair shop months later. If the pipe does not fit, the cost of correction is high. The buyer may face returns, negative reviews, warranty claims and lost trust.

This is why controlled exhaust pipe bending should be seen as a commercial risk reduction tool. The cost of better bending may be lower than the cost of repeated complaints.

Bending Quality and Exhaust Fabrication Ecosystem

Bending is only one part of exhaust fabrication, but it connects with every other process. A bend affects where the muffler sits. It affects where the hanger must be welded. It affects whether the flange aligns. It affects whether a flex pipe has enough room to work. It affects whether the tailpipe exits cleanly.

A good fabrication process starts with clear product definition. The supplier needs to know the tube material, diameter, wall thickness, bend radius, bend angle, straight length, cut length, connection type, hanger location, flange angle, sensor bung position and final appearance requirement. Without these details, the supplier may produce a pipe that looks close but fails in installation.

For custom projects, communication is even more important. A custom exhaust bending order may involve limited space, special routing, engine swaps, commercial equipment layouts or non-standard vehicles. In these cases, the buyer should provide drawings, samples, photos, fixture references or 3D data when possible. The supplier should confirm manufacturability before production.

The strongest suppliers do not only bend tubes. They help buyers solve manufacturing problems. They can suggest a better bend radius, adjust a joint location, recommend mandrel bending where needed, avoid unnecessary welds, improve hanger placement and reduce assembly stress.

This is where industry knowledge becomes valuable. Exhaust manufacturing is not simply a metalworking service. It is a system of bending, welding, fitting, sealing, supporting and testing. A weak link in any part of this ecosystem can create product failure.

Cost: Why Cheaper Bends Can Become Expensive

Crush bends are often cheaper than mandrel bends. That price difference is real and important. Buyers working in cost-sensitive markets cannot ignore it. But cost should be calculated beyond the factory quote.

A cheaper bend may become expensive if it creates flow complaints, installation problems, inconsistent fitment, higher return rates or weaker product positioning. A distributor may save money on each pipe but lose margin through warranty claims. A brand may lower production cost but weaken customer trust. A repair network may pay less for the part but spend more time adjusting it.

On the other hand, mandrel bending is not always financially justified. If the product is for a very low-cost repair market and the customer does not value premium flow or appearance, mandrel bending may make the part too expensive. If the pipe has only gentle bends and low flow demand, the difference may not support the extra cost.

Therefore, the best cost decision is application-based. Use mandrel bending where flow, appearance, tight routing, premium branding or repeatability matter. Use simpler bending where the product is budget-oriented and the performance risk is low. The mistake is not choosing a cheaper process. The mistake is using a cheaper process in a market that expects higher quality.

For B2B buyers, the best supplier is not always the lowest bidder. It is the supplier that helps match process cost with product value.

How to Write Specifications for Bent Exhaust Pipes

Many sourcing problems happen because the buyer does not define the bending requirement clearly. A drawing may show the outer shape but not specify acceptable ovality, bend radius, wall thickness, material grade or inspection method. This leaves too much room for interpretation.

For a mandrel bent exhaust pipe, the buyer should define tube outside diameter, wall thickness, material, bend angle, centerline radius, straight length before and after bends, bend orientation, acceptable deformation, surface finish and connection details. If fitment is critical, a checking fixture or installation sample should be approved.

For a crush bend exhaust pipe, the buyer should still define acceptable shape and restriction. Even budget products need standards. If the bend is allowed to flatten too much, the product may create customer complaints. A low-cost process does not mean no quality control.

For export orders, specifications should also include packaging. Bent pipes are vulnerable during shipping because long parts can be scratched, dented or deformed. Flanges, tips and sensor bungs should be protected. If several pipes are packed together without separators, surface damage may occur.

A strong specification reduces misunderstanding between buyer and supplier. It also helps compare quotations fairly. One supplier may quote a lower price because they are using a simpler bend, thinner wall, looser tolerance or weaker packaging. Another supplier may quote higher because they are controlling more details. Without clear specifications, price comparison can be misleading.

Choosing the Right Exhaust Pipe Supplier for Bending Projects

When selecting an exhaust pipe supplier for bent pipe products, buyers should evaluate capability from several angles. The first is equipment. Does the supplier have suitable bending machines for the required diameter and material? Can they perform mandrel bending if needed? Can they handle the bend radius and pipe length required by the project?

The second is process experience. A supplier that bends furniture tubes or simple frames may not automatically understand exhaust requirements. Exhaust pipes involve heat, vibration, fitment, flow and sealing. The supplier should understand why deformation, weld placement and hanger alignment matter.

The third is inspection. Ask how the supplier checks bend angle, pipe position, ovality and batch consistency. Do they use fixtures? Do they keep approved samples? Can they provide inspection photos or reports? Can they compare production parts against the original sample?

The fourth is communication. A reliable supplier should be able to discuss design trade-offs. If a bend is too tight, they should tell the buyer. If a material may spring back differently, they should explain it. If a hanger location creates stress, they should suggest adjustment.

The fifth is honesty. Some suppliers may use the term “mandrel bend” loosely because it sounds premium. Buyers should verify actual process and sample quality. The goal is not to buy a marketing term. The goal is to buy a stable product.

Final Thoughts: Bending Quality Defines Exhaust Product Value

The difference between mandrel bend exhaust and crush bend exhaust is more than a manufacturing detail. It reflects different levels of flow control, shape preservation, process cost and product positioning. Mandrel bending helps maintain a smoother internal passage and is often better for performance, premium products, tight routing and batch consistency. Crush bending can still be useful for budget repair and simple applications, but it must be positioned honestly and controlled properly.

For buyers, the key is not to choose mandrel bending blindly. The key is to understand what the product needs. If the exhaust pipe must support strong flow, clean appearance, high fitment accuracy and premium branding, a mandrel bent exhaust pipe is usually worth considering. If the product is a low-cost replacement part for a forgiving application, a well-controlled crush bend may be acceptable.

For manufacturers, bending quality is a competitive advantage. Better CNC tube bending, better tooling, better fixtures and better inspection can reduce field complaints and help the supplier move beyond low-price competition. For distributors, bending quality affects customer reviews, installation time and warranty risk. For industrial and OEM buyers, bending quality affects repeatability, durability and long-term sourcing stability.

An exhaust pipe is not just a tube that has been curved. It is a formed component inside a larger system. The bend carries the evidence of the supplier’s process capability. A smooth, accurate and repeatable bend tells the buyer that the manufacturer understands more than metal shape. It shows that the manufacturer understands flow, fitment, durability and product value.

In the global exhaust market, this level of understanding is what separates commodity pipe supply from professional exhaust fabrication. Buyers who recognize the importance of bending quality are better positioned to choose the right supplier, build stronger product lines and reduce costly after-sales problems.

Focused FAQ

What is a mandrel bend exhaust pipe?

A mandrel bend exhaust pipe is a tube that is bent with internal support to help maintain its round shape through the bend. This process reduces flattening, wrinkling and internal restriction, making it useful for performance exhaust systems, premium aftermarket parts and applications where flow and fitment matter.

What is a crush bend exhaust pipe?

A crush bend exhaust pipe is bent without the same level of internal support used in mandrel bending. The bend area may flatten or narrow, which can reduce internal flow area. Crush bending is often cheaper and may be acceptable for budget repair or low-demand applications.

Is mandrel bending always better than crush bending?

Mandrel bending usually provides better internal shape and flow consistency, but it is not always necessary. For performance, premium, tight-fitment or batch-production exhaust parts, mandrel bending is often better. For simple budget replacement pipes, a controlled crush bend may be acceptable.

Does a crush bend reduce exhaust flow?

A crush bend can reduce exhaust flow if the bend becomes significantly flattened or restricted. The impact depends on pipe diameter, bend severity, engine output, number of bends and the overall exhaust system design.

Why does bend quality matter for B2B exhaust buyers?

Bend quality affects fitment, flow, durability, appearance and batch consistency. Poor bending can cause installation problems, customer complaints, warranty claims and higher after-sales cost.

What should buyers check in exhaust tubing bends?

Buyers should check bend smoothness, roundness, ovality, bend angle, final pipe position, surface marks, wall thinning, weld placement and consistency across multiple samples.

Is CNC tube bending the same as mandrel bending?

No. CNC tube bending refers to computer-controlled bending equipment. Mandrel bending refers to internal support during bending. A supplier may use CNC bending with or without mandrel support, depending on the machine setup and product requirements.

When should a buyer choose mandrel bend exhaust parts?

Buyers should choose mandrel bend exhaust parts when they need better flow, smoother internal geometry, premium appearance, tight routing, accurate fitment or stable batch production.

Can crush bend exhaust pipes still be good products?

Yes, if they are used for the right application and controlled properly. Crush bend exhaust pipes can be suitable for cost-sensitive replacement markets where maximum flow and premium appearance are not the main priorities.

How can suppliers prove exhaust pipe bending quality?

Suppliers can prove bending quality through approved samples, checking fixtures, bend angle inspection, ovality control, wall thickness review, fitment testing, batch comparison and clear production specifications.
