Dynamic Obstacle Avoidance for AMR Navigation

Why Dynamic Obstacle Avoidance Is Harder Than It Looks in AMR Systems

Dynamic obstacle avoidance is one of the most attractive promises of autonomous mobile robots. In a product video, it often looks simple: a person steps into the aisle, the robot sees the person, changes its path, and continues moving smoothly. A pallet appears in front of the vehicle, the robot turns slightly, avoids it, and reaches its destination. Compared with a traditional AGV that follows a fixed path, this behavior makes an AMR look intelligent, flexible, and easy to deploy.

But in real factories and warehouses, dynamic obstacle avoidance is much harder than it looks.

The difficulty is not only whether the robot can detect an object. Detection is only the first step. The robot must also understand whether the object is static or moving, whether it is inside the planned path, whether it creates immediate risk, whether there is enough space to go around it, whether rerouting will interfere with other traffic, whether the new path is safe, and whether stopping is better than avoiding. All of this must happen in real time while the robot is moving, carrying goods, following task priorities, and obeying safety rules.

This is why AMR obstacle avoidance is not just a sensor feature. It is a system-level capability involving real-time obstacle detection, mobile robot collision avoidance, robot path planning, local planner behavior, costmap updates, safety-rated stopping, speed control, vehicle dynamics, and site traffic rules. A robot that can detect an obstacle may still fail to avoid it well. A robot that can avoid obstacles in a demo area may still behave poorly in a busy warehouse. A robot that replans too aggressively may become unpredictable around workers. A robot that stops too often may be safe but inefficient.

The real goal of dynamic obstacle avoidance is not to make the robot look clever. The goal is to make the robot behave safely, predictably, and productively in an environment that changes every minute.

Dynamic Obstacles Are Different from Static Obstacles

A static obstacle is an object that does not move, or at least does not move during the robot’s decision window. Examples include a wall, rack leg, fixed workstation, column, parked cart, pallet left in an aisle, or machine guard. Once the robot detects a static obstacle, it can update its map or local costmap and plan around it if the site allows.

A dynamic obstacle is different. It may move, stop, accelerate, turn, or enter the robot’s path unexpectedly. Workers, forklifts, pallet jacks, manual carts, other robots, tugger trains, and even swinging doors can all become dynamic obstacles. Their future position is uncertain.

This uncertainty makes dynamic obstacle avoidance difficult. A pallet on the floor is a problem of geometry. A person walking across an aisle is a problem of prediction. A forklift moving with a high load is a problem of both prediction and risk. A worker standing near the robot path may not be an immediate obstacle, but if that worker turns or steps backward, the situation changes.

In industrial environments, dynamic obstacles do not follow perfect rules. A worker may walk diagonally across a route. A forklift may reverse suddenly. A pallet may be placed partly into the aisle. Another AMR may stop because its own path is blocked. A person may pause in a warning zone while checking a handheld device. These behaviors create ambiguity.

For this reason, AMR obstacle avoidance cannot treat every detected object the same way. The robot must classify risk according to distance, speed, direction, object type, route context, and safety margin. It must decide whether to slow down, wait, stop, replan, or continue cautiously.

This is where dynamic obstacle avoidance becomes a behavior design problem, not just a perception problem.

Detection Is Not the Same as Avoidance

Many people assume that once a robot can see obstacles, it can avoid them. This is one of the most common misunderstandings in mobile robotics.

Real-time obstacle detection answers the question: What is around me right now?
Obstacle avoidance answers a more difficult question: What should I do because of what I see?

A 2D LiDAR sensor may detect a person-shaped object in front of the robot. A 3D camera may detect boxes on the floor. A safety laser scanner may identify an object inside a warning field or protective field. These are detection events. But after detection, the system still needs decision logic.

Should the robot stop immediately? Should it slow down first? Should it wait because the person may leave the path in two seconds? Should it go around the person? If it goes around, is the side path free? Will the robot enter a forklift lane? Will it block another robot? Will the new path violate a one-way traffic rule? Is the robot carrying a fragile load? Does the robot have enough braking distance?

These questions cannot be answered by the sensor alone.

Mobile robot collision avoidance requires the integration of perception, planning, control, and safety. The sensor provides data. The costmap represents risk in the environment. The local planner calculates feasible movement. The global planner or fleet management system may provide route constraints. The vehicle controller executes speed and steering commands. The safety system decides when motion must be limited or stopped regardless of the navigation plan.

If these layers are not designed together, the robot may behave inconsistently. It may see the obstacle but react too late. It may avoid one object and move too close to another. It may oscillate between left and right because the local planner cannot find a stable path. It may stop too frequently because the safety field is too conservative. It may replan into an area that the facility does not want robots to use.

Therefore, detection is necessary, but it is not sufficient. Avoidance is a complete decision chain.

The Three Layers of Dynamic Obstacle Avoidance

Dynamic obstacle avoidance can be understood through three layers: perception, planning, and safety.

Perception Layer: Building a Live Picture of the Environment

The perception layer uses sensors to observe the environment. This may include LiDAR, 3D LiDAR, depth cameras, ultrasonic sensors, encoders, IMU, safety scanners, or other mobile robot sensors. The robot must detect objects, estimate their location, and update the local environment model.

For dynamic obstacle avoidance, perception must be fast and reliable. A slow update rate may cause the robot to react late. Poor sensor placement may create blind spots. A single 2D scan plane may miss low or high obstacles. A camera may struggle with glare, dust, or motion blur. A LiDAR may be affected by reflective surfaces or glass.

The perception layer must also filter noise. Not every sensor reading is meaningful. Reflections, dust, hanging straps, rack edges, moving shadows, or temporary scan errors may appear as obstacles. If the robot treats every false signal as a real risk, it will stop constantly. If it filters too aggressively, it may ignore real obstacles.

Planning Layer: Choosing the Next Movement

The planning layer decides how the robot should move. It may include global path planning, local path planning, costmap updates, trajectory generation, and AMR route replanning.

The global planner usually handles the broad route from start to destination. The local planner robot behavior handles immediate movement around nearby obstacles. In a dynamic environment, the local planner is especially important because it must react to changes that were not known when the original route was created.

For example, the global route may say the robot should move through Aisle 5, but a pallet is temporarily blocking part of the aisle. The local planner may decide whether the robot can safely pass around it. If not, the system may request AMR route replanning from the global planner or fleet manager.

Safety Layer: Deciding When Motion Must Stop

The safety layer protects people and equipment. It includes safety laser scanners, protective fields, warning fields, safety controllers, emergency stop systems, safe speed limits, braking control, and robot safety stop behavior.

Safety is not optional. A navigation planner may calculate a path around an obstacle, but if a person enters the protective field, the robot must stop. A route may be efficient, but if it violates the safety distance required for the robot’s speed and load, it should not be allowed.

The best dynamic obstacle avoidance systems coordinate these three layers. Perception sees the environment. Planning chooses movement. Safety defines the boundary of acceptable motion.

Why Costmaps Matter in AMR Obstacle Avoidance

A costmap is a digital representation of the robot’s surrounding environment. It helps the robot understand which areas are free, which areas are occupied, and which areas are risky. In robotics systems such as ROS navigation frameworks, the concept of a Nav2 costmap is widely used to support robot path planning and local obstacle avoidance.

The value of a costmap is that it turns sensor readings into actionable space. A raw LiDAR scan is just a set of distance measurements. A costmap converts those measurements into a map-like structure where the planner can evaluate possible paths.

In a simple form, a costmap may mark obstacles as occupied cells. Around those occupied cells, the system may create inflated cost areas, meaning the robot should avoid getting too close. This inflation is important because the robot has a physical size. It cannot pass through a gap that is only wide enough for its center point. The costmap must account for the robot footprint, safety margin, and sometimes load extension.

For dynamic obstacle avoidance, the costmap must update quickly. If a worker crosses the aisle, the costmap should reflect that movement. If a pallet is removed, the costmap should clear the obstacle. If a forklift stops near a route, the costmap should represent that temporary blockage.

Costmap design affects robot behavior. If obstacle inflation is too large, the robot may avoid areas that are actually usable. If inflation is too small, the robot may pass too close to people, racks, or pallets. If obstacle clearing is too slow, the robot may think an aisle remains blocked after the object has moved. If clearing is too fast, the robot may remove obstacles before it is safe to do so.

This is why a Nav2 costmap or similar environment model is not just a software detail. It directly affects how the robot behaves in the field.

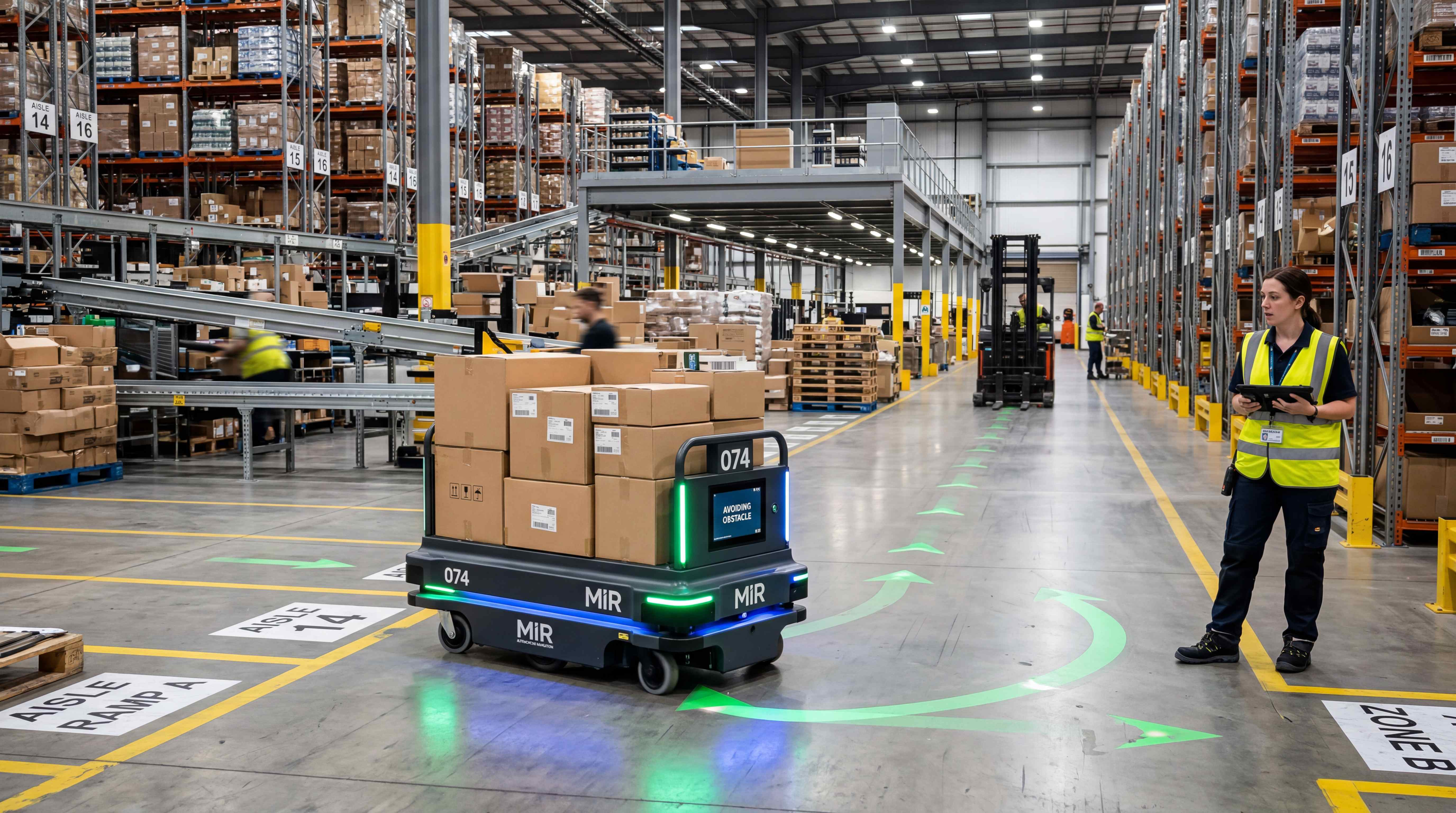

Local Planner Behavior: The Robot’s Real-Time Driving Intelligence

The local planner is one of the most important parts of dynamic obstacle avoidance. It decides the robot’s immediate motion based on the current path, nearby obstacles, speed limits, vehicle constraints, and costmap information.

A global planner may provide a route through the warehouse, but the local planner robot behavior decides how to follow that route in real time. It must generate motion commands that are feasible for the vehicle. A differential-drive robot, an omnidirectional robot, a steering-wheel AMR, and an automated forklift do not move in the same way. Their turning radius, acceleration, braking behavior, and allowed trajectories are different.

In a dynamic environment, the local planner must constantly evaluate alternatives. If a person enters the path but continues walking, the best option may be to slow down and wait briefly. If a pallet blocks the route completely, the best option may be to stop and request replanning. If there is enough space, the robot may move around the obstacle. If the side area is close to workers or forklifts, avoidance may not be safe.

Poor local planner tuning can create several problems. The robot may oscillate, turning left and right without committing to a path. It may move too close to obstacles. It may stop and restart repeatedly. It may choose a narrow gap that looks mathematically possible but feels unsafe to nearby workers. It may react too slowly to moving objects. It may replan so often that traffic becomes unstable.

Good local planner behavior is not only about reaching the destination. It is about creating motion that humans can understand. Workers should be able to predict whether the robot will stop, pass, or wait. Predictability is a major part of safety and acceptance.

When the Robot Should Stop Instead of Avoiding

A highly autonomous robot does not always need to avoid every obstacle. Sometimes the best decision is to stop.

This may sound less advanced, but in industrial environments, unnecessary avoidance can create risk. If a worker crosses the path, it may be safer and more predictable for the robot to slow down or stop rather than steer around the person. If a forklift is moving nearby, avoidance may place the AMR into a more dangerous traffic interaction. If an object blocks a narrow aisle, trying to squeeze around it may create collision risk with racks or goods.

A robot safety stop is not a failure. It is a controlled behavior. The key is whether the stop is appropriate, smooth, and recoverable.

The robot should stop when the obstacle is too close, when there is not enough clearance, when the safety scanner protective field is triggered, when the local planner cannot find a reliable path, when localization confidence is low, when the route enters a restricted zone, or when the object behavior is unpredictable.

The challenge is avoiding both extremes. If the robot stops for every distant object, productivity suffers. If it tries to avoid every object, safety and predictability suffer. A mature AMR obstacle avoidance system knows when to continue, when to slow down, when to wait, and when to stop.

This decision is closely linked to site rules. In some facilities, robots may be allowed to pass around stationary pallets in wide aisles. In other facilities, robots may be required to stop and request human removal of obstacles. In high-traffic zones, the robot may use conservative behavior. In low-risk automated zones, it may replan more freely.

Dynamic obstacle avoidance should therefore be configurable according to the operational policy of the facility.

People, Forklifts, Pallets and Robots Are Not the Same Kind of Obstacle

A worker, a forklift, a pallet, and another AMR can all block a robot path, but they should not be treated identically.

A person is unpredictable and safety-critical. The robot should maintain conservative behavior around people, especially in shared work areas. Human movement can change quickly. A person may step backward, turn, stop, or bend down. The robot should avoid motion that surprises or pressures workers.

A forklift is large, fast, and often carries a load that reduces the driver’s visibility. Forklift interaction is one of the most difficult challenges for mobile robot collision avoidance. An AMR should not assume that a forklift will yield. Traffic rules, crossing zones, warning signals, and fleet-level coordination may be needed.

A pallet or box is usually static. If it is outside the robot path, the robot may continue. If it partially blocks the path, the local planner may decide whether passing is possible. If it fully blocks the route, AMR route replanning or human intervention may be required.

Another robot is different again. If multiple AMRs operate in the same area, fleet management becomes important. Robot-to-robot avoidance should not depend only on local sensing. A fleet manager can assign routes, manage intersections, prevent deadlocks, and reduce traffic conflicts.

This is why object context matters. Real-time obstacle detection becomes more valuable when the robot can interpret what kind of object it is dealing with and how risky that object is.

In advanced systems, sensor fusion and AI perception may help classify objects. But even without full object recognition, the robot can still use location, motion direction, speed, size, and zone rules to make better decisions.

The Problem of Temporary Occlusion

Temporary occlusion is a major reason dynamic obstacle avoidance becomes difficult in real warehouses.

Occlusion occurs when one object blocks the robot’s view of another object or area. A pallet may hide a worker behind it. A rack may block the view of a forklift entering an aisle. A large load carried by the robot may block the scanner’s forward view. A corner may hide cross traffic until the robot is close.

In these cases, the robot may not detect the obstacle early enough if it relies only on onboard sensors. The environment creates blind spots.

Human drivers naturally slow down near blind corners, doorways, and intersections because they understand that something may appear suddenly. Mobile robots need similar conservative behavior. In areas with occlusion risk, speed limits, warning zones, traffic rules, mirrors, external sensors, or fleet-level controls may be needed.

For example, a robot approaching an aisle intersection may slow down before it sees cross traffic. A robot moving near a forklift lane may use a restricted route. A robot operating near tall pallets may use wider clearance. A robot carrying a large load may need additional sensors mounted at different positions.

This is why obstacle avoidance cannot be solved only by improving sensors. Site design and traffic design are equally important.

Dynamic Obstacles Can Break Simple Route Planning

In a static map, route planning is straightforward. The system knows the walls, aisles, stations, and restricted areas. It can calculate an efficient path from one point to another.

In a dynamic warehouse, the map is only the starting point. The real route changes continuously because aisles may be blocked, people may be working near stations, forklifts may cross paths, and other robots may occupy key areas.

This creates a challenge for robot path planning. If the robot replans too frequently, it may create unstable behavior. If it does not replan when necessary, it may wait too long. If every robot independently replans, the fleet may create traffic conflicts. If the fleet manager controls everything too rigidly, local flexibility may be reduced.

AMR route replanning must therefore be balanced. Some obstacles should be handled locally. Some should trigger global replanning. Some should trigger a wait state. Some should trigger human intervention. Some should be treated as site management issues rather than navigation problems.

For example, if a person briefly crosses the path, local slowing or waiting is enough. If a pallet blocks an aisle for several minutes, global replanning may be better. If a conveyor station is occupied, the robot may wait in a designated buffer area. If a forklift lane is busy, the fleet system may temporarily reroute robots away from it.

This layered decision structure helps avoid chaotic behavior.

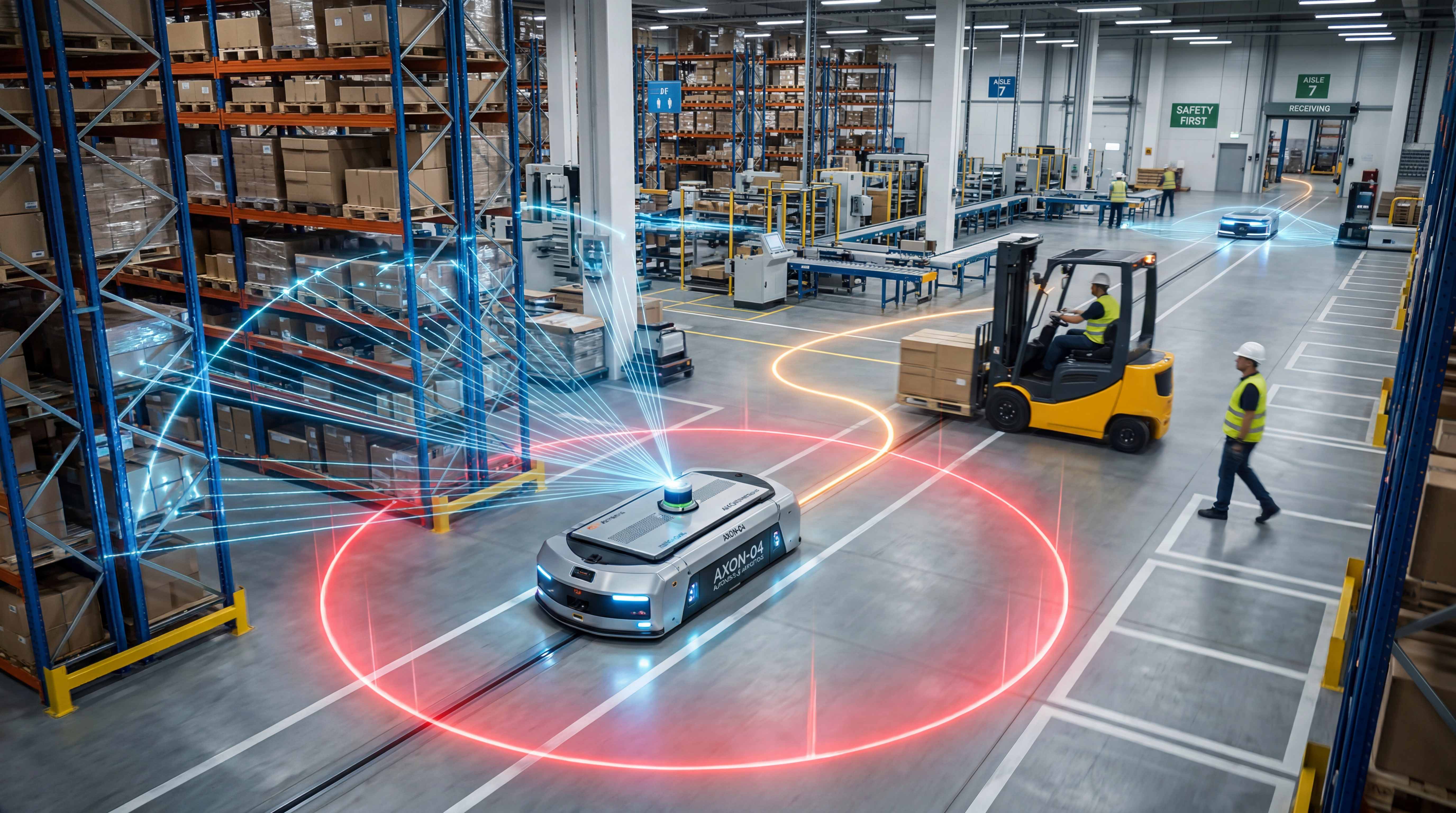

Safety Zones Limit How Aggressively a Robot Can Avoid Obstacles

A robot may calculate a possible path around an obstacle, but that path must still satisfy safety requirements. This is where safety zones limit aggressive avoidance.

For example, the local planner may find a narrow gap between a pallet and a rack. Mathematically, the robot footprint may fit. But if the robot’s protective field, warning field, load overhang, localization uncertainty, and braking distance are considered, the gap may not be acceptable.

Similarly, the robot may be able to steer around a worker, but doing so may place the robot too close to the person or create unpredictable motion. In human environments, the safest behavior may be to stop and wait.

Safety laser scanners and safety-rated sensors may enforce protective fields that override navigation commands. If the protective field is violated, the robot must stop even if the planner wants to continue. This is essential for safe operation.

This also means robot path planning must be aware of safety constraints. A planner that ignores safety zones may constantly generate paths that are later rejected by the safety system. This creates stop-start behavior and reduces productivity.

Good system design aligns the planner, costmap, safety fields, and vehicle dynamics. The robot should prefer paths that are not only geometrically possible but operationally safe.

Speed Control Is Part of Obstacle Avoidance

Dynamic obstacle avoidance is not only about choosing a path. Speed control is often more important.

A robot moving slowly has more time to detect obstacles, update the costmap, evaluate choices, and stop if needed. A robot moving quickly needs longer warning fields, faster processing, and greater braking distance. A heavy-payload robot needs even more conservative speed control.

In many real applications, the robot does not need to replan around every obstacle. It may simply reduce speed when uncertainty increases. For example, the robot may slow down near intersections, doors, manual workstations, forklift zones, or areas with frequent human movement. It may move faster in dedicated robot lanes or low-traffic aisles.

Speed control can also reduce false avoidance. If a person briefly enters the path and then exits, a slower robot may wait smoothly and continue without global replanning. If the robot is moving too fast, it may trigger abrupt stops or unnecessary route changes.

This is why speed zones are important in warehouse automation. Different areas can have different maximum speeds and avoidance behaviors. A robot in an open aisle can move efficiently. A robot near a picking station should behave cautiously. A robot near a charging area or conveyor should move slowly and precisely.

AMR obstacle avoidance should therefore be designed together with speed management. A good system does not only ask, “Where should I go?” It also asks, “How fast is safe here?”

Why Demo Environments Make Obstacle Avoidance Look Easier

Obstacle avoidance often looks impressive in demonstrations because the environment is controlled. The floor is clean. The lighting is stable. Obstacles are simple. People move predictably. The robot has plenty of space. The route is short. There are no forklifts, dense storage areas, mixed traffic, or unexpected layout changes.

Real sites are different.

In a real warehouse, objects may be irregular. Pallets may be damaged. Workers may carry items that change their shape. Forklifts may move quickly. Reflective packaging may affect sensors. Aisles may be partly blocked. Floor markings may be worn. Dock doors may create strong sunlight. Dust may accumulate on sensor windows. Temporary goods may appear in places that were clear during commissioning.

These conditions expose weaknesses in dynamic obstacle avoidance. A robot that performs well in a demo may stop too often in real operation. It may fail to pass through narrow spaces. It may struggle with cross traffic. It may lose localization confidence in repetitive aisles. It may detect false obstacles from reflections. It may need more conservative settings than expected.

This is why buyers should evaluate AMR obstacle avoidance in realistic conditions. Demo videos are useful, but they should not replace site testing. The robot should be tested with actual loads, actual traffic, actual aisle widths, actual lighting, and actual operator behavior.

The question is not whether the robot can avoid one obstacle in an empty aisle. The question is whether it can behave safely and productively for thousands of cycles in a changing environment.

Designing a Site for Better Dynamic Obstacle Avoidance

Many obstacle avoidance problems are not caused by the robot alone. They are caused by poor site design.

A warehouse with unclear traffic rules, random pallet placement, narrow shared aisles, uncontrolled forklift routes, and unpredictable human movement will challenge any AMR. Better sensors and algorithms can help, but they cannot fully compensate for poor operational discipline.

A robot-friendly site does not need to be fully automated. It needs clear rules. Robot routes should be planned with enough clearance. High-risk intersections should be marked. Pallet storage should not block aisles. Manual workstations should have defined robot approach zones. Forklift routes and robot routes should be separated when possible. Buffer zones should be created near conveyors, elevators, and charging points. Operators should understand where robots may slow, stop, or wait.

External infrastructure can also help. Traffic lights, floor markings, warning signs, gates, automatic doors, fleet management systems, and external sensors can support safer robot behavior. In some facilities, dedicated robot lanes may improve performance significantly.

This is an important industry insight: dynamic obstacle avoidance is not only a robot feature. It is a combination of robot intelligence and site management. The more chaotic the environment, the more conservative the robot must become. The better the site is organized, the more efficiently the robot can operate.

How Buyers Should Evaluate Dynamic Obstacle Avoidance

Buyers should not evaluate dynamic obstacle avoidance only by watching a robot drive around a person. They should ask deeper questions.

How does the robot detect obstacles? Does it use 2D LiDAR, 3D LiDAR, cameras, safety scanners, ultrasonic sensors, or sensor fusion? What blind spots exist? How does the robot detect low obstacles, high obstacles, hanging objects, reflective surfaces, and moving people?

How does the costmap update? Does it clear temporary obstacles quickly and safely? Does it maintain enough safety margin around objects? Can the robot handle narrow aisles without constant false stops?

How does the local planner behave? Does the robot move smoothly? Does it oscillate? Does it pass too close to objects? Does it stop and restart frequently? Does it choose predictable paths?

When does the robot replan globally? Does AMR route replanning happen only when necessary, or does the robot change routes too often? How does fleet management handle blocked aisles and robot-to-robot traffic?

How does the safety system override navigation? What triggers a robot safety stop? Are safety fields connected to speed and direction? How does the robot restart after a stop?

How does the robot behave around people and forklifts? Does it slow down near intersections? Does it have different behavior in high-risk zones? Can site speed zones be configured?

How is performance tested? Has the robot been validated with actual loads, actual floor conditions, actual workers, and actual traffic density?

These questions reveal whether the supplier understands dynamic obstacle avoidance as a system problem or only as a marketing feature.

Common Failure Modes in Real AMR Obstacle Avoidance

One common failure mode is late detection. The robot detects the obstacle, but there is not enough time or distance to react smoothly. This may be caused by sensor placement, speed, processing delay, or inadequate warning fields.

Another failure mode is excessive stopping. The robot stops too often because the safety zones are too large, the costmap is too conservative, or the environment contains frequent false triggers. This reduces productivity and creates operator frustration.

A third failure mode is unstable local planning. The robot tries to avoid an obstacle but oscillates, hesitates, or repeatedly changes direction. This makes behavior unpredictable.

A fourth failure mode is poor obstacle clearing. The robot continues to believe an obstacle exists after it has moved away. This can cause unnecessary waiting.

A fifth failure mode is unsafe path selection. The robot finds a narrow path around an obstacle but passes too close to racks, pallets, or workers.

A sixth failure mode is poor fleet coordination. Multiple robots may block each other, replan into the same area, or create deadlocks at intersections.

A seventh failure mode is ignoring operational context. The robot may treat a busy forklift crossing the same as a static box, or treat a worker near a station the same as a pallet in a storage area.

These failure modes show why dynamic obstacle avoidance requires continuous tuning, site validation, and operational feedback.

The Future of Dynamic Obstacle Avoidance

The future of dynamic obstacle avoidance will likely combine better perception, better prediction, and better traffic coordination.

Robots will use richer sensor fusion to detect objects more accurately. 3D LiDAR, depth cameras, AI perception, and safety scanners will work together to identify people, pallets, forklifts, racks, and other robots. Better perception will help robots understand not only where an obstacle is, but what it is.

Prediction will also improve. Instead of reacting only to current positions, robots will estimate where moving objects may go next. This is especially important for people and forklifts. A robot that can predict motion can slow down earlier, choose safer paths, and reduce abrupt stops.

Fleet-level intelligence will become more important. In large facilities, individual robot obstacle avoidance is not enough. A fleet manager must coordinate traffic, assign priorities, manage blocked routes, prevent congestion, and optimize movement across the whole site.

However, safety will remain the foundation. More intelligent avoidance cannot replace safety-rated stopping. The robot may become better at planning, but when a person enters the protective field, the safety system must still respond reliably.

The best future systems will not simply avoid obstacles more aggressively. They will avoid unnecessary risk more intelligently.

Conclusion: Dynamic Obstacle Avoidance Is a System Capability

Dynamic obstacle avoidance is one of the most important capabilities in modern AMR navigation, but it is also one of the most misunderstood. It is not simply a sensor detecting an object. It is a complete system involving perception, costmaps, local planning, global replanning, speed control, safety fields, vehicle dynamics, and site traffic rules.

A good AMR obstacle avoidance system must know the difference between a static pallet, a walking person, a moving forklift, and another robot. It must update the environment in real time. It must decide when to slow down, when to wait, when to stop, and when to replan. It must obey safety limits even when a path appears possible. It must behave predictably enough for workers to trust it.

This is why dynamic obstacle avoidance should be evaluated carefully in any Navigation & Safety Modules project. It directly affects safety, productivity, deployment success, and long-term user confidence.

The strongest systems are not the ones that always avoid every obstacle. They are the ones that make the right decision for the situation: continue when it is safe, slow down when risk increases, stop when required, and replan only when it creates real operational value.

That is what dynamic obstacle avoidance really means in industrial mobile robotics. It is not a trick for a demo video. It is the robot’s ability to operate responsibly in a world that refuses to stay still.

Focused FAQ

What is dynamic obstacle avoidance in AMR systems?

Dynamic obstacle avoidance is the ability of an autonomous mobile robot to detect moving or temporary obstacles and adjust its behavior in real time. This may include slowing down, stopping, waiting, replanning, or choosing a safer local path.

How is dynamic obstacle avoidance different from basic obstacle detection?

Obstacle detection only identifies that an object exists. Dynamic obstacle avoidance decides what the robot should do about it. It requires perception, costmap updates, robot path planning, safety logic, and motion control.

What sensors are used for AMR obstacle avoidance?

Common sensors include 2D LiDAR, 3D LiDAR, depth cameras, safety laser scanners, ultrasonic sensors, wheel encoders, IMU, and sometimes external infrastructure sensors. The best system usually combines multiple sensors.

What is a costmap in robot navigation?

A costmap is a digital representation of free space, occupied space, and risky areas around the robot. A Nav2 costmap or similar environment model helps the robot plan paths and avoid obstacles while considering the robot footprint and safety margin.

What does a local planner robot system do?

A local planner generates real-time movement commands based on nearby obstacles, the current route, costmap data, and vehicle constraints. It helps the robot follow the route while reacting to changes in the immediate environment.

When should an AMR stop instead of avoiding an obstacle?

An AMR should stop when the obstacle is too close, the path is too narrow, a safety field is triggered, the object is unpredictable, localization confidence is low, or avoidance would create more risk than waiting.

Why do AMRs sometimes stop too often?

Frequent stops may be caused by conservative safety fields, poor costmap tuning, sensor noise, reflective surfaces, narrow aisles, unclear traffic rules, or obstacles placed too close to robot routes.

Can AMRs avoid forklifts safely?

AMRs can operate near forklifts, but forklift interaction requires careful traffic design, speed control, detection, fleet coordination, and safety rules. In many facilities, separating robot routes and forklift routes is safer.

Is AMR route replanning always better than waiting?

No. Replanning is useful when an aisle or route is blocked for a longer time. For short-term obstacles, waiting or slowing down may be safer and more efficient than changing the route.

How should buyers test dynamic obstacle avoidance?

Buyers should test robots with real loads, real aisle widths, actual workers, forklift traffic, temporary pallets, reflective surfaces, lighting changes, and normal daily operating conditions. Demo-area performance is not enough.
