Many AMR projects begin by asking whether the robot can navigate through a warehouse or factory. Can it move from point A to point B? Can it avoid obstacles? Can it follow a route? Can it operate without magnetic tape or fixed guide rails? These are important questions, but they do not fully determine whether the project will succeed.

In real industrial operation, the harder question often appears at the end of the route: Can the robot stop at exactly the right place, in the right direction, with the right posture, every time?

This is the challenge of precision docking.

An autonomous mobile robot may navigate smoothly through a wide aisle, but still fail when it needs to align with a charging station, conveyor, workstation, pallet rack, lift table, shelf, or material transfer point. The last part of the movement may require much higher accuracy than normal travel. A few centimeters of error may be acceptable in an aisle, but unacceptable when the robot must connect to charging contacts, align with a conveyor roller, place a cart at a workstation, or position under a load.

This is why AMR docking and autonomous charging are hidden tests of navigation quality. They expose whether the robot’s localization, sensor fusion, control precision, mechanical design, station layout, safety logic, and recovery strategy are truly mature.

A robot that “can drive” is not necessarily a robot that “can dock.” A robot that “can find the charging area” is not necessarily a robot that can charge reliably for months without operator adjustment. In many projects, docking navigation is where theoretical autonomy becomes operational reliability.

The Last 500 Millimeters Are Often Harder Than the Last 50 Meters

When an AMR travels across a facility, it usually has room to correct itself. If the robot is slightly off-center in an aisle, the navigation system can adjust. If an obstacle appears, the robot can slow down or replan. If localization confidence changes, the robot can compare sensor data with map features and continue safely.

Docking is different. During the final approach, tolerance becomes much smaller. The robot may need to align its body, payload, connector, lift mechanism, fork, roller, cart latch, or charging contact with a fixed station. A small angle error can become a large positional error at the contact point. A small localization drift can cause the robot to miss a charging pad or stop too far from a conveyor.

This is why precision docking should be treated as a separate capability from general navigation.

General navigation answers: Can the robot reach the area?
Precision docking answers: Can the robot arrive in the exact pose required for the task?

Pose means both position and orientation. A robot may reach the correct X-Y coordinate, but if its angle is wrong, docking may fail. This is especially important for AMR charging station alignment, conveyor docking, pallet docking, lift docking, and automated material transfer.

The final 500 millimeters often require local references that are more precise than the general map. These references may include QR code positioning, RFID docking, visual markers, reflectors, laser distance sensors, magnetic markers, guide funnels, mechanical alignment features, or station-mounted sensors.

The robot’s navigation stack must shift from broad movement to final alignment. This transition is where many systems either become reliable or start producing repeated service issues.

Docking Is Not One Use Case

The word docking is often used as if it means one simple action. In practice, AMR docking can mean many different things.

Charging Docking

Autonomous charging requires the robot to connect with a charging station safely and reliably. The robot must approach the station, align with charging contacts or wireless charging pads, confirm connection, manage battery status, and leave the station when charging is complete or when assigned a new task.

Charging docking is not only about navigation. It includes electrical contact reliability, station geometry, battery management, safety interlocks, communication, and fault recovery.

Conveyor Docking

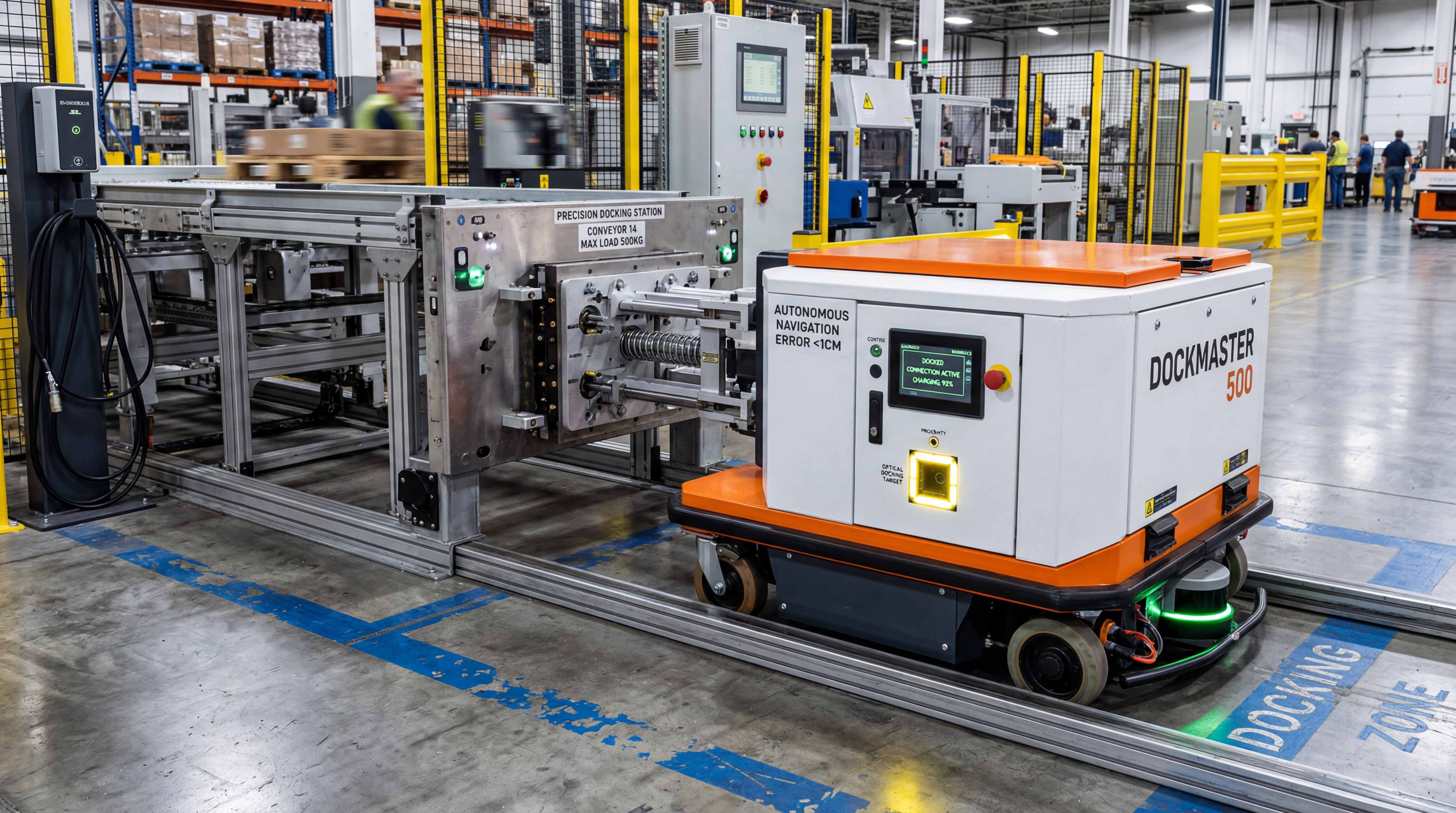

Conveyor docking requires the AMR to align with a fixed conveyor, roller bed, belt line, or transfer station. Height, lateral position, angle, stop distance, and communication timing all matter. If the robot is slightly misaligned, goods may not transfer smoothly.

Workstation Docking

In workstation docking, the robot may bring parts, bins, carts, or tools to an operator. The robot needs to stop in a position that supports ergonomic access and does not block pedestrian flow. Safety zones and human interaction become important.

Pallet Docking

Pallet docking is common in forklift AMRs, under-ride robots, and heavy-duty mobile platforms. The robot may need to align with pallet pockets, pallet bottom clearance, rack positions, or a load pickup point. Perception and mechanical tolerance become critical.

Cart or Rack Docking

Some AMRs tow carts, lift shelves, or latch onto mobile racks. The robot must detect the cart or rack, approach from the correct direction, align mechanically, and confirm coupling before moving.

Each docking scenario has different accuracy requirements, sensors, risks, and failure modes. This is why a supplier should not simply say “the robot supports docking.” The better question is: What type of docking, with what tolerance, under what site conditions, and with what recovery logic?

Autonomous Charging Is a Reliability Problem, Not Just a Convenience Feature

Autonomous charging is often described as a convenience feature. When the battery is low, the robot returns to the charging station. When charging is complete, it goes back to work. This sounds simple, but in a real fleet, autonomous charging affects the entire operating model.

If charging is unreliable, the fleet becomes unreliable. A robot that fails to dock may run out of power. A robot that blocks a charging station may reduce fleet availability. A robot that charges slowly or inconsistently may not meet throughput requirements. A robot that needs manual adjustment at the charger creates hidden labor cost.

A good autonomous charging system must answer several practical questions.

Can the robot locate the charging station reliably?
Can it approach from different directions or only one fixed route?
Can it align with the charger under load?
Can it confirm electrical connection?
Can it detect poor contact?
Can it retry docking safely?
Can it leave the station without collision?
Can fleet management schedule charging without interrupting production?
Can charging behavior adapt to task priority and battery threshold?

For a single robot, charging failure may be an inconvenience. For a fleet of robots, charging failure becomes a system-level bottleneck. If multiple robots need to charge at the same time, station planning, charging priority, battery strategy, and waiting zones become important.

This is why AMR charging station design should not be treated as an accessory. It is part of the navigation and operations architecture.

Why General Localization Is Not Enough for Docking

An AMR may localize well in a warehouse map, but still need additional positioning support for docking. This is because general localization and final docking alignment require different levels of precision.

General localization may allow the robot to know its position within a few centimeters or within an acceptable navigation range. That may be enough for aisle travel. But docking may require more repeatable local accuracy. The robot may need to stop within a narrow positional window and maintain angle precision.

Several factors can reduce final docking accuracy:

Map drift
Wheel slip
Floor unevenness
Load shift
Sensor noise
Station movement
Charging contact wear
Pallet variation
Conveyor height tolerance
Blocked environmental features
Poor lighting for visual docking
Dust or damage on markers

For this reason, many docking systems use local references near the station. QR code positioning can provide a clear visual reference. RFID docking can confirm station identity or precise zone entry. Reflectors or laser targets can support final approach. Vision sensors can detect docking markers, pallet pockets, or charger geometry. Mechanical guides can help correct small errors during the final contact phase.

The key idea is simple: the robot may use global navigation to reach the station area, but it often needs local docking navigation to complete the final alignment.

This layered approach improves reliability.

QR Code Positioning: Simple, Practical and Often Useful

QR code positioning is widely used in mobile robot docking because it is simple, low-cost, and easy to understand. A QR code or visual marker can be placed on the floor, wall, station, pallet location, or docking structure. The robot uses a camera or scanner to identify the marker and adjust its position.

QR codes are especially useful when the robot needs an absolute reference at a specific point. For example, a robot may use SLAM navigation for general movement, then use a QR code near a charging station to confirm final position. A robot may use a QR marker to identify a conveyor station, docking bay, lift point, or shelf location.

The advantage of QR code positioning is that it provides clear identity and position reference. It can help reduce ambiguity in repetitive warehouse environments where many aisles or stations look similar.

However, QR codes also have limitations. They can be damaged, dirty, blocked, misread, or affected by lighting. Floor-mounted codes may wear out due to forklift traffic or cleaning. Wall-mounted codes require proper camera angle and visibility. If the marker is placed poorly, the robot may detect it too late or from the wrong angle.

This means QR code positioning should be designed carefully. The marker must be placed where the robot can see it during the final approach. It must be protected from damage. It must be maintained. The robot should have a recovery strategy if the code is unreadable.

QR codes are not a complete navigation system by themselves in every application, but they are highly useful as docking references and station confirmation tools.

RFID Docking: Reliable Identification and Zone Confirmation

RFID docking is another practical method for supporting station alignment and process confirmation. RFID tags can be placed on the floor, station, pallet position, rack location, or charging area. The robot reads the tag to confirm that it has reached the correct position or entered the correct zone.

RFID is useful because it does not require line-of-sight in the same way visual markers do. It may be less affected by lighting, dust, or visual obstruction. For station identification, route confirmation, and location verification, RFID can be very effective.

However, RFID also has limitations. It usually provides identification more than rich geometric information. Reading range, antenna placement, tag orientation, floor materials, metal interference, and environmental conditions can all affect performance. RFID may confirm that the robot is near the correct station, but it may not provide enough pose accuracy for fine alignment unless designed specifically for that purpose.

In many systems, RFID docking works best together with other sensors. RFID confirms identity. LiDAR or vision supports position correction. Encoders and IMU support motion control. Mechanical guides or contact sensors confirm final engagement.

For example, an AMR may use SLAM to reach the charging area, RFID to confirm the correct charger, vision to align with the docking target, and contact feedback to confirm charging connection. This is a layered docking system.

The value of RFID is not that it solves everything. Its value is that it adds reliable identity and process confirmation.

Vision-Based Docking: When the Robot Needs to Understand the Station

Vision-based docking is useful when the robot needs more than a simple location reference. A camera or depth sensor can help identify station geometry, pallet pockets, conveyor edges, shelf features, docking markers, or alignment targets.

This is especially valuable for pallet docking and conveyor docking. A pallet may not always be placed perfectly. A conveyor station may require precise lateral alignment. A cart may shift slightly. A shelf may have variation. Vision helps the robot detect the actual object, not only the expected map position.

Depth cameras can add 3D information, allowing the robot to estimate distance and shape. This can help with pallet pocket detection, obstacle checking, and final approach correction. In some applications, AI vision can classify objects and verify whether the docking station is ready.

However, vision-based docking must be designed with real industrial conditions in mind. Lighting changes, dust, glare, motion blur, dirty lenses, low-contrast objects, shadows, and reflective packaging can affect performance. A vision system that works well in a laboratory may need protection and calibration in a warehouse.

For this reason, vision should not be the only layer if the docking task is safety-critical or uptime-critical. It should be fused with other references such as LiDAR, QR markers, RFID, encoder feedback, or station sensors.

Vision is powerful when its role is clear: recognize the station, estimate local alignment, detect the target, and provide final correction.

Mechanical Design Still Matters

A common mistake in docking projects is assuming that software can solve every alignment problem. In reality, mechanical design is just as important as navigation software.

If the charging contacts are too small, alignment tolerance becomes narrow. If the station has no guide features, the robot must achieve perfect positioning. If the floor is uneven, the robot may approach at a slight angle. If the payload shifts, the robot’s stopping behavior may change. If the docking station can be bumped or moved, the map position may become inaccurate.

Good docking design often combines software precision with mechanical tolerance. This may include guide funnels, chamfered contact plates, alignment cones, flexible connectors, compliant charging contacts, docking rails, spring-loaded mechanisms, or physical positioning features.

The goal is not to make the robot inaccurate. The goal is to design a system that remains reliable under realistic variation.

Industrial automation should never depend on perfect conditions. A robust docking system allows for small errors and corrects them safely.

For AMR charging station design, this is especially important. Charging contacts should tolerate reasonable alignment variation. The station should be fixed securely. The robot should approach at a repeatable angle. Electrical contact should be confirmed. The station should be protected from forklift damage and worker interference.

Mechanical design, electrical design, and navigation design must work together.

Docking Safety: Slow, Predictable and Controlled

Docking often happens near people, workstations, conveyors, chargers, racks, or other equipment. This makes safety critical.

During docking, the robot may move slowly, but slow movement is not automatically safe. The robot may still pinch, push, trap, or collide with objects or people. It may move close to a station where workers are operating. It may reverse, rotate, or make small correction movements. It may carry a load that extends beyond its body.

A safe docking process should include controlled speed, clear warning signals, sensor monitoring, safe stop behavior, and restart logic. If a person enters the docking area, the robot may need to stop. If the docking station is blocked, the robot should not force contact. If the charging connection fails, the robot should retry only within safe limits.

Docking safety also depends on site design. Charging stations should not be placed in pedestrian crossings or forklift lanes. Conveyor docking points should have clear access rules. Workstation docking should not trap workers between the robot and fixed equipment. Pallet docking zones should have enough clearance for load movement.

A strong docking strategy does not only ask, “Can the robot dock?” It asks, “Can the robot dock safely, predictably, and repeatedly while the site continues operating?”

Docking Failure Modes That Buyers Should Understand

Docking failures are often small in appearance but large in operational impact.

One common failure is misalignment. The robot reaches the station but stops slightly off-center or at the wrong angle. This may prevent charging, conveyor transfer, cart coupling, or pallet pickup.

Another failure is station identification error. The robot may approach the wrong station, especially in repetitive environments where stations look similar. QR code positioning, RFID docking, or station communication can reduce this risk.

A third failure is poor electrical contact. The robot appears docked but does not charge correctly. This may be caused by contact wear, dirt, station movement, poor alignment, or insufficient contact pressure.

A fourth failure is blocked docking approach. A pallet, cart, worker, or another robot may occupy the approach path. The robot must know whether to wait, retry, replan, or report an exception.

A fifth failure is marker degradation. QR codes may wear out. RFID tags may be damaged. Visual markers may become dirty. Reflectors may be blocked. Docking references need maintenance.

A sixth failure is floor-related error. Uneven flooring, slopes, cracks, or slippery surfaces can affect final positioning.

A seventh failure is poor recovery logic. If the first docking attempt fails, the robot may repeatedly try the same motion, block the station, or require manual intervention.

The best systems do not assume docking will always succeed on the first attempt. They include safe retry logic, fault diagnosis, and operator-friendly recovery instructions.

Docking Accuracy Must Match the Process

Not every docking task needs the same accuracy. The required precision depends on the process.

A simple waiting point may only require the robot to stop in a general area. A workstation delivery may require moderate accuracy so the operator can access goods easily. A charging station may require higher repeatability to ensure contact. A conveyor transfer may require controlled height, angle, and lateral alignment. A pallet pickup may require very precise positioning relative to pallet openings or load supports.

This is why buyers should define docking tolerance before selecting a robot or station.

How close must the robot stop?
How much angle error is acceptable?
Does the robot need to align with a mechanical interface?
Is height control required?
Does the load extend beyond the robot?
Can the station tolerate misalignment?
Is manual adjustment acceptable?
How many docking cycles are expected per day?
What is the cost of one failed dock?

These questions turn docking from a vague feature into a measurable requirement.

A robot supplier should be able to discuss docking accuracy in relation to the actual application. “High precision” is not enough. The project needs numbers, conditions, and validation methods.

Autonomous Charging Strategy for AMR Fleets

When a site uses multiple robots, autonomous charging becomes a fleet strategy.

A robot should not wait until the battery is nearly empty before seeking a charger unless the application allows it. Fleet management should consider battery state, task priority, charger availability, route distance, shift schedule, and workload forecast.

Some robots may use opportunity charging, where they charge during idle time or between tasks. Others may use scheduled charging during breaks or low-demand periods. In high-throughput operations, charging strategy can affect how many robots are required to meet production demand.

The physical layout of charging stations also matters. Chargers should be easy to access, not block main traffic, and allow robots to enter and exit safely. Waiting areas may be needed if all chargers are occupied. Fleet software should prevent multiple robots from attempting to dock at the same charger.

Charging strategy also affects battery life. Frequent shallow charging, deep discharge, high current charging, and temperature conditions may all influence battery performance depending on battery chemistry and system design.

For buyers, the key point is that autonomous charging is not only a hardware function. It is part of fleet availability planning.

How to Evaluate an AMR Docking Solution

Buyers should evaluate docking with practical tests, not only datasheet claims.

First, test repeatability. Can the robot dock correctly many times in a row under normal operating conditions?

Second, test under load. A loaded robot may behave differently from an empty robot. The docking process should be validated with actual payloads.

Third, test approach variation. Can the robot dock if it approaches from slightly different starting positions? Can it recover if the first approach is imperfect?

Fourth, test station blockage. What happens if the docking path is blocked by a cart, pallet, person, or another robot?

Fifth, test marker failure. What happens if the QR code is dirty, the RFID tag is unreadable, or the visual target is partially blocked?

Sixth, test charging confirmation. Does the robot know whether charging has truly started? Can it detect poor contact?

Seventh, test safety behavior. Does the robot stop if someone enters the docking zone? Does it restart safely?

Eighth, test maintenance. How easy is it to clean sensors, replace markers, inspect contacts, and recalibrate docking references?

These tests reveal whether the docking system is ready for daily operation.

Docking Is Where Navigation Meets Process Automation

Docking is important because it connects mobile navigation with the actual business process. A robot moving through an aisle is useful, but value is created when it transfers goods, charges automatically, delivers to operators, picks up pallets, connects with conveyors, or supports production flow.

This is why docking quality affects ROI. If a robot frequently needs manual help at docking points, labor savings decrease. If conveyor transfer fails, the automated process is interrupted. If charging fails, robot availability drops. If pallet pickup is unreliable, operators lose confidence.

In successful projects, docking is designed early. The robot, station, route, sensor references, mechanical interface, safety zones, and process timing are designed together. In weaker projects, docking is treated as a final commissioning detail, which often leads to repeated adjustment.

For Navigation & Safety Modules, docking should be treated as one of the most important application-specific modules. It is where navigation accuracy, sensor fusion, local perception, station design, and safety logic all converge.

The Future of Precision Docking and Autonomous Charging

Future AMR docking systems will likely become more adaptive, more sensor-rich, and easier to maintain.

Robots will use more sensor fusion for final alignment. LiDAR, cameras, depth sensors, RFID, QR codes, encoders, IMU, and station feedback may work together to improve repeatability. Vision systems may better recognize pallets, conveyors, carts, and charging stations. Fleet software may predict charging demand and allocate stations more intelligently.

Charging technology may also evolve. Contact charging will continue to improve through better contact design and diagnostics. Wireless charging may become more attractive in some applications where contact wear and alignment are concerns, although efficiency, cost, and installation conditions must still be considered.

Docking diagnostics will become more important. Instead of simply reporting “docking failed,” robots may identify whether the cause is marker unreadable, station blocked, poor contact, alignment error, low localization confidence, or mechanical obstruction. This will reduce troubleshooting time.

The long-term direction is clear: docking will become less of a one-time setup task and more of a monitored, data-driven process.

Conclusion: Docking Proves Whether AMR Navigation Is Truly Deployable

Precision docking and autonomous charging are not secondary details in AMR systems. They are core tests of navigation quality.

A robot that can travel through a warehouse still needs to dock accurately. It must align with charging stations, conveyors, pallets, carts, shelves, workstations, or other process interfaces. It must use the right combination of global localization, local docking references, sensor fusion, mechanical tolerance, safety logic, and recovery behavior.

AMR docking is difficult because the final approach requires higher accuracy than normal travel. Autonomous charging is difficult because reliability must be maintained over many cycles without manual intervention. Conveyor docking, pallet docking, and workstation docking all introduce their own accuracy and safety requirements.

For buyers, the lesson is simple: do not evaluate an AMR only by how smoothly it moves in an aisle. Evaluate how reliably it completes the final task. Ask about QR code positioning, RFID docking, mobile robot alignment, charging station design, docking tolerance, safety behavior, and recovery logic.

In real industrial automation, the value of a mobile robot is not proven when it reaches the destination area. It is proven when it stops exactly where the process needs it to stop, connects correctly, transfers safely, charges reliably, and returns to work without human rescue.

That is why precision docking and autonomous charging are hidden but decisive tests of AMR navigation quality.

Focused FAQ

What is AMR docking?

AMR docking is the process of positioning an autonomous mobile robot at a specific station, charger, conveyor, workstation, pallet, shelf, cart, or transfer point with enough accuracy to complete a task.

Why is precision docking important for AMRs?

Precision docking is important because many AMR tasks require accurate final alignment. A robot may navigate successfully to an area but still fail if it cannot align with a charger, conveyor, pallet, or workstation.

What is autonomous charging?

Autonomous charging means the robot can return to a charging station, dock correctly, confirm charging connection, manage battery status, and resume work without manual intervention.

Why does AMR charging fail?

AMR charging may fail due to poor alignment, dirty contacts, station movement, contact wear, blocked docking paths, low localization accuracy, damaged markers, or weak recovery logic.

How does QR code positioning help docking?

QR code positioning provides a visual reference that helps the robot confirm station identity and adjust its final position. It is often used near charging stations, conveyors, docking bays, and shelf locations.

What is RFID docking?

RFID docking uses RFID tags and readers to confirm station identity or zone position. It is useful for location confirmation and can work without direct visual line-of-sight, but it is often combined with other sensors for precise alignment.

Is LiDAR enough for precision docking?

LiDAR can support docking, but it may not be enough for every precision task. Many systems combine LiDAR with QR codes, RFID, cameras, depth sensors, station sensors, mechanical guides, encoders, and IMU.

What accuracy is needed for AMR docking?

Docking accuracy depends on the process. Charging, conveyor transfer, pallet pickup, cart coupling, and workstation delivery all have different tolerance requirements. The needed accuracy should be defined before deployment.

How should buyers test AMR docking?

Buyers should test repeatability, load conditions, approach variation, blocked stations, marker failure, charging confirmation, safety stops, restart logic, and maintenance procedures under real operating conditions.

Why is docking part of Navigation & Safety Modules?

Docking connects navigation, localization, sensor fusion, safety logic, mechanical alignment, and process automation. It determines whether the robot can complete the task safely and reliably, not just move through the site.
