From Pilot to Production: How to Validate AMR Navigation and Safety Modules Before Deployment

From Pilot to Production: How to Validate AMR Navigation and Safety Modules Before Deployment

A successful AMR pilot does not automatically mean a successful AMR deployment.

This is one of the most important lessons in warehouse automation and factory logistics. A robot may perform well in a demonstration. It may move smoothly through a prepared aisle, avoid a few obstacles, dock at one station, return to charge, and impress visitors during a short test. But full production operation is different. Production introduces density, repetition, abnormal events, changing layouts, mixed traffic, operator behavior, maintenance needs, battery cycles, shift changes, and real business pressure.

That is why AMR deployment validation is critical.

Navigation and safety modules are not only technical components. They are the foundation that decides whether an autonomous mobile robot can operate reliably, safely and repeatedly in a real industrial environment. LiDAR, cameras, encoders, IMU, safety scanners, docking markers, fleet software, traffic rules, charging stations and safety zones all need to work together as one system.

The purpose of deployment validation is not to prove that the robot can move once. It is to prove that the robot can support daily operations with predictable behavior, acceptable risk, measurable performance and maintainable reliability.

For manufacturers, integrators and end users, this means validation must begin before the robot enters the site and continue after the robot is running. It should include site survey, process analysis, AMR risk assessment, map design, route testing, docking verification, robot safety validation, traffic simulation, operator training, acceptance testing and long-term performance monitoring.

A strong robot deployment checklist is not paperwork. It is what separates a promising automation concept from a production-ready system.

Why AMR Validation Must Be Treated as an Engineering Process

Many automation projects fail not because the robot is technically weak, but because the validation process is too simple. The project team checks whether the robot can navigate from point A to point B, but does not test enough failure modes. They confirm that the safety scanner stops the robot, but do not analyze all mixed traffic zones. They test docking in an empty area, but not during shift operation. They check battery life once, but not under actual workload. They approve the map at installation, but do not define who maintains it later.

This creates a dangerous gap between demonstration success and operational success.

AMR commissioning should be treated as an engineering process because every site has its own variables. Floor condition, aisle width, rack layout, lighting, reflective materials, forklift behavior, pedestrian flow, pallet placement, Wi-Fi coverage, charging access and workstation timing can all affect robot performance.

A mature deployment process does not assume that the robot will adapt perfectly to the site. It verifies how the robot interacts with the site.

The core validation question is not: Can the robot run?
The better question is: Can the robot run safely and consistently under the conditions that the site will actually create?

This is why autonomous mobile robot testing should include both normal operation and abnormal scenarios. Normal scenarios confirm productivity. Abnormal scenarios confirm resilience.

Start With an AMR Site Survey, Not a Robot Demo

A reliable deployment begins with an AMR site survey. Before selecting routes, docking points or safety zones, the project team should understand the physical environment and operational process.

The site survey should observe how materials actually move. Which areas are busy? Which routes are blocked frequently? Where do forklifts turn? Where do workers walk? Where are pallets temporarily placed? Which doors open and close? Which stations create queues? Which areas are narrow, reflective, dusty, bright or uneven?

The survey should also evaluate infrastructure. A robot may need good floor quality, stable wireless communication, clear charging access, sufficient turning radius, visible docking references and protected safety zones. If the site has gaps in these areas, the project should identify them before deployment.

A good AMR site survey should answer several practical questions:

Where will robots travel?
Where will robots wait?
Where will robots dock?
Where will robots charge?
Where will people cross robot routes?
Where will forklifts share space?
Where are the highest-risk zones?
Where can congestion happen?
Where are environmental features weak for localization?
Where can maintenance staff access the robot and charger?

Without a site survey, the project may design a robot route that looks reasonable on a drawing but fails in real operation. The site survey turns assumptions into facts.

Process Mapping: Validate the Workflow Before Validating the Robot

Navigation safety modules only create value when they support the workflow. A robot can be technically capable, but if the process is poorly designed, the automation will still underperform.

Before testing the robot, the project team should map the workflow. This includes pickup points, drop-off points, workstations, conveyors, pallet locations, buffer zones, charging points, task triggers, operator interactions and exception handling.

The workflow map should define what the robot is expected to do and how success will be measured. For example, a robot may be required to deliver bins from storage to assembly every five minutes. Another robot may need to move pallets from receiving to staging. A third robot may support line-side replenishment based on call buttons or WMS tasks.

Each workflow has different navigation and safety requirements. A line-side delivery robot may require predictable workstation docking. A pallet-moving robot may require wider turning space and load-aware safety behavior. A high-density warehouse fleet may require advanced traffic control and waiting point design.

Process mapping prevents a common mistake: testing the robot as a standalone machine instead of testing it as part of a business process.

For AMR performance metrics to be meaningful, they must be linked to workflow goals. Travel speed alone is not enough. The site should measure task completion time, successful docking rate, robot availability, waiting time, safety stop frequency, charger utilization and operator intervention rate.

AMR Risk Assessment: Safety Begins Before the Robot Moves

AMR risk assessment should happen before production operation. It should identify possible hazards and define how risks will be reduced.

Risk assessment is not only about the robot. It includes the robot, payload, environment, people, workflow, maintenance activities and abnormal conditions. A safe robot can still become risky if it carries unstable loads, operates near forklifts, docks in crowded areas or moves through poorly marked pedestrian zones.

Important risk areas include collision, crushing, trapping, load instability, unexpected stopping, blocked emergency exits, blind corners, docking pinch points, charging hazards, battery handling, manual recovery and mixed traffic.

For example, a robot moving beside a shelf may be safe at low speed, but if the payload extends beyond the robot body, clearance changes. A robot docking at a conveyor may be safe when no one is nearby, but the same motion may create a pinch point if workers stand beside the station. A robot crossing a forklift lane may require special traffic rules, speed limits or physical separation.

Robot safety validation should confirm that risk reduction measures actually work. This may include safety scanner field testing, speed zone verification, emergency stop testing, warning signal checks, obstacle detection tests, safe restart procedures and operator training.

The goal is not to remove all risk, because industrial sites always contain some risk. The goal is to reduce risk to an acceptable level through design, control, procedure and training.

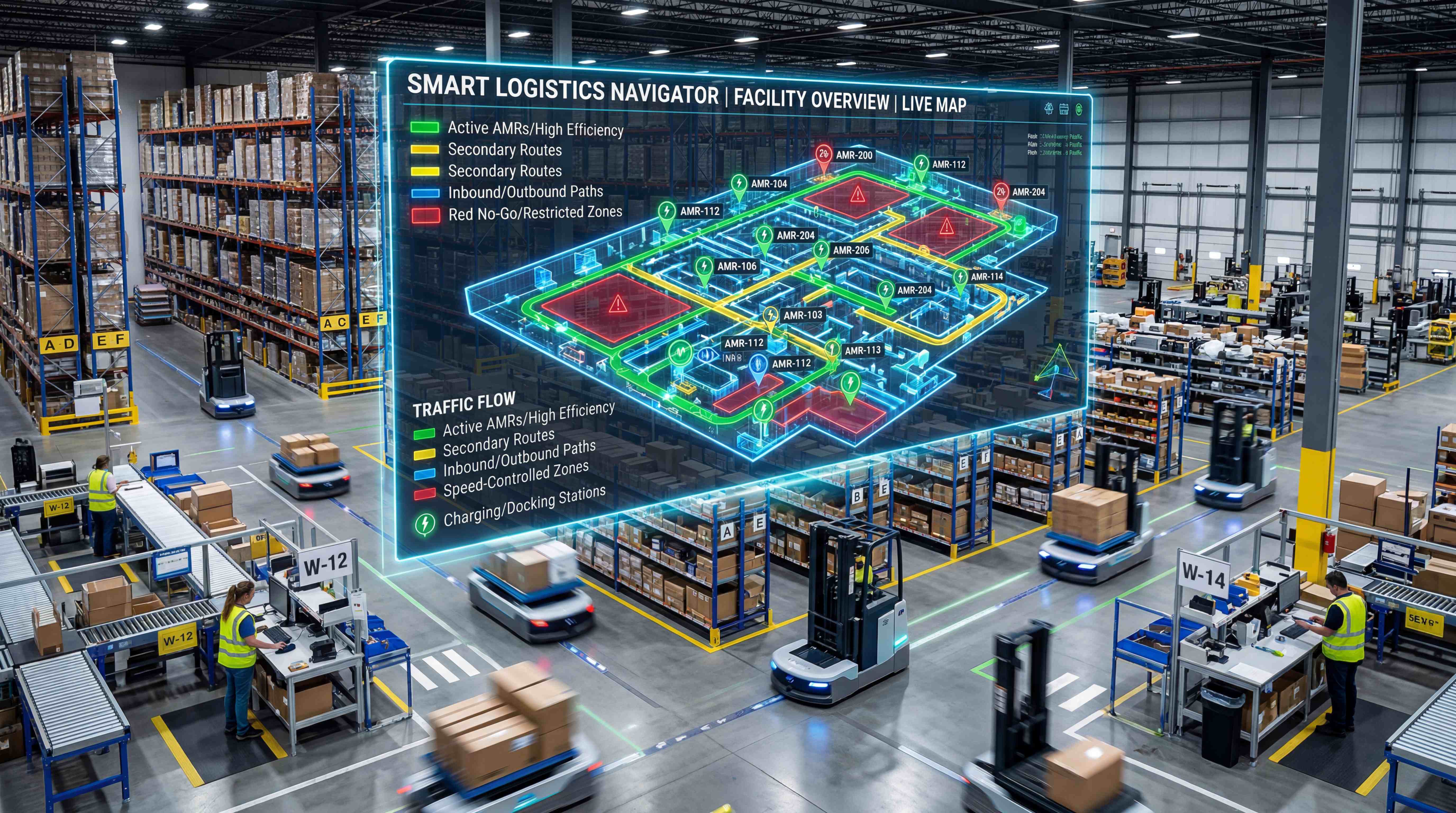

Map Validation: The Map Is Not Just a Digital Drawing

For AMRs, the map is part of the navigation system. A poor map can cause poor robot behavior.

Map validation should check whether routes, stations, zones, waiting points, no-go areas, speed limits and docking references are correctly defined. The map should reflect real site conditions, not only a simplified layout.

A good map should support safe and efficient movement. Routes should avoid unnecessary conflict with pedestrian paths and forklift lanes. Narrow aisles should have clear direction rules. Waiting points should not block intersections. Charging areas should have approach and exit paths. Docking zones should include enough clearance for robot body, load and safety fields.

The map should also define behavior zones. Some zones may require low speed. Some may allow only one robot at a time. Some may be no-go areas. Some may be high-priority paths. Some may require special docking behavior. These zones transform the map from a drawing into a control layer.

Map validation should include physical walkthroughs and robot testing. A route that looks clear on screen may pass too close to racks, pillars, pallets or workstations. A waiting point may look acceptable on the map but block a worker’s path. A charger may appear accessible but create congestion during shift changes.

For navigation safety modules, the map is not just a background file. It is a living operational asset.

Localization Testing: Accuracy Must Be Proven in Real Conditions

Localization is the robot’s ability to know where it is. It may use LiDAR SLAM, QR code positioning, RFID references, visual markers, reflectors, encoders, IMU or sensor fusion. During AMR commissioning, localization must be tested under real site conditions.

A robot may localize well in an empty facility but struggle when shelves are blocked by pallets, workers move through aisles, forklifts pass nearby or lighting changes near dock doors. It may perform well in one area but lose confidence in a long featureless corridor. It may localize accurately when empty but show small errors when carrying a heavy load.

Localization testing should include repeated route runs, different load conditions, different times of day, normal traffic and known difficult areas. The system should monitor localization confidence, position drift, route correction behavior and recovery logic.

The project team should also test what happens when localization becomes uncertain. Does the robot slow down? Does it stop? Does it request assistance? Does it use backup references? Does it continue in an unsafe way?

A strong navigation system is not one that never experiences uncertainty. It is one that recognizes uncertainty and responds safely.

Obstacle Detection and Avoidance Testing

Obstacle detection must be tested with realistic objects, not only clean demo obstacles. Warehouses contain pallets, pallet jacks, carts, forklifts, workers, plastic wrap, boxes, low objects, overhanging items and temporary materials.

The robot should be tested against different obstacle types and positions. Can it detect a low pallet edge? Can it detect a person stepping into the route? Can it respond to a cart partially blocking an aisle? Can it handle a forklift crossing? Can it avoid a temporary box without creating a new traffic problem? Can it distinguish between an avoidable obstacle and a blocked route?

Obstacle avoidance should also be evaluated for predictability. A robot that makes sudden or confusing movements may be technically avoiding obstacles but still create discomfort for workers. In industrial sites, predictable behavior is part of safety.

The test should include stop behavior, slow-down behavior, re-routing behavior and recovery behavior. If the robot stops because an obstacle blocks the path, what happens next? Does it wait? Does it notify an operator? Does it try another route? How long does it wait before escalating?

Autonomous mobile robot testing must include these questions because obstacle behavior affects both safety and productivity.

Docking and Station Validation

Docking is one of the most important tests in AMR deployment validation. A robot may navigate well but fail if it cannot dock reliably.

Docking validation should test every station type: charging stations, conveyors, workstations, pallet pickup points, shelves, carts, lift tables or transfer points. Each station should be tested repeatedly under real load and real process conditions.

The project team should measure docking success rate, alignment accuracy, retry frequency, charging confirmation, transfer success and operator intervention. A successful dock should not mean “the robot arrived nearby.” It should mean the robot completed the required process.

For example, if the robot docks at a charger, the system should confirm that charging actually started. If it docks at a conveyor, the material transfer should complete correctly. If it docks under a cart, the coupling should be verified. If it docks at a workstation, the stop position should support operator access and safety.

Docking validation should also include failure scenarios. What if the station is blocked? What if the QR marker is dirty? What if the pallet is slightly misaligned? What if the charger contact is not clean? What if another robot is waiting?

These tests reveal whether docking is production-ready or only demo-ready.

Fleet Traffic Validation: Scaling Changes Everything

When multiple robots operate together, fleet traffic validation becomes essential. Even if each robot works individually, the fleet may still suffer from congestion, deadlocks or inefficient dispatching.

Fleet testing should include route reservation, intersection control, waiting points, charger queues, narrow aisles, station queues and priority logic. The site should test peak traffic, not only average traffic. A system that works at low density may fail during peak demand.

Important AMR performance metrics include robot waiting time, intersection delay, blocked route frequency, task completion time, charger queue time, deadlock events and manual intervention rate.

The project team should also test abnormal traffic scenarios. What happens if one robot stops in a main aisle? What happens if a charger is unavailable? What happens if a workstation is blocked? What happens if a high-priority task enters the system during congestion?

A mature AMR fleet system should not simply react after problems happen. It should prevent predictable conflicts through route coordination, safety zones, waiting points and dispatch logic.

Fleet traffic validation is especially important before expanding from pilot to full deployment. Adding more robots does not always increase throughput. Without proper traffic management, more robots can create more congestion.

Communication and System Integration Testing

Navigation and safety modules often depend on communication with other systems. The robot may connect with fleet management software, WMS, WCS, MES, ERP, conveyors, elevators, doors, charging stations, safety PLCs or operator interfaces.

Integration testing should confirm that commands, statuses, exceptions and confirmations are exchanged correctly.

If the WMS sends a task, does the fleet system assign the right robot? If the conveyor is not ready, does the robot wait or cancel the task? If a robot completes a delivery, does the system update inventory or production status? If a door does not open, does the robot stop safely? If network communication drops, what happens?

Communication problems can appear as navigation problems even when the robot is functioning properly. A robot may wait because a station signal is missing. It may fail to dispatch because task data is incomplete. It may stop because Wi-Fi coverage is weak in one area.

AMR commissioning should therefore include network testing, integration testing and exception testing. A robot is only as reliable as the system environment it depends on.

Define Acceptance Criteria Before Final Acceptance

AGV acceptance testing and AMR acceptance testing should be based on clear criteria. Without acceptance criteria, project teams may argue subjectively about whether the system is “good enough.”

Acceptance criteria should include measurable indicators. These may include:

Successful task completion rate
Docking success rate
Localization stability
Safety stop response
Maximum route deviation
Average task cycle time
Robot availability
Manual intervention frequency
Charging success rate
Traffic delay
System uptime
Recovery time after fault
Operator training completion
Maintenance procedure readiness

The exact criteria should match the application. A production line replenishment system may prioritize delivery punctuality. A warehouse picking system may prioritize throughput and fleet availability. A heavy-load robot may prioritize safety and stability.

Acceptance testing should include both technical tests and operational tests. Technical tests prove functions. Operational tests prove business value.

The best acceptance process does not try to hide problems. It reveals them early enough to fix them.

Operator Training Is Part of Validation

Even the best AMR system can fail if people do not understand how to work with it.

Operators should know robot routes, warning signals, waiting zones, crossing rules, emergency stop use, restart procedures, docking areas, charging areas and exception handling. Maintenance staff should know how to inspect sensors, clean scanner windows, check charging contacts, replace markers, review alarms and escalate faults.

Training should be practical. Workers should see how the robot behaves in normal and abnormal situations. They should know what not to do, such as placing pallets in robot routes, standing inside docking zones or manually pushing robots without procedure.

Operator training also helps validate the system. If workers are confused by robot behavior, the issue may not be only training. It may indicate that routes, signals, status lights, floor markings or operating rules need improvement.

In successful deployments, people and robots are introduced as part of one operating system. The robot does not replace the need for process discipline. It increases the need for clear rules.

Maintenance Planning: Reliability Must Be Sustained

A robot system that works on the first day may decline if maintenance is ignored.

Navigation safety modules require regular inspection. LiDAR windows may become dusty. Cameras may become dirty. Safety scanner covers may be scratched. QR codes may wear out. RFID tags may be damaged. Charging contacts may collect dirt. Wheels may wear. Battery performance may change. Maps may become outdated after layout changes.

Maintenance planning should define who is responsible for each item, how often it should be checked and what procedure should be followed when an issue is found.

A maintenance plan should include sensor cleaning, safety function checks, map updates, charger inspection, battery monitoring, mechanical inspection, software updates, log review and spare parts planning.

This is part of AMR deployment validation because a system is not truly deployable if it cannot be maintained by the site team. The project should verify that maintenance tasks are practical, documented and understood.

Long-term reliability depends not only on hardware quality but also on maintenance discipline.

Performance Monitoring After Go-Live

Deployment validation does not end when the system goes live. The first weeks and months of operation provide valuable data.

AMR performance metrics should be monitored continuously. These may include task volume, average cycle time, failed tasks, docking retries, safety stops, blocked path events, localization warnings, charger utilization, battery health, robot availability, manual interventions and operator feedback.

This data helps identify improvement opportunities. If many robots stop in one aisle, the route may need redesign. If docking retries increase, the station may need inspection. If one robot reports more localization warnings than others, sensor calibration may be needed. If charging queues become long, charger capacity or dispatch strategy may need adjustment.

A mature automation system improves over time. It uses operational data to refine routes, rules, schedules, maps and maintenance.

For this reason, AMR deployment validation should include a post-go-live review process. The project team should review performance data after a defined period and make adjustments before scaling further.

Common Validation Mistakes to Avoid

One common mistake is validating only the happy path. The robot completes one normal task, and the project team assumes the system is ready. Real validation must include abnormal scenarios.

Another mistake is testing with an empty facility. Robots should be tested with workers, forklifts, pallets, noise, lighting changes and normal site activity.

A third mistake is ignoring docking repeatability. Docking should be tested many times, not once.

A fourth mistake is treating safety validation as a checklist only. Safety functions must be tested in the actual environment.

A fifth mistake is failing to define acceptance criteria. Without measurable criteria, final approval becomes subjective.

A sixth mistake is underestimating maintenance. Dirty sensors, worn markers and outdated maps can reduce reliability.

A seventh mistake is scaling too quickly. A pilot should be expanded only after traffic, charging, dispatching and process performance have been validated.

Avoiding these mistakes can save significant time and cost.

Conclusion: Deployment Validation Turns AMR Technology Into Operational Confidence

Navigation and safety modules are the foundation of AMR reliability. They determine whether a robot can localize, move, avoid obstacles, dock, charge, coordinate with other robots, interact with people and recover from abnormal conditions.

But these capabilities must be validated, not assumed.

AMR deployment validation should begin with site survey and workflow analysis. It should include AMR risk assessment, map validation, localization testing, obstacle testing, docking verification, robot safety validation, fleet traffic testing, communication testing, operator training, acceptance criteria and maintenance planning.

The purpose is not to make deployment slower. The purpose is to prevent avoidable problems before they become production interruptions.

A strong validation process helps manufacturers prove product maturity, helps integrators reduce project risk and helps end users gain confidence in automation. It also provides a practical bridge between technical capability and business value.

In the real world, AMR success is not measured by one impressive demo. It is measured by stable daily operation, low intervention, safe behavior, predictable performance and continuous improvement.

That is why deployment validation is the final and most important step in the Navigation & Safety Modules journey. It turns mobile robot technology into a reliable industrial system.

Focused FAQ

What is AMR deployment validation?

AMR deployment validation is the process of testing and confirming that an autonomous mobile robot system can operate safely, reliably and efficiently in a real warehouse or factory before full production use.

Why are navigation safety modules important in AMR deployment?

Navigation safety modules control localization, obstacle detection, safety zones, docking, route behavior, fleet coordination and safe stopping. They directly affect whether the robot can operate safely and consistently.

What should an AMR site survey include?

An AMR site survey should review floor conditions, aisle widths, traffic flow, pedestrian areas, forklift routes, docking points, charging locations, Wi-Fi coverage, lighting, obstacles and workflow requirements.

What is AMR risk assessment?

AMR risk assessment identifies hazards related to robot movement, payloads, people, forklifts, docking areas, charging stations, emergency stops and abnormal operation. It defines how risks should be reduced.

How should robot safety validation be performed?

Robot safety validation should test safety scanners, emergency stops, protective fields, speed zones, warning signals, obstacle response, safe restart behavior and interaction with people in real site conditions.

Why is docking validation important?

Docking validation is important because many AMR tasks require precise alignment with charging stations, conveyors, workstations, pallets or carts. A robot that navigates well may still fail if docking is unreliable.

What are useful AMR performance metrics?

Useful AMR performance metrics include task completion rate, cycle time, docking success rate, robot availability, safety stop frequency, manual intervention rate, charging success rate, blocked path events and system uptime.

What is AGV acceptance testing?

AGV acceptance testing is the formal process of verifying that an AGV or AMR system meets agreed technical, safety and operational requirements before final project acceptance.

Why is operator training part of AMR validation?

Operator training is part of AMR validation because workers must understand robot routes, warning signals, safety zones, emergency procedures, docking areas and exception handling for the system to operate safely.

When should AMR validation end?

AMR validation should not end at go-live. Performance should be monitored after deployment, using operational data to improve routes, maps, docking stations, traffic rules, maintenance and fleet efficiency.
