How to Install an A-Frame Trailer Jack Safely: Step-by-Step Guide for Manual and Electric Replacements

Installing a new trailer jack sounds simple, but it is one of those jobs where small mistakes can create major frustration later. A jack that is mounted incorrectly may bind during use, sit too low for towing, interfere with nearby components, or feel unstable under load. That is why learning how to install an A-frame trailer jack properly is just as important as choosing the right model in the first place.

Whether you are doing a full trailer tongue jack replacement, upgrading from a worn manual jack, or handling an electric tongue jack installation, the process should be approached carefully. The right installation improves safety, makes hitching easier, and helps the jack work the way it was designed to.

In this guide, you will learn the basic steps for A-frame trailer jack installation, including how to remove the old unit, check fitment, install the new jack, and test it before towing again.

Why Proper Installation Matters

An A-frame jack is not just another bolt-on accessory. It plays a direct role in hitching, unhitching, front-end support, and daily trailer handling. If the jack is not seated correctly at the mounting point, aligned properly, or secured with the correct hardware, it can affect both convenience and safety.

This matters even more when replacing an older unit. A new jack may look similar to the old one but still differ in body shape, handle clearance, mounting height, or wiring layout. That is one reason installation should never be rushed after purchase.

Tools and Materials You Should Prepare First

Before you begin, get everything ready so the trailer does not sit unsupported while you search for tools.

A basic setup usually includes:

• wheel chocks
• a support jack or appropriate tongue support
• wrenches or socket set
• torque wrench
• work gloves
• mounting hardware if required
• wire connectors and electrical tools for powered models
• rust cleaner or wire brush if the old mount is dirty

If you are doing electric tongue jack installation, make sure you also have the correct power lead, fuse protection if needed, and a clean grounding point available.

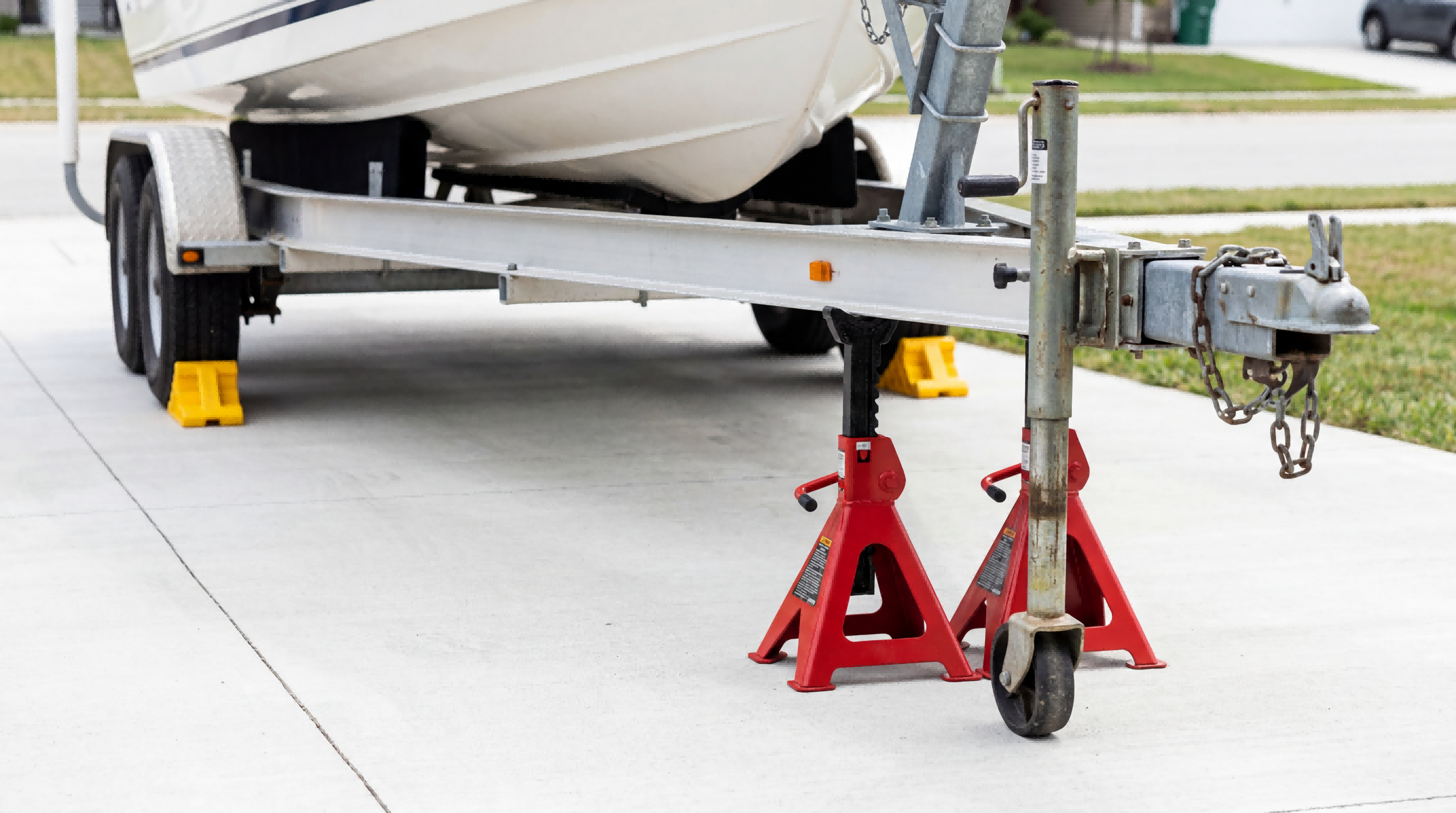

Step 1: Secure the Trailer Before Removing Anything

Before removing the old jack, secure the trailer on stable, level ground. Place wheel chocks firmly at the tires and make sure the trailer cannot roll. If the existing jack is being removed completely, the tongue must be safely supported before the mounting hardware comes off. Haway’s trailer jack service guidance specifically recommends chocking the wheels and supporting the trailer properly before disassembly.

This is one of the most important parts of how to replace an A-frame trailer jack. Many installation problems begin because people focus on the new jack and forget to stabilize the trailer first.

Step 2: Remove the Old Trailer Jack

The next step is removing the old jack from the A-frame mount. For a typical manual trailer jack installation replacement, this usually means loosening and removing the mounting bolts or hardware at the triangular A-frame plate. For welded units, removal may be more involved and is often better left to someone with proper fabrication experience.

As you remove the old jack, pay attention to:

• mounting hole pattern
• bracket condition
• rust or damage around the opening
• crank direction and clearance
• any washers, spacers, or special hardware used before

These details help make the new installation easier and reduce the chance of mounting the replacement incorrectly.

Step 3: Clean and Inspect the Mounting Area

Before installing the new jack, inspect the mounting point carefully. Dirt, rust, old paint buildup, burrs, or bent metal can keep the new jack from seating correctly.

Clean the area and check for:

• cracks around the mounting plate
• elongated bolt holes
• corrosion around the A-frame opening
• interference from nearby frame members
• signs that the old jack shifted or mounted unevenly

A clean mount helps the new jack sit squarely and reduces stress on the body and hardware after installation.

Step 4: Confirm the New Jack Fits the A-Frame Opening

Before tightening anything, place the new jack into position and confirm that the fit is correct. This is where many owners realize the replacement is close, but not actually right.

Check:

• tube size and shape
• bolt-hole alignment
• clearance for the crank handle or motor housing
• footplate or base position
• whether the jack sits straight in the opening

This step matters in any A-frame trailer jack installation, but especially when switching between different brands or upgrading from a manual model to a powered one.

Step 5: Install and Tighten the New Jack

Once fitment is confirmed, install the new jack and secure it with the appropriate mounting hardware. Tighten the hardware evenly so the jack seats flat and square against the mounting area.

If it is a manual trailer jack installation, confirm the handle can turn freely without hitting propane tanks, battery boxes, toolboxes, or the trailer body.

If it is an electric tongue jack installation, confirm the motor housing orientation also leaves room for the switch area, manual override access, and top cover clearance. TOW-MAX’s electric trailer jack guidance highlights push-button operation, top access manual override, and fitment for A-frame couplers, which makes clearance planning especially important during installation.

Step 6: Wire the Electric Jack Correctly

If your replacement is electric, wiring becomes part of the installation job. This is one of the biggest differences between manual trailer jack installation and electric tongue jack installation.

When setting up trailer jack wiring, make sure:

• the positive power lead is connected correctly
• the grounding point is clean and secure
• wires are routed away from pinch points and sharp edges
• connections are protected from moisture and vibration
• the fuse or circuit protection matches the jack requirements

TOW-MAX’s install and product guidance for electric tongue jacks centers on battery-powered operation and emergency manual override, which means good wiring and accessible backup operation are both essential.

Step 7: Test the Jack Before Towing

After the jack is mounted, do not assume the job is finished. Cycle the jack up and down several times before towing.

Check for:

• smooth movement
• unusual grinding or binding
• handle or motor interference
• secure mounting with no shifting
• proper lifting range for hitching and unhitching
• enough retracted height for road clearance

If you are working on how to install an A-frame trailer jack, this test step is just as important as the install itself. A jack that technically mounts but does not operate cleanly is not ready for service.

Step 8: Check Clearance in Real Towing Position

This step is often skipped. Once the jack is fully retracted, check its ground clearance and nearby component clearance in actual towing position.

Make sure:

• the foot or base does not hang too low
• the crank handle is secured correctly
• the electric jack housing clears nearby accessories
• safety chains, coupler, and wiring still move freely
• the jack will not hit curbs, ramps, or uneven ground too easily

This final check helps catch issues before they turn into damaged hardware on the road.

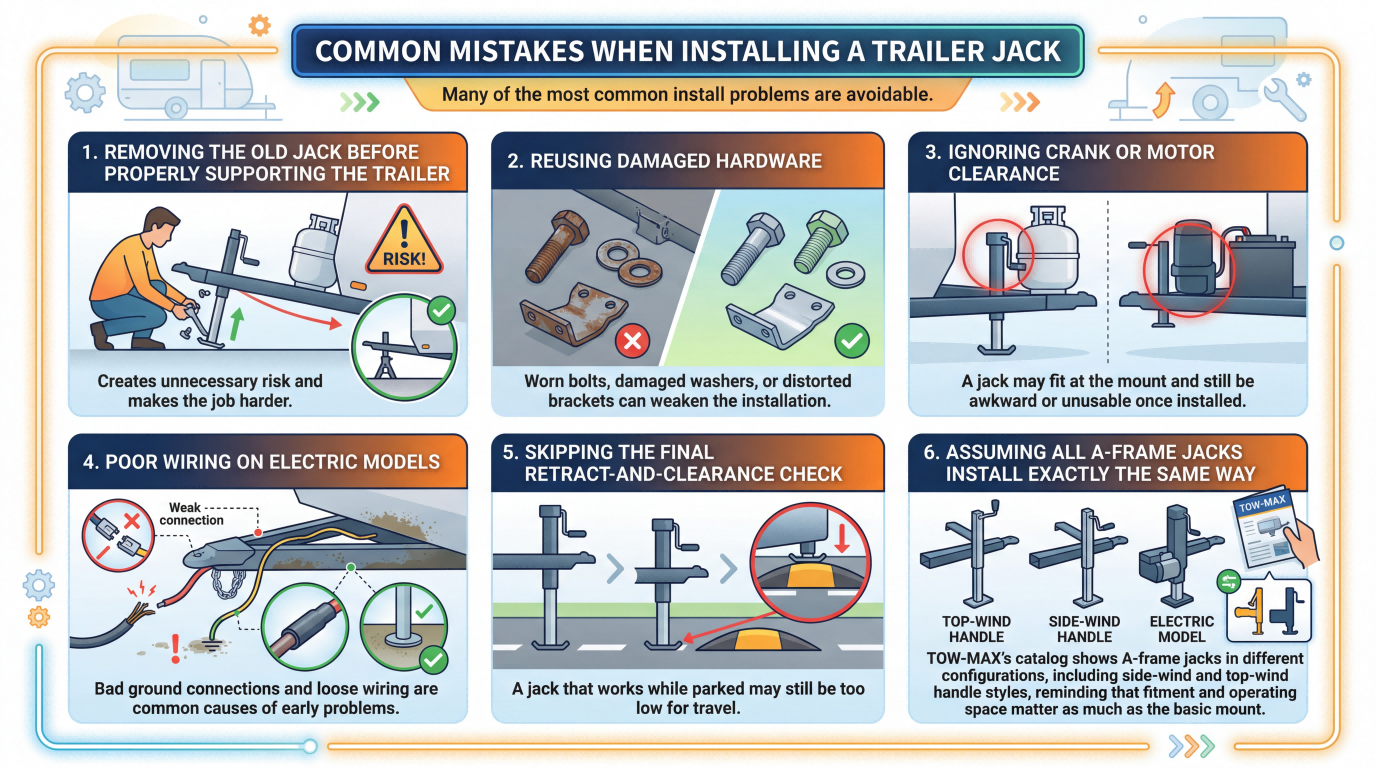

Common Mistakes When Installing a Trailer Jack

Many of the most common install problems are avoidable.

1. Removing the old jack before properly supporting the trailer

This creates unnecessary risk and makes the job harder.

2. Reusing damaged hardware

Worn bolts, damaged washers, or distorted brackets can weaken the installation.

3. Ignoring crank or motor clearance

A jack may fit at the mount and still be awkward or unusable once installed.

4. Poor wiring on electric models

Bad ground connections and loose wiring are common causes of early problems.

5. Skipping the final retract-and-clearance check

A jack that works while parked may still be too low for travel.

6. Assuming all A-frame jacks install exactly the same way

TOW-MAX’s catalog shows A-frame jacks in different configurations, including side-wind and top-wind handle styles, which is a reminder that fitment and operating space matter as much as the basic mount.

Manual vs Electric Installation: What Changes?

The basic mount process is often similar, but electric models add more considerations.

A manual trailer jack installation is usually simpler because there is no power lead, fuse, or switch housing to plan around.

An electric tongue jack installation adds:

• battery connection planning
• wire routing
• grounding
• manual override access
• motor housing clearance
• switch testing after install

So while the mounting steps may look similar, electric models require more attention to practical setup details.

Final Thoughts

If you want the simplest answer to how to install an A-frame trailer jack, it is this: secure the trailer first, remove the old unit carefully, confirm fitment before tightening, wire electric models correctly, and always test the jack before towing again.

A successful trailer tongue jack replacement is not only about getting the new jack onto the trailer. It is about making sure the jack is aligned, secure, functional, and clear of interference in real use. Take the extra time to install it correctly, and the trailer will be much easier to hitch, unhitch, and handle afterward.

FAQ

1. Can I install an A-frame trailer jack myself?

Yes, many owners can handle basic A-frame trailer jack installation themselves if the trailer is properly secured and the replacement matches the existing mount.

2. What is the biggest mistake when replacing a trailer jack?

One of the biggest mistakes is removing the old jack before the trailer tongue is safely supported.

3. Is electric tongue jack installation much harder than manual installation?

It is not always much harder, but it adds wiring, grounding, and motor clearance checks that manual jacks do not require.

4. Should I reuse the old trailer jack mounting bolts?

Only if the hardware is in excellent condition and suitable for the new jack. Damaged or worn hardware should be replaced.

5. What should I check after installing a new trailer jack?

Test movement, check mounting stability, verify wiring on electric models, and confirm towing clearance when the jack is fully retracted.
