From Daily Samples to Closed-Loop Control: How Refiners Should Monitor Neutralizer Performance

For decades, many crude-unit overhead corrosion programs were managed through a familiar routine. An operator collected sour water. A laboratory measured pH, chloride and iron. The results arrived later. Someone compared the numbers with operating targets. If pH was low, the neutralizer rate might be increased. If chloride was high, the desalter or caustic program might receive attention. If iron rose, corrosion concerns became more urgent.

This approach created valuable operating history, and periodic laboratory analysis remains important. But it has one unavoidable limitation: a sample is a snapshot of a process that never stops moving.

Crude blends change between samples. Desalter performance moves. Caustic pumps cycle. Neutralizer delivery drifts. Wash-water conditions change. Tower-top temperature moves. A chloride excursion can begin and recover before the next bottle reaches the laboratory. A short low-pH event can expose metal for hours while the daily average still looks acceptable.

This is why modern refinery overhead monitoring is increasingly becoming a control-system problem rather than merely a laboratory-testing problem.

Yet adding more sensors does not automatically create better corrosion control.

A badly conditioned sample can produce a precise but misleading pH signal. A chloride analyzer can detect a change without explaining its source. Iron can indicate metal loss without identifying where the metal was lost. A closed-loop controller can respond rapidly to low pH while unintentionally increasing amine salt formation. A dashboard can display thousands of data points while still failing to show whether the refinery is inside a safe chemical operating envelope.

The engineering objective is therefore not maximum measurement frequency.

It is:

measure the right variables, from a representative sample, at a useful frequency, understand what each variable can and cannot prove, and connect automated action to defined chemical and corrosion boundaries.

This article focuses on that architecture. Readers who first need the chemistry behind the pH measurement can review the guide to refinery neutralizing amines and overhead pH control.

The real monitoring system begins before the analyzer

An online analyzer is often treated as the measurement system.

It is only one part of it.

The complete measurement chain begins inside the process pipe or vessel and continues through sample extraction, transport, phase handling, temperature adjustment, filtration or separation where required, analyzer measurement, signal validation, historian storage, control logic and finally the operating action taken from the result.

A failure at any one of these stages can distort the final decision.

Stage 1 — The process creates the condition

The first question is what is physically happening inside the crude overhead.

The relevant process condition can include:

• acid loading;
• chloride loading;
• water condensation;
• ammonia and amine concentration;
• neutralizer addition;
• tower-top temperature;
• pressure;
• wash-water behavior;
• hydrocarbon carryover;
• corrosion of exposed metallurgy.

An analyzer can only interpret what reaches it. It cannot directly reconstruct every upstream condition that existed before the sample was extracted.

Stage 2 — The sample must represent the process

This is where many monitoring discussions become too instrument-focused.

A sample line may extract water from one location while the most corrosive environment exists somewhere upstream.

The sample can experience cooling during transport.

Hydrocarbon can enter the sample system.

Solids can accumulate.

Flow can become intermittent.

Pressure reduction can alter phase behavior.

Residence time inside the sample system can delay the apparent process response.

Therefore, representative sampling is part of online corrosion monitoring, not a mechanical detail that sits outside the analytical program.

Stage 3 — Sample conditioning changes whether the analyzer can be trusted

A reliable sample conditioning system may need to manage temperature, hydrocarbon contamination, solids, flow stability and pressure before the sample reaches sensitive measurement equipment.

This becomes especially important in crude overhead water because the sample may not resemble clean laboratory water.

Warm sour water, entrained hydrocarbon and changing process conditions can challenge sensors that appear highly accurate under controlled calibration conditions.

This leads to a useful rule:

Analyzer accuracy does not equal measurement accuracy if the sample reaching the analyzer is not representative or properly conditioned.

Stage 4 — The signal becomes operating information

Once a measurement enters the control system, it needs context.

A pH of 5.7 by itself is a number.

A pH of 5.7 combined with stable chloride, stable neutralizer delivery and normal crude conditions tells one story.

A pH of 5.7 accompanied by a rapidly rising chloride signal tells another.

The refinery therefore needs to monitor relationships, not isolated values.

Build the monitoring architecture around four types of data

One reason refinery dashboards become difficult to use is that every variable is displayed as if it had the same meaning.

It does not.

A more useful refinery overhead monitoring architecture separates variables according to the role they play in decision-making.

Type 1 — Fast control variables

These are variables that can change quickly and may justify rapid operating response.

For neutralizer programs, continuous pH monitoring is the most obvious example.

Process temperature, pressure, chemical-flow indication and selected water-flow measurements may also belong in this group.

The value of a fast variable is temporal resolution.

It can show:

• when an excursion started;
• how rapidly it developed;
• how deep the excursion became;
• how long it lasted;
• whether the corrective action worked;
• whether the variable oscillated after control action.

This information is often lost when the same variable is represented by one manual reading per day.

Type 2 — Demand and contaminant variables

These variables help explain why the control variable changed.

Overhead chloride monitoring is particularly important because chloride loading can provide context for changing acid burden and neutralizer demand.

Other refinery-specific measurements may include ammonia, selected amines, organic acids or upstream salt-related information.

These variables answer a different question from pH.

pH asks:

“What is the current acid-base condition of this sampled water?”

Chloride asks:

“How is part of the contaminant burden changing?”

The two measurements should therefore be correlated, not substituted for one another.

Type 3 — Outcome variables

The process can maintain a target pH while still experiencing corrosion.

For this reason, the refinery needs outcome indicators.

Iron corrosion monitoring can provide one useful indication of carbon-steel corrosion entering the sampled water system.

Corrosion probes, coupons, ultrasonic inspection, thickness monitoring and physical inspection can provide additional evidence depending on the unit.

Outcome variables answer:

“Did the protection strategy actually reduce damage?”

This is fundamentally different from asking:

“Did the dosing pump run?”

Type 4 — Boundary variables

These variables define whether an automatic control action remains inside an acceptable operating envelope.

They can include:

• chloride loading;
• neutralizer rate;
• tower-top temperature;
• predicted salt point;
• water dew point;
• water-wash availability;
• crude slate;
• desalter condition;
• background amines;
• maximum approved chemical rate.

This category is crucial because a controller can successfully correct pH while simultaneously moving another risk variable in the wrong direction.

pH is ideal for fast control precisely because it is not the whole corrosion model

This may sound contradictory.

It is not.

pH is valuable because it responds directly to acid-base chemistry in the sampled aqueous phase. It can therefore provide a fast signal for neutralizer adjustment.

But continuous pH monitoring should be treated as a control variable, not as proof that the entire overhead system is safe.

Continuous measurement exposes excursion depth and duration

Suppose manual samples are collected every morning.

Monday: pH 5.8.

Tuesday: pH 5.9.

Wednesday: pH 5.7.

The weekly report may look stable.

But continuous data could reveal that Tuesday night included a three-hour excursion below the approved operating range followed by a rapid recovery after the neutralizer rate changed.

The daily sample did not produce a false result.

It simply did not observe the event.

High-frequency pH data reveals control quality

A good control program does not merely keep the average close to target.

It minimizes undesirable variability.

Useful statistics can include:

• percentage of time inside the approved range;
• number of excursions;
• excursion duration;
• minimum pH;
• recovery time;
• control oscillation;
• relationship between chemical rate and pH response.

This is more informative than a monthly average.

Stable pH can hide increasing salt risk

This is the critical automation warning.

If chloride increases and the controller responds by adding more neutralizing amine, pH can remain stable.

From the controller's perspective, performance is excellent.

From the salt-balance perspective, more chloride plus more amine can increase the quantity or change the location of neutralization salts.

This is why pH-controlled automation needs salt-risk guardrails.

The mechanism is explored in the site's guide to amine salt deposition and refinery overhead corrosion.

Chloride is a demand signal, not a direct corrosion-rate meter

Overhead chloride monitoring becomes especially valuable when the refinery processes changing crude slates or experiences variable desalter performance.

A chloride increase can indicate that the overhead treatment program is receiving a larger challenge.

But chloride should not be interpreted simplistically.

High chloride does not automatically equal high corrosion at that instant

Actual corrosion depends on the full aqueous chemistry, neutralization state, temperature, location, metallurgy, flow, deposits and other factors.

A high chloride concentration combined with effective pH control can produce a different immediate corrosion condition from the same chloride concentration at very low pH.

However, the high-chloride case may create another concern:

greater neutralizer requirement and greater salt-forming potential.

Chloride trending is often more valuable than one absolute result

A refinery should ask:

• Did chloride change suddenly?
• Did pH respond before or after the chloride movement?
• Did neutralizer rate increase?
• Did the crude tank change?
• Did desalter operating conditions change?
• Did caustic delivery change?
• Was the chloride excursion temporary or sustained?

This turns chloride analysis into a diagnostic tool rather than a compliance number.

Chloride data should trigger upstream investigation

A neutralizer can manage the downstream acid burden.

It cannot remove chloride from crude that should have been better controlled upstream.

If chloride repeatedly increases, the monitoring architecture should direct attention toward crude quality, desalting, wash water, caustic and related upstream variables.

The site's article on layered refinery overhead corrosion control explains why one failed upstream layer changes the burden placed on every downstream treatment.

Iron is a lagging outcome indicator—and that is exactly why it matters

pH tells the refinery about aqueous acid-base conditions.

Chloride helps describe part of the contaminant burden.

Iron corrosion monitoring asks a different question:

Is the system producing evidence consistent with metal loss?

This makes iron one of the most important variables for checking whether a chemically “successful” program is actually protecting equipment.

Iron may respond later than pH

A low-pH excursion can occur before the resulting corrosion products are fully represented in the sampled water.

This time lag matters when event timelines are reconstructed.

An engineer should not necessarily expect pH, chloride and iron to peak at exactly the same minute.

A normal iron number does not prove every surface is safe

Localized corrosion can occur in one branch, underneath deposits or upstream of the sample point.

Corrosion products can also deposit rather than remain fully represented in bulk water.

This is why iron should be combined with probes, inspections and equipment history where practical.

Iron becomes especially powerful when correlated with events

Consider two cases.

Case A:

pH falls briefly, chloride is stable, neutralizer delivery is found to have failed, and iron increases later.

That pattern supports one type of root-cause interpretation.

Case B:

pH remains stable, chloride rises, neutralizer rate rises and iron increases while exchanger pressure drop also climbs.

That pattern should increase concern about salt-related or localized mechanisms rather than automatically calling for more neutralizer.

This is why event correlation matters more than isolated laboratory interpretation.

The sample conditioning system is part of corrosion control

Industrial analyzers are often evaluated by accuracy, repeatability, measurement range and maintenance interval.

Those specifications matter.

But crude overhead service adds another variable:

Can the analyzer continuously receive a sample it is capable of measuring reliably?

Temperature can distort reliability

A sample that arrives hotter than the analyzer's intended operating condition may require cooling or stabilization.

Temperature also affects electrode behavior and the physical condition of the sample.

Hydrocarbon contamination can interfere with measurement

Overhead sour water may contain entrained hydrocarbon.

If that material reaches sensors or tubing, it can create fouling, coating, slow response or unstable readings.

The appropriate sample conditioning system may therefore need to address hydrocarbon separation or filtration depending on the application.

Solids create another failure pathway

Corrosion products, salt particles and process solids can restrict small sample passages or coat analytical surfaces.

An analyzer that gradually becomes fouled may continue transmitting numbers long after the quality of those numbers has deteriorated.

Sample flow should be monitored as a measurement variable

No sample flow means no representative analysis.

Low or unstable flow can also create delay.

Therefore, sample-system health should be visible to operators.

A useful analyzer status should distinguish:

• measurement available;
• measurement valid;
• measurement questionable;
• sample unavailable;
• maintenance required.

These states are more informative than a dashboard that simply continues displaying the last numerical value.

A crude overhead analyzer should be treated as an instrumented process package

The phrase crude overhead analyzer can make the equipment sound like a single instrument in a cabinet.

In practice, the reliability requirement is closer to a small process package.

It may include:

• sample extraction;
• isolation;
• pressure handling;
• cooling;
• filtration or phase management;
• sample flow control;
• pH measurement;
• chloride analysis;
• iron analysis;
• cleaning functions;
• calibration;
• drain or return handling;
• instrument diagnostics;
• communications;
• control-system integration.

Reliability should therefore be evaluated at the package level.

Analyzer uptime is not enough

An analyzer can technically be “online” while producing questionable data because the sample system is fouled or improperly conditioned.

Better KPIs include:

• valid-data availability;
• calibration compliance;
• sample-flow availability;
• comparison with laboratory validation samples;
• maintenance frequency;
• false-alarm frequency;
• response time after known process changes.

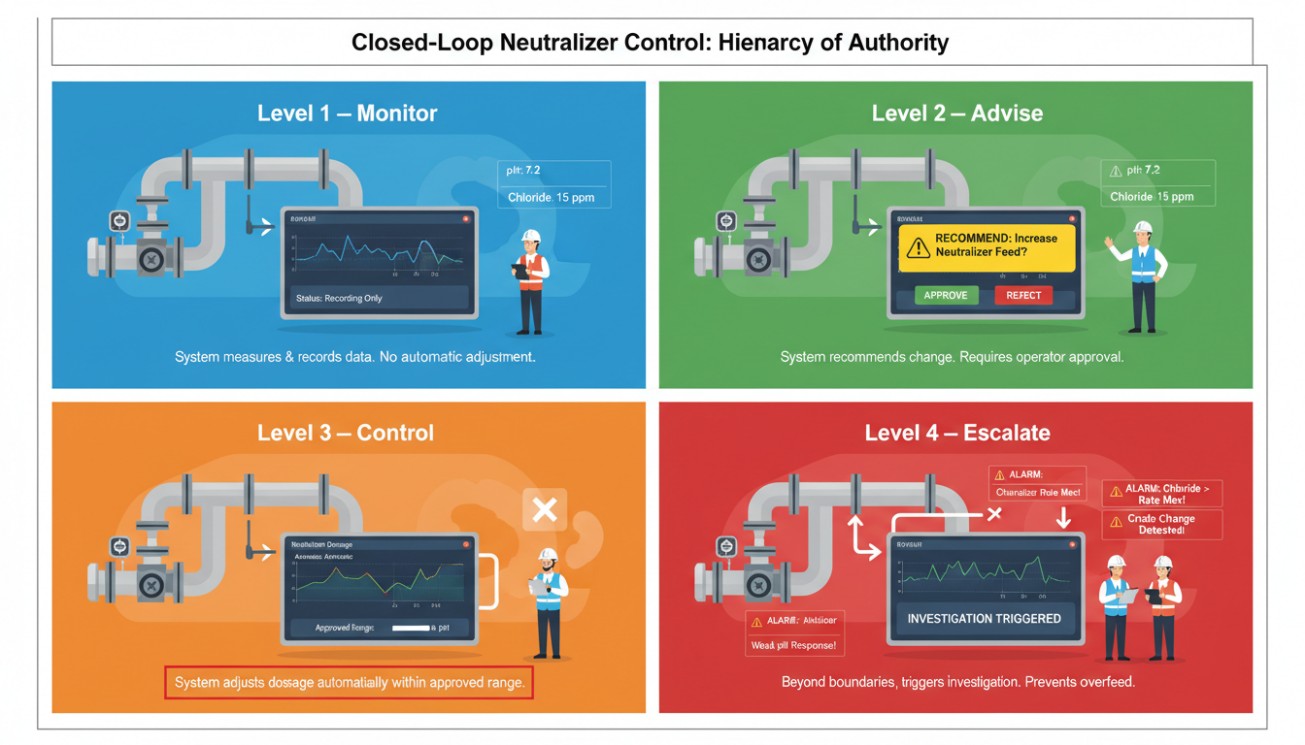

Closed-loop neutralizer control needs a hierarchy of authority

The attraction of neutralizer closed-loop control is obvious.

Measure pH continuously.

Compare it with the operating target.

Increase or reduce neutralizer feed automatically.

In a variable crude unit, that can provide a much faster response than waiting for a manual sample.

But a mature control strategy requires more than one proportional relationship between pH and pump speed.

Level 1 — Monitor

The system measures and records process chemistry but makes no automatic chemical adjustment.

This mode is useful during commissioning and learning.

Engineers can compare analyzer signals with laboratory results, process events and operator actions.

Level 2 — Advise

The system recommends a neutralizer change but requires operator approval.

This allows the refinery to test the logic before granting automatic authority.

Level 3 — Control

The system performs neutralizer dosage control automatically within an approved range.

The important phrase is:

within an approved range.

The controller should not have unlimited authority to chase a pH setpoint.

Level 4 — Escalate

If another boundary is exceeded, the controller stops treating the event as a routine pH correction and triggers investigation.

Examples can include:

• chloride above an approved boundary;
• neutralizer rate above the qualified maximum;
• unexpectedly weak pH response to increasing chemical;
• sample-system diagnostic failure;
• salt-risk model warning;
• major crude change;
• water-wash loss;
• abnormal iron response.

This hierarchy prevents automation from converting a process problem into permanent chemical overfeed.

The controller should know when not to add more neutralizer

This may be the most important sentence in the entire article.

A neutralizer controller should not simply know how to increase chemical.

It should know when increasing chemical is no longer the correct primary response.

Guardrail 1 — Maximum approved dosage

The automatic controller should operate inside a qualified range.

If the required rate exceeds that range, the system should trigger escalation instead of silently continuing upward.

Guardrail 2 — Chloride escalation

If pH falls because chloride loading is rising rapidly, increased neutralizer may be necessary for temporary protection.

But the monitoring system should simultaneously identify that upstream investigation is required.

Guardrail 3 — Salt-point margin

More neutralizing amine can move salt formation into a less favorable location.

Where the refinery uses ionic-equilibrium or salt-point modeling, the control philosophy should recognize this boundary.

Guardrail 4 — Water-wash availability

A chemical strategy that assumes effective water wash should not remain unchanged after wash-water failure.

Guardrail 5 — Data validity

Automatic control should not continue normally on a sensor identified as unreliable.

A fouled pH electrode should not be allowed to command unlimited chemical addition.

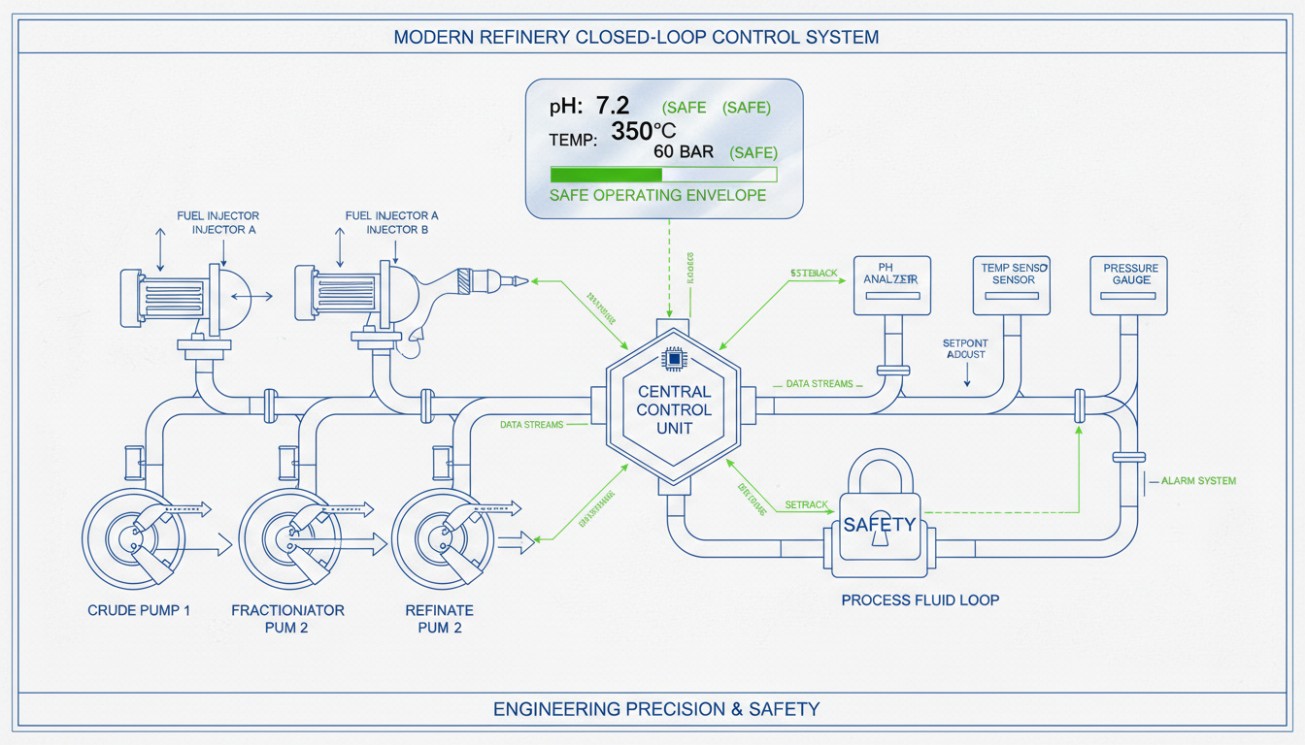

Closed-loop control should follow the operating envelope, not replace it

Automation can react more quickly than people.

It cannot decide what “safe” means unless engineers have first defined the boundary.

This distinction is essential to neutralizer closed-loop control.

The operating envelope should include chemistry

Relevant variables may include:

• approved pH range;
• chloride range;
• neutralizer range;
• temperature;
• water dew point;
• salt point;
• background amines;
• water wash;
• crude slate;
• desalter performance.

The operating envelope should include equipment

The neutralizer pump has a reliable operating range.

The injector has a qualified flow and atomization range.

The analyzer has a valid measurement range.

The sample conditioning package has temperature and contamination limits.

Therefore, “safe control” is both a chemical and mechanical concept.

The mechanical delivery side is covered in the site's guide to refinery neutralizer injection engineering.

Use event replay instead of arguing from monthly averages

High-frequency data creates one capability that periodic sampling rarely provides:

the ability to replay an incident.

An event replay reconstructs the process from before the first abnormal signal until the system stabilizes again.

Start before the alarm

Do not begin the trend at the moment pH crossed the alarm limit.

Look backward.

What changed first?

Review:

• crude tank or blend;
• desalter variables;
• caustic rate;
• overhead chloride;
• tower temperature;
• neutralizer rate;
• sample flow;
• pH;
• iron;
• water wash;
• pressure;
• operator actions.

Align timestamps correctly

Process historian timestamps, analyzer cycles and laboratory sample times may not represent the same physical moment.

If chloride analysis operates intermittently while pH is continuous, the time resolution will differ.

Sample transport can add delay.

Laboratory reporting can add additional delay.

The engineer should distinguish:

sample collection time;

measurement time;

reporting time;

and control-action time.

Look for cause before response

Suppose pH falls at 02:15 and neutralizer rises at 02:17.

The neutralizer increase did not cause the original pH drop.

It is the response.

The cause may exist twenty minutes, two hours or several process residence times earlier.

The troubleshooting framework in the crude overhead low-pH root-cause guide expands this timeline method.

The best refinery corrosion KPI is not one number

A mature refinery corrosion KPI architecture should separate control quality, contaminant burden, damage outcome and measurement reliability.

Time-in-range is usually more informative than average

Consider two units.

Unit A maintains pH almost continuously near the middle of its approved range.

Unit B experiences repeated deep excursions followed by high-pH overcorrection.

The monthly average pH of both units could be similar.

Their corrosion-control quality is not.

KPI compliance should be paired with variability

A unit can technically remain inside a wide specification but oscillate from one boundary to the other.

Reducing variability increases operating margin.

Therefore, performance reporting should include both compliance and statistical stability.

High-frequency data can expose bad assumptions in the old sampling program

One of the most valuable outcomes of online corrosion monitoring is not faster reaction.

It is discovering that the refinery's previous understanding of the process was incomplete.

Manual sampling can unintentionally favor convenient operating periods.

Samples may be collected at similar times of day.

Short excursions may occur at night.

Crude transitions may happen between samples.

Maintenance events may create temporary disturbances that disappear before routine testing.

When high-frequency data becomes available, the refinery may learn that its “stable” system was actually highly variable.

More data should change the questions, not only the charts

Instead of asking:

“What was today's pH?”

the refinery can ask:

“How many minutes did pH spend outside the approved range?”

Instead of:

“Was chloride below the monthly target?”

ask:

“Which operating events produced the highest chloride excursions?”

Instead of:

“How much neutralizer did we consume?”

ask:

“Why did chemical demand change relative to chloride, crude rate and pH?”

This is the real value of data density.

Analyzer disagreement should trigger validation, not averaging

Imagine the online pH analyzer reads 5.2 while the laboratory grab sample reads 6.0.

A common temptation is to assume the truth is somewhere in the middle.

That is not a valid analytical method.

First confirm whether both measurements represent the same sample condition

Were they taken from the same location?

At the same time?

At the same temperature?

Was there a transport delay?

Was hydrocarbon present?

Was the laboratory sample allowed to change before measurement?

Check analyzer health

Review:

• calibration;
• electrode condition;
• sample flow;
• sample temperature;
• fouling;
• diagnostic flags;
• recent maintenance.

Check manual-sampling quality too

Online equipment is not the only measurement that can be wrong.

A manual sample can be unrepresentative, contaminated or delayed.

The goal is not to decide whether “online” or “laboratory” is inherently superior.

The goal is to determine which measurement best represents the process condition being investigated.

Automation should create fewer unexplained chemical movements

A successful automated program should make chemical behavior easier to explain.

If neutralizer consumption increases, the data should help explain why.

Possible drivers include:

• higher chloride;
• lower upstream caustic effectiveness;
• crude change;
• different acid loading;
• process-temperature change;
• injection-performance deterioration;
• measurement error.

If neutralizer dosage control repeatedly increases chemical without an identifiable demand signal, the control system deserves investigation.

Use dose-response trends

Track how pH responds to changes in neutralizer under comparable process conditions.

If historical response weakens, ask whether:

• the acid burden changed;
• chemical concentration changed;
• the pump is delivering correctly;
• the injector is fouled;
• mixing changed;
• the analyzer response changed.

This converts chemical consumption into diagnostic information.

A new analyzer should begin in learning mode

The fastest way to undermine confidence in a new system is to commission it and immediately give it full automatic authority.

A better approach begins with observation.

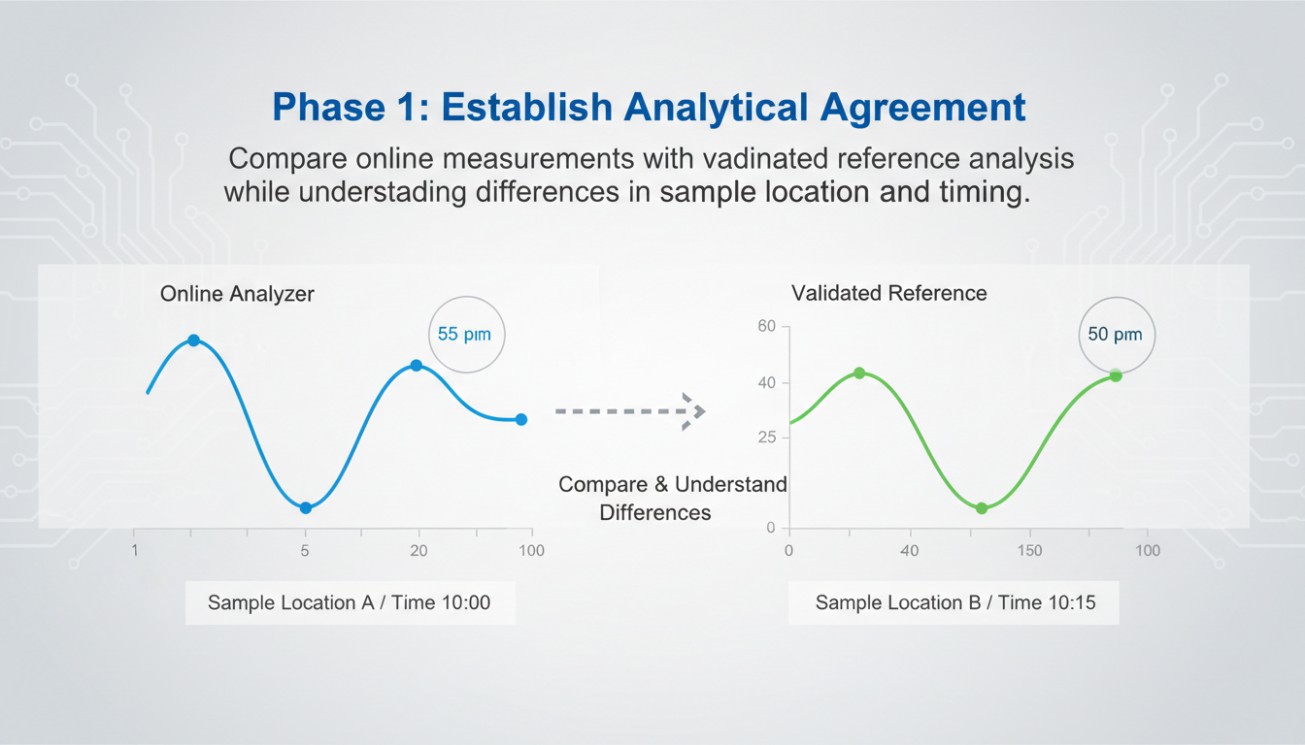

Phase 1 — Establish analytical agreement

Compare online measurements with validated reference analysis while understanding differences in sample location and timing.

Phase 2 — Establish process correlation

Confirm that the analyzer responds logically to known process changes.

When crude changes, does chloride move as expected?

When neutralizer changes, does pH respond?

When a sample-system issue occurs, do diagnostics detect it?

Phase 3 — Define control boundaries

Determine approved:

• pH control range;
• neutralizer rate limits;
• alarm limits;
• chloride escalation levels;
• analyzer-validity conditions;
• fallback strategy;
• manual override conditions.

Phase 4 — Use advisory control

Allow operators to compare system recommendations with their own actions.

Phase 5 — Enable automatic control

Only after the refinery understands analyzer behavior and safe boundaries should the system receive broader control authority.

Every automatic mode needs a defined fallback mode

A refinery should decide what happens before an analyzer fails—not during the failure.

If pH measurement becomes invalid

Possible site-specific responses can include:

• hold last validated rate temporarily;
• return to a conservative predefined manual rate;
• switch to operator control;
• increase sampling frequency;
• trigger maintenance;
• limit crude or operating changes until measurement is restored.

The correct strategy is site-specific.

What matters is that it exists.

If chloride measurement is lost

The unit may continue operating while increasing reliance on upstream indicators and manual analysis, depending on site procedures.

But the risk model has lost one important demand variable.

If the sample conditioning system fails

The refinery should treat analyzer data as potentially invalid even if the instrument itself still appears powered and healthy.

This distinction should be built into alarm logic.

Monitoring design should include management of change

A monitoring system calibrated for one process environment can become less representative after the unit changes.

New crude slate

Hydrocarbon carryover, chloride behavior, ammonia, tramp amines and water chemistry can change.

New neutralizer formulation

Dose-response behavior and salt risk can change.

New sample location

The measurement may represent a different part of the system.

New water-wash strategy

The aqueous composition reaching the analyzer can change.

New overhead temperature

Condensation and salt formation locations may move.

New analyzer or sample-conditioning hardware

Historical trends may not remain directly comparable without validation.

Each of these should trigger review of the refinery corrosion KPI basis and control logic.

What should a refinery specify when buying an online monitoring package?

Procurement should not stop at:

“Supply one online pH analyzer.”

The technical request should describe the operating problem the package must solve.

Process conditions

Specify:

• sample source;
• normal and upset temperature;
• pressure;
• hydrocarbon content or variability where known;
• solids risk;
• expected water chemistry;
• expected pH range;
• chloride range;
• iron range where applicable.

Sample conditioning

The vendor should explain how the sample conditioning system manages:

• temperature;
• hydrocarbons;
• solids;
• pressure;
• flow stability;
• cleaning;
• drainage;
• maintenance access.

Measurement performance

Ask for:

• measurement range;
• repeatability;
• response time;
• analysis cycle;
• calibration requirements;
• validation procedure;
• diagnostic capability;
• valid-data availability expectations.

Control integration

For neutralizer closed-loop control, define:

• control variable;
• chemical pump interface;
• minimum and maximum chemical rate;
• alarm logic;
• data-quality interlocks;
• manual override;
• fallback mode;
• historian requirements;
• operator visibility.

Lifecycle support

A technically impressive analyzer is of limited value if the refinery cannot maintain it.

Review:

• spares;
• consumables;
• sensor life;
• calibration materials;
• service availability;
• training;
• remote support;
• software support;
• data ownership;
• cybersecurity requirements.

Do not let the dashboard become the new daily sample

Digitalization can reproduce old thinking in a more attractive interface.

A refinery can replace one daily laboratory number with a screen containing twenty live numbers and still make decisions from only one of them.

The objective of monitoring modernization is not visual complexity.

It is better causal understanding.

The operator view should answer three questions immediately

Is the current chemistry inside the approved range?

Is the measurement trustworthy?

What changed that explains the current condition?

A screen that cannot answer those questions may contain too much data and too little information.

The corrosion engineer needs a different view

The corrosion or process engineer may need:

• longer-term trends;
• event overlays;
• dose-response analysis;
• crude-slate history;
• salt-point calculations;
• inspection findings;
• iron and probe trends;
• event frequency;
• analyzer reliability.

The same dataset can therefore support different interfaces for different decisions.

The mature endpoint is condition-based chemical control

The long-term value of a high-quality crude overhead analyzer is not simply that it measures more frequently.

Its value is the ability to connect chemical addition to actual process demand.

Traditional fixed-rate chemical programs assume that the process challenge is relatively stable.

Highly variable crude units challenge that assumption.

Condition-based control asks:

What is the current acid-base condition?

What is the current chloride burden?

What chemical rate is actually required?

Is the resulting corrosion outcome acceptable?

Is the system still inside its salt and equipment boundaries?

That final question separates intelligent automation from simple automatic dosing.

More data should create more restraint, not more chemical

This may be the most important operational lesson.

High-frequency monitoring should not make a refinery more willing to continuously adjust chemistry.

It should make the refinery better at distinguishing when an adjustment is necessary and when another control layer needs attention.

If chloride increases because the desalter is unstable, the data should reveal that.

If pH falls because neutralizer delivery is blocked, the data should reveal that.

If pH remains acceptable while salt risk rises, the data should reveal that.

If iron increases despite apparently stable chemistry, the data should force the investigation beyond pH.

If the sensor becomes unreliable, the control system should know that it has lost authority.

This is the real purpose of online corrosion monitoring.

It converts a series of disconnected laboratory values into an operating narrative.

And that narrative allows the refinery to answer the question that every good control system should eventually answer:

What changed, what does it mean, and what is the smallest correct action that keeps the unit inside its safe operating envelope?

Focused FAQ

Why is continuous pH monitoring useful in a refinery crude overhead?

Continuous pH monitoring can reveal short excursions, duration, recovery time and control variability that periodic manual samples may miss. It is particularly useful as a fast control variable for neutralizer adjustment, but it should be interpreted together with chloride, corrosion indicators and process conditions.

Can pH alone be used for closed-loop neutralizer control?

pH can be the primary feedback variable for neutralizer closed-loop control, but the control system should operate inside defined boundaries. Chloride loading, salt risk, maximum neutralizer rate, water wash, sample validity and process changes may all require limits or escalation logic so that the controller does not solve pH by creating another corrosion or fouling problem.

Why is overhead chloride monitoring important?

Overhead chloride monitoring helps refiners understand changes in contaminant and acid-control demand. A chloride increase can explain rising neutralizer demand and may point toward crude, desalter or caustic changes. Chloride should be used as contextual process information rather than treated as a direct corrosion-rate measurement.

What does iron monitoring tell a refinery?

Iron corrosion monitoring provides an indication of corrosion products entering the sampled aqueous system and helps determine whether chemical-control changes are producing an actual corrosion outcome. Iron can lag pH events and may not represent every localized damage mechanism, so it should be combined with other corrosion evidence.

Why is sample conditioning important for online analyzers?

A sample conditioning system helps deliver a representative, measurable sample to the analyzer by managing factors such as temperature, hydrocarbon contamination, solids, pressure and sample flow. An accurate analyzer can still produce poor process information if the sample reaching it is unrepresentative or improperly conditioned.

What should a crude overhead analyzer measure?

A crude overhead analyzer can include continuous or high-frequency measurement of variables such as pH, chloride and iron depending on the system design. The wider monitoring architecture should also integrate neutralizer flow, process temperature, desalter information, water wash and other variables required to understand the overhead operating envelope.

What is neutralizer dosage control?

Neutralizer dosage control is the adjustment of neutralizing-amine feed in response to measured process demand, commonly using overhead aqueous pH as an important feedback variable. A robust strategy includes rate limits, measurement validation, alarm logic and escalation when the process moves outside the approved control envelope.

What is the best refinery corrosion KPI for an automated overhead system?

There is no single best refinery corrosion KPI. A mature program combines time in the approved pH range, excursion frequency and duration, chloride performance, neutralizer demand, iron or corrosion measurements, salt-risk indicators and analyzer valid-data availability. Each KPI answers a different part of the protection question.

Can online monitoring replace laboratory analysis?

Not completely. Refinery overhead monitoring benefits from high-frequency online data, but laboratory analysis remains valuable for validation, expanded chemistry and troubleshooting. The strongest architecture uses online measurements for temporal resolution and control while retaining independent analytical verification.

What should happen if an online pH analyzer fails while neutralizer is in automatic control?

The refinery should have a predefined fallback strategy. Depending on site procedures, this may include transferring to manual control, holding or reverting to a predefined chemical rate, increasing manual sampling and initiating analyzer maintenance. Automatic control should not continue normally when the measurement required for that control is invalid.

#RefineryMonitoring #NeutralizerControl #ContinuousPH #ChlorideMonitoring #CorrosionMonitoring #CrudeOverhead #NeutralizingAmine #ProcessAutomation #RefineryCorrosion #ProcessChemistry #OnlineAnalyzer #AssetIntegrity
