Module Efficiency Is Not the Whole Story: How to Read PV Module Datasheets Correctly

A Datasheet Is Not a Product Ranking Sheet

Many solar buyers open a PV module datasheet and look first at two numbers: wattage and module efficiency. If one panel says 585 W and another says 610 W, the higher number looks better. If one module shows 22.8% efficiency and another shows 23.2%, the second one appears more advanced.

That is an understandable first reaction, but it is not a professional purchasing method.

A datasheet is not a product ranking sheet. It is a project risk document. It tells the buyer how the module behaves electrically, mechanically and commercially before that module becomes part of a real PV system. If it is read correctly, a datasheet can help prevent inverter mismatch, string design errors, installation problems, unrealistic yield expectations, warranty misunderstandings and long-term reliability risks.

This is especially important for standard PV modules, because standard products are often compared across many suppliers. The modules may look similar from the outside. They may use similar cell technologies, similar power classes and similar marketing claims. But their solar panel specifications can still lead to very different project outcomes.

A module with higher power may also be larger, heavier or higher in current. A module with attractive efficiency may have a weaker temperature coefficient. A module with a long warranty may have exclusions that matter in harsh climates. A module with strong mechanical load ratings may require specific mounting zones that installers must follow carefully.

The buyer’s job is not to find the biggest number. The buyer’s job is to understand what each number means after the module is installed.

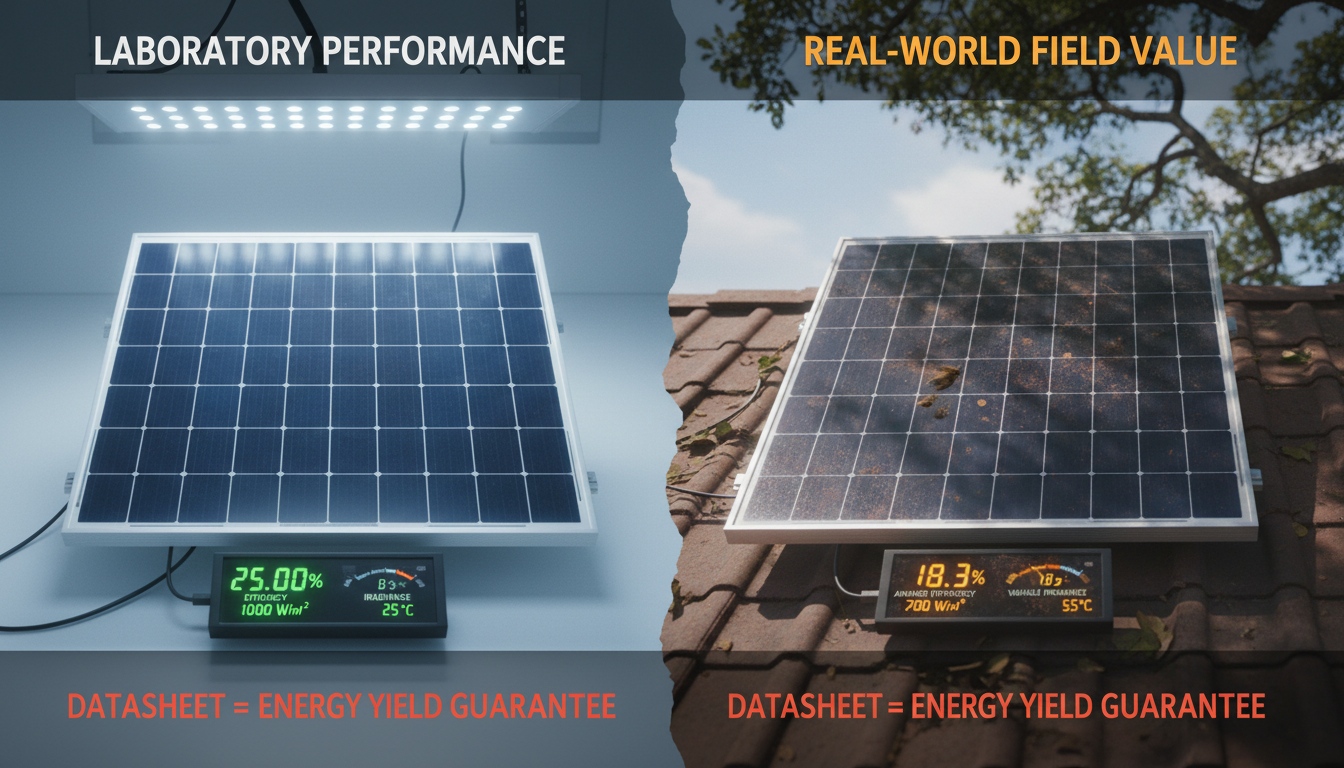

The First Rule: Separate Laboratory Performance From Field Value

Most module datasheets begin with performance under standard test conditions. These values are useful because they allow different products to be compared under the same reference environment. However, a PV system does not operate all year under neat laboratory conditions.

In the field, modules face changing irradiance, high temperature, low temperature, dust, wind, humidity, shade, soiling, cable losses, inverter behavior and long-term aging. That means a PV module datasheet should be read as a starting point, not as a final energy yield guarantee.

The most common mistake is to treat module efficiency as if it directly equals project performance. Efficiency tells how much sunlight is converted into electrical output under a defined test condition. It does not automatically tell the buyer how the module will perform on a hot roof, in a dusty desert, in a snowy region, on a tracker, in a coastal environment or in a system with inverter clipping.

A professional buyer reads the datasheet in layers:

What does the module produce under reference conditions?
How does it behave when temperature changes?
How does it affect inverter and string design?
Can the structure survive the site environment?
What does the warranty actually promise?
What hidden assumptions are needed before the product becomes bankable?

This layered reading is the difference between comparing panels and selecting assets.

Power Rating: Useful, But Easy to Misread

The power rating is usually the most visible number in solar panel specifications. It may appear as Pmax, maximum power, rated power or nominal power. A higher power rating can be valuable because it may allow more capacity per module, reduce the number of modules needed and improve project density.

However, the power rating should always be read together with module size and system design.

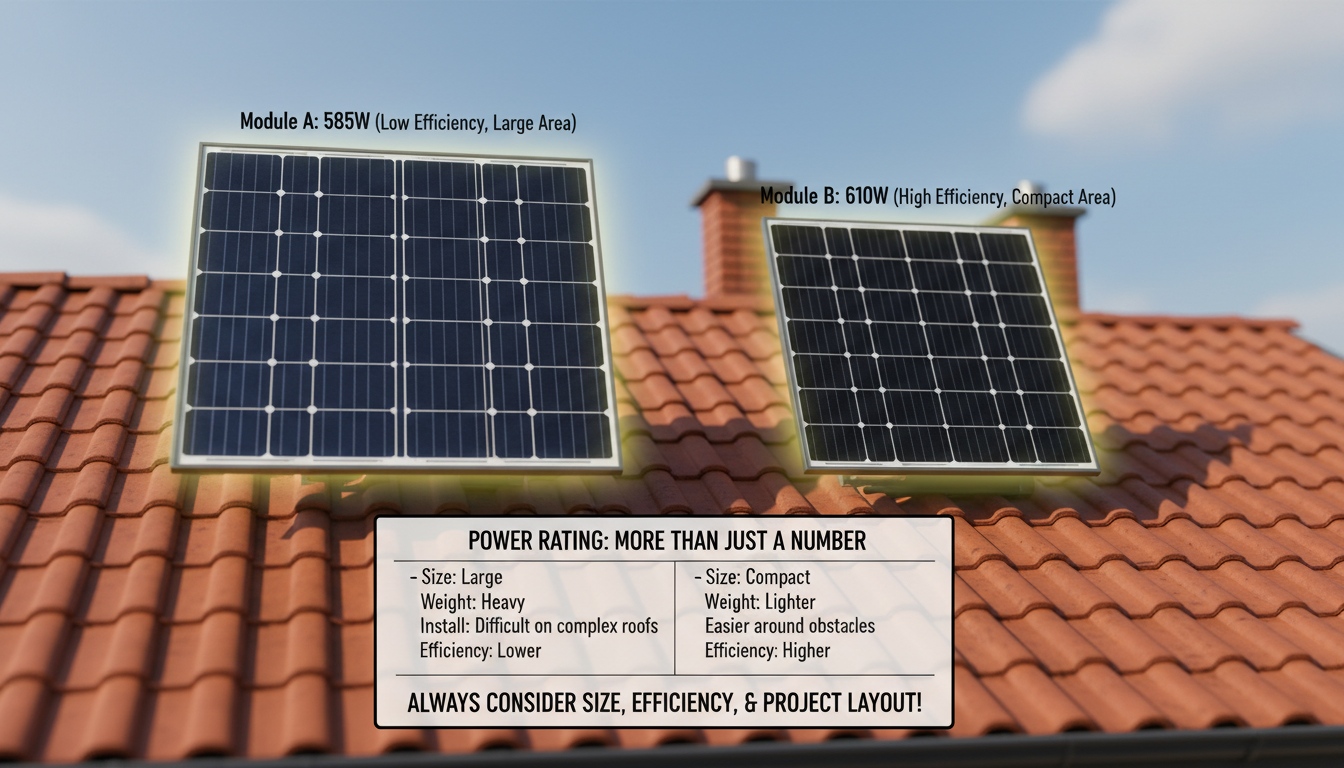

A 610 W module is not automatically better than a 585 W module if it is much larger, heavier, harder to install or incompatible with the mounting layout. Higher wattage may come from higher efficiency, larger area, or both. The buyer needs to know which one is true.

For rooftops, the physical size of the panel can be just as important as wattage. A large-format module may reduce the number of panels, but it may also be harder to fit around vents, skylights, fire access paths, roof edges and irregular surfaces. For utility projects, larger modules may reduce panel count and BOS cost, but they may also affect tracker compatibility, wind load and handling workflow.

Power tolerance is another detail buyers should check. A module may list a positive power tolerance, such as 0 to +5 W. This indicates that actual tested output should not fall below the stated rating within that tolerance range. For large projects, power tolerance can affect procurement confidence and energy modeling assumptions.

The key point is simple: power rating is important, but it is only meaningful when read with area, weight, current, voltage, logistics and project layout.

Efficiency: The Number Buyers Overuse

Module efficiency is one of the most marketed values in the PV industry. It is especially important when installation area is limited. A higher-efficiency module can help fit more capacity on a residential roof, a commercial rooftop with many obstacles, or any site where land or surface area is expensive.

But efficiency can be overused as a shortcut.

If two modules have similar size but different output, the higher-efficiency module may clearly offer better area utilization. However, if the higher-efficiency module also costs more, has different electrical behavior, or brings installation constraints, the final value must be calculated at the system level.

Efficiency also does not replace reliability. A module that is slightly more efficient but has weak documentation, poor warranty support or uncertain long-term behavior may not be the best choice for a serious project.

Buyers should ask:

Does higher efficiency solve a real space constraint?
Does it reduce BOS cost or only increase module price?
Does the project benefit from higher density?
Is the supplier’s quality control strong enough?
Do temperature behavior and degradation support the efficiency claim over time?

In a rooftop project, efficiency may be central. In a large ground-mounted project, energy yield, cost per watt, tracker compatibility, bifacial gain, installation speed and logistics may be equally important. In procurement, module efficiency should be a decision input, not the entire decision.

Electrical Parameters: Where System Design Begins

The electrical section of a PV module datasheet is where serious system design begins. These numbers decide how modules can be connected, how many modules can go into a string, which inverter can be used and what safety margins are required.

The key parameters usually include maximum power voltage, maximum power current, open circuit voltage, short circuit current, voltage at maximum power and current at maximum power. They may appear as Pmax, Vmp, Imp, Voc and Isc.

Open Circuit Voltage

Open circuit voltage is the voltage a module can produce when it is not connected to a load. This is extremely important for string design because voltage rises in cold conditions. If designers ignore cold-weather voltage, a string may exceed the maximum DC input voltage of the inverter or violate code requirements.

A buyer does not need to perform full engineering calculations during supplier screening, but the buyer should understand that higher Voc can reduce the number of modules allowed per string in cold climates.

Short Circuit Current

Short circuit current is the current a module can produce under short-circuit conditions. This parameter matters for conductor sizing, protection devices, inverter input current limits and safety design. As module currents have increased in newer high-power products, Isc and Imp deserve more attention.

A higher-current module may not be a problem, but it must match the inverter, combiner box, cables and protection design. If a buyer only compares wattage and ignores current, the system design may require changes later.

Voltage and Current at Maximum Power

Vmp and Imp describe the operating point where the module produces maximum power under reference conditions. These values influence string length, inverter MPPT behavior and DC-side design. When comparing modules, engineers often look at whether the voltage and current profile fits the inverter’s preferred operating range.

Electrical parameters make clear why a solar panel is not just a surface that produces watts. It is an electrical component that must operate safely inside a complete system.

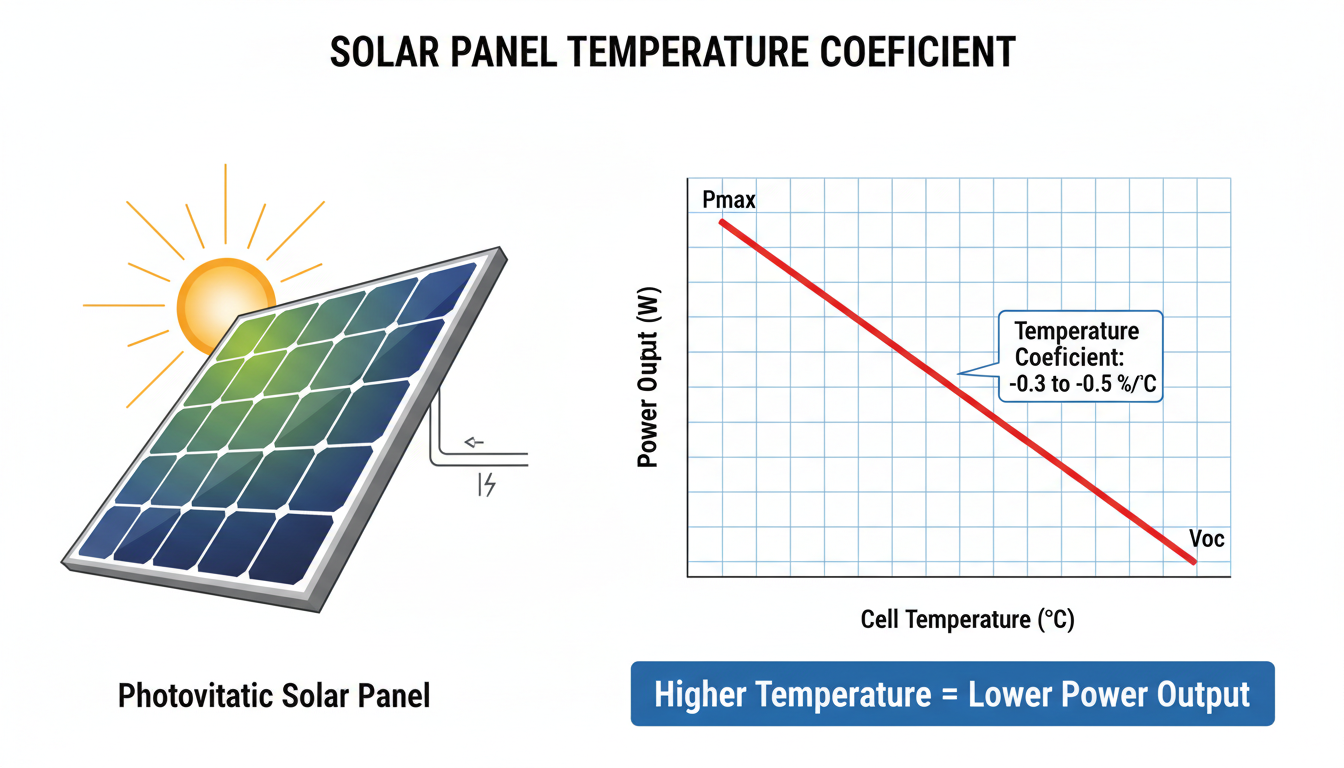

Temperature Coefficient: The Small Line That Changes Real Output

The temperature coefficient is one of the most important lines in a datasheet, but many buyers skip it. That is a mistake.

PV modules are rated under controlled conditions, but real modules often operate at temperatures much higher than the reference cell temperature. As the cell temperature rises, power output usually decreases. The temperature coefficient tells how much the module’s power, voltage or current changes with temperature.

The most important value for many buyers is the power temperature coefficient, often shown as %/°C. A less negative value generally means the module loses less power as it gets hotter. This can matter a lot in hot regions, on low-ventilation rooftops and in utility projects exposed to high daytime temperatures.

Voc temperature coefficient is also important because open circuit voltage increases when temperature drops. In cold climates, this affects maximum string length. Isc temperature coefficient matters for current behavior and protection design, though its variation is usually smaller than voltage and power effects.

A buyer should not look at temperature coefficient in isolation. It should be connected to climate, mounting method and expected operating temperature.

For example, a rooftop module mounted close to a hot surface may operate warmer than a ground-mounted module with better airflow. A desert project may need more attention to power loss at high temperatures. A cold mountain project may need more attention to Voc rise during low-temperature events.

The datasheet gives the coefficient. The project gives the meaning.

NMOT or NOCT: A Better Clue for Real Conditions

Many datasheets include NMOT or NOCT values. These refer to operating temperature under conditions closer to real outdoor use than standard test conditions. The exact terminology may vary by manufacturer and standard, but the purpose is similar: to show how the module behaves under more practical operating assumptions.

Buyers should use this section to understand that module temperature is not the same as ambient temperature. A PV module can be much hotter than the surrounding air because it absorbs sunlight and converts only part of that energy into electricity. The rest becomes heat.

This matters because heat affects output. When modules operate hotter, the temperature coefficient begins to influence real energy yield.

A datasheet with strong STC numbers but poor thermal behavior may not perform as well as expected in hot operating conditions. A module with slightly lower rated power but better temperature performance may become competitive in the field, especially in warm climates.

This is why professional PV module selection cannot rely only on STC power. NMOT or NOCT values help buyers move from laboratory comparison toward field expectation.

Dimensions and Weight: The Numbers That Affect Installation Cost

The mechanical data section of a datasheet often looks less exciting than efficiency or wattage. But dimensions and weight can strongly affect installation cost and project feasibility.

Module length and width determine how many panels fit on a roof, how rows are arranged, how many modules fit in a container, how pallets are handled and whether the panel is suitable for existing mounting systems. Thickness and frame design affect clamp compatibility and mechanical support.

Weight matters for rooftop load, manual handling, transport safety and installation speed. A heavier module may provide structural benefits in some designs, but it may also require more labor, safer lifting practices and stronger mounting review.

This is especially important as module formats grow larger. High-wattage modules can improve project density, but larger panels may be harder to handle on residential roofs or small commercial buildings. The labor cost of installing large panels can offset some of the product-level savings if the site is difficult.

For B2B buyers, dimensions and weight also affect logistics. Pallet count, container loading, unloading equipment, warehouse storage and site movement all influence actual cost. A module that looks cheaper per watt may become less attractive when logistics and installation complexity are included.

A datasheet is therefore a logistics document as much as a technical document.

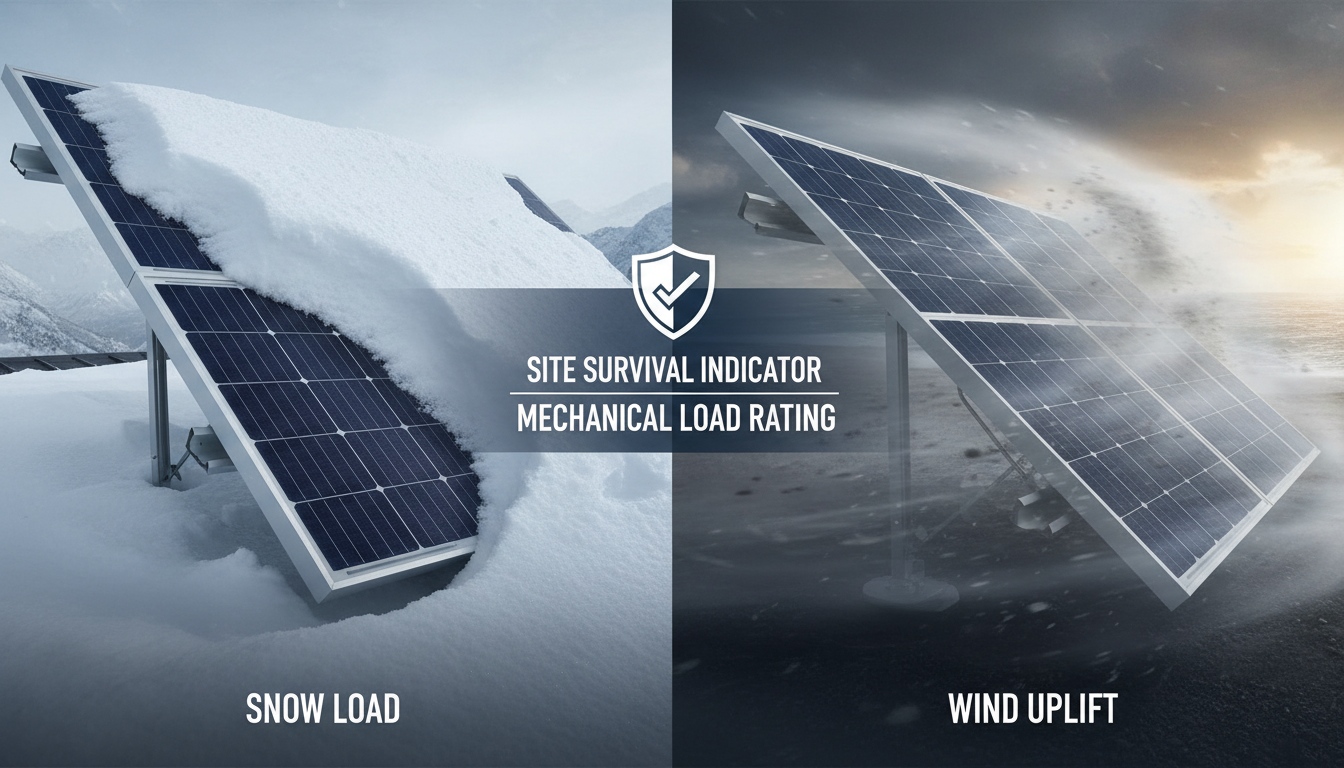

Mechanical Load Rating: The Site Survival Indicator

The mechanical load rating tells buyers how much pressure the module is designed to withstand under defined test conditions. It is usually related to snow load, wind load or front-side and rear-side pressure.

This section matters because PV modules must survive real environments. Snow accumulation, wind uplift, storms, transportation stress and mounting pressure can all create mechanical risk. If the module is not mounted according to the manufacturer’s instructions, the rated load may not apply.

That last point is important. Load ratings are usually valid only under specified mounting conditions. Clamp position, rail orientation, support span, frame type and installation method can change how stress is distributed across the module.

Buyers should read the mechanical load rating together with the installation manual. If the project is in a snow-heavy region, high-wind zone, coastal area or tracker system, mechanical details should not be treated as secondary.

For residential rooftops, mechanical load affects safety and long-term durability. For utility projects, it affects engineering approval, tracker compatibility and insurance confidence. For carports, elevated structures and exposed sites, wind behavior can become a major design consideration.

A module’s ability to generate power matters only if it can physically survive the site.

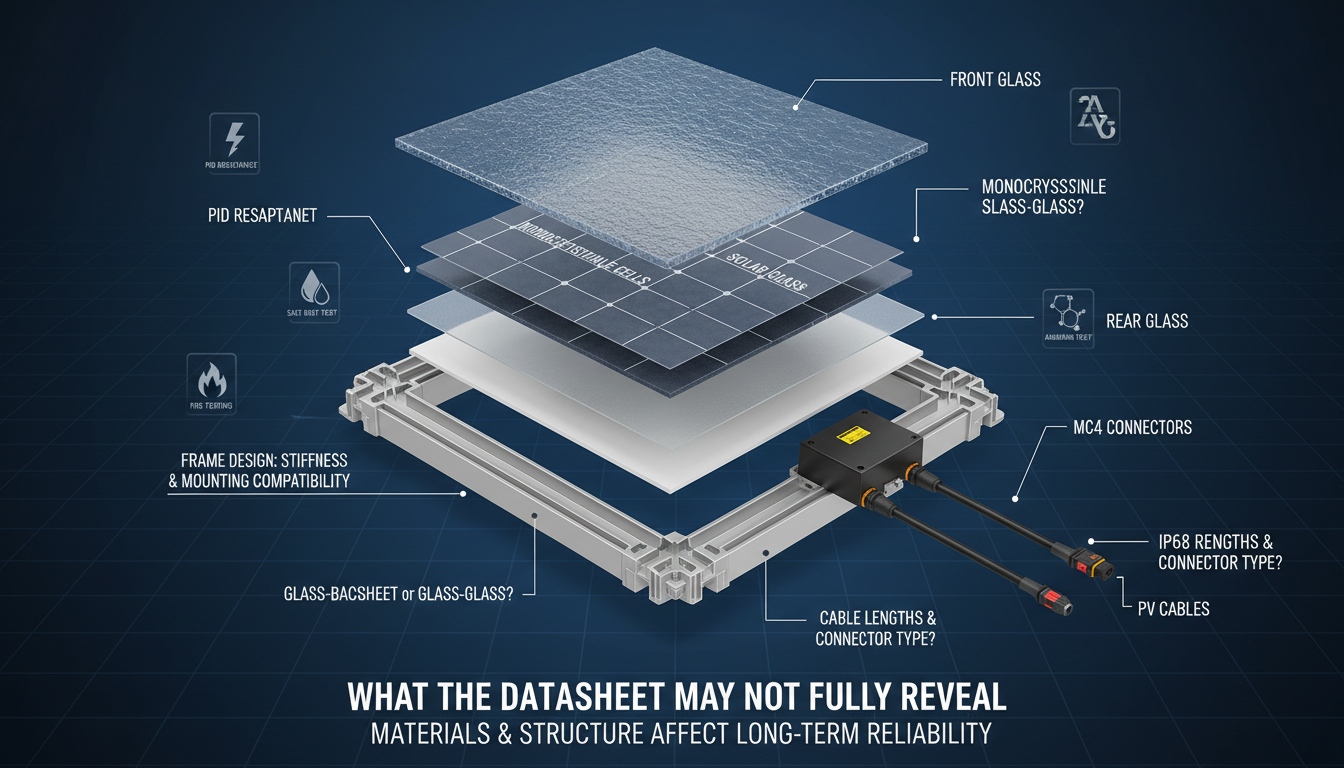

Materials and Structure: What the Datasheet May Not Fully Reveal

Datasheets often mention front glass, frame material, encapsulant, backsheet, rear glass, junction box, connector and cable length. These details may seem basic, but they affect long-term PV module reliability.

For example, glass thickness and type influence mechanical behavior. Frame design affects stiffness and mounting compatibility. Encapsulant choice can influence adhesion, moisture resistance, PID resistance and optical performance. Backsheet or rear glass selection affects durability and electrical insulation. Junction box quality affects safety and long-term operation.

However, datasheets may not reveal the complete bill of materials. Buyers may need to request additional information for large projects, harsh environments or bankability review.

A procurement team should ask:

What encapsulant is used?
Is the module glass-backsheet or glass-glass?
What connector type is supplied?
Are cable lengths suitable for the intended layout?
Is the junction box rated for the current and environment?
Does the module have relevant PID, salt mist, ammonia or fire testing where needed?

The datasheet starts the conversation. It does not always finish it.

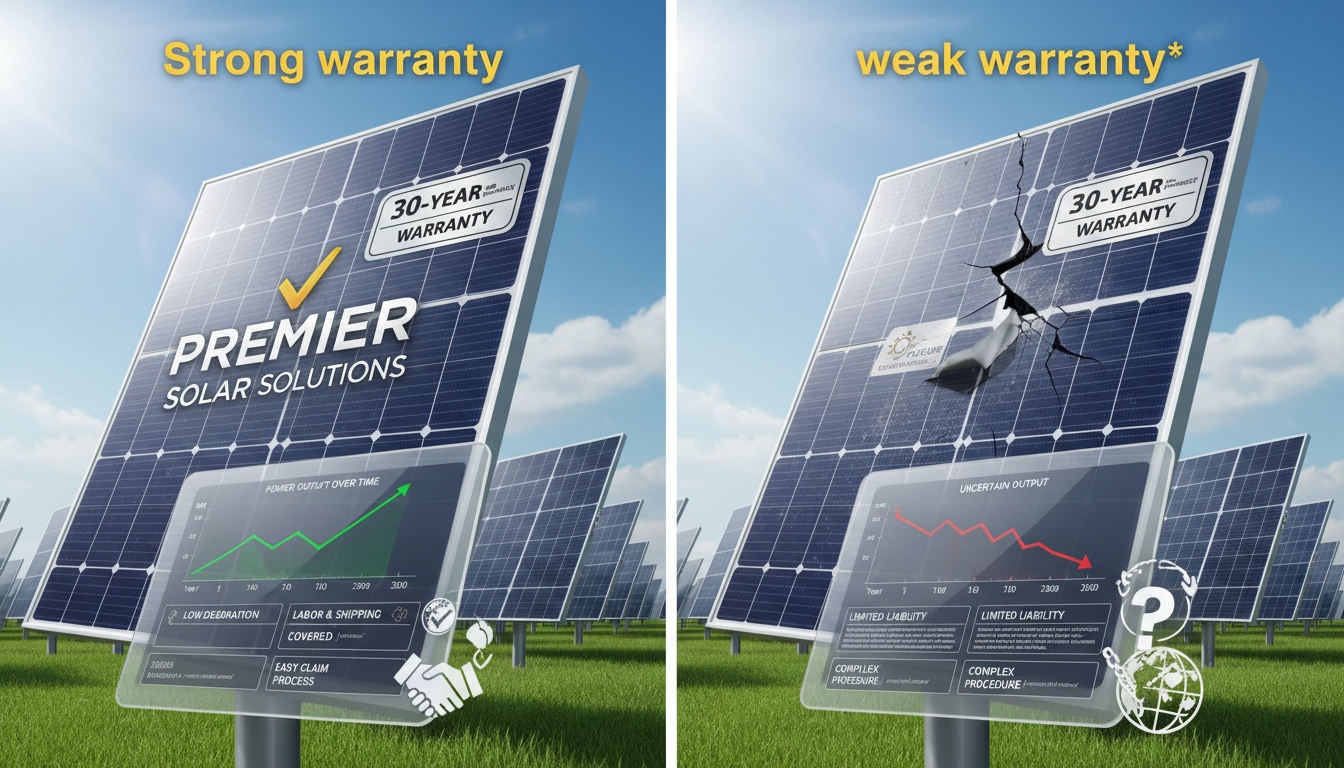

Warranty and Degradation: Read the Curve, Not Just the Years

A solar module warranty usually includes two separate ideas: product warranty and performance warranty. Buyers must not confuse them.

Product warranty covers defects in materials and workmanship. It may relate to frame defects, junction box issues, delamination, abnormal corrosion, glass defects or other manufacturing problems.

Performance warranty relates to expected output over time. It normally includes first-year degradation, annual degradation and final-year guaranteed output. This is where module degradation becomes part of the financial model.

A 30-year performance warranty may sound better than a 25-year warranty, but the details matter. What is the first-year degradation? What is the annual degradation after year one? What is the guaranteed output at year 25 or year 30? What testing method is used if there is a dispute? Does the warranty cover labor, shipping or only replacement product?

Buyers should also consider supplier credibility. A warranty is not just a promise; it is a claim process. If the supplier has weak local support, unclear procedures or poor documentation, a long warranty may be difficult to use.

In professional procurement, solar module warranty terms should be compared with the project ownership model. A long-owned asset needs strong warranty clarity. A short-term resale project may prioritize bankability and financeability. A remote site needs realistic replacement planning.

The warranty section is not legal decoration. It is part of risk pricing.

Certifications: Necessary, But Not the Whole Answer

Most standard PV modules list certifications such as IEC or other regional standards. These certifications are necessary for market entry, safety approval and project compliance. Buyers should always confirm that certificates match the exact model being purchased.

However, certification should not be confused with complete project suitability. Passing standard tests does not automatically prove that a module is ideal for every climate or application. Harsh environments may require additional evaluation, such as salt mist, ammonia, sand, hail, PID, fire classification or extended reliability testing.

This is especially true for projects in coastal zones, agricultural areas, high-humidity regions, desert environments, snow regions and industrial sites. A module may be certified but still not optimized for the site’s stress profile.

The buyer should treat certification as a baseline, not a final judgment. It confirms that the module has passed defined requirements. It does not replace climate-specific selection, supplier due diligence or installation review.

Three Buying Scenarios: How Datasheet Priorities Change

A good datasheet reading method changes by project type.

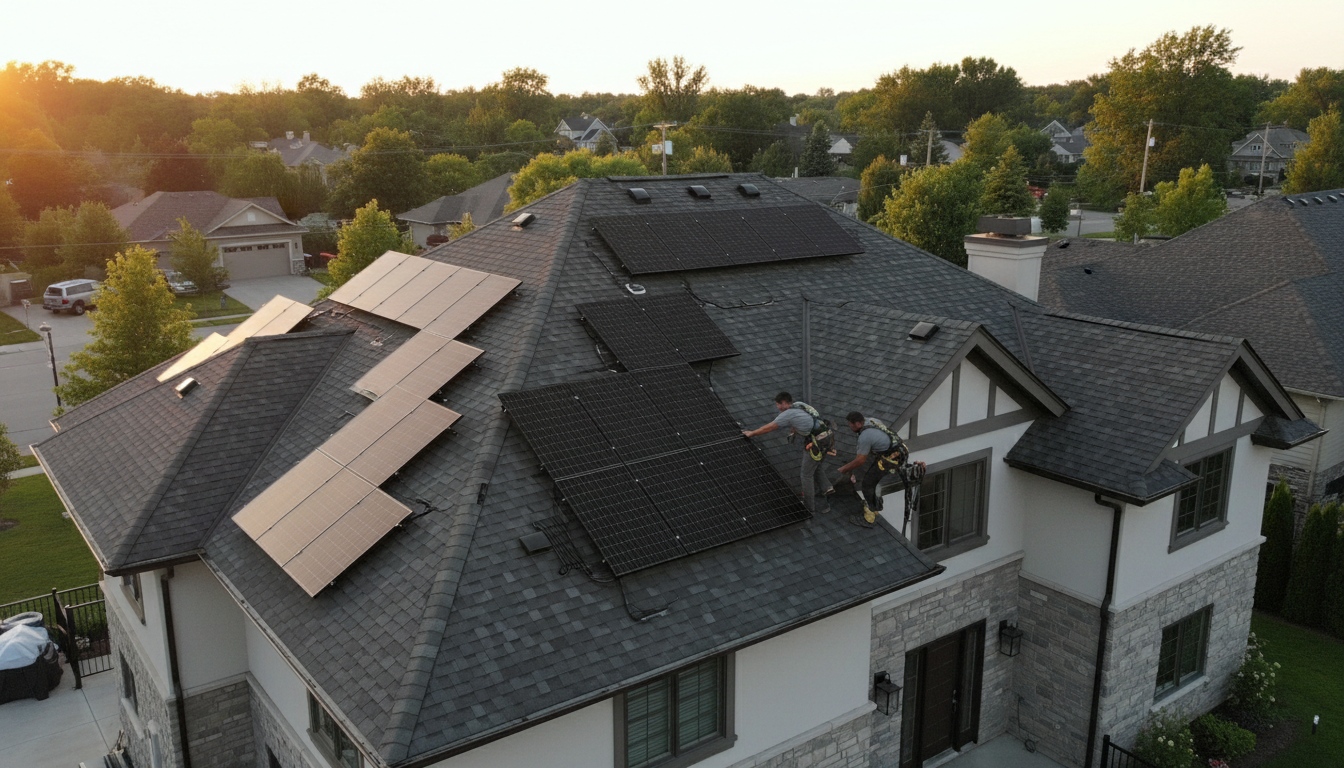

Residential Rooftop

For residential rooftops, buyers should prioritize physical dimensions, weight, efficiency, appearance, module current, fire classification, warranty and installer familiarity. Module efficiency may matter because roof space is limited. Weight and size matter because installers often work manually on sloped roofs.

The best datasheet question is: will this module fit the roof safely, look acceptable, match the inverter and produce strong lifetime value without complicating installation?

Commercial Rooftop

For commercial rooftops, buyers should focus on roof load, module size, mounting system compatibility, warranty, temperature performance, fire safety, layout density and financial return. A larger module may reduce panel count, but it must match roof access, wind design and maintenance pathways.

The best datasheet question is: will this module improve energy output and payback while staying compatible with roof structure, installation workflow and insurance requirements?

Utility-Scale Ground Mount

For utility projects, the priority shifts toward power class, current, voltage, tracker compatibility, bifacial potential, logistics, mechanical load, degradation, warranty and bankability. High-power modules may reduce BOS cost, but they must fit the electrical architecture and mounting system.

The best datasheet question is: does this module reduce lifetime cost of energy while staying reliable, installable and financeable?

These scenarios show why PV module selection cannot be one-size-fits-all. The same datasheet number can mean different things in different projects.

Red Flags Buyers Should Notice

A datasheet can also reveal warning signs.

One red flag is missing or vague warranty information. If the datasheet mentions long warranty years but does not clearly explain degradation terms, buyers should ask for the full warranty document.

Another red flag is incomplete mechanical information. If dimensions, weight, load rating or mounting guidance are unclear, the product may create installation risk.

A third red flag is unusually strong claims without supporting data. Extremely high performance, very long warranty or broad environmental claims should be supported by testing and documentation.

A fourth red flag is electrical mismatch with common inverter inputs. High current modules may be valuable, but only when system design supports them.

A fifth red flag is inconsistent documentation. If the product name, datasheet, certificate and warranty document do not match exactly, buyers should resolve the issue before ordering.

A sixth red flag is lack of supplier support. A datasheet may look professional, but buyers also need traceability, batch information, flash test reports, logistics support and after-sales process.

The best buyers read datasheets not only to confirm advantages, but also to detect uncertainty.

A Practical Datasheet Reading Order

A useful method is to read the PV module datasheet in this order:

Start with the module type and application. Is it intended for rooftop, utility, bifacial, glass-glass, glass-backsheet or all-black residential use?

Then read power and efficiency. Do the rating and module efficiency solve a real project need?

Next read electrical parameters. Check open circuit voltage, short circuit current, Vmp and Imp. Make sure the values can work with inverter and string design.

Then review temperature behavior. The temperature coefficient explains how the module may perform in hot or cold conditions.

After that, check dimensions and weight. These values affect roof layout, logistics and installation.

Then read the mechanical load rating and installation notes. Confirm that the module fits site stress and mounting design.

Next review materials and structure. Look at glass, frame, backsheet or rear glass, encapsulant, junction box, connector and cable details.

Then read solar module warranty and module degradation terms carefully. Compare first-year degradation, annual degradation and final-year guarantee.

Finally, check certifications and request supporting documents. Serious procurement should include certificates, warranty documents, installation manuals, packing details and flash test information.

This order helps buyers move from product attraction to project validation.

Final Insight: Datasheets Help Buyers Think Like System Owners

The most valuable role of a datasheet is not to help buyers choose the most impressive panel. It is to help them think like system owners.

A system owner cares about safe operation, predictable output, installation quality, maintenance risk, warranty enforceability and return over time. Those outcomes are shaped by datasheet details that casual buyers often ignore.

A higher-power module may improve density, but only if electrical and mechanical design support it. A high-efficiency module may improve roof utilization, but only if the project needs that density. A strong temperature coefficient may matter more in hot climates than in mild ones. A high mechanical load rating matters only when the mounting method follows the approved installation rules. A long warranty matters only when degradation terms and claim procedures are clear.

This is why a PV module datasheet should be read as a project document. It connects product performance with system design, procurement risk and long-term asset value.

For buyers, the best habit is to stop asking, “Which panel has the highest number?” and start asking, “Which module’s specifications best support this project?”

That is the difference between buying solar panels and selecting long-term energy infrastructure.

Focused FAQ

What is the most important part of a PV module datasheet?

The most important part depends on the project. A good PV module datasheet should be read across power rating, electrical values, temperature coefficient, dimensions, mechanical load, warranty, degradation and certification. No single number is enough.

Is module efficiency the best way to compare solar panels?

No. Module efficiency is important when space is limited, but it does not fully determine project value. Buyers also need to compare temperature behavior, voltage, current, weight, load rating, warranty, degradation and system compatibility.

Why does open circuit voltage matter?

Open circuit voltage matters because it affects string design and inverter safety limits. In cold conditions, Voc can rise, so designers must ensure that the string voltage does not exceed the inverter’s maximum DC input voltage.

Why does short circuit current matter?

Short circuit current affects protection design, cable sizing and inverter input compatibility. As modern modules move toward higher current, Isc and Imp become more important in system design.

What does temperature coefficient mean?

The temperature coefficient shows how power, voltage or current changes with temperature. A better power temperature coefficient can reduce output loss in hot operating conditions.

Why is mechanical load rating important?

The mechanical load rating shows how much pressure the module is designed to withstand under defined conditions. It matters for snow, wind, mounting method, tracker systems and long-term structural reliability.

What should buyers check in solar module warranty terms?

Buyers should check product warranty, performance warranty, first-year degradation, annual degradation, final-year guaranteed output, exclusions, testing method, claim process and supplier support. A solar module warranty should be evaluated by enforceability, not only years.

How does module degradation affect project value?

Module degradation reduces output over time. Lower degradation can improve lifetime energy yield and financial return, especially in long-term owned systems.

Are datasheet values enough for final procurement?

No. Datasheets are necessary but not enough. Serious PV module selection should also review certificates, installation manuals, warranty documents, supplier history, flash test data, packing information and project-specific engineering requirements.

What is the best way to read solar panel specifications?

The best way to read solar panel specifications is to connect every parameter to the project: roof or ground layout, inverter design, climate, mounting structure, logistics, installation method, warranty and lifetime energy yield.
