How Expandable Container Buildings Work: Structure, Hinges and Sealing
An Expandable Building Is a Set of Controlled Discontinuities
An ordinary room tries to make its structure, insulation, air barrier, weather layer and services continuous. An expandable room must deliberately interrupt those systems so that parts of the building can move—and then restore their performance after the movement stops. That is the central engineering challenge.
A brochure may show two wings opening from a compact central box. The movement looks simple because the difficult work is hidden inside the interfaces. Floors must meet without an unacceptable step or flexible edge. Roof sections must close against wind and rain. Wall panels must align with doors and windows. Hinges must rotate without binding. Locks must turn movable pieces into a stable assembly. Electrical cables, water lines and drainage must either remain inside the fixed core or cross a moving boundary safely.
For this reason, the quality of an expandable container house structure cannot be judged from the thickness of one steel member or the appearance of the finished interior. It must be judged by how several systems preserve continuity across planned breaks.
The most useful way to understand how expandable houses work is to follow four paths through the building:
- The load path carries roof, floor, occupancy, wind and other project-specific actions into the supports and foundation.
- The movement path controls how wings rotate or slide from transport position into their final geometry.
- The water-and-air path sheds rain, drains incidental moisture and restores envelope continuity at the joints.
- The service path carries electricity, water, waste, ventilation and communications without being damaged by movement.
If one path is unresolved, the unit may still look complete while remaining structurally uncertain, difficult to deploy, vulnerable to leakage or unsafe to commission.
One Building Must Be Engineered for Four Different States
The occupied configuration is only one part of the design problem. Expandable units experience a sequence of geometries, and the controlling condition may occur before anyone enters the building.
The folded transport state
In transport, walls, floors or roofs may be supported differently from the way they are supported after expansion. The compact unit experiences lifting, road vibration, braking, twisting, local restraint and temporary stacking or storage conditions. Interior finishes and glazing may also receive movement that would not occur in normal occupancy.
The transport drawing should identify total mass, center of gravity, permitted support locations, lifting points, restraint points and any temporary bracing. A visually strong expandable house frame can still be damaged if a carrier places supports under a nonstructural wing edge or tightens restraints across a vulnerable panel.
The intermediate deployment state
During opening, a wing may be partly supported by a hinge, partly supported by lifting equipment and not yet supported at its outer edge. Walls may not yet brace the floor. The roof may be raised before end panels are locked. This intermediate geometry can be less stable than both the folded and completed states.
Temporary supports, crane control, wind limits, exclusion zones and opening sequence are therefore engineering information. They should appear in the installation method, not be left to the crew’s intuition. A deployment video that shows only the beginning and the finished room hides the state in which geometry and personnel are often most exposed.
The locked occupied state
After opening, pins, bolts, latches, bearing seats, braces or other locking devices must establish the intended load path. Adjustable supports must carry the outer floor edges. Anchors must connect the deployed building to the site foundation. Weather details must be completed, and services must be tested.
“Fully open” and “structurally locked” are not synonyms. The installation checklist should define visible or measurable proof that every final connection has engaged. If the design requires a particular bolt torque, pin position, bearing contact or latch orientation, acceptance cannot be based on appearance alone.
The retraction and relocation state
A unit intended for relocation must reverse the sequence without trapping water, pinching cables, damaging finishes or folding over debris. Sealants that were site-applied may need to be cut and replaced. Gaskets may need cleaning or renewal. Utility connections must be isolated, drained and protected. Anchors and supports must be released in a controlled order.
Repeated movement is not automatically safe because the unit opened successfully once. Wear, corrosion, bent hardware, swollen materials and field modifications change the next cycle. A relocation plan should define inspection and replacement criteria before the building is allowed to close again.

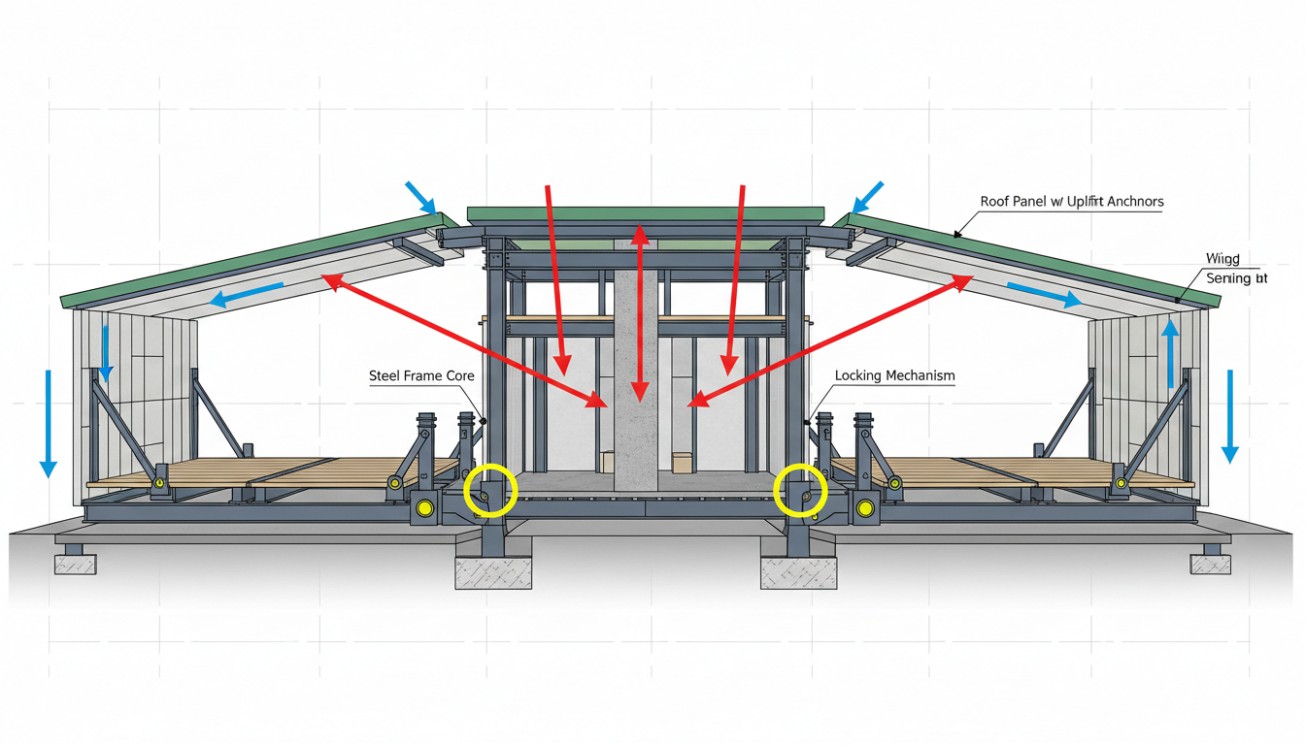

Path One: How the Deployed Structure Carries Load
The structural question is not simply whether the steel is thick. It is whether a continuous, calculated load path exists in every required direction. Roof loads must reach walls or frames; walls and columns must reach floor beams; floor beams must reach supports; anchors must transfer uplift and lateral forces into the foundation. The path must account for openings, moving joints and the difference between folded and deployed geometry.
The central core is the stable spine
In many designs, the central core remains substantially intact during transport and deployment. It may contain the main longitudinal frames, corner posts, wet room and electrical distribution equipment. This makes it the natural structural and service spine of a double wing expandable house.
However, “central” does not automatically mean “sufficient.” The core must accept forces delivered by the opened wings, including vertical reactions, in-plane forces, uplift and local effects at hinges or locks. Large door openings, service holes and architectural glazing can interrupt the frame. The structural model should show which members resist gravity and which form the lateral system.
Wing floors behave like supported cassettes, not loose platforms
A fold-out floor normally rotates down or otherwise moves into position. Once deployed, it may bear on a hinge line at the core and on adjustable supports, piers or beams near its outer edge. Its joists and perimeter members must limit deflection and vibration under the intended occupancy.
The interior floor transition is a revealing detail. If the core floor and wing floor do not land at the same elevation, installers may hide the mismatch with flexible trim, a ramped threshold or finish material. That can create wear, trip risk, cracked finishes or doors that no longer clear the floor. Buyers should request both the structural section and the finished-floor section at the hinge line.
Support reactions must match the real foundation
Generic concrete blocks are not an engineering solution. Support quantity, location and bearing area depend on unit reactions and soil or foundation capacity. If a support is moved to avoid a pipe or site obstruction, the floor member may be loaded differently from the design. The manufacturer should provide reactions and tolerances; the site designer should provide the project-specific foundation and anchorage response.
Wing roofs must resist downward load and uplift
The roof section does more than keep out rain. It acts as a structural surface exposed to downward gravity loads and wind uplift. At its inner edge it must connect to the core; at its outer edge it must engage walls, frames or posts. Locks and overlaps must remain effective when the building deflects within its design range.
Low-slope roof geometry requires particular discipline. The deployed slope must direct water toward an intentional drainage edge or outlet. If supports settle or the unit is installed out of level, a nominal slope can become a pond. Water accumulation adds load at the same time that it tests the weakest envelope joints.
Locks turn motion hardware into a building system
Hinges allow rotation, but final stability may rely on separate locking plates, pins, bolts, braces, bearing blocks or latches. The design intent must state which component carries which action. A hinge should not be assumed to resist every occupied-state force merely because it remains connected after opening.
Locking devices need access for installation and inspection. They also need protection from accidental release, corrosion and incompatible field substitutions. If a lock is hidden behind finish trim, the project must decide how it will be verified and maintained throughout the building’s life.
The foundation closes the load path
An expandable unit does not become independent of the ground because it is portable. Uplift, sliding, overturning and bearing forces still need a destination. The required foundation may be shallow pads, grade beams, piers, screw piles, a slab or another engineered system, depending on loads, soil, climate, duration and local requirements.
Anchoring only the central core while leaving wide wings inadequately supported can create a structure that looks level on installation day but moves unevenly under load or weather. The foundation plan must correspond to the fully deployed footprint.
Path Two: How Hinges and Geometry Control Movement
The folding modular home mechanism is a kinematic system before it is an architectural feature. Every moving panel needs an axis, clearance, controlled sequence and final stop. Small fabrication errors can accumulate across the width of a wing until the last wall or roof panel no longer aligns.
A hinge is an assembly, not a pin drawn through two plates
Expandable house hinges may include leaves or knuckles, a pin, bushings, retainers, welded brackets and local frame reinforcement. Their performance depends on pin shear and bending, bearing at the knuckles, plate bending, weld capacity, edge distance, corrosion protection and fabrication alignment. The adjacent thin material may govern before the visible pin does.
Design review should examine eccentricity. If a load acts away from the hinge plane, the connection may receive prying or twisting in addition to simple shear. Local reinforcement must distribute force into the larger frame rather than concentrate it in a small welded patch.
Movement hardware and final locks have different jobs
A well-defined design separates the component that guides movement from the component that proves final engagement. Some mechanisms combine those functions, but the calculations and inspection method must say so. Buyers should reject vague explanations such as “the hydraulic system holds the room” unless the system is specifically designed, protected and approved to act as an occupied-state structural restraint.
Hinge alignment is a manufacturing tolerance problem
Multiple hinges along one panel must share a sufficiently common axis. If their brackets are welded out of line, the panel may bind, require excessive force or distort the frame during opening. Forcing it with a larger crane or hydraulic actuator does not correct the geometry; it can hide damage until finishes crack or doors stop operating.
Factories should control hinge position with fixtures and dimensional inspection before coatings hide the work. A prototype deployment should record required force, clearances and final alignment. Production units should be checked against defined tolerances rather than judged by whether workers can eventually push them into place.
Clearance must include finishes, seals and real construction variation
A digital model may show two steel panels passing cleanly. The completed building adds flooring, wall finishes, fastener heads, seal bulbs, flashing, wiring, plumbing, protective films and manufacturing variation. The movement envelope must include all of them.
Common pinch points include floor finishes at the hinge, roof trim near the core, folded end walls, door hardware, service loops and gasket corners. The installation manual should identify where personnel must never place hands and where transport restraints must be removed before movement begins.
Actuation method does not remove the need for support
Some units open with a crane or forklift attachment; some use winches, jacks, gas springs, hydraulic cylinders or combinations of manual and mechanical assistance. The actuation method controls movement, but it does not necessarily provide temporary stability or final structural support.
Project teams should ask what happens if power is lost, a hose leaks or a lifting device stops midway. A safe method needs a controlled pause condition and a way to prevent uncontrolled descent. The procedure should also define acceptable wind conditions during deployment.
Path Three: Rebuilding the Water, Air and Thermal Layers
Every moving boundary creates one of the system’s expandable building joints. Each joint may have to carry structural movement while controlling bulk water, air leakage, vapor behavior, heat flow, insects, dust and acoustic transmission. One material rarely performs every function well.
Waterproofing begins with geometry
Durable expandable house waterproofing should begin with slopes, overlaps, drip edges, end dams, flashings and drainage paths. These features use gravity to move water away before a sealant or gasket is asked to resist pressure. Roof sections should overlap in the correct direction, and water leaving one component should land on the drainage surface below rather than behind it.
A joint that relies on one exposed bead of sealant as its first and only defense is vulnerable to surface preparation, joint movement, ultraviolet exposure and future maintenance. Sealants are useful, but they perform best as part of a layered detail with an accessible replacement path.
Primary shedding and secondary sealing should be distinguishable
A robust modular house sealing system can use an exterior cover or flashing to shed most rain, a compression gasket or sealed plane to control wind-driven water and air, and a drainage route for moisture that passes the first layer. The exact arrangement varies, but the functions should be visible on the section drawing.
This redundancy matters at roof-to-core joints, wing end walls, corner junctions, window interfaces and floor thresholds. If water reaches the secondary plane, it must be able to exit. Blocking the drainage path with site-applied foam or sealant can convert a manageable leak into trapped moisture.
Gaskets require controlled compression
A gasket seals by contacting both surfaces with the intended compression. Too little compression leaves channels; too much can damage the gasket, distort light panels or make locks difficult to engage. Corners and splices are often more vulnerable than straight runs. Drawings should show gasket profile, material, continuity, joint method and replacement access.
Compression also depends on structural geometry. If supports settle or a frame racks, the gap can change around the perimeter. Waterproofing performance is therefore connected to leveling, stiffness and locking—not only to the seal material.
The floor joint must resist water without creating a hidden reservoir
At the lower hinge line, rain during deployment, cleaning water or plumbing leakage can enter recesses. Details should avoid upward-facing pockets that cannot dry. Exterior thresholds need drainage away from the building, while interior transitions need air and vapor continuity appropriate to the climate and occupancy.
Wet rooms should not casually span a moving floor joint. Keeping bathrooms and primary plumbing inside the fixed core reduces the number of waterproof membranes, drains and rigid finishes crossing a discontinuity.
Air sealing and insulation must reconnect after deployment
Insulated panels can have attractive nominal thermal values while the deployed unit leaks air around every wing. The air barrier must be continuous across roof, wall, floor, windows, doors and building joints. The thermal layer must also address exposed steel frames, hinge plates and compressed or missing insulation at transitions.
A smoke test, pressure-based air test or thermographic review may be useful depending on project requirements, but testing should follow a defined acceptance criterion. Simply standing inside and feeling for drafts is not a repeatable factory quality method.
Path Four: Keeping Services Safe While the Building Moves
MEP integration distinguishes a rapidly deployable building from an empty folding shell. It also creates some of the most consequential hidden risks. Cables can be pinched, hoses can kink, drainage can lose slope and connectors can become inaccessible behind finishes.
Keep fixed services in the central core whenever practical
A well-resolved double wing expandable house often concentrates the bathroom, water heater, electrical panel, kitchen service wall and main ventilation equipment in the nonmoving core. The wings then provide bedrooms, living space or other relatively dry functions.
This arrangement reduces moving connections, but layout efficiency must not compromise service access. Valves, traps, junction boxes, filters and cleanouts should remain reachable after the unit is furnished. A factory-complete bathroom is valuable only if destination technicians can maintain it.
Every service crossing needs a designed movement loop
When a service must cross a moving boundary, its material and path must suit repeated bending or controlled repositioning. Electrical cables need bend-radius control, abrasion protection, strain relief and protection from hinge pinch zones. Water connections need rated flexible components, accessible isolation and a geometry that prevents kinking. Drainage requires adequate fall in the final position and protection against backfall during settlement.
The service loop should not be improvised during installation. The factory drawing should show folded and deployed positions, attachment points and minimum clearances. Flexible does not mean unlimited movement, and a household hose or extension lead is not automatically appropriate for concealed building service.
Connectors must be identifiable, protected and accessible
Destination connections should be marked by function and protected during transport. A plumber or electrician should not need to guess which capped line serves which fixture. Connections also need enough working space for approved joining methods, testing and future replacement.
Different markets use different voltages, frequencies, plug configurations, protective devices, cable rules, water pressures and plumbing standards. Changing the visible socket plate does not convert an entire electrical system. The technical submittal must define the destination configuration before production.
Commissioning proves the service path after movement
Movement can loosen a terminal, stress a fitting or alter drainage even when factory tests passed before packing. Site commissioning should therefore check electrical protection and continuity as required locally, water pressure and leakage, drainage flow, trap condition, ventilation operation, equipment condensate and every field connection.
The result should be recorded by unit serial number. A statement that one prototype worked does not establish that every shipped unit survived transport and deployment.
The Component Map Buyers Should Request
Strong expandable prefab house engineering becomes visible when the supplier can connect every component to a function, failure mode and verification method.
| Component | Primary function | Typical engineering concern | Evidence to request |
|---|---|---|---|
| Central frame | Provides the stable structural and service spine | Interrupted members, local overload and transport distortion | Structural drawings, material schedule and frame inspection records |
| Wing floor cassette | Carries occupancy loads into core and outer supports | Deflection, vibration, level mismatch and support misplacement | Member design, reactions, support plan and finished-joint section |
| Wing roof | Carries roof loads and sheds water | Uplift, ponding, inadequate slope and edge leakage | Load design, deployed slope, lock detail and drainage drawing |
| Hinge assembly | Defines and guides rotation | Pin or weld distress, eccentricity, binding and corrosion | Connection calculation, weld detail, tolerance and maintenance plan |
| Final locks | Establish the occupied-state connection | Incomplete engagement, inaccessible inspection and accidental release | Lock schedule, engagement indicator and installation checklist |
| Perimeter gaskets | Control air and wind-driven water | Uneven compression, open corners and aging | Profile specification, compression geometry and replacement procedure |
| Flashings and covers | Shed bulk water away from joints | Reverse laps, short end dams and blocked drainage | Envelope sections and post-deployment water test |
| Flexible services | Maintain MEP continuity across movement | Pinching, abrasion, kinking, fatigue and inaccessible leaks | Folded/deployed routing drawings and commissioning records |
| Supports and anchors | Transfer reactions into the site | Settlement, uplift, sliding and incorrect support locations | Reaction schedule, foundation design and site survey |
Deployment Should Be Treated as a Controlled Construction Operation
The visible opening movement may be short, but a professional installation sequence begins before the truck arrives and ends after commissioning.
Before delivery
Confirm access, foundation elevations, anchor locations, drainage, equipment capacity, exclusion zones, weather conditions and utility interfaces. Verify that the delivery drawing matches the actual unit revision. A small foundation error can prevent locks, gaskets and doors from aligning later.
Before movement
Inspect for transport damage, verify unit identification, place the core on approved supports, level it within the specified tolerance and confirm temporary bracing. Remove restraints in the documented order. Check hinge zones and service loops for foreign objects or shifted components.
During movement
Use the specified lifting or actuation points. Maintain communication between the equipment operator and the crew. Do not force a binding panel. Install temporary supports as the sequence requires and keep people outside pinch and fall zones.
After movement
Engage final structural locks, install permanent supports and anchors, complete flashings and seal components, connect services and inspect alignment. Doors and windows are useful indicators of racking, but they are not substitutes for geometric measurement.
Before occupancy
Complete structural, envelope, MEP and life-safety checks required by the project. Perform specified water testing, service commissioning and documentation. Record deviations and corrections. The building is ready when its systems have been accepted—not when its wings have stopped moving.
Seven Failure Patterns and What They Usually Reveal
The outer floor feels soft or bouncy
This may indicate excessive member deflection, missing or misplaced supports, poor bearing, loose final connections or an occupied load beyond the design basis. Adding random blocks can change load distribution and hide settlement. Compare the installed support map with the reaction drawing.
Doors bind after expansion
Possible causes include an unlevel foundation, frame racking, incomplete locks, hinge misalignment or local transport distortion. Trimming the door before correcting geometry treats a symptom and may create a new gap after the frame is realigned.
Water appears near the roof-to-core joint
Investigate deployed slope, reverse or short laps, gasket compression, flashing end conditions, blocked drainage, sealant adhesion and structural movement. The point where water becomes visible may not be the entry point.
Drafts occur along the floor transition
The air barrier may not reconnect at the moving joint, or settlement may have changed gasket compression. Fibrous insulation or decorative trim can hide the opening without stopping airflow. Diagnose the continuous air-control layer.
A wing needs increasing force to open
Do not normalize the behavior. Check hinge alignment, pin corrosion, debris, distorted brackets, frame twist, damaged finishes and actuation geometry. Greater force can increase damage instead of overcoming a harmless resistance.
A flexible water connection leaks after relocation
The connection may have exceeded its bend radius, rubbed against steel, twisted during closure or reached its intended service life. Replace it with the specified component and inspect routing and restraint rather than tightening the fitting alone.
Interior finishes crack at the wing boundary
The finish may be too rigid for expected movement, the joint may lack a movement detail, or the structure may be deflecting beyond its intended range. Finish repair should follow structural and geometric diagnosis.
How to Audit the Factory Before Approving Production
A polished sample room can conceal weak engineering. Factory approval should follow the four paths and four states described above.
Review design responsibility
Identify who designed the structure, movement system, envelope, MEP integration and site foundation interface. Confirm which loads, climate conditions, occupancy and destination rules the design addresses. A generic drawing is not a project design basis.
Witness one complete cycle
Observe a representative production unit in folded, opening, locked and closing states. Do not allow the factory to prepare an unrepresentative demonstration unit with special adjustments that are absent from normal production. Record crew size, equipment, force, clearances, alignment and corrections.
Inspect before interfaces are concealed
Check structural welds, hinge reinforcements, corrosion protection, service loops, gasket corners, roof transitions and drainage paths before trims and finishes hide them. The inspection plan should define hold points at which work cannot proceed without acceptance.
Measure rather than describe
Terms such as heavy duty, waterproof and precision made are not acceptance criteria. Use drawing dimensions, diagonals, elevation differences, connection positions, coating requirements, gasket continuity and functional tests. Record results against the unit serial number.
Repeat critical checks after transport simulation or shipment
Factory geometry does not prove delivered geometry. The quality plan should address transport restraint and post-arrival inspection. For a pilot project, opening and testing the unit at the destination provides evidence that packing, lifting and road or sea transport did not undermine factory performance.
What a High-Quality Technical Submittal Should Contain
A credible supplier should be able to provide a coordinated package rather than isolated certificates:
- folded and deployed general-arrangement drawings;
- structural design basis, load paths and connection calculations;
- hinge, lock, weld and local reinforcement details;
- foundation reactions, support positions and anchorage requirements;
- deployment sequence, temporary support and equipment requirements;
- roof, wall, floor, opening and moving-joint envelope sections;
- gasket, flashing, sealant and drainage specifications;
- folded and deployed MEP routing diagrams;
- factory inspection, functional test and water-test procedures;
- site installation and commissioning checklists;
- maintenance, relocation and replacement-part instructions; and
- revision control linking drawings, bill of materials and the delivered unit.
This documentation does not make every design suitable for every location. It allows the project’s architects, engineers, inspectors and contractors to decide whether the proposed expandable prefab house engineering matches the intended site and approval pathway.
Focused FAQ
How does an expandable container house create more space?
It transports one or more floor, roof and wall sections in a compact position and then rotates or slides them into a wider deployed footprint. Hinges or guides control movement, while supports, locks and anchors establish the final structure. Envelope seals and services must then be completed and tested.
What is the central core in a double-wing design?
The central core is the part that remains substantially intact while two side wings open. It often contains the main frame and complex services such as the bathroom, electrical panel or kitchen connections. Its exact structural role must still be shown by design documents.
Do the hinges carry the building after deployment?
That depends on the specific design. Hinges may carry some reactions, guide movement or both, but many systems also require final locks, bearing seats, supports and anchors. Buyers should ask for calculations and a connection schedule rather than assuming the hinge carries every load.
How are expandable joints made waterproof?
Reliable details combine water-shedding geometry, overlaps or flashings, controlled gasket compression, secondary sealing and drainage. Sealant alone should not be treated as a universal solution. The deployed unit should be tested using a method and acceptance criterion appropriate to the project.
Can the unit be opened on uneven ground?
The site must provide the support elevations and capacities required by the manufacturer and project engineer. Adjustable supports can correct limited installation variation, but they are not permission to ignore foundation level, settlement or anchorage.
Why are bathrooms commonly placed in the fixed core?
Bathrooms contain waterproofing, water supply, drainage, ventilation and rigid finishes. Keeping them away from moving floor and wall joints reduces flexible connections and limits the number of failure-sensitive interfaces.
Can an expandable building be folded and moved repeatedly?
Only within the design, inspection and maintenance strategy for that product. Hinges, locks, coatings, gaskets, flexible services and finishes experience wear. Each relocation should include condition assessment and replacement of components that no longer meet acceptance criteria.
What causes an expandable house to leak?
Common contributors include poor leveling, inadequate roof slope, reverse laps, incomplete locks, uneven gasket compression, open corners, blocked drainage, failed sealant, transport distortion and installation outside the approved sequence. The visible wet spot may be downstream from the actual entry point.
What should be tested before shipment?
A representative unit should be checked for geometry, hinge movement, complete lock engagement, door and window operation, envelope continuity, water management and installed MEP functions. Project requirements should define the exact tests and records.
What should be checked again after installation?
Verify supports, anchors, locks, alignment, flashings, seals, drainage and every field service connection. Repeat specified water and commissioning tests because transport and deployment can change conditions that previously passed in the factory.
The Engineering Value Is Located at the Interfaces
An expandable building does not succeed because it contains more hinges or a stronger-looking actuator. It succeeds when its load, movement, water-and-air and service paths remain coordinated through every state. The central frame, wing cassettes, locks, supports, gaskets, flashings and service loops must behave as one system.
This is the deeper answer to how expandable houses work: they temporarily exchange continuity for mobility and then use engineered connections to restore continuity at the destination. The quality of that restoration determines whether the result behaves like a dependable building or only looks like one in photographs.
Buyers should therefore spend less time asking how quickly a wing can open and more time asking what carries the load after it opens, what prevents water from reaching the interior, what protects services during movement and what evidence proves repeatable production. Those questions reveal the real maturity of an expandable house frame, the durability of its expandable house hinges, the reliability of its modular house sealing system and the credibility of the complete building proposal.
