One Detachable Building Specification Cannot Fit Every Climate

The Same Building Does Not Enter the Same World

A detachable modular unit may leave the factory with one drawing number, one bill of materials and one standard sales description. The moment it reaches the project site, however, it enters a specific physical world. That world may expose the building to desert heat, tropical humidity, salt-laden coastal air, heavy snow, high winds, large daily temperature swings or several of these conditions at the same time.

This is why one global specification cannot safely represent every project. A 50 mm wall panel, a galvanized frame, a standard roof cassette and a familiar air-conditioning package may appear to form a complete product. In reality, they are only a starting configuration. The finished building must still be matched to local structural loads, climate, occupancy, foundations, utilities, maintenance capability and approval requirements.

Professional detachable building climate design begins by rejecting a common sales shortcut: the idea that climate adaptation is achieved by changing only panel thickness. Climate affects the whole system. It changes the loads on the frame, the direction in which moisture moves, the temperatures at which condensation can occur, the exposure of fasteners and coatings, the size of HVAC equipment, the location of vapor-control layers, the durability of seals and the way the building must connect to the ground.

A detachable building is especially sensitive to this issue because much of its performance is created at repeatable joints. Columns connect to cassettes. Wall panels connect to rails. Roofs connect to edge details. Modules connect to one another. Services cross interfaces that may later be separated. These joints make the building transportable and configurable, but they also become the locations where wind pressure, rain, heat flow, air leakage and corrosion concentrate.

The correct question is therefore not, “Is this model suitable for hot countries?” or “Can it be used in snow?” The better question is:

What must change in the building system so that the same product platform becomes a defensible project specification for this exact site?

Give Every Project a Climate Passport

Before a supplier recommends steel thickness, insulation, windows or HVAC, the project should create a climate passport. This is a short engineering brief that converts a location into design inputs.

A climate passport is not a weather-app screenshot and not a country name. Large countries contain multiple climate zones, elevations and exposure conditions. Two projects in the same city may also differ because one is inland and sheltered while the other is on an exposed coast, a hilltop or an industrial site.

Location and Exposure

• Project coordinates and elevation.
• Distance from the sea or other corrosive exposure.
• Open terrain, urban shelter, hilltop or valley condition.
• Nearby industrial emissions, agriculture, dust or chemicals.
• Flood exposure and site drainage conditions.

Structural Climate Inputs

• Required design wind speed and exposure category.
• Ground and roof snow loads.
• Rain, ice or drifting-snow considerations where applicable.
• Seismic design criteria and site soil information.
• Risk category and intended occupancy.

Thermal and Moisture Inputs

• Summer and winter design temperatures.
• Daily temperature range.
• Outdoor humidity and wet-season duration.
• Heating and cooling degree conditions.
• Indoor temperature and humidity targets.
• Occupancy density and internal moisture generation.

Operational Inputs

• Permanent, seasonal or intermittent occupancy.
• Office, accommodation, classroom, clinic or industrial use.
• Power reliability and available HVAC service support.
• Expected maintenance intervals.
• Planned relocation and possible future destinations.

This passport separates facts from assumptions. It also prevents a supplier from treating an entire market as one climate. “Middle East specification,” “European standard” and “tropical model” are commercial labels, not complete engineering inputs.

Panel Thickness Is Not a Climate Strategy

Many quotations reduce modular building insulation to one number: 50 mm, 75 mm or 100 mm. Thickness matters, but it does not explain the thermal performance of the complete enclosure.

The buyer needs to know the insulation material, density, conductivity, panel joint design, metal skins, framing bridges, floor build-up, roof build-up, windows, doors and field sealing. A thick panel installed between highly conductive steel members can still create strong thermal bridges. A high-performing wall can be undermined by an uninsulated roof edge, floor cassette or module-to-module joint.

Nominal Panel Value Versus Whole-Assembly Performance

A panel datasheet typically describes the center of the panel under controlled conditions. The building includes corners, fasteners, splines, frames, trims and openings. Whole-assembly performance is lower when heat bypasses the insulation through these interfaces.

For cold regions, thermal bridges can create cold internal surfaces and condensation. For hot regions, the same bridges can carry exterior heat inward and increase cooling demand. The problem is not solved by adding thicker insulation far from the bridge.

The Roof Often Matters More Than Buyers Expect

In hot sunny climates, the roof receives intense solar exposure. Surface color, ventilation, radiant behavior, insulation continuity and rooftop equipment all influence heat gain. In snowy climates, the roof must also support project-specific loads while managing ice, meltwater and interior moisture.

A supplier that discusses wall panels in detail but provides only a generic roof sketch has not completed the climate specification.

Windows and Doors Can Dominate Small Buildings

Detachable units often have a high proportion of openings relative to their floor area. Window U-value, solar heat gain, air leakage, frame material, glass type, shading and installation detail can strongly affect comfort and HVAC size.

In a hot climate, excessive solar gain through glass may be more important than another increment of wall insulation. In a cold climate, weak frames and perimeter leakage may create discomfort even when the wall panels are thick.

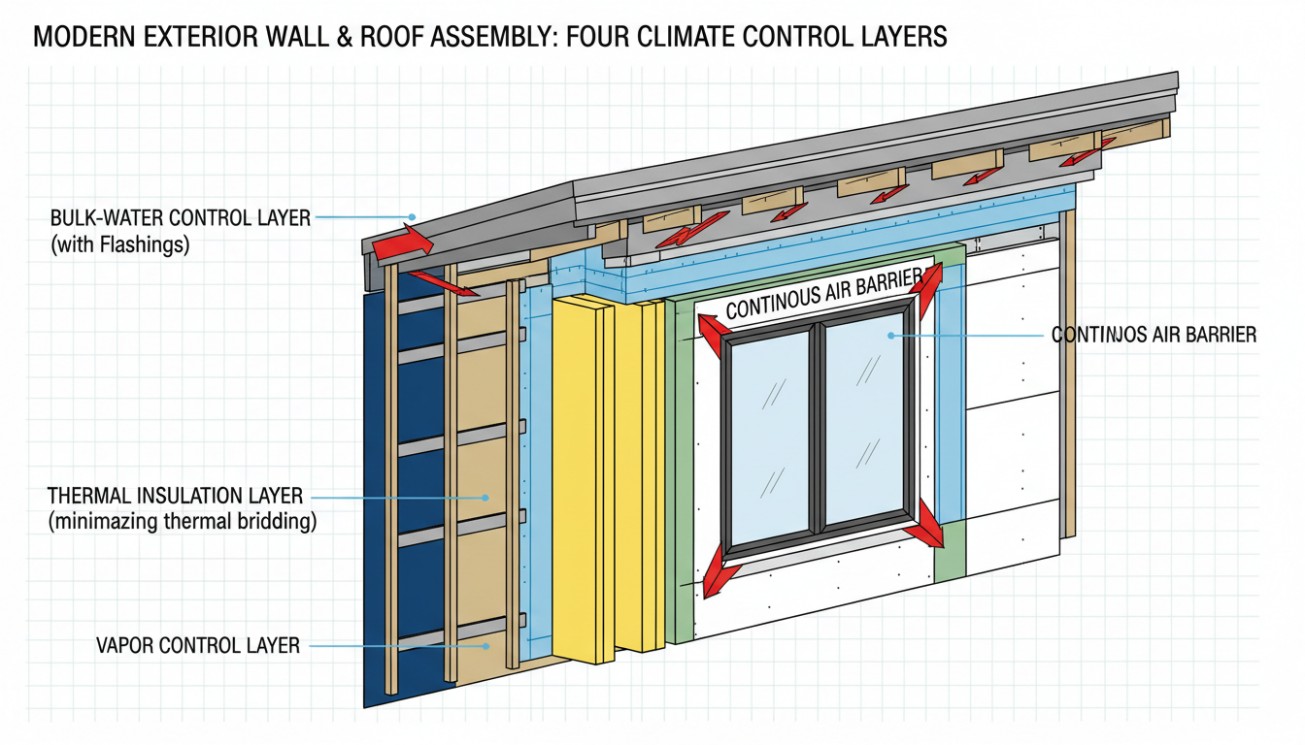

Climate Control Depends on Four Continuous Layers

A robust enclosure manages four flows: bulk water, air, heat and water vapor. These controls may be provided by different materials or by one component performing several functions, but each control layer must remain continuous across the complete building.

Bulk-Water Control

The roof, flashings, panel joints, corners, openings and base details must direct rain and meltwater outward. Sealant should support designed drainage rather than replace it. Exterior laps, pressure-equalized joints, gaskets and flashings need a clear installation sequence.

Detachable systems require special attention because many water-control details are completed on site. The factory can make excellent panels, yet the final envelope can still fail if roof edges, window perimeters or module joints are assembled incorrectly.

Air Control

Air leakage carries heat and moisture. A continuous air-control layer should connect walls, roof, floor, openings and module interfaces. The difficult locations are transitions: panel to frame, roof to wall, floor to wall, service penetration and module to module.

In cold weather, warm humid indoor air leaking into a cold assembly can condense. In hot-humid weather, warm moist outdoor air can move inward toward cooled surfaces. The direction changes, but uncontrolled air movement creates risk in both cases.

Thermal Control

Insulation should form a continuous thermal boundary. Structural members, connectors, service penetrations and external attachments should be reviewed for thermal bridging. The design should also consider whether interior surfaces remain within acceptable temperature ranges under project conditions.

Vapor Control and Drying

Vapor-control strategy must follow climate and assembly design. A vapor-closed layer placed on the wrong side can trap moisture. A wall that performs well in a heating-dominated climate may behave poorly in an air-conditioned humid climate because the vapor drive reverses.

This is a key reason why modular building condensation control cannot be standardized globally. The project should define where the assembly is expected to dry and avoid creating low-permeance layers on both sides unless the system has been specifically analyzed.

Climate Case File One: Hot and Dry Does Not Mean Simple

Hot climate modular buildings are often specified by increasing air-conditioning capacity and choosing a light exterior color. Those steps may help, but hot-dry sites create a wider set of design questions.

Control Solar Gain Before Buying More Cooling

Roof reflectance, external shading, window orientation, glass selection and reduced thermal bridging can lower cooling demand before HVAC is sized. Equipment should be selected after the envelope and occupancy loads are established, not used to compensate for an undefined enclosure.

Plan for Large Daily Temperature Swings

Desert conditions can combine high daytime temperature with cooler nights. Repeated expansion and contraction affect seals, trims, coatings and long components. Joint design should accommodate movement without opening water or air paths.

Dust Changes Ventilation and Maintenance

Dust can load filters, contaminate coils, enter poorly sealed joints and reduce equipment performance. Intake locations, filter access, door thresholds and maintenance frequency should reflect real site conditions.

Do Not Ignore Water Events

Dry regions may still experience short, intense rain. Roof drainage, site grading and base details must manage those events. A “desert model” should not be designed as if rain never occurs.

Climate Case File Two: Hot-Humid Buildings Must Be Designed Around Moisture Direction

Humid climate modular buildings operate with warm, moisture-laden outdoor air and often cool, dehumidified interiors. This creates an inward vapor drive and a strong risk of condensation on cold surfaces if air and vapor control are poorly placed.

Air Leakage Is a Moisture Path

Outdoor air entering through panel joints, openings or service penetrations can reach cooled metal or interior layers. Moisture may condense inside the assembly even when no rain leak is visible.

Field sealing quality is therefore central. The building should have a defined air barrier, installation inspection and a method for verifying continuity at module interfaces.

Airtightness Requires Deliberate Ventilation

Reducing uncontrolled leakage does not eliminate the need for fresh air. Occupancy, sanitation, internal moisture and indoor air quality still require a ventilation strategy. HVAC should control sensible temperature and latent moisture rather than only lowering dry-bulb temperature.

Avoid Trapping Moisture Against Cooled Interior Surfaces

Vapor-impermeable interior finishes can create risk in air-conditioned humid buildings when moisture moves inward. The exact solution depends on panel construction and local requirements, but the principle is consistent: the assembly needs a defensible vapor profile and drying path.

Raised Floors and Base Rails Need Review

Warm humid air can contact cool floors, plumbing and steel members. Floor insulation continuity, underfloor ventilation, ground moisture and base corrosion should be considered together.

Climate Case File Three: Cold and Snowy Sites Are an Air-Leakage Test

Cold climate modular buildings need more than thick wall panels. They must control heat loss, cold bridges, air leakage, interior humidity, snow loads, freeze risk and ventilation.

Warm Indoor Air Must Not Reach Cold Cavities

In heating conditions, indoor air can carry moisture toward cold exterior layers. Small air leaks at roof edges, panel joints or service penetrations can transport much more moisture than vapor diffusion alone. Continuous air sealing is therefore critical.

Thermal Bridges Can Become Condensation Lines

Steel corners, columns, roof beams and floor edges can produce cold interior surfaces. Occupants may first notice discomfort or visible condensation, but concealed moisture may also develop behind finishes.

The solution may require thermal breaks, continuous insulation, insulated connection covers or a revised structural-envelope interface rather than simply increasing center-panel thickness.

Snow Load Is a Project Load, Not a Product Slogan

A claimed modular building snow load must be connected to the exact roof configuration, span, support condition, module arrangement and site criteria. Multi-module roofs, parapets, adjacent taller structures and drifting can change loading patterns.

Buyers should request structural calculations and connection details for the project configuration instead of relying on one catalog value.

Freeze Protection Extends Beyond Water Pipes

Plumbing, condensate drains, traps, exterior equipment, fire systems and temporary shutdown procedures may all need freeze protection. Intermittently occupied buildings can be especially vulnerable if heating is reduced or power fails.

Ventilation Must Balance Moisture and Energy

Tightening the enclosure improves energy performance but can raise indoor humidity when ventilation is inadequate. The building needs controlled ventilation appropriate to occupancy, and heat recovery may be considered where climate, use and economics justify it.

Climate Case File Four: Coastal Exposure Attacks the Complete System

Coastal modular buildings face more than salty air. Coastal projects may combine corrosion, humidity, wind-driven rain, high wind pressure, flooding and difficult maintenance access.

“Galvanized” Is Not a Complete Corrosion Specification

Buyers should know steel preparation, coating type, zinc or paint system, thickness, cut-edge treatment, repair method and compatibility between metals. Fasteners, hinges, electrical enclosures, rooftop equipment and concealed brackets can fail before the main frame if they receive weaker protection.

Crevices and Water Traps Matter

Salt and moisture can accumulate at overlapping plates, base rails, unsealed hollow sections, panel edges and horizontal ledges. Drainage, ventilation and inspection access are part of corrosion design.

Wind-Driven Rain Tests the Openings

Doors, windows and service penetrations must resist both pressure and water entry. The opening itself, its anchorage and its perimeter detail form one system. A strong window installed into a weak or poorly sealed opening does not create a strong envelope.

Maintenance Must Be Possible

Coastal protection is not permanent. Coatings are damaged during transport and installation. Salt deposits accumulate. Sealants age. The specification should define cleaning, inspection, touch-up materials and access to vulnerable locations.

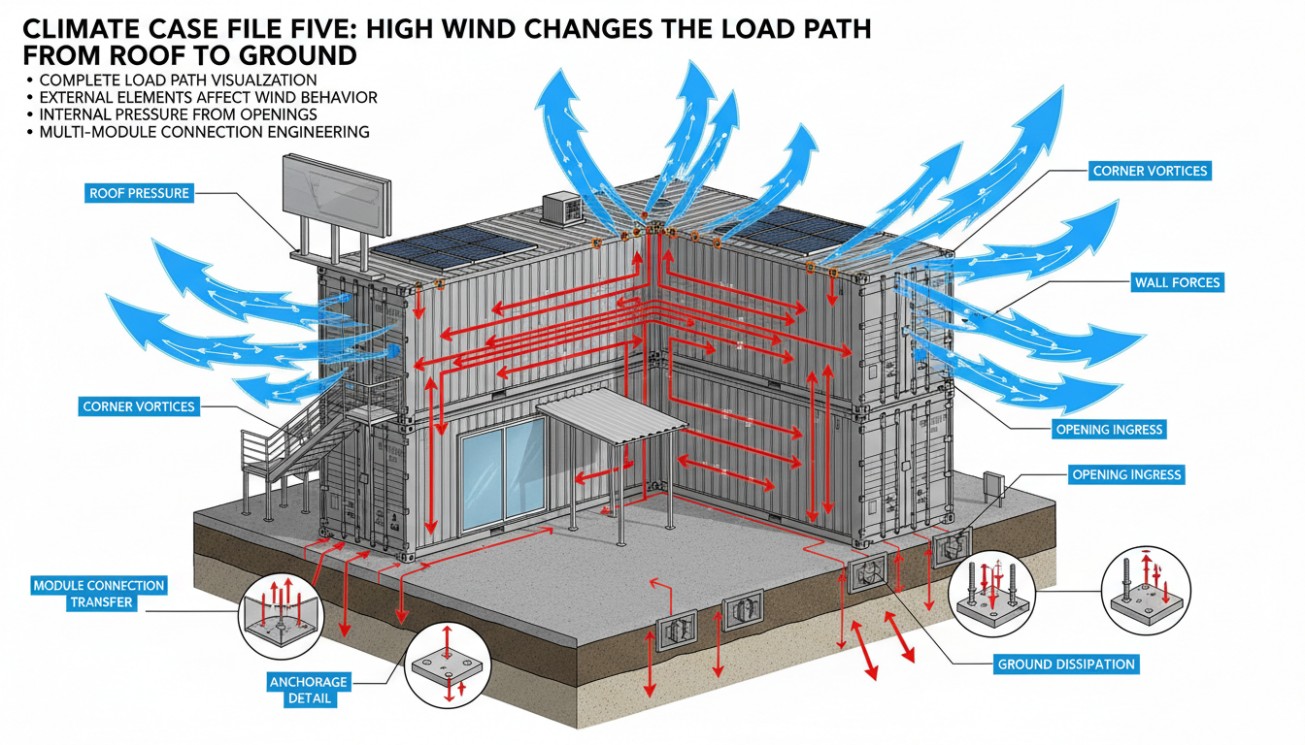

Climate Case File Five: High Wind Changes the Load Path From Roof to Ground

A container house wind load claim is meaningful only when it describes the complete load path. Wind pressure acts on roofs, walls, corners, openings and attached equipment. Those forces must travel through panels, frames, module connections, anchors and foundations into the ground.

The Building Is Not Only the Steel Box

Canopies, stairs, rooftop units, solar panels, signs, external corridors and facade elements affect wind behavior. Site-added components should not be treated as independent accessories if they transfer loads into the modular structure.

Openings Can Change Internal Pressure

Failure of a door, window or wall opening can increase internal pressure and place additional demand on the roof and remaining envelope. Opening protection, anchorage and installation therefore influence overall building performance.

Anchorage Must Match the Foundation and Site

A standard corner anchor detail may not be suitable for every foundation, soil condition or wind exposure. Anchor location, edge distance, embedment, base-plate behavior, uplift, sliding and overturning need project review.

Multi-Module Buildings Need Connection Engineering

When units are joined, the project must define how forces are distributed across modules and transferred to foundations. Removing walls to create open rooms can change stiffness and load paths. The connected building should be analyzed as the actual configuration, not as a collection of isolated catalog units.

Mixed Climates Are Often More Difficult Than Extreme Labels

A location may have hot summers, freezing winters, rain, snow and seasonal humidity. These mixed conditions can be harder than a single dominant climate because the enclosure must manage vapor drives in more than one direction.

Assemblies need drying potential, durable air control and climate-appropriate vapor moderation. HVAC must operate across heating and cooling seasons. Seals and materials experience repeated temperature cycles. The project cannot simply combine a “summer package” and a “winter package” without checking how the layers interact.

This is where climate-specific modular building specifications become a coordinated system rather than a list of upgrades. One change may affect another. Adding a vapor-closed layer for winter may create summer risk. Increasing airtightness may require better ventilation. Adding external insulation may change flashing and connection geometry.

The Product Platform Can Be Standard Even When the Project Is Not

Climate adaptation does not require every project to become a completely custom building. A strong manufacturer can use a standard product platform with controlled options.

Stable Platform Elements

• Structural grid and connection philosophy.
• Approved member families.
• Panel interface dimensions.
• Door and window opening modules.
• Service zones and access panels.
• Asset identification and documentation structure.

Climate-Dependent Elements

• Member sizes, bracing and anchors.
• Roof and wall insulation build-ups.
• Thermal-bridge treatments.
• Air, vapor and water-control details.
• Coatings, fasteners and corrosion protection.
• Windows, doors and glazing.
• HVAC, ventilation and freeze protection.
• Foundation and site interfaces.

This platform approach protects manufacturing repeatability while allowing site performance to change. The earlier guide to detachable modular buildings explains how structure, envelope, services, hardware and information form one system. Climate adaptation should modify that system through approved interfaces rather than uncontrolled field improvisation.

Relocation Creates a Second Climate Decision

A building designed for one location may later move to another. Physical relocatability does not prove climate compatibility.

A mild-climate office moved to a snowy region may need structural reinforcement, insulation upgrades, freeze protection and new ventilation. A cold-climate unit moved to a hot-humid site may have vapor-control layers that do not suit inward moisture drive. A coastal unit may carry corrosion damage into its next service even if the new site is inland.

The site's guide to detachable building relocation explains the inspection and recommissioning process. Climate review should be added as a formal gate before the second installation.

The Destination Climate Gate

• Compare original and new structural design inputs.
• Review the enclosure’s vapor profile for the new direction of heat and moisture flow.
• Check HVAC capacity and dehumidification or heating capability.
• Confirm corrosion condition and required coating repairs.
• Review foundation, anchorage and flood exposure.
• Update maintenance and operating instructions.

This process also supports circularity. Reuse is valuable only when the building can deliver acceptable performance at the next site. The article on reusable modular buildings explains why physical reuse, documentation and future application must be considered together.

A Climate Matrix for Early Product Decisions

What a Climate-Ready Supplier Submission Should Contain

A supplier should not be asked to “confirm suitability” with a one-line statement. The project should request evidence linked to the climate passport.

Structural Package

• Project design criteria for wind, snow, seismic and occupancy.
• Calculations for the exact module arrangement.
• Member, connection, bracing and anchorage details.
• Loads transferred to foundations.
• Limits on field openings and added equipment.

Envelope Package

• Complete roof, wall and floor build-ups.
• Whole-assembly thermal analysis where appropriate.
• Air, water and vapor-control layer diagrams.
• Details at corners, bases, openings and module joints.
• Condensation-risk assessment for design conditions.

Material Durability Package

• Steel grades and coating systems.
• Fastener and dissimilar-metal strategy.
• Cut-edge and field-damage repair instructions.
• Sealant, gasket and UV-exposure information.
• Climate-specific maintenance schedule.

Mechanical and Operational Package

• Heating and cooling calculations.
• Ventilation and dehumidification strategy.
• Freeze protection where required.
• Filter, condensate and equipment-service access.
• Control sequences and shutdown procedures.

Installation and Verification Package

• Site-specific assembly and sealing instructions.
• Foundation acceptance criteria.
• Inspection points before details are concealed.
• Testing and commissioning requirements.
• Handover records and maintenance training.

A Better Procurement Sequence

Step One: Define the Climate Passport

Establish location, structural inputs, indoor targets, occupancy, exposure and maintenance conditions before requesting a final quotation.

Step Two: Identify the Dominant Failure Mechanisms

Rank the top project risks. A coastal school may prioritize corrosion, wind-driven rain, internal moisture and opening performance. A mountain camp may prioritize snow, air leakage, freezing and power reliability.

Step Three: Select the Product Platform

Choose a detachable system whose structural grid, envelope interfaces, service zones and manufacturing controls can accept the necessary climate options.

Step Four: Engineer the Project Configuration

Verify the actual arrangement, openings, attached equipment, foundations and module connections. Catalog data should not replace project analysis.

Step Five: Build a Climate Compliance Matrix

Link every climate risk to a drawing, calculation, material, test, inspection or maintenance action. This makes omissions visible.

Step Six: Verify the Installed Building

Factory evidence is only part of the result. Site assembly creates critical air, water, structural and service interfaces. Inspection and commissioning should confirm that the intended climate strategy exists in the completed building.

Focused FAQ

Can the same detachable building model be sold in every country?

A common platform can be used in many markets, but the final specification should be adapted to project loads, climate, occupancy, foundations, utilities and local requirements. A globally sold model should not be mistaken for one universal engineering configuration.

What is the most important climate question before requesting a quotation?

Ask which environmental conditions will control the design: wind, snow, heat, humidity, salt, flooding, seismic demand or a combination. The supplier cannot produce a defensible specification without those inputs.

Is a thicker sandwich panel always better?

No. Thickness is only one variable. Insulation material, thermal conductivity, framing bridges, joints, roof and floor build-ups, openings, airtightness and moisture behavior all affect performance.

How should buyers evaluate a container house wind load claim?

Request the design criteria, exact building configuration, structural calculations, connection details, anchor requirements and foundation reactions. Confirm whether openings, attached equipment and multi-module arrangements are included.

What should be checked for a modular building in a snowy region?

Review project-specific snow loads, drifting conditions, roof drainage, frame and connection capacity, thermal bridging, airtightness, interior humidity, freeze protection and winter ventilation.

Why are hot-humid climates difficult for modular buildings?

Warm moist exterior air moves toward cooled interiors. Air leakage and unsuitable vapor-control layers can allow condensation inside walls, roofs or floors. The building needs coordinated air sealing, moisture control, dehumidification and drying potential.

Are coastal coatings enough to prevent corrosion?

No coating eliminates maintenance. The project should consider surface preparation, coating thickness, cut edges, fasteners, dissimilar metals, water traps, field damage, salt cleaning and inspection access across the complete system.

Should HVAC be selected before the building envelope is finalized?

No. HVAC sizing depends on envelope performance, air leakage, glazing, solar gain, occupancy, ventilation and climate. Equipment selected too early may be oversized, undersized or unable to manage humidity correctly.

Can a detachable building move from a cold climate to a tropical climate?

It may be physically movable, but the destination needs a new climate assessment. Vapor-control direction, cooling and dehumidification, corrosion exposure, foundations and local structural loads may require significant changes.

What proves that a climate adaptation package is complete?

The project should be able to trace each climate risk to project-specific evidence: calculations, drawings, material specifications, installation details, inspection steps, commissioning results and maintenance instructions.

The Correct Specification Is a Relationship With the Site

A detachable modular building is not climate-ready because it contains steel, insulation and an air conditioner. It becomes climate-ready when its structure, enclosure, services, foundations and maintenance strategy are aligned with the place where it will operate.

That alignment may preserve a standard manufacturing platform while changing critical project elements. Wind can change frames and anchors. Snow can change roofs and connections. Heat can change glazing, shading and equipment. Humidity can change air and vapor control. Salt can change every exposed and concealed metal decision. Relocation can require the entire analysis to be performed again.

The industry should therefore stop asking whether one standard cabin is suitable for every climate. The useful question is whether the manufacturer and project team have a repeatable process for converting climate data into an approved, installable and maintainable building specification.

That process—not a generic panel thickness or sales label—is what allows detachable construction to scale internationally without pretending that every destination is the same.

#DetachableBuildingDesign #ModularBuildingClimate #ModularBuildingInsulation #ColdClimateBuildings #HotClimateBuildings #CoastalModularBuildings #ModularBuildingWindLoad #ModularBuildingSnowLoad #CondensationControl #OffsiteConstruction
