When an AMR Stops Knowing Where It Is: Engineering Localization Confidence
An autonomous mobile robot rarely moves from “perfectly localized” to “completely lost” in one clean step. More often, certainty erodes while the navigation stack continues to publish a plausible pose. A scan matcher begins accepting weaker correspondences. Wheel slip creates a growing disagreement between odometry and map position. A repeated rack pattern supports two credible pose hypotheses. A camera loses useful texture, a LiDAR view is masked by staged pallets, or a transform arrives late. The robot still has coordinates, but the engineering question has changed: how much trust should the system place in them?
That interval between healthy localization and declared failure is operationally important. The estimated pose may control route permissions, speed-zone selection, traffic reservations, docking approach, load-transfer alignment and the robot’s interpretation of which side of a boundary it occupies. Local obstacle sensing can still protect against some immediate collisions, but it cannot prove that the robot is in the correct aisle, approaching the correct station or obeying the rules assigned to its estimated location. A protective scanner is not a substitute for knowing whether a global pose is trustworthy.
This guide treats AMR localization confidence as an operating-envelope problem rather than a dashboard feature. It shows how to combine estimator uncertainty, residuals, sensor agreement, data freshness and environmental context; how to translate those signals into task-specific thresholds; and how to verify that a robot reaches an appropriate condition before uncertainty consumes the available spatial margin. It does not prescribe a universal numerical limit. The correct limit depends on the vehicle, load, site geometry, operating mode and the consequence of being wrong.
The Robot Is Not “Localized” Merely Because It Publishes a Pose
A pose message answers “Where does the estimator currently think the robot is?” It does not, by itself, answer “How likely is that estimate to be acceptably close to reality?” Nor does it answer “Would the system detect a dangerously wrong estimate in time?” Those are different questions, and collapsing them into one green status indicator creates false assurance.
Precision, accuracy and integrity are different properties
Precision describes how tightly repeated estimates cluster. Accuracy describes how close an estimate is to a trusted reference. Integrity concerns whether the system can provide a timely warning when the position error exceeds an acceptable limit. A robot can be precise but wrong: a particle cloud or covariance ellipse may be narrow around an incorrect aisle. It can also be accurate on average while occasionally producing a rare, large and undetected pose error. Average error therefore cannot support every operational claim.
The practical aim is not to eliminate all AMR localization uncertainty. Every estimator has uncertainty. The aim is to keep the uncertainty inside a defined allowance, detect when the estimate is no longer trustworthy for the current task, and trigger a response before the robot crosses a consequential boundary.
Covariance is useful, but it is not ground truth
Many robotics interfaces represent a pose together with a covariance matrix. The official ROS 2 PoseWithCovariance definition, for example, describes a pose in free space with a 6-by-6 uncertainty matrix. In a planar AMR application, engineers often pay particular attention to uncertainty in x, y and yaw. The off-diagonal terms matter because position and orientation errors can be correlated.
However, covariance is only as credible as the estimator model, tuning and assumptions behind it. Unmodelled systematic errors, bad feature associations or a wrong map can produce an overconfident estimate. Research on mobile-robot localization integrity has shown that data-association faults can create large positioning degradation that conventional noise-only assumptions do not adequately predict. The 2025 International Journal of Robotics Research paper on EKF-SLAM integrity monitoring is particularly useful here: it treats the probability of an undetected unacceptable error as a separate performance concern rather than assuming filter covariance is sufficient.
For the same reason, an AMR pose covariance value should be calibrated against measured truth across representative conditions. A small matrix printed by software is not evidence that the real robot is accurately localized.
A Confidence Signal Should Be a Panel, Not a Single Gauge
Some suppliers expose a normalized score from 0 to 1. Others expose covariance, particle spread, scan-match quality, feature count or a simple localized/not-localized flag. These values can be helpful, but they are not automatically comparable across vendors, algorithms or software versions. Even within one platform, a score may change meaning after a map, sensor or localization engine update.
The current VDA 5050 specification provides a useful warning against overinterpretation. Version 3.0 defines a localizationScore from 0.0 to 1.0 and a deviationRange in metres, but explicitly states that both are for logging and visualization. It separately defines a localized Boolean; when that state becomes false, the robot reports a fatal localization error and must not resume automatic driving or continue its order. The official VDA 5050 specification therefore distinguishes operational status from an informational score. A project should do the same.
Eight signal families worth monitoring
| Signal family | What it may reveal | Why it can mislead if used alone | Evidence to retain |
|---|---|---|---|
| Estimated pose uncertainty | Growth, direction and correlation of the estimator’s stated uncertainty | The filter can be inconsistent or overconfident under unmodelled faults | Covariance history, ground-truth comparison and calibration method |
| Measurement residual or innovation | Difference between predicted and observed measurements | A small residual can occur after a wrong but internally consistent association | Residual distribution by zone, speed, load and environmental condition |
| Scan-match or feature-match quality | How well live observations align with the map or reference | Repeated geometry may produce a strong match at the wrong place | Score definition, version, acceptance curve and known aliasing cases |
| Hypothesis spread and ambiguity | Whether multiple pose hypotheses remain plausible | A collapsed particle set can still converge to the wrong hypothesis | Particle statistics, secondary modes and failure-injection results |
| Cross-sensor agreement | Divergence among LiDAR, vision, wheel odometry, IMU or external references | Common-cause errors can make several channels agree while all are wrong | Residuals by source, correlation analysis and sensor-fault tests |
| Data age and timing continuity | Stale observations, time jumps, lost updates and transform latency | A fresh timestamp does not prove fresh underlying sensor content | Source timestamps, receipt timestamps, sequence counters and clock status |
| Map-consistency indicators | Persistent mismatch between the expected and observed environment | Temporary pallets or people may look like map change without corrupting pose | Mismatch heatmaps, duration, affected features and map version |
| Pose continuity and kinematic plausibility | Impossible jumps, yaw discontinuities or motion inconsistent with wheel/IMU data | A slow drift can remain kinematically plausible | Pose deltas, commanded motion, measured velocity and rejection events |
A robust AMR localization health monitoring design normally combines several of these signal families. The combination must preserve the meaning of each input. Averaging a stale-data alarm, a covariance value and a match score into one opaque percentage may create a neat dashboard while destroying diagnostic value.
Use two layers: estimator confidence and independent plausibility
The first layer should report what the localization estimator believes about itself: covariance, particle dispersion, match score, feature support and internal fault flags. The second should challenge that belief with information that is not merely another view of the same calculation: kinematic bounds, independent landmarks, redundant odometry, route geometry, station references or externally measured checkpoints.
This does not mean every AMR needs a duplicate localization system. It means the team must understand independence. If the “independent” monitor consumes the same point cloud, map, association logic and clock as the primary estimator, it may share the same blind spot. The related guide on sensor fusion in mobile robots explains how complementary sensors improve robustness; this article adds the governance question of whether their failure modes are actually diverse enough to support the intended response.
Translate Uncertainty into a Task-Specific Spatial Budget
A confidence number becomes actionable only after it is connected to geometry and consequence. Ten centimetres of lateral uncertainty may be acceptable in an empty three-metre aisle and unacceptable during a fork insertion, lift transfer or close pass beside an exposed person. The threshold therefore belongs to an operating mode and location, not to the localization module in isolation.
A practical margin worksheet
For each route segment or task, define an available localization margin using a conservative design worksheet:
available localization margin = minimum physical clearance − vehicle/load envelope allowance − tracking/control error allowance − map/site tolerance − required reserve
This is not a universal standards formula and should not be copied as a safety calculation. It is a disciplined way to expose the competing allowances that projects often hide. Each term needs a definition, measurement basis and owner. The result can then be compared with a bounded localization error or protection level that has been validated for the relevant conditions.
The worksheet should distinguish direction. Lateral position error may dominate in a narrow aisle, yaw error may dominate near a long load or extended fork, and longitudinal error may dominate before a crossing or conveyor handoff. Reducing uncertainty to one radial value can hide the direction that consumes clearance fastest.
Separate navigation clearance from protective stopping
Localization margin and scanner protective-field size solve different problems. A protective field is commonly engineered from response time, braking behaviour, speed, load, approach geometry and measurement tolerances. A global pose estimate may be used to request a speed or field set, but the safety validity of that selection depends on the architecture and evidence chain. The detailed AMR protective-field engineering guide addresses that stopping calculation.
By contrast, this article asks whether the robot can trust its relationship to a mapped boundary, reserved corridor, docking target or restricted zone. An enlarged scanner field may reduce collision risk, but it cannot prove that the vehicle is on the correct side of a virtual line. When location selects a safety-relevant operating condition, the integrity of the selection path must be assessed explicitly.
Use a Five-State Localization Assurance Ladder
A binary green/red model reacts too late and encourages nuisance stops. A useful operating policy adds intermediate states while preserving an unequivocal final condition. The following ladder is a design pattern, not a standard-mandated state machine.
| State | Entry evidence | Permitted behaviour | Prohibited behaviour | Typical output |
|---|---|---|---|---|
| Assured | All required metrics are within their task-specific normal bands; data is fresh; no contradiction is active | Normal automatic travel within released limits | None beyond ordinary operating constraints | Healthy status and traceable metric snapshot |
| Watch | One leading indicator degrades or approaches a warning boundary | Continue only where remaining margin is adequate; increase logging and diagnostic sampling | No entry into a tighter task if its threshold would be exceeded | Warning with metric, direction, location and duration |
| Constrained | Confidence exceeds the normal envelope but remains inside a validated degraded envelope | Lower speed, shorten permitted horizon, hold before critical zones or route toward a defined safe holding point if validated | No docking, lift entry, narrow-gap traversal or other task requiring better localization | Constraint command plus reason and expiry condition |
| Hold | Available margin is insufficient, a critical signal is stale, or uncertainty is rising too rapidly | Complete a validated controlled stop and maintain local protective functions | No continuation of the automatic order | Motion inhibit, fault state and operator/fleet notification |
| Untrusted | Pose is lost, contradictory or outside the validated containment claim | Remain in the defined safe condition pending an authorized recovery process | No automatic driving based on the untrusted pose | Fatal localization status, frozen evidence record and recovery handoff |
The localization confidence threshold for each transition should be tied to a measured error distribution and task margin, not copied from a demonstration or another site. A normalized score of 0.7 from one supplier may have no relationship to 0.7 from another. Even on the same robot, the mapping between score and actual error can change after software, map or sensor configuration updates.
Thresholds need persistence, hysteresis and rate-of-change logic
Real signals fluctuate. If the controller switches states every time a noisy value crosses a line, the robot may chatter between normal and constrained modes. Hysteresis uses different entry and exit boundaries; persistence requires a condition to remain present for a specified duration or number of valid samples. Both must be chosen with timing evidence. A five-second filter that suppresses nuisance alarms may also delay a necessary stop by five seconds.
Rate of change is equally important. A slowly widening covariance may permit a controlled constraint, while a sudden pose jump or abrupt loss of feature support may require an immediate hold. The policy should therefore evaluate level, duration and slope, plus explicit hard faults that bypass gradual states.
“Slow down” is valid only inside a proven degraded envelope
Lower speed can reduce tracking error and give the monitor more time, but it does not automatically restore global position knowledge. If the robot is confidently in the wrong aisle, moving slowly merely prolongs the error. Constrained motion is appropriate only when the remaining pose uncertainty, route geometry, obstacle protection and stopping capability have been validated together.
The required safe response to localization loss is therefore context dependent. It may be a controlled stop before a conflict boundary, an inhibited docking approach, a hold at the current position or—where a specific degraded path has been designed and validated—limited motion to a holding point. It should not default to “continue cautiously” simply because local obstacle avoidance remains active.
Recognize Failure Signatures Before the Pose Becomes Unusable

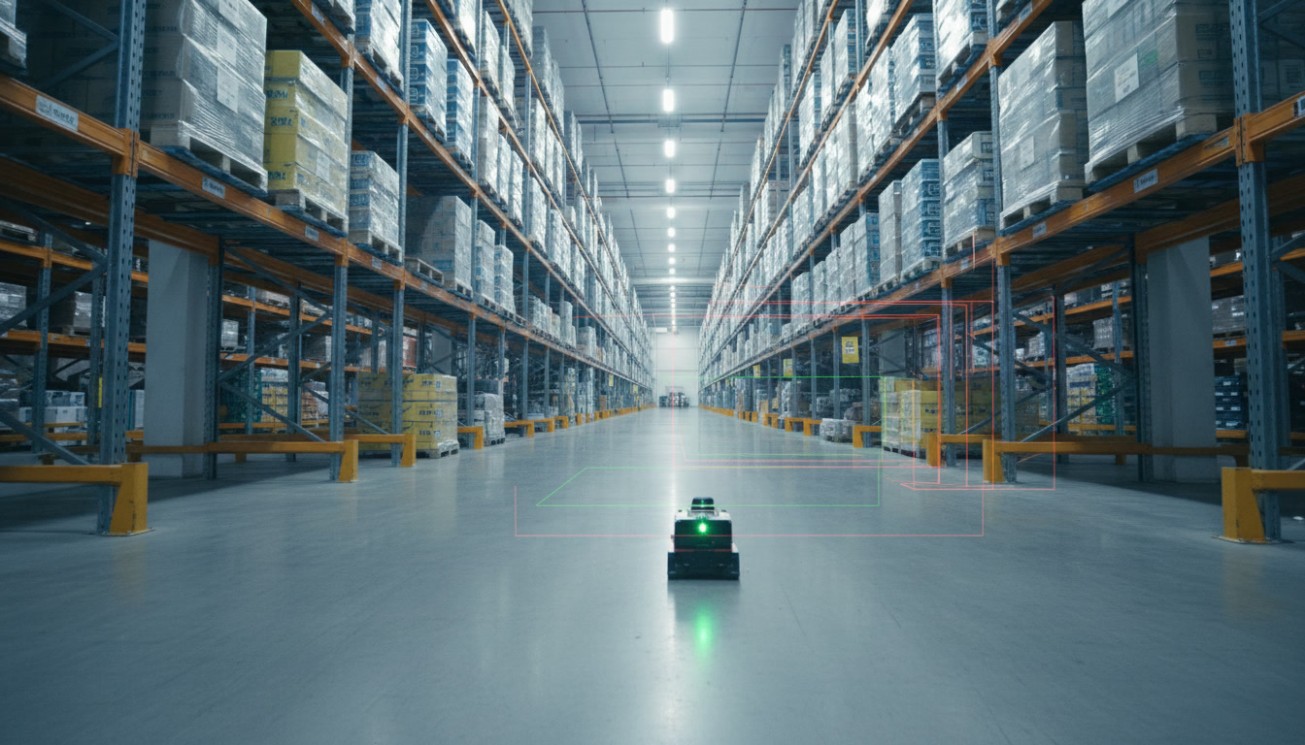

Repeated geometry and perceptual aliasing
Long warehouse aisles can contain near-identical rack bays, columns and endcaps. A scan matcher may find several plausible alignments. The dangerous case is not always a low score; it may be a high score for the wrong hypothesis. Tests should include repeated geometry, partial views and deliberate occlusion of the few distinctive landmarks that normally disambiguate the aisle.
Feature starvation
Open spaces, glass walls, uniform corridors, darkness, glare, dust or temporary wrap can remove useful visual or geometric features. Confidence may erode gradually as odometry carries more of the estimate. The monitor should detect the loss of observation support, not wait for the position to visibly jump.
Dynamic-scene domination
If people, forklifts, carts or stacked pallets occupy most of the sensor view, the live scene may no longer resemble the reference map. Robust localization should reject dynamic objects where possible, but every rejection strategy has limits. Validation needs peak traffic, not just an empty commissioning aisle.
Slip, vibration and inertial bias
Wet or dusty floors, expansion joints, ramps, wheel wear, caster oscillation and load-induced deformation can corrupt dead reckoning. A small bias integrated over time becomes substantial. The useful indicator is often disagreement between motion prediction and external observations, especially when the disagreement persists after expected transient effects.
Pose jumps and frame discontinuities
A global correction may be legitimate, but the downstream controller must know whether a discontinuity is expected and how large a jump it can tolerate. Coordinate-frame resets, map-origin mistakes and transform-tree errors can look like localization events even when sensor matching is healthy. Monitoring must therefore include frame IDs, map versions, transform age and continuity.
Stale data that still looks numerically valid
A last-known pose can remain well formed after a sensor, process or communication path stops updating. The monitor needs source time, receipt time, sequence progression and expected update frequency. A gateway that republishes an old value with a new timestamp can defeat a shallow freshness check.
Map-to-site drift
Racks move, safety fences are installed, dock stations shift, reflective panels are added and seasonal storage changes sight lines. A map can be internally consistent yet no longer represent the operating site. Persistent spatial clusters of poor residuals should trigger map governance, not endless parameter retuning. This is where AMR localization drift detection becomes a lifecycle function rather than a one-time commissioning test.
Estimator disagreement and common-cause traps
Disagreement between LiDAR, vision and inertial estimates is valuable because one channel may expose another’s degradation. Agreement is weaker evidence if channels share calibration, timestamps, compute resources, environmental features or pre-processing. The safety argument should identify shared dependencies before calling a system redundant.
Design the Boundary-Scenario Test Pack Around Consequences
Average route accuracy is a poor acceptance criterion because failures concentrate at difficult boundaries. The test pack should target the places where a pose error changes a decision: before a cross-aisle, at a one-way boundary, beside a pedestrian zone, on a lift threshold, during a dock approach or where the robot selects a speed profile.
Use an independent reference system with suitable accuracy and time alignment. Depending on the site, that may be a surveyed total station, motion-capture installation, calibrated fiducial network, laser tracker or another traceable method. The reference uncertainty must be materially smaller than the acceptance limit. Otherwise, the test cannot distinguish robot error from measurement error.
| Scenario | Injected or observed condition | Required evidence | Acceptance focus |
|---|---|---|---|
| Long repeated aisle | Near-identical rack geometry with limited end features | Ground-truth error, ambiguity metrics, alarm time and state transition | No silent jump to a parallel or repeated location |
| Landmark occlusion | Progressively mask stable references with pallets or vehicles | Feature support, uncertainty growth and distance travelled before constraint | Warning or constraint occurs before task margin is consumed |
| Wheel slip | Representative low-friction patch under defined speed and load | Odometry error, cross-sensor residual, peak pose error and response | No uncontrolled continuation on dead reckoning alone |
| Stale localization | Pause source updates, freeze a process or delay transforms | Source/receipt timestamps, timeout path and stop timing | Stale data is detected independently of numerical plausibility |
| Map mismatch | Move a significant rack face or install a realistic obstruction | Residual heatmap, affected zones and escalation record | Site change is distinguished from transient traffic where possible |
| Pose jump | Inject an estimator reset, frame discontinuity or false relocalization | Jump detector result, command inhibition latency and travelled distance | Hard fault bypasses slow-moving confidence filters |
| Narrow-aisle entry | Degrade confidence on approach to the boundary | Position of state transition and final stopped pose | Robot holds before entry when the tighter envelope is unavailable |
| Dock approach | Introduce yaw bias, partial target loss or station shift | Approach abort point, contact forces and local-reference status | No blind continuation into mechanical engagement |
| Intersection reservation | Degrade pose near a fleet-control decision boundary | Zone occupancy, reported pose, reservation state and local stop | No false clearing or entry caused by an untrusted global pose |
| Heavy or extended load | Repeat critical cases at maximum qualified payload and contour | Yaw sensitivity, clearance and stopping evidence | Threshold reflects the actual load envelope |
| Peak dynamic traffic | Representative people, forklifts and mobile assets in sensor view | False-alarm rate, missed degradation and throughput impact | Monitor remains conservative without becoming unusable |
| Software or map update | Run the regression set before and after the controlled change | Metric distributions, threshold compatibility and version traceability | No unexplained change in score meaning or response timing |
This is the heart of industrial AMR localization validation: test the relationship among true error, reported confidence, task boundary and system response. A robot that eventually reports “lost” may still fail if it travels too far before doing so. Conversely, a monitor that stops on harmless fluctuations may pass a conservative demo but fail operational availability targets. Both detection performance and nuisance-response rate belong in the acceptance record.
Measure four times, not one
For each scenario, capture the time at which degradation begins, the time at which the monitor detects it, the time at which the response command is issued and the time at which the robot reaches the required condition. Convert those intervals to distance using the actual speed profile. This exposes a hidden latency chain:
- fault or environmental degradation;
- metric reaction and filtering;
- state-machine decision;
- command transmission and control response;
- physical deceleration or task abort.
Testing only the software alarm time omits the distance travelled while filters, networks, controllers and brakes react.
Write a Localization Confidence Contract Before Tuning Thresholds
Procurement teams often ask for “localization accuracy” as a single number. A better requirement package defines a confidence contract: the exact variables the supplier will expose, their semantics, update behaviour, limits, failure reactions and validation method. This contract prevents a project from discovering during site acceptance that a proprietary score has no stable interpretation.
Minimum fields in the contract
- Metric identity: name, unit, range, reference frame and direction.
- Calculation meaning: covariance, match quality, probability, heuristic score, bound or Boolean status.
- Update semantics: expected rate, source timestamp, maximum age and behaviour during missing input.
- Calibration basis: datasets, ground-truth method, software and map versions, loads and environments.
- Operating context: route segment, speed, load state, travel direction, task and sensor configuration.
- Transition logic: threshold, hysteresis, persistence, slope condition and hard-fault bypass.
- Response: allowed speed, prohibited tasks, hold location, stop type, notification and motion inhibit.
- Evidence: logged variables, test case, acceptance result, owner and change trigger.
The contract should also state what the score does not mean. If it is intended only for visualization, say so. If it cannot be compared between map versions, say so. If the published covariance omits map uncertainty, calibration bias or time-alignment error, document the exclusion.
Example requirements that can actually be tested
The project’s AMR safety requirements specification should express observable behaviour rather than aspirations. The following patterns are illustrative and require site-specific values:
- “When the age of the last valid global localization update exceeds [T] milliseconds in automatic travel, the system shall inhibit new forward motion commands within [R] milliseconds and record source time, receipt time and active mode.”
- “Before entering zone [Z], the robot shall demonstrate that the validated lateral and yaw uncertainty measures remain below the zone-specific limits for at least [N] consecutive valid updates.”
- “If the estimated pose changes by more than [X] metres or [Y] radians without physically plausible motion, the robot shall transition directly to Hold, regardless of the filtered confidence score.”
- “After entering Constrained state, the robot shall not initiate docking, lift entry or load transfer and shall limit commanded speed to the validated degraded-mode maximum.”
- “If localized status becomes false, automatic order execution shall remain inhibited until the separately specified recovery authorization conditions are fulfilled.”
A statement such as “the robot shall maintain high mobile robot localization accuracy” is not testable until “high,” the reference truth, conditions, sample population and allowed tails are defined. Percentiles and maximum bounded errors are usually more informative than an average alone, particularly at critical zones.
Do Not Let the Fleet Layer Convert Bad Pose Data into a Larger Error
Localization is computed onboard, but its consequences propagate. Fleet software may release intersections, assign the nearest robot, infer that a zone has been cleared or issue a new route based on reported position. The AMR fleet traffic management guide separates fleet coordination from the robot’s immediate local protection. Localization confidence needs the same architectural discipline.
The robot should report status, quality, timestamp and map identity in a defined interface. The fleet controller should know which fields are advisory and which states prohibit order continuation. It should not infer safety from a moving map icon or from a score intended only for visualization. A communication outage should not erase the robot’s local hold requirement, and a fleet command should not override a local localization fault unless the complete override path is explicitly designed, authorized and validated.
VDA 5050 3.0 is helpful as an interoperability reference, but protocol conformance is not proof of the vehicle’s localization integrity or application safety. Its localizationScore enables communication of a value; it does not define how the score is calculated, calibrated or used as a safety function.
Procurement Questions That Expose Weak Confidence Claims
- What exactly does your confidence output represent? Ask whether it is covariance, match quality, particle concentration, a learned classifier, a heuristic blend or something else.
- Can a high score coexist with a wrong pose? A credible supplier should discuss perceptual aliasing, data-association error and map mismatch rather than promise that it cannot happen.
- How was the metric calibrated? Request ground-truth equipment, datasets, environments, speeds, payloads and error distributions.
- What is excluded from the uncertainty? Map error, extrinsic calibration, timing, wheel slip, payload deformation and software faults may sit outside the estimator covariance.
- Which indicators are independent? Two values produced from the same sensor and association pipeline are not automatically redundant.
- What happens before localization is fully lost? Ask for the Watch and Constrained behaviours, not only the final stop.
- Which tasks are inhibited first? Docking, narrow aisles, elevators, crossings and automatic load transfer usually deserve tighter gates than open travel.
- What is the worst-case detection-and-response distance? Require evidence at maximum qualified speed and payload, including filtering and physical response.
- How does the score change after an update? Require regression results and a change-control rule for maps, localization software, sensor firmware and calibration.
- Can raw evidence be exported? A screenshot of a green dashboard is not enough for acceptance, incident analysis or revalidation.
These questions also prevent overlap with basic sensor procurement. The earlier mobile robot sensor selection guide addresses which sensing technologies suit a site; the confidence contract determines how the integrated system proves that its position remains trustworthy in operation.
Common Anti-Patterns

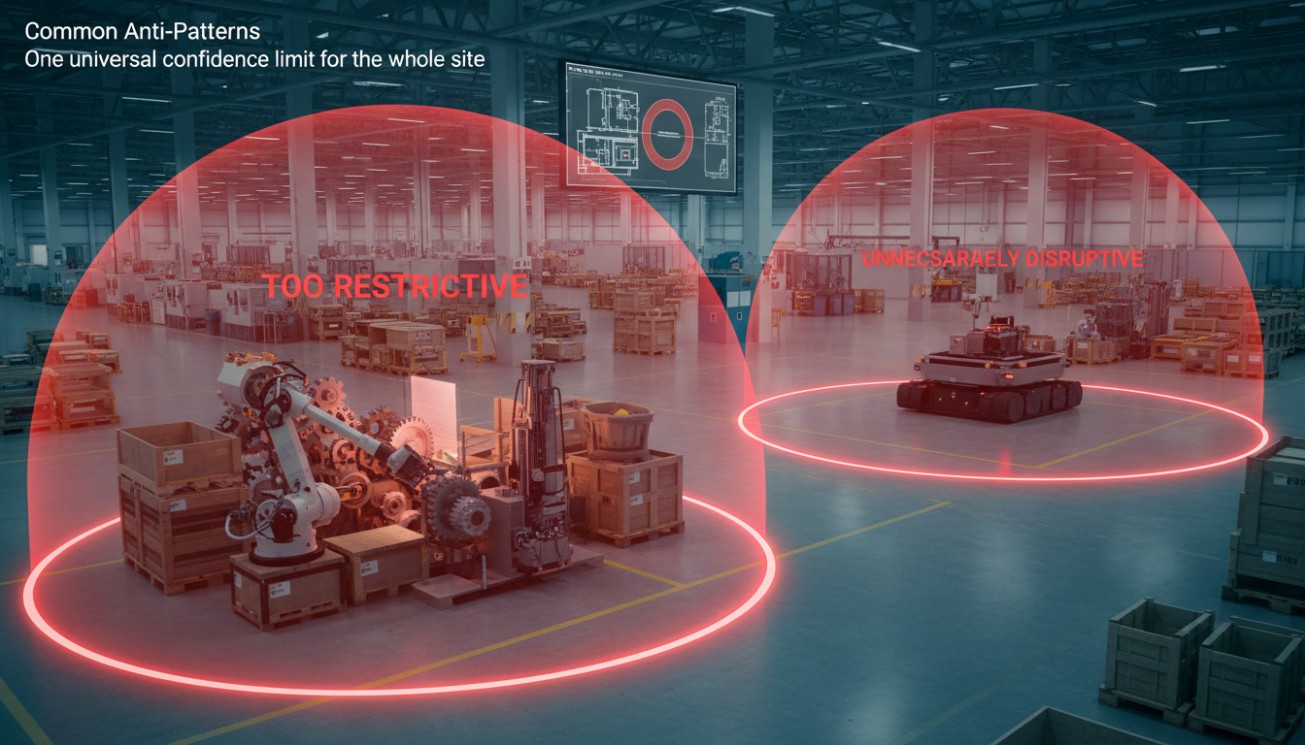

One universal confidence limit for the whole site
This ignores direction, clearance, speed, load and task consequence. It will either be too permissive in tight areas or unnecessarily disruptive in open ones.
Threshold tuning against nuisance alarms only
Raising the limit until operators stop complaining may hide genuine degradation. Thresholds should be tuned against measured false alarms and missed detections, with explicit risk and availability trade-offs.
Using covariance without consistency testing
A filter’s internal uncertainty can be optimistic. Compare predicted confidence regions with ground truth across representative scenarios and versions. Offline consistency analysis can use normalized innovation or estimation-error statistics where appropriate, but those methods must match the estimator assumptions.
Treating a navigation monitor as safety-rated by association
A useful diagnostic can improve operational robustness without qualifying as part of a safety-related control function. If risk-reduction credit depends on it, the complete path from sensing and computation through decision, communication and actuation needs an appropriate safety argument. The companion article on safety-rated sensing versus navigation perception explains why detection performance alone does not establish functional-safety integrity.
Testing loss only while stationary
Stationary injection misses the distance travelled during detection and stopping. Test at qualified speeds, directions and loads, including turns and zone approaches.
Allowing automatic resume when one score recovers
A momentary match may not prove stable relocalization, correct map identity or a safe path from the stopped pose. This article intentionally ends at the safe hold. Recovery authorization, operator interaction, restart checks and re-entry into automatic operation require their own controlled specification.
Release Evidence for the Localization Operating Envelope
A production release should contain more than an accuracy report. At minimum, preserve:
- the approved map, localization software, sensor firmware and calibration versions;
- the vehicle and payload configurations covered by the claim;
- the metric dictionary and confidence contract;
- zone- and task-specific thresholds with their rationale;
- hysteresis, persistence, timeout and hard-fault settings;
- ground-truth equipment details and its uncertainty;
- scenario procedures, raw logs, video and result summaries;
- detection, command and physical response times and distances;
- nuisance alarm, constrained-operation and false-negative findings;
- open deviations, risk decisions, owners and expiry dates;
- change triggers and the regression tests required after each trigger.
ISO 3691-4:2023 currently specifies safety requirements and means of verification for driverless industrial trucks and their systems, including AMRs. ISO also indicates that a replacement draft is under development. Projects should therefore freeze the applicable edition and regional obligations at the start of assessment rather than cite “the latest standard” generically. The official ISO 3691-4:2023 record is the correct place to verify publication status; the project’s risk assessment and system architecture still determine which localization behaviours require safety-related evidence.
The broader AMR navigation and safety deployment validation guide can provide the site-acceptance framework. The localization evidence pack should plug into that framework as a distinct subsystem-and-application claim, with traceability from hazard and task to metric, threshold, response and test result.
Focused FAQ
What is localization confidence in an AMR?
It is evidence about how trustworthy the robot’s estimated pose is under current conditions. Depending on the system, it may include covariance, particle spread, scan-match quality, feature support, residuals, sensor agreement, data freshness and fault indicators. A proprietary score alone is not a complete confidence argument.
Is localization confidence the same as localization accuracy?
No. Accuracy compares estimated pose with a trusted reference. Confidence describes the estimator’s or monitor’s belief about uncertainty. A system can be overconfident and wrong, which is why confidence outputs must be calibrated against ground truth and challenged with failure scenarios.
Why does an AMR lose localization?
AMR localization failure can result from repeated geometry, blocked or weak landmarks, dynamic-scene domination, wheel slip, vibration, calibration error, stale sensor data, timing faults, transform errors, map mismatch, software defects or incorrect data association. Several causes can combine, so testing should include realistic interactions rather than isolated component faults only.
Can an AMR continue moving when confidence is low?
Only if a defined degraded operating envelope has been risk assessed and validated for that task, location, speed, load and architecture. Open-aisle constrained travel may be defensible in some systems, while docking, elevator entry, narrow aisles and conflict zones may require an earlier hold. Low speed by itself does not make a wrong global pose safe.
What should happen if the robot is no longer localized?
The robot should reach and maintain the project-defined safe condition, inhibit continued automatic order execution based on the untrusted pose, preserve local protective functions, report an unambiguous fault and retain evidence. The subsequent relocalization and restart process should be governed separately so a transient score recovery cannot trigger an unsafe automatic resume.
Is VDA 5050 localizationScore suitable as a safety threshold?
Not by itself. VDA 5050 3.0 defines localizationScore and deviationRange for logging and visualization. It does not standardize how a vendor calculates or validates the score. A project can communicate the value through the protocol, but any safety or operational threshold needs its own semantics, calibration, architecture and evidence.
How should localization thresholds be selected?
Start with task geometry and consequence. Measure physical clearance, vehicle and load contour, tracking error, map/site tolerance and required reserve. Then validate how reported metrics relate to true error across representative speeds, loads and environmental conditions. Use direction-specific limits, persistence and hysteresis where justified, plus hard-fault paths for jumps, stale data or explicit loss.
How can a site test localization confidence?
Use a more accurate, time-aligned reference to measure true pose while reproducing boundary scenarios such as landmark occlusion, repeated aisles, slip, stale updates, map changes and peak traffic. Record fault onset, confidence reaction, decision time, command time, final response and distance travelled. The test passes only if the required condition is achieved before the task-specific margin is exhausted.
Does local obstacle avoidance solve localization uncertainty?
No. Local sensing may prevent some immediate collisions even when global localization is weak, but it does not prove correct route identity, zone membership, traffic reservation, destination or docking alignment. Dynamic obstacle avoidance and global localization are complementary capabilities with different failure consequences.
Which changes should trigger revalidation?
Changes to localization software, maps, sensor firmware, calibration, time synchronization, vehicle geometry, payload contour, wheels, maximum speed, route boundaries, racks, landmarks, lighting or operating traffic can affect the confidence-to-error relationship. The project should define which regression subset each change triggers and who approves return to service.
Conclusion: Confidence Is a Permission to Operate, Not a Cosmetic Score
The most dangerous localization problem is not always a robot that announces it is lost. It is a robot that continues making location-dependent decisions while its pose is wrong and its confidence display still appears acceptable. Preventing that condition requires more than better SLAM. It requires a measurable relationship among true error, reported health, task geometry, response timing and verification evidence.
A mature design uses several confidence signals, challenges estimator self-belief with independent plausibility checks, assigns different envelopes to different tasks and measures the complete distance from degradation onset to physical response. It also preserves a hard boundary: once pose is untrusted, automatic continuation is prohibited until a separately governed recovery process establishes the conditions for re-entry.
That is the practical meaning of localization assurance. The robot does not need perfect certainty. It needs to know when its uncertainty is no longer compatible with the job it is about to perform—and the system needs to respond before that uncertainty becomes an unsafe action.
