AGV and AMR Safety Standards: What Buyers Should Know Before Deployment

AGV and AMR Safety Standards: What Buyers Should Know Before Deployment

AGV and AMR projects are often introduced through efficiency numbers: fewer manual handling tasks, shorter transport time, better labor utilization, higher throughput, and more stable material flow. These benefits are real, but they do not tell the whole story. In an industrial environment, a mobile robot is not simply a moving machine. It is a moving machine that shares space with people, forklifts, conveyors, racks, pallets, doors, elevators, charging stations, and other robots.

This is why AGV safety standards and AMR safety standards are not just technical documents for compliance teams. They are practical frameworks for answering a critical question: Can this robot system operate safely in this specific site, with this specific load, at this specific speed, around these specific people and processes?

A robot that performs well in a demonstration area may still be unsafe or unacceptable in a real deployment. The demo may not include forklift traffic, narrow aisles, unexpected pallet placement, pedestrian crossings, slippery floors, lighting changes, blocked sensors, or emergency recovery situations. Safety standards exist because industrial reality is more complicated than product videos.

For buyers, understanding mobile robot safety is not about memorizing every clause of every standard. It is about knowing what questions to ask before deployment. Has a robot risk assessment been completed? What safety functions are used? Are safety laser scanners configured correctly? Are warning fields and protective fields matched to speed and braking distance? What happens if localization fails? How does the robot behave around workers? How are safety functions validated on site? Who is responsible for changes after installation?

These questions directly affect AGV compliance, AMR deployment safety, and long-term project success.

Why Safety Standards Matter More as Mobile Robots Become More Autonomous

Traditional AGVs often followed fixed paths. Their routes were controlled by magnetic tape, wires, reflectors, QR codes, or other external references. In many applications, the operating area could be more clearly defined. People understood where the vehicle would move because the path was visible or fixed.

Modern AMRs are different. They may use LiDAR SLAM, natural navigation, dynamic obstacle avoidance, fleet management software, route replanning, and flexible task assignment. This flexibility is valuable, but it also changes the safety challenge. If a robot can choose routes dynamically, the safety system must account for more possible interactions. If it can work in shared spaces, it must behave predictably around humans. If it can replan around obstacles, it must not choose a path that creates new risk.

This is why safety standards become more important, not less important, as mobile robots become smarter.

Autonomy does not remove responsibility. A robot that decides its own route still needs safe speed limits, safety-rated sensors, controlled stopping, emergency stop functions, safe restart logic, and validated operating boundaries. The more flexible the robot becomes, the more carefully the project team must define its safe operating conditions.

ANSI/RIA R15.08-1-2020 specifies safety requirements for industrial mobile robots and describes basic hazards associated with IMRs in industrial environments, while ISO 13849-1:2023 provides methodology and requirements for safety-related parts of control systems that perform safety functions.

For buyers, the key point is simple: navigation intelligence and safety compliance are not the same thing. A robot may navigate well, but that does not automatically mean it has a properly designed safety control system.

Safety Is Not a Product Feature; It Is a System Responsibility

Many buyers ask vendors whether the robot is “certified” or “compliant.” This is a reasonable starting point, but it can create a false sense of security if the buyer assumes that a certified robot automatically makes the whole project safe.

Mobile robot safety is a system responsibility. The robot manufacturer has responsibility for the robot design. The integrator has responsibility for how the robot is applied and connected to the site. The end user has responsibility for the operating environment, process rules, worker training, maintenance, and future changes. In many projects, all three parties must work together.

A robot may include safety laser scanners, emergency stop buttons, safety controllers, speed monitoring, braking systems, and warning lights. But once the robot is deployed, its safety depends on how those functions interact with the real site. A protective field that works in a wide aisle may not be suitable for a narrow aisle. A safe speed in an open area may be unsafe near a workstation. A route that works with an empty robot may need adjustment when the robot carries a heavy load.

This is why AMR deployment safety cannot be evaluated only at the product level. It must be evaluated at the application level.

A mobile robot system includes the robot, the load, the route, the floor, the traffic environment, the workers, the fleet manager, the charging area, the docking stations, the control interfaces, and the maintenance process. Safety standards help structure this evaluation.

A good safety discussion should therefore move from “Is the robot safe?” to “Is this robot system safe for this application?”

Robot Risk Assessment: The Starting Point of Safety

A robot risk assessment is one of the most important steps in any AGV or AMR deployment. It identifies hazards, estimates risk, defines risk reduction measures, and verifies whether the remaining risk is acceptable.

In mobile robot projects, hazards can come from many sources. The robot may collide with a person. It may hit a rack, pallet, machine, conveyor, door, or forklift. It may stop suddenly and cause load shift. It may block an emergency route. It may start unexpectedly after a stop. It may move too fast in a pedestrian area. It may lose localization. It may fail to detect a low object or overhanging load. It may interact incorrectly with a charging station or automatic door.

A proper robot risk assessment should consider both intended use and reasonably foreseeable misuse. Workers may step into robot paths. Pallets may be placed outside designated zones. Operators may stand near a docking station. Maintenance staff may work around disabled robots. Forklift drivers may cross robot routes. People may try to move around a stopped robot.

Risk assessment should not be a paperwork exercise. It should lead to practical decisions: speed limits, safety field design, route planning, restricted zones, warning signals, emergency stop placement, training requirements, signage, sensor coverage, maintenance intervals, and validation tests.

For buyers, this is one of the strongest indicators of supplier maturity. A supplier that only says “our robot has a safety scanner” may not be thinking deeply enough. A supplier that discusses application risk, stopping distance, load condition, protective field design, restart logic, and site validation is more likely to understand real mobile robot safety.

ISO 3691-4: Why Driverless Industrial Trucks Need Application-Level Safety Thinking

ISO 3691-4 is often discussed in relation to driverless industrial trucks and their systems. For AGV and AMR applications, it is important because many mobile robots used in material handling operate like driverless industrial vehicles: they move goods, travel through industrial environments, and interact with people and infrastructure.

The practical value of ISO 3691-4 is that it encourages project teams to think beyond the robot as a device. It pushes attention toward vehicle behavior, operating environment, protective measures, system integration, and foreseeable hazards.

For example, a driverless industrial truck may need to detect people in its travel path, stop before collision, control speed in specific zones, prevent unexpected movement, and maintain safe behavior during automatic and manual modes. These are not abstract requirements. They directly affect how an AGV or AMR should be deployed in a warehouse, factory, or logistics center.

A buyer does not need to quote every clause during vendor evaluation. But the buyer should understand the type of questions the standard encourages:

Where can the robot operate safely?
What loads can it carry?
What is its maximum speed under different conditions?
How does it detect people and obstacles?
How does it stop?
How does it restart?
How are danger zones controlled?
How is the system validated after installation?

This is why ISO 3691-4 should not be treated as a label. It should be treated as a deployment thinking framework.

ANSI/RIA R15.08: Why Industrial Mobile Robots Need Their Own Safety View

Industrial mobile robots are not exactly the same as traditional industrial robot arms. A robot arm usually operates in a defined cell or guarded area. An industrial mobile robot moves through the facility. Its workspace changes as it travels. It may work closer to people and other vehicles. It may carry loads and navigate through shared traffic areas.

ANSI/RIA R15.08 addresses this newer category of industrial mobile robots. It is important because it reflects the reality that mobile robots create a different risk profile from fixed automation equipment. According to the ANSI listing, R15.08-1 specifies safety requirements for industrial mobile robots and addresses basic hazards associated with IMRs in industrial environments.

For buyers, the most useful concept is that the robot must be evaluated in relation to its specified operating environment. In simple language, a robot is not “safe everywhere.” It is designed to operate safely within defined conditions. These conditions may include floor quality, speed range, load capacity, aisle width, lighting, slope, traffic type, obstacle characteristics, and environmental limits.

If the robot is used outside these conditions, the risk changes. For example, a robot designed for clean indoor floors may not be safe on wet or uneven surfaces. A robot designed for a low-speed warehouse lane may not be suitable for a high-traffic forklift crossing. A robot designed for lightweight bins may require new evaluation if it carries heavier or unstable loads.

This is why buyers should ask vendors to define the operating environment clearly. Safety depends not only on what the robot can do, but where and how it is allowed to do it.

ISO 13849 and Functional Safety: Why Control Architecture Matters

When people discuss robot safety, they often focus on visible devices: scanners, bumpers, lights, emergency stop buttons, warning sounds. These components are important, but safety also depends on the control architecture behind them.

ISO 13849-1 focuses on safety-related parts of control systems. It provides a methodology and requirements for the design and integration of control parts that perform safety functions, including software-related aspects.

For AGV and AMR systems, this matters because detecting danger is not enough. The system must respond reliably. If a safety laser scanner detects a person in the protective field, the signal must be processed through an appropriate safety control path. The robot must reduce or remove hazardous motion. The braking system must stop the vehicle within the expected distance. The system must handle faults predictably.

This is where terms such as PL, PL d safety, safety control system, safety-rated output, diagnostic coverage, and safety function become important. Buyers do not necessarily need to design the safety circuit themselves, but they should understand that safety depends on the complete chain.

A weak safety architecture can create dangerous gaps. For example, a sensor may detect an obstacle, but if the signal is processed only by non-safety software, the response may not meet the required safety function. A robot may have a safety scanner, but if braking performance is not validated under maximum load, the protective field may be too short. A controller may stop the robot, but if restart logic is poorly designed, unexpected movement may occur.

Functional safety is therefore not a theoretical engineering topic. It is the difference between “the robot noticed something” and “the robot reliably entered a safe state.”

Safety Laser Scanners, Protective Fields and Warning Fields

Safety laser scanners are among the most common safety devices in AGV and AMR systems. They monitor areas around the vehicle and can trigger different responses depending on field design.

A warning field is usually used to slow the robot down or prepare for a safer state. A protective field is used to trigger a safety stop when a person or object enters the critical zone. The shape and size of these fields must be designed according to vehicle speed, response time, braking distance, load condition, direction of travel, and site layout.

This is where many projects fail in practice. The robot may have a high-quality safety scanner, but the protective field may not match the real stopping distance. The field may be too short for a loaded robot. It may not cover side movement during turns. It may not account for reverse travel. It may be blocked by the load. It may be too large, causing unnecessary stops and reducing throughput.

Safety field design should be validated on site. It should not be copied from a generic template. A small AMR carrying totes and a heavy AGV carrying pallets need different protective field strategies. A robot moving through open aisles and a robot docking at a conveyor need different field sets. A robot that turns in place needs different side protection from a robot that only moves forward.

This is why safety scanner configuration is an engineering task, not a simple parameter setting.

Speed Control Is a Safety Function, Not Just a Productivity Setting

Speed is one of the most important safety variables in mobile robot deployment. The faster a robot moves, the more distance it needs to stop. The heavier the load, the more important speed and braking behavior become.

In many facilities, mobile robots should not use one fixed speed everywhere. Different zones require different speed limits. A robot may move faster in a dedicated robot lane, slower near pedestrian crossings, slower near workstations, slower in narrow aisles, and very slowly during docking.

Speed control is not only about optimizing throughput. It is a safety function. If speed zones are poorly defined, the robot may enter high-risk areas too quickly. If the robot does not reduce speed when carrying a heavy load, the protective field may be insufficient. If speed changes abruptly, the load may shift or workers may be startled.

A good AMR deployment safety plan connects speed control with map zones, safety scanner fields, route design, and traffic rules. When the robot enters a high-risk zone, the active safety field and speed limit should match. When the robot carries a specific load, its allowed speed may need to change. When the robot approaches a docking point, speed should be reduced for precision and safety.

In practical terms, speed should be treated as part of the safety architecture, not as a tuning variable left until the end of commissioning.

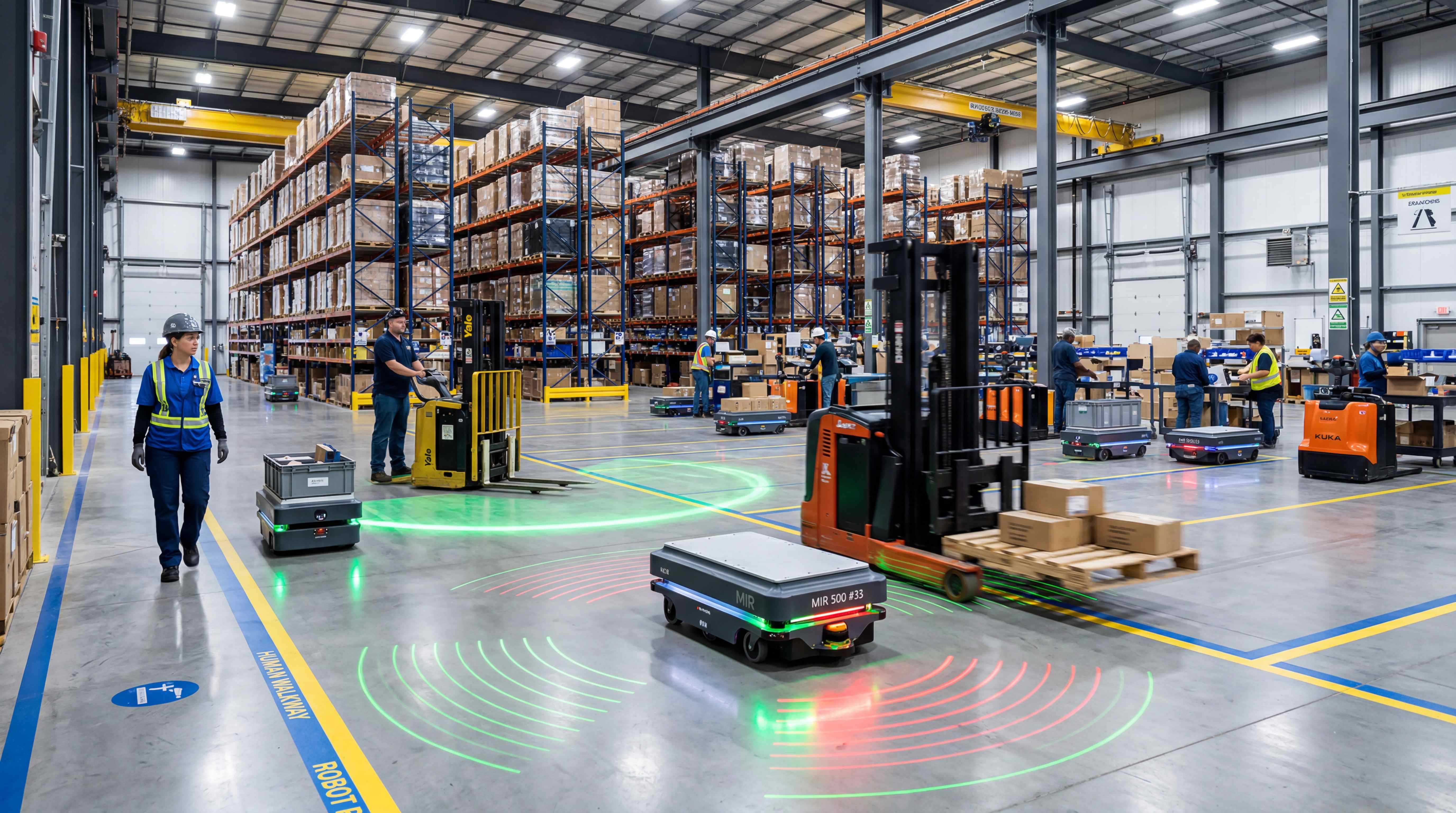

The Safety Problem of Mixed Traffic

Many AGV and AMR systems operate in mixed traffic environments. This means robots share space with people, forklifts, pallet trucks, manual carts, conveyor operators, maintenance staff, and sometimes visitors.

Mixed traffic creates one of the hardest safety challenges because not all participants behave predictably. A forklift may turn suddenly. A worker may step backward while scanning a label. A person may cross the robot lane while looking at a handheld device. A pallet jack may stop in an aisle. Another robot may pause unexpectedly.

In this environment, mobile robot safety must include more than onboard sensors. Site traffic design becomes essential. Robot lanes, pedestrian walkways, forklift crossings, warning signs, floor markings, right-of-way rules, speed zones, and restricted areas all help reduce risk.

Where possible, robot routes and forklift routes should be separated. If they must cross, the crossing should be controlled with reduced speed, clear visibility, warning signals, and traffic rules. Robots should avoid passing too close to manual workstations unless the process requires it. Buffer zones should be defined near conveyors, elevators, and charging stations.

The key industry insight is this: a chaotic site will force the robot to behave conservatively. If the environment is poorly organized, even the best safety system may result in frequent stops. Good safety design improves both protection and productivity because it reduces unexpected interactions.

Load, Braking Distance and Stability

A mobile robot’s safety performance changes when it carries a load. This is especially important for pallet-moving AGVs, heavy-payload AMRs, autonomous forklifts, tugger systems, and large mobile platforms.

A loaded robot may need a longer stopping distance than an empty robot. The load may change traction, center of gravity, turning behavior, and stability. A tall or unstable load may create tipping or shifting risk. A load that extends beyond the robot body may create additional collision risk. A robot carrying fragile goods may need smoother acceleration and deceleration.

This means safety validation should not be performed only with an empty robot. Testing should include expected load conditions, maximum load, typical load height, load stability, floor condition, and route geometry.

Protective fields should account for the full moving envelope, not just the robot base. If a pallet extends beyond the vehicle footprint, the safety zone must consider the pallet. If a forklift-style AMR carries forks forward, detection and stopping must account for the fork area. If a tugger pulls carts, the full train must be considered.

In real deployment, many safety issues come from treating the robot as a standalone machine while ignoring what it carries. A mobile robot is safer when the system considers the robot, the load, and the route together.

Emergency Stop, Safe Stop and Restart Logic

Emergency stop buttons are visible safety elements, but the logic after a stop is just as important.

When an emergency stop is triggered, the robot must enter a safe state. But what happens next? Who can reset it? Does the robot restart automatically? Does it require human confirmation? Does it recheck the environment before moving? Does it know whether its load is still stable? Does it need to re-localize? Does fleet management know the robot is stopped?

Poor restart logic can create hazards. A robot that resumes movement unexpectedly may surprise workers. A robot that restarts without checking its surroundings may move into a blocked path. A robot that remains stopped without clear diagnostics may become an operational bottleneck.

Safe stop and restart should be part of the project safety plan. Different stop types may require different recovery logic. A planned stop at a workstation is not the same as an emergency stop. A protective field stop is not the same as a low battery stop. A localization failure is not the same as a manual pause.

For buyers, this is a practical acceptance question: when the robot stops for safety reasons, how does it safely return to operation?

Site Validation: Why Factory Acceptance Is Not Enough

A robot may pass factory tests but still require site validation. This is because safety performance depends on the installed environment.

Factory testing may confirm that the robot’s basic safety functions work. But the real site introduces actual aisle widths, floor conditions, traffic patterns, lighting, rack layouts, loads, operator behavior, and integration points. A safety scanner field that works in a test hall may need adjustment in a narrow warehouse. A route that looks clear in simulation may pass too close to a workstation. A speed setting that seems efficient may be unsafe near a forklift crossing.

Site validation should test the robot in realistic conditions. This includes actual loads, normal operating speed, expected routes, pedestrian interaction, obstacle scenarios, docking, charging, emergency stop behavior, restart logic, and communication with external equipment.

The purpose is not only to prove the robot can move. The purpose is to prove that the robot can move safely under the defined operating conditions.

For AMR deployment safety, site validation is where theory meets reality. It is also where many hidden issues are found: blind spots, false stops, route conflicts, unclear signage, poor worker understanding, blocked sensors, or map errors.

A mature project includes time for validation and adjustment. Skipping this step may save time at launch but create larger problems later.

Documentation, Training and Change Management

Safety does not end when the robot is installed. It must be maintained through documentation, training, and change management.

Documentation should include operating limits, route maps, speed zones, safety field configurations, emergency stop procedures, maintenance instructions, fault recovery steps, and responsibilities. Workers should know where robots operate, what signals mean, how to respond to stops, and what areas must remain clear.

Training is especially important in shared environments. Workers need to understand that robots behave according to defined logic. They should know whether the robot will slow down, stop, wait, or replan. They should understand not to block sensors, place pallets in robot lanes, ride on robots, or bypass safety devices.

Change management is equally important. Warehouses and factories change over time. Racks move. Routes change. New stations are added. New loads are introduced. Traffic patterns shift. If changes are made without reviewing robot safety, the original risk assessment may no longer be valid.

Every major change should trigger a safety review. This may include map updates, speed zone adjustment, protective field review, route validation, worker retraining, and documentation updates.

This is often the difference between a successful long-term deployment and a project that slowly becomes unreliable.

How Buyers Should Evaluate Supplier Safety Capability

Buyers should evaluate supplier safety capability with specific questions.

Which standards does the robot design reference?
How is the specified operating environment defined?
What safety functions are implemented?
Which sensors are safety-rated?
How are protective fields calculated?
How is stopping distance validated?
Does the safety design account for maximum load?
How are speed zones configured?
How does the robot behave around people and forklifts?
What happens if localization fails?
How is emergency stop recovery handled?
How are safety settings protected from unauthorized changes?
What site validation process is provided?
What documentation and training are included?

A supplier that can answer these questions clearly is more likely to understand real industrial mobile robot safety. A supplier that only lists sensor brands and certificates may not provide enough deployment confidence.

Buyers should also ask for application examples that resemble their own site. Safety requirements for a clean e-commerce warehouse, a heavy manufacturing plant, a cold storage facility, and an automotive production line may differ significantly.

The goal is not to find a vendor that says “yes” to everything. The goal is to find a vendor that understands risk honestly and can design a safe, practical solution.

Common Safety Mistakes in AGV and AMR Projects

One common mistake is treating safety as a product certificate rather than a deployment process. A robot may have safety components, but the application still needs risk assessment and validation.

Another mistake is using the same safety field everywhere. Different speeds, directions, loads, and zones require different safety behavior.

A third mistake is ignoring mixed traffic. Robots, workers, forklifts, and carts need clear traffic rules. Without site organization, robots may stop too often or encounter unnecessary risk.

A fourth mistake is failing to consider load effects. The safety design must account for braking distance, load overhang, center of gravity, and stability.

A fifth mistake is relying too much on non-safety sensors. A navigation LiDAR or camera may support obstacle detection, but safety-rated functions need proper safety control architecture.

A sixth mistake is poor restart logic. A robot should not resume movement unexpectedly after an emergency stop or protective stop.

A seventh mistake is not updating the risk assessment after site changes. A robot deployment that was safe last year may need review after layout changes or process changes.

Avoiding these mistakes requires discipline. Safety is not a one-time box to check. It is an ongoing part of mobile robot operations.

Safety Standards as a Competitive Advantage

Some companies treat safety standards as a burden. In reality, strong safety design can become a competitive advantage.

For robot manufacturers, safety capability builds trust. Buyers want to know that the robot can be deployed in real environments, not just demonstrated in ideal conditions. A clear safety architecture, strong documentation, and transparent validation process can help win serious industrial customers.

For integrators, safety knowledge reduces project risk. It helps avoid acceptance delays, rework, customer complaints, and unsafe site modifications. It also improves communication with EHS teams and plant managers.

For end users, safety standards protect both people and productivity. A well-designed system stops when necessary, but does not stop unnecessarily. It moves at the right speed, in the right zone, with the right protection. It is easier to train workers, easier to maintain, and easier to expand.

In this sense, AGV compliance and AMR safety standards are not just regulatory issues. They are part of automation quality.

Conclusion: Safe Deployment Is the Real Test of Mobile Robot Maturity

AGV and AMR safety standards matter because mobile robots operate in real, changing, human environments. A robot may have advanced navigation, strong sensors, and impressive autonomy, but the project is not mature until the system can be deployed safely, validated properly, and maintained over time.

ISO 3691-4, ANSI/RIA R15.08, ISO 13849 and related functional safety concepts help project teams think systematically about risk, safety functions, control systems, operating conditions, and validation. For buyers, the goal is not to become standards experts. The goal is to ask better questions before deployment.

A safe mobile robot project starts with robot risk assessment. It defines the operating environment. It designs appropriate protective fields, warning fields, speed zones, emergency stop behavior, restart logic, and site traffic rules. It validates safety with real loads and real operating conditions. It trains workers and manages future changes.

The most important lesson is this: mobile robot safety is not only about whether the robot can stop. It is about whether the whole system can operate predictably around people, goods, equipment, and change.

That is why safety standards belong at the center of Navigation & Safety Modules. They turn navigation from movement into responsible automation.

Focused FAQ

What are AGV safety standards?

AGV safety standards are technical and practical frameworks that guide the safe design, deployment, operation, and validation of automated guided vehicle systems. They help address hazards such as collision, unsafe speed, poor stopping distance, load instability, and interaction with people or equipment.

What are AMR safety standards?

AMR safety standards help define safety requirements for autonomous mobile robots operating in industrial environments. They cover risk assessment, operating conditions, safety functions, protective measures, and system-level deployment considerations.

What is ISO 3691-4?

ISO 3691-4 is a standard related to safety requirements for driverless industrial trucks and their systems. It is relevant to many AGV and AMR applications because these robots often move materials through industrial environments without onboard drivers.

What is ANSI/RIA R15.08?

ANSI/RIA R15.08 is a safety standard for industrial mobile robots. It addresses safety requirements and hazards related to IMRs operating in industrial environments, making it important for modern AMR deployment projects.

Why is ISO 13849 important for mobile robots?

ISO 13849 is important because it addresses safety-related parts of control systems. In AGV and AMR systems, safety depends not only on sensors but also on how safety signals are processed, how motion is stopped, and how faults are handled.

What is a robot risk assessment?

A robot risk assessment identifies hazards, estimates risk, defines risk reduction measures, and verifies whether remaining risk is acceptable. It should consider the robot, load, route, people, traffic, environment, and foreseeable misuse.

Are safety laser scanners enough for AGV and AMR safety?

No. Safety laser scanners are important, but they must be integrated into a complete safety control system. Field design, stopping distance, speed, load, sensor placement, controller response, and site validation all matter.

What is PL d safety?

PL d refers to a Performance Level used in functional safety evaluation under ISO 13849. In mobile robot applications, it may be relevant to safety functions that require a defined level of reliability in the safety control system.

Why does site validation matter after robot installation?

Site validation confirms that the robot operates safely under real conditions, including actual floor layout, loads, traffic, workers, lighting, routes, docking stations, and emergency stop scenarios. Factory testing alone is not enough.

What should buyers ask before deploying AGVs or AMRs?

Buyers should ask about applicable safety standards, risk assessment, safety-rated sensors, protective fields, speed zones, stopping distance, load effects, emergency stop logic, restart behavior, site validation, documentation, training, and change management.
