Custom Glass-Glass BIPV Panels: How Size, Transparency and Cell Layout Shape Solar Architecture

Custom Glass-Glass BIPV Begins with Architecture, Not with a Standard Module Size

Custom BIPV panels are often described as solar modules made to special dimensions, but that definition is too narrow for real building projects. In building-integrated photovoltaics, customization is not only about cutting a panel larger or smaller. It is about matching a photovoltaic product to the logic of a building: facade grids, skylight spans, canopy structures, glass safety requirements, daylight targets, visible appearance, cable routing, installation sequence and long-term replacement planning.

This is especially true for glass-glass BIPV. Because the product uses glass on both sides, it can behave more like an architectural material than a conventional solar panel. It may become part of a curtain wall, a roof glazing system, a semi-transparent skylight, an entrance canopy, a balcony barrier, a decorative facade or a solar building skin. In these applications, the product is not hidden equipment. It is part of the building people see, use and maintain.

A standard PV module is usually designed around manufacturing efficiency, electrical output, logistics and common mounting systems. A piece of custom photovoltaic glass must answer a broader question: what does the building need this glass to do? It may need to align with a 1.2-meter facade grid. It may need to allow 35 percent visible light transmission. It may need to match passive panels in shaded areas. It may need a hidden junction box. It may need a specific glass thickness for overhead use. It may need a cell pattern that looks intentional from inside the atrium.

This is why buyers should not treat solar glass customization as an optional aesthetic service. In BIPV, customization is often the condition that allows the product to function as a building material. Without customization, the project may force the building to adapt to the panel. With the right customization process, the panel supports the architecture.

This guide explains how custom BIPV panels should be evaluated for facades, skylights, canopies and building-integrated roof or wall projects. It focuses on practical decisions: BIPV panel size, glass build-up, transparency, cell layout, active-passive planning, color boundaries, electrical details, samples, mockups, supplier capability and procurement risk.

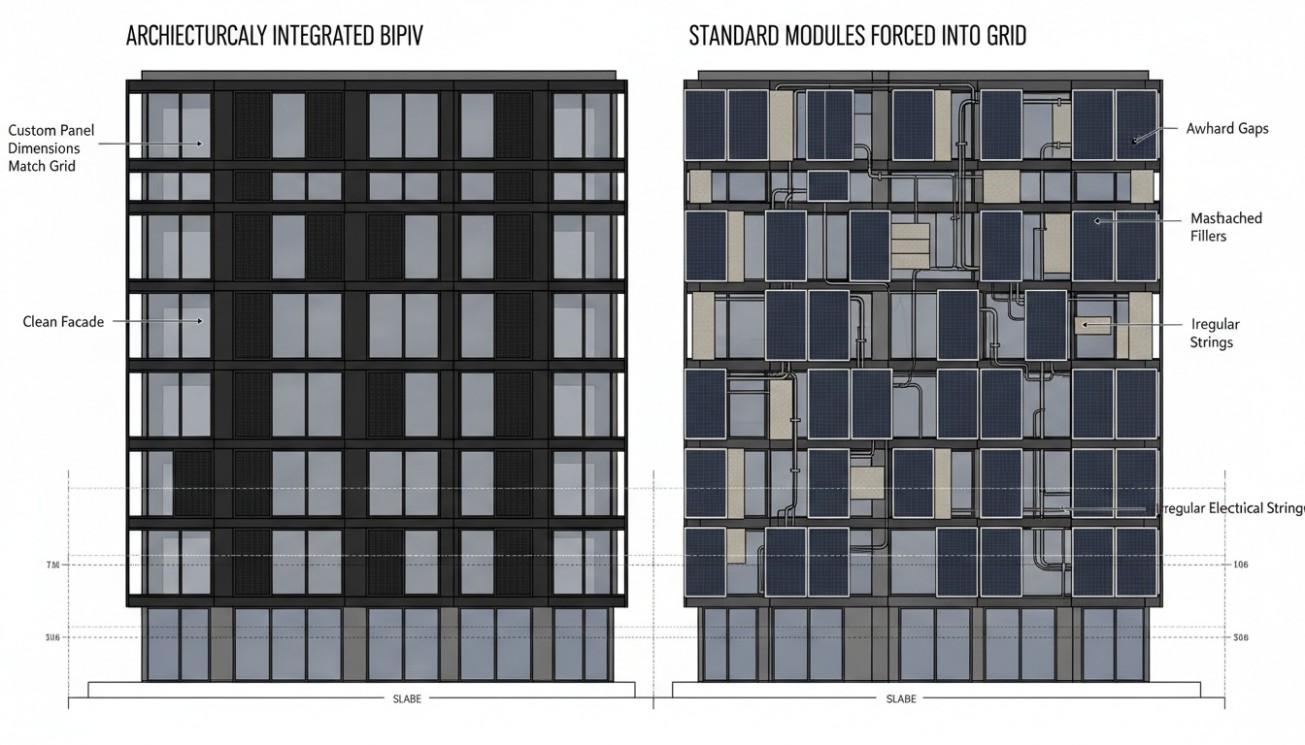

The First Customization Question Is: What Building Grid Must the Panel Follow?

Every building has a grid, even when the design looks irregular. Curtain walls follow mullion spacing. Skylights follow roof beams and rafters. Canopies follow structural bays. Atriums follow spans, joints and drainage lines. The first task in designing custom BIPV panels is to understand that grid before discussing power output.

If a standard solar module is forced into a facade grid, awkward gaps may appear. Panels may not align with windows, floor slabs or cladding lines. The building may need filler pieces that look different from active panels. Electrical strings may become irregular. Replacement panels may be difficult to identify later. These problems are not caused by poor PV technology; they are caused by ignoring architecture.

BIPV panel size is therefore a design and engineering decision. A larger panel may create a cleaner facade with fewer joints, but it may be heavier, harder to handle and more demanding structurally. A smaller panel may fit transportation and installation more easily, but it may create too many joints or interrupt the architectural rhythm. A narrow panel may work in a vertical facade bay, while a wider panel may be more suitable for a canopy or skylight.

Architects should share facade elevations, roof plans, section drawings and intended panel grids with suppliers early. Suppliers should respond with manufacturing limits, tolerance ranges, recommended dimensions and warnings about formats that may increase breakage risk or production cost. The best solar glass customization process is not a one-way request. It is a negotiation between architectural intent and manufacturing reality.

For projects where the building envelope role is still being defined, the glass-glass BIPV building envelope guide can help clarify why custom dimensions should follow the building system rather than ordinary PV catalog logic.

Custom Size Must Be Balanced with Manufacturing, Shipping and Replacement Reality

It is tempting to ask for large-format custom photovoltaic glass because larger panels can look more elegant and reduce visible joints. In architecture, fewer joints often create a cleaner surface. But in glass-glass BIPV, size affects more than appearance. It affects manufacturing yield, glass handling, lamination quality, mechanical load, packaging, shipping, installation equipment and future replacement.

A very large glass-glass module may be difficult to manufacture consistently. It may require special glass processing, larger lamination equipment, stronger packaging and careful site lifting. A panel that looks perfect in a rendering may become expensive or risky if it cannot be handled safely on site. Custom size must therefore be reviewed by the supplier, facade contractor and installer before final approval.

Shipping is another practical issue. Glass glass solar modules are heavy and fragile compared with many ordinary products. A custom panel may have a unique position in the building. If one panel breaks during transport, it may delay a whole facade zone or skylight section. Packaging should protect both glass surfaces and edges, and panel labels should match the installation drawings.

Replacement planning is often ignored during design. A custom facade or skylight may look complete at handover, but buildings operate for decades. If a panel is damaged after five years, can the supplier reproduce the same size, glass tone, cell layout, transparency and electrical characteristics? Should spare panels be ordered with the original shipment? How will replacement panels be stored, labeled and documented?

Professional BIPV panel size decisions must therefore consider the whole lifecycle. The right size is not always the biggest or most visually dramatic. It is the size that balances design quality, manufacturing reliability, installation safety, logistics and future serviceability.

Glass Build-Up Is the Foundation of Custom Photovoltaic Glass

When people discuss custom BIPV panels, they often focus on visible variables such as size, transparency or color. But the most important custom decision may be the glass build-up. In architectural applications, the glass must match the building role. A facade panel, skylight panel, canopy panel and balustrade panel may all need different glass structures.

Custom photovoltaic glass may involve different front and rear glass thicknesses, tempered glass, heat-strengthened glass, laminated safety glass, insulating glass units, special interlayers or project-specific edge treatment. The correct choice depends on load, safety, visibility, overhead use, thermal performance, local codes and installation method.

A standard glass glass solar module may use a structure suitable for conventional PV mounting. That does not automatically mean it can be used as skylight glazing or curtain wall glass. The project team must confirm whether the glass build-up matches the intended application. For overhead use, safety requirements may be stricter. For facades, wind load and glass breakage behavior may need review. For canopies, underside appearance and edge finish may be visible to users.

The supplier should provide detailed glass information, not only a marketing description. Buyers should ask about front glass thickness, rear glass thickness, lamination, encapsulant, edge seal, module weight, mechanical load rating, installation limitations and available safety glass options. If the product is customized, the buyer should verify whether existing test data still applies to the new dimensions and glass structure.

This is where glass-glass BIPV moves beyond ordinary module selection. The glass is not only a protective layer for solar cells. It is part of the building material logic. If the glass build-up is wrong, the project may face approval problems, safety concerns or installation redesign.

Transparency Is a Project-Specific Design Variable

Transparent BIPV glass is often attractive to architects because it allows solar energy generation without completely blocking daylight. But transparency is not a simple “more is better” specification. In BIPV, transparency must be selected according to building use, orientation, climate, interior comfort and power expectations.

Higher transparency can make a skylight, atrium or facade feel lighter and brighter. It can preserve views and reduce the visual density of solar cells. But higher transparency usually means less active cell area, which can reduce power output. Lower transparency can increase shading and power potential, but it may make the space darker or create a heavier appearance. The correct balance depends on the project.

For skylights and glass roofs, transparency affects daylight quality, glare, heat gain and interior atmosphere. For facades, it affects privacy, view, reflection and exterior rhythm. For canopies, it affects the feeling of openness and the quality of shade. For greenhouses, transparency can affect plant growth conditions. One transparency level cannot serve every building type.

Buyers should ask suppliers for visible light transmission data, cell spacing drawings, physical samples and project references. A rendering is not enough. A piece of transparent BIPV glass can look different under direct sun, cloudy sky, interior lighting and night conditions. Mockups are valuable because they show how light, shadow and cell pattern behave at human scale.

The site’s semi-transparent BIPV article explains the daylight-power balance in more depth. In this custom panel guide, the key point is that transparency should be specified as a project variable, not selected from a generic product menu.

Cell Layout Shapes Both Energy Output and Architectural Expression

In custom BIPV panels, cell layout is not only a technical decision. It is an architectural decision. The spacing, orientation, density and alignment of cells influence power output, daylight transmission, shadow pattern, facade rhythm and perceived material quality.

A dense cell layout may provide higher power per square meter and stronger shading. It may be suitable for spandrel zones, opaque facade areas, canopies in hot climates or surfaces where daylight is not required. A more open layout may provide lower power but better transparency, softer daylight and a lighter architectural expression. A custom pattern may align with mullions, skylight frames, triangular grids or decorative facade geometry.

For a custom solar facade, cell layout should be coordinated with the facade grid. If cell rows conflict with mullions or floor lines, the facade may look visually unstable. If the layout aligns with the building rhythm, the photovoltaic layer can feel integrated rather than added. For atriums and skylights, cell layout also creates shadow patterns on floors and walls. Those shadows may become part of the spatial experience.

However, every cell layout has performance implications. More open area means less active solar area. Irregular layouts may complicate electrical design or manufacturing. Custom cell placement may increase cost and lead time. The project team should understand these trade-offs before approving a visual concept.

A mature solar glass customization process should include layout drawings, electrical impact review, daylight review and sample confirmation. The goal is not to make every panel unique. The goal is to create a repeatable pattern that satisfies architecture, manufacturing and energy performance at the same time.

Color Can Be Customized, But It Should Not Dominate This Category

Colored solar glass can be part of a custom BIPV strategy, especially when a building needs to match terracotta, bronze, grey, blue, green, black or other facade tones. Color can help solar surfaces blend into architectural context, support branding or create a more acceptable public appearance. But in the Glass-Glass category, color should be treated as one design variable, not the whole topic.

This distinction matters for content and procurement. A project may need custom size, glass build-up, transparency, cell layout and active-passive planning even when the panel is not colored. Another project may need colored solar glass but still fail if the module dimensions, safety glass structure or cable routing are wrong. A color decision cannot replace building integration.

Color can also affect performance, reflectivity, heat behavior, cell visibility and cost. A darker color may hide cells better but may behave differently from a lighter finish. A custom pattern may improve facade identity but require more sample approval. A high-visibility public building may need color mockups under real light conditions before production.

If the main project question is color selection, readers can refer to the site’s BIPV facade color selection content. For this article, the focus is broader: custom photovoltaic glass should be specified through the full building logic, including size, transparency, cell layout, glass structure and installation conditions.

The best custom projects do not ask, “What color can we get?” first. They ask, “What does the building need the solar glass to do?” Color may be one answer, but it is rarely the only one.

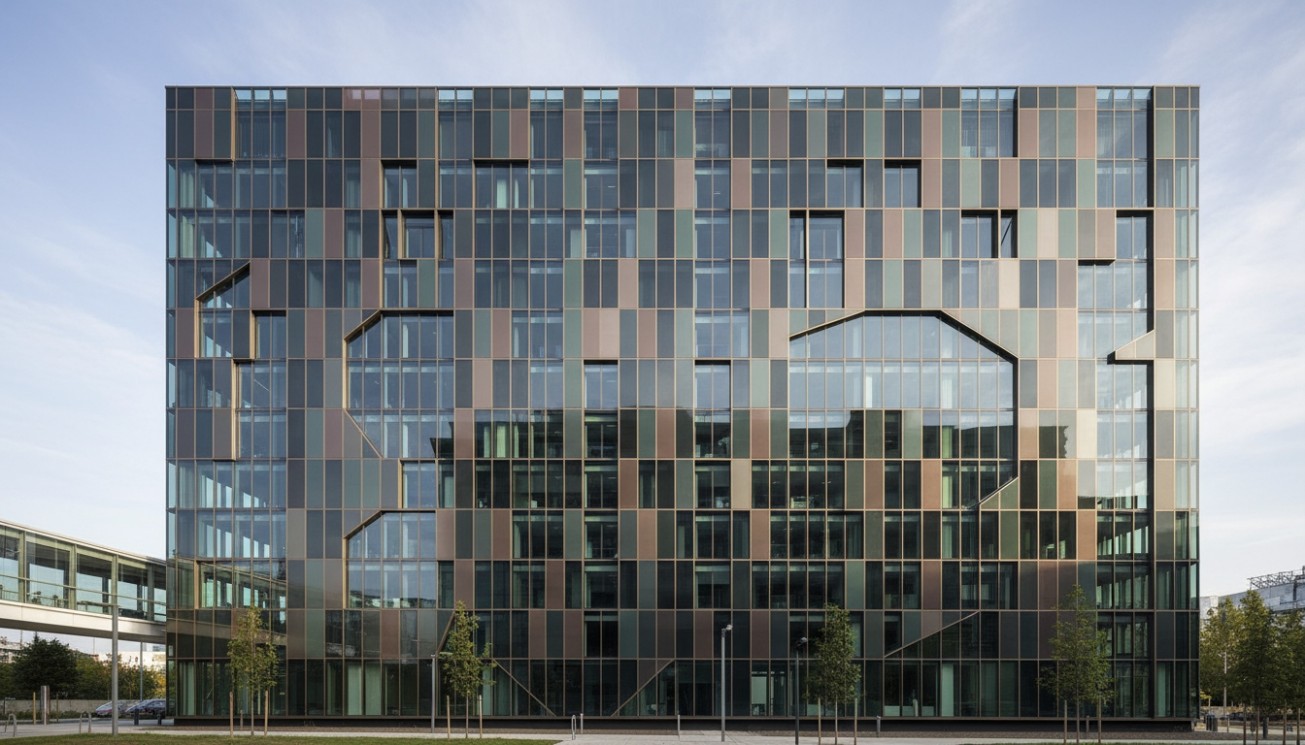

Active and Passive Panel Planning Is Essential for Custom Solar Facades

A custom solar facade rarely consists only of active generating panels. Most buildings contain shaded zones, corners, mechanical areas, service zones, irregular edges, floor transitions, stairwells and areas where solar generation is not practical. If every visible panel must align with the same facade rhythm, the project may need passive panels.

Active panels contain solar cells and generate electricity. Passive panels do not generate power, but they match or complement the appearance of active panels. They can help complete the facade grid, maintain visual consistency and avoid awkward material changes. In some projects, passive panels are just as important to the final appearance as active panels.

Ignoring passive panels is a common procurement mistake. A supplier may quote only active custom BIPV panels, creating an attractive early price. Later, the architect discovers that the building also needs non-generating panels in shaded or non-electrical areas. If those passive panels are not available or do not match, the facade may look fragmented.

A serious custom solar facade should begin with a panel map. This map should identify active panels, passive panels, different sizes, transparency levels, cable exits, junction box locations, replacement codes and installation sequence. It should connect the architectural elevation to the electrical design and factory production schedule.

Passive panel planning also affects replacement. If a passive panel is damaged, can it be remade to match the active panels? If an active panel is replaced later, will it match the passive zones? These questions should be addressed before mass production, not after installation.

Junction Box Position and Cable Routing Must Be Customized Early

Electrical components are often ignored in early architectural discussions, but they can decide whether architectural solar panels feel integrated or awkward. A beautiful glass panel can lose much of its value if the junction box is visible in the wrong place, cables hang below a canopy or wiring conflicts with a curtain wall mullion.

For standard rooftop modules, junction box position is usually a product detail. For glass-glass BIPV, it can be an architectural and maintenance decision. A skylight may need hidden cable routes along structural beams. A facade may need junction boxes aligned with service cavities. A canopy may need underside cable concealment. A transparent panel may require special attention because electrical components are easier to see.

Buyers should request technical drawings showing junction box position, cable exit, cable length, connector type and recommended routing. If customization is available, the supplier should explain what can be moved, what cannot be moved, and how changes affect certification, warranty, production and cost.

Good cable routing must satisfy several goals at once. It should protect electrical safety, preserve appearance, avoid water paths, allow inspection, respect fire barriers and support installation sequence. In custom BIPV, the cleanest design usually comes from early coordination between the supplier, architect, facade contractor and electrical engineer.

The site’s glass-glass BIPV fire safety guide explains why cable routing also matters for facade safety. In custom panel design, it should be treated as part of the product definition, not a late installation detail.

Mockups Turn Custom Claims into Project Evidence

Customization always sounds easier in a brochure than it is on a building. Suppliers may say they can customize size, transparency, color, pattern, glass thickness and junction box position. Buyers should welcome those claims, but they should also verify them through samples and mockups.

A small sample can show material quality, color, cell spacing and glass appearance. A larger mockup can show panel joints, shadow patterns, reflection, active-passive matching, cable concealment and installation details. For a facade, the mockup should be reviewed under natural light and from different viewing distances. For a skylight, it should show underside appearance and shadow behavior. For a canopy, it should show how people experience the surface from below.

Mockups are especially important for custom photovoltaic glass because small differences can become large problems at building scale. A slight color difference may be acceptable on one panel but obvious across a facade. A cell pattern may look orderly in a sample but too dense in a large atrium. A junction box may seem minor in a drawing but visible from the lobby.

The approved mockup should become part of the quality standard. It should define what the project accepts in terms of appearance, cell alignment, color variation, edge finish, transparency, reflection and visible electrical components. Without a mockup standard, disputes after production become more difficult.

For international buyers, mockups also reduce communication risk. They convert vague words like “clear,” “grey,” “semi-transparent,” “custom size” or “architectural quality” into visible evidence that all parties can review before full production.

Customization Has Trade-Offs: Cost, Lead Time and Certification

Solar glass customization creates value, but it is not free from trade-offs. Custom dimensions, special transparency, unique cell layouts, color finishes, non-standard glass build-ups and relocated junction boxes can affect cost, lead time, testing, certification and warranty. Buyers should understand these trade-offs early.

Custom size may require different glass processing or special packaging. Custom transparency may reduce wattage. Custom cell layout may complicate electrical design. Custom color may reduce output or require sample approval. Custom glass thickness may affect weight and mounting. Custom junction box position may require engineering review. Every change should be connected to a real building need.

This does not mean buyers should avoid customization. It means they should customize with purpose. A building-integrated project often needs custom features to work properly. But unnecessary customization can increase risk without improving the project. The best approach is to standardize where possible and customize where the building requires it.

Certification is another important issue. Standard test reports may apply to a specific module structure, size and production method. If the product is heavily customized, buyers should ask whether existing certifications still apply or whether additional project review is needed. This is especially important for facades, overhead glazing, fire-sensitive areas and public buildings.

A professional supplier will explain limitations honestly. It will not promise that every size, every color, every transparency and every installation method is equally easy. Technical boundaries are not a weakness. They are evidence that the supplier understands the responsibility of custom BIPV panels.

How Architects, Engineers and Buyers Should Coordinate Custom BIPV

Custom BIPV succeeds when the right people are involved early. Architects define the visual and spatial intent. Facade consultants review envelope integration. Structural engineers check loads and support. Electrical engineers design strings, routing and safety systems. Suppliers define manufacturing possibilities and product limits. Contractors evaluate installation sequence and access. Owners define long-term maintenance expectations.

If these parties work separately, customization becomes a source of conflict. The architect may approve a beautiful panel size that is difficult to manufacture. The supplier may propose a module that does not fit the facade grid. The electrical engineer may discover that the preferred junction box location creates routing problems. The contractor may find that panels cannot be lifted safely. The owner may later discover that replacement panels are not planned.

A coordinated process should begin with application definition. Is the product used in a facade, skylight, canopy, roof glazing, cladding or balustrade? Next, the team should define the panel grid, glass build-up, transparency level, cell layout, active-passive strategy, wiring concept, mounting method, maintenance access and documentation requirements. Only then should final quotations be compared.

For procurement teams, this means price comparison must include scope comparison. One supplier may quote only active panels. Another may include passive panels, mockups, drawings, custom packaging and engineering support. These quotations are not equal. The cheapest line item may become expensive if missing scope causes redesign.

The Glass-Glass BIPV supplier selection checklist can support this coordination by helping buyers evaluate whether a supplier can do more than manufacture panels.

Specification Checklist for Custom Glass-Glass BIPV Panels

The following checklist can help project teams structure early conversations about custom BIPV panels.

Define the Building Application

Confirm whether the product is used for a facade, skylight, glass roof, canopy, cladding system, balustrade, shading surface or atrium. The application determines the real specification logic.

Confirm Panel Size and Grid

Define the preferred BIPV panel size, module grid, joint rhythm and tolerance requirements. Confirm manufacturing limits and handling constraints before design approval.

Review Glass Build-Up

Ask for front glass, rear glass, lamination, safety glass options, edge treatment, module weight and load ratings. Glass glass solar modules must match the building role.

Select Transparency and Cell Layout

For transparent BIPV glass, define visible light transmission, cell spacing, power expectations, shadow pattern and interior comfort. Review samples before approval.

Plan Active and Passive Panels

Map active generating panels and passive matching panels together. A custom solar facade should be visually coherent even where generation is not practical.

Coordinate Junction Boxes and Cables

Confirm junction box position, cable exits, cable length, routing paths and service access. Electrical details should be integrated into the architecture.

Approve Samples and Mockups

Use samples and mockups to verify appearance, transparency, color, reflection, cell pattern, edge finish and visible electrical components before mass production.

Check Documentation and Replacement

Request drawings, datasheets, certification details, installation guidance, warranty terms, panel maps, packaging labels and replacement procedures for future maintenance.

Focused FAQ

What are custom BIPV panels?

Custom BIPV panels are photovoltaic building materials designed to match specific project requirements such as size, glass structure, transparency, cell layout, color, mounting method, junction box position and building application.

What is custom photovoltaic glass?

Custom photovoltaic glass is solar glass designed for architectural use, such as facades, skylights, canopies, roof glazing or cladding. It combines glass performance with electricity generation and project-specific design requirements.

Why is glass-glass BIPV suitable for customization?

Glass-glass BIPV uses glass on both sides, which makes it more suitable for visible architectural surfaces, semi-transparent layouts, custom sizes and applications where the rear side or underside may be seen.

Can colored solar glass be part of a custom BIPV project?

Yes. Colored solar glass can be used when a project needs a specific facade tone, branding effect or architectural context. However, color should be evaluated together with performance, cost, appearance and building requirements.

What should buyers check when selecting transparent BIPV glass?

Buyers should check visible light transmission, cell spacing, power output, glass build-up, safety requirements, shadow pattern, mockup quality, cable routing and application suitability before selecting transparent BIPV glass.

Why does solar glass customization affect cost?

Solar glass customization can affect cost because special sizes, glass thickness, transparency, cell layouts, colors, junction box positions, packaging and documentation may require additional engineering or production steps.

How important is BIPV panel size?

BIPV panel size is critical because it affects facade rhythm, skylight spans, structural loads, handling, logistics, installation sequence, replacement planning and visual consistency.

Are architectural solar panels the same as standard solar modules?

No. Architectural solar panels must satisfy building requirements such as appearance, glass structure, safety, installation method, transparency, active-passive matching and long-term maintainability, while standard modules mainly focus on power generation.

Conclusion: Customization Should Serve the Building, Not the Brochure

Custom BIPV panels are valuable because buildings are not standard solar racks. Facades have grids. Skylights have spans. Canopies have underside visibility. Atriums need daylight quality. Public buildings need visual consistency. High-value architecture requires materials that fit the design instead of forcing the design to fit a catalog module.

The best custom photovoltaic glass projects begin with building logic. They define application, size, glass build-up, transparency, cell layout, active-passive panels, cable routing, mockups, documentation and replacement planning before final price comparison. This process may take more effort than ordinary module buying, but it reduces the risk of redesign, visual mismatch, installation problems and future maintenance disputes.

Glass-glass BIPV provides a strong platform for this kind of customization because it can behave more like architectural glass than conventional solar equipment. But the structure alone is not enough. The product must be shaped by the project. A large panel is not automatically better. A transparent panel is not automatically more advanced. A colored panel is not automatically more architectural. A custom panel is successful only when it solves a real building need.

For architects, solar glass customization expands the material vocabulary of sustainable design. For developers, it can turn visible surfaces into renewable energy assets. For buyers, it requires disciplined specification and supplier evaluation. For suppliers, it requires technical honesty about what can be customized, what should be standardized and what trade-offs must be accepted.

The future of architectural solar panels will not be defined only by higher wattage. It will be defined by how intelligently photovoltaic materials can adapt to real buildings. In that future, customization is not decoration. It is the bridge between solar technology and architecture.
