Split Solar Water Heater Maintenance: What to Check After Installation

Maintenance Is Not a Repair Job After Something Fails

Many people think maintenance starts when a solar water heater stops producing enough hot water. In reality, good split solar water heater maintenance starts long before failure appears.

A split system is different from a simple rooftop integrated solar water heater. It usually includes roof collectors, a separate hot water tank, a circulation pump, controller, temperature sensors, insulated piping, valves, expansion components, backup heating, and sometimes a closed-loop glycol circuit. Because these components work together, small problems can slowly reduce performance before the user notices a serious issue.

A dirty collector may reduce heat collection. A weak pump may reduce circulation. A misplaced or aging solar water heater sensor may cause the controller to make wrong decisions. Poor pipe insulation may waste heat. A pressure drop may indicate leakage or air in the loop. Degraded glycol may reduce protection and create service risk. A backup heater may run too often and reduce solar savings.

This is why solar hot water maintenance should not be treated as emergency repair. It should be treated as lifecycle management.

For homeowners, maintenance protects comfort. For installers, it reduces callbacks. For distributors, it lowers warranty pressure. For project buyers, it protects long-term system value. For suppliers, it improves product reputation in the market.

A split system can be reliable for many years, but only when it is checked with the right logic.

Why Split Systems Need a Different Maintenance Mindset

An integrated rooftop solar water heater is often maintained as one visible unit. The tank and collector are together on the roof. The system may be simpler, especially in warm climates and non-pressurized applications.

A split system is more flexible, but also more system-based. The collector may be on the roof, while the tank is in a utility room, garage, basement, balcony cabinet, or equipment area. The pump station may be near the tank. The controller may be installed on a wall. Pipes may run through walls, roof cavities, outdoor spaces, or mechanical rooms.

This separation creates more maintenance points.

Good split solar water heater maintenance should check the whole heat path: sunlight enters the collector, heat moves through the circulation loop, the tank stores the heat, the controller manages operation, and the user receives hot water at the outlet.

If any part of that chain is weak, the system may still operate, but not efficiently.

That is the key difference. Split systems do not always fail suddenly. They often decline gradually.

The user may notice that hot water temperature is lower than before. The backup heater may run more often. The pump may become noisy. The controller may show unusual readings. The tank may take longer to heat. The collector loop pressure may drop. The system may work well in summer but poorly in shoulder seasons.

These are not random issues. They are signals.

A professional maintenance approach reads those signals early.

Build a Baseline After Commissioning

The best time to prepare for future solar water heater troubleshooting is immediately after installation and commissioning.

When the system is new and working correctly, the installer should record baseline data. This data helps future service technicians understand what “normal” looks like for that specific system.

Useful baseline data may include:

Collector type and area.

Tank capacity.

Pump model and flow setting.

Controller model and control parameters.

Collector sensor location.

Tank sensor location.

Solar loop pressure.

Expansion vessel pressure.

Glycol type and concentration, if used.

Backup heating setting.

Typical sunny-day collector temperature.

Typical tank temperature rise.

Pipe route and insulation details.

Photos of the installation.

A simple record like this can save time later. Without baseline information, technicians may only guess whether a reading is normal.

For example, if the pump station pressure was 2.5 bar after commissioning and later drops to 1.2 bar, that change matters. If the collector usually reaches strong temperature difference by noon on sunny days but no longer does, that change matters. If the controller once showed stable sensor readings but now shows irregular temperature jumps, that change matters.

A good solar thermal service checklist should begin with baseline records, not only current inspection.

For B2B suppliers and distributors, this is also a way to professionalize after-sales service. A documented installation is easier to support than a system with no records.

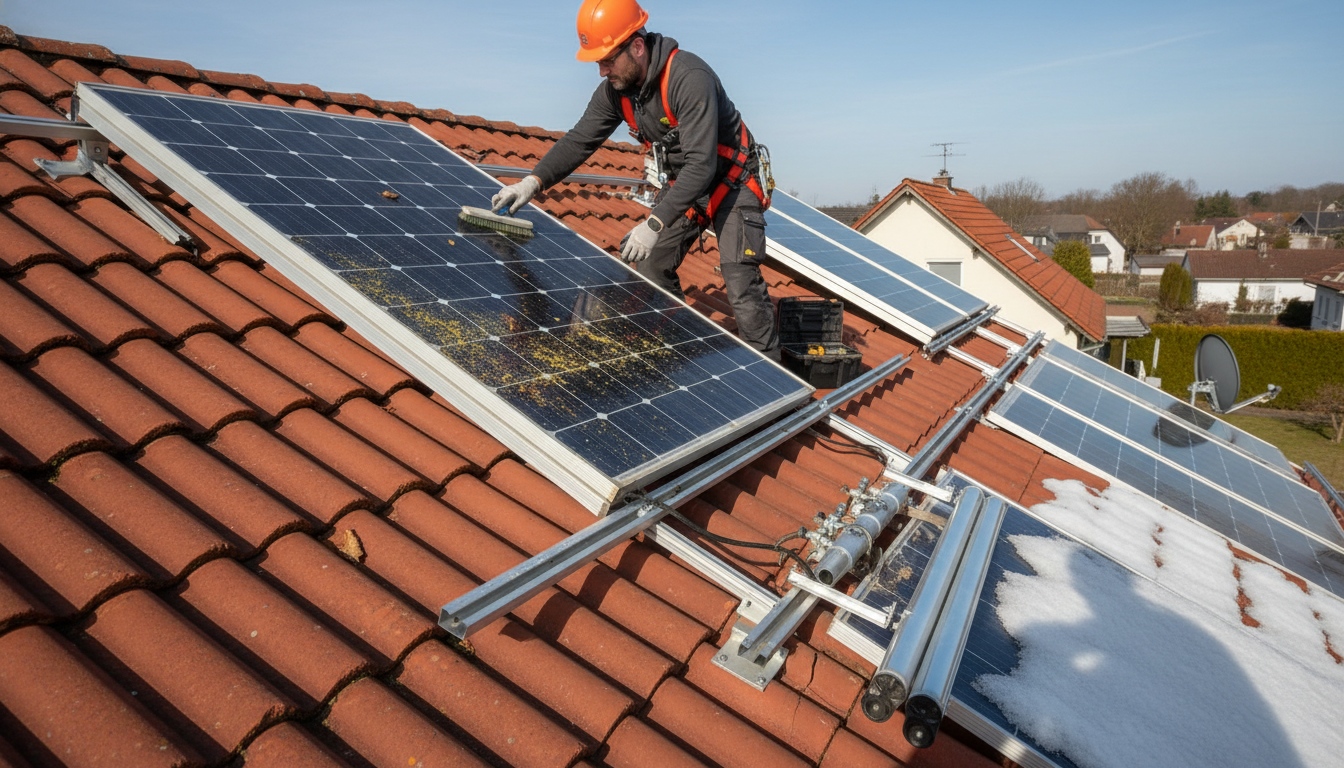

Collector Maintenance: Heat Collection Starts on the Roof

The solar collector is the first point in the system. If the collector cannot absorb enough heat, the rest of the system cannot compensate forever.

Solar collector maintenance should begin with visual inspection. The technician should check whether the collector surface is clean, whether there is dust, leaves, bird droppings, snow, pollen, coastal salt, or industrial pollution. Dirt does not always stop the system, but it can reduce heat collection.

The collector should also be checked for shading. Trees grow. New buildings appear. Antennas, chimneys, roof equipment, or nearby structures can create shadows that did not exist when the system was installed. Even partial shading during key solar hours can reduce performance.

Mounting structure should be checked carefully. Loose brackets, corrosion, roof movement, cracked tiles, or weakened fasteners can create safety and waterproofing risks. In windy regions, mounting stability is especially important. In snowy regions, snow load and roof access should be considered.

For flat plate collectors, solar collector maintenance should include checking glass condition, frame sealing, condensation signs, absorber discoloration, mounting rails, and pipe connections.

For evacuated tube collectors, the technician should check broken tubes, missing tubes, loose tubes, manifold condition, vacuum loss signs, heat pipe seating, frame stability, and spare tube availability.

Collector maintenance is not only about cleaning. It is about confirming that the roof-side heat source remains safe, stable, and productive.

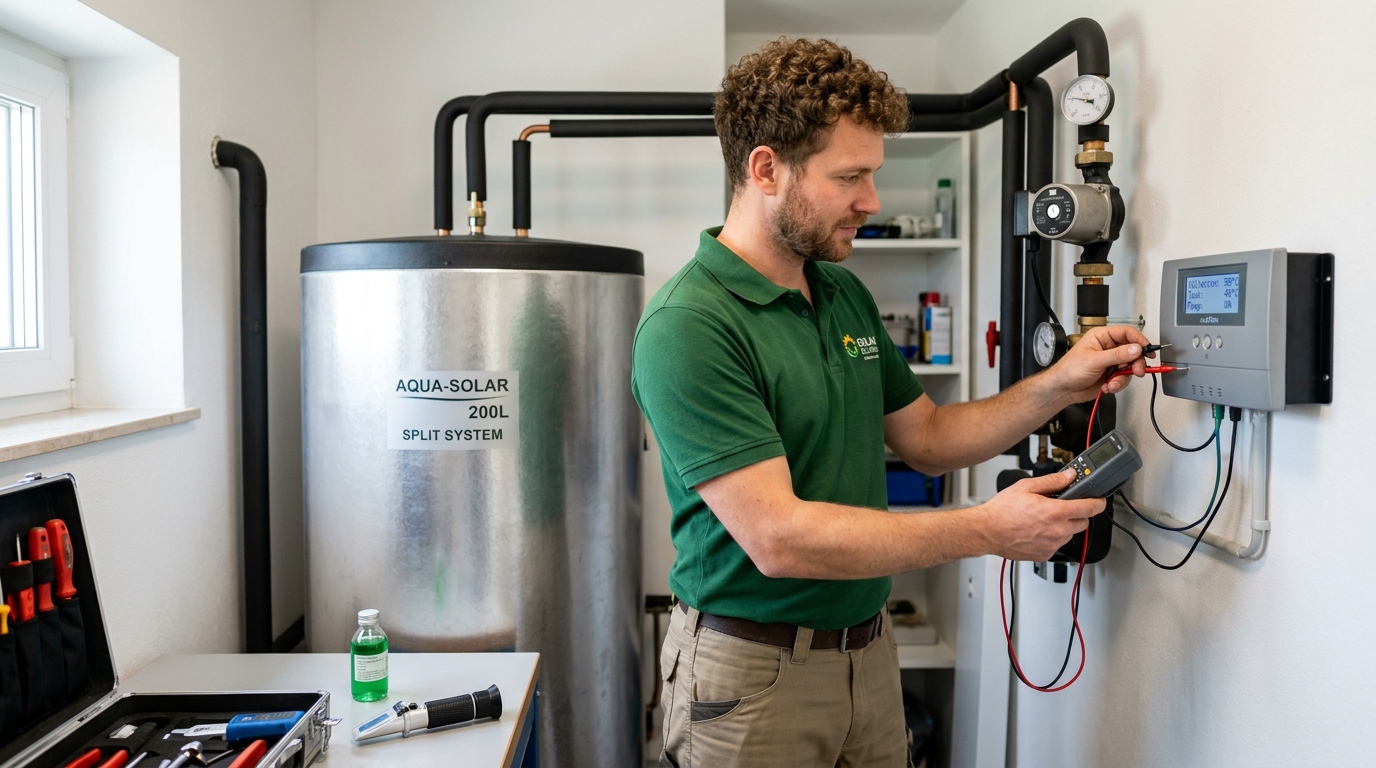

Pump Station Maintenance: Circulation Must Be Verified

In a split system, the pump station is one of the most important service areas. It connects the collector loop with the tank side and determines whether heat can move correctly.

Good solar pump station maintenance should check pump operation, flow rate, pressure, valves, air removal, filling points, electrical connection, and visible leakage.

A pump may be running but still not circulating correctly. It may be blocked, air-locked, undersized, worn, or operating against too much resistance. The technician should not rely only on pump sound. Flow must be confirmed through a flow meter, temperature difference, or system behavior.

The flow direction should also be checked. Incorrect flow direction is usually an installation problem, but it may also appear after service work if components are replaced incorrectly.

Pressure gauges should be observed. A sudden pressure drop may indicate leakage, air release, relief valve discharge, or expansion vessel issues. Excessive pressure may indicate overheating, blocked circulation, wrong expansion vessel sizing, or other hydraulic problems.

For closed-loop systems, solar pump station maintenance is especially important because the pump station supports filling, flushing, pressure checking, and glycol service. Fill and drain ports should remain accessible. Valves should not be stuck. Air separators should be functional.

A pump station hidden behind obstacles or installed without service clearance creates long-term maintenance difficulty. That is why maintenance quality is partly decided during installation.

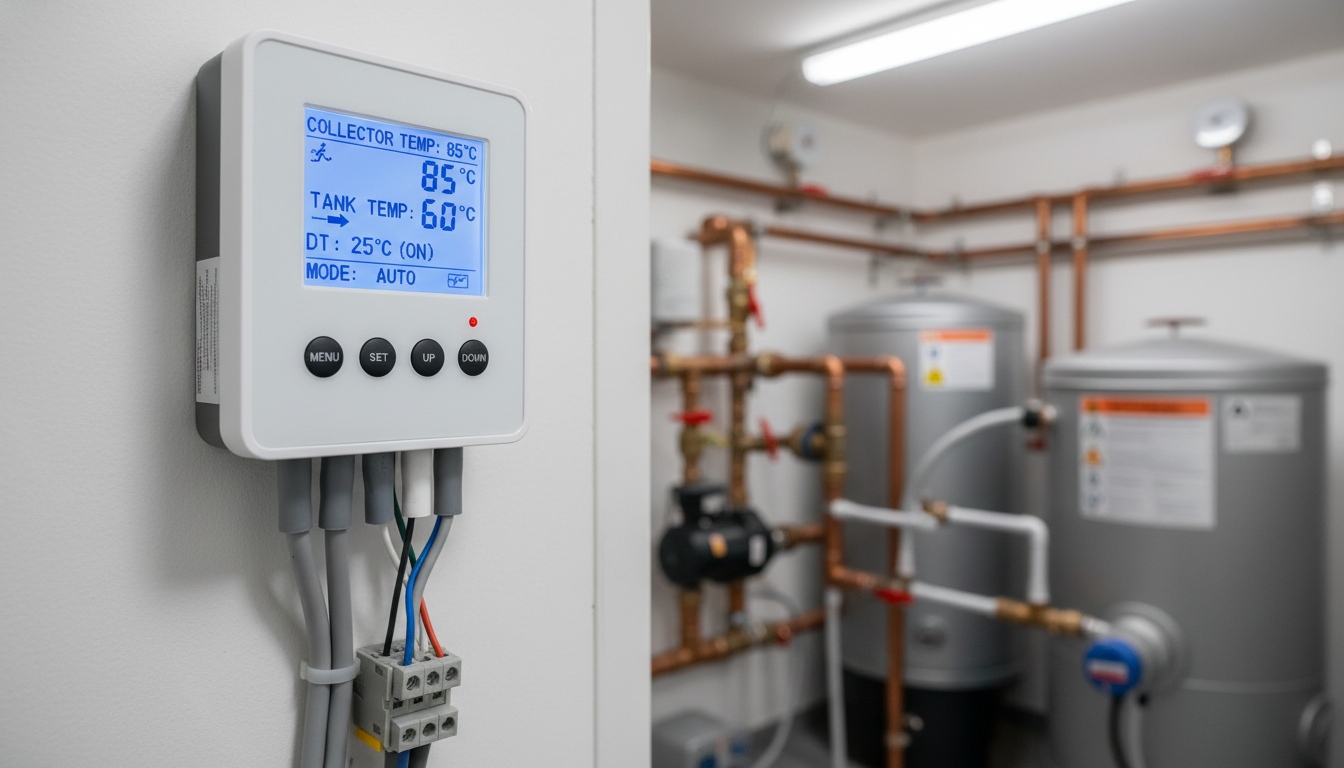

Controller Maintenance: The System Must Think Correctly

The solar water heater controller is the decision center of most active split systems. It receives temperature signals from sensors and controls when the pump runs. In some systems, it may also manage backup heating, freeze protection, overheating protection, alarms, or multiple tanks.

Controller maintenance should begin with display readings. Are collector temperature and tank temperature reasonable? Does the pump start when there is useful temperature difference? Does it stop when collection is no longer useful? Are there error codes? Are settings still correct?

A solar water heater controller may be simple, but wrong settings can create serious performance problems.

If the start temperature difference is too low, the pump may run too early and transfer little useful heat. If the stop temperature difference is too low, the pump may continue running when heat gain is weak. If the maximum tank temperature is set too high, safety risk and system stress may increase. If backup heating is set too aggressively, the solar system may contribute less because the tank is already heated by electricity or gas before solar energy can be used.

Controller wiring should also be checked. Loose sensor wires, damaged cables, moisture, poor terminals, or incorrect connections can create unstable readings.

In professional solar water heater troubleshooting, the controller is not only a display. It is a diagnostic tool. It shows whether the system is receiving correct signals and whether circulation logic is working.

For distributors, controller manuals and parameter guides should be part of after-sales support. Many service problems become easier when technicians know how to read controller data.

Sensor Maintenance: Small Components With Large Influence

A solar water heater sensor may look like a small accessory, but it can control the entire behavior of the system.

Most split systems use at least two sensors: one for collector temperature and one for tank temperature. Some systems may use more sensors for backup heating, multiple tanks, return circulation, freeze protection, or system monitoring.

Sensor maintenance should check accuracy, placement, cable condition, and contact quality.

A collector sensor should measure useful collector temperature. If it is loose, exposed incorrectly, poorly insulated, or placed on the wrong pipe, it may mislead the controller. A tank sensor should sit in the correct sensor pocket or proper tank position. If it is not fully inserted or placed too high or too low, it may not represent the actual tank condition.

A faulty solar water heater sensor can create confusing symptoms. The pump may not start even when the collector is hot. The pump may run when it should not. The tank may appear hot on the controller while users still receive lukewarm water. The backup heater may operate at the wrong time.

Sensor cables should be protected from heat, UV, moisture, rodents, mechanical damage, and electrical interference. In roof areas, sensor wiring is especially vulnerable.

A good solar thermal service checklist should always include sensor verification. Skipping sensors can lead to unnecessary pump replacement, controller replacement, or wrong diagnosis.

Tank Maintenance: Storage Quality Affects User Experience

The storage tank is where collected heat becomes usable hot water. If the tank performs poorly, users will judge the whole system poorly.

Solar hot water tank maintenance should check insulation, valves, connections, pressure, temperature, anode condition if applicable, backup heater, scale buildup, leakage, and service clearance.

Tank insulation is important because collected solar heat must be stored until users need it. A tank with weak insulation may lose heat overnight, making the system seem less effective in the morning.

Connections should be checked for leaks, corrosion, and thermal stress. Safety valves should be inspected. Relief discharge should be routed correctly. If the tank is pressurized, pressure control and safety components are critical.

In areas with hard water, scale can reduce heat transfer and tank performance. Internal coils or heat exchangers may lose efficiency when scaling becomes severe. This can make the collector loop hot while domestic water heats slowly.

If the tank has electric backup, the backup element and thermostat should be checked. A failed backup heater may create complaints during cloudy weather. A backup heater that runs too often may increase energy cost and reduce perceived solar savings.

Solar hot water tank maintenance also includes checking whether the tank remains accessible. If storage boxes, walls, cabinets, or later construction block service access, future maintenance becomes harder.

The tank is not only a container. It is a performance component.

Piping and Insulation Maintenance: Heat Can Disappear Before It Reaches the Tank

Piping is often ignored because it looks passive. But in a split system, pipes are part of the heat transfer path.

A good solar hot water maintenance inspection should check pipe insulation, pipe supports, outdoor exposure, leaks, corrosion, pipe slope, air traps, and mechanical protection.

Outdoor insulation can degrade under sunlight, rain, wind, birds, and temperature cycling. Cracked insulation allows heat loss. Missing insulation around fittings, valves, bends, and roof penetrations can become hidden performance losses.

Pipe supports should be checked. Unsupported pipes may sag, vibrate, or stress fittings. Outdoor pipes should be protected from physical damage and UV exposure.

In closed-loop systems, small leaks may slowly reduce pressure. In direct systems, leaks may create water waste and damage building materials. In both cases, pipe issues can reduce system reliability.

Air traps are another concern. Poor pipe routing can collect air at high points and reduce circulation. If air removal devices are not working or are inaccessible, service becomes difficult.

Piping maintenance is not glamorous, but it is one of the main reasons two systems with the same collector and tank can perform differently.

Glycol Loop Maintenance in Cold-Climate Systems

Cold-climate split systems often use a closed-loop glycol circuit. This requires special maintenance.

Glycol solar system maintenance should include checking glycol concentration, fluid condition, pH if required, pressure, expansion vessel condition, relief valve status, air content, and circulation performance.

Glycol is not a permanent fluid. High temperatures, stagnation, oxygen exposure, contamination, and time can degrade it. Degraded glycol may become dark, acidic, thick, or less effective. It may reduce heat transfer, increase pump resistance, or create corrosion risk.

A technician should check whether the glycol still matches the required freeze protection level. In some climates, insufficient concentration can create freeze risk. Too much glycol can reduce heat transfer and increase pumping difficulty.

The expansion vessel is also important. Glycol expands when heated. If the expansion vessel is undersized, failed, or incorrectly pressurized, system pressure can become unstable.

Glycol solar system maintenance is especially important for villas, cold-climate homes, resorts, and project installations where winter failure can create major complaints.

For B2B buyers, this creates a service opportunity. Annual glycol checks, fluid replacement guidance, and spare part support can become part of a professional after-sales model.

A system marketed as cold-climate ready should always include a maintenance plan.

Backup Heating Maintenance: Comfort Depends on It

Solar energy is variable, so most split systems include backup heating. This backup may be electric, gas, boiler-based, heat-pump-based, or connected to another heating source.

Backup heating maintenance should check function, control logic, thermostat settings, electrical safety, gas or boiler integration, and user schedule.

If backup heating does not work, users may complain on cloudy days even if the solar system is working normally. If backup heating runs too much, users may not receive the expected energy savings. If backup heating heats the tank too early, solar contribution may be reduced.

This is where the solar water heater controller and backup strategy must work together.

For example, if a family mainly uses hot water in the evening, backup heating may be scheduled later in the day, after solar collection has had time to work. If a small commercial project needs hot water throughout the day, backup may need a different control logic.

A complete solar thermal service checklist should include backup heating. Many service teams focus only on the solar side and ignore the device that protects user comfort.

But from the customer’s point of view, the system is judged by hot water availability. Backup heating is part of that experience.

Troubleshooting Low Hot Water Temperature

Low hot water temperature is one of the most common reasons for solar water heater troubleshooting.

The cause may be simple, or it may involve several factors.

The collector may be dirty or shaded. The pump may not be circulating. The controller settings may be wrong. A solar water heater sensor may be reading incorrectly. The tank may be losing heat. The heat exchanger may be scaled. The pipe insulation may be poor. The system may be undersized. The backup heater may have failed. The user demand may have increased after installation.

A professional troubleshooting process should move step by step.

First, check weather and solar conditions. A cloudy week may reduce output naturally.

Second, check controller readings. Are collector and tank temperatures realistic?

Third, check pump operation and flow. Is the system actually circulating?

Fourth, check pipe temperature. Is heat moving from collector to tank?

Fifth, check tank temperature at different levels if possible.

Sixth, check backup heating.

Seventh, check whether user demand has changed.

Eighth, inspect collector condition and shading.

Low hot water temperature should not lead immediately to replacing parts. The technician should first understand where the heat chain is weak.

That is the value of structured solar water heater troubleshooting.

Troubleshooting Pump Noise or No Circulation

Pump noise can indicate air in the loop, incorrect speed, cavitation, worn bearings, blockage, poor pipe design, or pressure issues.

No circulation may be caused by pump failure, controller output failure, air lock, closed valves, blocked strainers, wrong wiring, sensor error, or insufficient pressure.

Good solar pump station maintenance can prevent many of these issues. Flow meters, pressure gauges, air separators, and accessible fill ports make diagnosis easier.

If the pump runs but there is no heat transfer, the technician should check flow rather than assume the pump is fine. A spinning pump does not always mean useful circulation.

If the pump does not run, the technician should check controller conditions. Maybe the collector is not hot enough. Maybe the sensor reading is wrong. Maybe the controller is in protection mode. Maybe power is missing. Maybe the pump relay failed.

For closed-loop systems, pressure and air removal are critical. Air trapped in the circuit can stop circulation even when the pump is functional.

Pump problems should be treated as system problems, not just component problems.

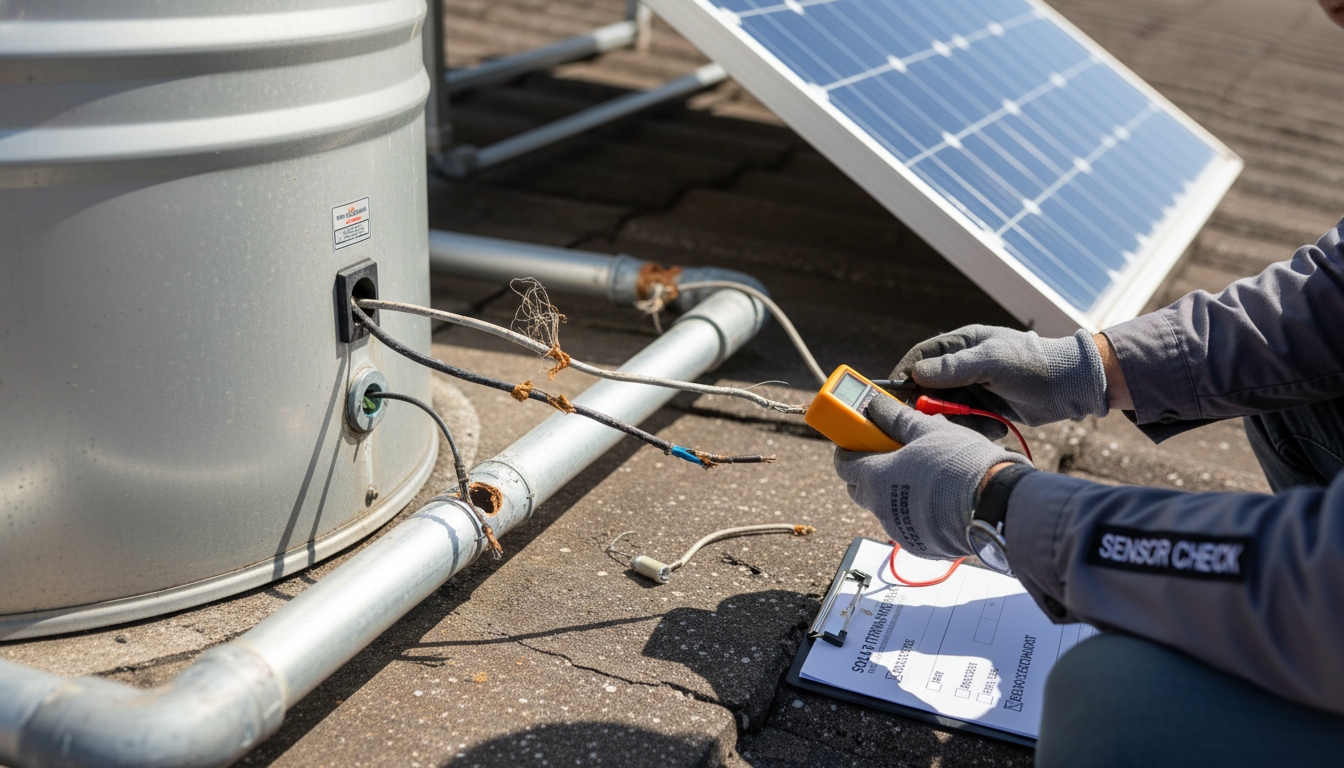

Troubleshooting Controller or Sensor Errors

Controller and sensor issues can create misleading symptoms.

A controller may show an error code, unrealistic temperature, blank display, pump output failure, or irregular readings. A sensor may be open-circuit, short-circuit, poorly connected, misplaced, or damaged by heat and moisture.

When checking a solar water heater controller, the technician should confirm power supply, wiring terminals, sensor resistance if applicable, display readings, settings, output status, and error history.

When checking a solar water heater sensor, the technician should confirm whether the sensor is in the correct location, properly inserted, insulated where needed, and connected to the correct controller terminal.

One common issue is sensor swapping. If collector and tank sensors are connected to the wrong terminals, the controller may operate incorrectly. Another issue is poor collector sensor contact, causing the controller to respond to air or surface temperature rather than fluid temperature.

A system with sensor problems may look like it has pump problems or collector problems. This is why sensor checks should come early in troubleshooting.

Small electrical details can decide thermal performance.

Troubleshooting Pressure Loss and Leaks

Pressure loss is especially important in closed-loop systems.

A slow pressure drop may indicate a small leak, air release after commissioning, relief valve discharge, expansion vessel issue, or temperature-related pressure change. A sudden pressure drop is more serious and should be investigated quickly.

The technician should inspect visible joints, pump station connections, collector connections, valve points, heat exchanger connections, and roof penetrations. Relief valve discharge should be checked. Expansion vessel pressure should be verified. Glycol stains or residue may indicate leakage points.

In direct systems, leaks may be easier to notice because water appears. In glycol systems, small leaks may leave sticky or colored residue depending on the fluid.

Pressure loss should not be solved only by refilling the system repeatedly. Refilling without identifying the cause can hide the problem and introduce more air or fluid imbalance.

A good solar thermal service checklist should include pressure records from previous visits. Trend data is useful because pressure changes over time can reveal slow issues.

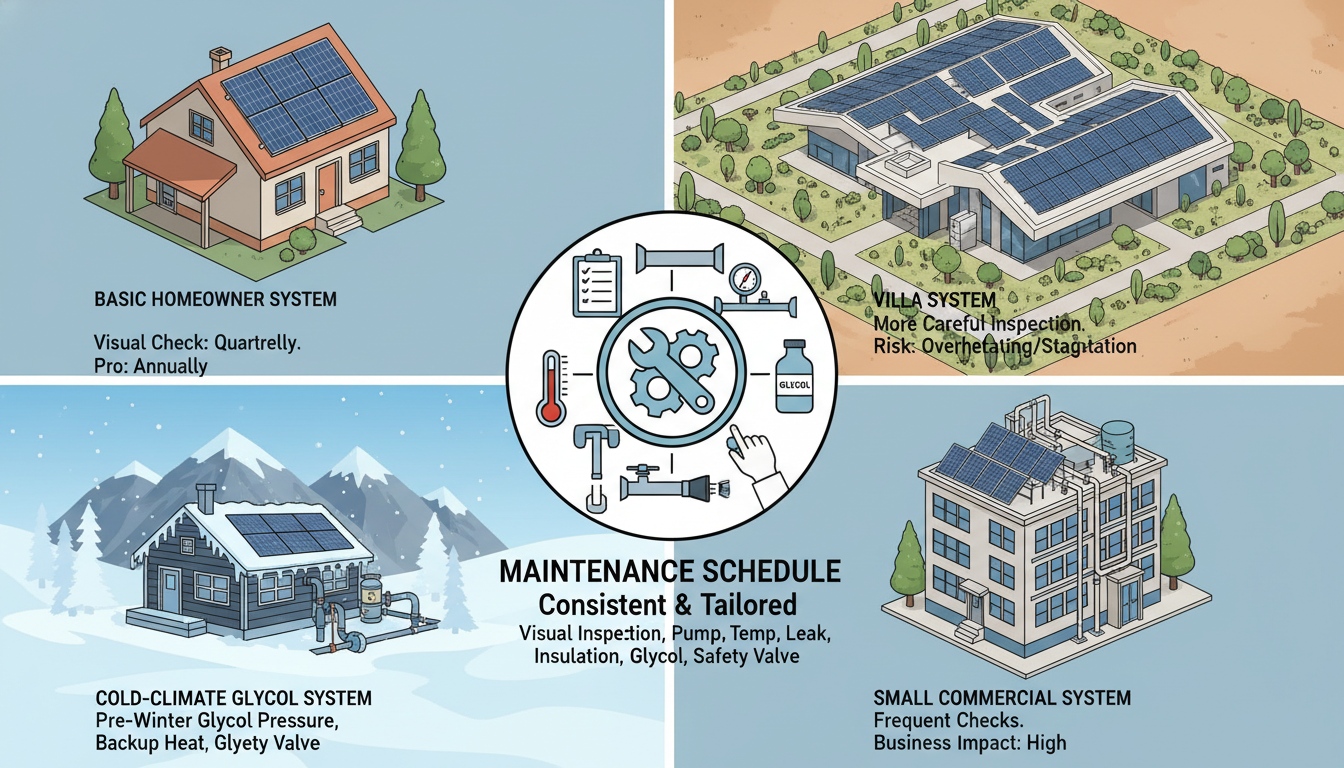

Maintenance Schedule for Different Users

A basic homeowner system may need a visual check every few months and a professional inspection once a year or according to local service recommendations.

A villa system may need more careful inspection because the system may be larger, more complex, and sometimes used irregularly. Low occupancy can create overheating or stagnation risk.

A cold-climate glycol system should include periodic glycol solar system maintenance, especially before winter.

A small commercial system may need more frequent checks because hot water reliability affects business operations. Hotels, guesthouses, clinics, dormitories, and restaurants cannot treat hot water failure as a minor inconvenience.

The maintenance schedule should be matched to system complexity and risk.

For example:

Visual collector and pipe inspection.

Controller reading check.

Pump operation check.

Tank temperature check.

Leak inspection.

Pressure check.

Backup heating check.

Insulation condition check.

Glycol condition check if applicable.

Safety valve and expansion component check.

This schedule does not need to be complicated, but it must be consistent.

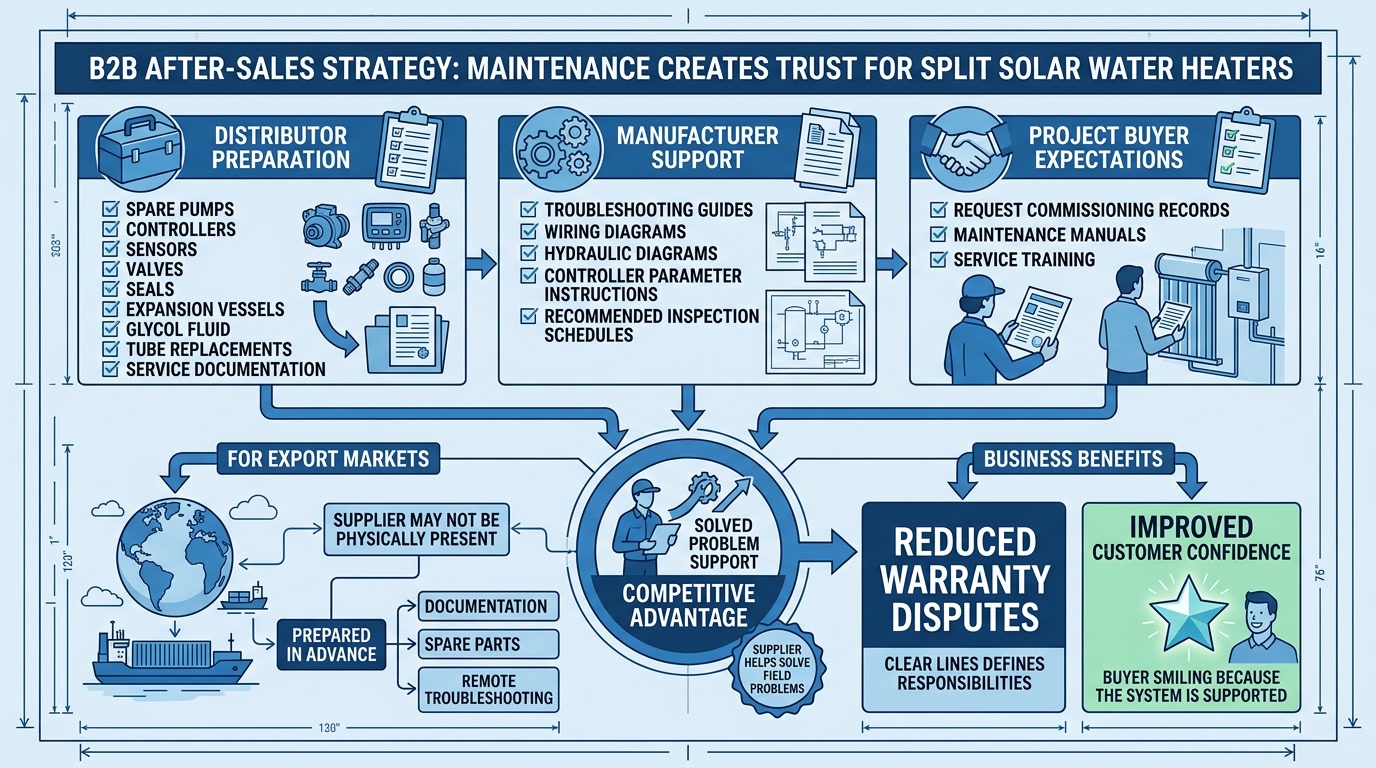

B2B After-Sales Strategy: Maintenance Creates Trust

For B2B buyers, maintenance is not only a technical topic. It is a business topic.

A distributor selling split systems must prepare for after-sales support. This includes spare pumps, controllers, sensors, valves, seals, expansion vessels, glycol fluid, tube replacements if evacuated tubes are used, and clear service documentation.

A manufacturer should provide troubleshooting guides, wiring diagrams, hydraulic diagrams, controller parameter instructions, and recommended inspection schedules.

A project buyer should request commissioning records, maintenance manuals, and service training before accepting a large installation.

Strong split solar water heater maintenance support can become a competitive advantage. Many suppliers compete on price, but buyers remember the supplier who helps them solve field problems.

For export markets, this matters even more. The supplier may not be physically present in the buyer’s country. Documentation, spare parts, and remote troubleshooting must be prepared in advance.

Good maintenance planning reduces warranty disputes because responsibilities are clearer. It also improves customer confidence because the buyer knows how the system will be supported after installation.

Focused FAQ

How often should a split solar water heater be maintained?

A basic system should be visually checked regularly and professionally inspected at least once a year or according to local service conditions. More complex systems, cold-climate glycol systems, villas, and commercial systems may need more frequent split solar water heater maintenance.

What are the most common solar water heater troubleshooting issues?

Common solar water heater troubleshooting issues include low hot water temperature, pump noise, no circulation, controller errors, sensor faults, pressure loss, air in the loop, dirty collectors, poor pipe insulation, and backup heater problems.

What should be included in solar hot water maintenance?

Solar hot water maintenance should include collector inspection, pump station check, controller reading review, sensor verification, tank inspection, pipe insulation check, leak inspection, pressure check, backup heating test, and glycol inspection if the system uses a closed loop.

Why is solar pump station maintenance important?

Solar pump station maintenance is important because the pump station controls circulation, flow observation, pressure checking, filling, flushing, and air removal. If the pump station is not working properly, heat may not transfer from the collector to the tank.

How do I know if the solar water heater controller is working correctly?

A solar water heater controller should show realistic collector and tank temperatures, start the pump when the collector is hotter than the tank, stop the pump when useful heat is no longer available, and display no abnormal error codes.

Can a faulty solar water heater sensor reduce system performance?

Yes. A faulty or misplaced solar water heater sensor can cause the controller to start or stop the pump at the wrong time. This can reduce efficiency, lower tank temperature, or create unnecessary pump operation.

What does solar collector maintenance include?

Solar collector maintenance includes checking dirt, shading, broken glass or tubes, frame condition, mounting stability, roof sealing, pipe connections, corrosion, and collector surface condition.

Why does a glycol solar system need maintenance?

Glycol solar system maintenance is needed because glycol can degrade over time, especially under high temperature or stagnation. The fluid concentration, pressure, pH if required, expansion vessel, and circulation condition should be checked.

What should be checked during solar hot water tank maintenance?

Solar hot water tank maintenance should check insulation, leaks, safety valves, pressure, corrosion protection, scale buildup, backup heater function, thermostat settings, and service access.

What is a solar thermal service checklist?

A solar thermal service checklist is a structured inspection list covering collectors, pump station, controller, sensors, tank, piping, insulation, pressure, glycol, backup heating, safety components, and commissioning records.

Conclusion: Maintenance Protects the Whole Split System

A split solar water heater is a system, not a single appliance. Its performance depends on collectors, pump station, controller, sensors, tank, pipes, insulation, valves, heat exchanger, glycol loop, backup heating, installation quality, and user behavior.

That is why split solar water heater maintenance should be systematic.

A clean and unshaded collector supports heat collection. A working pump station supports circulation. A reliable solar water heater controller supports correct operation. An accurate solar water heater sensor supports correct decision-making. A well-insulated tank stores heat. Good piping preserves heat. Proper glycol condition protects cold-climate systems. Backup heating protects comfort when solar energy is not enough.

Most problems are easier to solve when they are found early. Low temperature, pressure loss, pump noise, controller errors, and weak solar contribution should be treated as signals, not ignored until the system fails.

For homeowners, good solar hot water maintenance means comfort and lower service risk. For distributors, it means fewer complaints and stronger market trust. For project buyers, it means long-term reliability. For suppliers, it means better product reputation and stronger after-sales value.

A professional solar thermal service checklist turns maintenance from guesswork into a repeatable process. It helps technicians inspect the right components, record useful data, and solve problems logically.

The best split solar systems are not only well designed and well installed. They are also well maintained. When maintenance is planned properly, the system can continue delivering useful solar hot water, lower energy demand, and reliable daily comfort for many years.

#SplitSolarWaterHeaterMaintenance #SolarWaterHeaterTroubleshooting #SolarHotWaterMaintenance #SolarPumpStationMaintenance #SolarWaterHeaterController #SolarWaterHeaterSensor #SolarCollectorMaintenance #GlycolSolarSystemMaintenance #SolarHotWaterTankMaintenance #SolarThermalServiceChecklist
