From Spent Lining to Qualified Feedstock: How Circular Refractory Materials Are Recovered and Reused

The Direct Answer: A Demolished Lining Is Not Yet a Raw Material

A spent furnace lining is a map of several histories: the product that was installed, the zone in which it worked, the process media it absorbed, the repairs added during the campaign, and the demolition method that finally mixed—or preserved—those histories. That is why credible refractory recycling does not begin at the crusher. It begins before demolition, when the owner decides whether materials will remain identifiable by asset, zone, layer, chemistry, and exposure.

The direct rule is simple: spent refractory materials should be treated as unknown process residues until evidence establishes what they are, what has entered them, and where they can safely perform next. A brick that still looks like magnesia-carbon may contain slag, steel, oxidation products, repair mix, or foreign insulation. A high-alumina castable may carry alkalis, lime, sulfur, glass, or process dust deep behind its visibly altered hot face. Crushing such streams together does not create a circular raw material; it destroys information and distributes contamination through the entire lot.

The recovery route therefore needs release gates. Each gate answers a different question: Is the material legally and physically eligible for recovery? Can its origin be traced? Has incompatible material been excluded? Is the processed fraction chemically and mineralogically consistent? Does it meet a written feedstock specification? Has the target refractory formulation been qualified with that fraction? Only after those questions are answered should a buyer call the output secondary refractory raw materials.

This distinction changes the business case. Collection tonnage is not qualified yield. Landfill diversion is not necessarily closed-loop reuse. A low-value slag conditioner may be a responsible destination for one fraction, but it should not be reported as new-refractory feedstock. The best program protects the highest technically defensible value of each stream while making reject routes explicit. In other words, circularity is a controlled chain of identity, separation, processing, evidence, and application—not a percentage printed on a sustainability slide.

Set the Destination Hierarchy Before the Outage Starts

A plant should not demolish first and ask for a market later. The target destination determines how carefully the lining must be mapped, removed, stored, sampled, and processed. If the intended destination requires tight oxide limits and known mineral phases, selective demolition may be economically justified. If the material is already inseparably contaminated, expensive analytical sorting may not recover a refractory-grade fraction. Define the hierarchy in the outage plan and allow a lot to move downward only when it fails a higher-value gate.

This hierarchy prevents a common reporting error: adding every non-landfilled tonne to a single “recycled” figure. The engineering and environmental value of an intact reused block, a qualified aggregate returned to a new brick, and a mixed fine used as a road material are not equivalent. They require separate mass balances and separate language.

The Seven Release Gates From Furnace Wall to Feedstock Lot

Gate 1 — Establish Eligibility, Ownership, and the Decision Authority

Before removal, the plant, demolition contractor, recycler, and refractory producer must agree who owns the material at each stage and who can release or reject it. Waste status, transport rules, worker-protection requirements, and hazardous-material classification vary by jurisdiction and process history; they cannot be copied from another plant’s procedure. The project needs a competent environmental review for the actual asset and destination.

The technical screen should flag any history that may change the route: chrome-bearing products, contact with nonferrous metals, lead or zinc, fluoride or chloride salts, hydrocarbons, asbestos-containing adjacent materials, refractory ceramic fiber, radioactive sources used in instrumentation, or unknown legacy repairs. A “generally inert” assumption is not a substitute for site-specific evidence. Material that cannot pass this screen should be quarantined until its status is resolved.

Gate 2 — Build a Pre-Demolition Material and Exposure Map

The highest-value separation happens on paper before it happens in the field. Create an asset map showing lining zones, working and safety layers, product codes, installation dates, repair products, anchors, insulation, and known process contact. Link the map to operating history: campaign length, temperatures, slag or bath chemistry, fuel changes, abnormal events, leaks, and washout locations. The digital refractory lining passport described in our predictive-maintenance guide is particularly useful here because it connects inspection coordinates and repairs to the material that will later be removed.

A zone map also protects against false family labels. The barrel, slag line, impact pad, burner quarrel, roof, tap block, and backup layer may use different products even when demolition makes them visually similar. Patches can introduce a second binder or aggregate family. If the map is incomplete, record the uncertainty and plan additional identification rather than silently assigning the whole vessel to its dominant product.

Minimum map fields

• Asset ID, zone ID, layer, elevation or angular coordinate, and campaign dates
• Product manufacturer, grade, batch or delivery record, and nominal chemistry
• Installation method, anchors or joints, curing and heat-up records where relevant
• Repair locations, repair products, and approximate repair volumes
• Known contact with slag, metal, glass, clinker, alkali vapor, sulfur, salts, fuel ash, or cleaning chemicals
• Observed hot-face loss, infiltration, cracking, hydration, oxidation, or structural collapse
• Planned recovery destination and the bins assigned to each removal zone

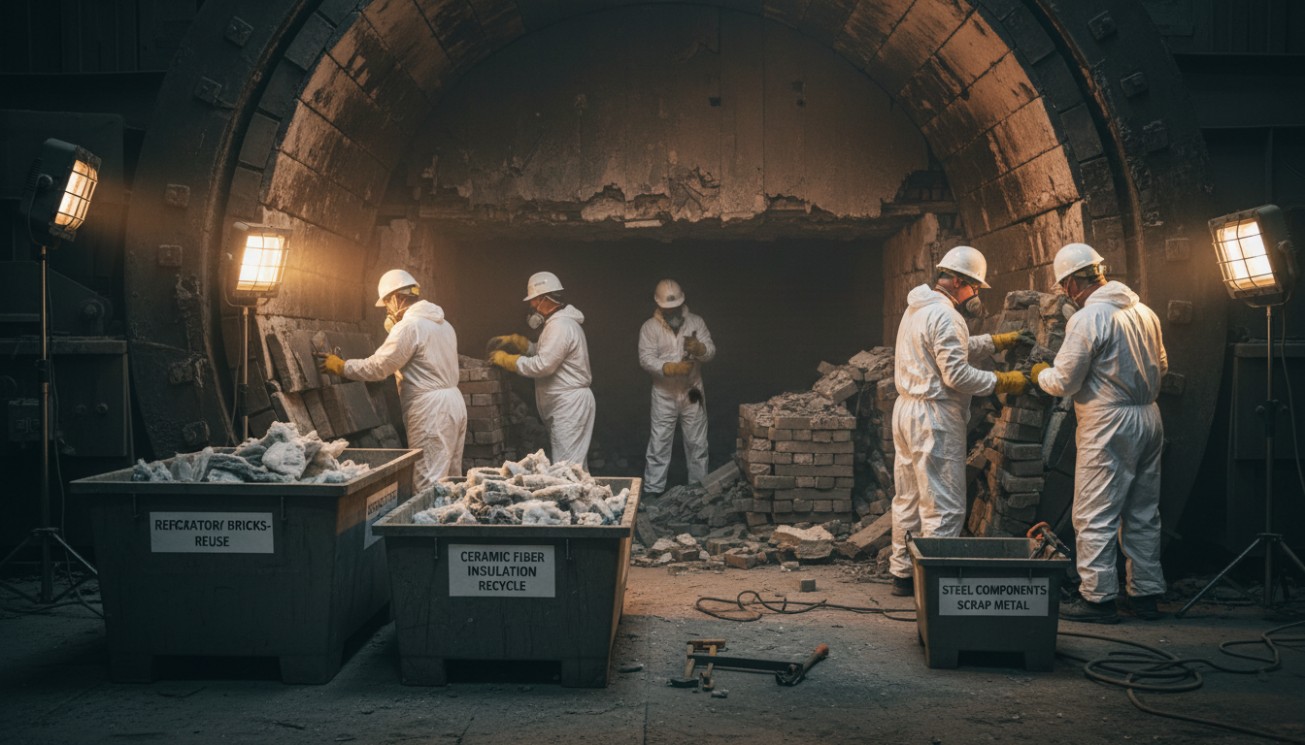

Gate 3 — Demolish Selectively and Preserve the Chain of Identity

Once dissimilar materials fall into one pile, later refractory waste sorting becomes slower, less certain, and more expensive. Selective demolition should therefore proceed by premarked zone and layer. Remove obvious steel, anchors, fiber modules, backup insulation, concrete, and foreign debris separately. Use dedicated, clean bins with weather covers and durable labels. Photograph the empty bin, the removal location, the first material loaded, and the sealed outgoing load.

The demolition sequence matters. A clean safety lining can be contaminated when a slag-soaked hot face collapses across it. A dry doloma stream can be lost if it is left uncovered in rain. Fine dust from one chemistry can coat otherwise recognizable coarse pieces from another. Equipment buckets and transfer chutes can carry residues between lots. The method statement should therefore specify clean-down points, bin-change rules, acceptable cross-contamination, and stop-work authority when an unidentified repair or mixed interface appears.

Selective removal does not mean preserving every brick. It means spending separation effort where it protects value. Interfaces, heavily infiltrated hot faces, mixed repair zones, and demolition fines may be assigned to lower-value streams from the outset, while cleaner cores and well-documented zones are protected for higher-grade recovery.

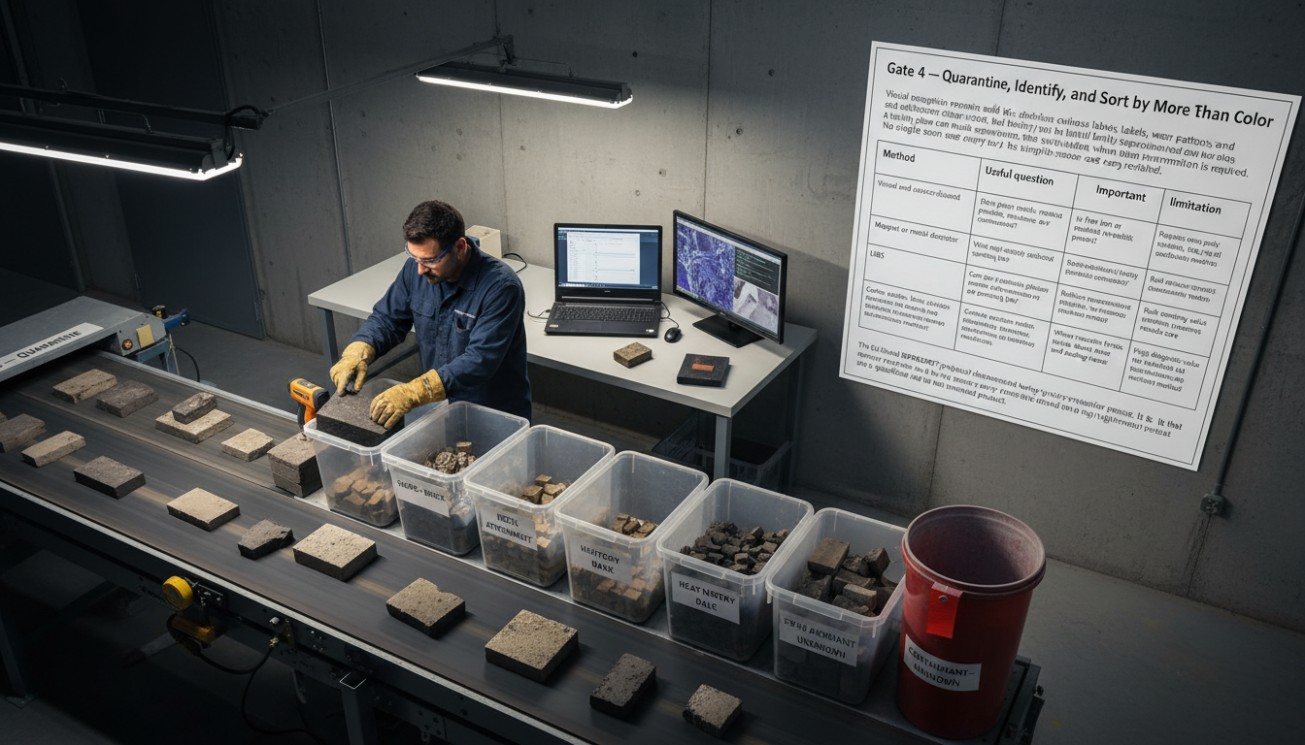

Gate 4 — Quarantine, Identify, and Sort by More Than Color

Visual recognition remains useful for obvious shapes, labels, wear patterns, and metal attachment, but heat history and contamination can change color. A trained sorter can make an initial family separation; the quality plan must define when instrumental confirmation is required. No single sensor sees every variable.

The EU-funded REFRASORT project demonstrated why complementary tools matter. Its LIBS-based system classified major refractory groups, while project reporting also identified limitations in detecting heterogeneous carbon and metallic inclusions. The practical lesson is not that every recycler needs one particular sensor. It is that the sensor portfolio must be designed around the reject risk and the specification of the intended product.

Gate 5 — Beneficiate Without Spreading the Contamination

After sorting, processing may include debricking, removal of adhered slag and metal, controlled crushing, screening, magnetic separation, drying, dust extraction, density or optical separation, and—in selected, qualified routes—thermal treatment. The sequence should remove contamination before size reduction whenever possible. Crushing first increases contaminated surface area and converts a removable hot-face layer into dispersed fines.

A credible recycled refractory aggregate specification is not only an oxide table. The processor must control particle shape, grain-size distribution, fines generation, bulk density, moisture, and the integrity of the original aggregate. Excessive comminution can destroy premium coarse grains and create a fine fraction that is chemically variable or difficult to place. Energy use, yield loss, dust exposure, and transport should be included in the route economics rather than treated as invisible overhead.

Every process step needs a mass balance: feed mass, separated metal, removed slag, dust, each size fraction, off-spec material, and saleable output. Unexplained loss is both an environmental-control problem and a warning that the commercial yield may be overstated.

Gate 6 — Release a Defined Lot, Not an Average Story

The processed material becomes a commercial feedstock only when a bounded lot passes written release criteria. A lot should have one traceable origin or a controlled blending recipe, a defined production period, a maximum mass, retained samples, and a certificate that reports actual results—not just a generic grade name.

Core certificate fields

• Source assets, campaigns, zones, original product families, and processing route
• Lot mass, date, sampling plan, sample preparation, test methods, and laboratory
• Major oxides and product-critical minor constituents
• Carbon, sulfur, metallic iron, loss on ignition, moisture, or free lime where relevant
• Crystalline phases or mineralogical indicators when chemistry alone cannot protect performance
• Particle-size distribution, oversize, undersize, bulk density, and magnetic fraction
• Contaminant limits, actual results, uncertainty where material, and disposition of nonconforming output
• Retained-sample ID, shelf period, change-control status, and approved end uses

Blending can reduce variability, but it can also hide excursions. Do not blend a failing lot into compliance unless the receiving specification explicitly permits controlled blending, the mass balance is documented, and the combined lot is resampled. A certificate based on one grab sample from the top of a stockpile does not represent a heterogeneous stream.

Gate 7 — Qualify the Feedstock in the Receiving Product

Meeting a raw-material limit is necessary, not sufficient. Recycled grains may carry residual bond phases, microcracks, altered surfaces, carbon, hydration, or sintering history that changes mixing, pressing, firing, oxidation, strength, thermal shock, corrosion, or dimensional behavior. Product qualification must compare the new formulation against a defined reference and the real duty.

A sensible sequence is formulation screening, laboratory property testing, application-relevant corrosion or erosion testing, pilot manufacturing, controlled industrial trial, post-service examination, and release with a maximum approved recycled fraction. The recycled percentage is a formulation variable, not a performance claim. Increasing it requires change control when the feedstock source, processing route, or property distribution changes.

This is the point at which circular refractory materials earn their name. They are not qualified because they came from a furnace; they are qualified because their identity and processing are controlled and the receiving product still satisfies its design duty.

Material-Family Dossiers: The Same Plant Generates Different Recovery Problems

Magnesia-Carbon Streams

spent MgO-C bricks can retain valuable magnesia and graphite, but they are not a uniform MgO source. The hot face may be oxidized and decarburized; slag and metal can penetrate the matrix; aluminum, silicon, or other antioxidants may have transformed; resin-derived carbon and volatiles may vary; and repair material may be present. The clean core, reaction zone, and hot face therefore have different recovery value.

Control MgO, CaO, SiO₂, Fe-bearing phases, total carbon, sulfur where relevant, metallic inclusions, antioxidant-related elements, moisture, particle sizing, and the extent of oxidation. The receiving formulation must account for recycled-grain density and surface condition, not simply replace virgin magnesia kilogram for kilogram. Published laboratory work has evaluated separate 3–6 mm, 1–3 mm, and 0–1 mm MgO-C recyclate fractions, reinforcing the need to manage size fractions as engineered inputs rather than a single crushed powder.

High-Alumina, Alumina-Spinel, and Aluminosilicate Streams

These families may be candidates for castables, precast shapes, bricks, or lower-duty products, but alumina percentage alone cannot define suitability. Calcium from cement or slag, silica, alkalis, iron oxides, titania, glassy phases, and foreign spinel-forming components affect refractoriness, liquid formation, expansion, workability, and corrosion. Separate fired brick from cement-bonded monolithic material when the target formulation is sensitive to CaO or residual binder phases.

For material exposed to slag or glass, map the penetration front. Our guide to the slag–refractory reaction pathway explains why bulk basicity alone cannot represent infiltration, dissolution, new-phase formation, and removal. That same logic applies in recovery: the hot face and clean core are not chemically interchangeable just because they began as the same grade.

Doloma and Lime-Rich Streams

Doloma can be valuable but is especially sensitive to hydration and storage history. Rain exposure, wet floors, unsealed bins, or long uncontrolled storage can change physical integrity before processing. Free CaO or MgO, hydration products, fines generation, and loss on ignition may matter to both handling and reuse. A dry, traceable stream should be protected immediately; a weathered stream should not be blended with sound material merely to recover its average chemistry.

Silica Products

Silica refractories carry phase history. Tridymite, cristobalite, residual quartz, glassy phases, and fluxing contaminants influence expansion and thermal behavior. Coke-oven or glass-service exposure can also introduce process-specific contamination. Qualification should therefore combine chemistry with mineralogical evidence and intended temperature cycling. An apparently high SiO₂ result does not establish that the recovered material will reproduce the behavior of virgin silica raw material.

Magnesia-Chromite and Other Chrome-Bearing Products

Chrome-bearing streams require strict segregation, worker protection, environmental assessment, and jurisdiction-specific handling. Chromium oxidation state can depend on service and storage conditions; total chromium alone does not answer every safety or reuse question. Do not mix these materials into general basic refractory bins. Define the analytical method, acceptance criteria, and approved route with competent specialists.

Industrial work on recycled magnesia-chromite illustrates the broader principle: the altered hot face was mechanically removed before crushing, and the resulting material was characterized and tested in new formulations. That is materially different from pulverizing the complete used brick. Selective cleaning protects both product performance and environmental control.

Insulating Refractories, Fibers, and Mixed Backups

Lightweight insulating brick, microporous panels, calcium silicate, dense backup castable, and fiber products should not be loaded into a dense refractory aggregate stream. They differ in chemistry, density, morphology, health controls, and possible destinations. Legacy fiber identification may require a site-specific industrial-hygiene assessment. The recovery plan must also prevent fragments of shell coatings, mesh, anchors, and construction concrete from following the backup layer into processing.

A Contamination Matrix Should Control the Route

Contamination is not one yes-or-no condition. Its location, concentration, removability, and effect on the receiving product determine the route. Use a matrix that connects each contaminant to detection, removal, and disposition.

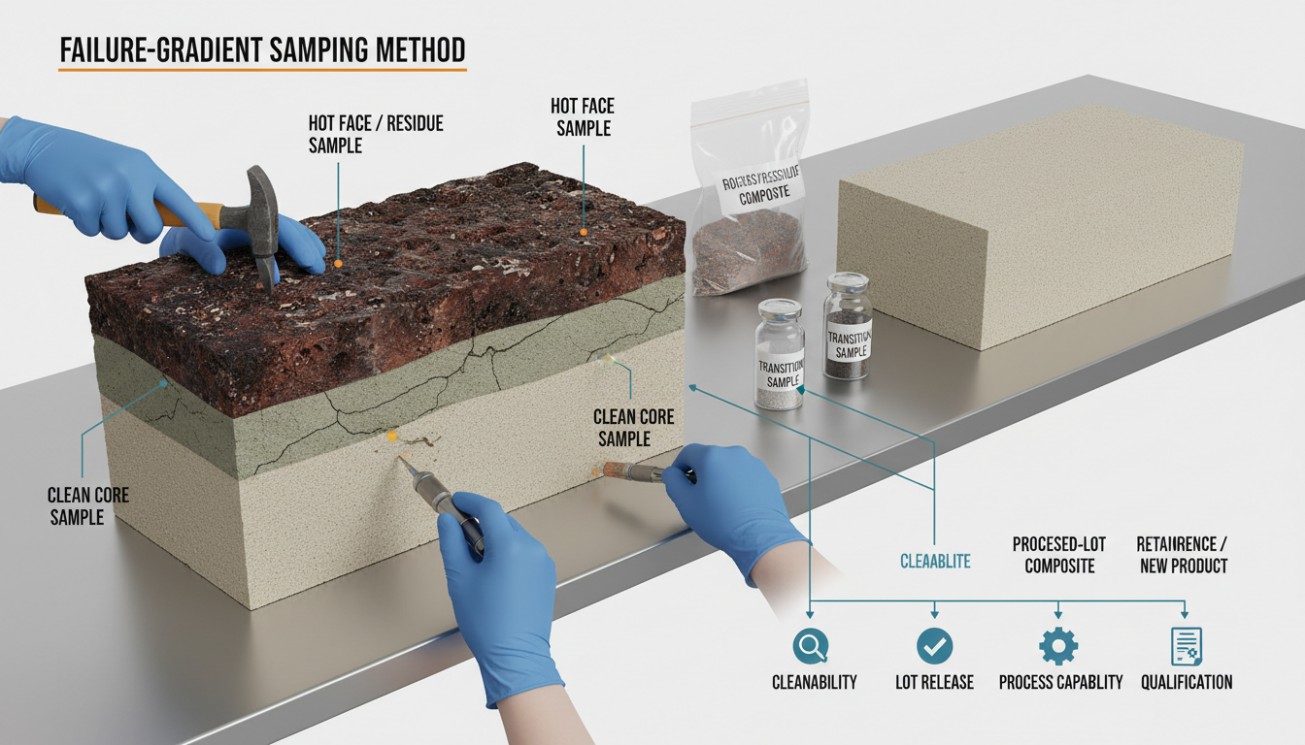

Sample the Gradient; Do Not Average Away the Recovery Value

A full-thickness sample can contain severely altered hot face, partially infiltrated reaction zone, and relatively clean core. Grinding those layers together answers the average chemistry of the sample, but it does not show whether a removable contaminated layer is preventing the core from meeting specification. Conversely, a core-only sample can overstate the quality of a demolition stream if the hot face will be crushed with it.

Use the failure-gradient sampling method to preserve location and depth. For recovery decisions, collect at least: a hot-face or attached-residue sample, a transition sample across the penetration front, a clean-core sample, a representative processed-lot composite, and a retained reference from the original uninstalled product when available. The sampling plan should state whether the decision is about cleanability, lot release, process capability, or product qualification; each decision needs a different sample architecture.

Stockpiles introduce another scale problem. Segregation by size and density means a top grab can miss metal-rich coarse pieces or contaminant-rich fines. Use an increment plan across time, depth, and conveyor flow, then reduce the laboratory sample with a method that preserves representativeness. Report analytical uncertainty where it affects a pass/fail decision, and define retest rules before results are known.

Measure Quality Yield, Not Just Collection Rate

The circular program needs a mass-balance funnel. Begin with gross demolished mass and follow each tonne through controlled collection, sorting, processing, specification release, product acceptance, and actual use. Four ratios answer different management questions:

• Selective collection rate = correctly segregated mass ÷ gross demolished mass.
• Processing yield = processed candidate feedstock ÷ correctly segregated mass.
• Quality yield = specification-compliant feedstock ÷ processed candidate feedstock.
• Closed-loop yield = feedstock actually consumed in new refractory products ÷ gross demolished mass.

A fifth figure—landfill diversion—can include reuse, refractory return, metallurgical additives, other mineral recovery, and temporary stock. It must not replace the closed-loop yield. Material sitting indefinitely in a warehouse has not completed a circular route. Rejected dust that is later disposed must return to the final mass balance.

Commercial decisions should use quality-adjusted cost, not a simple gate fee. Include selective demolition labor, containers, transport, drying, sorting, cleaning, processing loss, testing, retained samples, working capital, rejected-lot risk, virgin-material displacement, and value of each destination. A high collection rate can be economically poor if mixed material produces low specification yield. A smaller, cleaner stream can deliver more displaced virgin raw material and less product risk.

Write the Supply Contract Around Evidence and Change

Good refractory waste management crosses organizational boundaries. The plant controls source information and demolition. The contractor controls separation discipline. The recycler controls processing and lot formation. The refractory producer controls formulation and final-product release. A contract that merely prices tonnes leaves the most important quality obligations unowned.

Clauses for the demolition and recovery package

• Asset and zone scope, expected product families, and excluded materials
• Demolition order, bin plan, labels, photographs, sealing, weights, and chain of custody
• Clean-down requirements for tools, buckets, floors, conveyors, and containers
• Weather protection, maximum storage time, and moisture-response plan
• Stop-work and quarantine triggers for unknown repairs or unexpected contamination
• Ownership transfer, waste or product status, transport responsibility, and reject disposition
• Measurement basis for collection, recovery, quality, and closed-loop reporting

Clauses for the processed feedstock

• Approved source families, prohibited sources, and maximum blending scope
• Lot definition, sampling standard, test methods, laboratories, and retained-sample period
• Specification limits with agreed uncertainty, retest, acceptance, and rejection rules
• Certificate-of-analysis fields and full processing-route traceability
• Notice and requalification for source, equipment, route, or formulation changes
• Nonconformance containment, affected-lot trace-back, and corrective-action timing
• Volume forecast and contingency route when an approved product cannot consume the lot

A “recycled content” guarantee without source and change control is weak. Two lots with the same MgO or Al₂O₃ value can contain different phases, carbon, metals, or service-derived cracks. The buyer needs a controlled distribution and a qualified route, not only a mean composition.

Build the Quality Plan Backward From the Receiving Failure Mode

refractory recycling quality control is strongest when each limit protects a known product or process risk. Do not collect every available laboratory number and assume the certificate is complete. Start with the receiving refractory’s dominant failure modes, manufacturing steps, and installation behavior.

• If low-melting liquid formation is the risk, control fluxing oxides and relevant mineral phases.
• If oxidation resistance matters, control carbon, antioxidants, porosity, and residual metallic constituents.
• If pressing or casting stability matters, control particle size, shape, fines, moisture, density, and dispersant demand.
• If firing shrinkage or expansion matters, control phase history, loss on ignition, hydration, and recycled-grain integrity.
• If corrosion is the risk, qualify against the actual slag, glass, clinker, metal, vapor, or gas environment.
• If environmental release is material, define the species, oxidation state, leaching condition, and jurisdiction-specific acceptance method.

This backward design also identifies which material should never enter the premium stream. A contaminant limit that cannot be measured reliably at production speed may require source exclusion or conservative zoning rather than a sophisticated average.

Make Circular Claims That Survive Technical and ESG Review

A circularity claim should identify the system boundary, denominator, destination, and reporting period. “Thirty percent recycled content” might mean thirty percent of one brick formulation by mass, thirty percent of all raw materials purchased, or thirty percent of an outlet’s total product mix. These are different claims. State whether the figure refers to pre-consumer manufacturing scrap, post-service refractory, or a blend.

Separate at least five indicators: reused shapes, feedstock returned to refractory production, cascade refractory use, metallurgical or other material recovery, and disposal. Report transport and processing assumptions when claiming avoided emissions. Virgin-material substitution is stronger evidence than tonnage collected, but even substitution should be calculated against the actual reference raw material and manufacturing route.

Do not double count the same tonne as both refractory closed-loop recovery and metallurgical additive. Do not count rejected stock as used. Do not imply that a company case study guarantees identical performance in another furnace. Industrial projects such as LIFE 5RefrACT and REFRASORT show that high recycled fractions and automated separation are technically possible under controlled conditions; they also reinforce the need for classification, trials, and product-specific validation.

Five Ways a Circular Program Fails Before the Material Reaches the Plant

1. The map exists, but the bins do not. The team knows the zones yet drops them into one container because the outage layout has no space or labels.
2. The chemistry passes, but the phase history is wrong. A bulk oxide result hides hydration, glassy phases, residual carbon, or service-formed minerals that change manufacturing and performance.
3. The average passes, but the lot is unstable. Poor increment sampling or uncontrolled blending hides peaks that later appear in individual production batches.
4. The recycler meets a generic grade, but not the product risk. The feedstock certificate has many numbers but omits the contaminant or physical property that controls the receiving formulation.
5. The sustainability report closes the loop before the material does. Collected or stockpiled tonnes are reported as circular even though no approved product has consumed them.

The corrective action is not “more recycling.” It is a clearer destination, better source separation, a sharper lot definition, decision-linked testing, and honest accounting of rejected fractions.

Focused FAQ

Can all used furnace lining be recycled into new refractory products?

No. Some material may be too mixed, contaminated, hydrated, degraded, fine, or uncertain for refractory-grade reuse. A responsible program places each fraction in the highest safe and technically justified destination, then records rejected and disposed quantities separately.

Is crushing enough to make a secondary feedstock?

No. Crushing changes size; it does not establish identity or remove all slag, metal, foreign phases, carbon variability, or hazardous constituents. Source mapping, segregation, cleaning, classification, representative sampling, and lot release must surround the size-reduction step.

Which test is best for identifying used refractory?

There is no universal best test. Source records and visual sorting may be sufficient for clearly mapped streams. XRF or LIBS can support elemental classification; XRD addresses crystalline phases; carbon, sulfur, loss-on-ignition, metal detection, petrography, or SEM-EDS answer other questions. The correct portfolio depends on the material family and reject risk.

Why should the hot face be separated from the core?

The hot face often carries the highest slag, metal, glass, alkali, sulfur, or process-dust infiltration. Removing it can protect a cleaner and more valuable core. The decision should be supported by gradient sampling and a processing yield study, because excessive removal can also destroy value.

Does a higher recycled percentage always mean a better product?

No. Recycled content is an input metric. Product quality depends on feedstock consistency, formulation, manufacturing, installation, and service. Increase the fraction only after laboratory, pilot, and industrial evidence shows that the target duty remains protected.

Can demolition fines be returned to refractory manufacture?

Sometimes, but fines are often more heterogeneous and harder to sort than coarse pieces. They can also concentrate dust, weathering products, slag, metal, and foreign construction material. A fine fraction needs its own specification, sampling plan, application match, and economics.

What is the most important KPI for a recovery program?

No single KPI is sufficient. Track selective collection, processing yield, specification-compliant quality yield, actual closed-loop use, cascade or alternative recovery, disposal, and virgin-material displacement. Together they show where value and material are lost.

Who should approve the final recovery route?

The responsible decision should combine plant process knowledge, refractory engineering, environmental and worker-protection competence, recycler process control, and receiving-product authority. Commercial ownership alone is not enough when the route can affect product performance or compliance.

Conclusion: Preserve Identity First, Then Recover Value

The most valuable action in a circular refractory program often happens before a single tonne moves: the plant decides to preserve identity. A mapped zone can be selectively removed. A selectively removed stream can be cleaned and sorted. A controlled fraction can be sampled as a lot. A released lot can be qualified in a product. Each step increases confidence; skipping one pushes uncertainty downstream, where it becomes more expensive and harder to remove.

That is the standard for credible closed-loop refractory recycling: the recovered mineral does not merely avoid landfill; it returns to refractory manufacture through a traceable, specification-controlled, performance-qualified route. Lower-value destinations remain legitimate for fractions that cannot pass that standard, provided their claims, risks, and mass balances stay separate.

For adjacent guidance on lining chemistry, failure-gradient sampling, and lifecycle records, continue through the Refractory & Chemical Materials selection guides.
