Refractory Selection Starts with Process Chemistry, Not Maximum Temperature

The Direct Answer: Select the Failure Mechanism Before the Material Grade

The best refractory is not automatically the product with the highest maximum temperature, the highest alumina percentage, or the greatest cold crushing strength. Reliable refractory material selection begins by defining the complete service environment: what touches the lining, how that chemistry changes during a campaign, how heat enters and leaves the structure, where solids or gases create wear, and how installation quality will be controlled. Temperature is an essential boundary condition, but it is only one part of the decision.

In practical terms, the selection question is not “Which refractory can withstand 1,600°C?” It is “Which lining system can maintain an acceptable reaction rate, mechanical integrity, heat-loss profile, and product-purity level in this specific zone for the required campaign?” That wording changes the engineering task. It moves attention from a catalog number to process chemistry, local loading, construction details, operating variability, and measurable failure modes.

Selection principle: define the service envelope and dominant failure mechanism first; select chemistry, microstructure, product form, and installation method second; compare suppliers and grades last.

This failure-first method matters because most premature lining losses are combined events. Chemical penetration can weaken a matrix before abrasion removes it. Thermal cycling can open joints that admit slag. An installation with excessive water can develop porosity that accelerates infiltration. A material may therefore meet its published temperature limit and still fail quickly. A sound industrial furnace lining is a designed system, not a collection of temperature-resistant products.

A Furnace Does Not Expose Its Lining to Temperature Alone

“Maximum service temperature” is often treated as if it were a life prediction. It is not. It normally indicates a boundary established under defined conditions, not guaranteed survival in every atmosphere, load state, geometry, or chemical environment below that number. Real service introduces gradients, reactions, movement, penetrants, vapor species, mechanical impact, and abnormal operating events.

Consider two furnaces operating at the same nominal hot-face temperature. The first has a stable oxidizing atmosphere, clean feed, continuous operation, and low gas velocity. The second experiences reducing periods, alkali-bearing vapor, frequent shutdowns, and particle-laden gas impinging on one wall. Their material requirements are fundamentally different even though the temperature shown on the control screen is identical.

The same distinction applies inside one unit. A burner quarrel, slag line, roof, door jamb, hearth, tapping area, and backup layer do different jobs. Treating them as a single refractory zone can simplify purchasing while increasing total risk. The correct unit of analysis is the exposure zone, because the dominant refractory failure mechanisms can change over a distance of less than one metre.

Temperature also changes the rate and sometimes the direction of chemical reactions. A slag that appears relatively benign at one temperature can become less viscous, penetrate more rapidly, dissolve more matrix, or transport reaction products more effectively after an operating increase. Meanwhile, the cold face and steel shell experience a different temperature and stress condition from the hot face. Selection must therefore account for the complete lining cross-section, not only the exposed surface.

Build a Seven-Variable Service Envelope

A useful service envelope should be specific enough for an engineer or supplier to reject unsuitable options without guessing. The following seven variables convert an operating description into a selection basis.

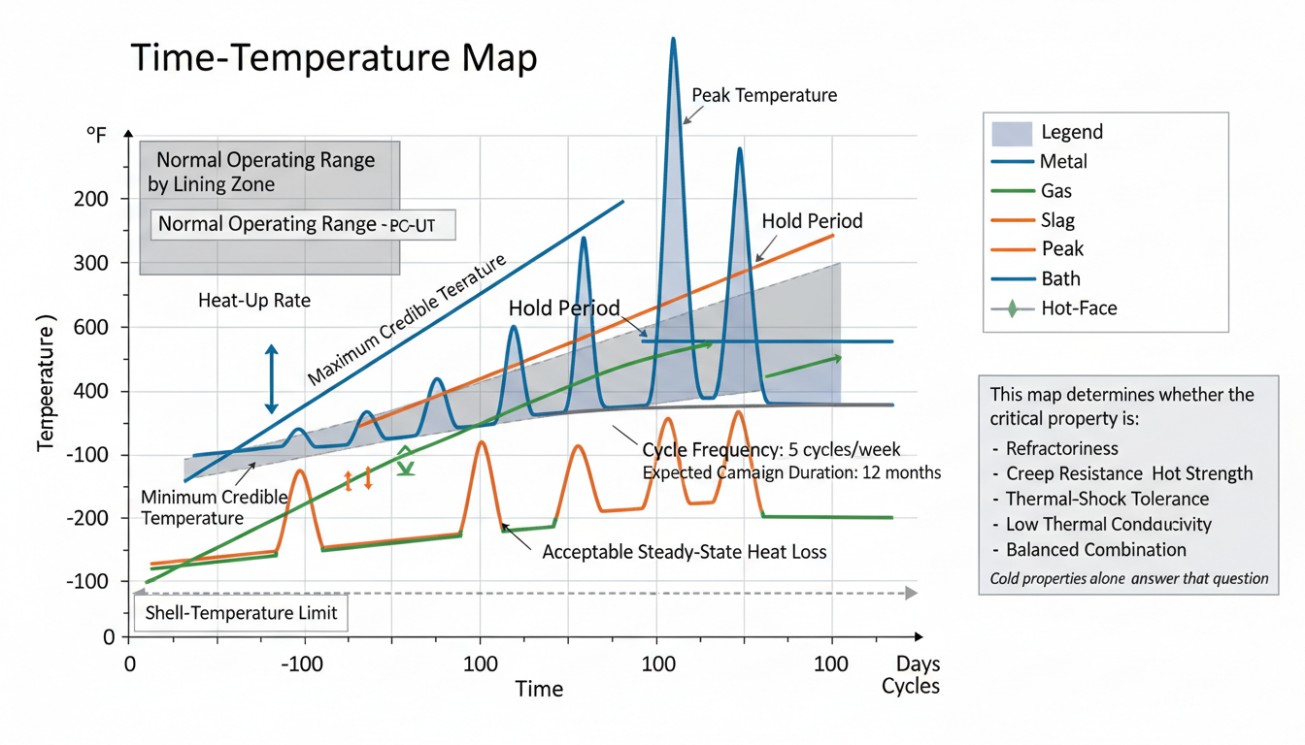

1. Replace One Maximum Temperature with a Time–Temperature Map

Record minimum, normal, peak, and upset temperatures, together with the time spent at each condition. Add heat-up and cooldown rates, the number of cycles, expected campaign duration, and any hold periods. A short peak can be less damaging than repeated passage through a transformation range or a steep thermal gradient. Conversely, a peak that melts or dramatically lowers the viscosity of a deposit can trigger severe attack even when its duration is brief.

Minimum temperature data to collect

• Normal operating range by lining zone, not only the furnace set point.
• Maximum credible metal, gas, slag, bath, and hot-face temperatures.
• Startup, shutdown, cleaning, and emergency quench sequences.
• Cycle frequency and the expected number of cycles per campaign.
• Shell-temperature limit and acceptable steady-state heat loss.

This map determines whether the critical property is refractoriness, creep resistance, hot strength, thermal-shock tolerance, low thermal conductivity, or a balanced combination. Cold properties alone cannot answer that question.

2. Describe Every Material That Can Contact the Lining

List the normal feed, fuels, process gases, slag, ash, metal, fluxes, cleaning chemicals, carryover dust, condensates, and contaminants. Then include credible off-spec compositions. Average chemistry can conceal the event that controls lining life. A small concentration of an alkali, fluoride, vanadium compound, iron oxide, sulfur species, or low-melting eutectic former may matter more than the major constituents.

For slags, a single basicity ratio is a useful first indicator but not a complete specification. Effective slag chemistry also depends on FeO or other multivalent oxides, MgO saturation, alumina, alkalis, sulfur, fluorides, solids fraction, viscosity, temperature, and oxygen potential. Two slags with the same CaO-to-SiO₂ ratio can produce different dissolution, penetration, oxidation, and spalling behavior.

When composition varies, request a distribution rather than one representative analysis. A sensible data set includes typical, high, low, startup, shutdown, and upset samples. It should also identify where and how the sample was taken. Surface skim, bulk bath, entrained droplet, and solidified deposit are not interchangeable.

3. Define the Atmosphere and Its Transitions

State whether the environment is oxidizing, reducing, carburizing, nitriding, hydrogen-rich, sulfur-bearing, steam-rich, halogen-bearing, or alternating. Include gas composition, pressure, dew point where relevant, velocity, and leakage risk. Atmosphere can govern oxidation of carbon-containing systems, volatilization of components, corrosion of metallic anchors, and stability of binders or additives.

Transitions deserve special attention. A lining may be stable during steady production but vulnerable during purge, burner tuning, feed interruption, or cooldown. Condensation in a cooler region can concentrate species that were dilute in the hot gas. The result is often a chemically aggressive cold-zone deposit that would not be predicted from hot-zone gas analysis alone.

4. Separate Chemical Loss from Mechanical Loss

Map gas velocity, solids loading, particle size, angle of impact, liquid turbulence, charging impact, scraping, vibration, and structural movement. Erosion removes surface material; abrasion wears it by rubbing; impact fractures it; chemical corrosion dissolves or reacts with it; penetration changes the material below the visible surface. These mechanisms can occur together, but they require different countermeasures.

A very dense material may slow penetration yet provide insufficient thermal-shock tolerance. A high-strength product can still lose rapidly if a low-viscosity liquid dissolves its bonding phase. Adding hardness without fixing the reaction path can merely produce harder fragments. The engineering objective is to interrupt the dominant damage sequence rather than maximize an isolated property.

5. Quantify Thermal Cycling and Restraint

Thermal expansion is not harmful by itself; uncontrolled differential movement is. Determine the temperature gradient, expansion allowance, joint layout, shell restraint, penetrations, anchors, and interfaces between dissimilar materials. Areas around doors, burners, skews, corners, and supports frequently concentrate stress. If the hot face expands against an immovable boundary, even an otherwise compatible refractory can crack or push adjacent construction out of position.

Repeated cycling can also turn minor chemical penetration into structural spalling. A reacted layer and an unreacted core may have different expansion coefficients and elastic behavior. The interface becomes a crack path. Post-service examination should therefore distinguish surface wear from subsurface alteration.

6. Include Geometry, Construction, and Dryout in the Material Decision

Access, thickness, orientation, joint count, anchoring, placement distance, ambient conditions, water quality, mixing capacity, curing time, and dryout equipment are material-selection inputs. They are not downstream construction details. A premium castable installed with uncontrolled water or inadequate mixing can be less reliable than a simpler product installed consistently.

Good refractory lining design connects the hot-face material to backup insulation, anchors, joints, shell temperature, and the planned installation sequence. Changing one layer can change heat flow and move the condensation point or anchor temperature. A substitution that appears chemically equivalent may therefore alter the behavior of the whole system.

7. Define What “Failure” Means to the Operation

A lining does not have one universal end-of-life condition. Failure may mean unsafe shell temperature, metal breakthrough, excessive heat loss, product contamination, loss of vessel volume, unstable process control, unplanned maintenance, or inability to complete the required campaign. Define the acceptable residual thickness, repair threshold, inspection interval, and maximum consequence of local loss.

This definition determines the design margin. A replaceable wear pad can be optimized differently from an inaccessible hot face whose failure stops an entire production line. The cheapest installed material is rarely the lowest-cost decision when downtime, energy, product quality, and emergency repair exposure are included.

Use Chemical Compatibility as the First Screening Gate

The familiar acidic, basic, and neutral classification is useful only as a screening tool. It describes broad reaction tendencies; it does not guarantee performance. Actual refractory chemical compatibility is controlled by the complete formulation, mineral phases, matrix, porosity, grain size, impurities, temperature, atmosphere, and contacting medium.

A compatibility decision should examine both equilibrium tendency and reaction kinetics. Thermodynamics can show whether a reaction is possible; it does not state how quickly a useful lining will be consumed. Kinetics depend on temperature, contact time, liquid viscosity, wetting, porosity, agitation, diffusion distance, and formation of protective or destructive reaction layers.

Penetration deserves separate treatment from dissolution. A liquid may enter connected pores or joints without immediately dissolving the aggregate. On cooling, the penetrant can freeze, react, change volume, or create a layer with a different thermal expansion. Subsequent cycling then causes peeling or structural spalling. Reducing open porosity may help, but pore size distribution, permeability, crack formation, and wetting behavior often matter as much as a single apparent-porosity value.

Protective saturation can also change the decision. In some processes, controlling the liquid composition so that it is closer to saturation with a refractory component reduces the chemical driving force for dissolution. That strategy must be evaluated against process quality, viscosity, emissions, downstream operations, and cost. Refractory engineering and process control should therefore be treated as one optimization problem rather than two isolated departments.

Match the Material Architecture to the Work It Must Perform

After incompatible chemistries are screened out, select the product architecture. Chemical family alone does not decide whether the zone should use brick, castable, ramming mix, gunning material, precast shapes, or a layered system. Construction method changes joint density, installation risk, repair speed, heat transfer, and the way stress is distributed.

For monolithics, the matrix is often the performance bottleneck. Coarse aggregate provides much of the skeleton, but fine alumina, cement or alternative binder, microsilica, dispersants, fibers, and other additives govern water demand, flow, setting, permeability, early strength, and high-temperature phase development. Increasing the nominal grade without understanding the matrix can produce a specification that looks stronger on paper but is more sensitive in the field.

Water is particularly important. Added water enables placement, yet excess water leaves pore space after drying and can increase permeability or reduce strength. Too little water can cause incomplete consolidation, poor flow, or hidden voids. The correct quantity depends on formulation, mixer type, mixing time, ambient temperature, transport time, and placement method. A field rule such as “add water until it looks workable” is not a controlled installation procedure.

Dryout must match the installed system. Free water, chemically bound water, lining thickness, vent paths, burner arrangement, thermocouple position, ambient condition, and local hot spots all affect steam-pressure risk. A generic heat-up curve copied from another furnace may be unsafe or unnecessarily slow. The product supplier, installer, furnace designer, and operator should agree on a zone-specific dryout plan before placement begins.

Five Industry Cases That Show Why the Selection Logic Changes

Steelmaking: The Slag Line Is a Reaction System

In an electric arc furnace, converter, ladle, or tundish, selection cannot be separated from slag practice, oxygen potential, tapping pattern, stirring, arc behavior, and campaign maintenance. A basic hot face may be chemically appropriate while carbon oxidation, joint opening, high-FeO slag, impact, or local overheating still controls loss. The correct question is not simply whether a magnesia-containing product resists a basic slag. It is whether its aggregate, carbon level, antioxidants, bonding system, pore structure, and maintenance practice fit the actual zone.

Operational control can be as valuable as a grade change. Stabilizing slag composition, limiting excessive oxidation, avoiding cold starts, controlling residual thickness, and applying targeted repair before the safety lining is exposed can extend campaign life. If the operating window changes—such as more scrap variability, new direct-reduced iron input, hydrogen-based routes, or altered power practice—the historical lining benchmark must be revalidated.

Cement and Lime: Coating, Infiltration, and Mechanical Load Move by Zone

A rotary kiln does not present one uniform exposure. The burning zone, transition zone, calcining zone, inlet, cooler, nose ring, and burner area experience different combinations of clinker chemistry, alkali-sulfur-chloride circulation, coating stability, shell deformation, abrasion, and thermal cycling. A lining that supports a stable protective coating in one zone may be unsuitable where coating repeatedly builds and falls.

Shell ovality and mechanical movement can amplify chemical damage. Brick geometry, joint quality, retaining systems, and warm-up practice may determine whether a chemically suitable material survives. Selection should use zone histories, shell scans, deposit analyses, and removed-brick sections rather than relying only on the kiln’s peak process temperature.

Glass: Corrosion Must Be Balanced Against Product Quality

Glass-contact blocks, throat areas, crowns, regenerators, ports, and superstructures face different liquids, vapors, temperatures, and contamination consequences. Dissolution rate is only one criterion. Stones, cords, blisters, seeds, color changes, and volatilized species can turn a “durable” material into a poor process choice. In a glass furnace, the best lining is the one that supports acceptable furnace life and glass quality together.

Flow patterns matter because they renew the liquid at the refractory surface and transport dissolved species. Thermal gradients and electrical boosting can create local conditions far from the furnace average. Laboratory corrosion tests are valuable when sample orientation, temperature, glass composition, time, and flow assumptions represent the intended zone; otherwise, they can rank materials for a condition that does not exist in production.

Aluminum and Nonferrous Processing: Wetting and Penetration Can Dominate

Molten aluminum and its alloys can penetrate pores and react with certain oxide phases. Fluxes, alloying elements, cleaning practice, bath turbulence, and dross handling change the exposure. Non-wetting additives and dense engineered matrices may reduce penetration, but their effectiveness must be tested against the real alloy and temperature range. A formulation suitable for one aluminum operation should not be assumed universal across holding, melting, recycling, transport, and treatment units.

Corundum growth, spinel-forming reactions, metal-line damage, impact at charging points, and cleaning-tool abrasion may occur in different regions. Zoning is therefore often more rational than specifying one premium material throughout the vessel. It places chemical resistance, impact tolerance, insulation, and repairability where each creates value.

Petrochemical, Hydrogen, and Waste-Processing Units: The Atmosphere Is Part of the Material

Process heaters, gasifiers, reformers, crackers, incinerators, and waste-to-energy units can expose linings to reducing gas, hydrogen, sulfur, steam, chlorides, alkalis, molten ash, and high-velocity particles. Anchors may operate in a temperature and atmosphere different from the hot face. A refractory that remains chemically stable can still fail if anchor oxidation, sulfidation, creep, or differential movement removes support.

Feed variability is especially important in waste-derived systems. An annual average analysis does not reveal short-lived concentrations of low-melting salts or heavy-metal compounds. Procurement specifications should identify the credible extremes and the frequency of excursions. Online operating data, deposit sampling, inspection images, and campaign records should be treated as a connected evidence set.

Turn the Service Envelope into a Purchasable Specification

A useful specification describes required performance and verifiable controls without pretending that one chemistry can solve every plant condition. It should tell suppliers enough about the exposure to propose or reject a material, while allowing equivalent technologies to be compared on the same basis.

Compare Data Under Identical Test Conditions

Apparent porosity, bulk density, cold crushing strength, modulus of rupture, permanent linear change, refractoriness under load, hot modulus of rupture, abrasion resistance, thermal conductivity, and chemical composition can all be useful. None is a universal predictor of lining life. Test method, specimen preparation, firing condition, temperature, load, atmosphere, orientation, and reporting basis must be comparable.

For example, a higher cold crushing strength does not prove better hot abrasion resistance or thermal-shock performance. A lower apparent porosity does not prove lower permeability after field dryout. A higher alumina number does not describe the binder, impurities, mineral phases, grain distribution, or reaction with the process medium. Buyers should reject comparisons that place unmatched test values in a single ranking table.

Use a Qualification Ladder Instead of a One-Step Approval

1. Desk screening: eliminate materials that conflict with temperature, atmosphere, chemistry, installation, or regulatory constraints.
2. Comparable laboratory work: test short-listed materials against representative media and thermal conditions, with controls and post-test sectioning.
3. Installation trial: confirm mixing, flow, set, compaction, rebound, curing, dimensional behavior, or bricklaying requirements using site equipment.
4. Controlled field zone: install in a measurable location with documented adjacent conditions and a defined inspection plan.
5. Campaign validation: track residual thickness, heat loss, repairs, operating events, product quality, and removed-material condition.
6. Change control: re-evaluate performance when raw materials, formulation, manufacturing site, installation crew, process feed, fuel, or operating pattern changes.

The evidence discipline described in this site’s guide to industrial chemical supplier qualification also applies here: identity, batch consistency, compatibility, documentation, and field validation must be connected. A famous brand or successful reference does not remove the need to verify that the supplied lot and the local service condition match the approved basis.

Field trials need success criteria before installation. If a candidate is placed only in an easy zone, compared with a worn neighboring lining, or operated during an unusually mild campaign, the result can be misleading. Record location, thickness, lot, crew, water addition, mixing time, curing, dryout, process conditions, maintenance, and inspection method. Without that context, “worked well” is an opinion rather than reusable engineering evidence.

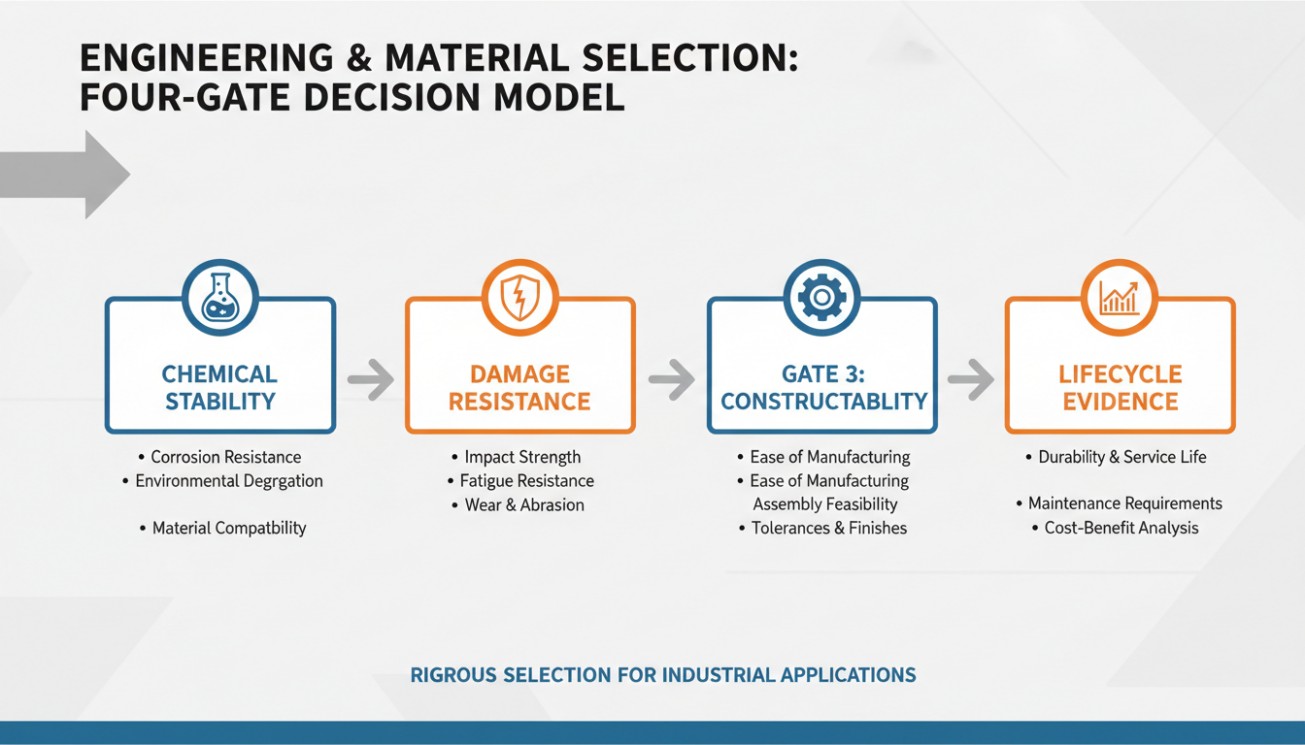

A Four-Gate Decision Model for Final Selection

Gate 1: Chemical Stability

Reject candidates with an unacceptable reaction, dissolution, oxidation, reduction, hydration, volatilization, wetting, or contamination risk. Use the expected range of exposure, not only the normal average. If compatibility depends on a protective coating or saturated slag, make that process condition an explicit operating requirement.

Gate 2: Damage Resistance in the Actual Zone

Rank the remaining options against the dominant sequence of penetration, thermal stress, abrasion, erosion, impact, creep, and structural movement. Evaluate properties at operating temperature whenever practical. Give greater weight to mechanisms that can cause rapid or hidden loss.

Gate 3: Constructability and Commissioning

Confirm that the product can be transported, stored, mixed, shaped, installed, cured, dried, inspected, and repaired within the plant’s access and outage constraints. A narrow installation window increases variance. If special equipment or skills are essential, include them in the procurement package rather than assuming the site will provide them.

Gate 4: Lifecycle Evidence

Compare installed cost together with campaign life, repair frequency, energy loss, production downtime, safety exposure, disposal, inventory, and supply resilience. Where two options remain uncertain, choose a controlled trial that produces decision-quality evidence. Do not disguise uncertainty with an artificially precise score.

The four gates should be passed in order. A low-cost product that fails chemical stability should not recover points through price. A chemically excellent product that cannot be installed consistently should not be approved on laboratory data alone. This sequence prevents commercial convenience from overriding non-negotiable engineering constraints.

Shortcuts That Commonly Create Expensive Failures

• Selecting by maximum temperature only. The number does not represent chemical attack, cycling, load, geometry, or installation quality.
• Using alumina content as a quality score. Phase composition, impurities, matrix design, porosity, aggregate quality, and service chemistry can be more important.
• Assuming “neutral” means universally compatible. Every material has reaction and stability limits.
• Copying a successful grade from another zone or plant. Similar equipment names can conceal different feeds, atmospheres, flows, cycles, and maintenance practices.
• Ignoring joints, anchors, and backup layers. The hot-face grade cannot compensate indefinitely for system-level design errors.
• Approving a castable without an installation window. Water, mixing, placement, curing, and dryout determine the installed microstructure.
• Accepting unmatched test data. Values from different methods or specimen conditions cannot support a fair ranking.
• Changing formulation or raw-material source silently. A grade name is not proof that the approved material remains unchanged.
• Waiting for a breakthrough to investigate. Regular thickness measurements, thermal scans, photographs, samples, and operating-event logs provide earlier evidence.
• Optimizing purchase price instead of total exposure. Downtime, energy, product contamination, emergency repair, and safety can dominate lifecycle cost.

Focused FAQ

Is the refractory with the highest temperature rating usually the safest choice?

No. The rating confirms only part of the operating boundary and may be based on conditions unlike the plant. Chemical reaction, atmosphere, load, thermal cycling, erosion, geometry, installation, and dryout can control life at temperatures well below the published limit.

Is higher alumina content always better?

No. Alumina content is a composition indicator, not a universal performance score. Aggregate quality, phase composition, impurities, matrix design, binder, pore structure, hot properties, and reaction with the contacting medium determine whether an increase is useful.

How should acidic, basic, and neutral classifications be used?

Use them to eliminate obviously incompatible families, then evaluate the actual grade and service condition. The classification is broad; it does not capture all fluxes, vapor species, redox effects, wetting behavior, mineral transformations, or contamination limits.

What operating data should be sent with a refractory inquiry?

Provide zone drawings; normal and upset temperatures; heat-up and cooldown rates; feed, slag, ash, metal, gas, flux, and contaminant ranges; atmosphere; mechanical wear; cycling; shell limits; installation access; current lining; failure history; campaign target; and inspection evidence. Photographs and used-lining samples are often more informative than a generic equipment name.

When should a plant choose brick instead of castable?

Choose based on zone geometry, joint behavior, expansion, installation resources, outage time, repair strategy, and demonstrated service performance. Brick offers factory-controlled units but introduces joints and laying requirements. Castable reduces joints and fits complex geometry but transfers more quality risk to mixing, placement, curing, anchoring, and dryout.

Can laboratory corrosion testing predict campaign life?

It can rank candidates and reveal reaction paths when chemistry, temperature, atmosphere, motion, contact geometry, and test duration are representative. It rarely predicts exact campaign life by itself. Field installation, scale, gradients, cycling, wear, process variability, and maintenance must still be validated.

Is slag basicity enough to choose a steelmaking refractory?

No. Basicity is an important screening parameter, but iron oxide level, MgO saturation, alumina, temperature, viscosity, solids, oxygen potential, stirring, residence time, and carbon oxidation can materially change attack. Use complete composition ranges and operating conditions.

Can one premium refractory line an entire furnace?

Sometimes a common system simplifies construction, but one material is rarely optimal when zones have different chemistry, impact, heat flow, atmosphere, cycling, and repair access. Strategic zoning often improves reliability and cost by placing each performance feature where it is needed.

When must an approved material be requalified?

Requalification is appropriate after a meaningful change in formulation, raw-material source, manufacturing site, quality-control route, packaging, shelf life, installation method, crew capability, furnace design, feed, fuel, atmosphere, operating pattern, or failure consequence. The grade name alone should not define equivalence.

Industry-Level Conclusion

Reliable refractory material selection is an exercise in controlling reaction rates, stress, wear, heat flow, construction variability, and operational consequence. Maximum temperature is a necessary input, not a selection method. The most defensible program defines each service zone, identifies the dominant damage sequence, screens chemical incompatibility, chooses an installable material architecture, and validates performance with traceable field evidence.

This approach also changes the buyer–supplier conversation. Instead of asking for the “best” grade, the plant provides a measurable service envelope and asks how the proposed system manages each critical risk. The result is a specification that can survive technical review, procurement comparison, installation, commissioning, and post-campaign learning. That is how an industrial furnace lining becomes an engineered asset rather than a recurring emergency purchase.
