Refractory Dry-Out Explained: Moisture Migration, Spalling Risk, and Faster Furnace Start-Up
The Direct Answer: Dry-Out Is a Controlled Transport Operation
A safe refractory dry-out is not simply a slow version of normal furnace heating. It is a controlled transport operation in which retained water must move through a changing pore network and leave the lining before local vapor pressure exceeds the lining’s evolving tensile capacity. The job is therefore governed by four interacting variables: water inventory, permeability, heat distribution, and the strength of the material at each stage of heating.
The practical objective is equally specific: remove water without explosive spalling, damaging internal cracks, anchor exposure, or avoidable schedule delay, then hand the equipment to operations with evidence that the lining can safely proceed to service temperature. A calendar-based furnace start-up plan is not enough. The team needs defined measurement zones, vent paths, hold-and-release criteria, response rules, and a record of what the lining actually experienced.
This distinction matters because the lining does not experience one temperature. Burner-side gas, refractory hot face, internal lining, backup layer, metal shell, corners, penetrations, and poorly circulated zones all respond at different rates. A schedule that appears conservative at the control thermocouple can still create a local pressure event elsewhere. Conversely, an unnecessarily cautious schedule can consume fuel and outage time without reducing risk if vapor removal is already complete.
This guide treats refractory castable drying as an engineered commissioning stage. It assumes that product selection and installation are substantially complete. Where the bond system is still being evaluated, first review our monolithic refractory binder-system guide, because calcium aluminate cement, hydratable alumina, sol-gel, phosphate, and hybrid systems do not release water or develop intermediate-temperature strength in the same way.
Start at the End: Define Release Criteria Before Applying Heat
Many dry-out failures begin before the burners are lit. The project team has a temperature-versus-time chart but has not agreed on what evidence permits movement from one stage to the next. The schedule then becomes an automatic ramp, even when field observations indicate that the lining is lagging, steaming heavily, or heating unevenly.
A defensible plan begins with release criteria. For every ramp and hold, the owner, refractory manufacturer, installer, and dry-out contractor should know what is being controlled, which measurement has authority, who can pause the program, and how a deviation will be reviewed. The procedure should separate five decisions:
- Readiness to heat: installation records, curing time, forms, temporary supports, weather protection, burner setup, ventilation, and drainage provisions have been accepted.
- Readiness to leave a hold: temperature lag, visible steaming, condensate behavior, zone uniformity, and minimum hold duration meet the approved criteria.
- Readiness to increase the ramp: the water-release stage associated with the installed material and thickness has been crossed without unresolved anomalies.
- Readiness for operating heat-up: the initial water-removal cycle is complete and the lining has not shown evidence requiring inspection or repair.
- Readiness for process introduction: the refractory, shell, anchors, process equipment, and operating controls have all been released by their responsible disciplines.
The result is a decision procedure, not merely a burner instruction. That difference becomes critical when the field condition departs from the nominal curve.
The Water Inventory: Three Reservoirs With Different Timetables
“Water” is often treated as a single quantity because the batch ticket records one addition. Inside a cured monolithic lining, however, moisture occupies several states. The boundaries between them are not perfectly sharp, but an operational three-reservoir model helps teams understand why one hold cannot remove everything.
Reservoir 1: Mobile or Free Water
Some added water remains sufficiently mobile to occupy connected capillaries, larger pores, joints, low points, or interfaces. Its quantity depends on formulation, water addition, mixing efficiency, consolidation, ambient conditions, curing, geometry, and whether rain or wash water entered the lining after installation. Excess water used to recover workability does more than dilute the matrix. After removal, it can leave a different pore structure and may create local zones with different strength and permeability.
Mobile water is the first inventory that teams expect to remove, yet it does not necessarily travel directly toward the heated face. Temperature and pressure gradients may drive vapor inward or sideways. Water can also condense in a cooler region and create a temporary accumulation ahead of the drying front.
Reservoir 2: Physically Retained Water
Water held in smaller capillaries, adsorbed on particle surfaces, or trapped within a fine matrix requires more energy and a viable escape path. Dense low-cement and ultra-low-cement castables can contain less mixing water than conventional castables while still presenting a difficult release problem because their fine matrices may have low permeability during early heating.
This is why water percentage alone cannot rank dry-out safety. Two linings with the same nominal addition can produce very different vapor-pressure histories if pore connectivity, thickness, curing, cold-face construction, and heating direction differ.
Reservoir 3: Chemically Bound Water
Hydraulic and other reactive systems form hydrates or chemically associated species during set and cure. Some of this water is released only as those phases dehydrate over a broader and often higher temperature range. The exact release signature depends on binder chemistry, formulation, curing history, and interaction with additives.
Removal is therefore not a single boiling event at one nominal temperature. The material passes through overlapping evaporation, desorption, dehydration, organic-additive burnout, phase transformation, and ceramic-bond development. A supplier schedule should reflect the tested product system, not a generic family label.
The central lesson of moisture migration in refractory is that the water inventory and the exit capacity must be evaluated together. A low inventory can still be hazardous when the route out is restricted; a larger inventory may be manageable when permeability, venting, and heat distribution are intentionally engineered.
Inside the Wall: Moisture May Move Away From the Burner
Imagine a thick lining heated from the process side. The near-surface region warms first and begins generating vapor. Part of that vapor escapes through the hot face, but another part is driven toward cooler material. When it reaches a zone below its condensation condition, it can return to liquid and increase local saturation. Research using rapid neutron tomography has directly observed moisture accumulation ahead of a one-directional drying front in high-alumina castable.
This phenomenon is often described as a moisture clog. It matters because the lining can develop a relatively dry hot-side layer, a wetter internal band, and a still-cooler region at the same time. The hot-side layer may also be changing dimension and losing portions of its initial hydraulic bond. The pressure-release route is therefore neither uniform nor stationary.
The transport path is influenced by:
- total lining thickness and the thickness of each layer;
- open porosity, pore-size distribution, and permeability;
- cold-face insulation, membranes, coatings, and shell geometry;
- anchors, joints, penetrations, burner blocks, and repair boundaries;
- the direction of heating and the number of exposed faces;
- local compaction, rebound, laminations, segregation, and water variation;
- ambient temperature, wind, humidity, rain exposure, and curing history;
- the rate at which vapor is generated relative to the rate at which it can escape.
A thin laboratory specimen dried from several faces cannot automatically represent a full-thickness vessel lining heated from one side. Scale changes the travel distance and boundary conditions. That is why a dry-out plan must state the qualified thickness, layer arrangement, and installation method to which its evidence applies.
The Failure Window: Vapor Pressure Rises While Strength Is Changing
Explosive failure is not caused by temperature alone. It occurs when locally generated pressure and thermomechanical stress exceed the resisting capacity of the lining. That capacity changes throughout the first heat-up.
At ambient temperature, a properly cured hydraulic castable has green strength. As temperature rises, water is removed and hydrate phases transform. The original bond may weaken before a robust ceramic bond develops. At the same time, aggregates and matrix expand differently, temperature gradients generate stress, and restricted vapor flow raises pore pressure. The most vulnerable interval is therefore a moving overlap among pressure generation, weak intermediate bonding, and thermal stress.
Steam spalling can appear as a surface pop-out, delamination, deep crack, detached panel, or violent ejection of material. Subcritical events may be less visible: internal microcracking can reduce later erosion resistance, open a pathway for process penetration, or weaken material around anchors without producing an immediate collapse.
The term castable explosion risk should not be reduced to whether a product contains a particular fiber or “fast-dry” additive. Risk is a system result. Product permeability is important, but so are thickness, wet-out control, curing, access to the cold face, flame pattern, ventilation, measurement coverage, and operator response.
If popping, fresh debris, abnormal pressure release, rapid local temperature divergence, unexpected shell heating, or other evidence of damage appears, continuing the automatic ramp is not a productivity decision. It is an uncontrolled change to the risk state. The responsible team should stabilize or stop the cycle under the approved procedure, secure the area, and determine whether inspection is required. If damage has already occurred, use the refractory lining failure investigation framework rather than assigning the event to “operator error” from the trend chart alone.
A Control-Room Plan Built Around Seven Decisions
Decision 1: Define the Dry-Out Boundary
List every refractory product, installed thickness, layer, repair area, precast component, mortar, coating, fiber module, and interface within the heated boundary. Record whether each material was newly installed, previously fired, water-exposed, or repaired. A vessel containing a new dense hot face, an older backup castable, and several wet patches does not have one uniform starting condition.
Zone the equipment by geometry and heat exposure: floor, wall, roof, cone, duct, burner throat, opening, penetration, dead leg, and transitions between thin and thick sections. Each zone should have an identified heating route, vapor exit route, measurement method, and responsible reviewer.
Decision 2: Verify Installation and Cure
Refractory curing and dry-out are connected but different stages. Curing allows the intended low-temperature bond to develop; dry-out removes retained water and progresses the material toward its service-state bond. Starting heat too early can interrupt bond development. Leaving a cured lining exposed to rain, freezing, washdown, or uncontrolled heat can also invalidate the assumed starting condition.
The preheat review should include batch records, water addition, mixer and placement times, ambient temperatures, curing method and duration, form-removal timing, repair history, test results, and deviations. These records are not paperwork after the fact. They define the likely water distribution and strength at the start of heating.

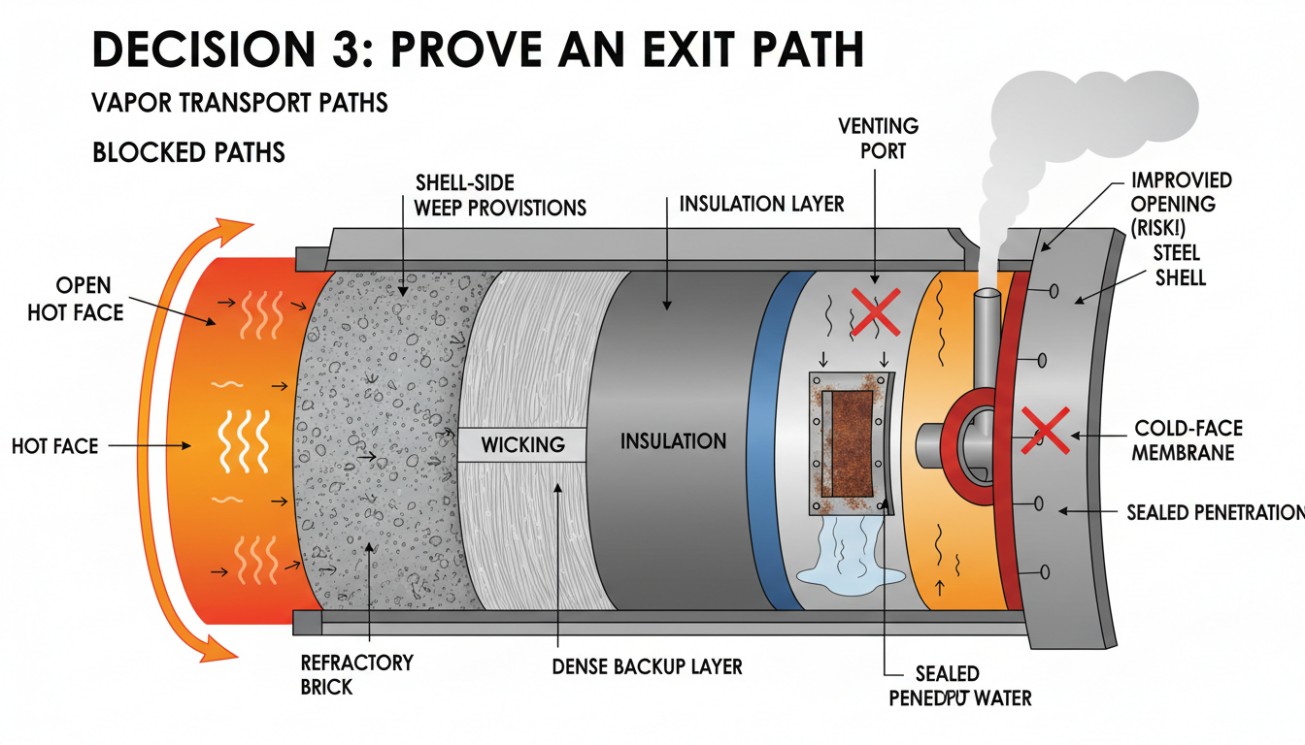

Decision 3: Prove an Exit Path
Confirm that vapor can leave every relevant zone. Depending on the approved lining design, this may involve an open hot face, shell-side weep provisions, wicking, joints, temporary venting, or other manufacturer-defined features. Cold-face membranes, foil, dense backup layers, blocked weep holes, standing water, and sealed penetrations can change the transport path.
Do not drill holes, cut the lining, remove insulation, or modify anchors simply because steam is expected. Vent provisions are design features and should be reviewed by the responsible lining engineer and manufacturer. An improvised opening can damage the shell protection system or create a future process-leak path.
Decision 4: Engineer Heat and Air Distribution
Burners must supply controllable heat without direct flame impingement. Fans, dampers, temporary ducting, exhaust openings, and circulation arrangements should minimize cold pockets and hot jets. The objective is not identical temperature at every point; it is a known, acceptable distribution that does not outrun water transport in one zone while another remains saturated.
Ventilation has two roles. It removes steam so the gas space does not remain saturated, and it removes combustion products safely. Too little exchange can slow evaporation and obscure observation. Excessive unplanned cold-air ingress can create large gradients and condensation zones. Airflow should therefore be part of the engineered plan rather than an open-door improvisation.
Decision 5: Instrument the Controlling Zones
One furnace thermocouple cannot describe a multidimensional lining. Place instruments where they can detect the expected hottest, coldest, thickest, least ventilated, and most safety-critical zones. Include redundant measurement where loss of one sensor would leave the team unable to control the cycle.
The project should distinguish gas-control thermocouples, refractory or interface thermocouples, and shell-temperature measurements. Each answers a different question. A hot gas reading shows the heating environment; it does not prove that internal moisture has left. A shell reading may identify heat leakage or delayed heating but can also be influenced by insulation, wind, structural attachments, and sensor contact.
Decision 6: Run Holds as Evidence-Gathering Stages
A hold is not dead time. It permits temperature equalization and gives moisture transport time to catch up with heat input. During a hold, the team should evaluate the trend, not merely wait for a clock:
- Are previously lagging zones converging?
- Is visible steaming decreasing, stable, or increasing?
- Is condensate reducing, moving to a different outlet, or accumulating?
- Are shell temperatures behaving as expected?
- Has burner demand stabilized?
- Are instruments plausible and mutually consistent?
- Has any new cracking, debris, sound, odor, or pressure event been observed?
A minimum hold duration may be mandatory, but elapsed time alone should not override unresolved adverse evidence. Conversely, exceeding the nominal hold should trigger a reasoned review rather than an automatic assumption that the refractory has failed.
Decision 7: Release and Handover
The end of dry-out should be a signed transition. Record the achieved curve, actual holds, deviations, sensor failures, observations, fuel interruptions, maximum zone differences, inspection findings, and open actions. Operations should know whether the next heat-up can follow a normal service procedure, whether a restricted ramp remains necessary, and what conditions require engineering review.
Temperature Bands Are Diagnostic Zones, Not Universal Setpoints
A published refractory dry-out schedule normally contains ramps and holds, but its numbers belong to a defined product, thickness range, geometry, and set of boundary conditions. Copying temperatures from another furnace can create false confidence. A more transferable way to understand the curve is to ask what transition the team is controlling in each broad zone.
| Broad stage | Dominant engineering concern | Control-room question |
|---|---|---|
| Initial warming below vigorous evaporation | Uniform heat introduction, surface evaporation, condensation in cold zones, and confirmation that instruments respond correctly | Is heat reaching every controlled zone without a localized hot jet? |
| Free and capillary water release | High vapor-generation potential, pressure buildup, moisture redistribution, and transport through the pore network | Is vapor removal keeping pace with heat input? |
| Dehydration and intermediate bond transition | Release of more strongly held water, changing strength, additive burnout, and internal thermal gradients | Has the product-specific release signature been respected? |
| Development toward ceramic service state | Phase evolution, dimensional change, sintering behavior, anchor interaction, and preparation for process temperature | Is the lining released for the next operating stage, not merely dry at the surface? |
Approximate temperature ranges may be useful during planning, but the supplier’s qualified procedure and project specification must control. Different hydrates decompose at different temperatures; phosphate and sol-gel systems follow different pathways; multilayer linings create additional lag; and process-specific equipment may impose limits unrelated to the castable.

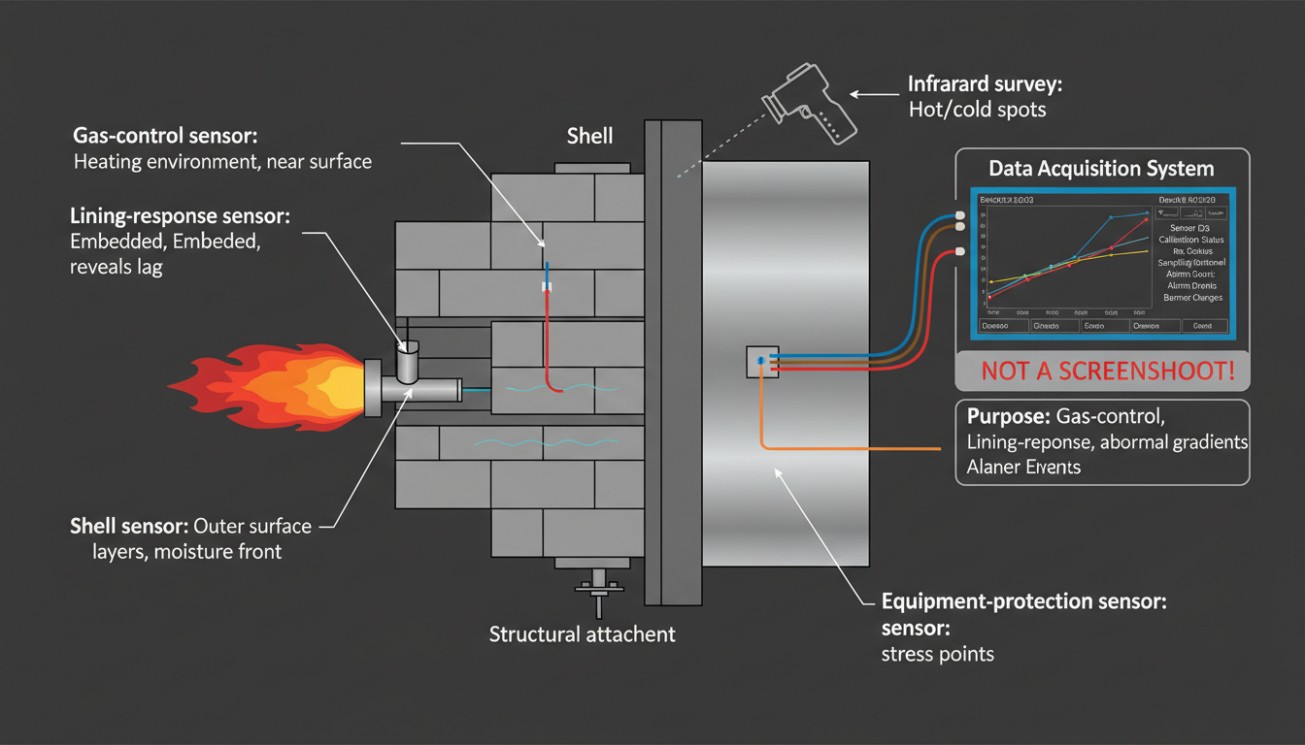

Thermocouples: Measure the Controlled Variable, Not the Convenient Location
Good refractory thermocouple placement begins with a measurement purpose. A sensor installed because it is easy to reach may not represent the zone most likely to overheat or retain moisture. Before installation, label each sensor as a gas-control, lining-response, interface, shell, or equipment-protection measurement and define how its reading affects the procedure.
Gas-control sensors
These instruments measure the heating environment close to the refractory surface without being struck by flame or seeing an unrepresentative radiant source. Manufacturer guidance may specify a stand-off from the surface. Position and shielding should be documented, because moving a sensor changes the meaning of the historical schedule.
Lining and interface sensors
Embedded or interface measurements can reveal lag and help compare thick, thin, hot, and cold regions. However, sensor installation can itself create a local pathway or disturbance, and a point measurement does not reveal an entire moisture front. Use embedded data as one part of the evidence package, not as a universal proof of dryness.
Shell and external surveys
Shell thermocouples and infrared surveys help identify abnormal gradients, hot spots, cold zones, or changes around structural attachments. Emissivity, reflections, insulation, wind, and access angle can distort infrared readings. Trend consistency is usually more useful than a single unverified surface number.
The data system should retain timestamps, sensor identities, calibration status, sampling interval, alarm events, and burner changes. A screenshot of the final temperature is not an adequate dry-out record.
Fast Dry-Out Is a Qualified Material-System Claim, Not a Shortcut
A fast-dry refractory castable may use engineered permeability, selected fibers, pore-forming mechanisms, alternative binders, or other formulation strategies to release water more efficiently. Published research also shows that the effectiveness of drying additives can depend strongly on the binder and overall formulation: an additive that helps one MgO-bonded system may not transfer to another composition without side effects.
“Fast” should therefore mean that the complete material and installation system has been qualified for a defined accelerated procedure. It should not mean applying a faster curve to an ordinary product because the outage is late.
Before accepting an accelerated claim, ask for evidence covering:
- the exact product and binder system being supplied;
- sample dimensions and number of heated faces;
- curing conditions and age at heat-up;
- water-addition range and installation method;
- heating rate, hold logic, and maximum tested thickness;
- explosion or spalling observations, not only residual strength;
- permeability and strength before, during, and after the critical interval;
- effects on corrosion, abrasion, dimensional stability, and service life;
- field references with comparable geometry and boundary conditions;
- the response required when actual steaming or lag exceeds the qualification case.
Alternative construction can also reduce wet-out exposure. Precast and pre-fired shapes, dry vibratable materials, or smaller planned repair modules may shift work away from the outage. These options introduce their own joints, installation tolerances, transport, anchoring, and service-compatibility questions, so they should be evaluated as lining-system choices rather than universal replacements.
A Live Decision Matrix for the Dry-Out Team
The approved procedure should contain observable response rules. The following matrix illustrates the logic; project-specific limits must be supplied by the owner, manufacturer, and dry-out specialist.
| Observed condition | Likely control concern | Procedural response |
|---|---|---|
| Temperatures rise uniformly and steaming declines during the planned hold | Water release appears to be keeping pace | Complete all minimum criteria, document the evidence, and proceed only after authorized release |
| One zone stalls while gas temperature continues rising | Evaporative cooling, poor circulation, excess moisture, or sensor issue | Hold the ramp, verify the instrument and airflow, and investigate the zone |
| Steaming or condensate increases after a temperature change | Vapor generation may be outrunning removal | Stop increasing heat; maintain or reduce input as the approved procedure directs |
| Large zone differential or evidence of flame impingement | Localized thermal stress and nonrepresentative control temperature | Correct burner distribution and re-establish acceptable uniformity before continuing |
| Fresh debris, popping, sudden crack, abnormal shell response, or violent steam release | Possible lining damage or pressure event | Execute the safety stop or stabilization plan, restrict access, and obtain engineering disposition |
| Loss of a controlling thermocouple | The team may no longer know the governing temperature | Hold or stop according to the instrument-failure rule; do not substitute an unrelated sensor without approval |
The key is preauthorization. Operators should not be forced to negotiate whether they are allowed to pause heating while an abnormal event is developing.
Why the Lowest Fuel Use Is Not Always the Fastest Ramp
Dry-out economics are often presented as a choice between safety and speed, but poor control wastes both. An aggressive ramp may shorten the nominal curve while increasing the probability of an extended hold, damaged lining, inspection delay, repair, or complete restart. An overly conservative curve can consume unnecessary fuel, burner rental, labor, and production time.
The economic target should be the shortest qualified, evidence-controlled path to release. That requires separating value-adding time from avoidable time:
- Value-adding time: curing, controlled heating, required holds, equalization, measurement, inspection, and safe handover.
- Avoidable time: waiting for missing approvals, reinstalling sensors, correcting burner imbalance, clearing blocked vents, locating product data, resolving undocumented repairs, or repeating a stage after a preventable interruption.
Better planning often saves more outage time than a steeper ramp. Material choice can support acceleration, but site readiness determines whether that capability is realized.
Two Linings Can Share a Product and Still Need Different Plans
Consider two illustrative installations using the same nominal castable. The first is a relatively thin, openly exposed repair with multiple evaporation surfaces and direct visual access. The second is a thick multilayer vessel lining with a dense hot face, insulating backup, complex penetrations, restricted cold-face release, and several zones remote from the temporary burners.
A laboratory data sheet may be common to both, but their transport distances, condensation zones, thermal lag, airflow, and consequence of failure are not. Applying one curve to both because the product name matches ignores the installed system.
The same logic applies within one furnace. A burner block, roof section, floor, wall patch, and deep transition may require different monitoring even when one master program governs the equipment. The master curve should be limited by the controlling zone, while local observations confirm that faster-responding areas are not being overheated.
The Dry-Out Record Should Become Part of the Lining Passport
After commissioning, the dry-out file should remain linked to the lining location and material lots. This creates a baseline for future inspection, maintenance, and failure analysis. At minimum, retain:
- approved procedure and revision;
- equipment drawing and zone map;
- product names, lot numbers, installed quantities, thicknesses, and locations;
- water-addition and installation records;
- curing conditions and any weather exposure;
- thermocouple map, type, calibration status, and placement photographs;
- burner, fan, damper, exhaust, and vent arrangement;
- complete time-series data and operator log;
- holds, deviations, alarms, interruptions, observations, and approvals;
- post-cycle inspection results and release status.
This record allows a later hot spot, crack, or local loss to be compared with actual commissioning conditions. It also turns the next outage plan into an evidence-based improvement rather than a reconstruction from memory.
What Buyers Should Ask Before Awarding the Dry-Out Scope
Dry-out is often divided among the material supplier, installer, burner contractor, inspection team, and plant operations. A procurement package should close the gaps between them. Ask each bidder to answer the following questions in writing:
- Who owns the final procedure, and whose written approval is required for changes?
- Which exact products, thicknesses, and installation methods are covered by the proposed curve?
- What curing assumptions and ambient limits are built into the plan?
- How are water ingress, delayed start, freezing, rain exposure, or undocumented repair handled?
- Which zones control the ramp, and how were thermocouple locations selected?
- What cold-face or hot-face vapor-release provisions are required?
- What burner turndown, airflow, exhaust, redundancy, and backup power are available?
- What observations trigger a hold, reduction, shutdown, inspection, or engineering review?
- How will actual trend data be delivered and preserved?
- What acceptance statement transfers the equipment from dry-out to operating heat-up?
A supplier that offers only a generic curve has not yet defined the service. The commercial comparison should include engineering, instrumentation, supervision, response capability, documentation, and responsibility—not just burner hours.
Focused FAQ
What is the difference between curing and dry-out?
Curing develops the intended initial bond after installation, often through hydraulic or chemical reactions. Dry-out is the controlled first heating that removes retained water and advances the lining toward its service-state structure. Adequate curing does not eliminate the need for dry-out, and dry-out cannot repair an inadequately cured installation.
Can a furnace be dried safely by holding at the boiling point of water?
Not by that rule alone. The lining contains different water states, temperature varies through its thickness, and pressure depends on the rate of vapor generation relative to escape capacity. Product-specific holds may occur around important release regions, but one nominal gas temperature does not prove that all internal water has left.
Why can steam continue after the gas temperature has stabilized?
Heat is still moving into cooler lining zones, and water may be migrating or re-evaporating after earlier condensation. Continued steam during a hold can be expected, but its trend and distribution must be evaluated under the approved release criteria.
Does using less mixing water always permit a faster heat-up?
No. Lower water content may reduce the inventory, but a dense fine matrix may also have low early permeability. Binder chemistry, additive system, installation quality, thickness, and venting determine whether the lower inventory can escape safely.
Can operators rely on visible steaming?
Visible steam is useful field evidence but is neither a complete moisture measurement nor proof of internal pressure. Steam may leave through hidden paths, condense in cooler equipment, or be difficult to see under some ventilation conditions. It should be interpreted alongside temperature trends, condensate, airflow, and inspection observations.
How many thermocouples are required?
There is no responsible universal number. Coverage should reflect equipment size, geometry, lining zones, thickness transitions, burner distribution, likely hot and cold areas, consequence of failure, and required redundancy. The governing question is whether every controlling risk zone can be monitored and acted upon.
Can an existing schedule be reused after a repair?
Only after review. Repair material, depth, retained old lining, water exposure, boundaries, vent paths, and burner arrangement may differ from the original installation. A local wet repair inside a previously fired structure creates a mixed initial condition that the earlier plan may not address.
What makes an accelerated dry-out claim credible?
Credible evidence identifies the exact formulation, sample scale, heated faces, thickness, water range, curing conditions, heating program, failure observations, intermediate properties, and field boundaries. A successful small specimen or an additive name is not enough to authorize acceleration in a full lining.
What should happen if the schedule is interrupted by fuel or power loss?
The procedure should contain an interruption and restart rule. The decision depends on the stage reached, duration of interruption, temperature decline, condensation potential, product system, and available data. The team should not simply resume at the interrupted ramp without confirming the current lining condition.
What is the best single indicator that dry-out was managed correctly?
No single temperature or observation is sufficient. The strongest evidence is a complete, plausible trend record showing controlled zone behavior, declining water-release indicators, compliance with required holds, no unresolved damage evidence, and formal release by the responsible parties.
Conclusion: Control the Exit of Water, Not Just the Input of Heat
Successful first heat-up begins by recognizing that the refractory is a changing porous body, not a passive thermal mass. Water exists in multiple states, moves through temperature and pressure gradients, may accumulate ahead of the drying front, and must escape while the lining’s bond and stress state are evolving.
The best programs combine product-specific evidence with installation records, engineered venting, uniform heat delivery, purposeful instrumentation, live decision rules, and documented handover. They accelerate only where the complete system has earned that acceleration. That approach reduces the probability of pressure damage while avoiding outage time that adds no control value.
