PFAS Removal by NF and RO: Why Rejection Is Only Half the Treatment Decision

Per- and polyfluoroalkyl substances create an unusual treatment problem. They are discussed as a contaminant family, measured at extremely low concentrations and governed by rapidly evolving target lists, yet a water plant must still convert that abstract risk into pumps, membranes, sample points, alarms, waste contracts and acceptance tests. Nanofiltration (NF) and reverse osmosis (RO) can provide a powerful physical barrier, but a high rejection number is not a complete treatment strategy.

The reason is fundamental: a pressure-driven membrane does not make PFAS disappear. It divides one feed stream into two outputs. One is permeate, where target compounds should be below the project's release or compliance limits. The other is concentrate, where rejected PFAS mass travels with salts, dissolved organic matter and other retained constituents. A successful design must control both streams. If the permeate passes its test while the concentrate has no lawful, durable management route, the project has solved a water-quality problem by creating an unresolved residuals problem.

This guide presents PFAS membrane treatment as a mass-balance and lifecycle decision. It shows how to define the PFAS treatment contract, compare NF with RO, verify performance for short-chain compounds, design a representative pilot, build a monitoring architecture and assign responsibility for the concentrate before equipment is ordered. The objective is not to promote one membrane. It is to help utilities, industrial facilities, engineering firms and procurement teams specify a complete barrier whose water, energy, chemistry and residuals consequences are understood.

The Direct Answer: NF or RO Can Be the Barrier, but Concentrate Management Completes the Treatment

Direct answer: choose NF or RO only after defining the exact PFAS list, finished-water limits, feed variability, recovery range, co-contaminant duty and concentrate outlet. RO generally provides the tighter and more conservative dissolved-contaminant barrier; tight NF may meet a defined PFAS duty with different mineral passage and energy implications. Neither option should be accepted from a generic rejection claim. Prove the proposed membrane on representative water, at realistic recovery and flux, with PFAS measurements in feed, permeate and concentrate. Then close the mass balance and qualify the residuals route.

The U.S. Environmental Protection Agency identifies NF and RO among effective technologies for reducing PFAS in drinking water. EPA's technical review reports high removal for many carboxylate and sulfonate PFAS and explains that performance depends on membrane properties relative to the target molecule. It also emphasizes that membrane separation generates PFAS-containing concentrate. That combination—strong barrier performance and a consequential reject stream—is the central design reality.

Regulatory specifications must be dated and jurisdiction-specific. As of July 2026, the U.S. federal PFAS drinking-water framework is subject to two May 2026 proposed rulemakings: EPA says one proposal would retain the 4.0-ppt maximum contaminant levels for PFOA and PFOS while offering a possible extension to 2031, and a separate proposal would rescind the federal provisions for four other PFAS parameters. In the European Union, harmonized monitoring and the Drinking Water Directive's parametric values—0.50 µg/L for “PFAS Total” and 0.10 µg/L for “Sum of PFAS”—have applied since January 12, 2026. A project should therefore freeze its applicable legal basis, customer requirements and internal risk targets at each design gate rather than copying one international number into every specification.

Start With a PFAS Treatment Contract, Not a Membrane Data Sheet

A useful treatment contract is a one-page statement that tells process engineering, the laboratory, procurement, operations and residuals management what success means. It prevents the membrane vendor from answering a narrower question than the owner intended to ask.

Define the Compound Universe

“Remove PFAS” is not a measurable duty. List the individual regulated compounds, customer-controlled compounds, locally relevant replacements, known source signatures and any aggregate parameter that governs the project. Record the laboratory method, reporting limit, quantitation limit, sample matrix and how non-detect results will be handled. A specification based only on PFOA and PFOS can miss a short-chain or ether PFAS that controls the actual risk. Conversely, demanding proof for every PFAS ever reported without an analytical or source rationale can make acceptance impossible.

The contract should distinguish four sets:

• Compliance set: compounds and aggregate parameters that have enforceable or permit consequences.
• Design set: compounds used to size and select the membrane barrier, including difficult-to-reject species.
• Surveillance set: additional PFAS or precursors monitored to detect a changing source signature.
• Residuals set: compounds required by the concentrate receiver, discharge permit, transporter or disposal facility.

These sets can overlap, but they are not automatically identical. The distinction matters because a laboratory may offer one drinking-water method for finished water and another method for concentrated industrial residuals. The sample plan must reflect the matrix that will actually be tested.

Define the Water and Operating Envelope

State seasonal and event-based ranges for flow, temperature, pH, conductivity, alkalinity, hardness, sulfate, chloride, silica, iron, manganese, turbidity, silt density index, total or dissolved organic carbon and any constituents that control fouling or scaling. Include source switching, drought concentration, storm response, upstream chemical changes and planned blending. PFAS may be the target contaminant, but conventional water chemistry determines whether the membrane can remain available.

Also define minimum, normal and maximum production; target recovery; maximum flux; required availability; turndown; cleaning restrictions; product-water stabilization; and expected membrane life. A PFAS water treatment system is not accepted merely because a short test produces low-PFAS permeate. It must sustain the duty without unacceptable scaling, fouling, energy, cleaning frequency or residuals volume.

Define the Two Release Points

The permeate release point needs a numerical quality rule, sampling frequency, response to a confirmed result and policy for blending. The concentrate release point needs an identified receiver, flow and chemistry envelope, PFAS acceptance criteria, permit basis, contingency storage and a backup route. If either output lacks an acceptance path, the design basis is incomplete.

One Feed, Two Products: Use a PFAS Mass-Balance Ledger

Membrane proposals frequently present percent rejection without showing where the rejected mass goes. A mass-balance ledger corrects that blind spot. For a steady-state system, the conceptual relationship for each PFAS is:

Qf × Cf = Qp × Cp + Qc × Cc ± sampling and analytical uncertainty

where Q is flow, C is concentration, and the subscripts f, p and c denote feed, permeate and concentrate. For design work, the ledger should be calculated for each controlling compound rather than only for “total PFAS.” It should also reconcile water flow: Qf = Qp + Qc, adjusted for any sampling, flushing, cleaning or recycle streams.

Do Not Confuse Rejection, Recovery and Mass Capture

Consider a simplified case with 100 cubic meters per hour of feed, 90% recovery and 95% transfer of a target PFAS away from the permeate. The system produces 90 cubic meters per hour of permeate and 10 cubic meters per hour of concentrate. Ignoring secondary streams, the concentrate can contain roughly 9.5 times the feed concentration for that compound. If recovery rises to 95% while the same mass is rejected, the concentrate volume is halved and its PFAS concentration can nearly double. The plant has reduced liquid volume, but it has not reduced PFAS mass.

EPA's 2024 technical support document used a similar calculation for full-scale recovery ranges and showed how a concentrate representing 8% to 15% of influent could carry PFAS concentrations several times higher than the feed. The exact multiplier at a real site depends on compound-specific rejection, recovery, losses, recycle, transient operation and analytical uncertainty. That is why the project's PFAS concentrate management plan should use measured mass loading and not only a nominal concentration factor.

Close the Ledger Across Non-Production States

Startup permeate, initial displacement water, flushes, preservation solution, off-specification water, integrity-test water and clean-in-place waste can sit outside the tidy feed/permeate/concentrate diagram. Define where each stream goes. A plant can have excellent steady-state rejection and still release uncontrolled PFAS mass during a diversion, tank overflow or maintenance event.

The ledger should therefore have operating-state rows: startup, normal production, source transition, alarm diversion, shutdown flush, cleaning and emergency storage. Each row needs valves, destinations, sample points and responsible roles. This turns the process flow diagram into an accountable residuals map.

PFAS Is a Family, Not a Single Design Solute

PFAS differ in carbon-chain length, functional group, charge, branching, molecular dimensions and environmental behavior. The feed can also contain precursors that transform into terminal perfluoroalkyl acids outside the treatment plant or during an analytical procedure. A membrane selected from one PFOA challenge test cannot automatically be credited for every compound in a future target list.

Long-Chain and Short-Chain Behavior

RO is often selected when the project requires a broad dissolved-solids barrier and conservative treatment of diverse PFAS. Tight NF can also provide high rejection for many compounds, but membrane tightness matters. EPA's technical review describes lower removal of lower-molecular-weight, shorter-chain PFAS by some NF membranes and reports that tighter NF products performed better than a membrane with a high molecular-weight cutoff. Therefore, short-chain PFAS removal should be demonstrated on the offered membrane and representative water rather than inferred from a long-chain result.

This does not mean that all NF is unsuitable or that every RO product behaves identically. Membrane charge, pore-size distribution, surface chemistry, feed pH, ionic environment and operating condition can influence transport. It means the tender should name the controlling compounds and require compound-specific data.

Targeted Analysis Does Not Describe Every Fluorinated Substance

A targeted method reports the compounds it is designed to measure. It does not automatically measure every PFAS, every precursor or every transformation product. Aggregate tools such as total organic fluorine, adsorbable organic fluorine or a total oxidizable precursor assay can answer different screening questions, but they are not interchangeable with a regulatory targeted method. The project team should decide what uncertainty matters and select methods with the laboratory and regulator accordingly.

Sampling materials also matter at nanogram-per-liter levels. Field blanks, equipment blanks, trip blanks, duplicate samples and laboratory quality-control records help identify contamination or bias. The owner should follow the applicable analytical method's material restrictions and handling requirements instead of relying on a generic “PFAS-free sampling” checklist.

NF Versus RO: Select the Smallest Barrier That Reliably Meets the Complete Duty

The choice is not “low-energy NF versus high-removal RO” in the abstract. It is a comparison of complete treatment trains under the same feed, finished-water, residuals and reliability requirements.

Use a Three-Gate Selection Rule

Gate 1: Barrier Sufficiency

Can the exact membrane keep every controlling PFAS below its acceptance limit at the worst credible feed and operating condition, including startup and membrane aging assumptions? The project should evaluate nanofiltration for PFAS removal with the same rigor applied to PFAS removal by reverse osmosis. A vendor's family-level brochure is not a substitute for product-level evidence.

Gate 2: Finished-Water Compatibility

Does the permeate meet mineral, corrosivity, taste, process and downstream treatment requirements? Broad salt removal can create a stable PFAS barrier while producing water that needs remineralization or blending. Any blend stream must be included in the PFAS calculation; untreated bypass can determine the final concentration even when membrane permeate is below detection.

Gate 3: Residuals Feasibility

Can the concentrate, cleaning waste and off-specification water be stored, transported, treated or discharged under documented conditions? If the answer is “the wastewater plant will probably accept it,” the gate has not been passed. Obtain written acceptance assumptions and identify how they could change with future PFAS limits.

Design PFAS Membrane Pilot Testing to Challenge the Claim

A pilot is not a miniature showroom. It is a controlled attempt to disprove the proposed design before the full-scale plant makes that failure expensive. Effective PFAS membrane pilot testing links analytical evidence with membrane hydraulics and residuals behavior.

Use Representative Water, Not Only a Synthetic Challenge

Bench work with known standards is useful for comparing membranes and analytical recovery, but a full design decision should include actual source water or a justified surrogate. Capture seasonal chemistry, source transitions, high-organic events and the PFAS mixture that will reach the plant. If concentrations are too close to laboratory reporting limits, a non-detect permeate result may provide only a lower bound on rejection. The test plan should state how it will distinguish true performance from analytical censoring.

Operate the Offered Configuration

Record the exact membrane model, lot, active area, element or coupon format, pretreatment, pressure, flux, crossflow, recovery, temperature, pH and stabilization time. A flat-sheet cell can screen membrane chemistry, but it does not reproduce a multi-element spiral-wound train's concentration profile, spacer hydraulics or stage recovery. Scale-up assumptions must be explicit.

Test at the proposed normal duty and at credible boundaries. A useful program may include cold-water operation, maximum design recovery, source switching, high dissolved organic carbon, high scaling potential and restart after shutdown. Do not spike PFAS casually into a production water system; any challenge addition requires appropriate safety, environmental, analytical and disposal controls.

Measure All Three Streams at Matched Times

Collect feed, permeate and concentrate samples after hydraulic and quality stabilization. Use synchronized flow readings so the mass balance represents the same operating window. Include field blanks, duplicates and laboratory control requirements. Report values, reporting limits and uncertainty—do not convert every “less than” result into zero.

The pilot report should contain:

• Compound-specific feed, permeate and concentrate data.
• Water recovery, observed rejection and calculated mass balance.
• Normalized permeate flow, salt passage and pressure drop.
• Scaling, fouling and cleaning observations.
• Finished-water stabilization requirements.
• Concentrate chemistry, volume and receiver compatibility.
• Performance during boundary and restart conditions.
• A documented scale-up method and unresolved uncertainties.

Pretreatment Protects the PFAS Barrier; It Does Not Replace Proof of PFAS Performance

PFAS concentrations may be tiny, but the membrane is exposed to the entire water matrix. Suspended solids, colloids, biological growth, natural organic matter, oxidants, hardness, sulfate, silica and metals can determine flux, pressure, cleaning frequency and service life. EPA's technical review notes that membrane pretreatment remains driven by conventional water-quality parameters rather than the trace target alone.

A robust pretreatment basis typically addresses screening, turbidity, silt density index, microbial control, oxidant removal, iron and manganese, organic loading, cartridge filtration and saturation risk. Readers developing this front end can use the site's detailed RO pretreatment reliability guide to structure event monitoring, diversion logic and membrane protection.

At higher recovery, concentrate chemistry can create scaling conditions that do not exist in raw water. Antiscalant selection must be based on a complete ion analysis, recovery projection, pH, temperature, residence time and compatible operating envelope. The site's guide to RO antiscalant selection explains why a generic dose is not a substitute for mineral-specific modeling. The selected chemical and its impurities should also be reviewed for the project's drinking-water and residuals requirements.

Pretreatment performance must be connected to protective action. If turbidity, SDI, free chlorine, oxidation-reduction potential, filter effluent quality or another critical indicator crosses its limit, the control system needs an alarm, response time, diversion destination and restart rule. A measurement that cannot protect the membrane is historical data, not a barrier control.

Monitor the Barrier in Three Layers

Online conductivity is valuable for detecting broad salt-passage changes, but it is not an online PFAS analyzer and must not be presented as one. PFAS monitoring requires a layered architecture that combines direct laboratory evidence, membrane-performance indicators and operating-state controls.

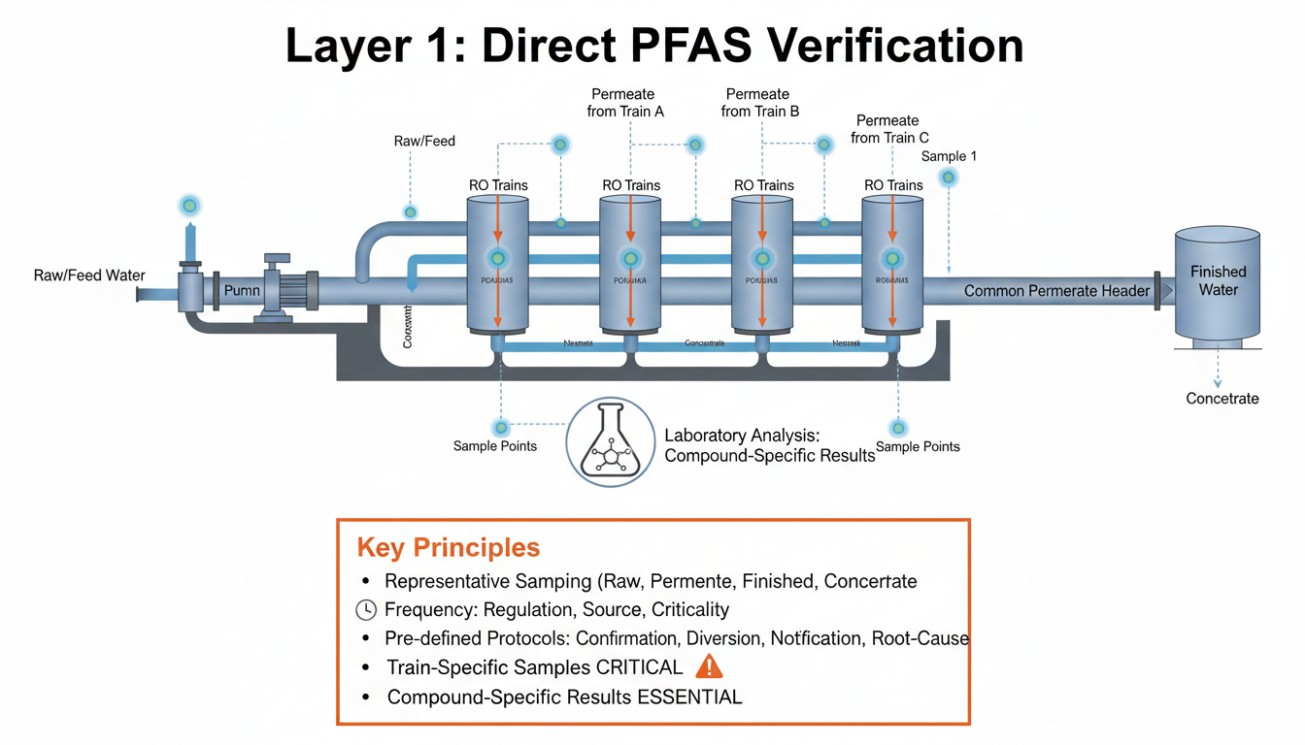

Layer 1: Direct PFAS Verification

Establish representative raw/feed, permeate, finished-water and concentrate sample points. The frequency should reflect regulation, source variability, treatment criticality, laboratory turnaround and the consequences of a confirmed result. Define confirmation sampling, product hold or diversion, public or customer notification responsibilities and root-cause investigation before the first exceedance occurs.

Where permeate from multiple trains is combined, retain train-specific sample points. A common header can hide one damaged train. Compound-specific results are essential for validating PFAS rejection by RO membranes or NF membranes; a total parameter alone may not localize the change.

Layer 2: Membrane Performance Surveillance

Trend normalized permeate flow, normalized salt passage, stage differential pressure, feed pressure, recovery, flux and permeate backpressure. Add vessel or train profiling where critical. These parameters do not measure PFAS directly, but they can identify loss of integrity, fouling, scaling, valve changes, instrument drift or hydraulic conditions that reduce confidence in the barrier.

Set alert and action limits from a verified clean baseline and process risk, not from arbitrary round numbers. An alert should trigger investigation while the system remains controllable; an action limit should specify diversion, shutdown or another protective state. Keep raw and normalized data so reviewers can distinguish a temperature event from membrane deterioration.

Layer 3: Operating-Envelope Controls

Monitor the conditions that make the validated performance applicable: feed source, pH, temperature, recovery, flux, oxidant exposure, pretreatment condition and chemical dose. If the plant operates outside the pilot or guarantee envelope, it cannot simply assume the original PFAS evidence still applies.

Digital analytics can prioritize anomalies, but model outputs require traceable inputs and human review. A “PFAS barrier healthy” dashboard should never be driven only by conductivity and pressure. Its status logic should show when the last direct PFAS sample was collected, whether laboratory quality control passed and whether the system remained inside its validated envelope.

Decide the Concentrate Route Before Membrane Procurement

The most consequential sentence in a membrane specification may be the one naming the concentrate receiver. EPA's 2026 interim guidance states that high-pressure membranes can remove many PFAS to a high degree while producing a waste stream with potentially high PFAS, salts, other contaminants and dissolved organic matter. That stream can be expensive and difficult to manage. The residuals plan is therefore a design input, not an operations detail to be solved after startup.

Build a Residuals Passport

Prepare a predicted and pilot-verified profile covering flow, daily and annual volume, pH, conductivity, total dissolved solids, major ions, metals, organics, PFAS by required method, suspended solids, antiscalant, cleaning chemicals and variability. Add transport classification, storage compatibility, receiving-facility limits and sampling responsibility. This passport travels with PFAS treatment residuals from generation to final documented disposition.

Compare Routes by Release Control, Not Convenience

No route is universally preferred. Permits, geology, receiving infrastructure, residual chemistry, distance, volume and local policy differ. The owner should compare primary and backup routes and identify the trigger that switches between them. If a receiving utility changes its PFAS policy, the water plant must know how long it can store concentrate and what alternative capacity is contracted.

Separate Capture, Concentration and Destruction Claims

GAC, ion exchange, foam fractionation and additional membrane steps may reduce liquid PFAS concentration or transfer PFAS into a smaller residual. They can be valuable parts of a treatment train, but the final mass still requires management. A destructive technology claim should specify the PFAS compounds tested, influent and effluent mass, gaseous and liquid products, products of incomplete destruction, energy, operating conditions and analytical coverage. Do not award destruction credit from disappearance in one sampled liquid stream.

Choose the Treatment-Train Architecture From the Controlling Constraint

NF or RO may be the primary PFAS barrier, a polishing step or a volume-concentration step. The best position depends on the complete duty.

Architecture A: Pretreatment → NF/RO → Stabilization

This direct arrangement fits applications that need a broad membrane barrier and have a viable concentrate outlet. Pretreatment protects availability; stabilization controls permeate corrosivity or process compatibility. It is conceptually simple, but its economics are highly sensitive to recovery, energy and residuals.

Architecture B: GAC or Ion Exchange → NF/RO Polishing

Upstream adsorption can reduce PFAS loading to the membrane, but it also adds spent media and breakthrough management. This train may be justified when adsorption addresses source peaks or when the membrane has a broader water-reuse duty. It should not be assumed to eliminate PFAS from concentrate without a mass balance.

Architecture C: NF/RO → Concentrate Capture

The membrane produces finished water and sends a smaller, stronger stream to GAC, ion exchange, foam fractionation or another concentration/capture step. Smaller liquid volume can make secondary treatment feasible, but high salts and organics may alter performance. Pilot the secondary process on real concentrate, not diluted feed water.

Architecture D: Partial-Flow Membrane Treatment and Controlled Blending

If source PFAS levels and other quality parameters permit, a portion of flow may be treated and blended. The finished-water calculation must include untreated flow variability, membrane downtime and mixing quality. A blend strategy that passes at the average influent can fail during a source peak. The blend valve therefore becomes part of the PFAS barrier and needs position verification and protective logic.

Evaluate Economics Per Reliable Day and Per Unit of PFAS Mass Controlled

Capital cost per unit of membrane area is a weak decision metric. Compare annualized lifecycle cost across the same treatment contract. Include source and pilot testing, pretreatment, membrane equipment, buildings, high-pressure pumping, energy, post-treatment, cleaning, element replacement, instrumentation, laboratory analysis, concentrate storage, discharge fees, transport, disposal, operator labor, permit work, backup capacity and contingency.

Three denominators expose different risks:

• Cost per cubic meter of compliant finished water captures recovery, downtime and blending.
• Cost per reliable operating day exposes fouling, cleaning and residuals interruptions.
• Cost per unit PFAS mass controlled through documented final disposition prevents cheap water production from hiding expensive or uncontrolled concentrate.

A higher-recovery design can reduce concentrate volume and water loss but increase concentration, scaling risk, energy and the difficulty of downstream residual treatment. A lower-pressure NF design can reduce power but require more evidence for the smallest controlling compounds. The optimum is the configuration that meets both output contracts with manageable uncertainty—not the one with the lowest membrane pressure or smallest waste flow in isolation.

Four Scenario Cards Show Why There Is No Universal Winner

Scenario 1: Low-Salinity Groundwater With a Stable, Defined PFAS Signature

The feed is relatively clean, the target list is stable and mineral retention is valuable. Tight NF may deserve a pilot alongside low-pressure RO. The decisive evidence is compound-specific rejection for the smallest controlling PFAS, finished-water stability and receiver acceptance of the concentrate. If NF meets the barrier with favorable mineral passage and energy, it can be rational. If uncertainty around short-chain or future targets dominates, RO may provide the stronger risk margin.

Scenario 2: Surface Water With Seasonal Organics and Storm Turbidity

The PFAS concentration may be modest while pretreatment reliability drives availability. Pilot testing should include high-organic and storm-recovery conditions, not only average water. Online turbidity, SDI, filter performance and diversion logic become critical. The membrane decision cannot compensate for weak event control. Concentrate organics may also affect any downstream adsorption or destructive process.

Scenario 3: Potable Reuse With a Broad Chemical Barrier Requirement

RO may already be justified for salts, trace organics and other dissolved contaminants, making PFAS one part of a multi-barrier duty. The acceptance program should still measure individual PFAS and concentrate mass. Integrity surveillance, critical-control-point logic and permeate stabilization are central. If a bypass or blending stream exists, it must be included in the finished-water PFAS calculation.

Scenario 4: Industrial or AFFF-Impacted Water With High and Variable PFAS

The treatment train faces a complex signature, potentially high concentration and difficult residuals. Membrane separation can create a smaller concentrate suitable for secondary capture or specialized treatment, but direct discharge may be unacceptable. Source segregation, equalization, representative analytical coverage and a verified residual route can matter more than a marginal difference in permeate energy. The procurement package should require explicit acceptance of the concentrate matrix by the downstream technology provider.

Write the Procurement Specification Around Evidence and Responsibility

A bidder should not be allowed to turn a PFAS project into a generic RO quotation. Require a compliance matrix that identifies every guaranteed duty, assumption, deviation and owner dependency.

Minimum Technical Submission

• Exact membrane manufacturer, model, active area, spacer, test protocol and manufacturing location.
• Compound-specific PFAS evidence for the offered membrane or a technically justified equivalent data set.
• System projection at normal and boundary feed conditions, with software version and assumptions.
• Guaranteed permeate flow, quality, recovery, power, pressure, flux and pressure drop at stated conditions.
• Pretreatment, chemical, cleaning, preservation and post-treatment requirements.
• Predicted concentrate flow and full chemistry, including PFAS mass and concentration.
• Materials and certifications applicable to the intended water use.
• Sampling points, instruments, data historian tags and alarm/diversion philosophy.
• Membrane and equipment change-notification requirements.
• Warranty terms linked to measurable and normalized acceptance conditions.

Commissioning Acceptance Should Have Four Certificates

Hydraulic Certificate

Verify calibrated feed, permeate and concentrate flows; pressure by stage; temperature; recovery; pressure drop; pump duty and water balance. Confirm operation at normal and agreed boundary points.

Barrier Certificate

After stabilization, collect matched feed, permeate, finished-water and concentrate samples under the approved quality plan. Demonstrate each controlling compound against the acceptance rule and document reporting limits. This is the field proof for PFAS drinking water treatment or the applicable industrial product-water duty.

Residuals Certificate

Confirm the concentrate passport, storage capacity, receiver approval, transport or discharge documentation, sample schedule and backup route. Demonstrate valve lineups for normal, off-specification and emergency states.

Operations Certificate

Deliver the validated baseline, normalization method, alarm limits, response matrix, laboratory schedule, maintenance plan, spare-parts list, membrane map, training records and ownership of regulatory updates. Acceptance is not complete until operators can keep the two-output system controlled.

Focused FAQ

Does reverse osmosis destroy PFAS?

No. RO is a separation process. It produces lower-PFAS permeate and transfers rejected PFAS into concentrate. Any claim of destruction must be demonstrated by a separate process with an appropriate mass balance and byproduct assessment.

Is RO always better than nanofiltration for PFAS?

RO is generally tighter and can provide a conservative broad dissolved-contaminant barrier. Tight NF can also achieve high PFAS rejection and may offer different energy or mineral-passage benefits. The right choice depends on the exact compounds, membrane product, water matrix, finished-water duty and concentrate route. Product-specific testing is essential.

Can conductivity be used as an online PFAS surrogate?

No. Conductivity can identify broad changes in ionic passage or membrane integrity, but it does not measure PFAS at relevant concentrations. Use it as one layer of barrier surveillance, supported by direct PFAS laboratory testing and operating-envelope controls.

Why can short-chain PFAS require special attention?

Smaller PFAS can be more difficult for some NF membranes to reject than larger compounds. The controlling short-chain species should be included in design and pilot testing with sufficiently low analytical reporting limits. RO performance should also be verified rather than assumed from a generic salt-rejection value.

Does higher recovery improve PFAS removal?

Higher recovery increases the share of feed converted to permeate, but it also concentrates salts and rejected PFAS into less liquid. It can increase osmotic pressure, energy and scaling risk. Rejection, recovery and concentrate mass loading must be evaluated separately.

Can the concentrate simply go to a municipal wastewater plant?

Only if the receiving utility has formally evaluated and accepted the flow and chemistry under applicable requirements. Conventional biological treatment is not automatically a PFAS destruction process, and the receiving plant may face discharge, biosolids or residuals consequences. Written acceptance and a backup route are prudent.

What should a PFAS membrane pilot prove?

It should prove compound-specific permeate quality, recovery, mass balance, hydraulic stability, fouling and scaling behavior, post-treatment needs and concentrate compatibility under representative and boundary conditions. It should also state what the test could not prove.

Should GAC or ion exchange be installed before or after the membrane?

There is no universal sequence. Upstream media can reduce PFAS loading or handle peaks; downstream treatment can polish permeate or capture PFAS from concentrate. Compare the complete train's residuals, replacement cycles, water quality, energy, footprint and reliability. Pilot secondary treatment on the matrix it will actually receive.

How should non-detect permeate results be used?

Report the laboratory limit and treat the result as censored, not as zero. A non-detect can demonstrate that the permeate is below an acceptance level, but it may not support an exact rejection percentage when the feed concentration is also low. Use appropriate statistical and regulatory rules agreed with the laboratory and project authority.

What is the most important question to ask before buying the membrane skid?

Ask where every output goes during normal production, startup, alarm, cleaning and emergency operation. If the project cannot name and qualify those destinations, it is not yet ready for procurement.

Conclusion: The Real Product Is Controlled PFAS Mass, Not Only Clean Permeate

NF and RO can be powerful PFAS barriers. Their value is greatest when the project treats rejection as one part of a larger system: a defined compound list, representative testing, protected membrane operation, direct verification, finished-water compatibility and controlled residuals. The design question is not simply whether a membrane can produce a low laboratory result. It is whether the plant can repeatedly account for PFAS mass across every operating state and keep both outputs within lawful, durable management paths.

The strongest project therefore makes the concentrate decision early. It measures feed, permeate and concentrate together. It dates its regulatory basis. It tests the offered membrane against the smallest controlling compounds. It distinguishes online membrane-health indicators from direct PFAS evidence. It prices storage, analysis and final disposition alongside energy and elements. When those disciplines are present, membrane separation becomes a defensible treatment barrier rather than an elegant way to move an unresolved contaminant from one pipe to another.
