Beyond Calcium Aluminate Cement: Choosing Binder Systems for Modern Monolithic Refractories

The Direct Answer: A Binder Is a Lifecycle System, Not a Bagged Ingredient

The most useful way to choose a binder for a monolithic refractory is to stop asking, “Which binder has the highest strength?” and start asking, “Which bonding mechanism can carry this lining through every state it will experience?” The binder must first help dry particles disperse, then allow the mix to move, create enough green strength for demoulding, release water without destructive pressure, survive a temporary loss of hydraulic or chemical bonds, and finally support the ceramic phases required in service. A material can perform brilliantly at one of those stages and still fail the installation as a whole.

This is why refractory binder selection should be treated as a sequence of chemical and operational handovers. At room temperature, the binder controls rheology and setting. During drying, it controls where water is held and how it escapes. Through intermediate temperatures, it influences the strength minimum between dehydration and sintering. At the hot face, its residual oxides become part of the phase assemblage that meets slag, metal, gas, alkali, sulfur, ash, or thermal cycling. The binder is therefore temporary as a mechanism but permanent as chemistry.

A broader service-envelope approach to refractory material selection remains essential: temperature, atmosphere, wear, geometry, installation, and process variability still define the problem. This article narrows the lens to one decisive layer inside that envelope—the bond—and explains why the correct monolithic refractory binder is the one whose complete transformation path matches the real job.

Follow the Bond Through Six States

Binder comparisons often use cured cold crushing strength or a single fired-property table. Those values are useful, but they are snapshots. A lining is a moving chemical system. The six-state model below exposes risks that a one-temperature comparison can hide.

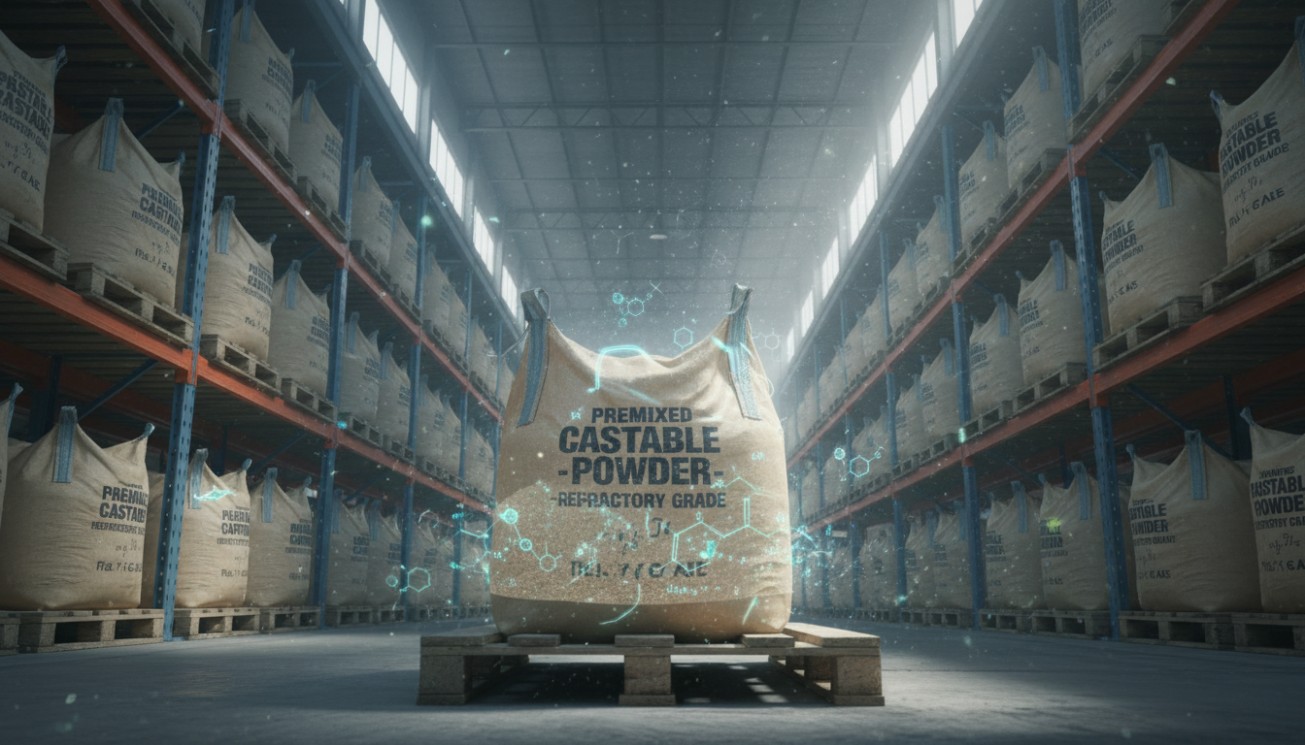

State 1: Storage—Before Water Is Added, Chemistry Has Already Started to Matter

A premixed castable is not inert simply because it is dry. Fine hydraulic binders, reactive oxides, dispersants, retarders, accelerators, and microsilica can respond to humidity, carbon dioxide, temperature, and storage time. Partial hydration or surface alteration may change wet-out time, flow retention, setting behavior, and strength even when the bag still looks usable.

This sensitivity is particularly important for a highly reactive hydratable alumina binder. Such powders can be more hygroscopic than conventional cement systems and depend on sealed packaging and dry storage. The correct control is not merely a printed shelf-life date. Procurement should record manufacturing lot, packaging condition, warehouse humidity exposure, first-in-first-out discipline, and a simple aged-mix verification before a critical campaign. A binder that worked in a fresh laboratory sample may behave differently after months in an unconditioned site container.

State 2: Mixing—The First Performance Test Is Wet-Out, Not Final Flow

Water addition initiates several events at once: particle surfaces become wetted, dispersants adsorb, agglomerates break, air is displaced, and the bonding reaction begins. A mix that appears dry after one minute may not need more water; it may need more mixing energy or time. Adding water too early can solve an apparent workability problem while creating a permanent porosity problem.

The mixing signature depends on binder surface area, fines loading, particle packing, mixer type, batch size, blade condition, water temperature, and addition sequence. High-shear compulsory mixing can produce a very different result from a low-energy drum mixer using the same formulation. For a low cement castable, dispersion efficiency is central because low water demand and dense packing are part of the design. For some hydratable-alumina systems, wet-out may take longer and the acceptable water window may be narrower. The field instruction must therefore specify a water range and a mixing sequence, not one nominal water number detached from equipment.

State 3: Set and Cure—Green Strength Comes From Different Mechanisms

Calcium aluminate cement develops a hydraulic bond as calcium aluminate phases hydrate. The exact hydrate assemblage and rate depend on cement mineralogy, temperature, water content, additives, and impurities. This route is familiar and can deliver reliable demoulding strength, but the speed of set is not a universal material constant. Hot water, a warm substrate, contaminated tools, or a different additive lot can compress working time; cold conditions can delay it.

Hydratable alumina also hardens through hydration, but its reaction path and timing differ. Boehmite- and bayerite-type products can form, and strength development can be slower than in a comparable CAC system. Colloidal-silica systems rely on destabilization and gel formation rather than cement hydration. Phosphate systems create chemical bonds through reactions among phosphate species and reactive oxide surfaces. Treating all four as if “24-hour cure” meant the same chemistry is an avoidable qualification error.

State 4: Dewatering—Free Water and Chemically Bound Water Do Not Leave Together

After placement, the lining contains free or physically held water plus water associated with hydration products. Heating first mobilizes moisture in larger connected pores. As temperature rises, bound water is released by decomposition of hydrates. The risk is governed by the rate of vapor generation relative to the lining’s ability to transmit gas—not by peak furnace temperature alone.

A good refractory castable dryout plan therefore couples the material’s water-release signature with lining thickness, vent paths, hot-air circulation, shell geometry, anchor density, ambient conditions, burner arrangement, and the location of the controlling thermocouple. “No cement” does not automatically mean “no explosion risk,” and lower total water does not guarantee safe pressure relief if the pore network is poorly connected.

State 5: Intermediate Heating—The Bond May Become Weak Before It Becomes Ceramic

Many systems pass through a strength trough. Hydrated or chemically bonded phases decompose before strong sintering bridges have developed. A room-temperature strength result and a high-fired strength result can both look excellent while the material remains vulnerable between them. This transition matters during fast heat-up, mechanical vibration, shell movement, burner impingement, and early process charging.

The engineering question is not “Does strength fall?” but “At what temperature, for how long, under what heating rate, and while carrying which stresses?” Hot modulus, hot strength, permanent linear change, elastic-modulus evolution, and thermal analysis can be more informative than cold crushing strength measured only after cooling.

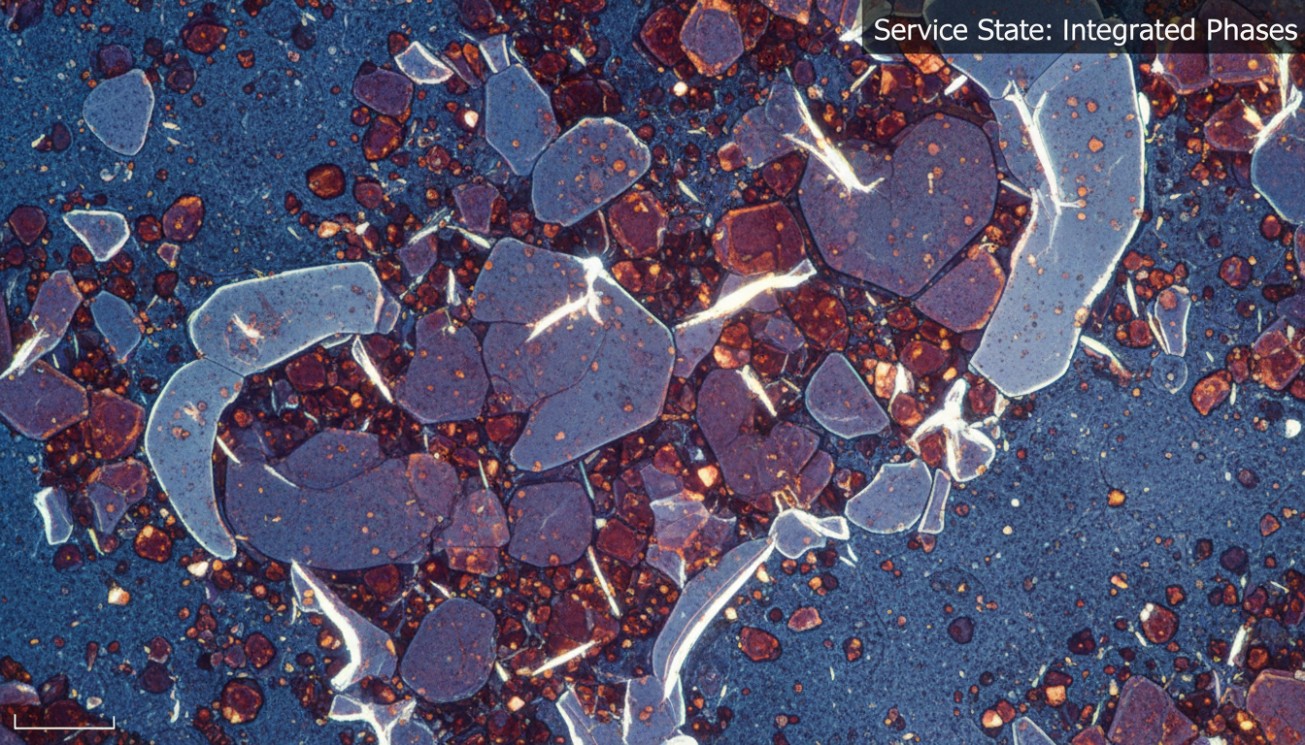

State 6: Service—The Binder Disappears as a Label but Remains in the Phase Budget

At service temperature, users no longer see cement hydrate, alumina gel, silica sol, or a liquid phosphate binder. They see the phases produced after those precursors react with matrix fines, aggregate surfaces, contaminants, and process media. Calcium can join alumina and silica phases; silica can participate in glass formation or other silicates; phosphate can evolve through several aluminum- or magnesium-phosphate species; alumina can support corundum or spinel-rich structures.

This is the central paradox of binder engineering: the original bond may be gone, yet the oxides it contributed continue to govern refractoriness, creep, corrosion, wetting, and thermal-mechanical behavior. The final decision must therefore combine installation chemistry with equilibrium and non-equilibrium phase reasoning.

Five Binder Families, Five Different Risk Profiles

1. CAC Systems: The Reference Platform, Not an Obsolete Default

The refractory industry’s familiarity with calcium aluminate cement is earned. It is available in controlled grades, supports predictable hydraulic setting, produces useful green strength, and is compatible with many casting, pumping, gunning, and precast practices. Its operational robustness can outweigh a theoretical phase-purity advantage when a lining must be installed by a variable field crew under changing weather.

The real technical issue is not whether calcium is “good” or “bad.” It is how much CaO enters the formulation, which other oxides are present, and what phases can form at the actual temperature and chemical potential. In alumina-silica systems, excessive CaO can contribute to lower-melting calcium aluminosilicate phases. In other compositions and temperature ranges, a carefully controlled cement addition may be entirely acceptable and may create the most reliable installation.

Conventional, low-cement, and ultra-low-cement are not interchangeable labels

A modern low cement castable is a particle-engineered system, not merely a conventional castable with less cement. Fine and ultrafine powders, dispersants, aggregate grading, and controlled water demand provide flow and density that the cement fraction alone cannot deliver. An ultra low cement castable pushes the CaO contribution lower still and often relies more strongly on reactive fines and precise dispersion. Industry classifications commonly distinguish these families by CaO content, so buyers should request the measured formulation basis rather than infer performance from a marketing name.

Reducing cement can improve high-temperature potential, but it also reduces tolerance for errors in water addition, mixer performance, additive dosing, and curing temperature. The correct comparison is not “more cement versus less cement.” It is “field robustness versus phase purity, with the required processing control included in the cost.”

2. Hydratable Alumina: Calcia-Free Hydraulic Bonding With a Different Drying Signature

A hydratable alumina binder offers a route to hydraulic hardening without deliberately adding CaO. This can be attractive in high-alumina, alumina-spinel, or alumina-magnesia matrices where calcium-containing phases would limit hot performance or corrosion resistance. The binder’s high specific surface area and reactivity, however, change the formulation problem.

More binder is not automatically better. Increasing a high-surface-area alumina binder can increase water demand, which can reduce density and strength. Wet-out may require more mixing time; cured green strength may be lower than in a cement-bonded counterpart; and dehydration can occur over a comparatively concentrated temperature interval. Low permeability combined with rapid gas release is a serious dryout concern. These systems have succeeded in demanding applications, but only when formulation, mixing, curing, permeability, and heating practice are designed together.

For that reason, a hydratable-alumina no cement castable should never be approved solely because its hot properties exceed a CAC control. Qualification must include aged dry mix, realistic mixer energy, full-thickness dryout simulation, and strength evolution across the intermediate-temperature range.

3. Colloidal Silica: Sol-Gel Bonding Changes Both Set Control and Water Release

In a colloidal silica bonded castable, nanoscale silica particles are carried in a liquid sol and later form a gel network. Because the primary bond does not depend on conventional cement hydrates, these systems can develop a more permeable drying structure and may support faster, safer water removal in suitable formulations. That advantage is valuable for shutdown work—but it is not automatic.

Gelation responds to pH, ionic strength, temperature, sol concentration, surface chemistry, and the type and dosage of gelling agent. Water quality or contamination that is harmless to one cement system may destabilize a sol prematurely. Conversely, a mix can retain flow but develop inadequate early strength if gelation is too slow. Liquid-binder storage and transport also require temperature and shelf-life controls that differ from bagged powder.

Silica is also a chemical addition. A colloidal silica bonded castable must be evaluated against the matrix and service media rather than promoted generically as “cement-free.” In some alumina-rich or basic environments, the introduced SiO₂ can affect hot phases, liquid formation, or corrosion response. The binder may improve dryout while making the service-phase budget less favorable; only a combined assessment reveals the trade.

4. Microsilica-Gel and Binder-Lite Systems: A Matrix Network, Not the Absence of Chemistry

Some no-cement products build cohesion through microsilica-rich matrices, specialized dispersants, gelling additives, reactive alumina, or combinations of ultrafine particles. Their strength emerges from packing, surface interactions, gel formation, and later sintering. Calling them “binderless” can be misleading because the formulation still contains a deliberately engineered bonding network.

A microsilica-gel no cement castable can offer low CaO, useful flow, and favorable installation or dryout behavior. Yet microsilica quality, carbon content, agglomeration, moisture exposure, and additive compatibility can materially change performance. The receiving specification should therefore identify critical fine-powder and additive properties, not just bulk chemistry. A supplier change that holds Al₂O₃ and SiO₂ constant can still alter rheology and set.

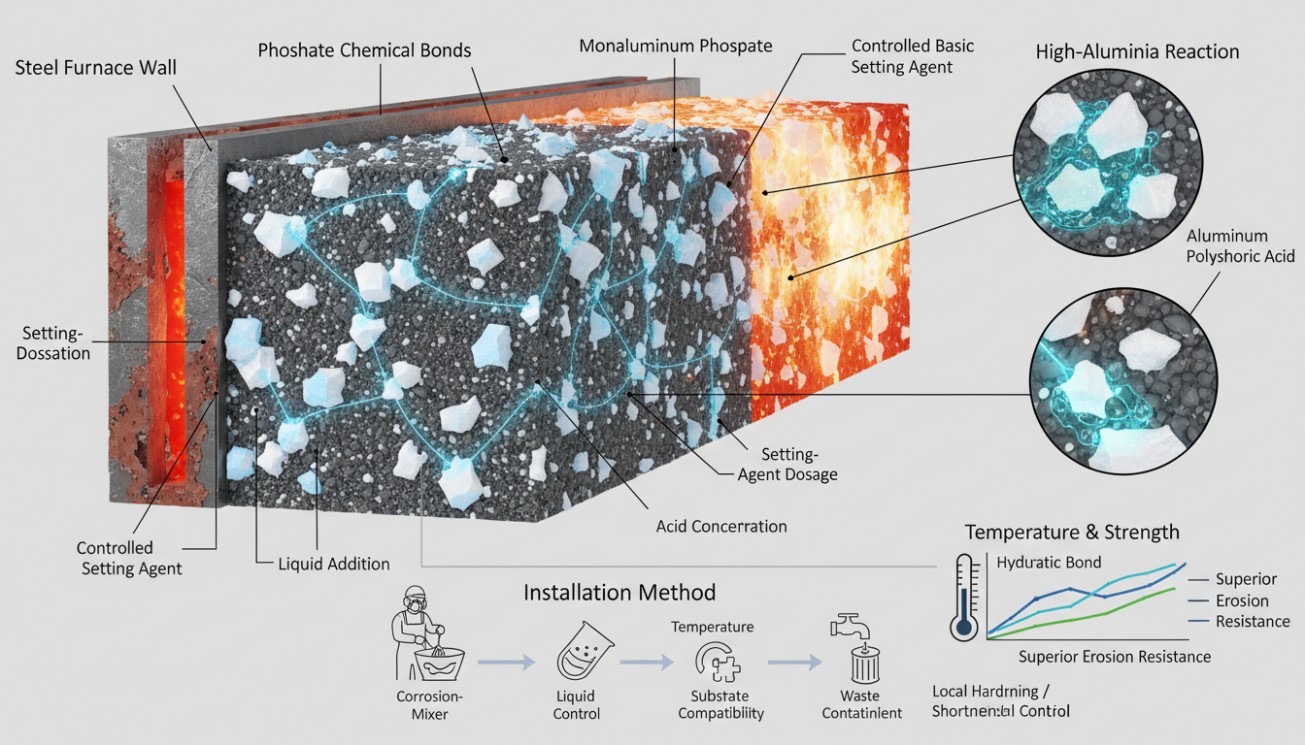

5. Phosphate Systems: Chemical Bonding for Specific Temperature and Maintenance Windows

A phosphate bonded refractory uses phosphoric acid, monoaluminum phosphate, polyphosphate, or an in-situ phosphate reaction to create chemical bonding. High-alumina systems may react phosphate species with alumina, aluminum hydroxide, or a controlled basic setting agent. These materials can provide useful strength and erosion resistance through temperature ranges where a hydraulic bond may be weakening, which makes them attractive for selected repairs and chemically bonded linings.

The category is highly formulation-specific. Acid or phosphate concentration, reactive oxide type, setting-agent dosage, liquid addition, temperature, and mixing sequence can shift setting from impractically slow to dangerously fast. The same chemical reactivity that creates the bond can shorten shelf life or produce local hardening if liquid is distributed poorly. Worker exposure, corrosion-resistant mixing equipment, wash-water control, and substrate compatibility belong in the installation method.

A phosphate bonded refractory should be chosen because its phase evolution, working time, and intermediate-temperature strength solve a defined problem—not because “chemical bond” sounds inherently superior to “hydraulic bond.” It can be a strong repair platform, but it needs hypothesis-driven testing at the relevant temperature and atmosphere.

The Temperature Ladder: What Must Be Proven at Each Level

These temperature bands are diagnostic zones, not universal hold points. Actual reactions depend on heating rate, sample size, binder chemistry, water content, and atmosphere. A laboratory coupon may be nearly isothermal; a 300-millimeter field lining can have a dry hot face and a pressurized cold interior at the same clock time. Qualification must preserve that distinction.

Installation Is Part of the Formulation

Control the water window, not just the target water

A site needs an acceptable minimum and maximum water addition tied to a defined mixer and batch size. The minimum must produce complete wet-out and placement; the maximum must preserve density, strength, and segregation resistance. Operators should record actual water, dry-material temperature, water temperature, ambient temperature, batch time, and discharge time. Without those records, a post-failure investigation cannot distinguish formulation sensitivity from execution drift.

Separate flow retention from setting time

Flow loss and structural set are related but not identical. A castable may stop flowing because of flocculation, temperature, evaporation, or early reaction before it has useful green strength. Another may retain flow yet take too long to demould. Measure initial flow, flow decay, penetration or ultrasonic set, and exothermic behavior. ASTM C860, C1445, C1446, and C1656 provide useful standardized concepts for consistency, flow, self-flow, and hydraulic reactivity, but project acceptance criteria still need to reflect the actual installation method.

Do not qualify a binder without the intended placement method

Vibration, self-flow, pumping, wet gunning, shotcreting, ramming, and precasting impose different rheology and set requirements. Pumping needs sustained lubrication and resistance to pressure filtration. Self-flow needs a stable balance between mobility and segregation resistance. Gunning needs rapid build-up and rebound control. Precast production can tolerate controlled factory curing and drying that a field repair cannot.

The winning binder in a laboratory bowl may lose in a transfer hose, behind dense anchors, around a narrow burner throat, or during a cold-weather pour. Installation simulation should include the longest transport time, most congested geometry, planned lift thickness, and expected ambient extremes.

Design Dryout From the Water-Release Signature

A generic heat-up curve is not a material property. It is an operating procedure that must be engineered from the castable’s water-release kinetics and the installed lining’s escape geometry. The objective is to keep vapor generation below the rate at which gas can travel through connected pores to a free surface.

For a CAC system, free water and water from multiple hydrate transformations may be released over overlapping intervals. A hydratable-alumina system can release a large fraction over a narrower low-temperature range, creating pressure even when total water is modest. Sol-gel systems may offer higher permeability and less chemically bound water, but pore blockage, dense placement, thick sections, or a sealed substrate can still create risk. Phosphate systems have their own mass-loss and phase-transformation events. This is why refractory castable dryout must be binder-specific and geometry-specific.

A defensible dryout package should contain five items

1. Material signature: water content, thermogravimetric mass-loss profile, permeability evolution, and temperature-dependent strength.
2. Installed geometry: minimum and maximum thickness, backing permeability, anchors, penetrations, joints, and blocked escape surfaces.
3. Control locations: thermocouples at the material positions most likely to remain wet—not only furnace freeboard temperature.
4. Heating logic: ramp rates and holds linked to measured lining response, with clear restart rules after a burner trip.
5. Acceptance evidence: full-scale mock-up or prior validated installation data for the same product, thickness, placement method, and heating arrangement.

Steel fibers, polymer fibers, drying additives, and engineered permeability may widen the safe operating window, but they do not cancel the need for a controlled schedule. A schedule copied from a thinner lining or a different binder family is not evidence.

Build a Phase Budget Before Choosing “Cement-Free”

The binder decision changes the matrix chemistry even when its dosage is small. A practical phase budget lists every oxide introduced by binder, sol, additive, fine powder, process contamination, and repair residue. It then asks which crystalline or liquid phases are plausible during heating and service.

Calcium budget

CAC adds CaO as well as Al₂O₃. In a silica-bearing high-alumina matrix, calcium can contribute to phases such as anorthite or gehlenite under relevant conditions. The engineering response is not necessarily zero CAC; it may be lower cement, lower silica, a different aggregate matrix, or acceptance because service temperature and load remain below the damaging regime.

Silica budget

Colloidal silica and microsilica are not chemically neutral processing aids. They can improve packing, flow, gel bonding, or dryout while also increasing the silica available for reaction with CaO, MgO, alumina, alkalis, or slag. A high-purity claim should therefore be reported as a complete oxide analysis, not as “cement-free.”

Phosphate and basic-oxide reactivity

Acid phosphate species can react strongly with basic or amphoteric oxides. Controlled reactivity produces useful set; uncontrolled reactivity destroys working time or creates heterogeneity. When magnesia is used as a setting agent or aggregate component, its surface area, calcination history, and reactivity can be as important as its bulk MgO percentage.

Process-media compatibility

The final matrix must be challenged with the real liquid, vapor, dust, or condensate. A static cup test can rank dissolution under controlled contact, but it does not reproduce renewal rate, thermal gradient, mechanical erosion, or changing chemistry. The slag–refractory reaction path should be evaluated as wetting, penetration, dissolution, phase formation, and removal—not reduced to a single basicity number. Binder selection and corrosion testing belong in the same qualification program.

A Selection Workshop: Match the Bond to the Dominant Project Constraint

This table is a starting map, not a product prescription. In professional refractory binder selection, the “best” candidate changes when the penalty hierarchy changes. A steel plant may accept higher material cost to reduce campaign risk; a precast producer may value demoulding consistency; a refinery repair may prioritize intermediate-temperature erosion resistance; a cement kiln shutdown may prioritize field robustness and schedule certainty.

Why Hybrid Binders Deserve More Attention—and More Control

Binder families do not have to be mutually exclusive. Small additions of a second reactive component can adjust wet-out, flow robustness, setting, cured strength, permeability, or phase evolution. A CAC–hydratable-alumina combination, for example, can use limited cement to accelerate early reaction while keeping total CaO below a conventional cement system. Other hybrids combine sols with reactive oxides or organic and inorganic bonding mechanisms.

The benefit is a wider performance envelope. The risk is interaction complexity. An additive that retards one mechanism may accelerate another; a small contamination may destabilize a sol; a minor cement addition may materially change hydrate formation; a setting agent may consume working time differently at 10°C and 35°C. Hybrid development therefore requires factorial testing rather than one-variable substitution.

Test interactions, not ingredients in isolation

A robust program varies binder ratio, water, temperature, and additive dosage across realistic limits. Track wet-out, flow retention, exotherm, set, green strength, permeability, mass loss, intermediate-temperature strength, and final phase development. The goal is not the single highest laboratory result; it is a stable operating window whose edges remain outside expected production variation.

The Binder Passport: What Buyers Should Demand From a Supplier

A generic technical data sheet usually reports chemistry, density, cold crushing strength, and permanent linear change. That is insufficient for a critical installation. The supplier should issue a project-specific binder passport containing the following evidence:

• Identity and control: binder family, formulation revision, manufacturing site, critical raw-material tolerances, lot traceability, shelf life, and storage conditions.
• Processing envelope: approved mixer type, batch size, dry-mix time, water-addition sequence, wet-out time, water range, discharge temperature, placement method, and maximum elapsed time.
• Set and cure: working-time definition, flow decay, exothermic or ultrasonic set profile, cure temperature limits, demould criterion, and minimum green strength.
• Drying behavior: free and bound water, mass-loss intervals, permeability evolution, recommended thickness-specific schedule, restart protocol, and supporting full-scale data.
• Transition properties: strength or modulus after representative intermediate temperatures—not only at 110°C and the final firing temperature.
• Service evidence: hot strength, creep or refractoriness under load where relevant, permanent linear change, thermal cycling, dynamic corrosion/erosion testing, and post-test mineralogy.
• Change management: advance notice and requalification triggers for binder, microsilica, dispersant, accelerator, aggregate source, packaging, or manufacturing-process changes.

Testing should be reproducible. ASTM C401 provides a recognized classification framework for alumina and alumina-silicate castables, while ASTM methods covering casting, firing, consistency, flow, and exothermic response can anchor the laboratory procedure. A standard method does not guarantee field performance, but it makes supplier comparisons less ambiguous.

A Practical Decision Rule

When two systems remain viable, compare them by the cost of failure at each lifecycle state:

1. What is the probability that storage or mixing variation pushes the material outside its processing window?
2. What happens if set is early, late, or uneven?
3. How much vapor-pressure margin exists in the thickest and least permeable zone?
4. Is there a strength trough during the first firing, and what loads act during it?
5. Which binder-derived oxides or phases accelerate the dominant service reaction?
6. Can the plant detect degradation before a safety or production limit is crossed?

This method often overturns a datasheet ranking. A technically advanced ultra low cement castable may be the best choice in a controlled precast plant but a fragile choice for an emergency field pour. A conventional CAC system may have a less attractive phase budget yet deliver lower total risk because installation is repeatable. Conversely, a carefully qualified no cement castable may justify its tighter processing demands when calcium-driven liquid formation limits campaign life.

Focused FAQ

Is a cement-free castable always more refractory?

No. Removing cement reduces one source of CaO, but refractoriness still depends on total chemistry, impurity levels, silica additions, phase formation, porosity, and load. A cement-free product can still develop unfavorable liquid phases or weak intermediate-temperature behavior. Evaluate the complete matrix and service reaction.

Is refractory CAC the same as Portland cement?

No. Calcium aluminate cement is based on calcium aluminate phases and is designed for refractory and specialty-cement behavior. Portland cement is dominated by calcium silicate chemistry and is not a substitute in high-temperature castables. Even within refractory CAC grades, mineralogy, alumina content, purity, fineness, and set behavior vary.

Can one dryout schedule be used for every binder family?

No. Water quantity, hydrate decomposition, gel structure, permeability, lining thickness, and heating geometry differ. A validated schedule is specific to the product and installation. Any change in water addition, fiber package, thickness, backing, or burner arrangement should trigger review.

Why can a castable flow well but set too slowly?

Flow measures particle mobility; set measures development of a load-bearing network. Strong dispersion can preserve flow while cold temperature, retarder dosage, low-reactivity raw materials, or sol chemistry delays bonding. Measure flow decay and set independently rather than using loss of workability as a set proxy.

Does higher cured strength predict longer lining life?

Not by itself. High green strength helps demoulding and installation survival, but service life may be controlled by thermal shock, creep, corrosion, abrasion, penetration, or an intermediate-temperature strength minimum. Strength must be measured at the temperatures and loading modes that govern risk.

Is colloidal silica compatible with every refractory matrix?

No. A colloidal silica bonded castable introduces silica and depends on controlled gelation. Both facts must fit the aggregate chemistry, additives, process media, storage conditions, and desired hot phases. It is a binder platform, not a universal upgrade.

When is phosphate bonding especially useful?

It can be valuable in selected repairs or linings that need chemical bonding and useful strength through a defined low-to-intermediate-temperature range. Suitability depends on phosphate source, setting agent, substrate, atmosphere, service temperature, and installation safety. A project trial is essential.

Can a small laboratory cube predict dryout of a full lining?

Only partially. A cube can compare formulations under controlled conditions, but it cannot reproduce the thermal gradient, longest vapor path, backing, anchors, joints, or burner circulation of a thick lining. Use laboratory screening followed by a representative full-thickness mock-up or validated field history.

What is the single most useful procurement question?

Ask the supplier to show how the bond changes from mixing temperature to service temperature—and to provide evidence at the weakest transition, not only at the strongest endpoints. That request immediately separates a lifecycle design from a product selected by one favorable number.

Conclusion: Select the Transformation Path, Not the Binder Name

The binder in a monolithic refractory performs several different jobs and then transforms into something else. CAC offers familiar hydraulic control and field strength. Hydratable alumina removes deliberate CaO but demands attention to wet-out, storage, permeability, and dehydration. Colloidal silica changes gelation and dryout while adding silica to the phase budget. Microsilica-gel systems depend on fine-powder and additive control. Phosphate bonding can solve specific repair and temperature-window problems but requires disciplined reaction control.

The best monolithic refractory binder is therefore not the one with the most fashionable label or the highest value on a cured datasheet. It is the one that remains installable within real site variation, produces adequate green strength, releases water through a validated route, crosses its temporary strength minimum safely, and develops phases compatible with the actual process. When those handovers are made explicit, binder choice stops being a formulation preference and becomes a reliability decision.
