Alternative Fuels in Cement Kilns: How Chemistry Redraws the Refractory Wear Map

The Operating Paradox: Decarbonization Can Move the Wear Map

A cement plant can raise thermal substitution, hold clinker quality within specification, keep the stack inside its permit, and still create a new refractory problem several months later. The first symptom may not appear at the burner. It may be a sticky preheater build-up, an unstable inlet coating, a recurring ring, deeper alkali penetration, a shell-temperature pattern that migrates between campaigns, or a castable surface damaged by increasingly aggressive cleaning.

This is the central operating paradox of cement kiln alternative fuels: the fuel is purchased for its energy and decarbonization value, but it also introduces mass, ash chemistry, moisture, particle behavior and combustion kinetics. Those inputs can change where volatile compounds evaporate, where they condense, how deposits adhere, whether a protective coating survives, and which zone becomes life-limiting. Thermal substitution rate, or TSR, records how much conventional-fuel energy has been replaced. It does not describe that entire causal chain.

The correct management question is therefore not, “What refractory is suitable for RDF?” RDF is not one chemistry, one particle distribution or one combustion history. Neither are biomass, tire-derived fuel, sewage sludge, waste oil or mixed industrial residues. The useful question is: Which change in the fuel-to-process system is moving which damage mechanism into which lining zone?

This article builds a fuel-to-lining map for answering that question. It does not argue against co-processing. Properly controlled co-processing can reduce fossil-fuel demand and recover the mineral fraction of suitable wastes. The Global Cement and Concrete Association also emphasizes that waste-derived fuels require consistent quality, regular input monitoring, suitable calorific value, controlled halogens and metals, defined feeding arrangements and site-specific acceptance. The same discipline that protects clinker quality and environmental compliance should be extended to the refractory campaign.

One TSR Can Hide Several Different Chemical Histories

Two kilns operating at the same TSR can expose their linings to materially different conditions. One plant may use a homogenized, low-moisture SRF through a stable calciner feed. Another may combine shredded tires at the kiln inlet, variable RDF at the calciner and intermittent biomass at the main burner. Even if both replace the same share of fossil heat, they do not necessarily share the same flame shape, ash load, local oxygen potential, sulfur release, chloride input, alkali balance or deposit rhythm.

TSR should therefore remain a decarbonization and energy KPI, not be promoted into a refractory predictor. A credible explanation of alternative fuel refractory wear needs at least six companion dimensions:

• Fuel identity and variability: source stream, preparation route, lower heating value, moisture, ash, volatile matter, fixed carbon, bulk density and particle-size distribution.
• Inorganic input: chlorine, total sulfur, sodium, potassium, phosphorus, zinc and other trace or volatile species, evaluated together with the raw mix, conventional fuel and returned dust.
• Delivery point: main burner, kiln inlet, riser duct, calciner or another approved feed location, because residence time and local gas-solid contact differ.
• Combustion quality: dosing stability, dispersion, ignition, burnout, oxygen availability and the duration and location of reducing pockets.
• Internal circulation: evaporation at hotter locations, transport in the gas phase, condensation in cooler locations, dust return and bypass extraction.
• Mechanical consequence: coating formation or loss, ring and build-up growth, cleaning frequency, material falls, abrasion and shell distortion.

This distinction prevents a common analytical error. A plant may observe higher stack SO₂ during a trial and conclude that sulfur in the alternative fuel is the only cause. Yet raw materials can dominate total sulfur input, while fuel particles burning in direct contact with the bed can create short local reducing events that decompose sulfates and intensify internal sulfur circulation. Stack emissions, local kiln chemistry and refractory exposure are related, but they are not interchangeable measurements.

The Fuel-to-Lining Causal Chain

A useful investigation follows five transfers. Each transfer can amplify, suppress or relocate the effect of the previous one. Skipping a transfer encourages the team to blame either the fuel or the brick without explaining how one reached the other.

Transfer 1: The Fuel Changes Heat Release and Gas-Solid Contact

Moisture consumes heat before the fuel can contribute useful thermal input. Oversized or poorly dispersed particles may ignite late, fall into material beds, or continue burning outside the intended zone. High volatile content can support rapid ignition but may also create concentrated reducing gases during devolatilization when mixing and oxygen distribution are insufficient. Bulk-density changes can make a volumetric feeder deliver a different mass even when its indicated speed is unchanged.

The result is not merely “more” or “less” heat. It may be a longer flame, a colder local surface, an overheated sector, a changed secondary-air demand or a short reducing plume. Those conditions alter clinker-liquid contact, sulfate stability and coating behavior. Fuel preparation and dosing are therefore part of the refractory operating envelope.

The feed point changes the mechanism

A particle introduced through the main burner experiences a different temperature, oxygen field, trajectory and residence time from the same particle introduced at the calciner or kiln inlet. Plant teams should never transfer a successful fuel limit from one feed point to another without reviewing combustion and circulation. “The plant already uses this material” is not sufficient change-control evidence when the location or delivery system changes.

Transfer 2: Fuel Ash Joins the Mineral System

Unlike a boiler that produces a separate ash stream, a cement kiln integrates suitable fuel ash into the clinker system. This is a core advantage of co-processing, but it also means that ash chemistry participates in the process. The ash may contribute calcium, silica, alumina, iron, alkalis, sulfur, phosphorus or other species. Its effect depends on quantity, mineral form, temperature history and where it enters.

A low-ash fuel with variable chlorine may create a different risk from a high-ash biomass with stable chemistry. A tire-derived stream may contribute useful heat and iron while its particle size and local combustion remain decisive. A sludge may bring moisture and mineral matter that change the mass balance. Fuel families are therefore starting points for characterization, not refractory grades in disguise.

Transfer 3: Volatile Species Establish Internal Cycles

Alkali-, chlorine- and sulfur-bearing compounds can volatilize in hot zones, travel with gas and dust, and condense where the temperature is lower. The condensed material may return toward the hot zone with the raw meal, evaporate again, and form an internal cycle. Dust recirculation and bypass operation determine how much of that inventory remains in the system.

When circulation intensifies, deposits and rings can grow, process stability can fall, and the lining can face repeated wetting by low-viscosity salt-bearing phases. This is the core route behind alkali chloride refractory attack and a major reason that input chemistry must be evaluated as a total kiln-system balance. Fuel certificates alone cannot show the exposure if raw materials, bypass dust, CKD return and conventional fuel are excluded.

The phrase cement kiln sulfur circulation should likewise refer to a measured or calculated system behavior, not only the sulfur percentage printed on a fuel report. Local reduction can destabilize sulfate-bearing material and increase gas-phase SO₂; cooler surfaces can then participate in deposition. Oxygen, CO, temperature, particle burnout and material contact must be read together.

Transfer 4: Deposits Become an Interface

Not every deposit is a failure. A stable, compatible coating in the correct zone can isolate refractory from direct clinker contact, smooth thermal gradients and reduce chemical exposure. Research on magnesia-spinel linings has shown that persistent coating can protect against temperature, clinker corrosion and volatile kiln-atmosphere components. The problem begins when the coating becomes chemically aggressive, mechanically excessive or cyclically unstable.

Plant records should distinguish three states:

• Protective coating: controlled thickness, stable attachment and no adverse effect on flow or kiln operation.
• Process build-up or ring: unwanted restriction, changed flow, rising pressure drop or torque, and a removal requirement.
• Reaction crust: an altered refractory-deposit layer whose detachment can remove part of the lining.

That distinction is essential to refractory coating stability. A thermal camera cannot identify the mineralogy of a coating, and a laboratory sample cannot by itself prove that the coating was stable over time. Condition trends, operating records and post-mortem sections must be combined.

Transfer 5: Interface Behavior Selects the Final Damage Mode

The final loss may appear as corrosion, infiltration, spalling, abrasion, impact damage or some combination. A salt-rich liquid can enter pores and grain boundaries, react with bond phases, create new phases and weaken the texture. A dense reacted layer can then crack at the boundary with less-altered material. A heavy deposit may detach and pull away the hot face. Repeated air-cannon or mechanical cleaning can remove a chemically weakened surface much faster than it would remove sound refractory.

This is why a diagnosis of cement kiln refractory damage should name both the initiating chemical change and the physical removal mechanism. “Chemical attack” is incomplete if the actual material loss occurred during build-up removal. “Mechanical damage” is incomplete if alkali infiltration first reduced the strength of the bond.

Build a Fuel Passport Before Raising the Substitution Rate

The purpose of a fuel passport is not to create another supplier brochure. It is to define the information that must remain connected to a delivered lot, its feeding history and the kiln response. Averages are useful for planning; variability controls upset risk.

The acceptable envelope must be plant-specific. It should reflect raw-meal chemistry, kiln design, bypass capacity, product mix, feed-point residence time, environmental permit and existing lining. Published chloride, sulfur or alkali values can support screening, but they should not be copied as universal refractory limits.

Read the Kiln as Four Chemical Neighborhoods

A single “cement refractory” recommendation is rarely defensible because temperatures, condensates, mechanical loads and maintenance practices change along the line. The map below is a diagnostic starting point, not a substitute for the plant’s own zone history.

Preheater and Calciner: Condensation, Build-Up and Cleaning

These cooler regions are where circulating volatile compounds can condense and combine with entrained dust. Field studies of multiple preheaters have found build-ups formed in alternating layers with compositions that changed as furnace operating conditions changed. That observation matters: a deposit is a time record. Grinding the entire sample into one average can erase the sequence that caused adherence.

The refractory risks include chemical infiltration, reaction of alkalis with aluminosilicate phases, loss of bond strength, build-up adhesion, abrasion and damage from repeated cleaning. In severe cases, the plant experiences RDF cement kiln corrosion as a coupled operating problem rather than a direct one-step reaction between an RDF label and a castable. The fuel stream changes combustion and circulating chemistry; deposits interact with the lining; cleaning or deposit falls complete the material loss.

Useful evidence includes cyclone pressure drop, gas and material temperature, CO and SO₂ transients, deposit location, cleaning frequency, fuel-source timeline, bypass and dust-return state, and layered deposit chemistry.

Kiln Inlet and Lower Transition: Reduction and Ring Initiation

The inlet is sensitive to fuel particles that enter or continue burning in contact with the material bed. Experimental work has shown that devolatilizing fuels can create local reducing gases and promote sulfate decomposition, increasing SO₂ release into the gas phase. The practical concern is not simply the daily average oxygen reading. A short, concentrated event near the bed may matter even when the overall kiln appears oxidizing.

Sticky sulfate- and alkali-bearing material can contribute to build-up or ring development. As restriction grows, gas and material flow change, which can further shift heat and deposition. This feedback loop makes cement kiln ring formation a process-control and lining problem at the same time. Ring location, growth rate and composition should be tied to the exact fuel campaign and feed settings rather than entered only as a maintenance note.

Burning and Sintering Zone: Coating Survival and Hot-Face Exposure

Here the lining faces the highest thermal load and direct clinker interaction. A compatible coating can be valuable. However, volatile-component swings combined with changes in clinker type can destabilize or remove that coating, exposing the basic brick to clinker liquid, temperature and aggressive kiln atmosphere. Research on magnesia-spinel brick reports corrosion associated with excess chloride and SO₃, while substantial alkali excess can attack colder portions of the brick and weaken its texture.

Fuel strategy must therefore be coordinated with clinker campaigns. Switching cement type and fuel recipe at the same time destroys diagnostic clarity and may destabilize the interface. If simultaneous change is unavoidable, the plant should treat it as a combined trial with tighter monitoring and earlier inspection.

Outlet, Hood and Cooler: Thermal Cycling, Abrasion and Impact

Alternative-fuel effects can reach the outlet through clinker chemistry, dust loading, coating fragments and changed operating stability. Outlet and cooler refractories may face rapid thermal cycling, abrasion by clinker and dust, impact from large pieces, and alkali-bearing infiltration. A chemically weakened castable surface can then be stripped by high-velocity solids or damaged during upset recovery.

Do not assume that a crack near the cooler is purely thermal because the final morphology looks mechanical. Compare the crack with penetration depth, reacted phases, adjacent deposit chemistry, anchor condition and the event timeline. The broader refractory lining failure root-cause analysis framework is useful when chemical weakening, cycling and impact may be coupled.

Five Damage Signatures—and the Evidence That Separates Them

Signature 1: A Salt-Rich Penetration Front

The hot face may appear glazed or darkened while a chemically altered band extends inward along pores, cracks or grain boundaries. XRF can show elemental enrichment; XRD can identify newly formed crystalline phases; SEM-EDS can map reaction products and penetration paths. The sample must include the deposit or hot face, reaction front and clean core. A surface scraping alone cannot show depth.

For mechanism selection, use the reaction-path logic in the slag–refractory compatibility guide: delivery and wetting, penetration, dissolution, new-phase formation and removal are separate stages. Although kiln deposits are not identical to metallurgical slag, the same discipline prevents one bulk chemistry number from replacing the pathway.

Signature 2: Layered Build-Up With Repeating Chemistry

Alternating layers suggest that exposure changed over time. Preserve the layers and analyze them separately. Match layer chemistry with operating intervals, fuel-source changes, clinker types, bypass availability, stops and cleaning events. If the build-up was crushed into a composite before sampling, the plant may still characterize its average composition, but it has lost much of the causal chronology.

Signature 3: Coating Loss Followed by Rapid Hot-Face Wear

The key evidence is a sequence: stable coating history, a change in fuel or clinker conditions, coating thinning or detachment, and accelerated shell-temperature or wear response. A single outage photograph cannot prove the order. Burner settings, coating observations, shell scans and campaign records are needed.

Signature 4: Chemically Weakened Surface Removed by Cleaning

The material may be recorded as “lost during air-cannon cleaning” or “damaged during ring removal.” That describes the final event, not necessarily the root cause. Compare cleaned and uncleaned areas, examine whether the bond phase was altered, and document tool energy, nozzle direction or mechanical method. Corrective action may need both chemistry control and a less damaging removal strategy.

Signature 5: Sector-Specific Damage With Fuel-Delivery Geometry

Damage concentrated in one circumferential sector may align with flame impingement, poor dispersion, an air leak, an inlet trajectory, a feed chute or uneven coating. The fuel certificate may be entirely compliant. The failure resides in delivery and local exposure. Map the damage in plant coordinates and compare it with burner and feed geometry before changing material grade.

A Controlled Change Protocol for Fuel Trials

A fuel trial should be governed like a process change that can alter the lining service envelope. The objective is not to prevent change. It is to make the result attributable, reversible and learnable.

Gate 0: Define the Decision and the Reversal Point

State the proposed fuel, source, preparation, feed point, target energy contribution and intended benefit. Define who may start, pause, reduce or terminate the trial. Establish environmental, clinker-quality, process-stability and refractory-protection triggers before feeding begins. A trial without rollback authority is an uncontrolled production experiment.

Gate 1: Capture a Comparable Baseline

Record the current fuel mix, mass and heat contribution; raw-meal chemistry; kiln feed; bypass and dust return; gas readings; kiln torque; cyclone pressure drop; coating or ring condition; shell thermal map; recent cleaning; clinker type; and known refractory thickness or repair state. Use stable intervals, not a conveniently selected good day.

Gate 2: Approve the Fuel Passport and Mass Balance

Verify representative sampling, laboratory methods and delivery variability. Convert fuel chemistry into mass input per tonne of clinker or another consistent production basis. Add contributions from all other inputs. The approval should include what happens to off-spec loads, blended lots and supplier changes.

Gate 3: Increase in Stages and Isolate Variables

Increase the contribution in defined stages that allow the kiln to establish a new stable state. Avoid changing fuel source, feed point, clinker recipe, bypass configuration and burner settings simultaneously unless the project is intentionally testing the combined system. Record every change with a timestamp so later lining evidence can be aligned with exposure.

Gate 4: Evaluate the Response as a Vector, Not One KPI

Alternative fuel kiln monitoring should examine direction and rate of change across several variables:

• fuel mass, calculated heat input and short-term feed variability;
• kiln-inlet and calciner O₂, CO and SO₂ trends, including transient frequency and duration;
• chlorine, sulfur and alkali inputs, bypass extraction and dust-return conditions;
• cyclone and riser pressure behavior, coating observations, ring location and kiln torque;
• shell temperature by registered zone, not only the maximum pixel;
• clinker mineralogy and quality, free lime, kiln stability and specific heat consumption;
• cleaning frequency, material falls, unplanned stops and visible refractory debris.

An average that remains in range can coexist with more frequent harmful excursions. Preserve high-resolution trends where the instrument and operating system permit; do not archive only shift means.

Gate 5: Close the Trial at the Next Physical Inspection

A trial is not fully qualified when the control room accepts the first week of operation. At the next planned access, compare the registered lining zones with the baseline. Measure remaining thickness where possible, photograph deposits and interfaces, collect location-controlled samples, and update the wear map. The digital evidence-chain approach in the refractory predictive-maintenance guide helps convert shell maps, scans and outage observations into comparable campaign records.

Only after the plant has linked stable operation and physical condition should it classify the fuel condition as qualified for that asset and operating envelope. Qualification should state limitations: source, preparation, feed point, clinker family, substitution range, bypass state and monitoring requirements.

The Minimum Viable Monitoring Architecture

More sensors do not automatically create a better refractory decision. A minimum viable architecture connects each measurement to a location, exposure and action.

Normalization matters. Fuel chloride in percent does not by itself show kiln input; mass feed and production must be included. Refractory loss in millimetres does not show rate without operating exposure. Repair tonnes do not show vulnerability without installed area and zone. Choose denominators that support the actual decision.

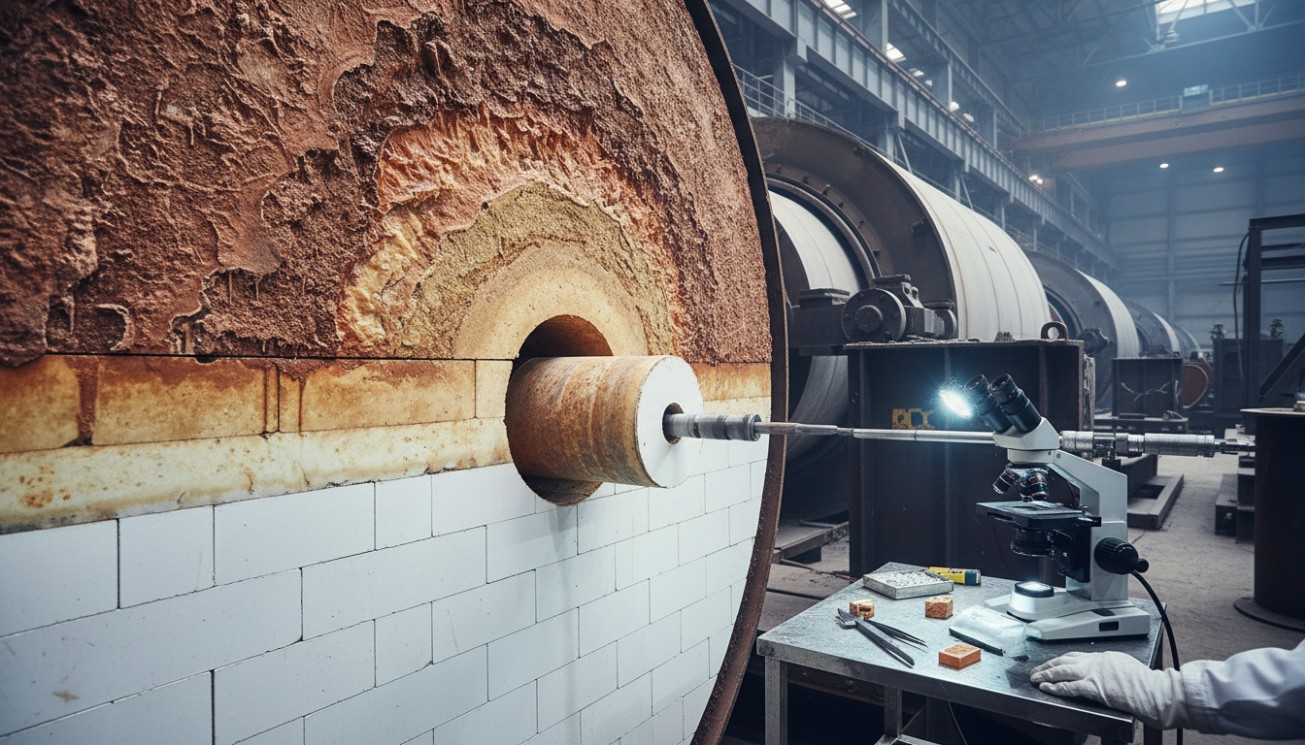

Post-Mortem Work: Sample the Path, Not Just the Debris

When a lining is removed, the plant has one opportunity to preserve the exposure gradient. A useful sample set includes:

1. the attached coating or deposit, with its layers kept in order;
2. the hot-face refractory and visible reaction crust;
3. a section crossing the penetration or color-change boundary;
4. the apparently clean core from the same location;
5. a low-exposure reference from the same installed product where available;
6. an uninstalled retained sample or verified production reference;
7. fuel and bypass-dust retains from the relevant operating period, when available.

Mark kiln line, zone, elevation, circumferential position, hot-face direction and sample date. Photograph the sample before cutting. Select XRF, XRD, petrography, SEM-EDS, porosity or mechanical tests according to the hypothesis. Do not request every laboratory test by default; each method should be able to support or reject a proposed reaction path.

For example, potassium enrichment alone does not prove that potassium caused the final loss. The investigation should determine whether it penetrated, which phases formed, whether a liquid or weak altered band developed, where cracks propagated and how the surface was removed. That sequence turns chemistry into an actionable cause.

Rewrite Procurement Around a Shared Service Envelope

Fuel suppliers, refractory suppliers, kiln operators and maintenance contractors are often managed through separate contracts. The lining experiences all four. Procurement should create common interfaces rather than leave causal gaps between scopes.

Alternative-Fuel Supply Clauses

• Define the lot, representative sampling method, test methods and reporting frequency.
• Specify energy, moisture, particle, ash, halogen, sulfur, alkali and plant-specific contaminant envelopes.
• Define excluded and unknown materials, inspection rights, retained samples and rejection procedure.
• Require notification before changes in waste source, blend recipe, preparation facility, storage, drying or shredding.
• Require traceability from delivery to approved feed point and operating interval.

Refractory Scope Clauses

• Describe the zone-specific chemistry, temperature, atmosphere, coating and cleaning conditions instead of requesting a generic “alternative-fuel-resistant” grade.
• Identify which failure mechanism the proposed chemistry and microstructure are intended to resist.
• Request references with comparable fuel, clinker, bypass, feed point and maintenance conditions.
• Define sample retention, post-mortem participation and change notification for product composition or manufacture.
• State installation, joints, anchors, cure and dry-out requirements separately from chemical resistance.

The appropriate cement kiln refractory selection decision starts with the dominant mechanism and zone, not with a fuel-family label. The earlier refractory selection by process chemistry guide provides the broader service-envelope method. In an alternative-fuel project, that envelope must be updated with the new mass balance, combustion pattern, volatile cycle and coating state.

Maintenance and Cleaning Clauses

• Define permitted tools, energy, access and protection for ring or build-up removal.
• Require pre- and post-cleaning location records.
• Separate deposit removed from refractory unintentionally removed.
• Trigger engineering review when cleaning frequency, removed mass or lining damage rises.

This contract architecture makes the plant’s objective explicit: increase low-carbon fuel use without allowing an unmeasured transfer of cost into refractory consumption, outages, cleaning or unstable production.

A Worked Comparison: The Same TSR, Two Different Wear Maps

Consider two hypothetical campaigns at 45% TSR. The example is conceptual; it does not propose universal limits.

Campaign A: Stable Prepared SRF at the Calciner

The SRF has controlled moisture, a narrow particle envelope, consistent bulk density and documented chlorine variability. The dosing system maintains a steady mass flow. Oxygen distribution supports burnout in the intended zone. Total chlorine input is balanced with bypass extraction, and deposit growth remains within the established cleaning regime. Shell-temperature maps and preheater pressure drop remain comparable with baseline.

The plant should not assume zero refractory effect, but the causal chain is controlled and observable. At the next outage, the preheater build-up layers and castable surface are compared with baseline before the condition is released for a broader operating envelope.

Campaign B: Variable RDF Plus Oversized Biomass at Multiple Feed Points

The average TSR is also 45%, but fuel moisture and density fluctuate. Oversized biomass reaches the bed, short CO excursions become more frequent, and local reduction increases sulfur release. Chlorine input arrives in batches rather than evenly. A preheater deposit grows, cleaning frequency rises, and an inlet ring changes material flow. A coating later detaches from a transition-zone sector, exposing brick already infiltrated by circulating species.

Calling this “high TSR wear” would hide the actionable causes. The corrective actions may include tighter fuel preparation and lot control, feed redistribution, combustion adjustment, bypass review, cleaning changes and zone-specific lining review. Reducing TSR could stabilize the plant temporarily, but it would not by itself explain which transfer failed.

The example shows why fuel procurement, process control and refractory engineering need one common exposure record. The target is not the lowest possible TSR and not the highest possible TSR. It is the highest technically, environmentally and economically viable substitution under a controlled service envelope.

Focused FAQ

Do alternative fuels always shorten cement-kiln refractory life?

No. Alternative fuels do not create one universal wear response. Life depends on fuel quality and variability, preparation, feed point, combustion, total kiln chemistry, bypass and dust return, coating behavior, kiln design, operating stability, maintenance and the installed refractory system. A well-controlled higher substitution condition can be less damaging than a lower but unstable one.

Is TSR a useful refractory KPI?

TSR is useful context, but it is not sufficient as a refractory KPI. Pair it with fuel mass and variability, ash and volatile inputs, feed point, combustion transients, bypass state, deposit or ring trends, shell thermography and measured lining condition.

Which alternative-fuel property matters most?

There is no single universal property. Moisture and heating value influence thermal balance; particle size and density influence feeding and burnout; chlorine, sulfur and alkalis influence internal cycles; ash chemistry changes mineral input. The controlling property depends on the plant and failure mechanism.

Does chlorine in RDF directly corrode every refractory?

No. Chlorine can participate in volatile alkali salts, condensation, deposits and infiltration, but the reaction path depends on temperature, accompanying alkalis and sulfur, refractory chemistry, porosity, coating, circulation and removal. Evaluate total system input and the zone-specific reaction front.

Why can stack emissions look acceptable while build-ups increase?

Stack compliance and internal circulation answer different questions. Volatile compounds can evaporate, condense and recirculate inside the kiln-preheater system without appearing as a proportional stack increase. Dust return and bypass extraction also influence retention. Compliance monitoring remains mandatory, but process and lining monitoring must be added.

Can a stable coating protect the lining?

Yes. A compatible, stable coating can reduce direct thermal and chemical exposure. However, excessive, chemically aggressive or unstable deposits can restrict flow, create mechanical loads or pull away refractory when they detach. Plants should distinguish protective coating from process build-up and reaction crust.

Should the plant simply buy an “alkali-resistant” refractory?

No. The plant should identify the dominant zone-specific mechanism, including infiltration, reaction phases, coating adherence, abrasion, thermal cycling and cleaning. A broad marketing label cannot replace microstructure, installation and service-envelope evidence.

What should trigger a fuel-trial hold?

Triggers must be approved before the trial and should cover environmental permit conditions, clinker quality, combustion stability, abnormal CO or SO₂ events, pressure or torque changes, deposit or ring growth, unsafe shell-temperature trends, material falls and visible lining damage. The responsible authority and rollback action must be explicit.

What is the best outage sample for diagnosing the effect?

No single fragment is enough. Preserve the deposit layers, hot face, reaction front and clean core from a registered location, plus a low-exposure or uninstalled reference. Link those samples to fuel and operating history. The gradient explains the pathway better than averaged debris.

Conclusion: Control the Transfers, Not Just the Fuel Percentage

Alternative fuels can support cement decarbonization and circular resource use, but their refractory effect cannot be governed through TSR alone. The fuel changes heat release and gas-solid contact. Its ash joins the mineral system. Volatile species establish internal cycles. Deposits become a protective or destructive interface. Chemical weakening, thermal stress, abrasion, impact and cleaning then determine how the lining is finally lost.

A high-performing plant makes every transfer visible. It buys fuel through a controlled passport, calculates total-system chemistry, qualifies each feed point, monitors combustion and circulation, maps coating and lining by zone, preserves post-mortem gradients, and updates specifications after verified campaigns. That approach allows the plant to increase substitution without treating refractory consumption as an unavoidable hidden cost.
